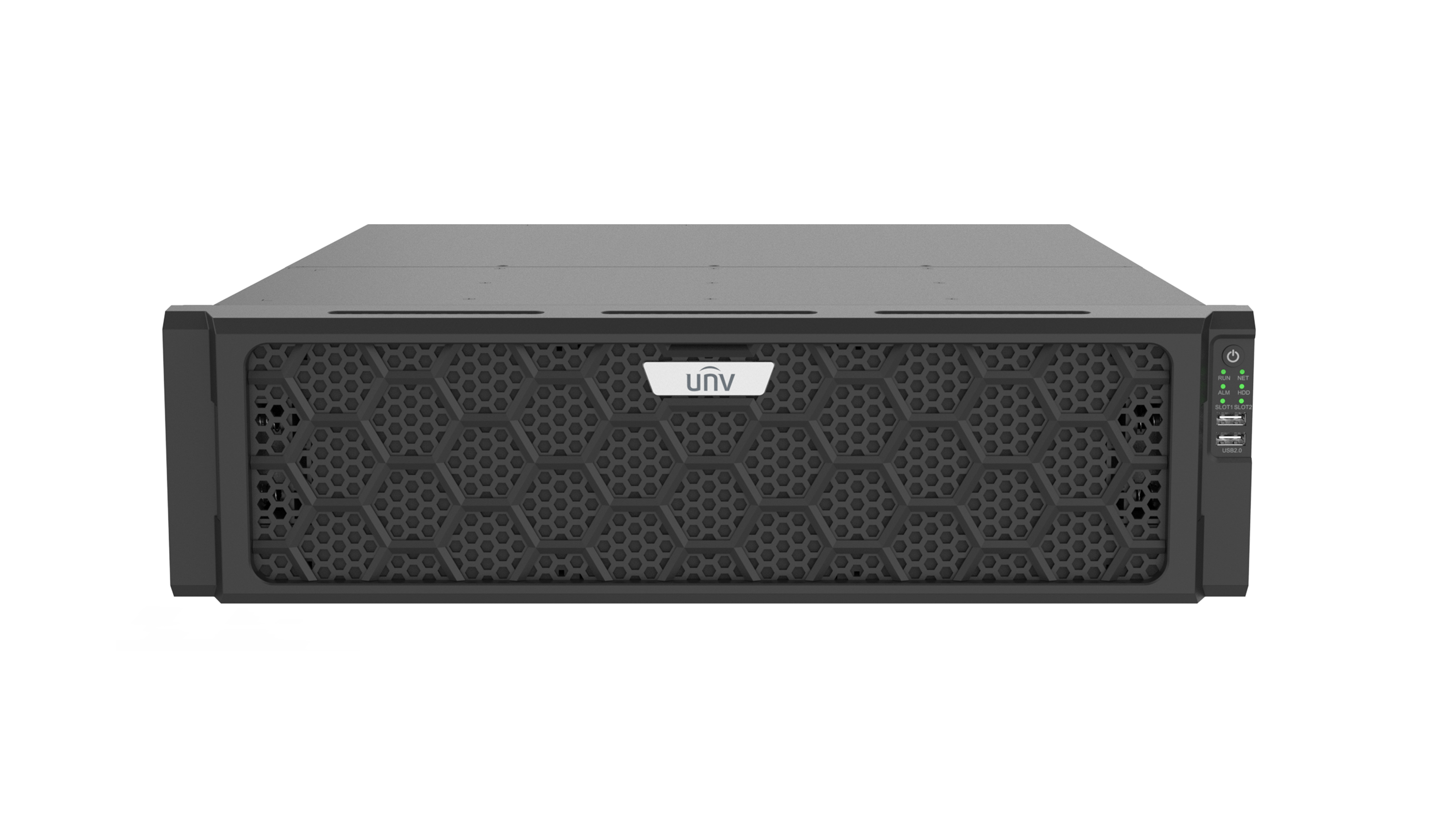

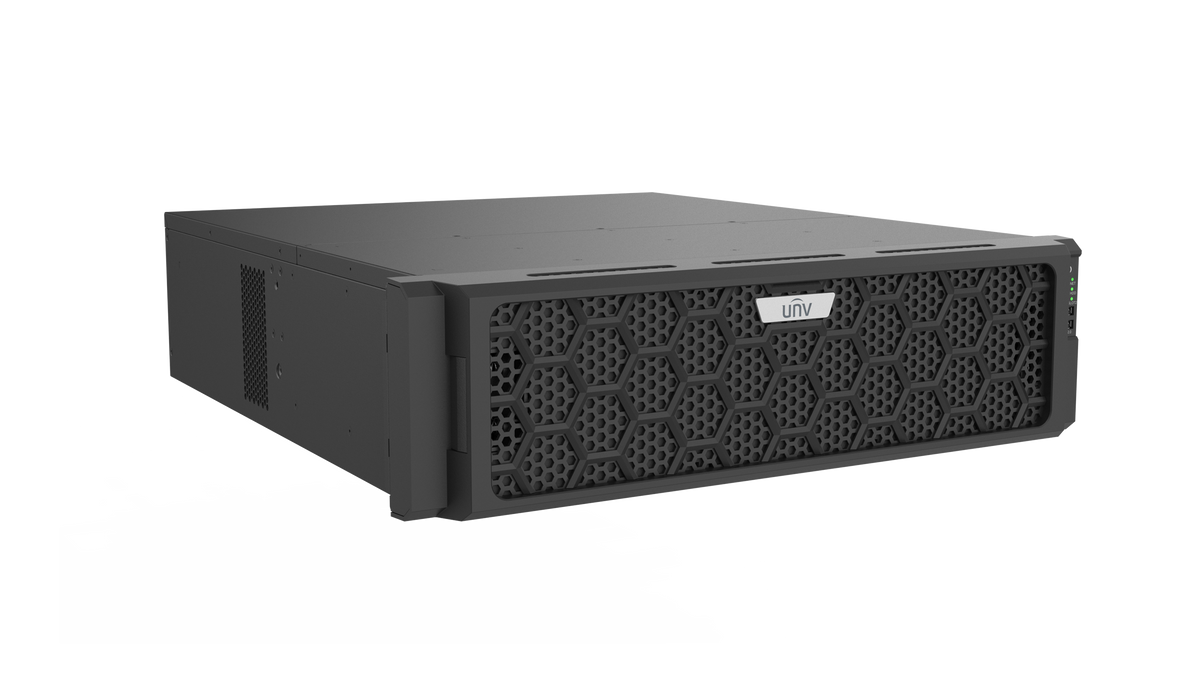

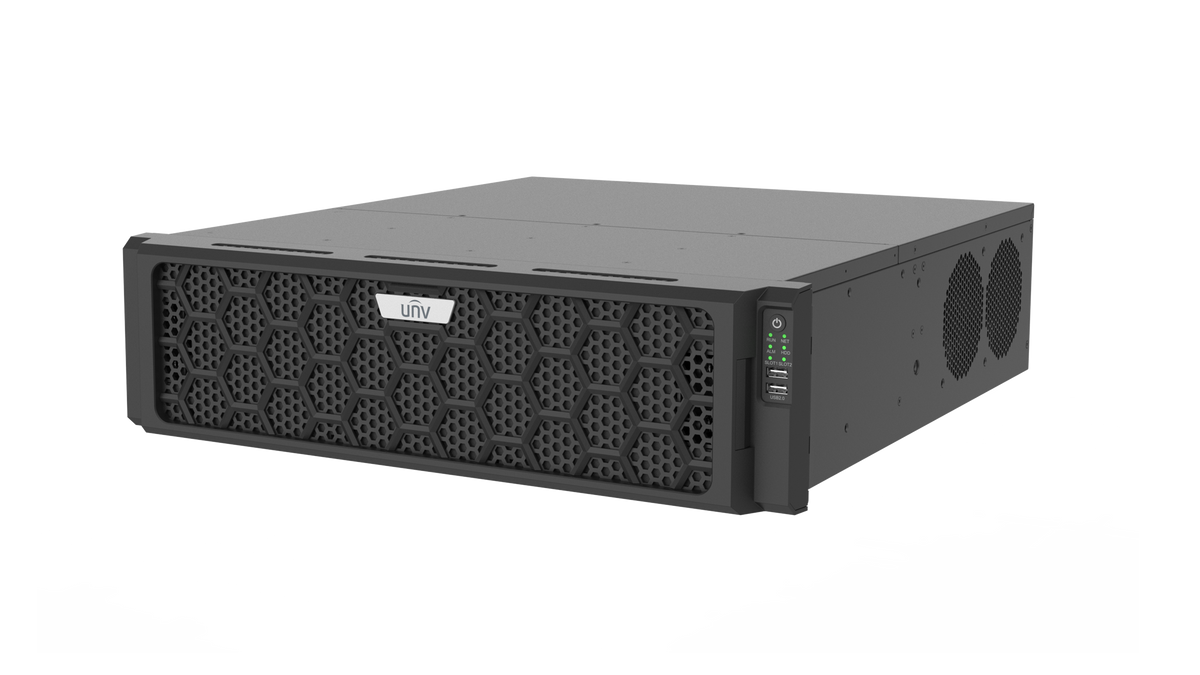

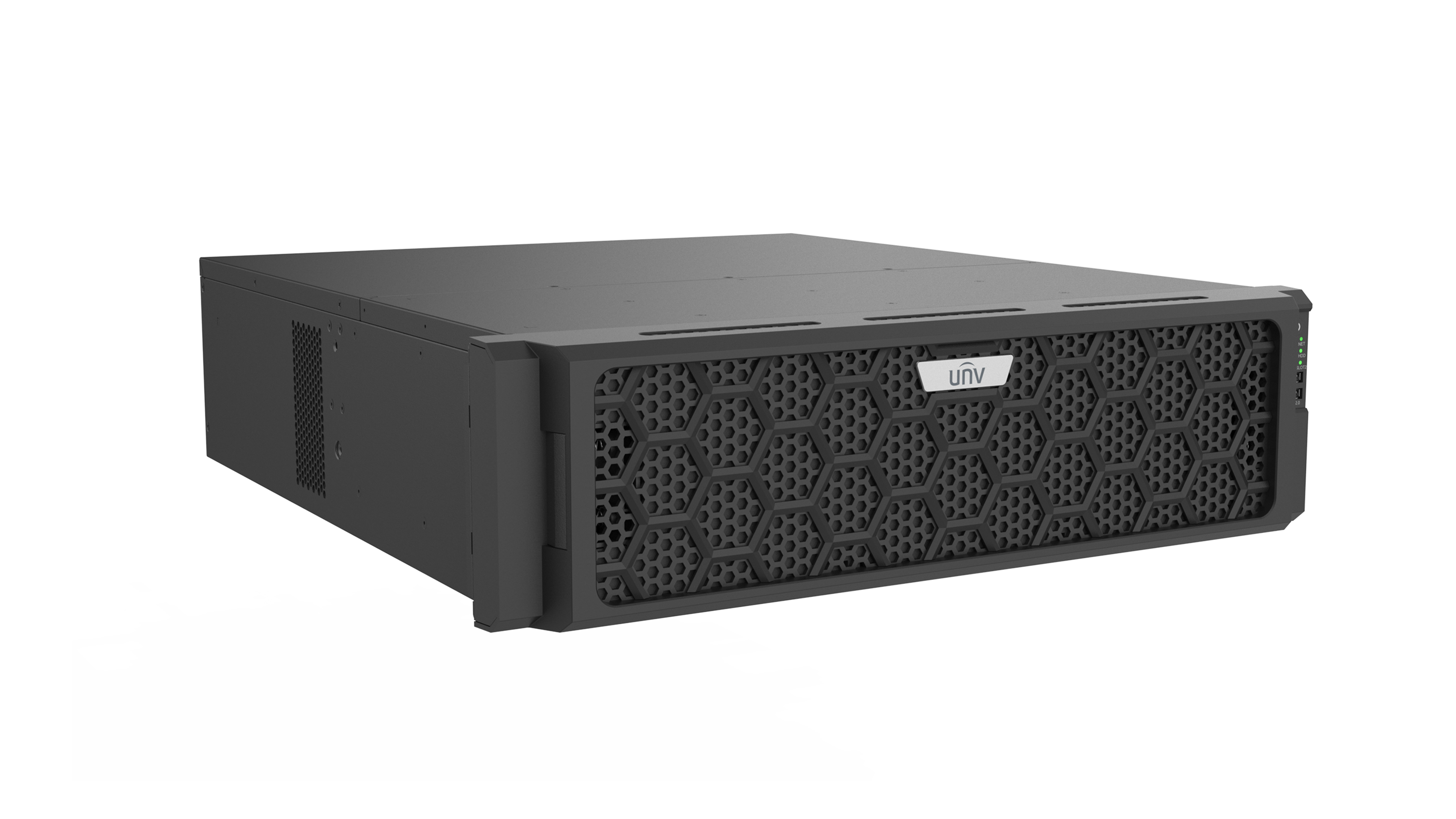

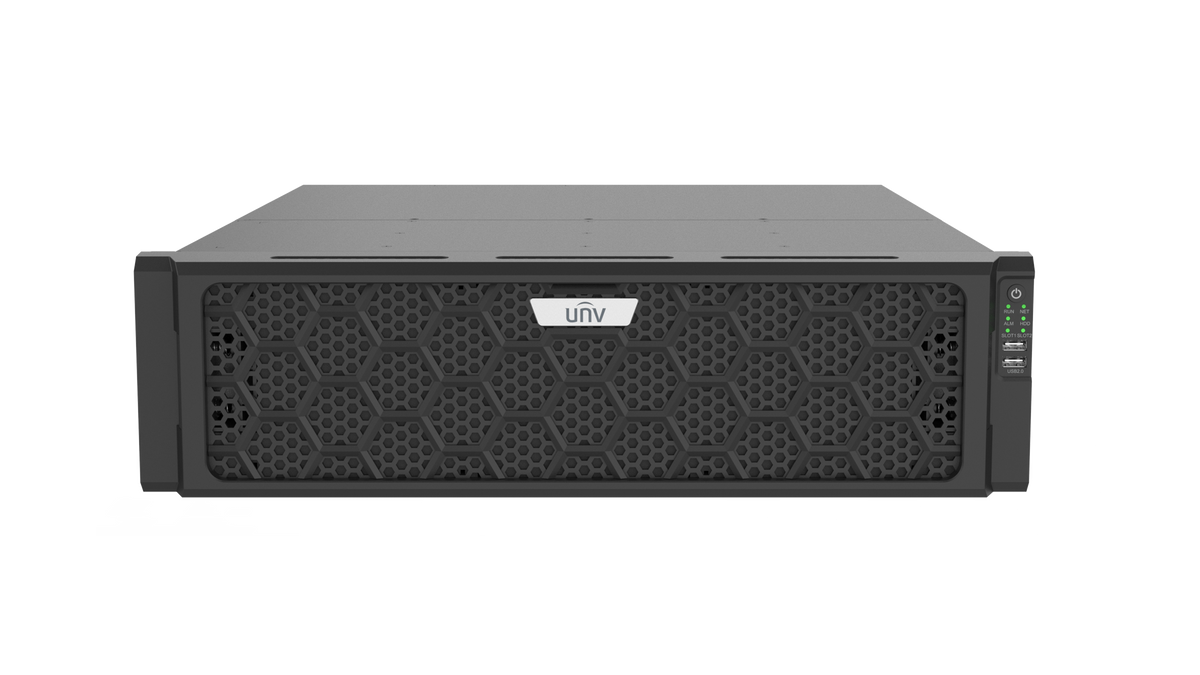

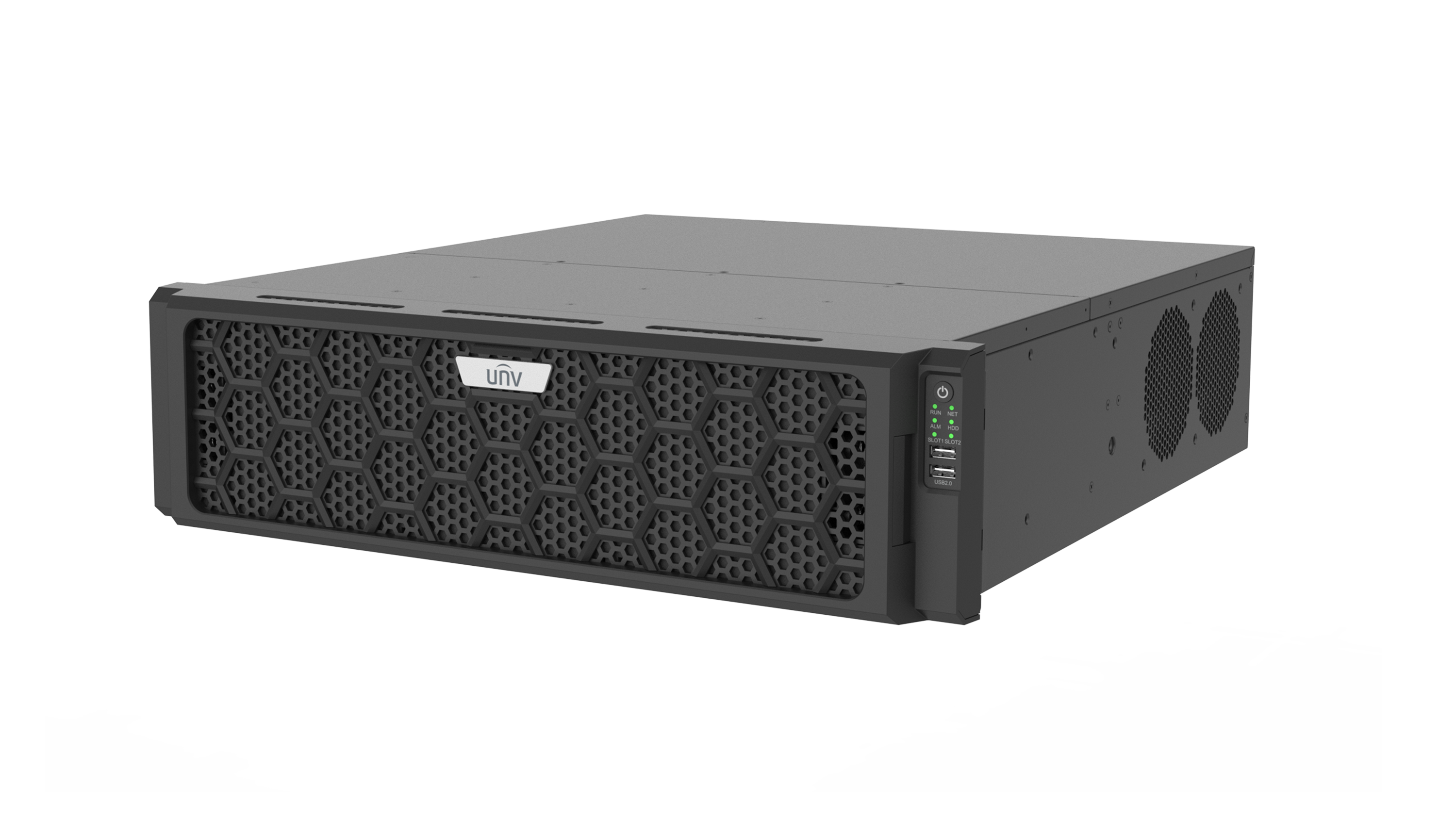

128 Channel 16-SATA 3U NVRPart Number: NVR516-128E-R
Channels & Inputs
128 IP Channels
Max Resolution
Up to 32MP (8K HDMI)
HDD Storage
16 SATA (Up to 24TB ea, Hot Swap)
Network & Redundancy
Dual Gigabit RJ45 / RAID & RPS
Smart Feature Highlights
Video Output
2-HDMI (8K/4K), 2-VGA, Independent Output
Bandwidth
Incoming - 640Mbps / Outgoing - 640Mbps
HDD Storage
16 SATA Interfaces, Hot Swap, RAID 0/1/5/6/10/50/60
Network Ports
2 RJ45 10M/100M/1000M Self-Adaptive Ethernet
Chassis Form Factor
3U, Rackmountable (482mm × 533mm × 131mm)
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Not Compatible
| Video, Decoding & Storage (NVR516-128E-R) | |
|---|---|
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | H.264: 2 x 32MP@30, 4 x 16MP@30, 6 x 12MP@30, 9 x 4K@30, 14 x 5MP@30, 18 x 4MP@30, 24 x 3MP@30, 36 x 1080P@30, 64 x 720P@30 H.265: 3 x 32MP@30, 6 x 16MP@30, 8 x 12MP@30, 12 x 4K@30, 19 x 5MP@30, 24 x 4MP@30, 32 x 3MP@30, 48 x 1080P@30, 96 x 720P@30, 128 x D1 |
| Audio Compression | G.711A, G.711U |
| Video/Audio Input | |
| IP Video Input | 128-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | HDMI1: 8K(7680x4320)/30Hz, 4K(3840x2160)/60Hz, 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; HDMI2: 4K(3840x2160)/60Hz, 1920x1080/60Hz, etc. |
| VGA Output | 1920x1080/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | 1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP video resolution, with 1080P snapshot resolution) |
| Recording | |
| Recording Resolution | 32 MP/16 MP/12 MP/8MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
| Hard Disk | |
| SATA | 16 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (varies with temperature/size; temp should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |
| Smart Features, Network & General | |
|---|---|
| Network | |
| Incoming Bandwidth | 640Mbps |
| Outgoing Bandwidth | 640Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPOE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser(Plugin) | Windows: IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart Features | |
| Smart by IPC | All channels (up to 32 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Alarm & External Interface | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB | Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0 |
| RS485 / RS232 | 1 RS485 / 1 RS232 |
| Alarm In / Out | 16-ch In, 10-ch Out |
| Power Output / Supply | 12V Power Output; AC 100 to 240V Power Supply |
| Redundant Power Supply | Support |
| Environment & Dimensions | |
| Working Temperature | -10 °C ~ 55 °C (14 °F ~ 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption | ≤ 50W (without HDD) |

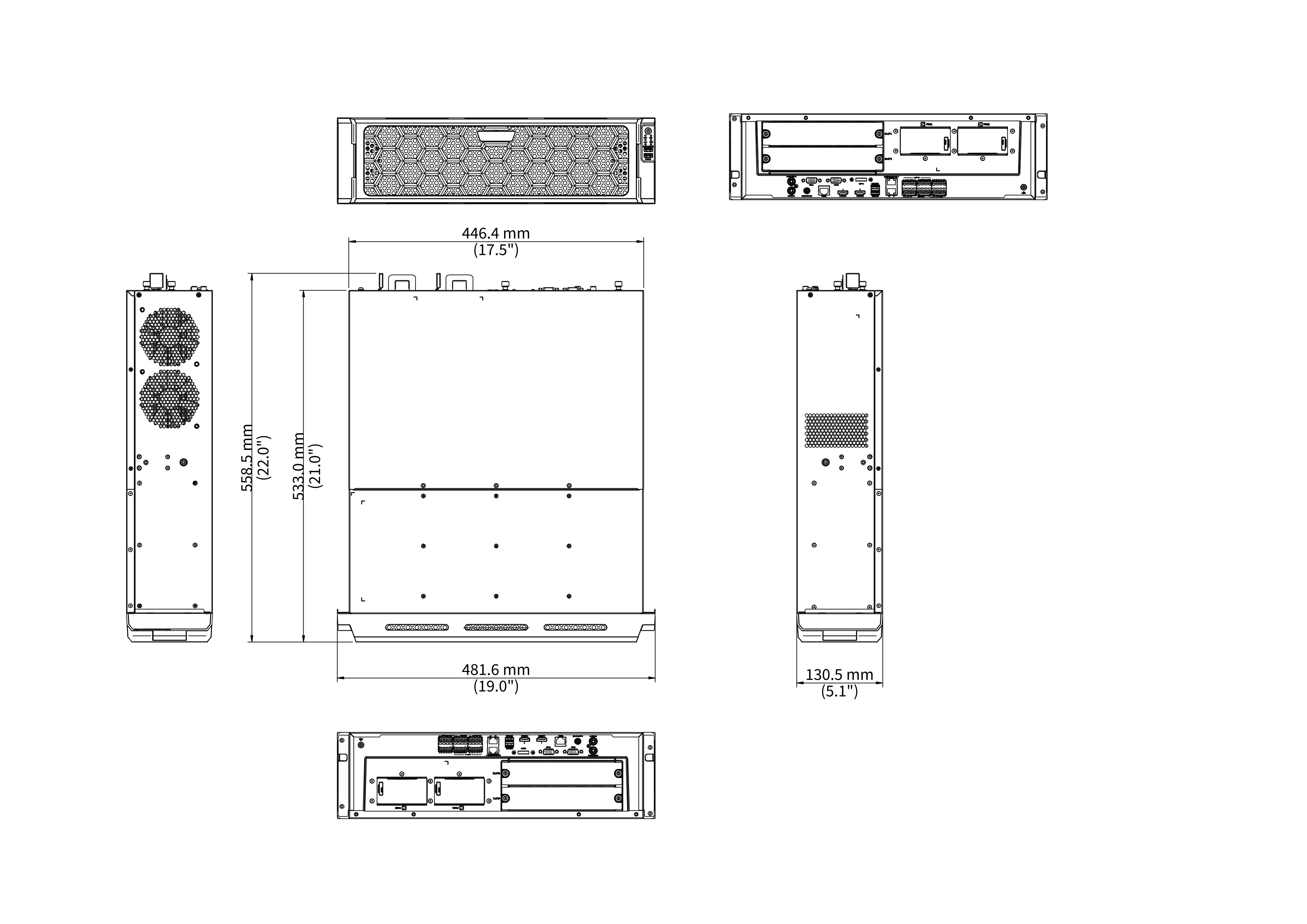

| Dimensions & Weight | 482mm × 533mm × 131mm (19.0"×21.0"×5.1"), Weight: ≤ 6.5Kg (14.3lb), 3U |
| Certification | CE, FCC, UL, ROHS, WEEE |
