16 Channel 2-SATA 1U NVR (Deep Learning)Part Number: NVR502-16B-IQ
Channels & Inputs
16 IP Channels
Max Resolution
Up to 16MP (4K)
HDD Storage
2 SATA (Up to 24TB ea)
Network & Ports
Dual Gigabit RJ45
Smart Feature Highlights
Video Output
1-HDMI (4K), 1-VGA (1080P), Independent Output
Bandwidth
AI Off - 320Mbps (In) / 160Mbps (Out), AI On - 160Mbps (In) / 160Mbps (Out)
HDD Storage
2 SATA Interfaces, Up to 24TB per HDD, RAID 1
Network Ports
2 RJ45 10M/100M/1000M Self-Adaptive Ethernet
Chassis Form Factor
1U, Rackmountable (380mm × 315mm × 53mm)
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Yes, HDMI/VGA Enabled. UNV/Onvif Cameras.
| Video, Decoding & Storage (NVR502-16B-IQ) | |
|---|---|
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264[cite: 11] |
| Decoding Capability | Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30[cite: 11] |
| Audio Compression | G.711A, G.711U[cite: 11] |
| Video/Audio Input | |
| IP Video Input | 16-ch[cite: 11] |
| RCA Audio Input | 1-ch[cite: 11] |
| Video/Audio Output | |
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz[cite: 11] |
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz[cite: 11] |
| RCA Audio Output | 1-ch[cite: 11] |
| Liveview Display | 1/4/6/8/9/16[cite: 11] |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16[cite: 11] |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output)[cite: 11] |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. 8 MP video resolution, with 1080P snapshot resolution)[cite: 12] |
| Recording | |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF[cite: 12] |
| Synchronous Playback in Local | 16-ch[cite: 12] |
| Hard Disk | |
| SATA | 2 SATA Interfaces[cite: 13] |
| Capacity | Up to 24TB for each HDD (varies with temperature/size; temp should not exceed 40°C)[cite: 13] |
| Disk Group | Support[cite: 13] |
| Redundant Storage | Support[cite: 13] |
| Disk Array Type | RAID 1[cite: 13] |
| Smart Features, Network & General | |
|---|---|
| Network | |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps[cite: 11] |
| Outgoing Bandwidth | 160Mbps[cite: 11] |
| Remote Users | 128[cite: 11] |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, IPv6, IPv4, UPnP[cite: 11] |
| Browser(Plugin) | Windows: IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+[cite: 11] |
| Smart Features | |
| Smart by IPC | All channels (up to 8 images/s total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring[cite: 12] |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)[cite: 12] |
| VCA Search | AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map[cite: 12] |
| Face Picture Library | Up to 50,000 face pictures in total[cite: 6, 12] |
| Vehicle Number Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total[cite: 12] |
| Capacity of Snapshot Records | 2M records for face snapshot; 2M records for vehicle snapshot; 3M records for SIP; 2M records for video Metadata[cite: 12] |
| Alarm & External Interface | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection[cite: 13] |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low/Full, Recording/Snapshot Abnormal, Array Damaged/Degraded[cite: 13] |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces[cite: 13] |
| USB | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0, 1 x USB 3.0[cite: 13] |
| RS485 / RS232 | 1 RS485 / N/A RS232[cite: 13] |
| Alarm In / Out | 8-ch In, 2-ch Out[cite: 13] |
| Power Supply | DC 12V / 3A[cite: 13] |
| Environment & Dimensions | |
| Working Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F)[cite: 13] |
| Working Humidity | ≤ 90% RH (non-condensing)[cite: 13] |
| Power Consumption | ≤ 12W (without HDD)[cite: 13] |

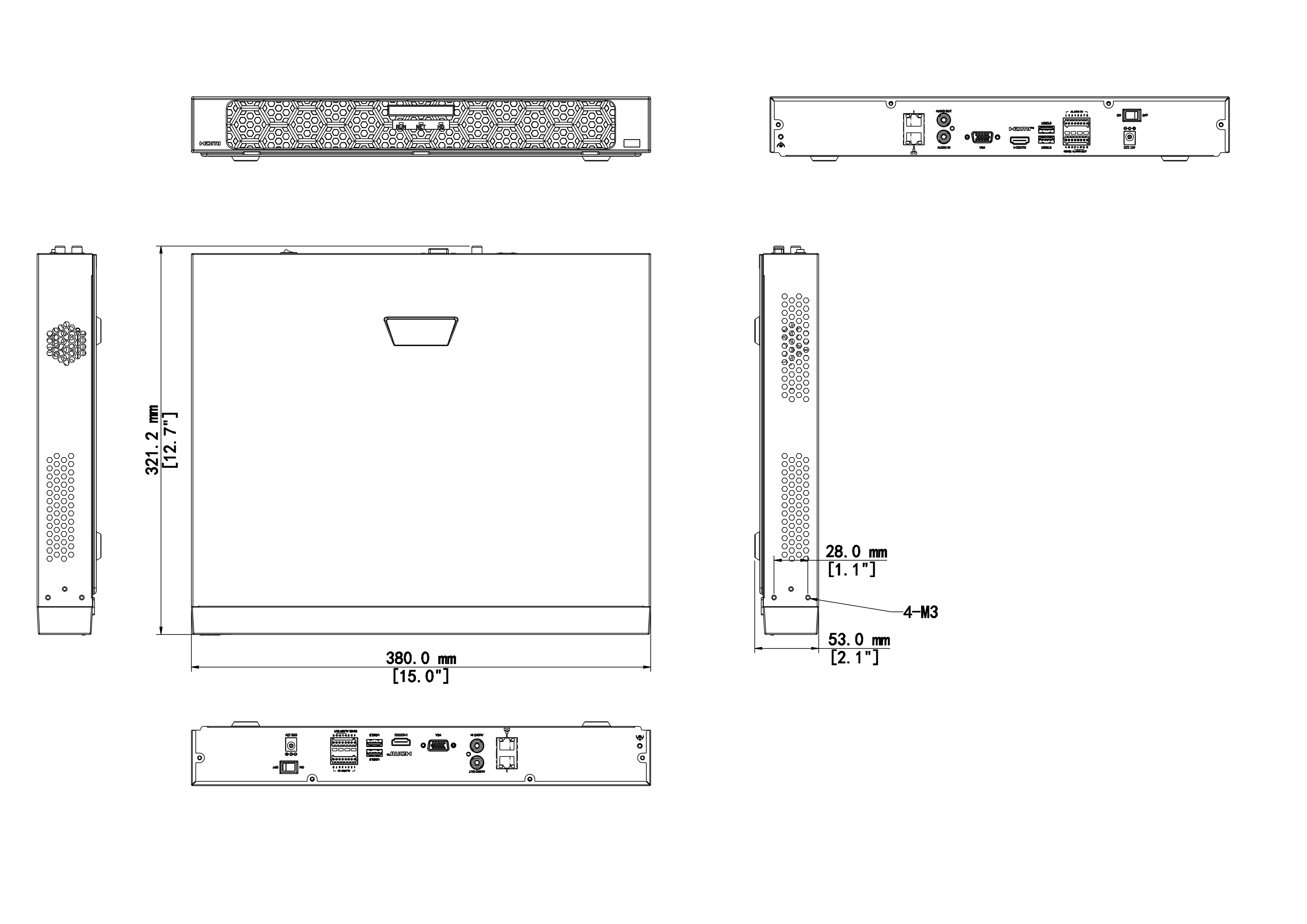

| Dimensions & Weight | 380mm × 315mm × 53mm (15.0"×12.4"×2.1"), Weight: ≤ 2Kg (4.4lb), 1U[cite: 13, 14] |
| Certification | CE, FCC, UL, RoHS, WEEE[cite: 13, 14] |
