16 Channel 2-SATA 1U POE NVRPart Number: NVR302-32B-IQ
Channels & Inputs
32 IP Channels
Max Resolution
Up to 16MP (4K)
HDD Storage
2 SATA (Up to 24TB ea)
Network & PoE
Built-in PoE (240W)
Smart Feature Highlights
Video Output
1-HDMI (4K), 1-VGA (1080P), Independent Output
Bandwidth
Incoming - 320Mbps / Outgoing - 160Mbps
HDD Storage
2 SATA Interfaces, Up to 24TB per HDD, RAID 1
Network & PoE
16 Built-in PoE RJ45 Ports (Max 240W total)
Chassis Form Factor
1U, Rackmountable (380mm × 322mm × 53mm)
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Not Supported.
| Video, Decoding & Storage (NVR502-32B-P16) | |
|---|---|
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 32 x 960P@25 H.264: 2 x 16MP@30, 2 x 12MP@30, 2 x 4K@30, 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 32 x D1 |
| Audio Compression | G.711A, G.711U |
| Video/Audio Input | |
| IP Video Input | 32-ch |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. D1 video resolution, with D1 snapshot resolution) |
| Recording | |
| Recording Resolution | 16 MP/12 MP/8MP/6 MP/5MP/4 MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 8-ch |
| Hard Disk | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (varies with temperature/size; temp should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1 |
| Smart Features, Network & General | |
|---|---|
| Network | |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPOE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
| Browser(Plugin) | Windows: IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Smart Features | |
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Alarm & External Interface | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0 |
| RS485 / RS232 | 1 RS485 / N/A RS232 |
| Alarm In / Out | 8-ch In, 2-ch Out |
| Power Supply | AC 100 to 240 V |
| PoE | |
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interfaces |
| Max Power | Max 30 W for single port, Max 240 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Environment & Dimensions | |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption | ≤ 20 W (without HDD) |

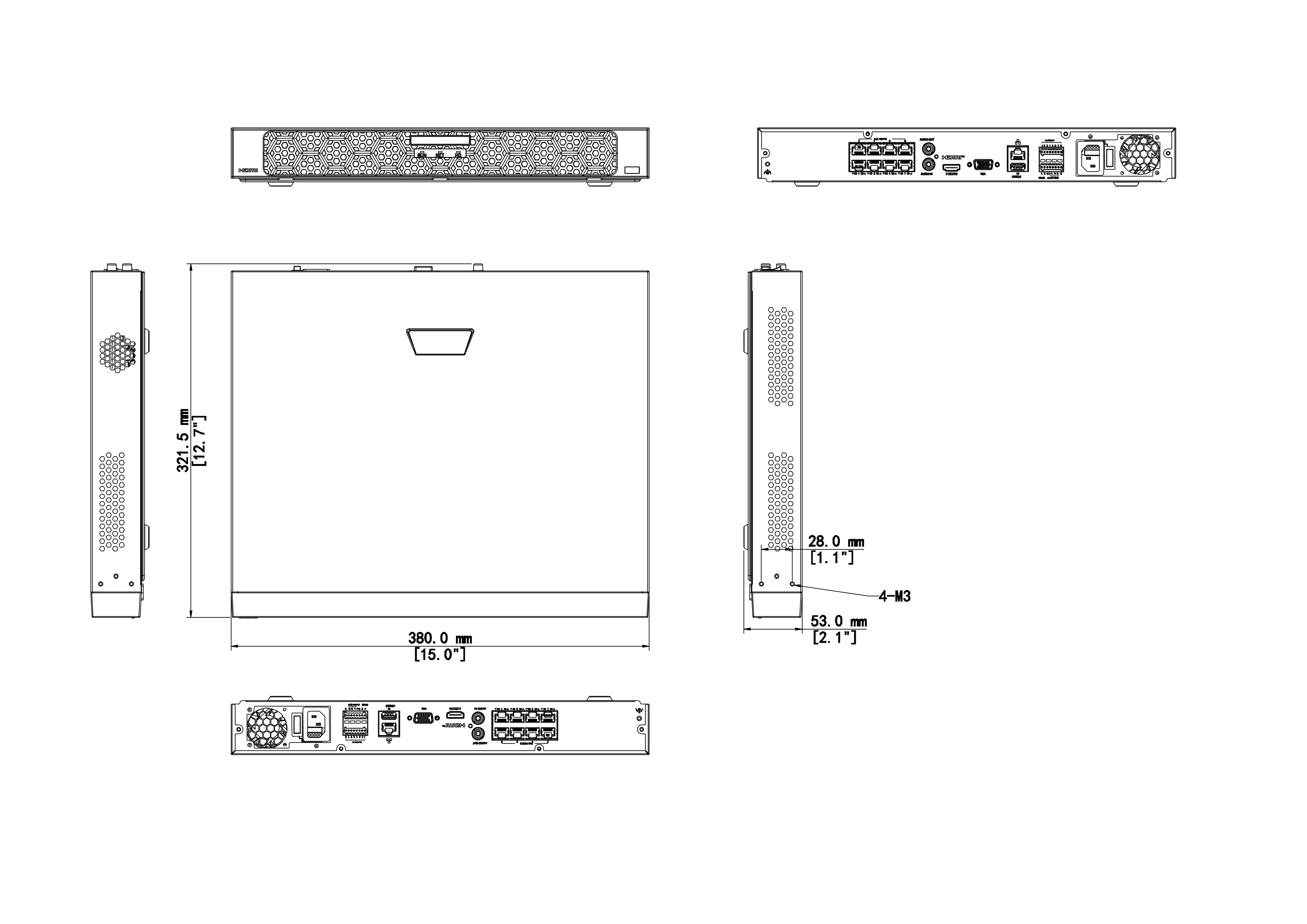

| Dimensions & Weight | 380mm x 322mm x 53mm (15.0" x 12.7" x 2.1"), Weight: ≤ 2.6Kg (5.73lb), 1U |
| Certification | CE; FCC; UL; RoHS; WEEE |
