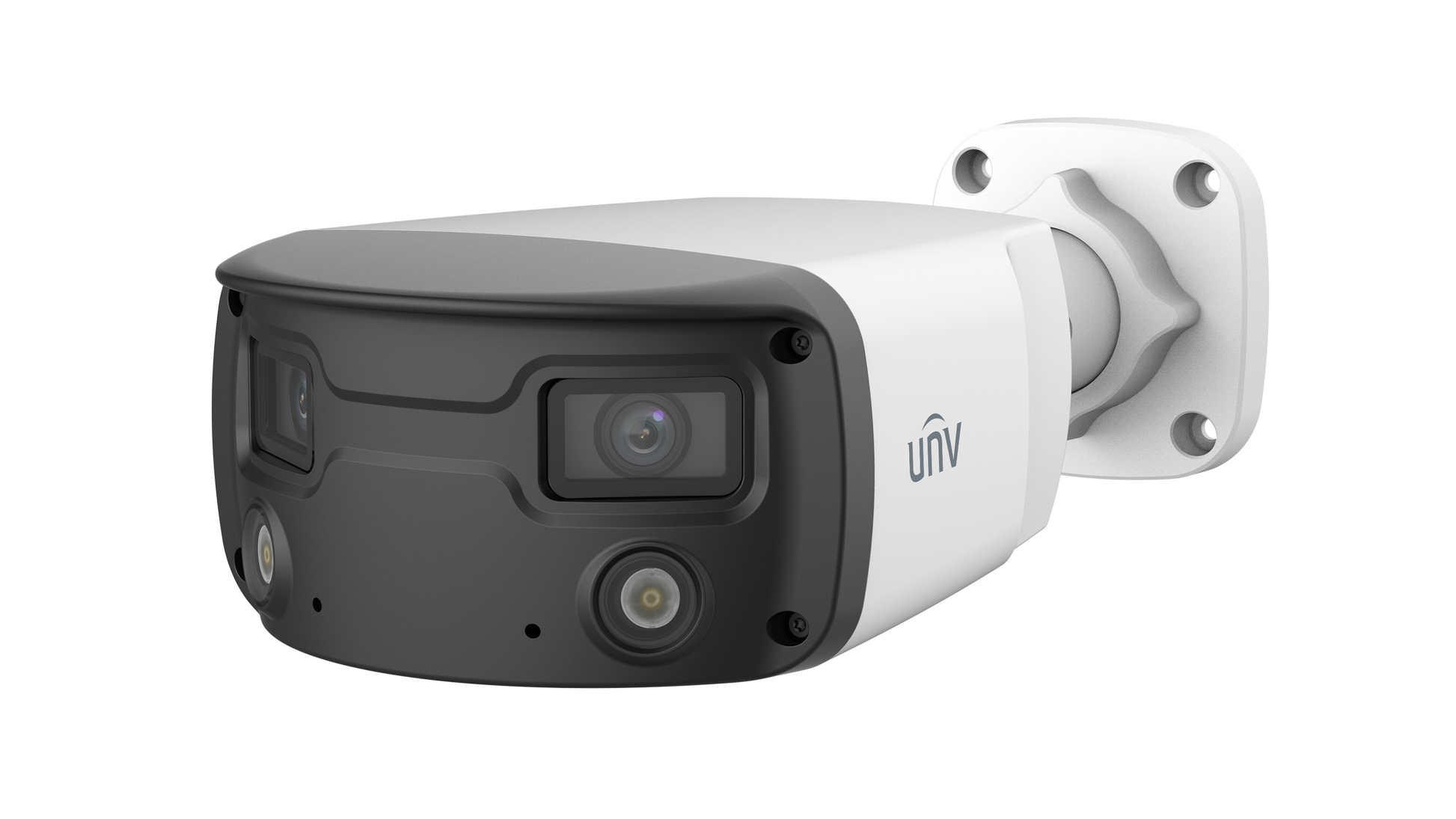

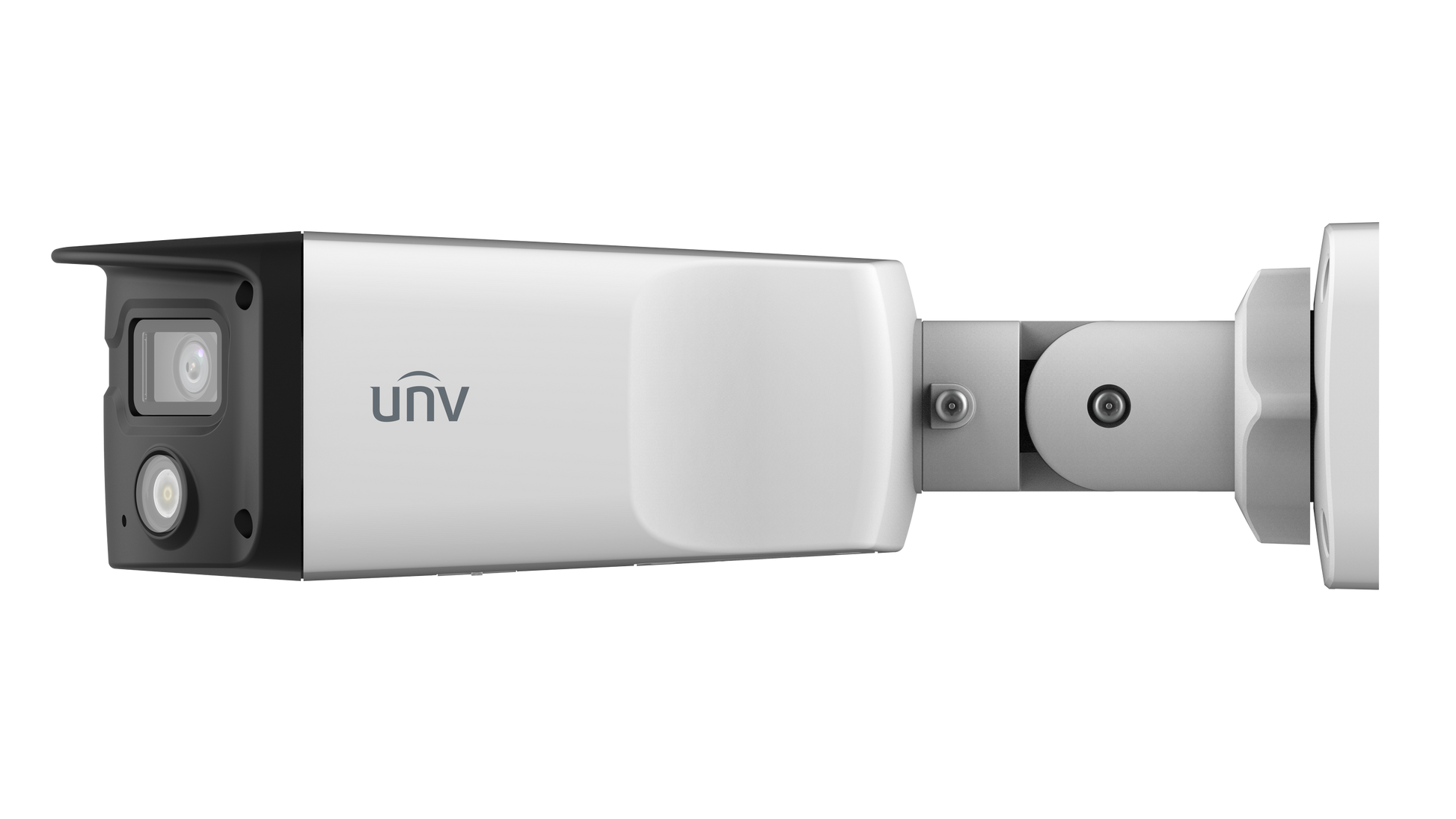

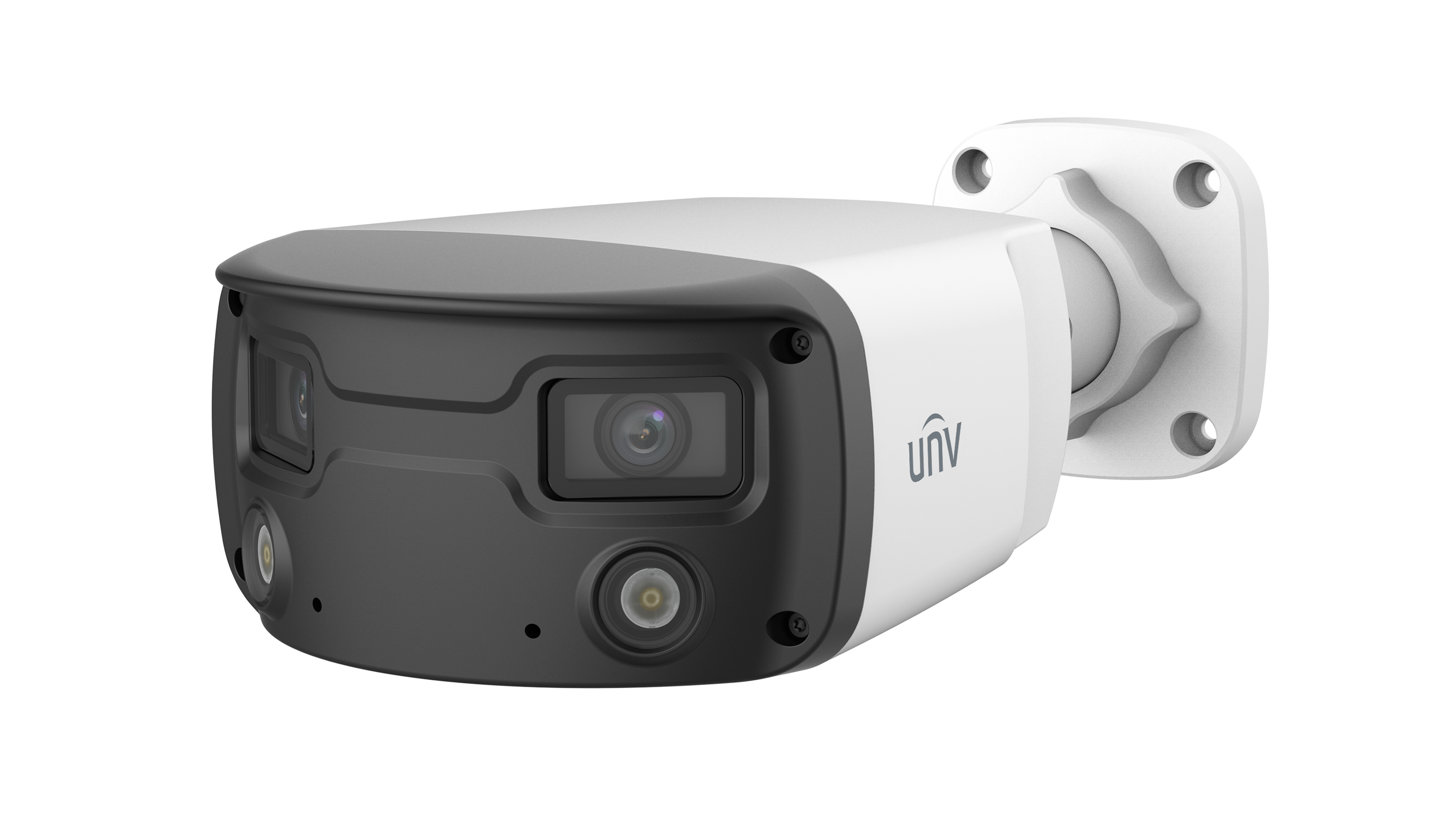

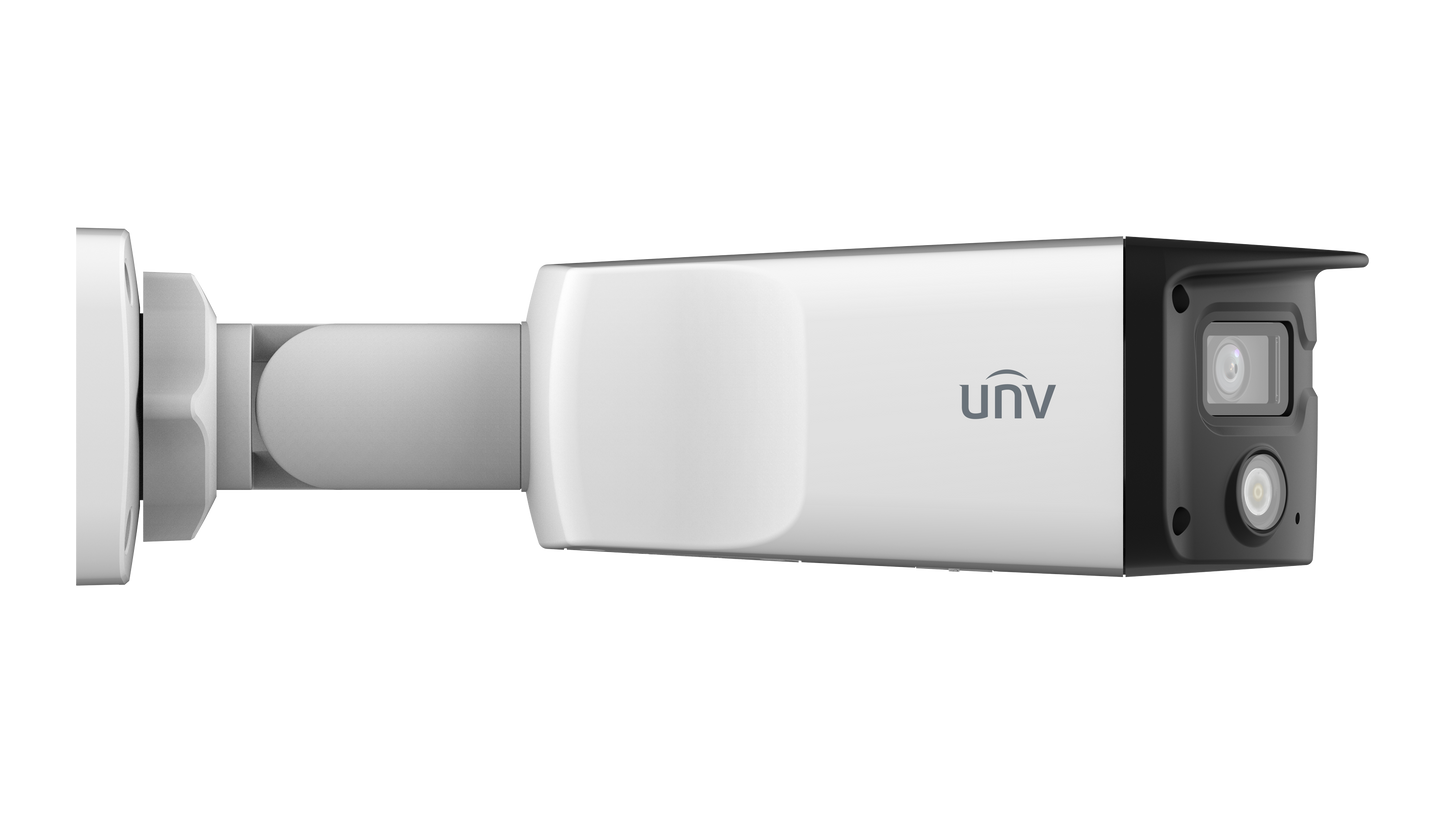

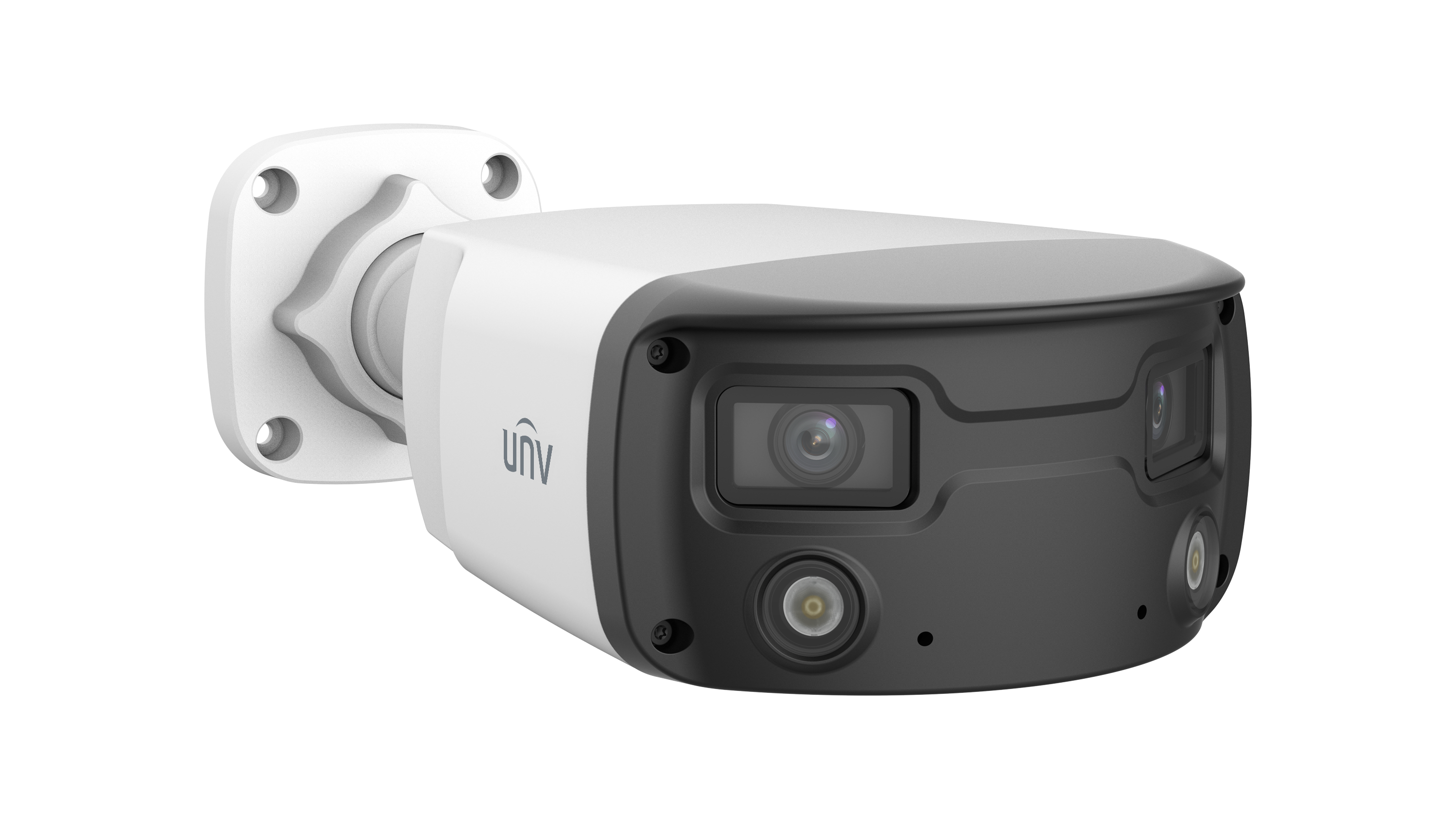

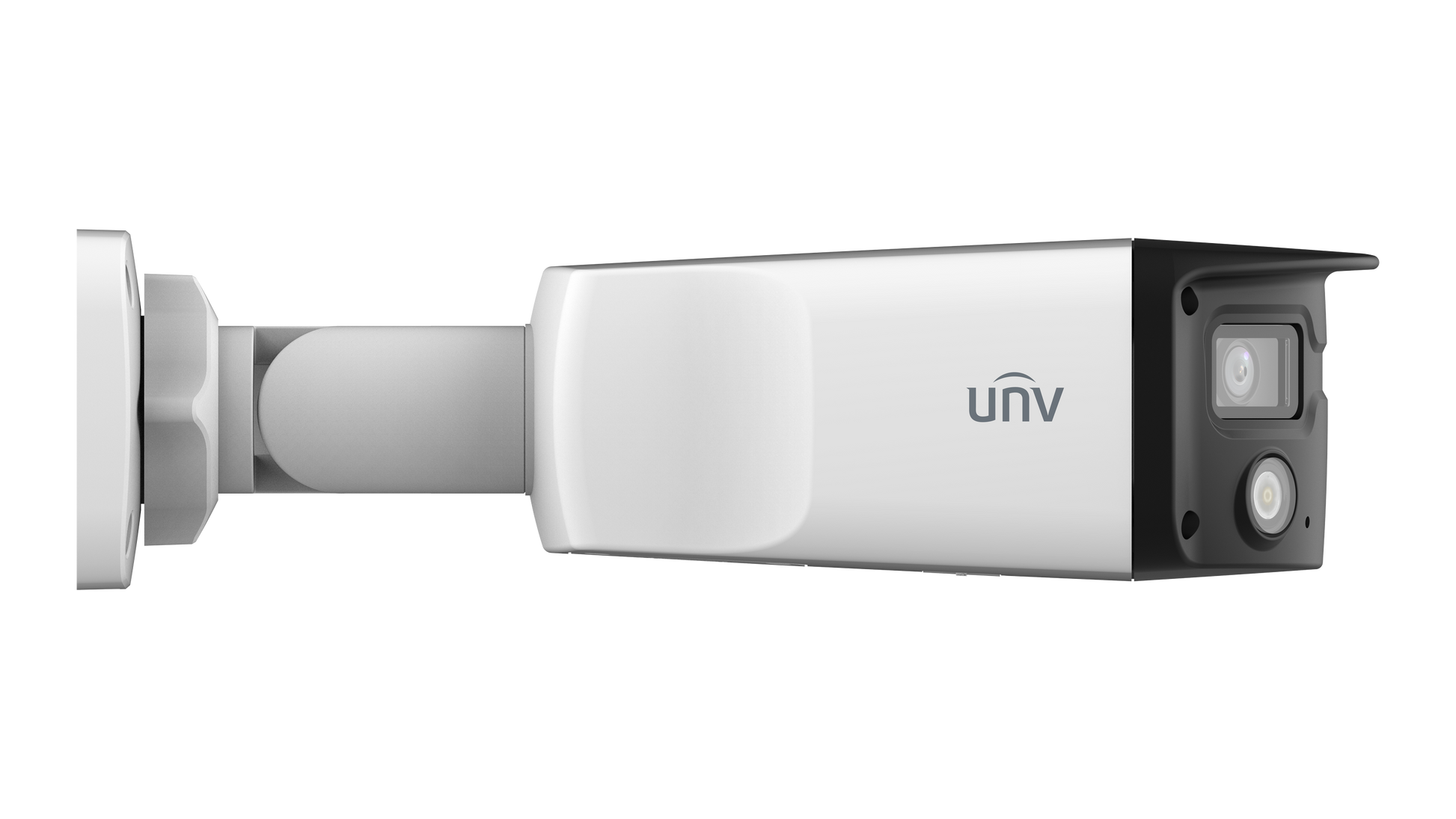

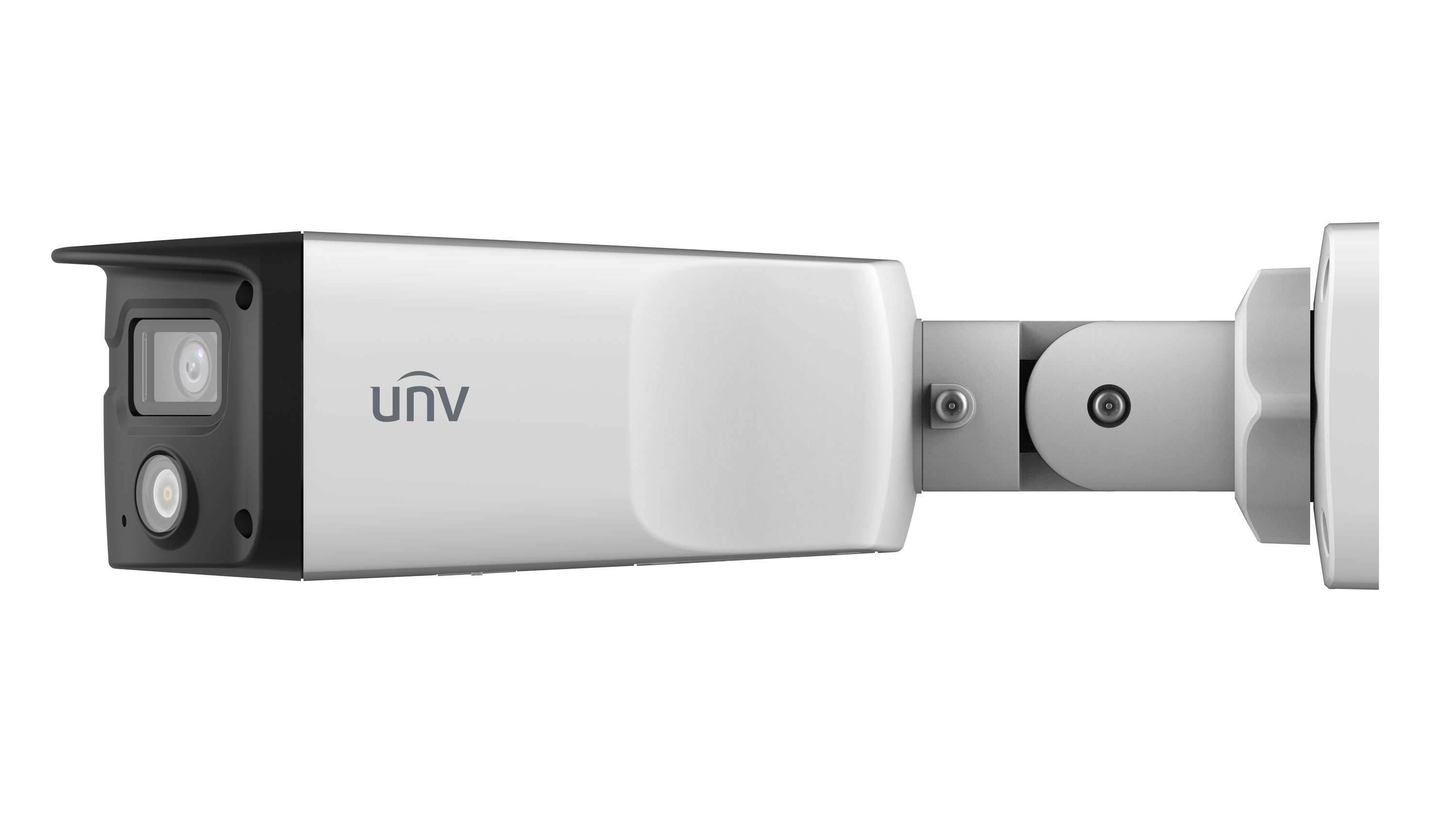

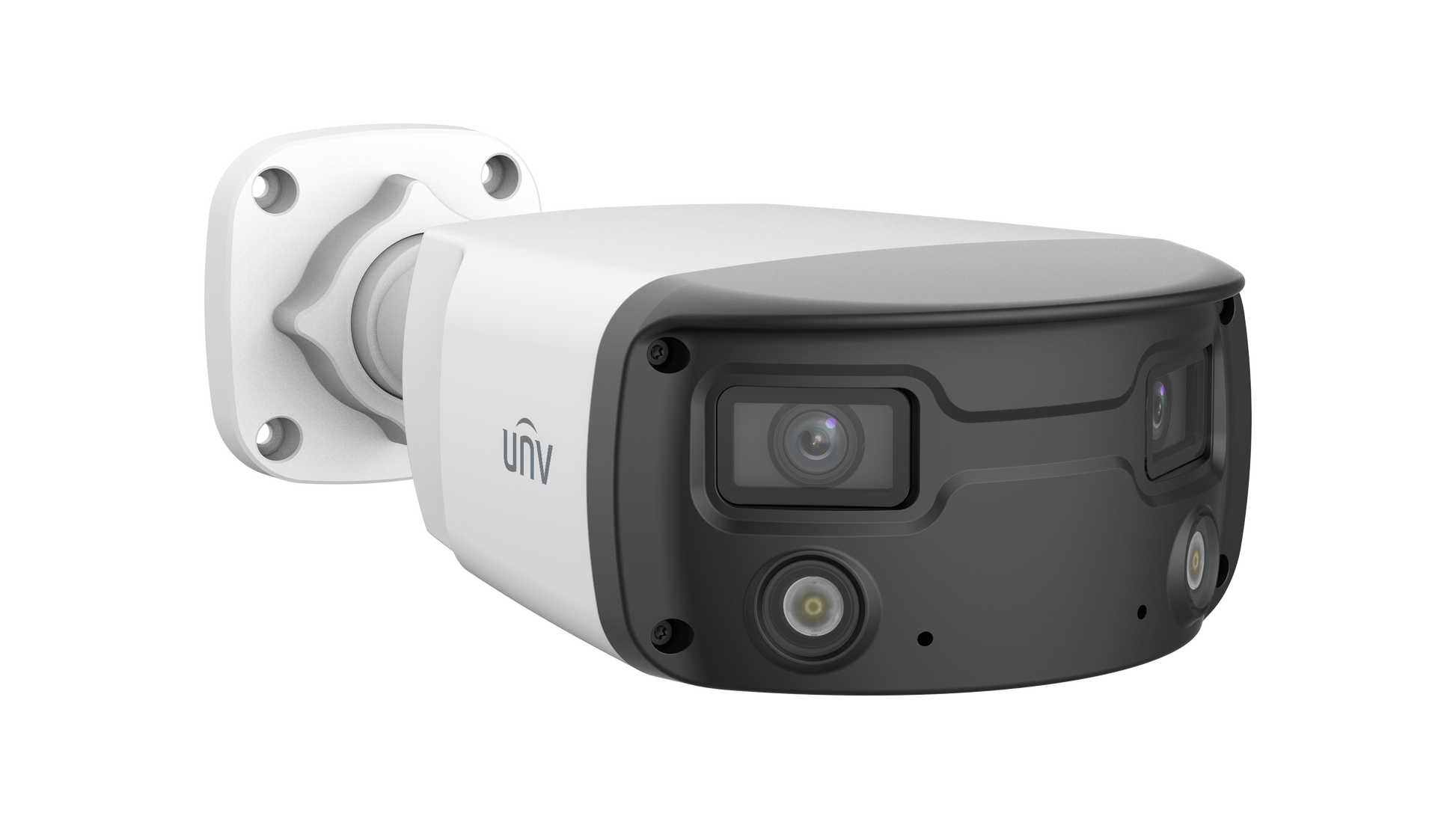

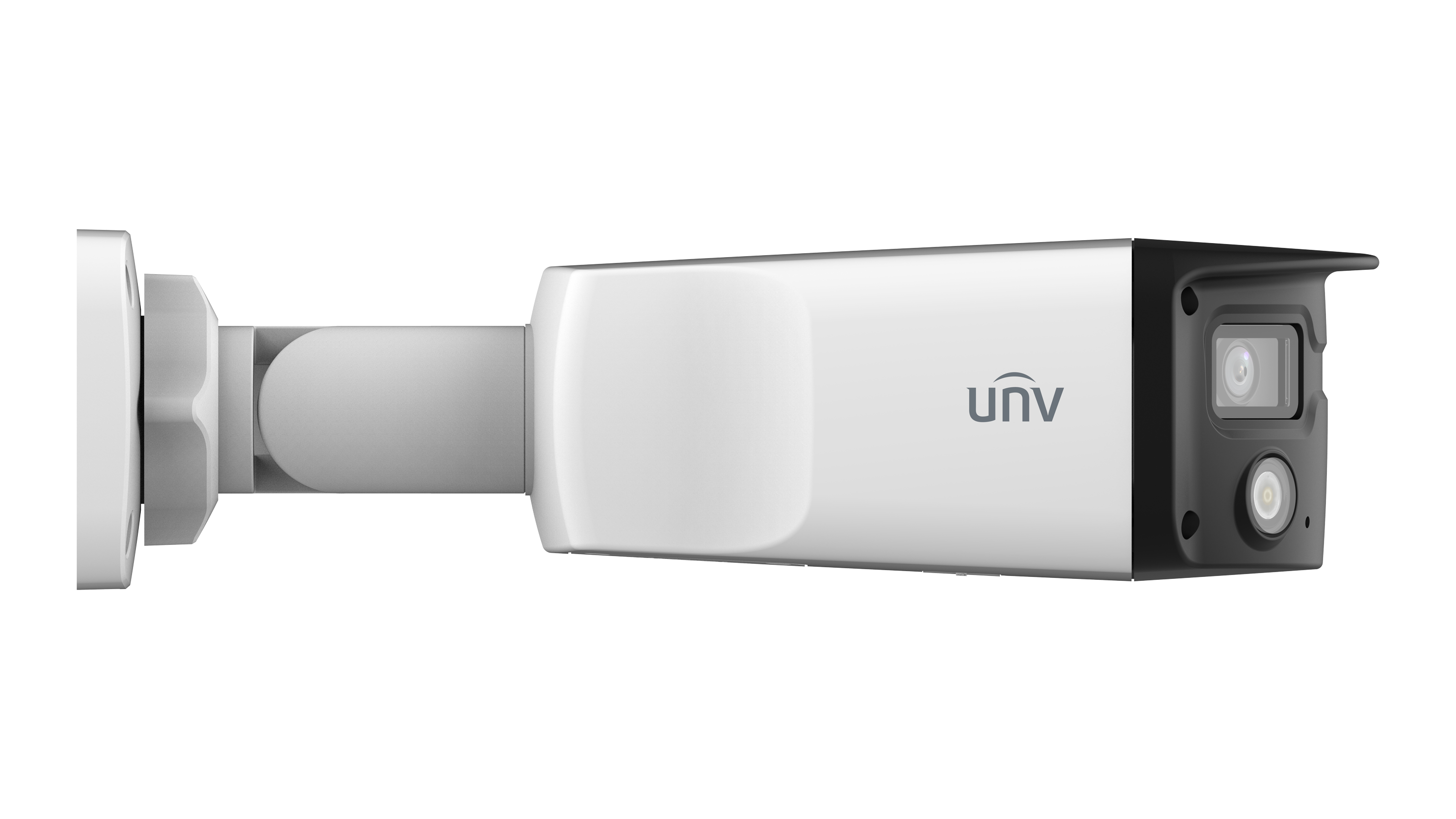

4MP ColorHunter Wide Angle Fixed BulletPart Number: IPC2K28SE-ADF40KMC-WL-I0
Resolution
8MP @ 20fps
Lens & Zoom
Dual 4.0mm Panoramic
Night Vision
98 ft (LED)
Power
PoE / DC12V
Smart Feature Highlights
Sensor Type
1/2.7" CMOS (0.0005Lux Low Light)
Field of View
180°±10° (Horizontal)
WDR & Imaging
130dB True WDR
I/O & Audio
Built-in Mic & Speaker, Alarm I/O
SD Card Slot
Up to 512GB
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, Storage & Hardware | |
|---|---|
| Camera | |
| Sensor | 1/2.7''CMOS |
| Min. Illumination | Colour: 0.0005 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 130dB |
| Lens | |

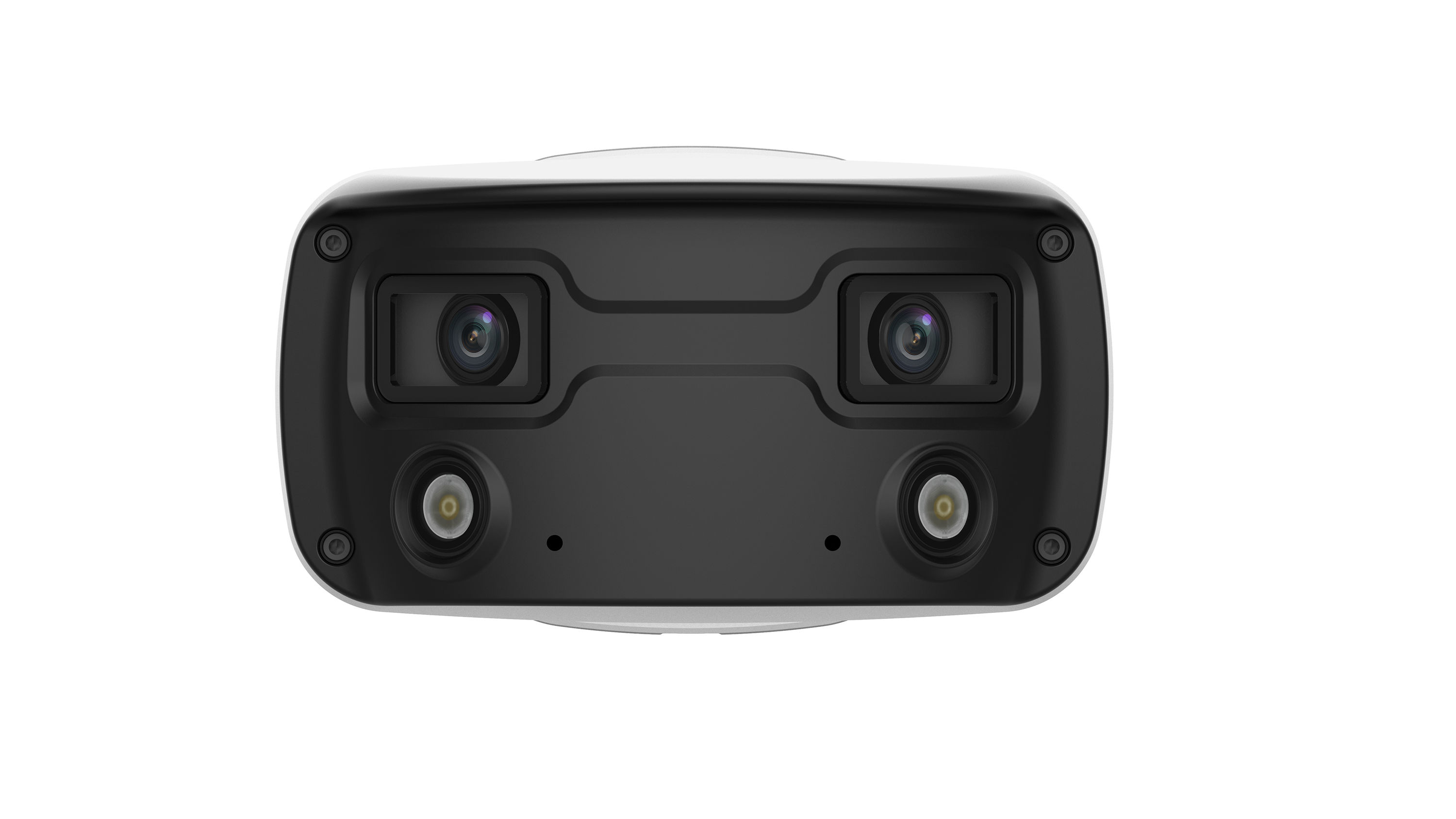

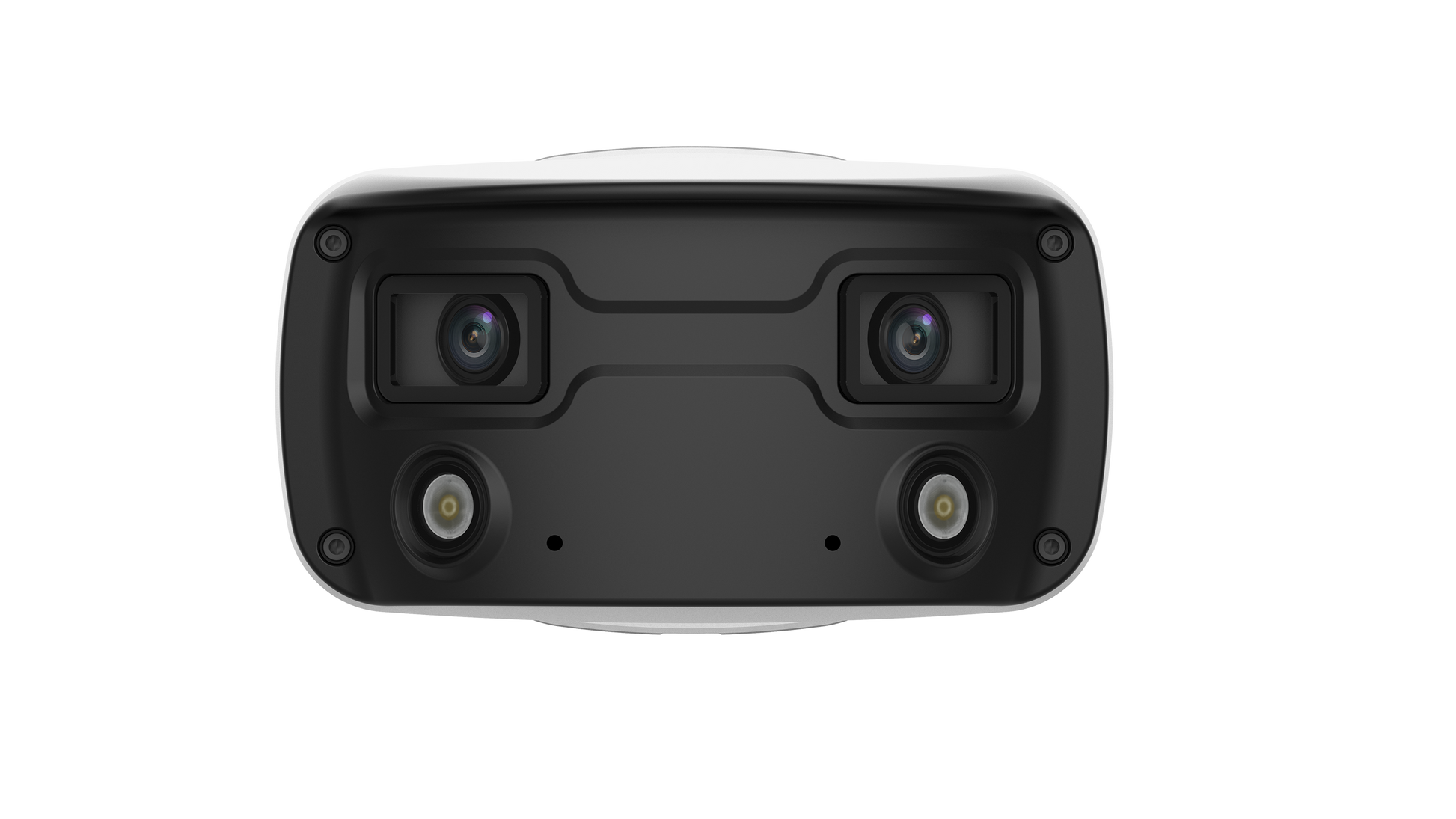

| Lens type | 2*4.0mm |
| Iris | F1.0 |
| Field of View (H) | 180°±10° |
| Field of View (V) | 47.41° |
| Field of View (D) | 180.13°±10° |
| Zoom | Fixed |
| DORI | |
| DORI Distance（Lens） | 4.0mm |
| DORI Distance（Detect） | 90m(259.3ft） |
| DORI Distance（Observe） | 36m(118.1ft) |
| DORI Distance（Recognize） | 18m(59.1ft) |
| DORI Distance（Identify） | 9m(29.5fft) |
| Illuminator | |
| Illumination Distance(Warm Light) | 30m |
| Light On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 8MP (5120*1440), Max 20fps Sub Stream: 2560*720, Max 20fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Double streams |
| Image | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | N/A |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Image stabilization | N/A |
| Auto Scene Match (ASM) | Support（Only WDR） |
| Audio | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR; NAS(NFS) |
| Interface | |
| Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [pp]; 1 Output: impedance 600Ω; amplitude 2V [pp] |
| Alarm I/O | 1/1 |
| Serial Port | N/A |
| Built-in Mic | Builtin two mics |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M BaseTX Ethernet |
| Video Output | N/A |
| Smart Features & General | |
|---|---|
| Intelligent | |
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Statistical Analysis | Support people flow counting and crowd density monitoring |
| Attribute Collection | SIP with color retrieval |
| Events | |
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Function | Watermark; IP Address Filtering; Alarm input; Alarm output; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| Network | |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | EZStation; EZView; EZLive |
| Web Browser | Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Certification | |
| EMC | CEEMC (EN 55032: 2015+A1:2020,EN 6100033: 2013+A1: 2019,EN IEC 6100032: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.42014) |
| Safety | CE LVD (EN 623681:2014+A11:2017) CB (IEC 623681:2014) UL (UL 623681, 2nd Ed., Issue Date: 20141201) |
| Environment | CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 13W |
| Power Interface | Ø 5.5mm coaxial power plug |

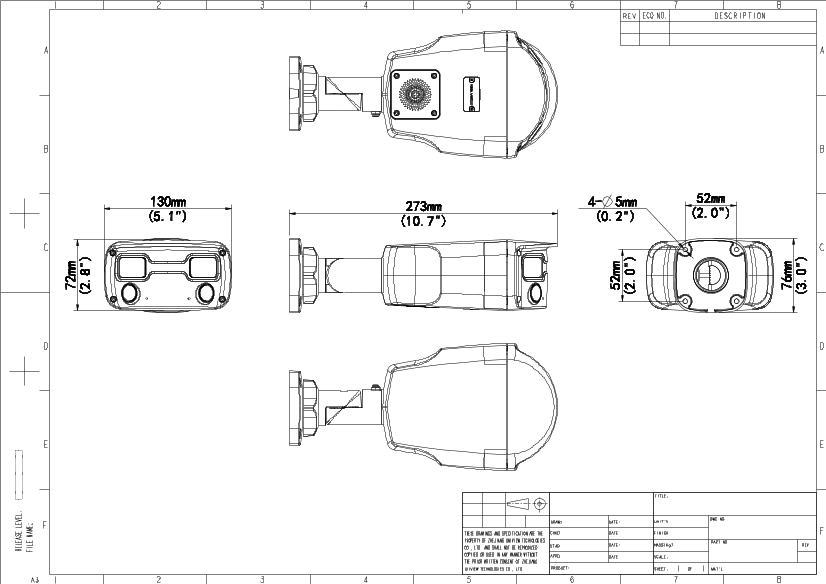

| Dimensions | 273 × 130 × 76mm (10.7” × 5.1” × 3.0”) |
| Weight | 0.96kg (2.12lb) |
| Material | Metal |
| Working Environment | 30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: ≤95% RH (noncondensing) |
| Storage Environment | 30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: ≤95% RH (noncondensing) |
| Surge protection | 4KV |
| Reset button | Support |
| Web Client Language | 20 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |
