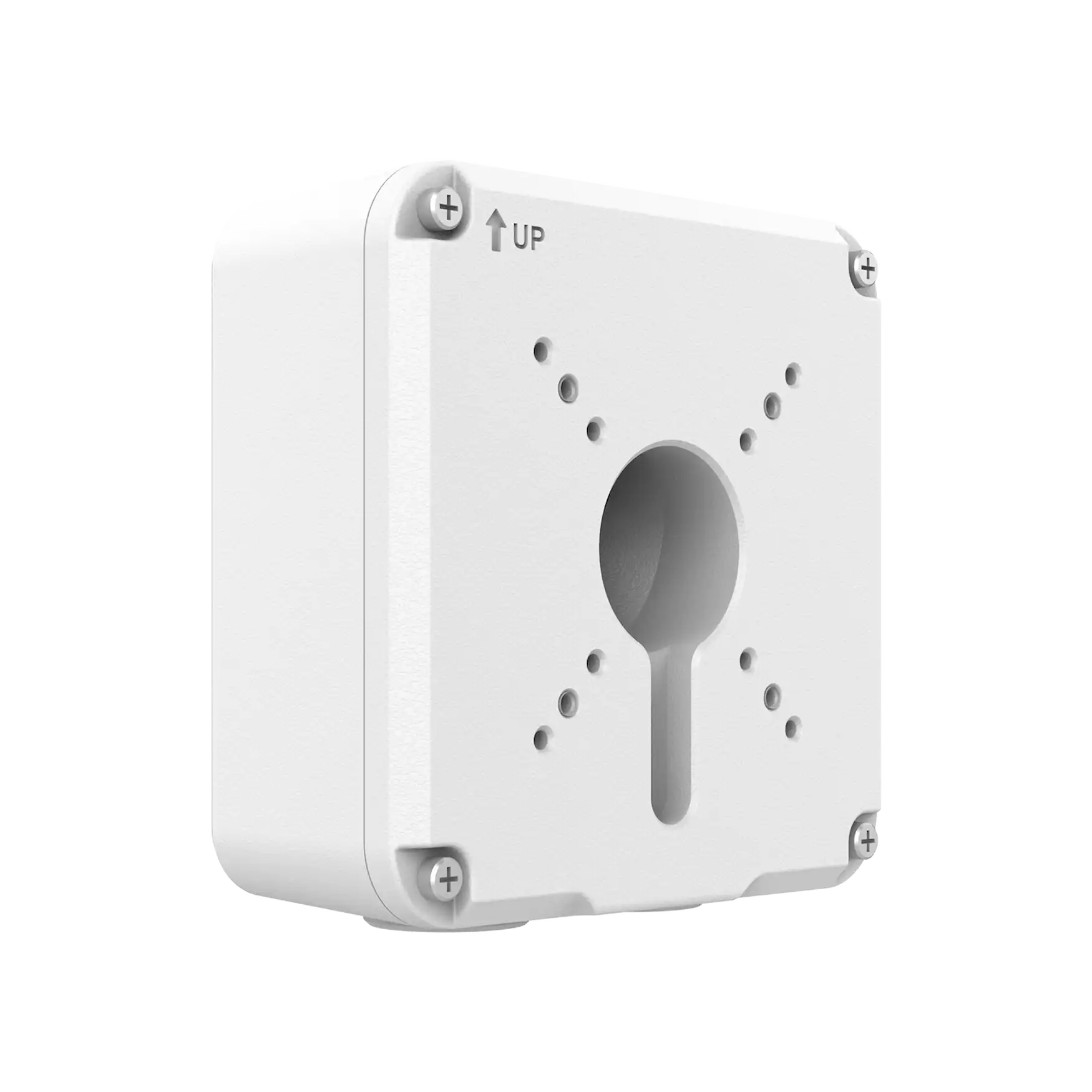

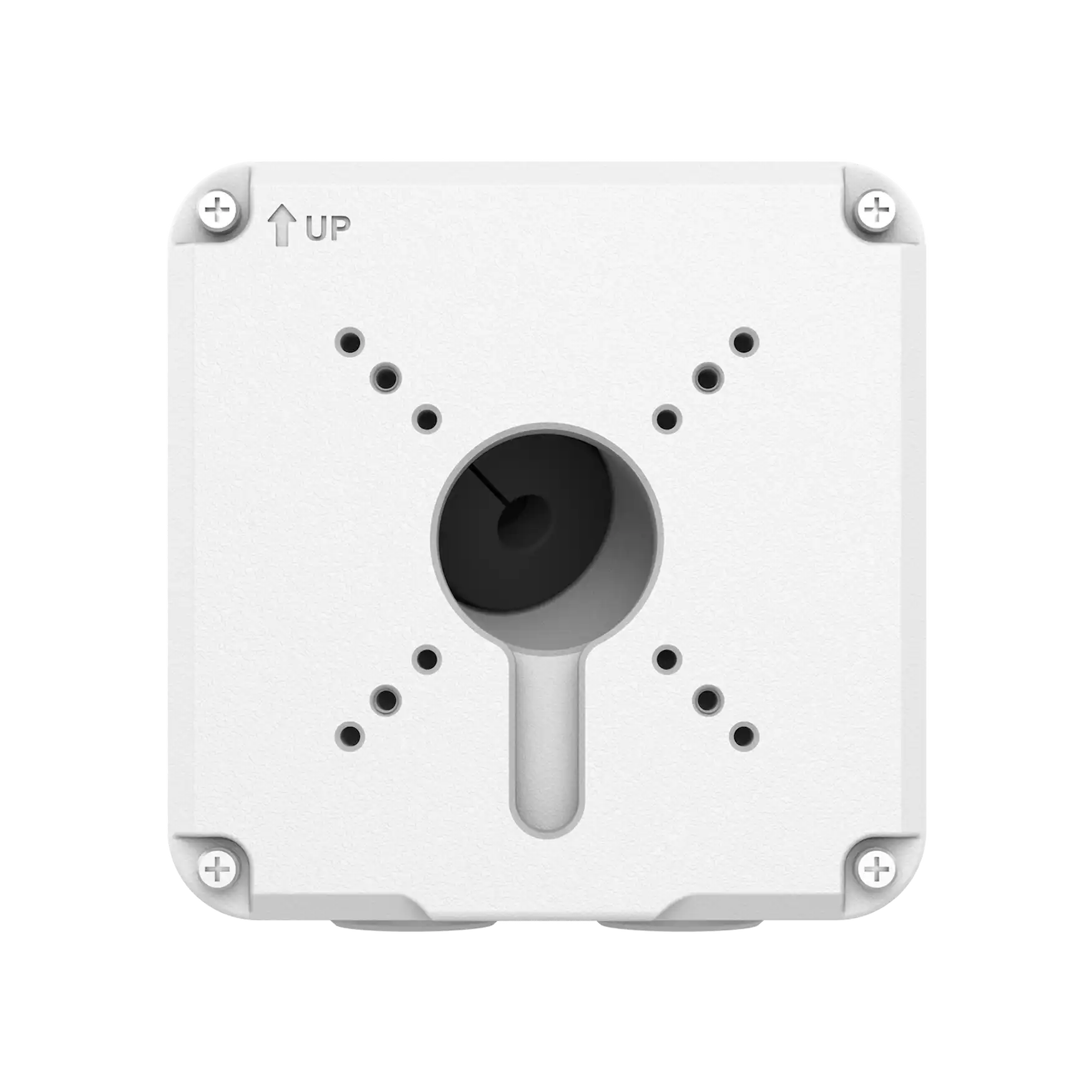

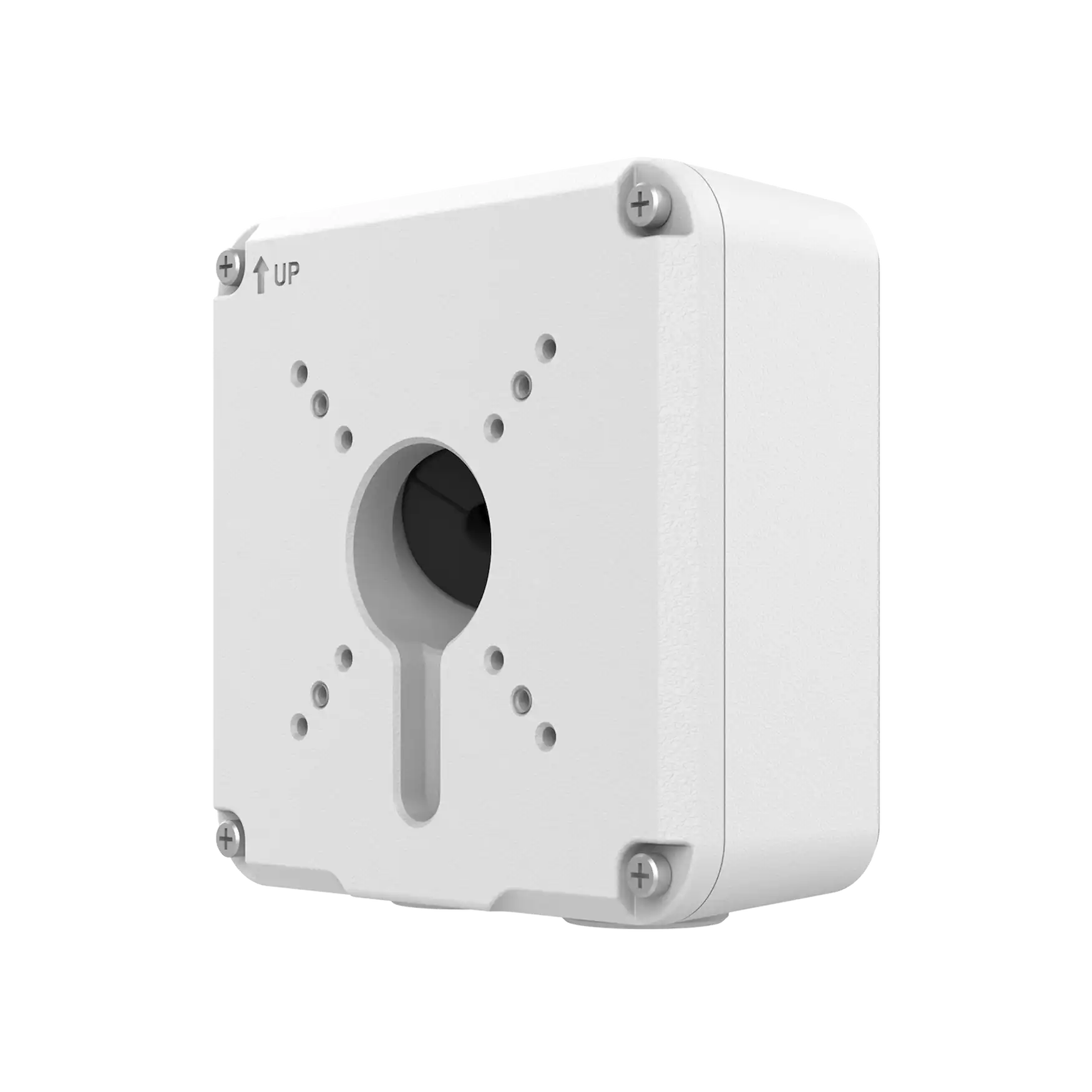

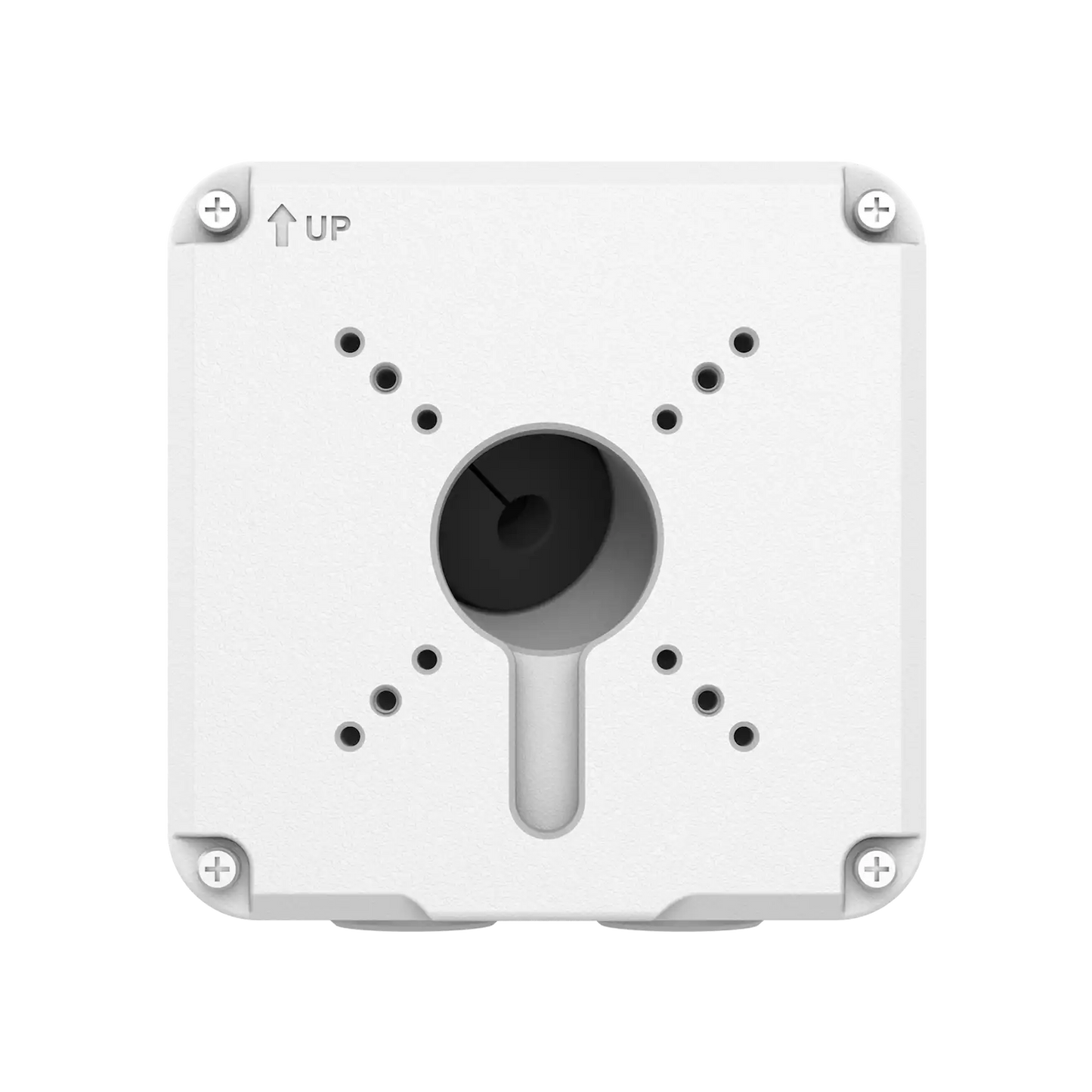

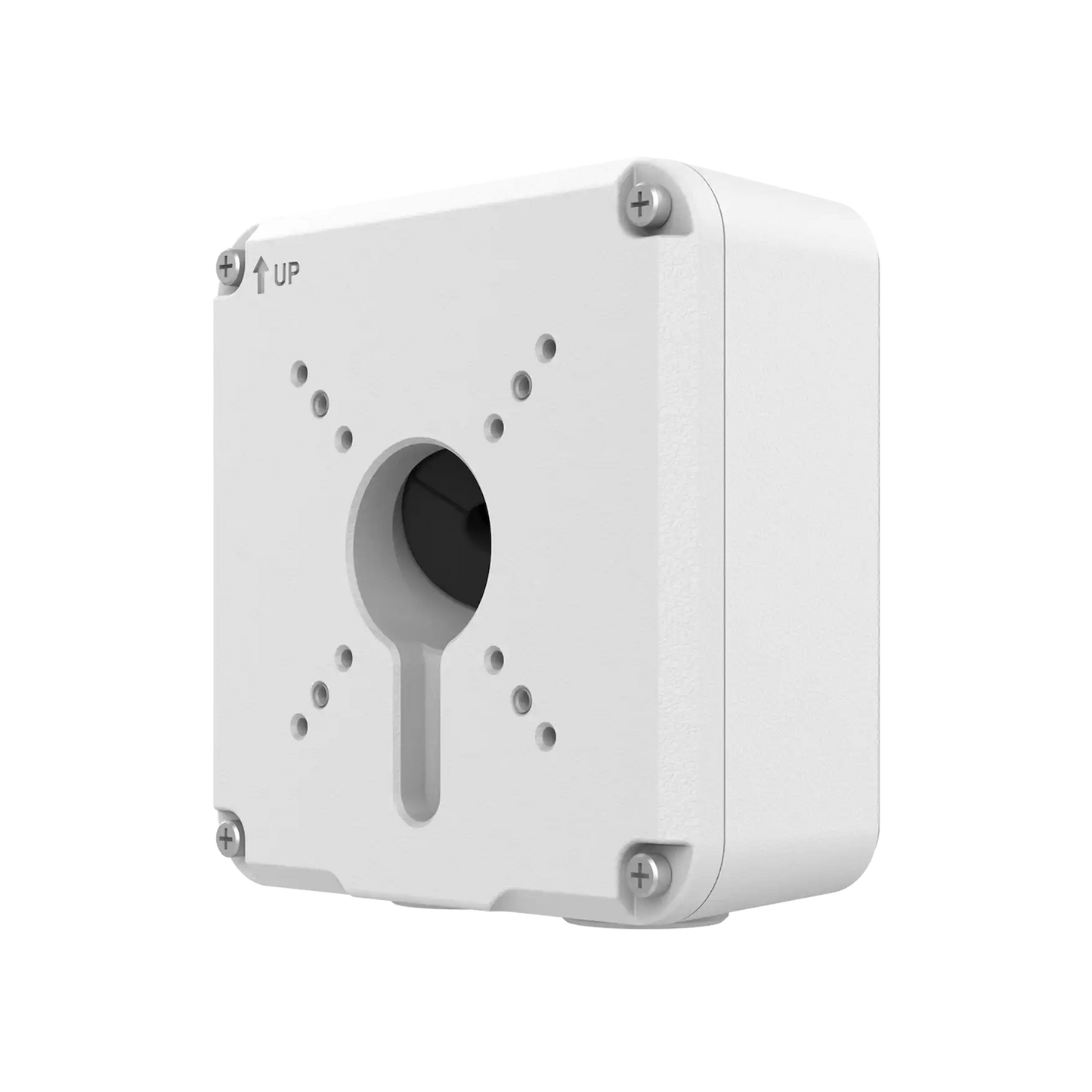

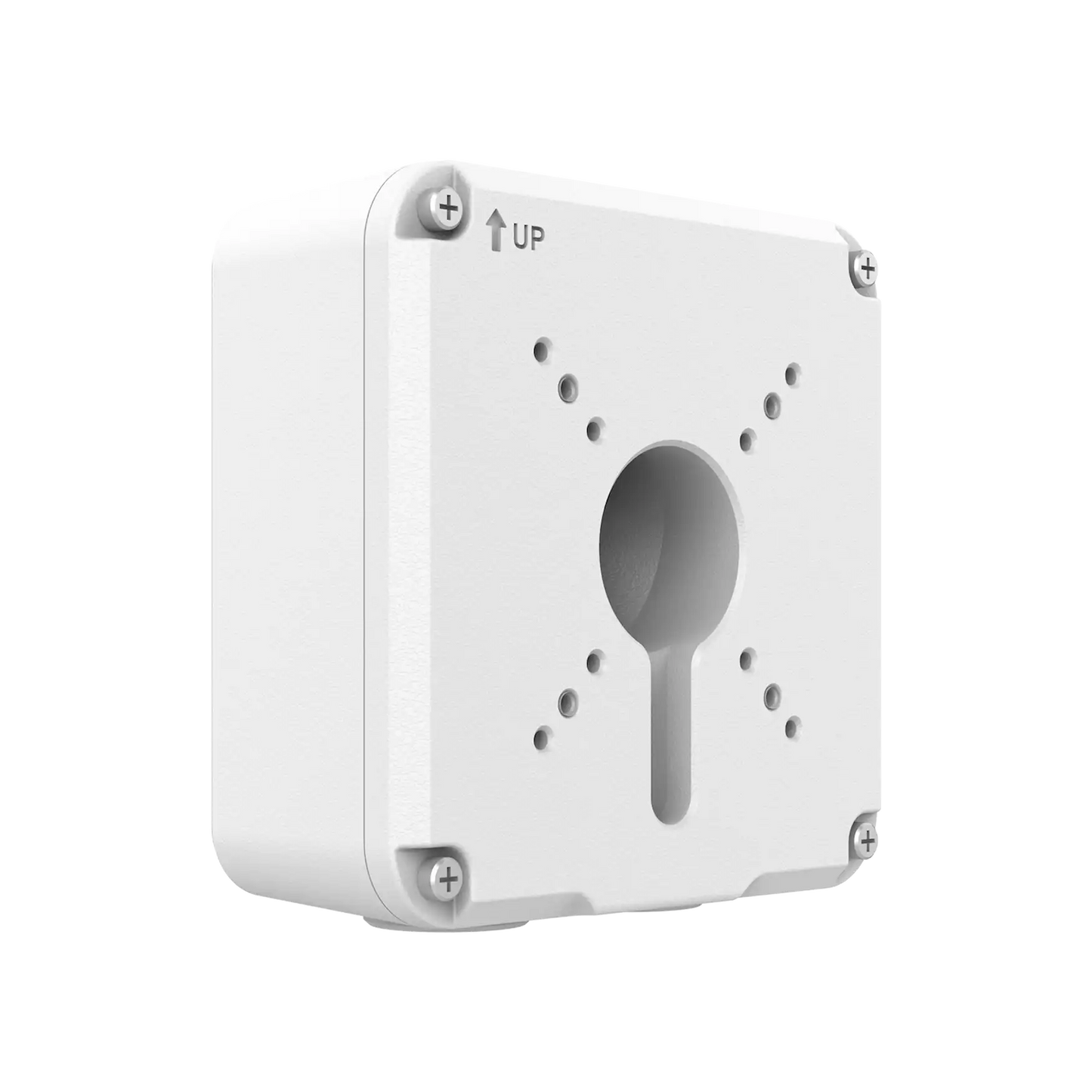

UNV Universal Junction Box

Part Number: TR-JB07-D-IN

Bracket

TR-JB07-D-IN

Application

Outdoor or indoor cable junction box for IPC23XX/222X、IPC74X and IPC252/26X series(Extra back outlet)

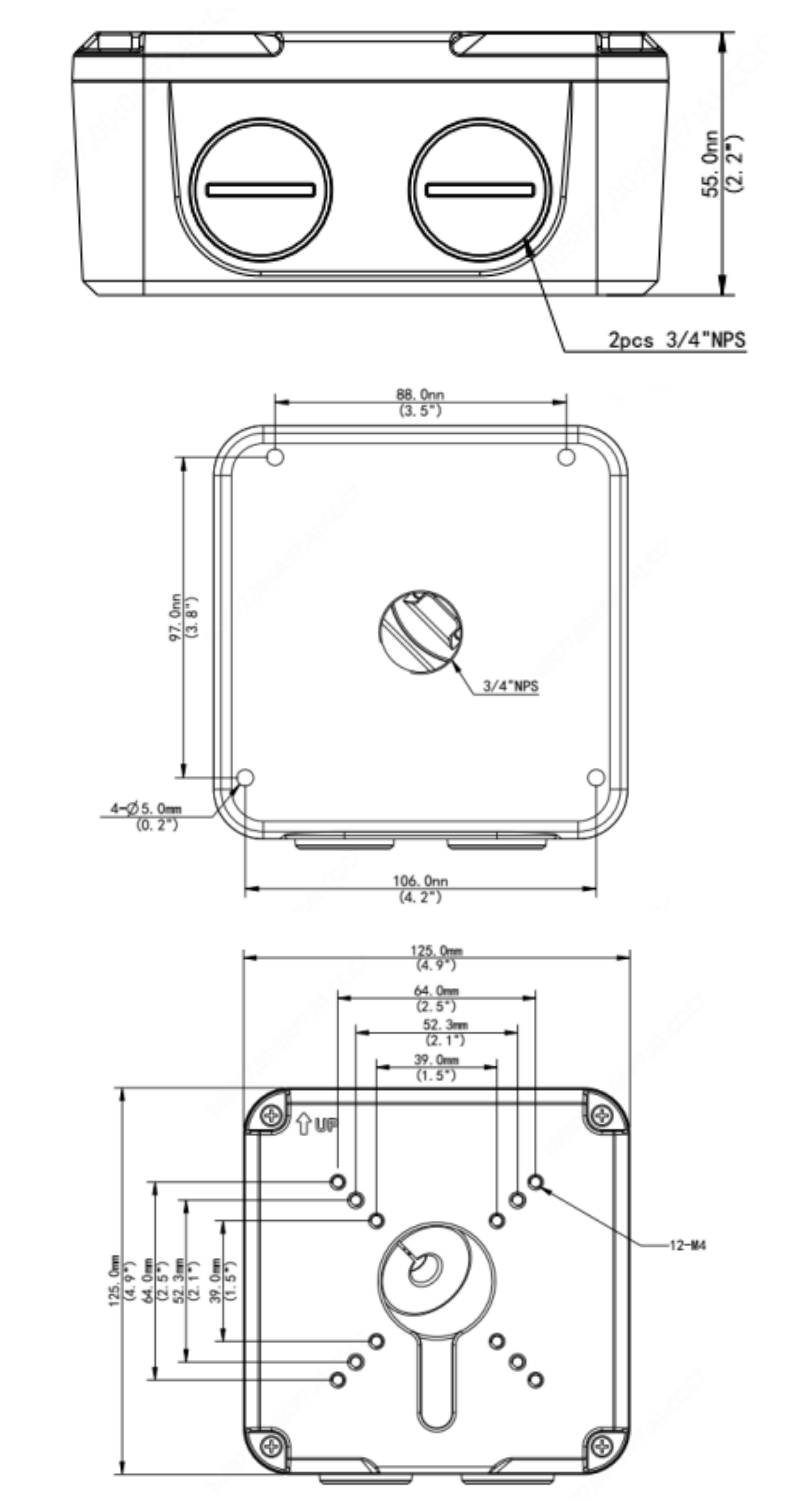

Dimensions

Φ125mm*125mm*55mm (4.92” x4.92”x2.17”)

Weight

0.75kg(1.65lb)

Material

Aluminum alloy

Download Type
Data Sheet

   pdf/file

IPC Accessories Installation Guide

   pptx/file
