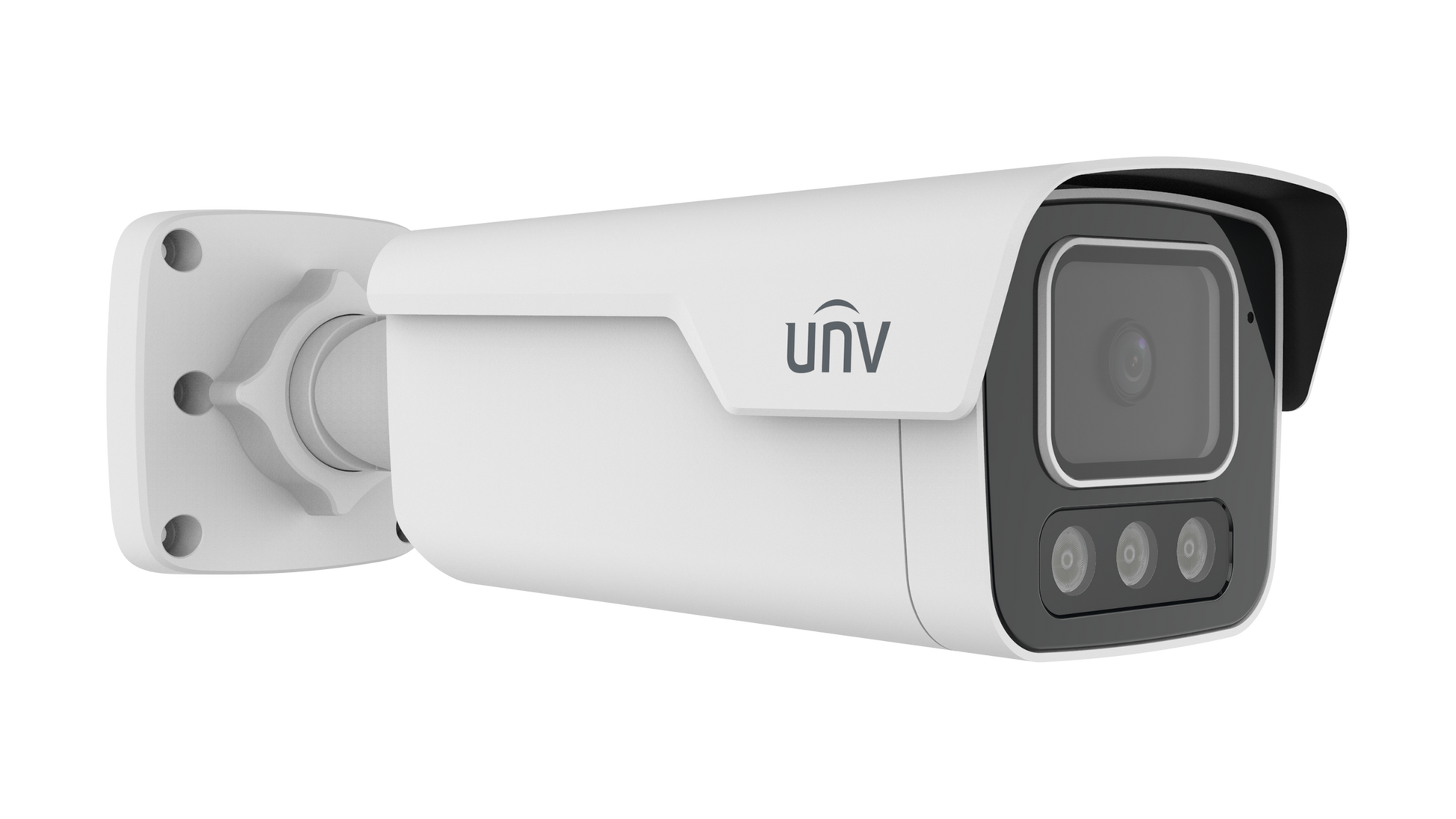

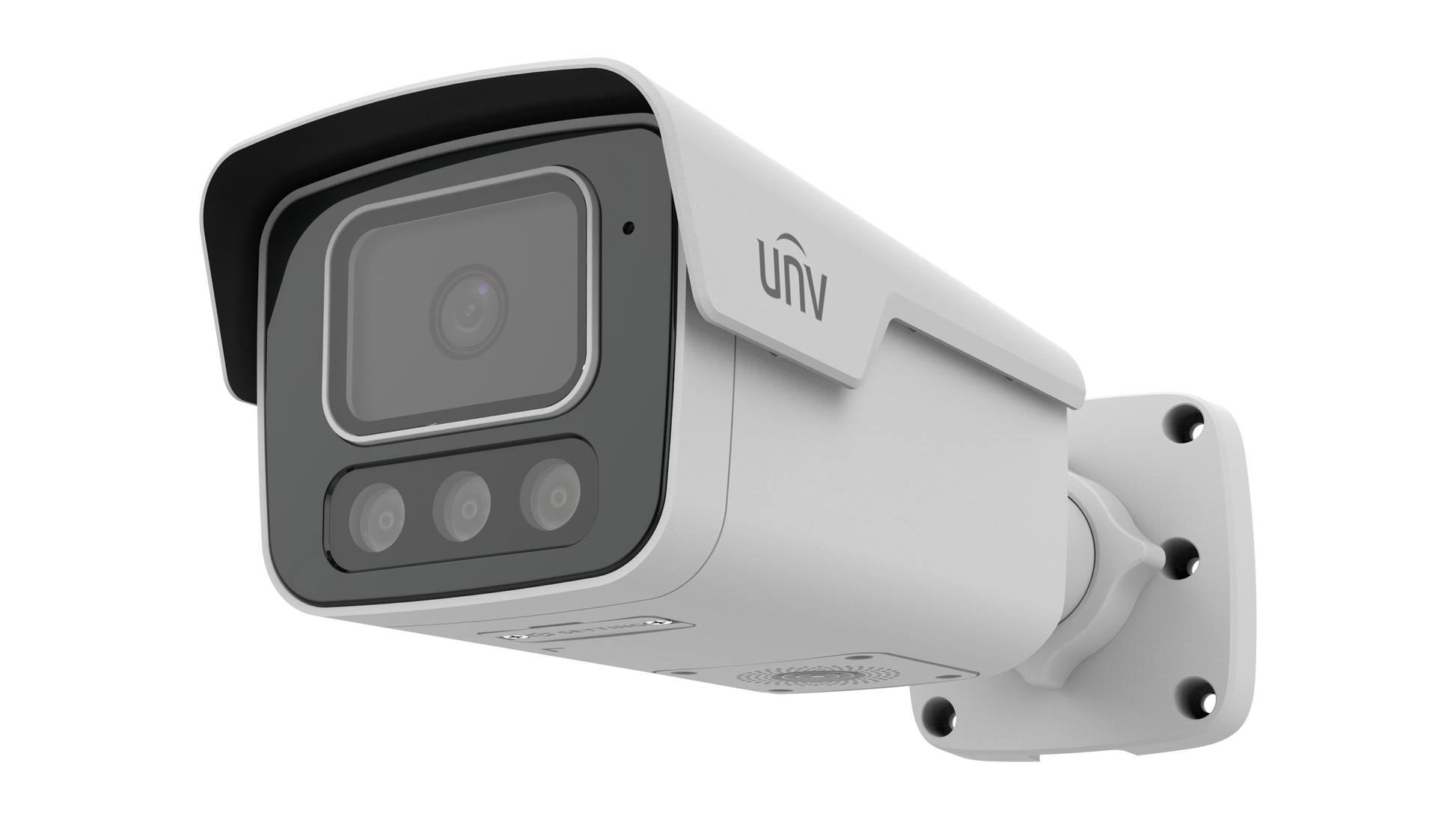

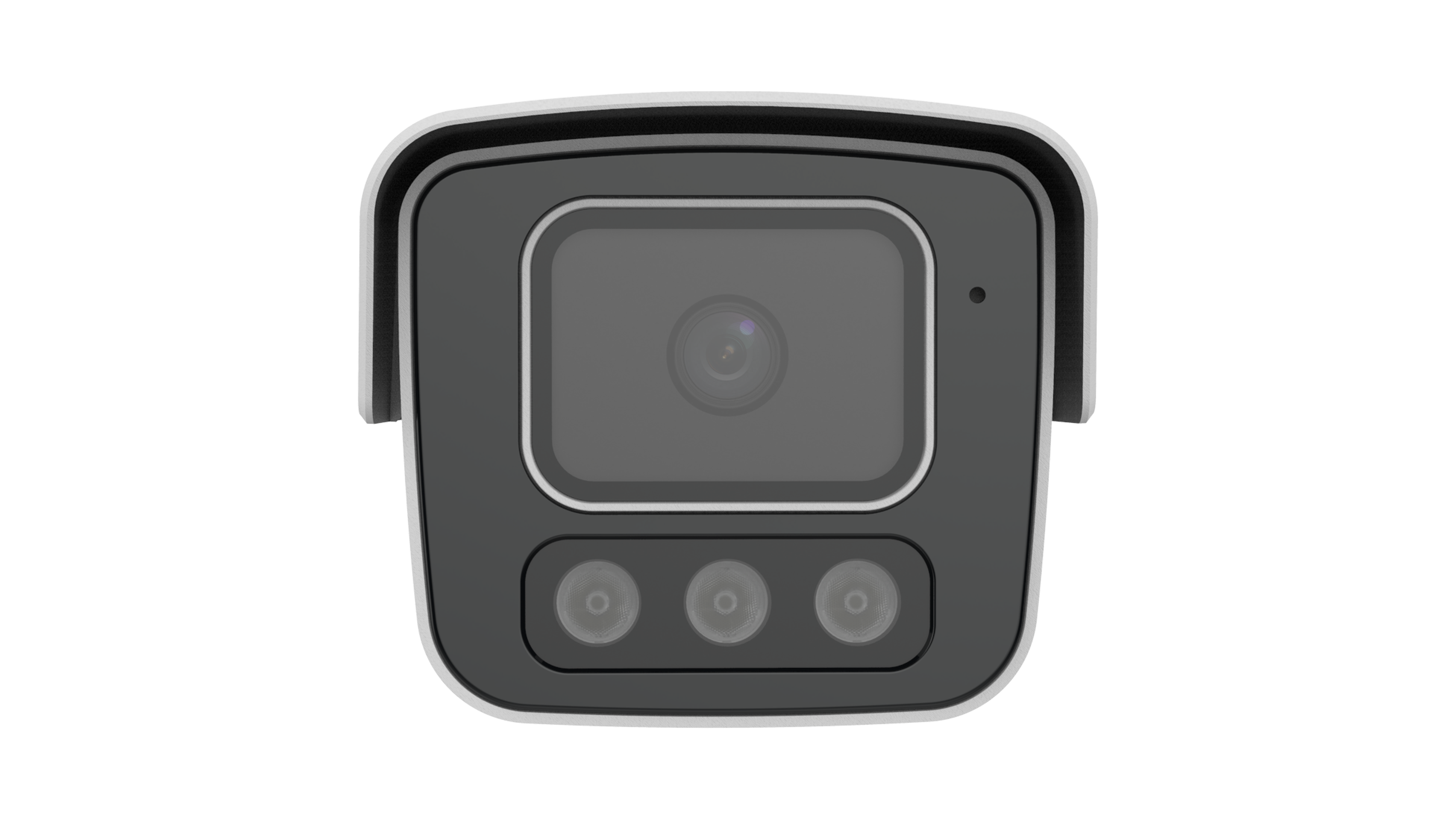

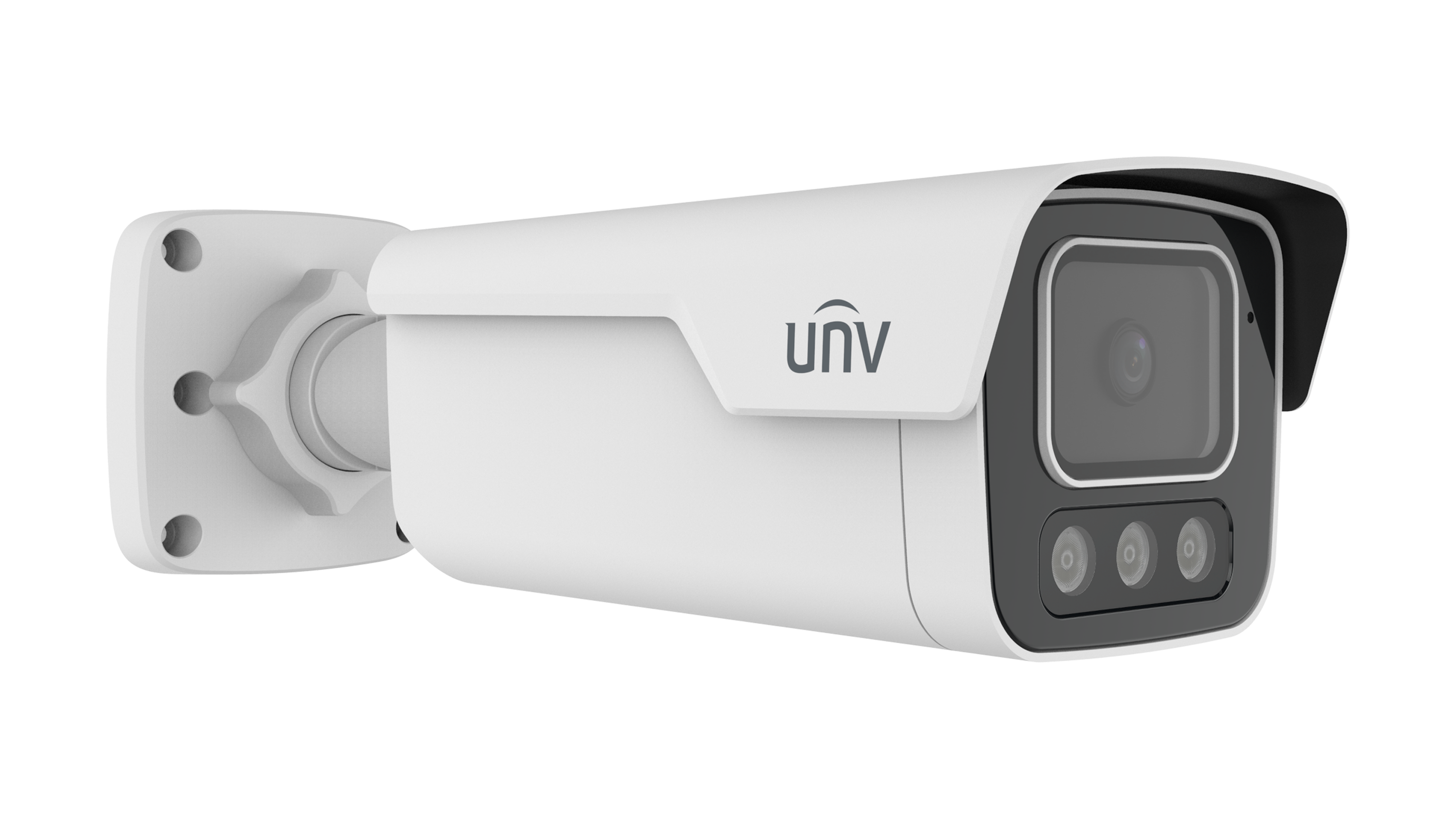

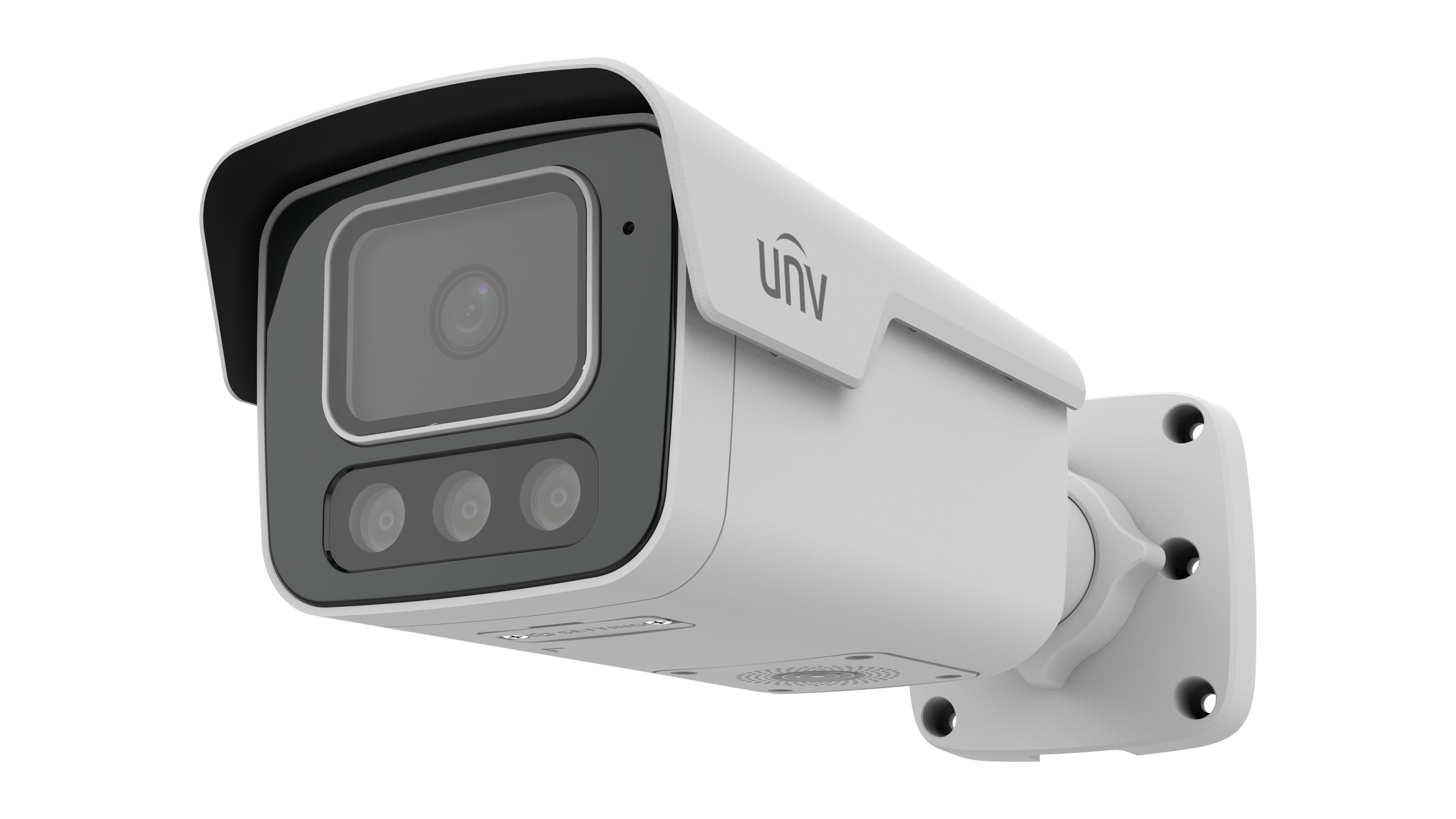

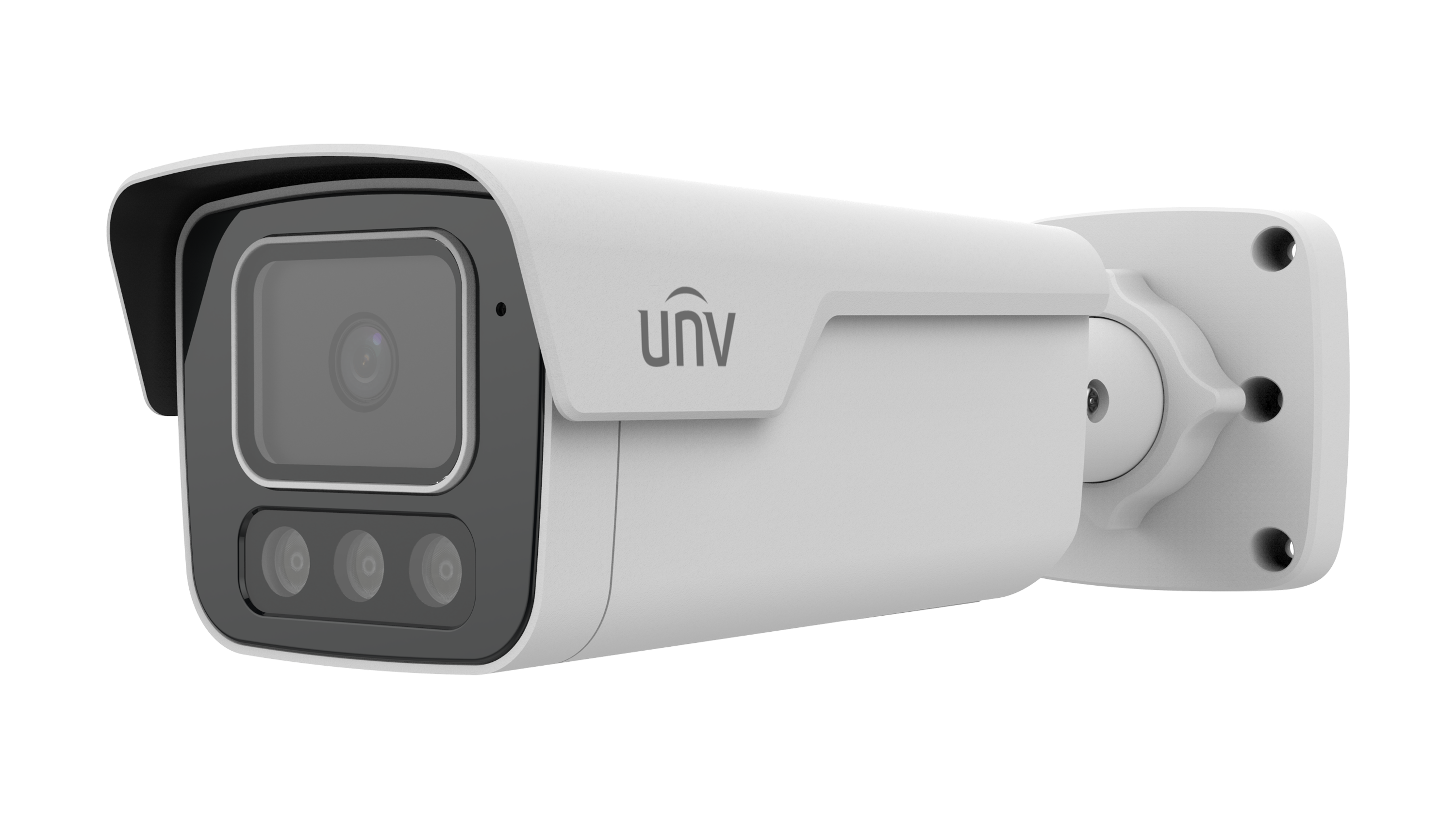

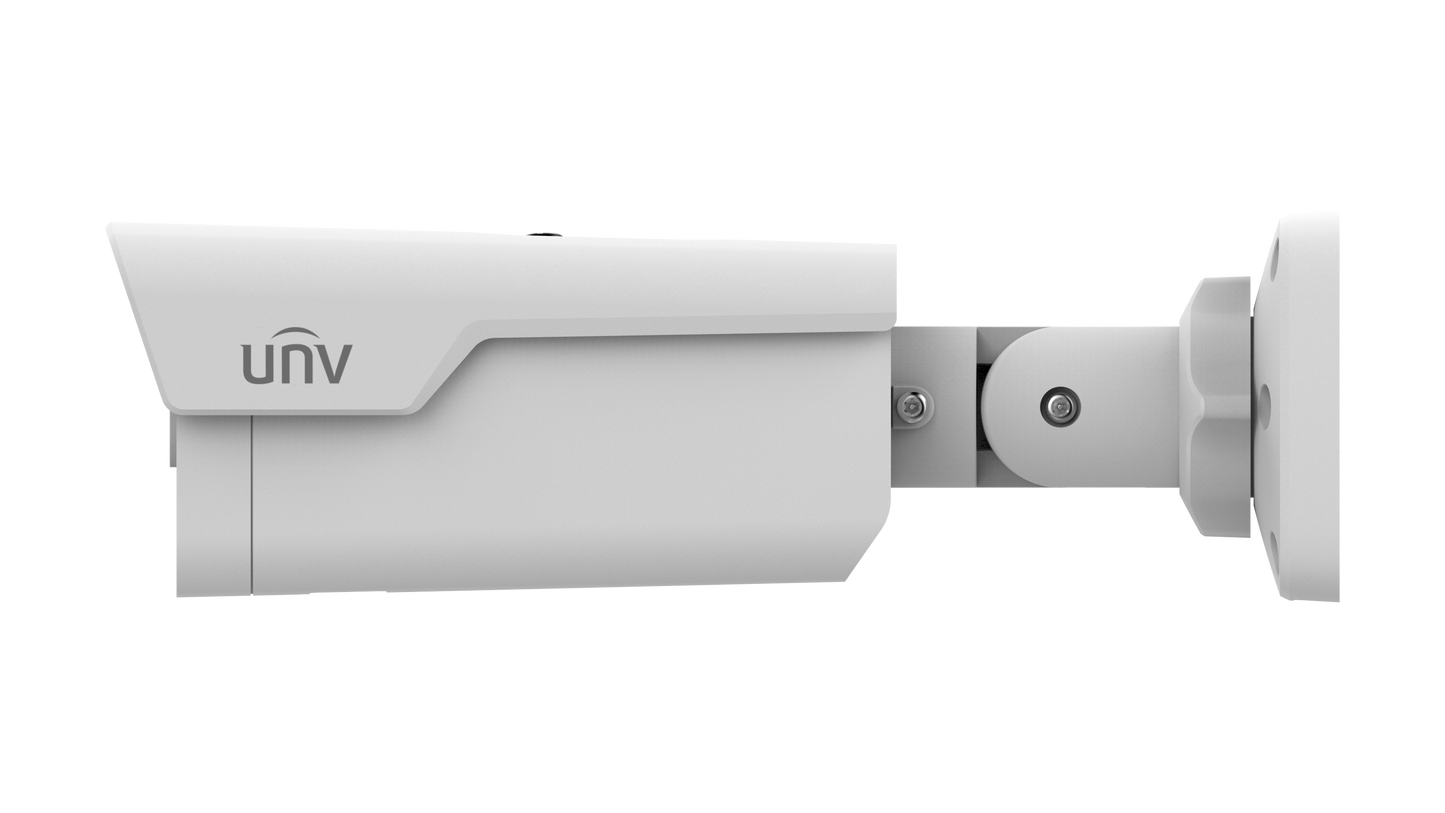

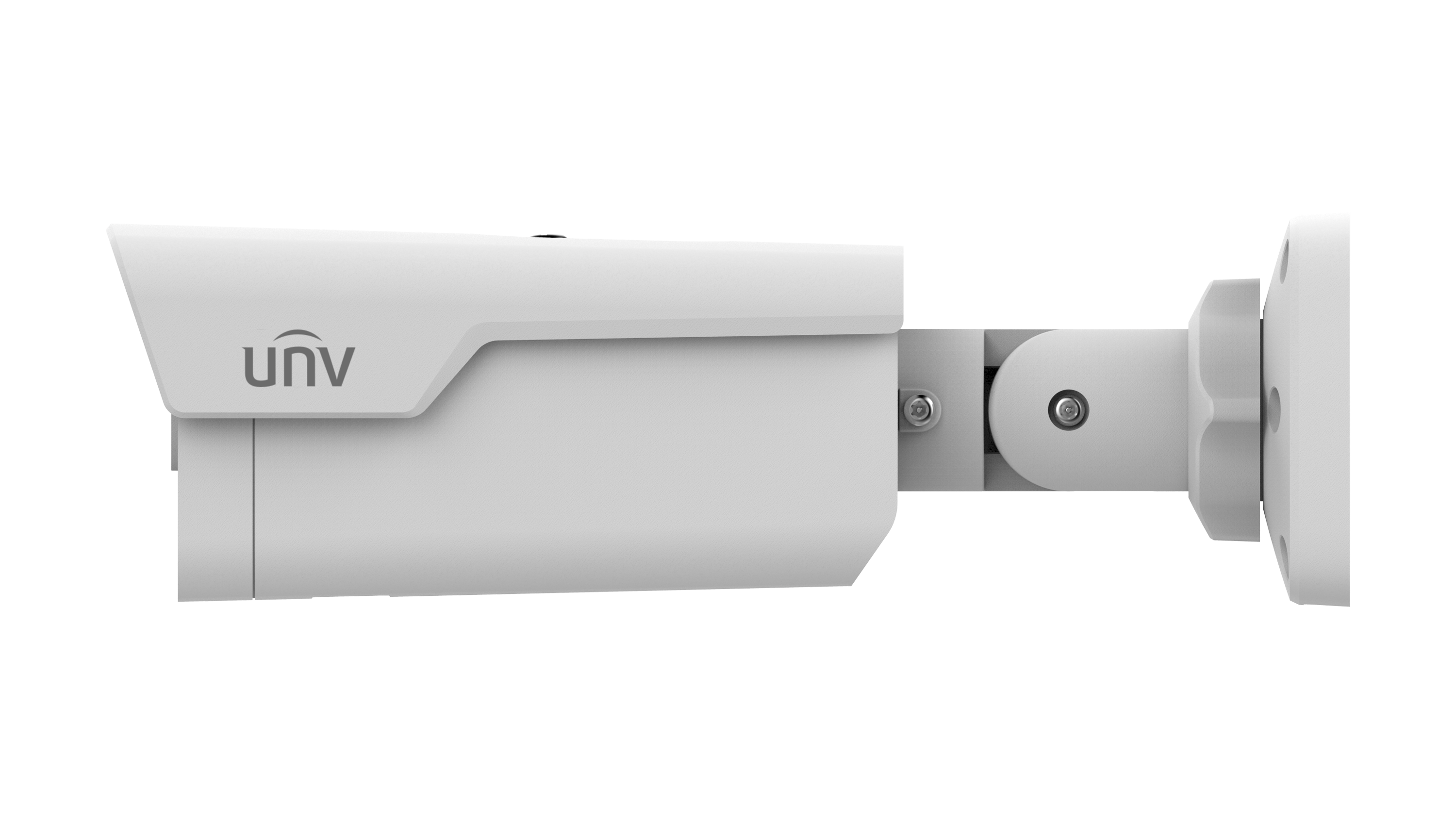

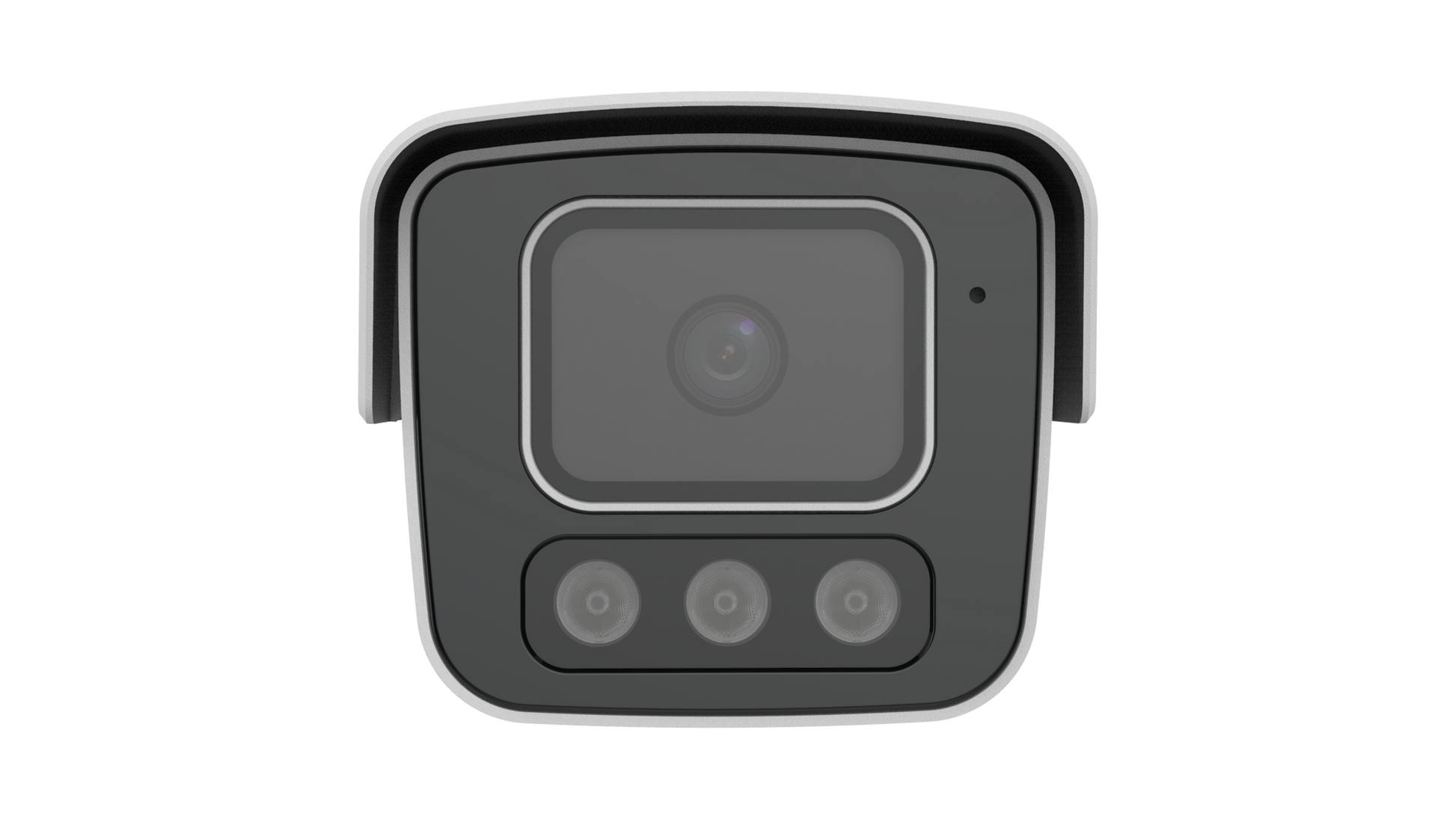

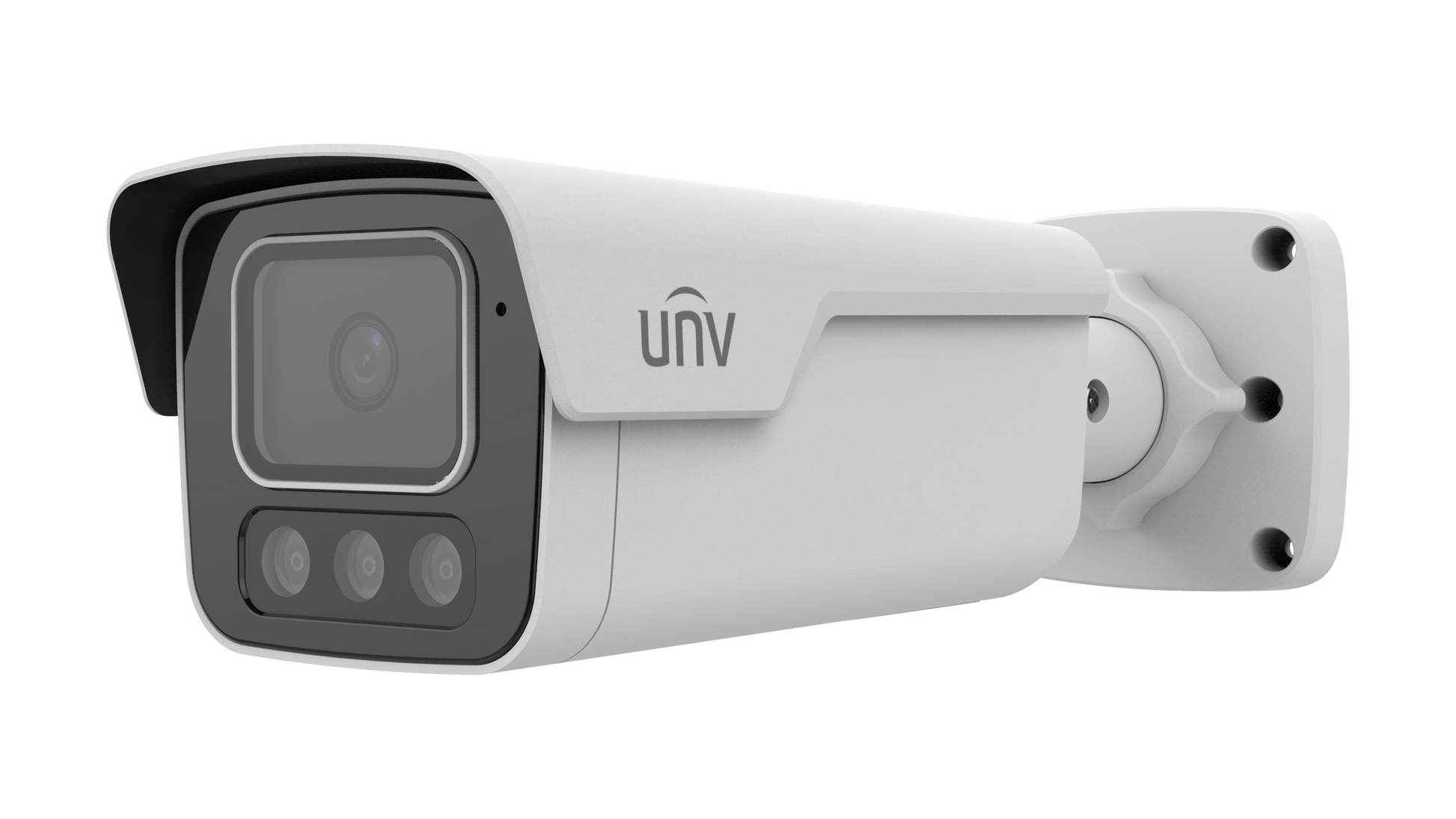

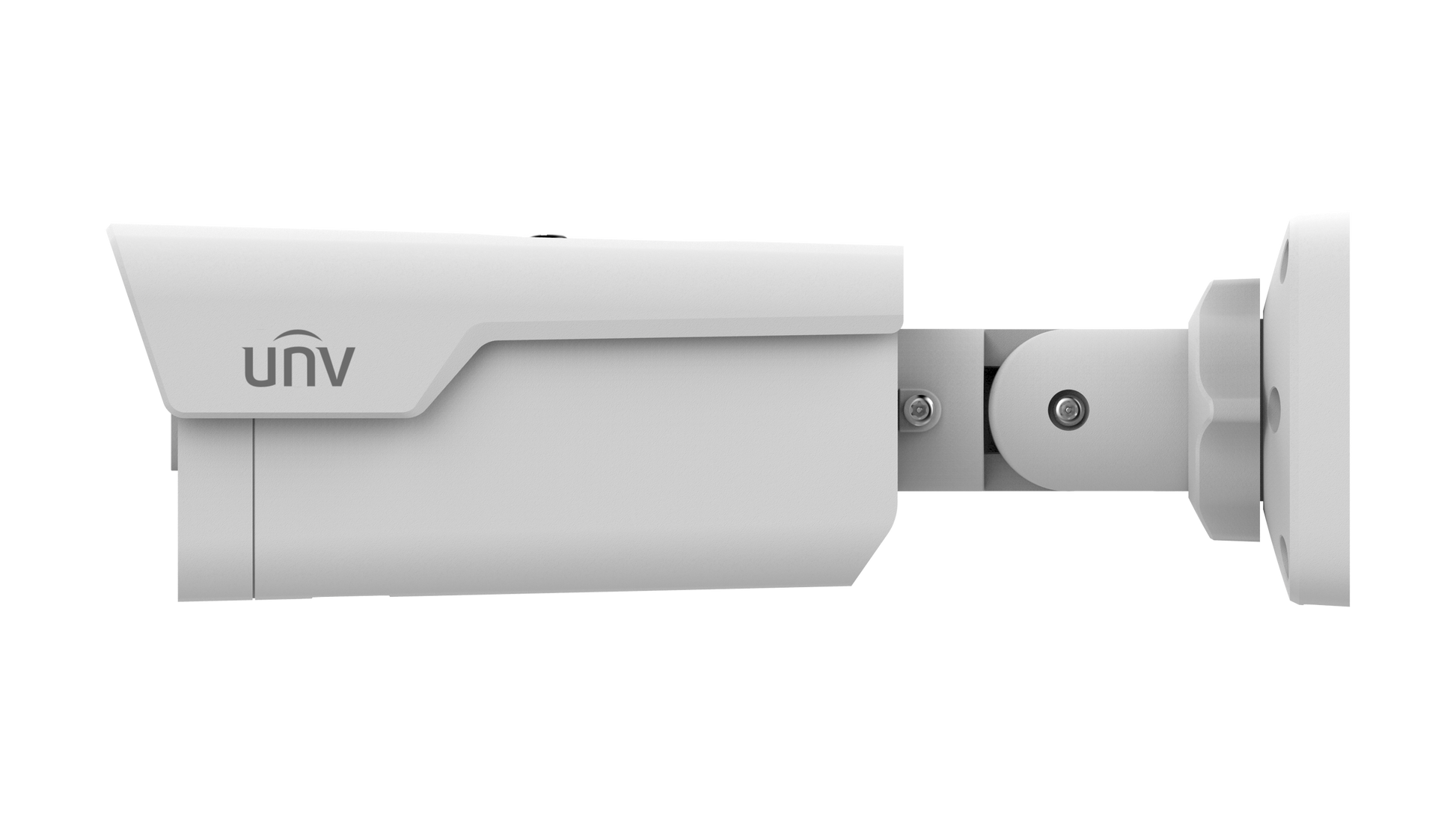

UNV 8MP Active Deterrence Fixed Bullet Network Camera

Part Number: IPC2B18SS-ADF28KMC-I1

Sensor Type: 1/2.8" CMOS
Lens Type: 2.8mm@F1.0
Max Resolution/Frame Rate: 8MP(3840x2160)@30fps
Angle of View: 106.5° (Horizontal)
Min. Illumination: Color 0.001Lux (F1.0, AGC ON)
Night Vision Distance: 131 Feet (IR & LED)
Corridor Mode: Yes
WDR: 130dB
Audio: Built-in Microphone and Speaker, Input/Output Connections
Alarm I/O: Yes
BNC Output: N/A
Special Features: Active Deterrence (Light and Vocal Warning), Human/Vehicle Detection, Face Capture, People Counting,Color Retrieval
Power: PoE (IEEE 802.3af), DC12V
NDAA Compliant: Yes
Warranty Period: 3 Years

Camera

Description

Resolution

8MP

Sensor

1/2.8" CMOS

Min. Illumination

Colour: 0.001 lux ( F1.0, AGC ON)
0 Lux with light

Day/Night

IRcut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

S/N

>56dB

WDR

130dB

Lens

Description

Lens type

IPC2B18SSADF28KMCI1:2.8mm

Iris Type

Fixed

Iris

F1.0

Field of View (H)

IPC2B18SSADF28KMCI1:106.5°

Field of View (V)

IPC2B18SSADF28KMCI1:57.9°

Field of View (D)

IPC2B18SSADF28KMCI1:132°

DORI

Description

DORI DistanceLens

IPC2B18SSADF28KMCI1:2.8mm

DORI DistanceDetect

IPC2B18SSADF28KMCI1:86.9m(285.1ft)

DORI DistanceObserve

IPC2B18SSADF28KMCI1:34.8m(114.2ft)

DORI DistanceRecognize

IPC2B18SSADF28KMCI1:17.4m(57.1ft)

DORI DistanceIdentify

IPC2B18SSADF28KMCI1:8.7m(28.5ft)

Illuminator

Description

Illumination Distance(IR)

IR 40m, Warm Light 40m

Illumination Distance(Warm Light)

IR 40m, Warm Light 40m

IR On/Off Control

Auto/Manual

Wavelength

850nm

Light On/Off Control

Auto/Manual

Video

Description

Video Compression

Ultra 265;  H.265;  H.264;  MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream:8MP (3840*2160), Max 30fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video stream

Triple streams


Description

Auto Scene Match (ASM)

SupportOnly WDR

White Balance

Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal; Vertical; Horizontal; 180°; 90°Clockwise; 90°Anticlockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Description

Smart intrusion prevention

Support false alarm filtering: Cross line detection, Intrusion detection, Enter area detection, Leave area detection

Statistical Analysis

People counting; support people flow counting and crowd density monitoring

Attribute Collection

SIP with color retrieval

Events

Description

Basic Detection

Motion detection; Ultra motion detection; Tampering alarm; Audio detection

General Function

Watermark; IP Address Filtering; Alarm input; Alarm output; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication

Audio

Description

Audio Compression

G.711U; G.711A

Audio Bitrate

64 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

8KHZ

Storage

Description

Edge Storage

Micro SD, up to 512 GB

Network Storage

ANR; NAS(NFS)

Network

Description

Protocols

IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; SSL/TLS; SSH

Compatible Integration

ONVIF (Profile S, Profile G, Profile T, Profile M);
API; SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Security

Password protection;
Strong password;
HTTPS encryption;
Export operation logs;
Basic and digest authentication for RTSP;
Digest authentication for HTTP;
TLS 1.2;
WSSE and digest authentication for ONVIF

Client

EZLive; EZView; EZStation

Web Browser

Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Description

Audio I/O

1 Input: impedance 35kΩ; amplitude 2V [pp]; 1 Output: impedance 600Ω; amplitude 2V [pp]

Alarm I/O

1/1

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

Support

WIFI

N/A

Network

1 * RJ45 10M/100M BaseTX Ethernet

Video Output

N/A

Certification

Description

EMC

CEEMC (EN 55032, EN 6100033, EN IEC 6100032, EN 50130)
FCC (FCC 47 CFR part15 B)

Safety

CELVD (EN 623681)
CB (IEC 623681)
UL/CUL (UL 623681, CAN/CSA C22.2 No. 623681)

Environment

CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)

General

Description

Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10.0W

Power Interface

Ø 5.5mm coaxial power plug

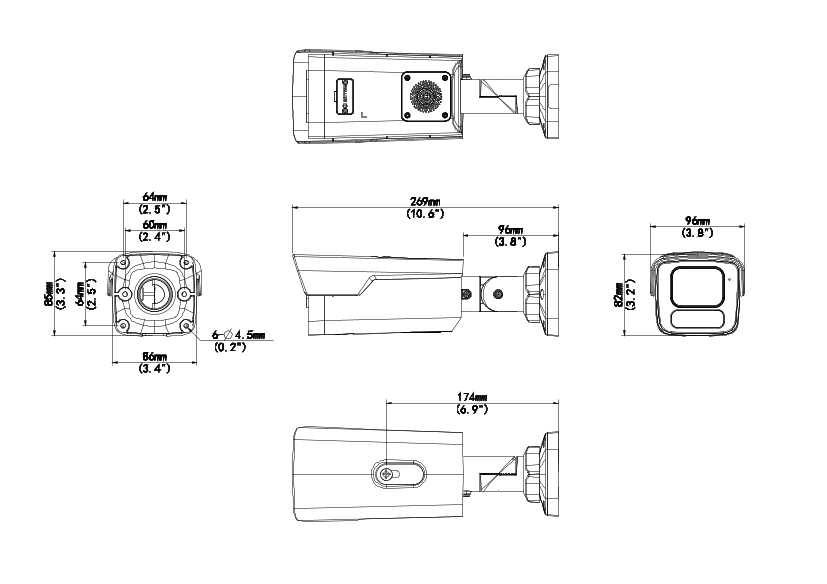

Dimensions

269 × 96 × 82mm (10.6 × 3.8 × 3.2)

Weight

0.97kg (2.14lb)

Material

Metal + Plastic

Working Environment

30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: 95% RH (noncondensing)

Storage Environment

30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: 95% RH (noncondensing)

Surge protection

4KV

Reset button

Support

Web Client Language

20 Languages
Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
