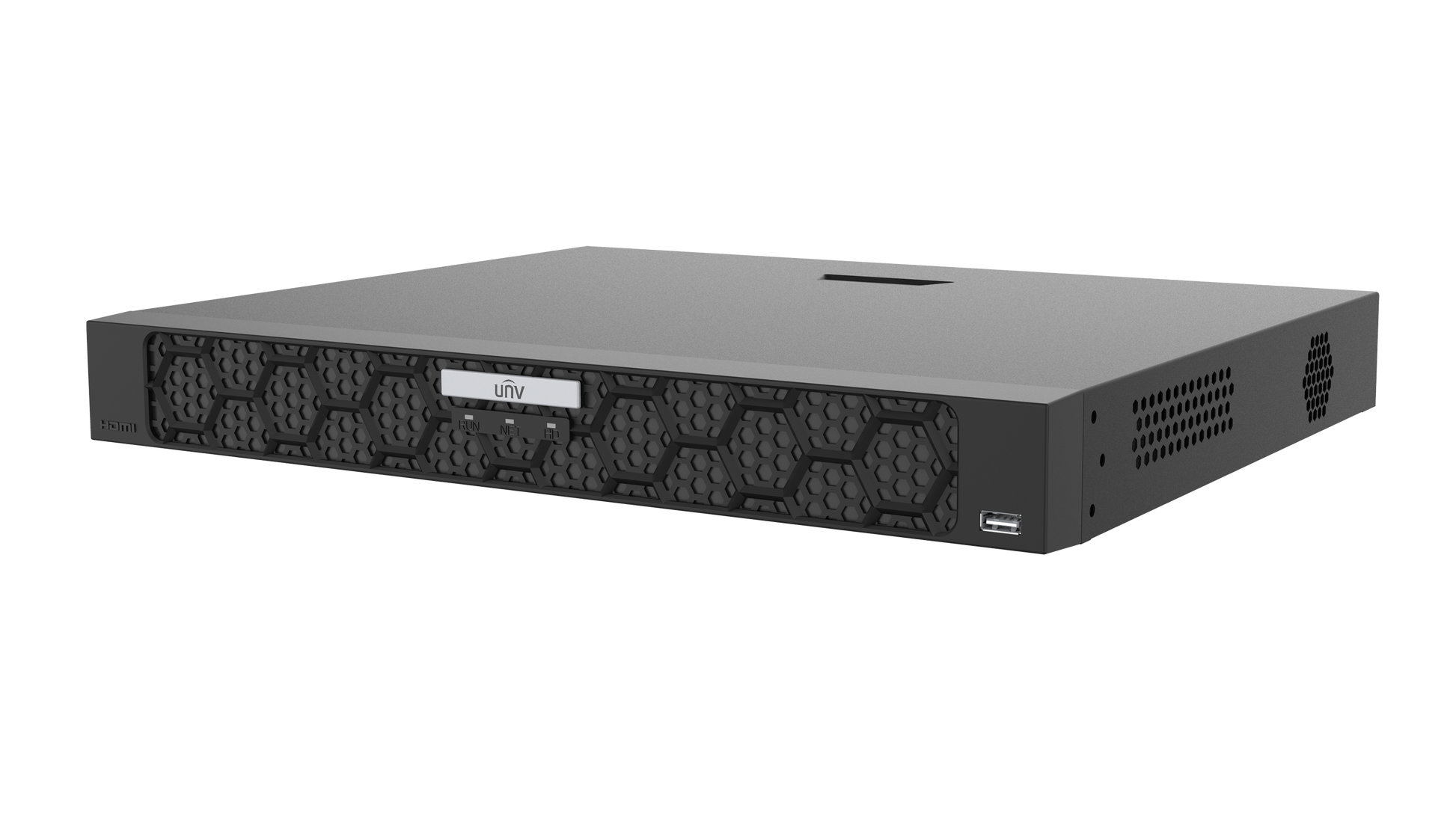

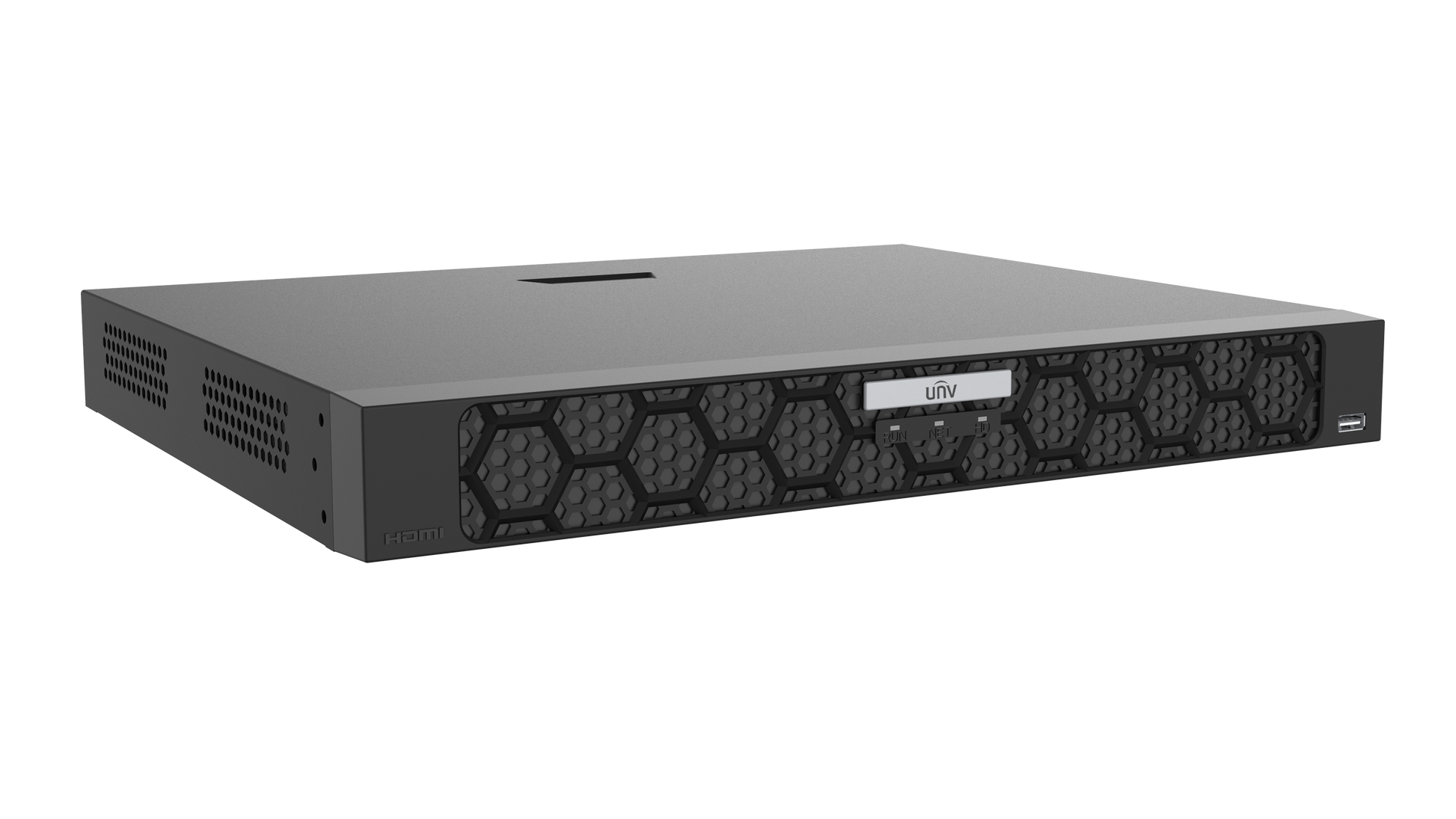

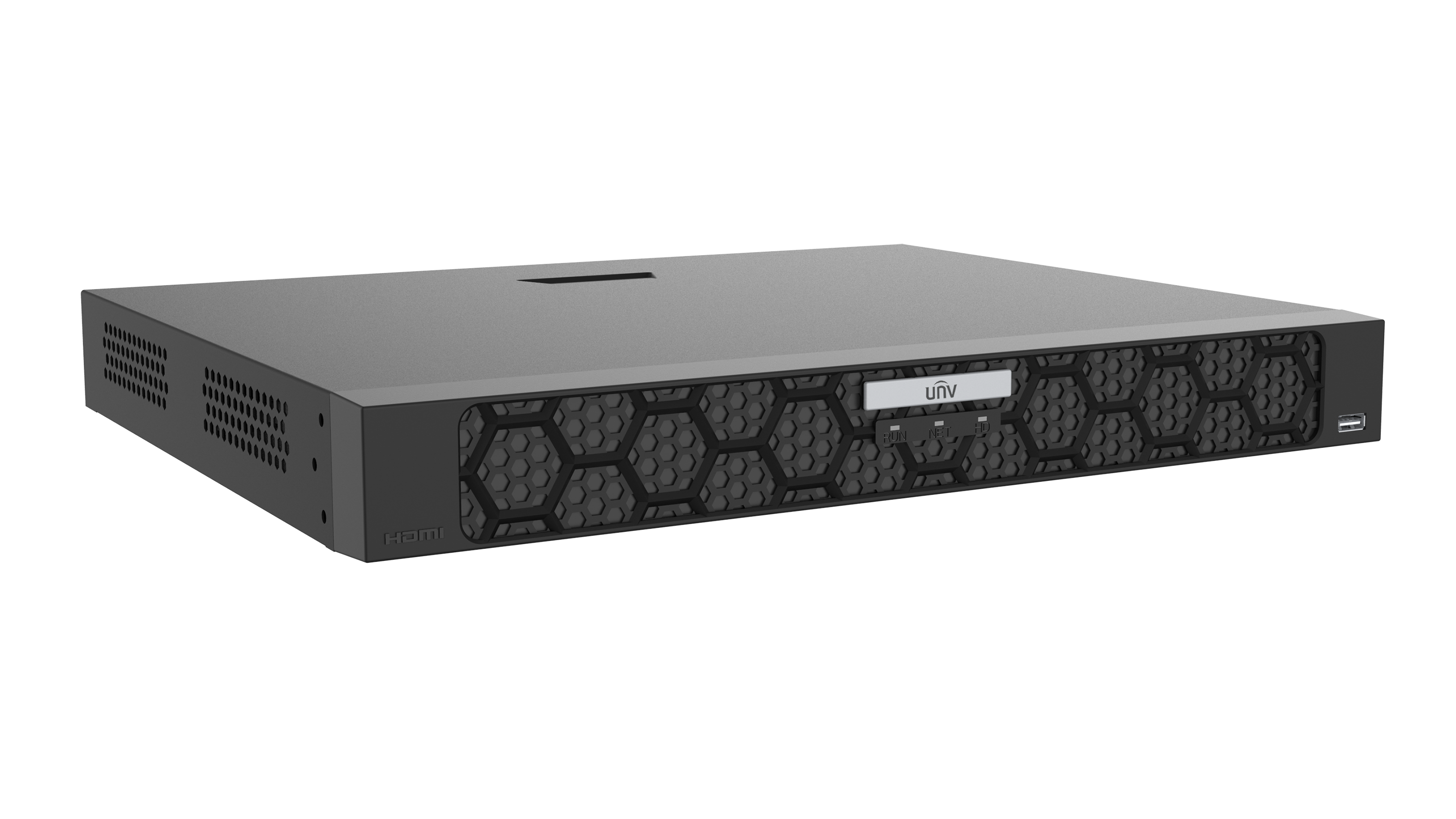

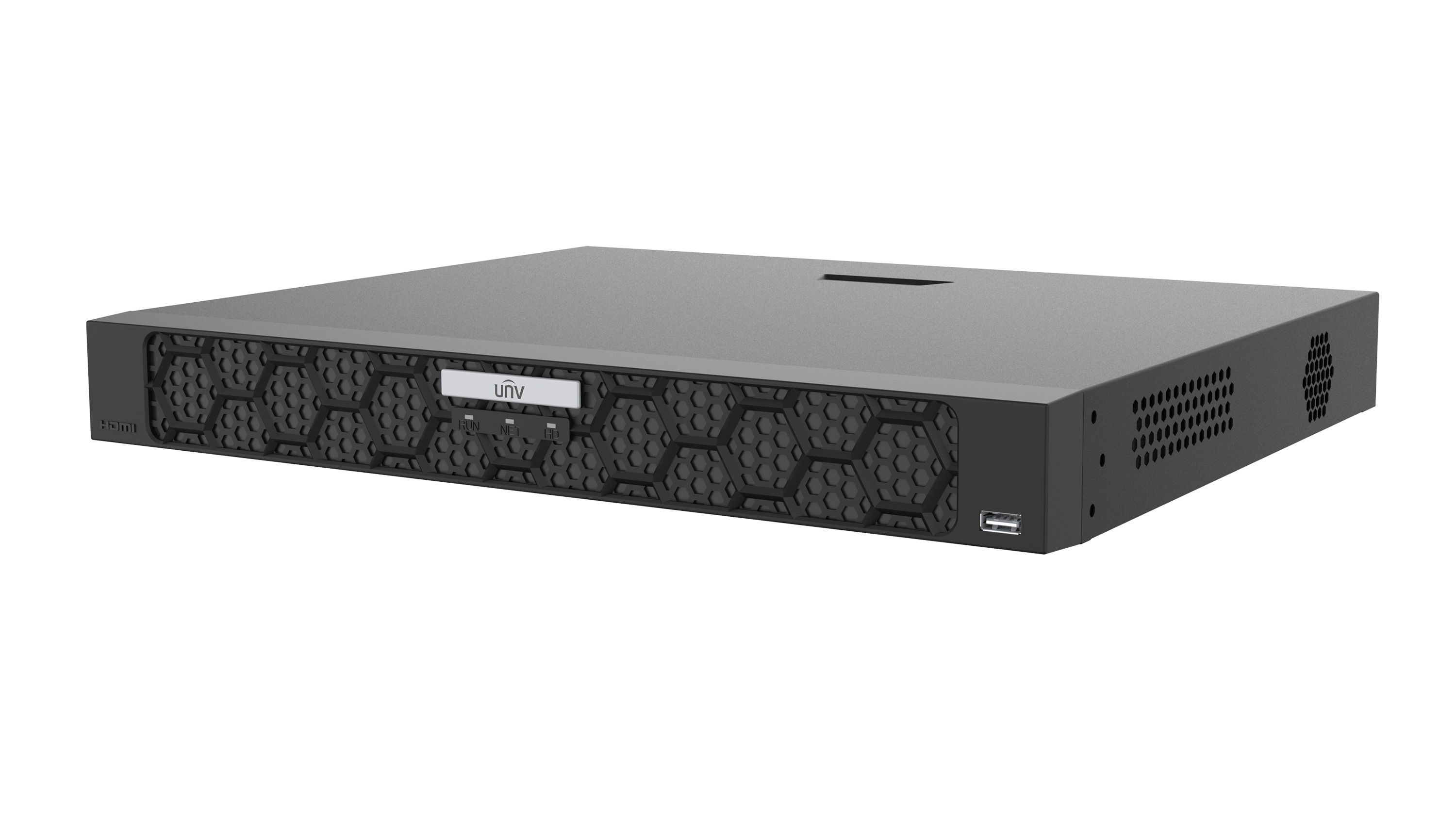

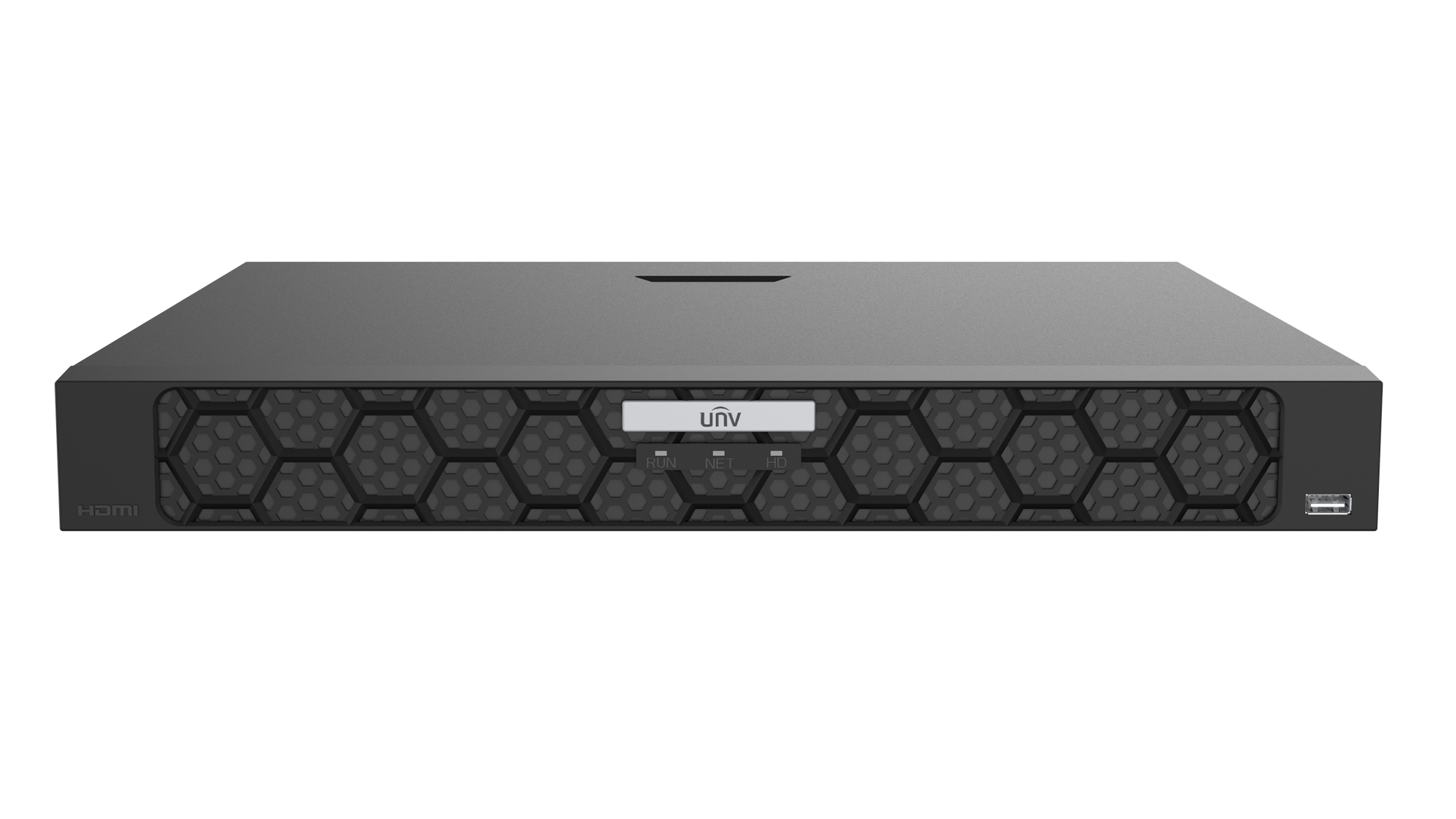

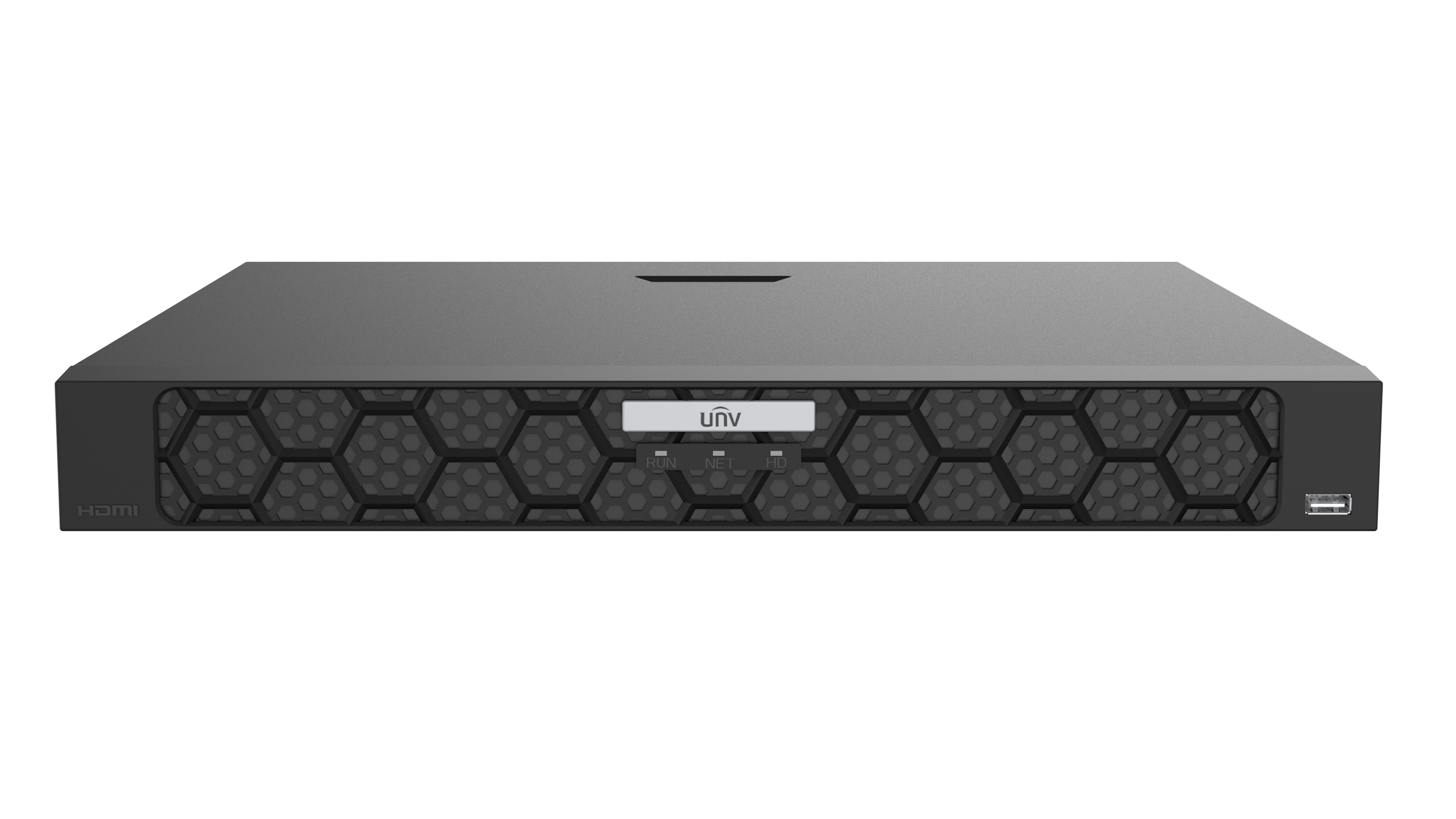

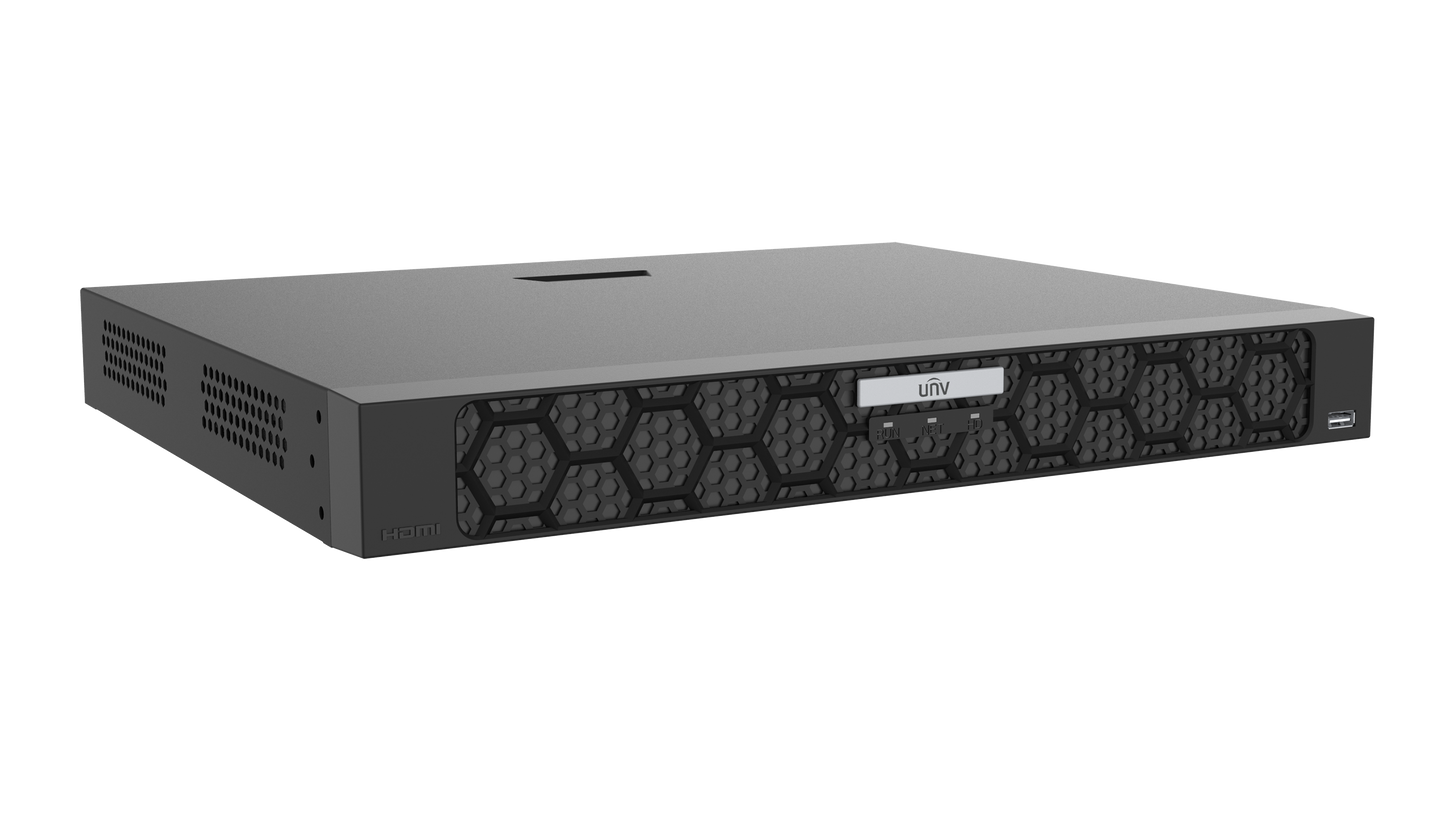

16 Channel 2-SATA 1U POE NVR (Deep Learning)Part Number: NVR502-16B-P16-IQ
Channels & Inputs
16 IP Channels
Max Resolution
Up to 16MP (4K)
HDD Storage
SATA Support
Network & PoE
Built-in PoE (240W)
Smart Feature Highlights
Video Output
1-HDMI(4K), 1-VGA(1080P), Independent (Spot) Output
Bandwidth
AI Off - 320Mbps (In) / 160Mbps (Out), AI On - 160Mbps (In) / 160Mbps (Out)
HDD Storage
Multi-SATA Support
Network Ports
Single 10M/100M/1000M NIC
Chassis Form Factor
1U, Rackmountable
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Yes, HDMI/VGA Enabled. UNV/Onvif Cameras.
| Video, Decoding & Storage | |
|---|---|
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | NVR50216BP16IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30 |
| Audio Compression | G.711A, G.711U |
| Video/Audio Input | |
| IP Video Input | NVR50216BP16IQ:16ch |
| RCA Audio Input | 1ch |
| Video/Audio Output | |
| HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1ch |
| Liveview Display | NVR50216BP16IQ:1/4/6/8/9/16 |
| Corridor Mode Screen | NVR50216BP16IQ:3/4/5/7/9/10/12/16 |
| Two-way Audio | |
| Two-way Audio | 1ch, RCA(Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4ch snapshot, up to 4K resolution |
| Recording | |
| Recording Resolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16ch |
| Hard Disk | |
| SATA | 2 SATA Interfaces |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1 |
| Smart Features, Network & General | |
|---|---|
| Network | |
| Incoming Bandwidth | Smart Off：320Mbps Smart On：160Mbps |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; IPV6 |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Smart | |
| VCA Detection by IPC | Face Detection; face detection; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| Smart by NVR | face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD) |
| VCA Search | Motor Vehicle Search; NonMotor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
| Smart by IPC | All channels (up to 8 images/s in total)Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Face Picture Library | Up to 16 face picture libraries, with up to 50,000 face pictures in total |
| Search by Image | Support |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR | 4ch |
| UMD by NVR | 8ch |
| Capacity of Snapshot Records | 2 millions records for face snapshot; 2 millions records for vehicle snapshot; 3 millions records for SIP; 2 millions records for video Metadata |
| Alarm | |
| General Alarm | Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
| Alert Alarm | IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; Array Damaged; Array Degraded |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M/1000M selfadaptive Ethernet Interface |
| USB | Front panel: 1 x USB2.0; Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 8ch |
| Alarm Out | 2ch |
| Power Supply | AC 100~240V |
| Power Switch | Support |
| PoE | |
| Interface | NVR50216BP16IQ:16 RJ45 10M/100M selfadaptive Ethernet Interface |
| Max Power | NVR50216BP16IQ:Max 30W for single port, Max 240W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| Working Environment | |
| Working Temperature | 10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Working Humidity | ≤ 90% RH (noncondensing) |
| Power Consumption (without HDD) | ≤ 12W |
| Dimensions | |
| Weight (without HDD) | ≤ 2.7Kg (6.0lb) |
| Height | 1U |

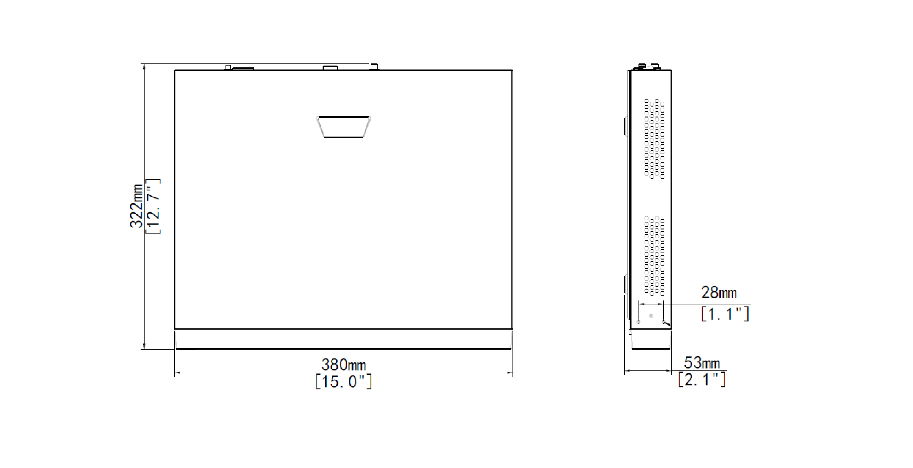

| Dimensions | 380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 6100033, EN IEC 6100032, EN 55035 |
| FCC | Part15 Subpart B |
