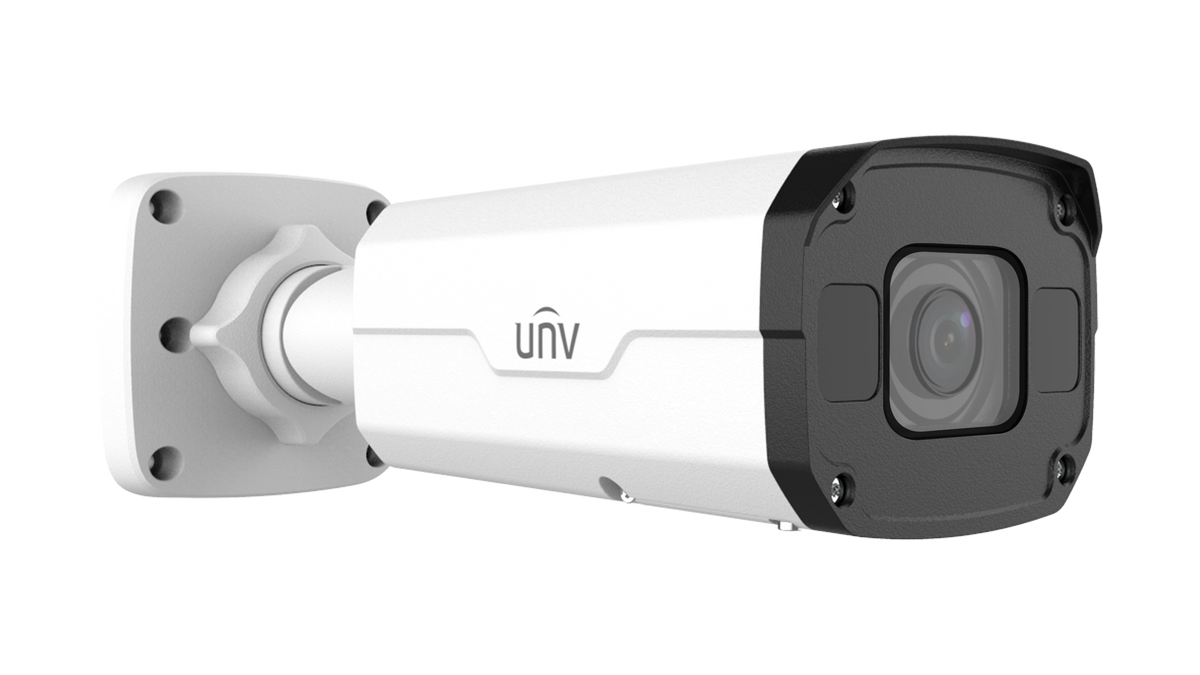

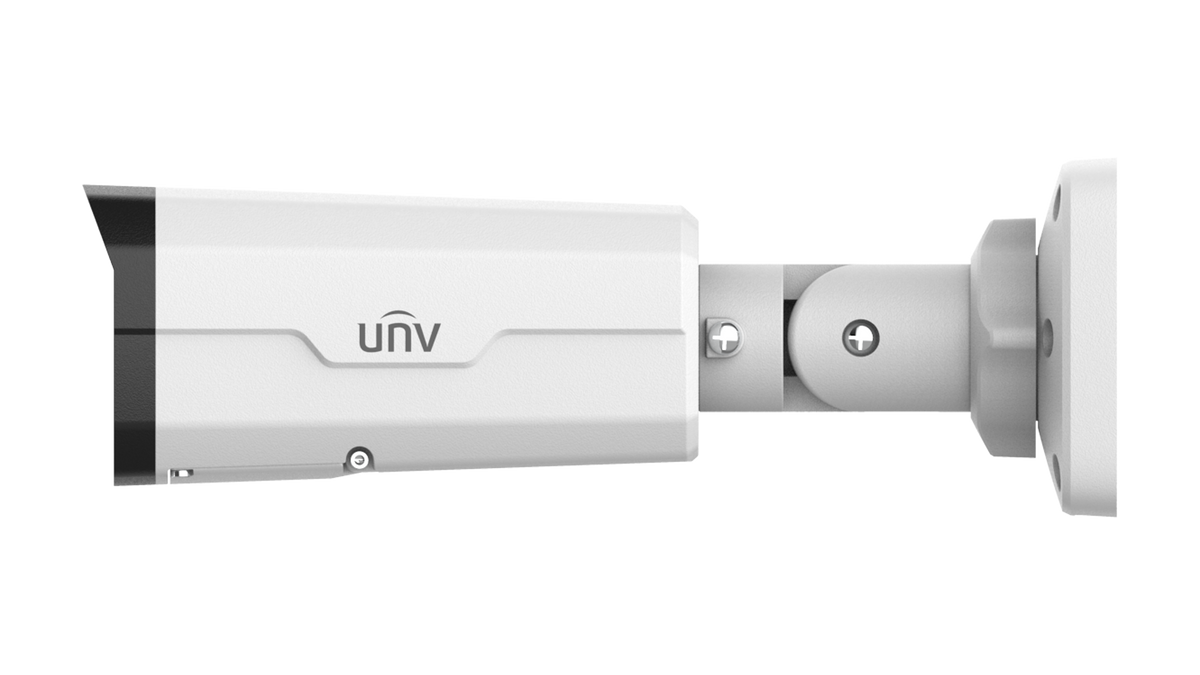

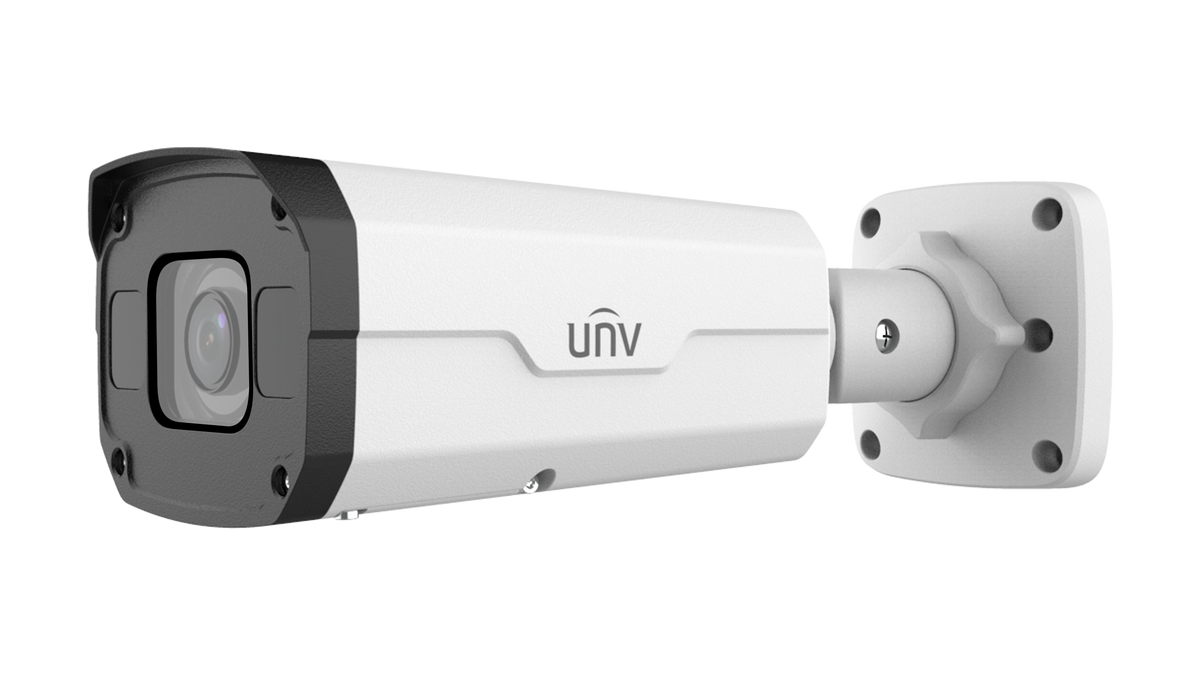

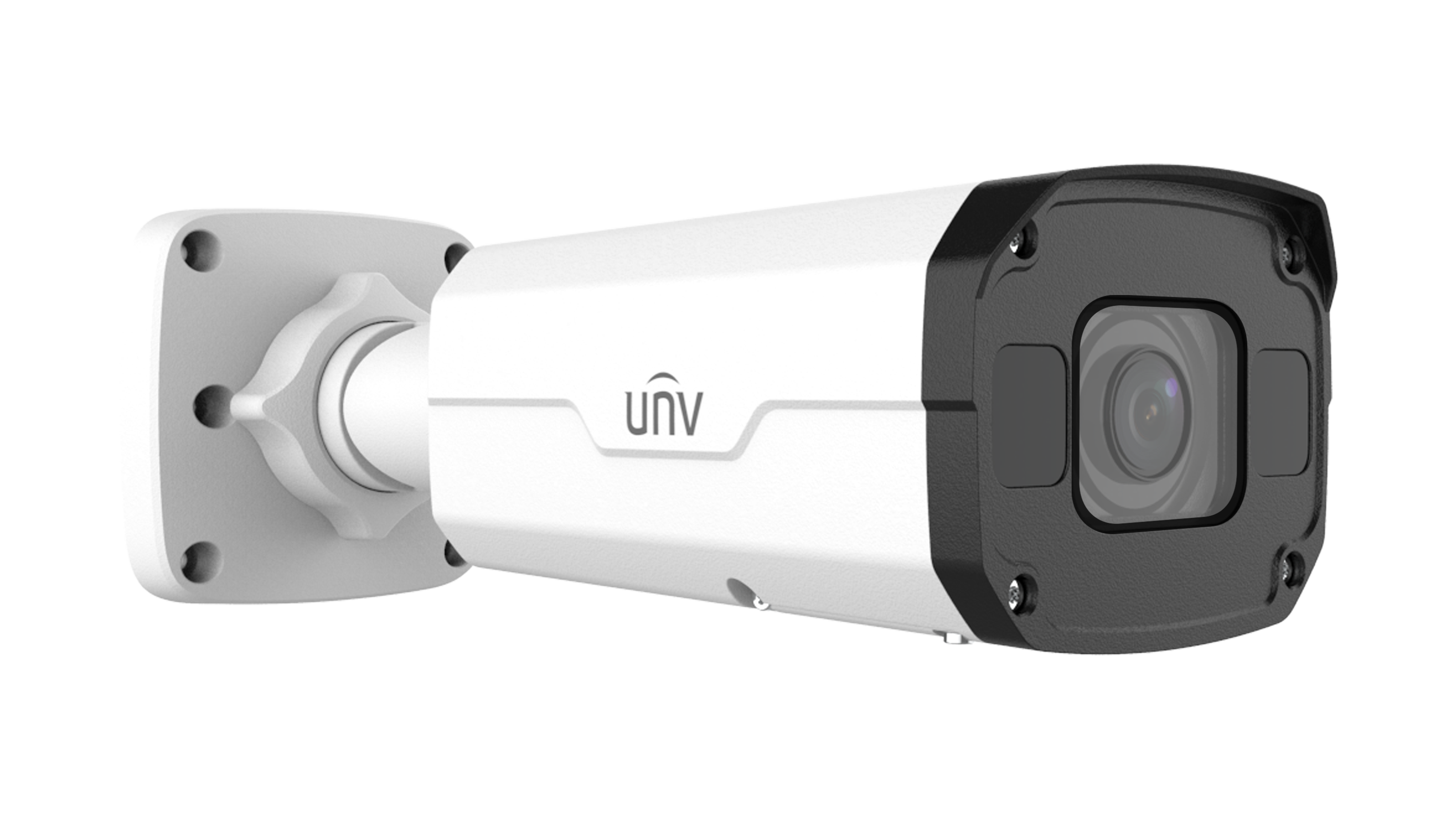

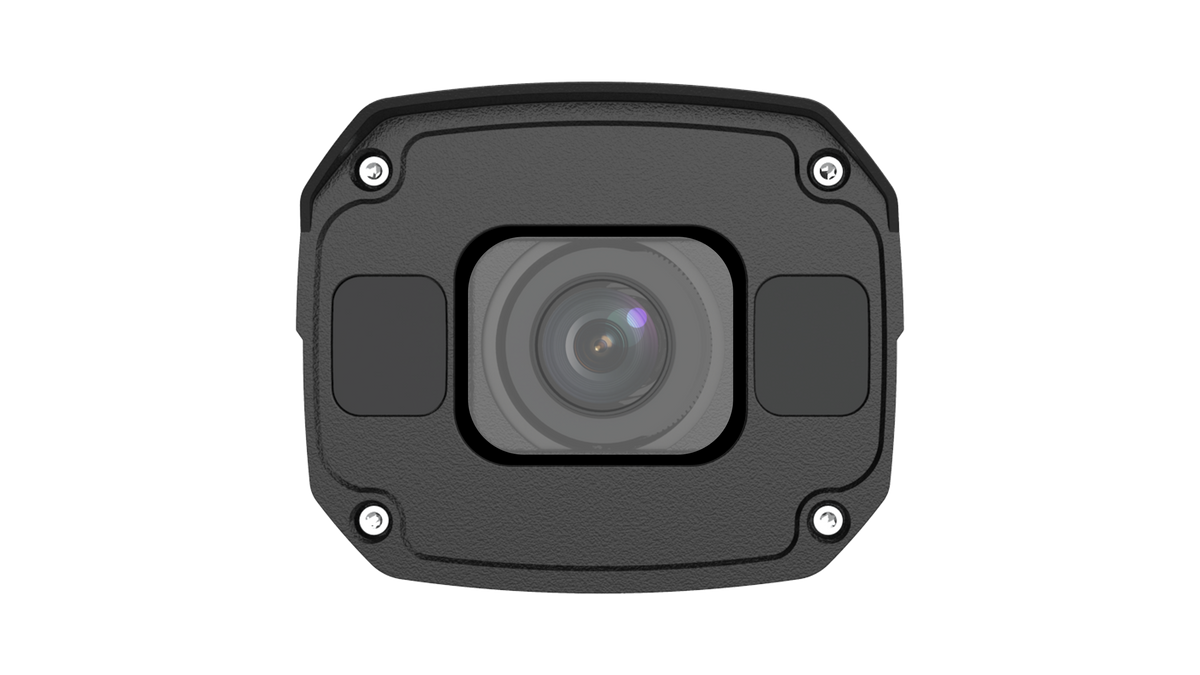

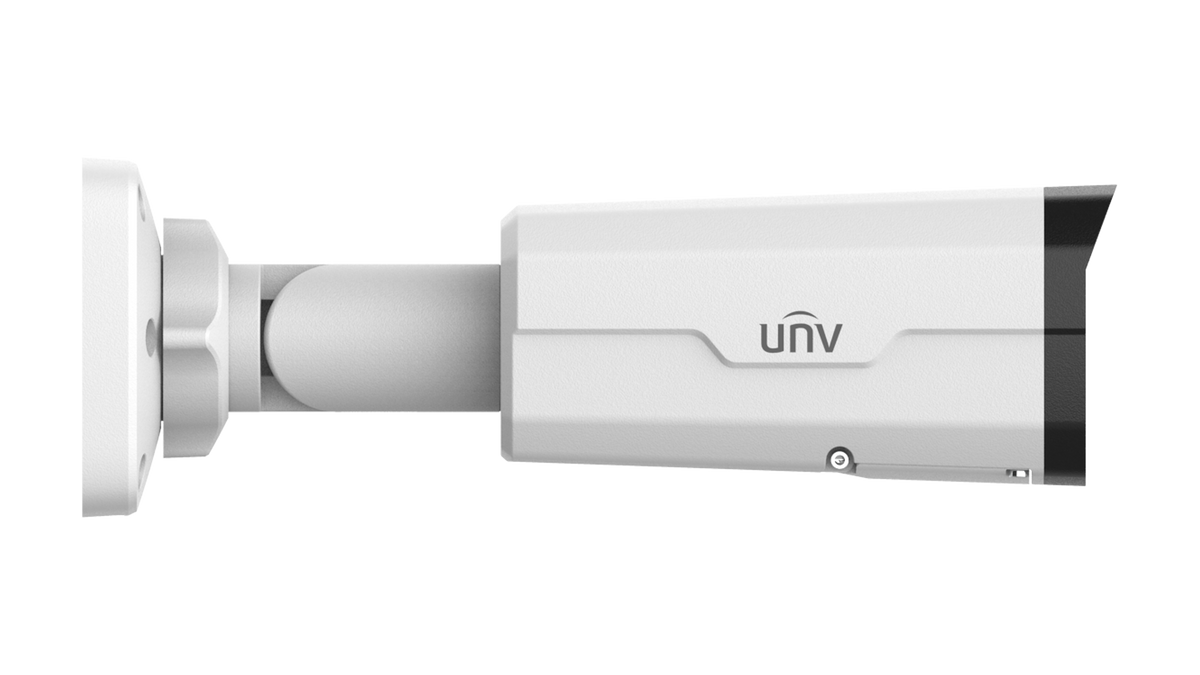

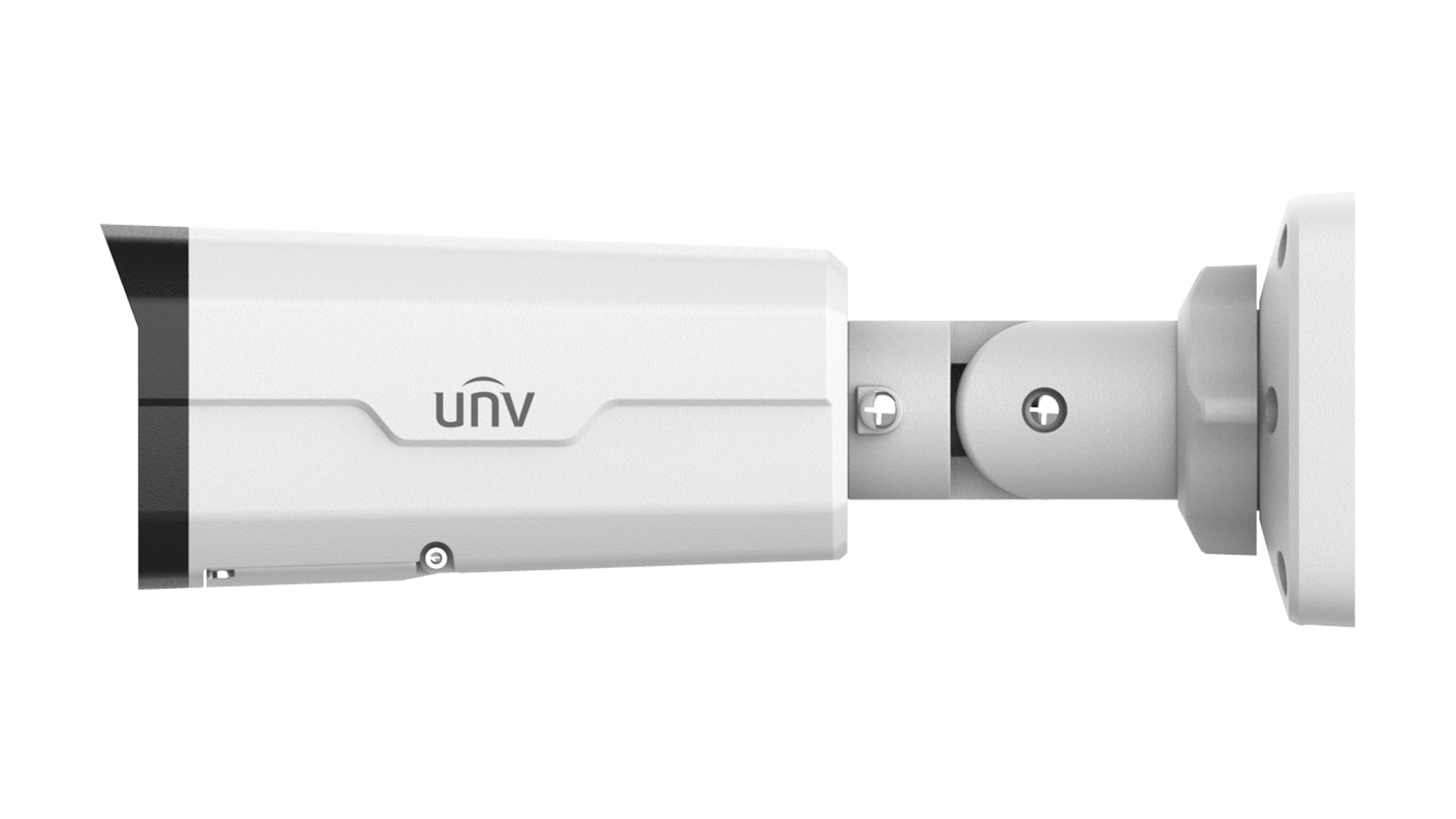

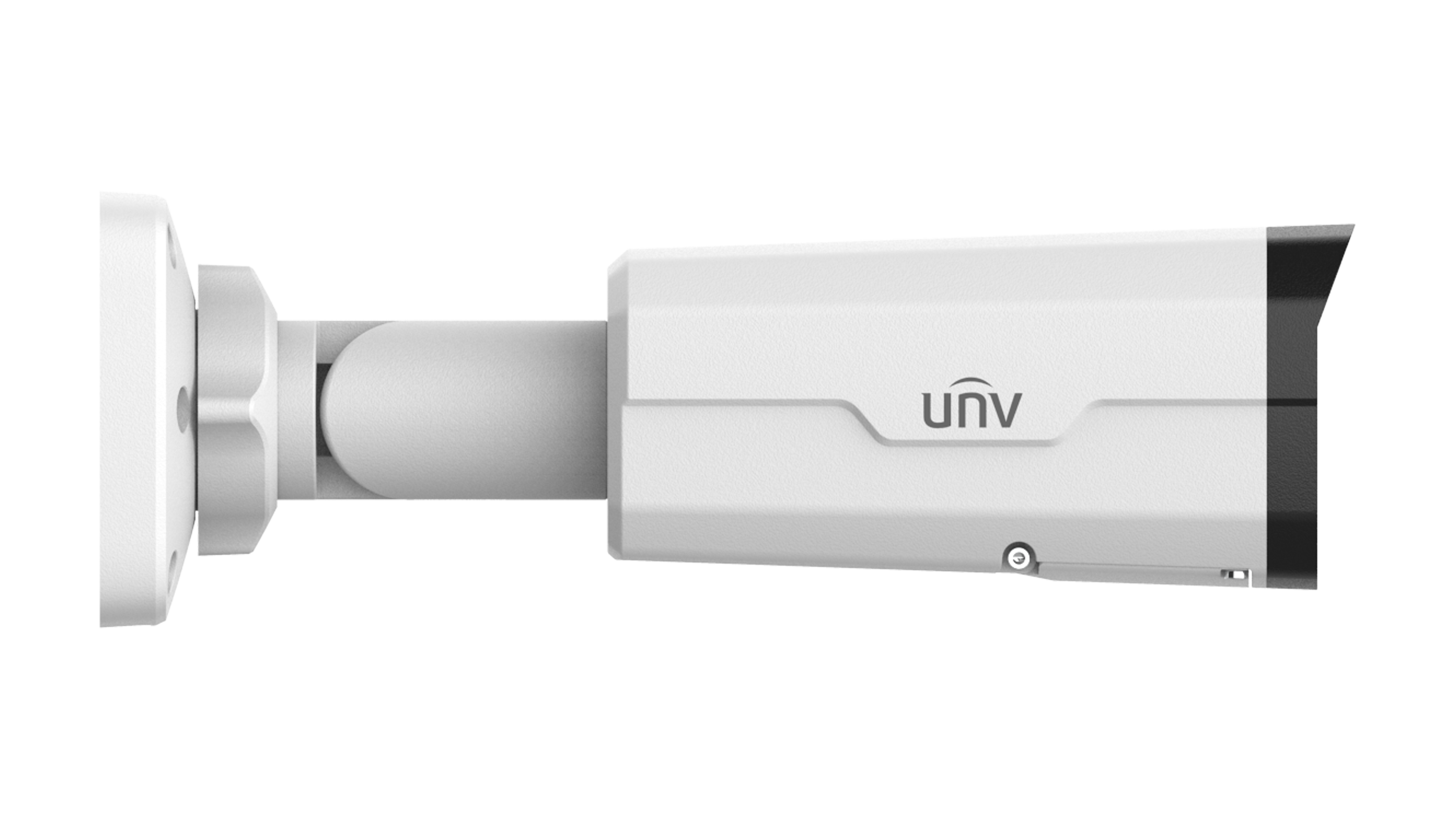

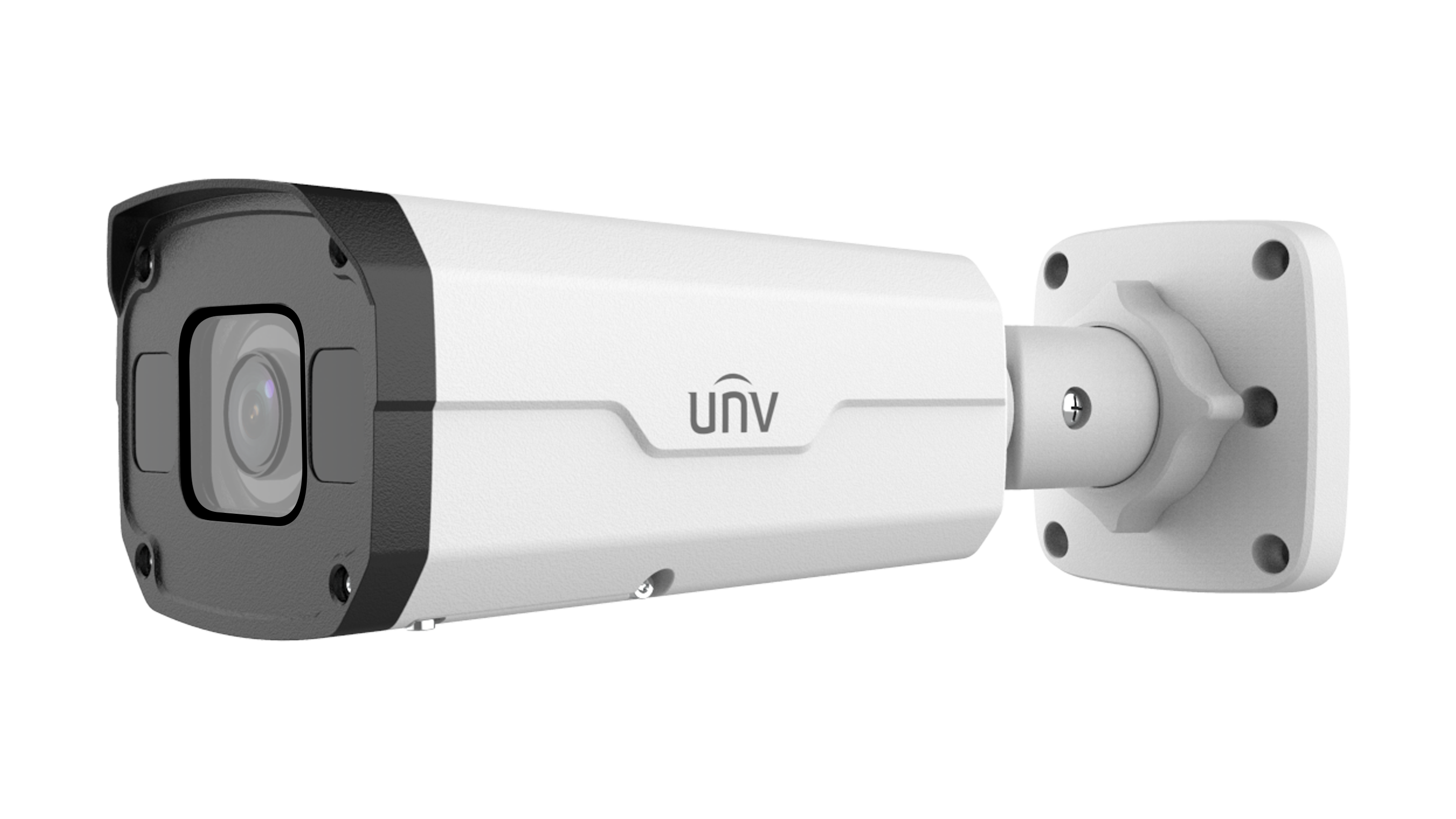

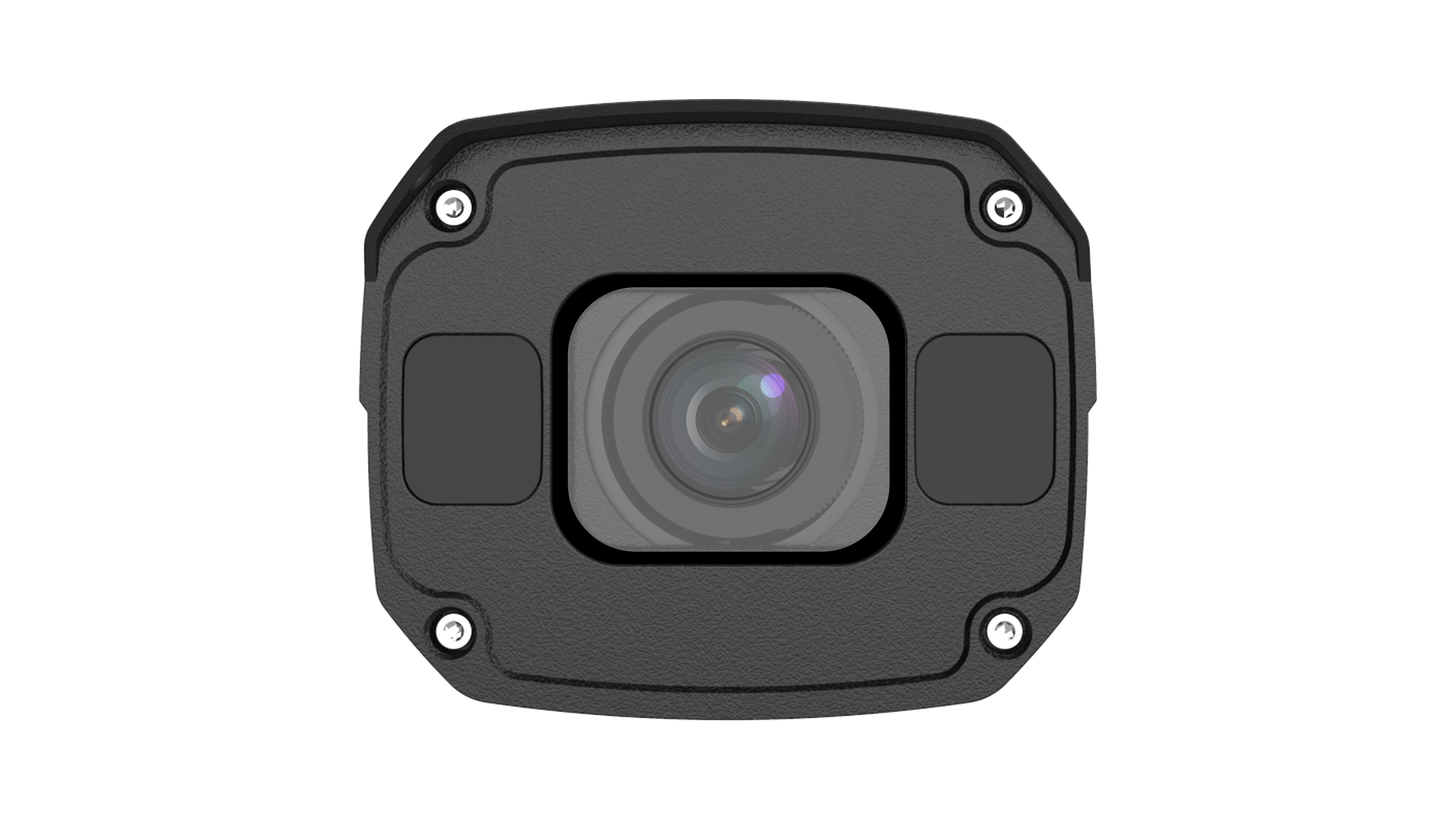

5MP LightHunter VF IR BulletPart Number: IPC2325SB-DZK-I0
Resolution
5 MP @ 30fps
Lens Options
2.7 to 13.5mm Motorized (F1.2)
Night Vision
164.0 ft (50m) Smart IR
Power
PoE / DC12V (Max 8.0W)
Smart Feature Highlights
Sensor Type
1/2.7" CMOS (0.002 Lux F1.2)
Field of View (H)
106.3° to 32.5°
WDR & Imaging
120dB True WDR
Audio & Interfaces
Audio In/Out, Alarm I/O
SD Card Slot
MicroSD up to 512GB
Ingress & Vandal Protection
IP67 & IK10 Vandal Resistant
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, DORI & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | IPC2325SB-DZK-I0 |
| Max Resolution | 5 MP (2880 × 1620) @ 30/25 fps |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| S/N Ratio & WDR | >52 dB; 120 dB True WDR |
| Lens & FOV | |
| Focal Length & Type | 2.7 to 13.5 mm Motorized lens (Fixed Iris, F1.2) |
| Field of View (Horizontal) | 106.3° to 32.5° |
| Field of View (Vertical) | 53.5° to 18.0° |
| Field of View (Diagonal) | 126.0° to 38.5° |
| DORI Distances | |
| Detect | 60.8 m to 303.8 m (199.5 ft. to 996.7 ft.) |
| Observe | 24.3 m to 121.5 m (79.7 ft. to 398.6 ft.) |
| Recognize | 12.2 m to 60.8 m (40.0 ft. to 199.5 ft.) |
| Identify | 6.1 m to 30.4 m (20.0 ft. to 99.7 ft.) |
| Illuminator & Video | |
| Supplemental Light | IR (50m / 164.0ft distance) |
| Illuminator Control & Wavelength | Auto/Manual; Wavelength: 850 nm |
| Video Compression & Profiles | Ultra 265, H.265, H.264, MJPEG; H.264 Profiles: Baseline, Main, High |
| Bit Rate & Streams | 128 Kbps to 16 Mbps; Triple streams; U-code supported |
| Image Settings | White Balance (Auto/Outdoor/Fine tune/Sodium lamp/Locked/Auto2), 2D/3D DNR, Smart IR, HLC, BLC, Digital Defog, Up to 8 OSDs, 4 Privacy masks, ROI |
| Smart, Network & General Specs | |
|---|---|
| Smart Features (SIP) & Events | |
| Smart Intrusion Prevention | Cross line, intrusion, enter area, leave area detection with false alarm filtering (human, vehicle, non-motor vehicle) |
| Analytics & Flow Counting | People flow counting and crowd density detection |
| Basic Detection & Events | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP/HTTP/User authentication |
| Audio, Storage & Interface | |
| Audio | G.711U, G.711A, AAC-LC; Two-way audio, noise suppression |
| Edge & Network Storage | MicroSD slot, up to 512 GB; ANR, NAS (NFS) |
| Network & Security | 1x RJ45 10M/100M; IPv4/IPv6, ONVIF (S/G/T/M), SSL/TLS, HTTPS, 802.1x, Up to 32 users (3 user levels) |
| Client & Browser | EZStation, App; Plugin required & plugin-free browser live view support |
| Interfaces & I/O | Audio I/O (1 In / 1 Out), Alarm I/O (1 In / 1 Out) |
| General & Environment | |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af); Max. 8.0 W; Ø5.5 mm coaxial power plug |

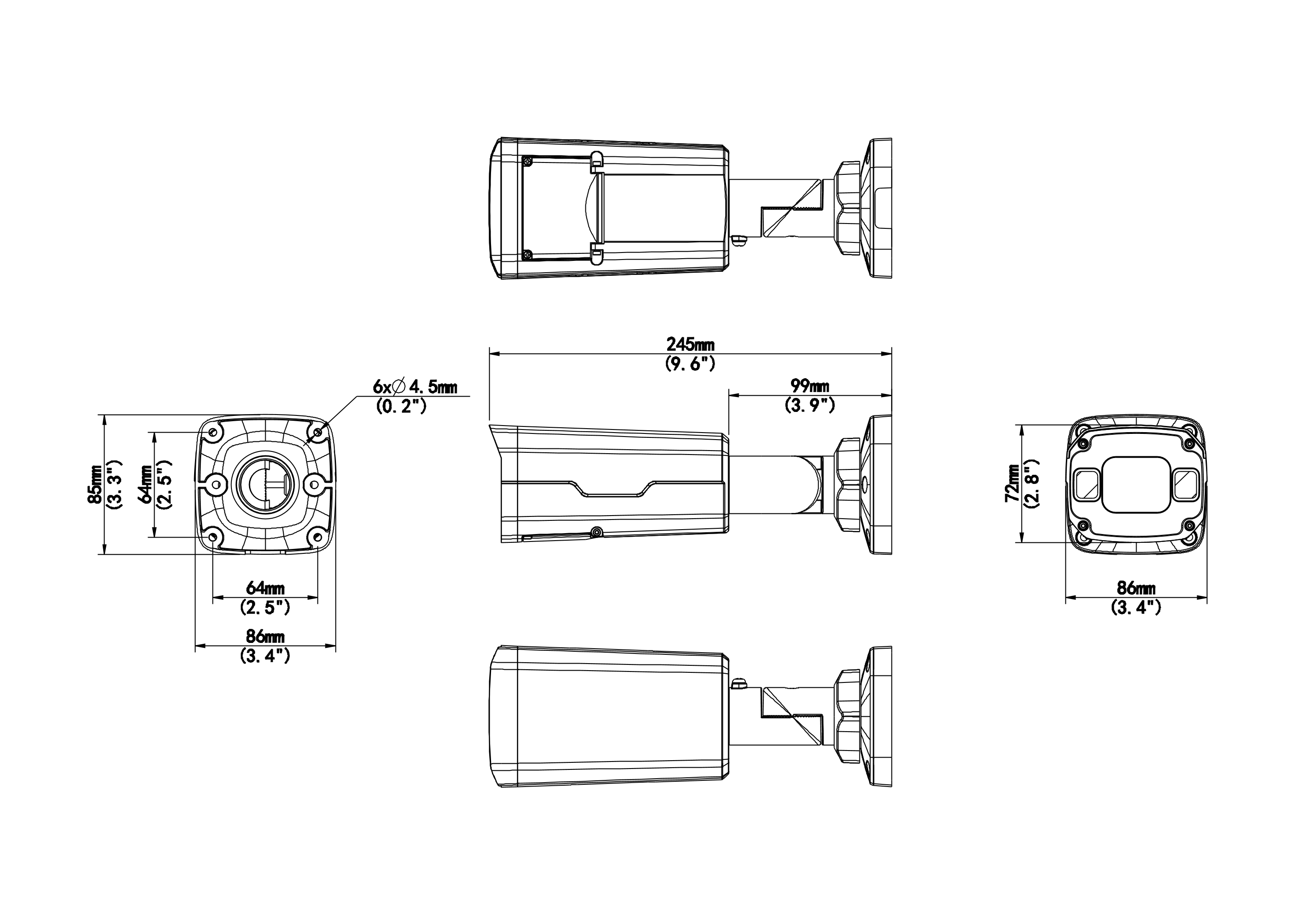

| Dimensions & Weight | 245 mm × 86 mm × 72 mm (9.6" × 3.4" × 2.8"); 0.92 kg (2.03 lb.) |
| Material & Protection | Metal casing; IP67, IK10 Vandal Resistant, 6 KV Surge protection |
| Working/Storage Environment | -30°C to 60°C (-22°F to 140°F), humidity $\le95\%$ RH |
| Language Support | 20 Languages (English, Spanish, French, German, Chinese, etc.) |
| Compatible Accessories | TR-JB07-D-IN-V2 / TR-JB06-A-IN junction boxes, TR-UP06-B / TR-UP06-C-IN-V2 pole mounts, TR-UC08-C-V2 corner mount, TR-A01-IN gland |
