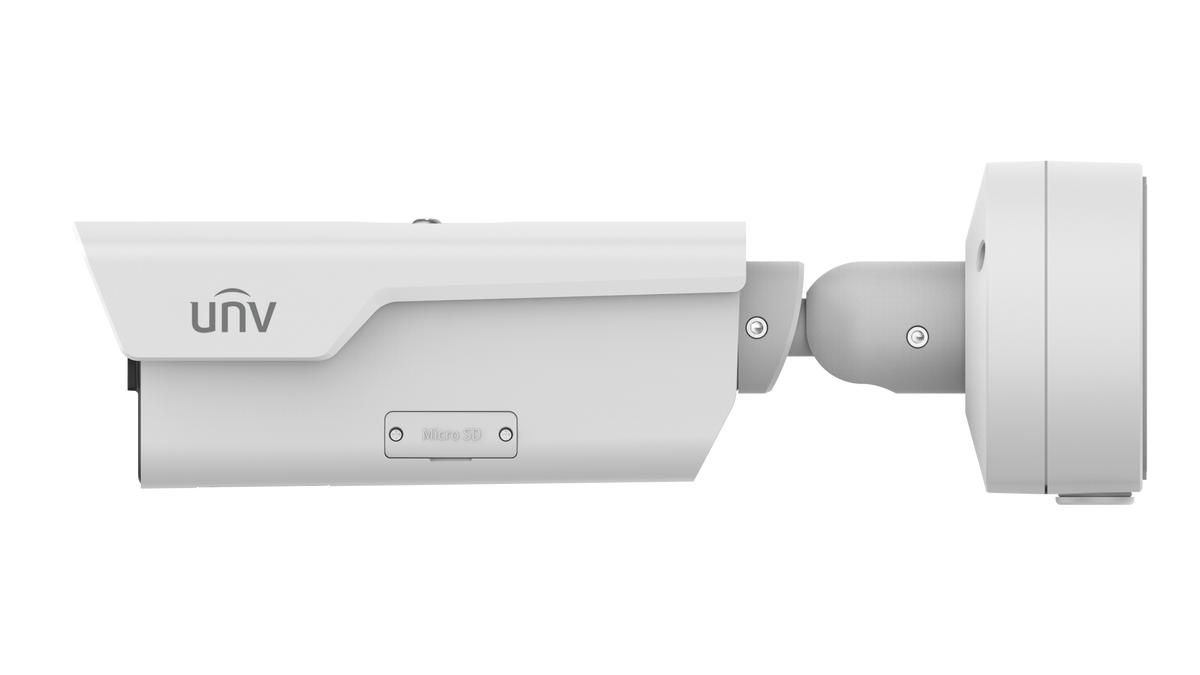

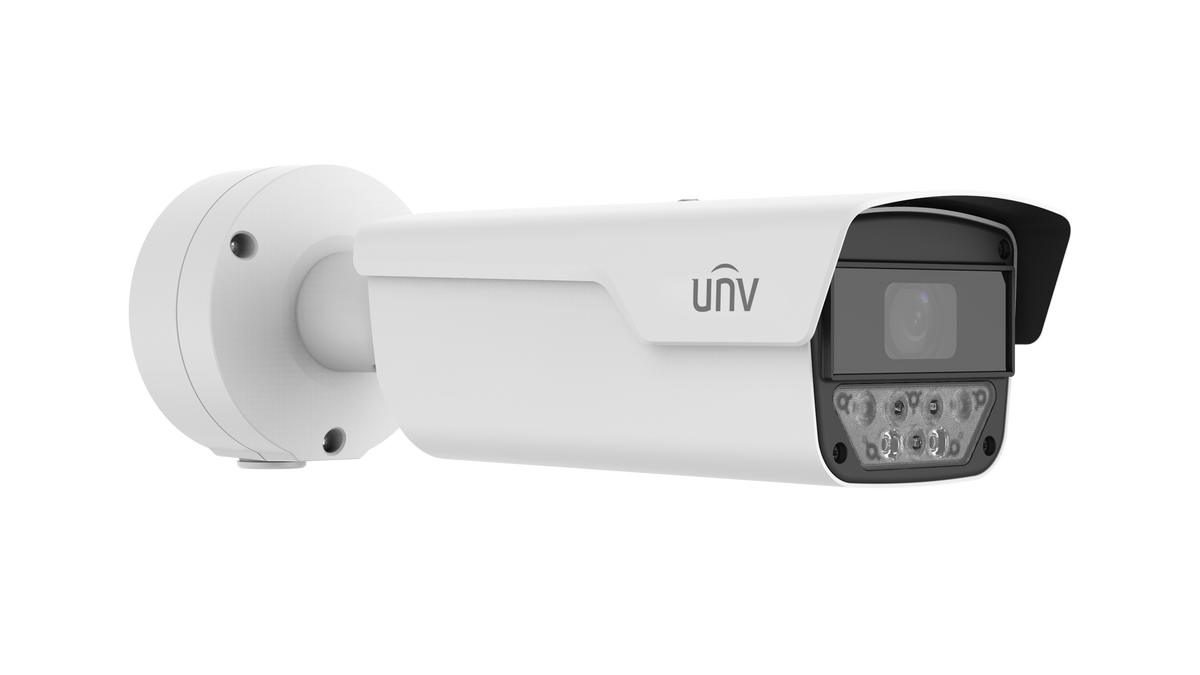

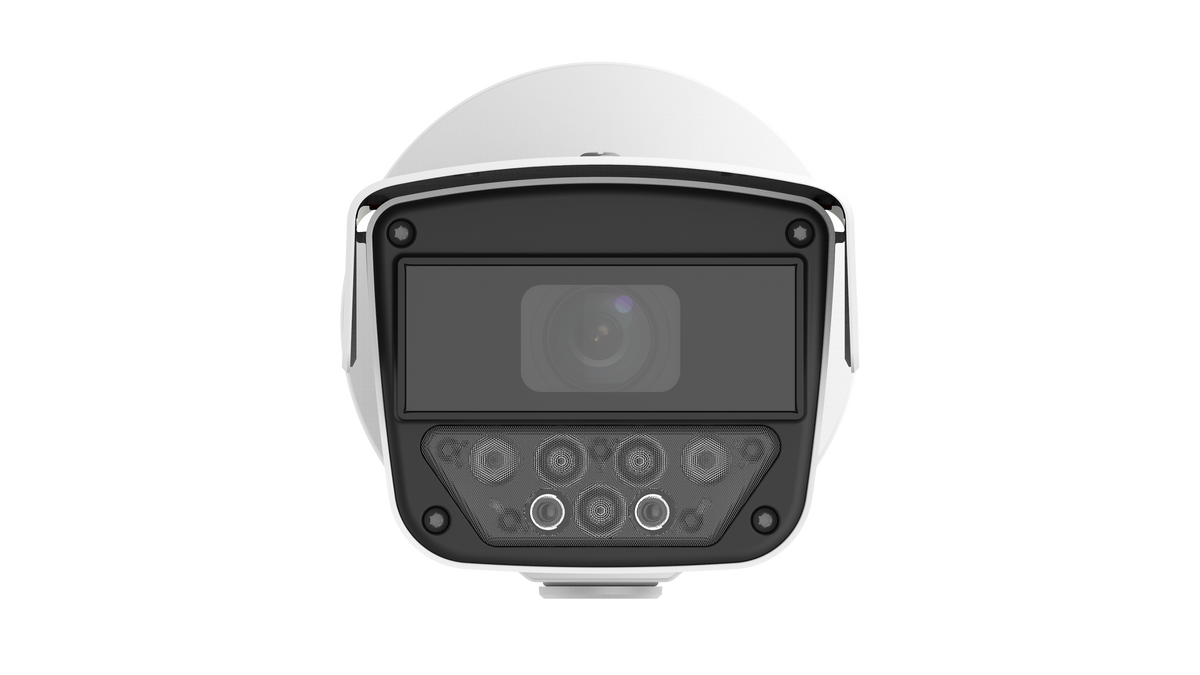

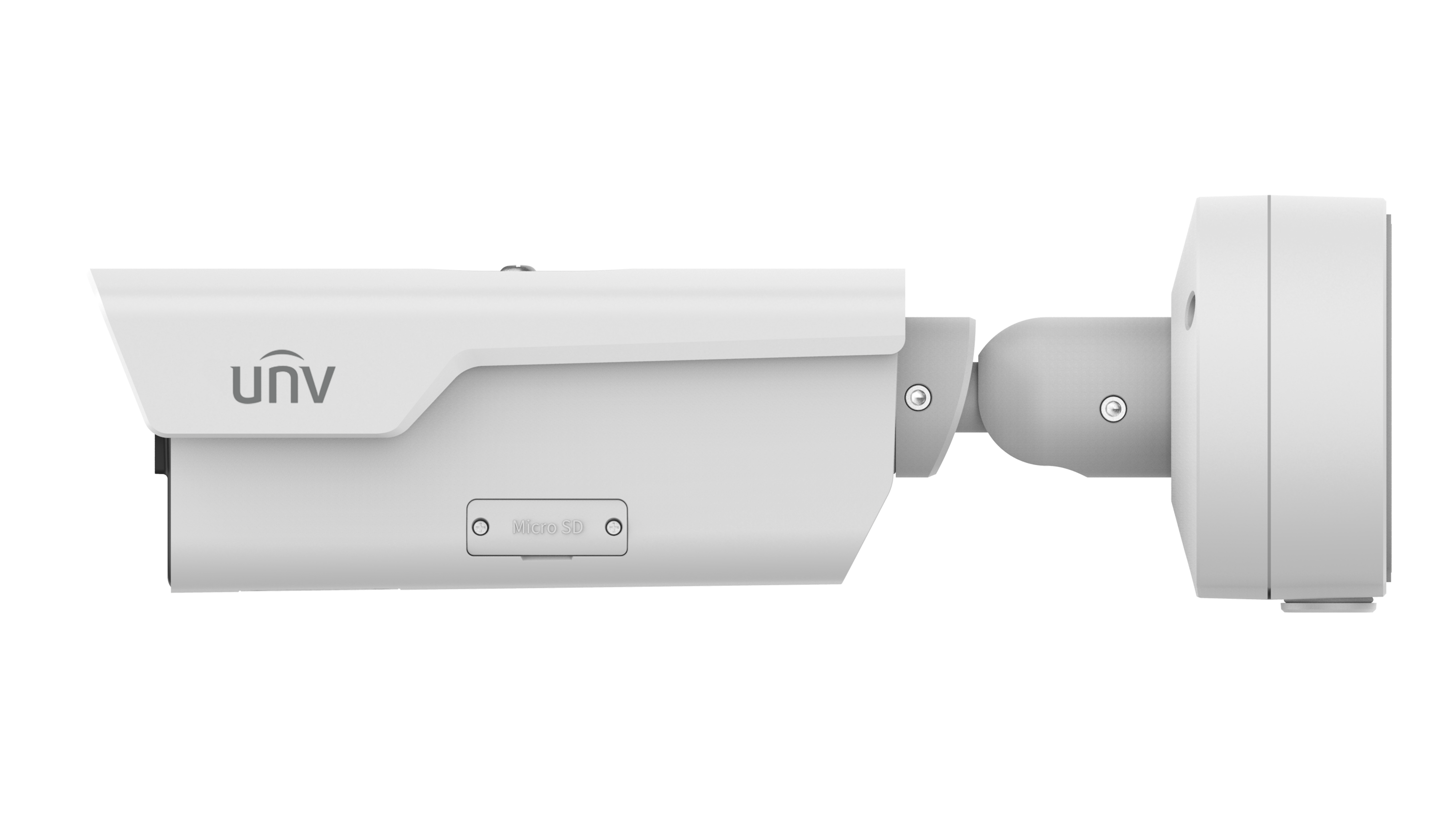

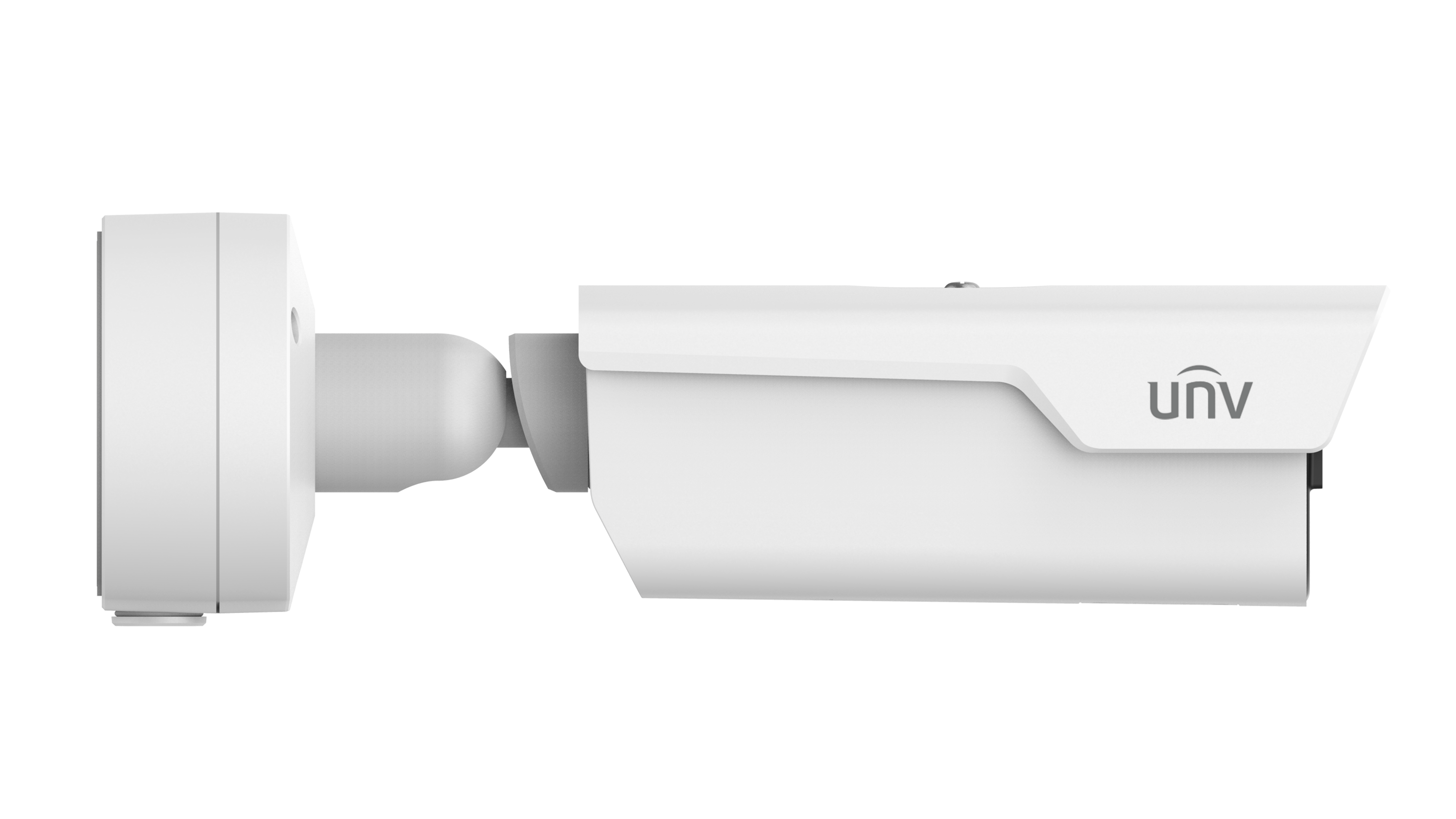

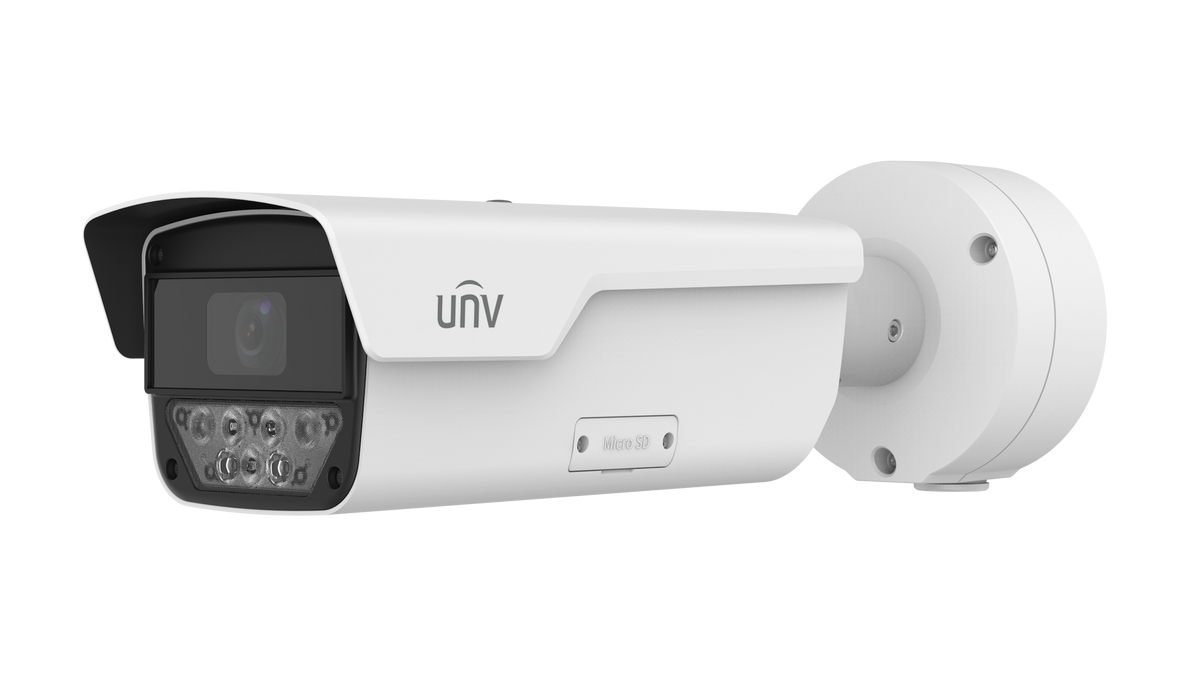

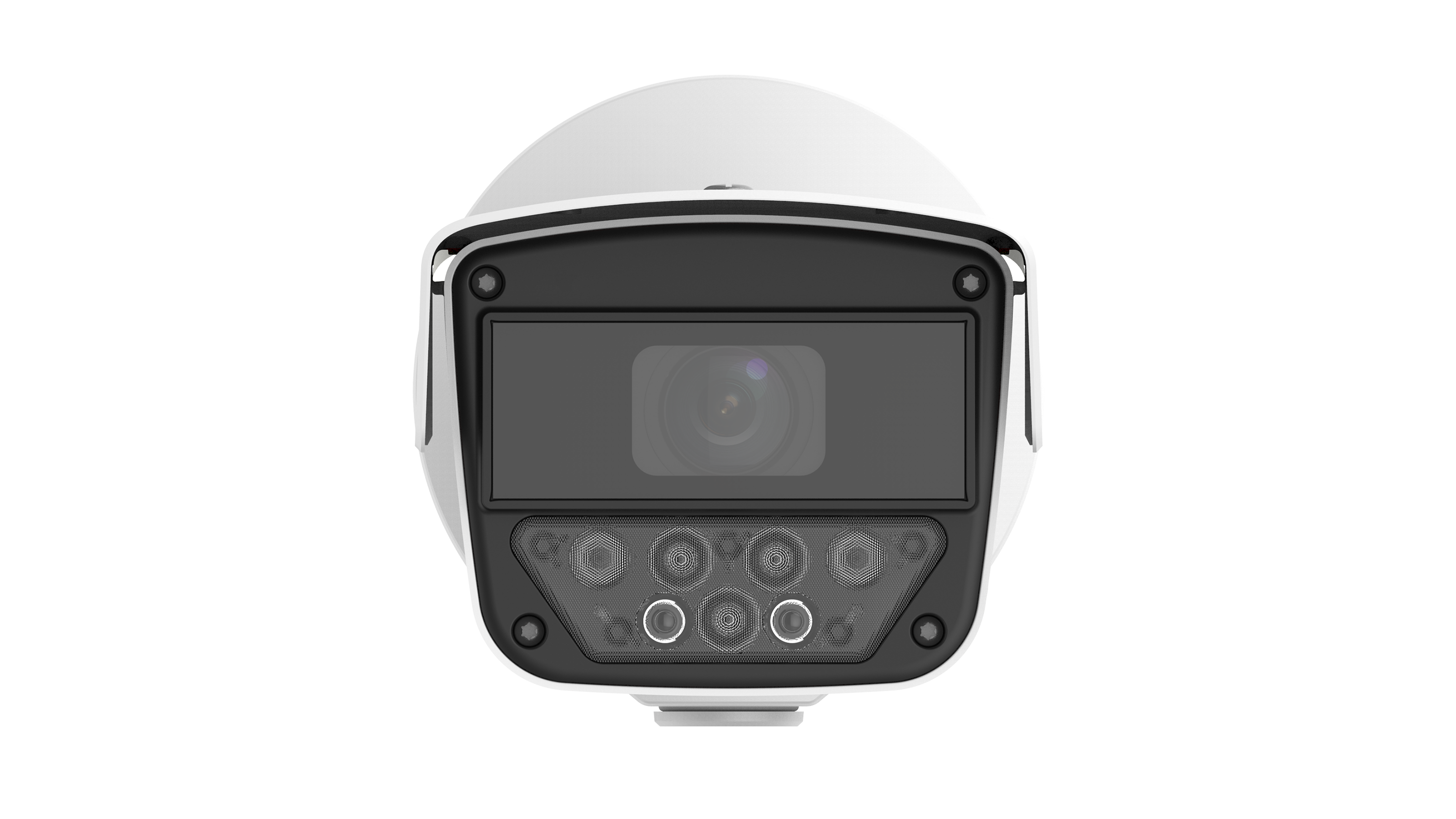

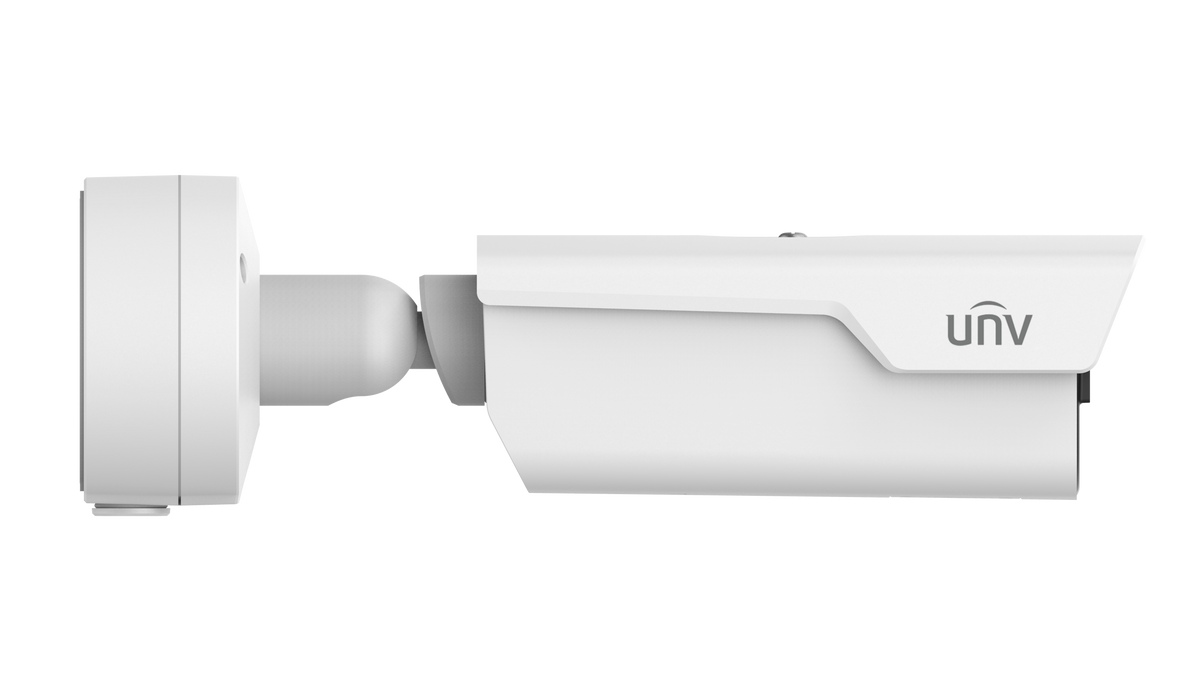

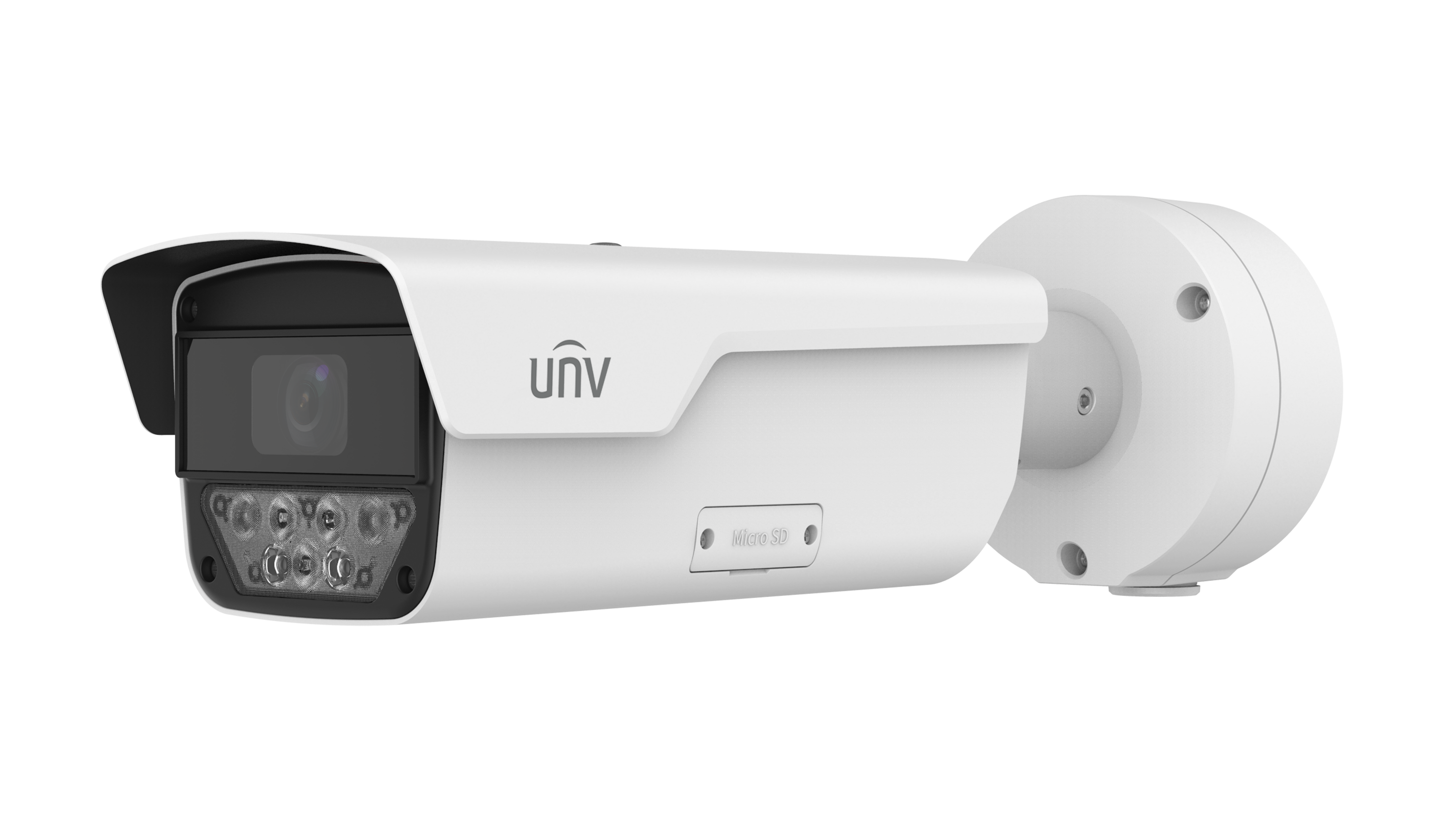

4MP License Plate Recognition Bullet /w Back boxPart Number: PKC2641-Z100-IR-P
Resolution
4 MP @ 60fps
Lens & Zoom
10 to 50mm Motorized (DC-iris)
Night Vision
164 ft (50m) IR / Warm Light Options
Power
PoE (802.3at) / DC12V (Max 20W)
Smart Feature Highlights
Sensor Type
1/1.8" Progressive Scan CMOS (0.002 Lux)
Field of View (H)
34.3° to 3.7°
WDR & Imaging
120dB True WDR & Starlight
Audio & Interfaces
Audio In/Out, Alarm I/O, RS485, Wiegand
SD Card Slot
MicroSD up to 512GB
Ingress & Vandal Protection
IP67 & IK10 Vandal Resistant
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, Video & LPR Specs | |
|---|---|
| Camera & Sensor | |
| Model Options | PKC2641-Z100-IR-P / PKC2641-Z100-P |
| Sensor | 1/1.8" progressive scan 4MP CMOS |
| Min. Illumination | 0.002 lux (F1.7) |
| Shutter Range | Auto, range: 1/500 to 1/100000 s |
| S/N Ratio & WDR | >50 dB; 120 dB True WDR |
| Lens & FOV | |
| Focal Length & Iris | 10 to 50 mm motorized zoom, DC-iris |
| Field of View (FOV) | Horizontal: 34.3° to 3.7° Vertical: 9.9° to 4.8° Diagonal: 40.5° to 9.8° |
| Video & Image | |
| Collection Format & Frame Rate | Up to 2688×1520 @ 60 fps (default 30 fps); Frame rate options up to 60 fps |
| Video Compression | H.264 (default), H.265 |
| Resolutions | Main stream: 2688×1520, 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF |
| Image Enhancements | AI ISP, 3D DNR, HLC, BLC, Digital Defog, ROI (up to 8 regions), Up to 8 OSDs |
| LPR, Smart & General Specs | |
|---|---|
| License Plate Recognition (ANPR) | |
| Application Scenario | ≤55 mph/h for regular roads (10-50mm lens) |
| Vehicle & Plate Recognition | Supports video detection, vehicle type recognition (10+ classes), vehicle color recognition (12 colors), and license plate number/letter recognition |
| List Configuration | Allow list and blocklist configuration (20,000 items each); Import/export/add/delete supported |
| Barrier Opening Policy | Open for recognized, all, allow list only, or non-blocklist vehicles; Configurable Boolean output ID |
| Supported Regions | Multi-country support including USA, Canada, United Kingdom, EU nations, Australia, New Zealand, etc. |
| Storage, Interface & General | |
| Edge Storage | MicroSD slot, up to 512GB with ANR support |
| Illumination & Structure | Built-in module (5 IR LEDs or 5.0m warm light LEDs depending on model, 50m distance); 3-axis bracket with junction box |
| Network & Security | 1× 10M/100M RJ45; IPv4/IPv6, ONVIF (S/G/T), HTTPS, SSL/TLS, 802.1x, Up to 32 users |
| Interfaces & I/O | Audio In/Out, 2x Alarm Inputs, 2 Relay Outputs, 2x RS485, Wiegand output, Reset button |
| Power Supply | DC 12V (+25%/-25%), PoE (802.3at, class 4); Max. power consumption: 20W |

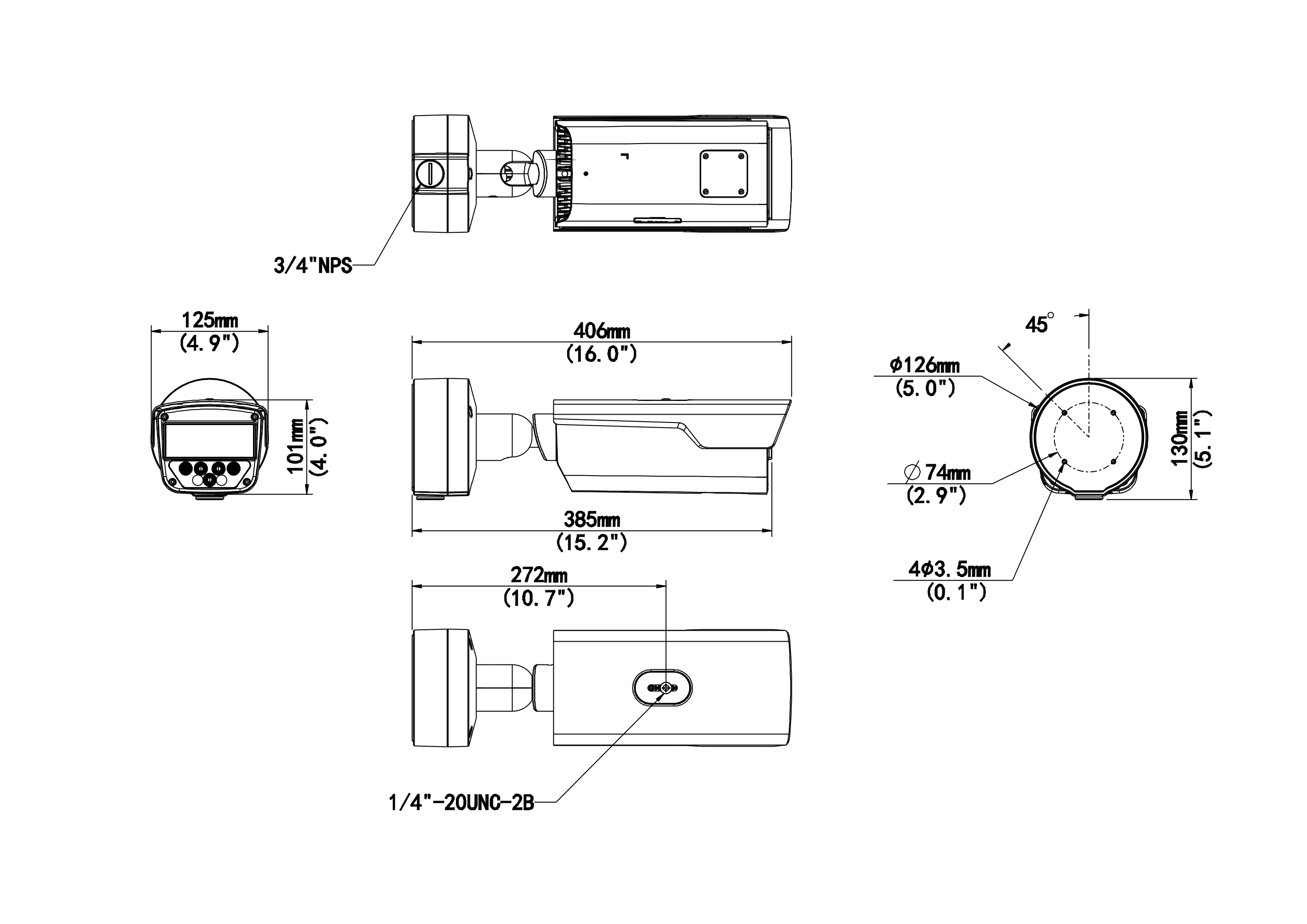

| Dimensions & Weight | 406 mm × 126 mm × 130 mm (16.0" × 5.0" × 5.1"); Weight: 2.02 kg |
| Protection & Environment | IP67, IK10 Vandal Resistant; Operating temp: -40°C to 60°C (-40°F to 140°F) |
| Compatible Accessories | TR-UP06-C-IN-V2 Pole mounting bracket for bullet junction box only |
