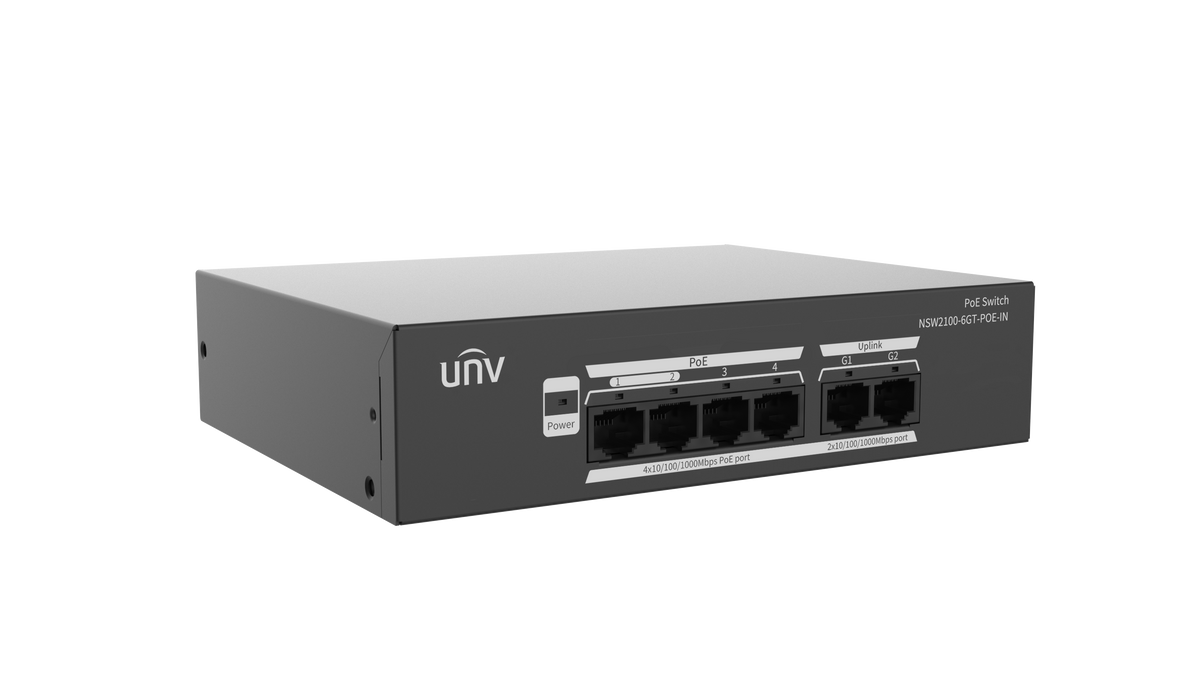

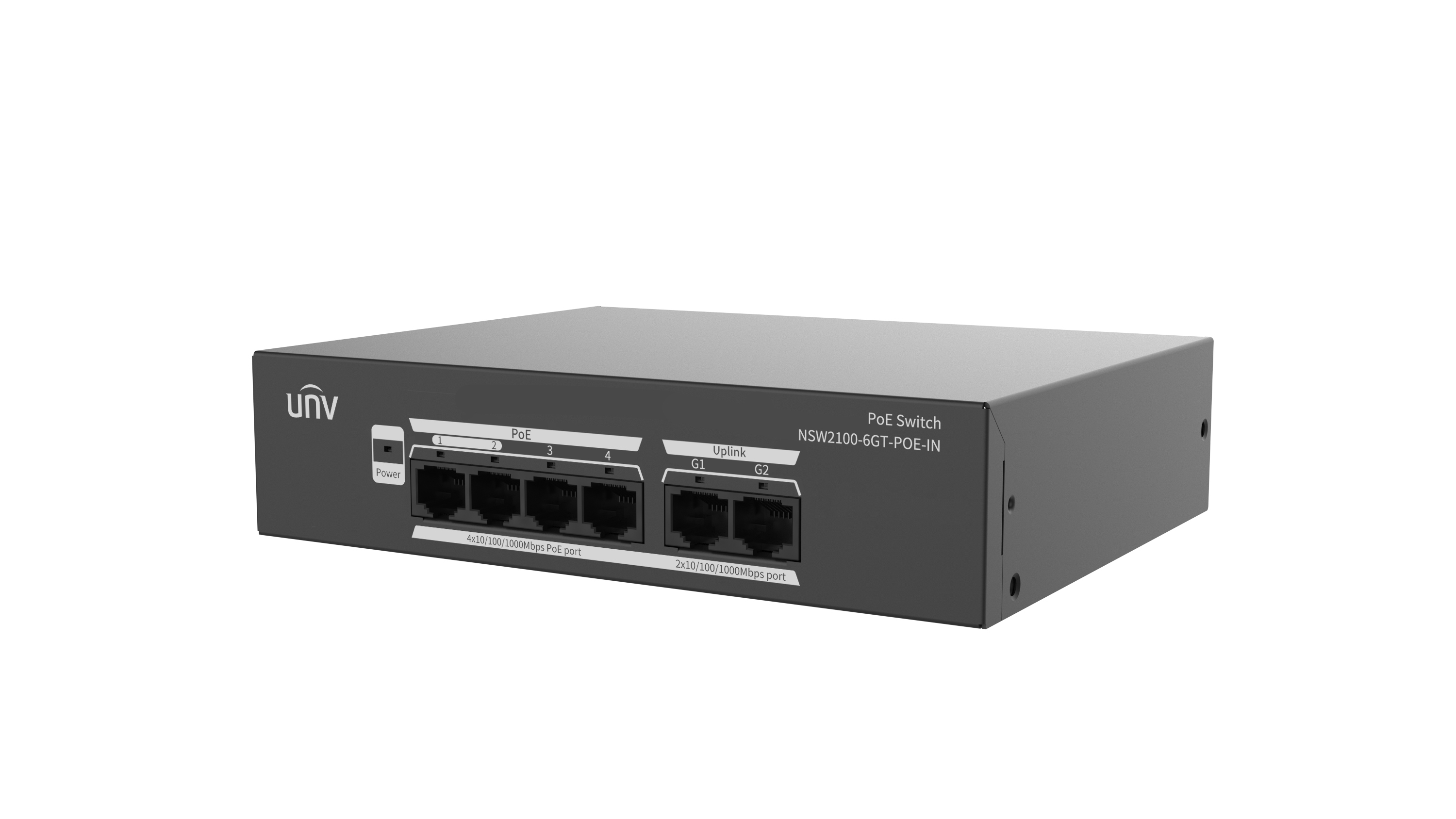

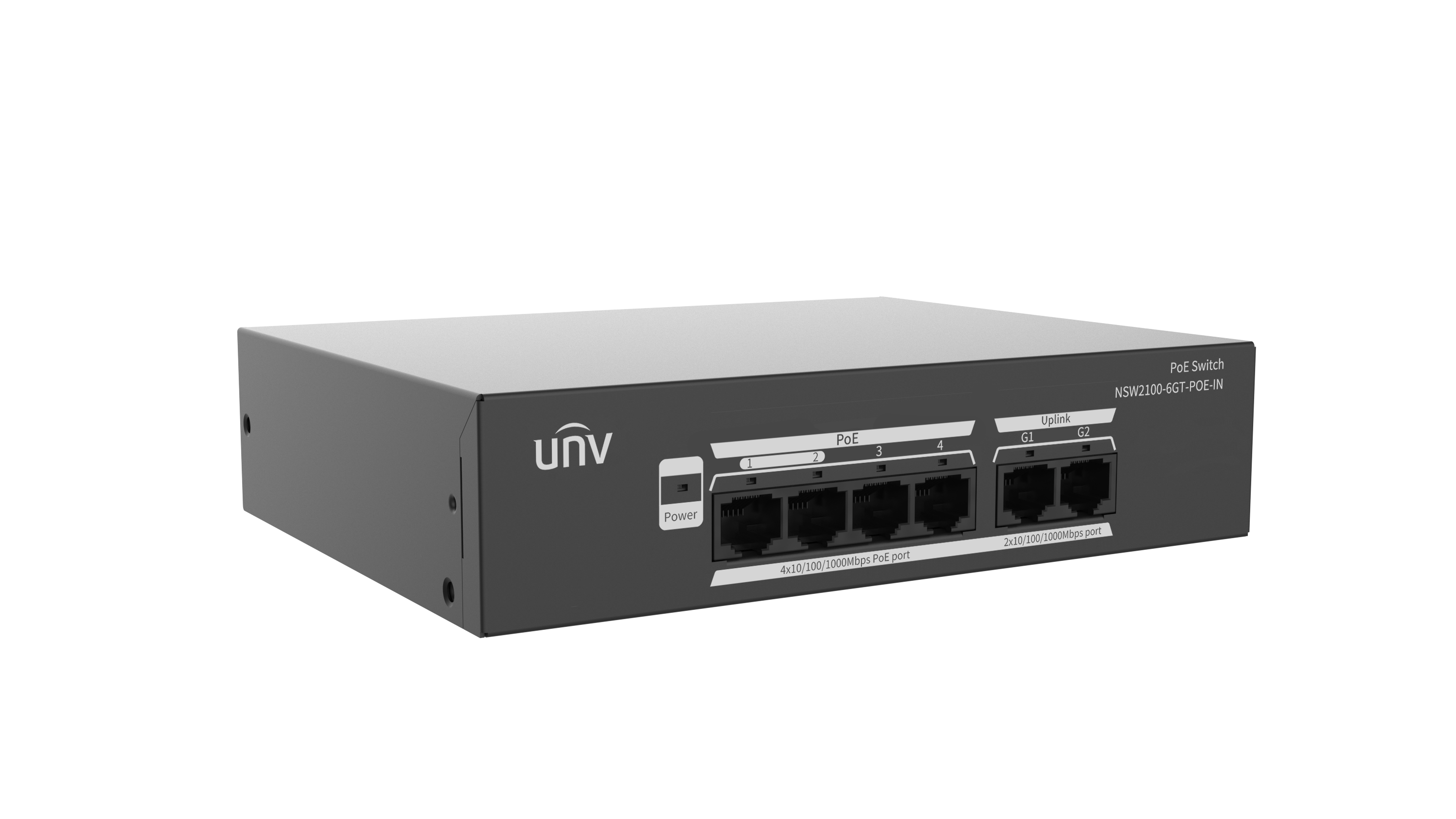

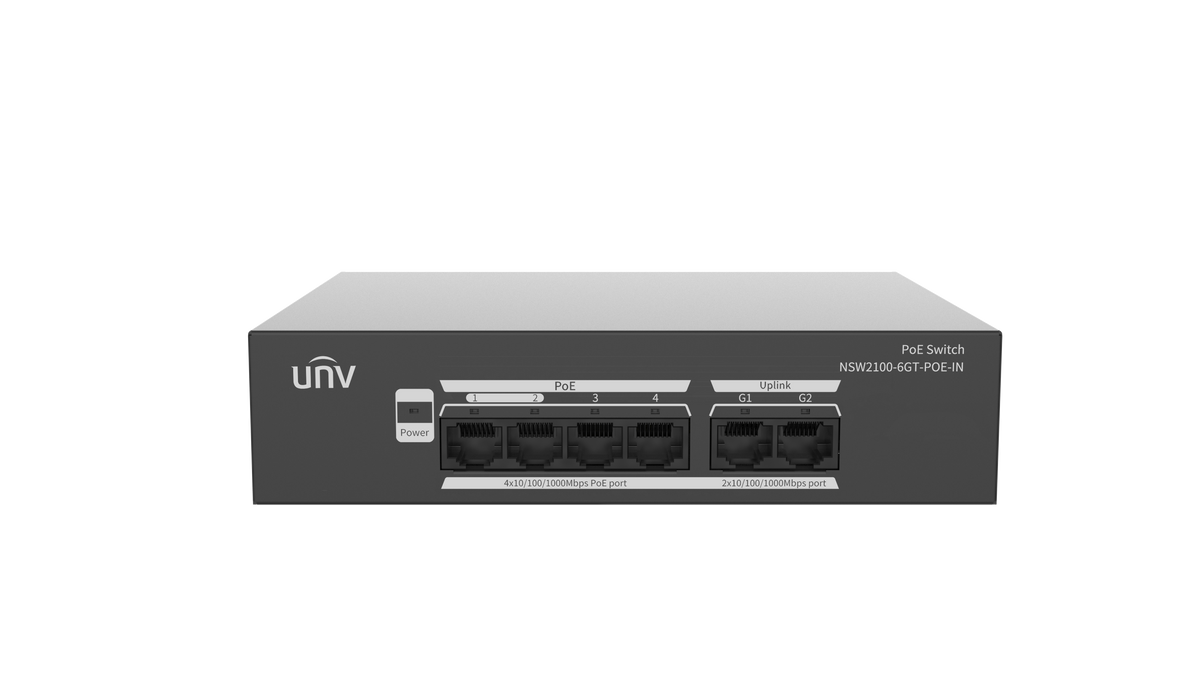

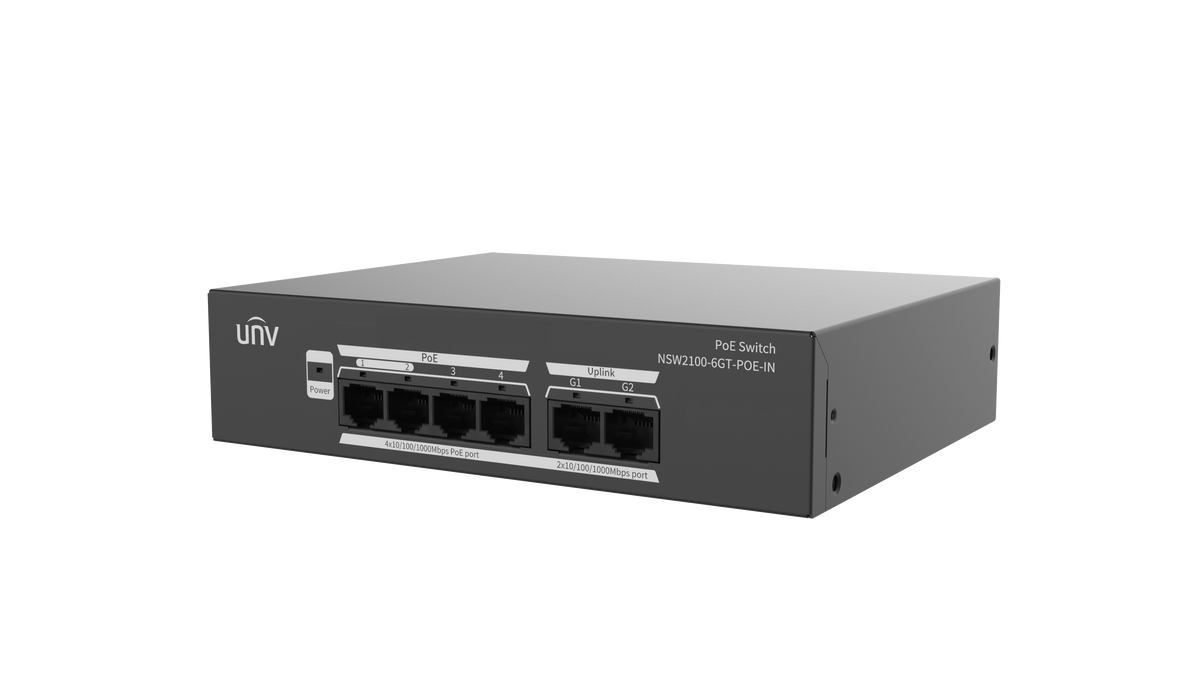

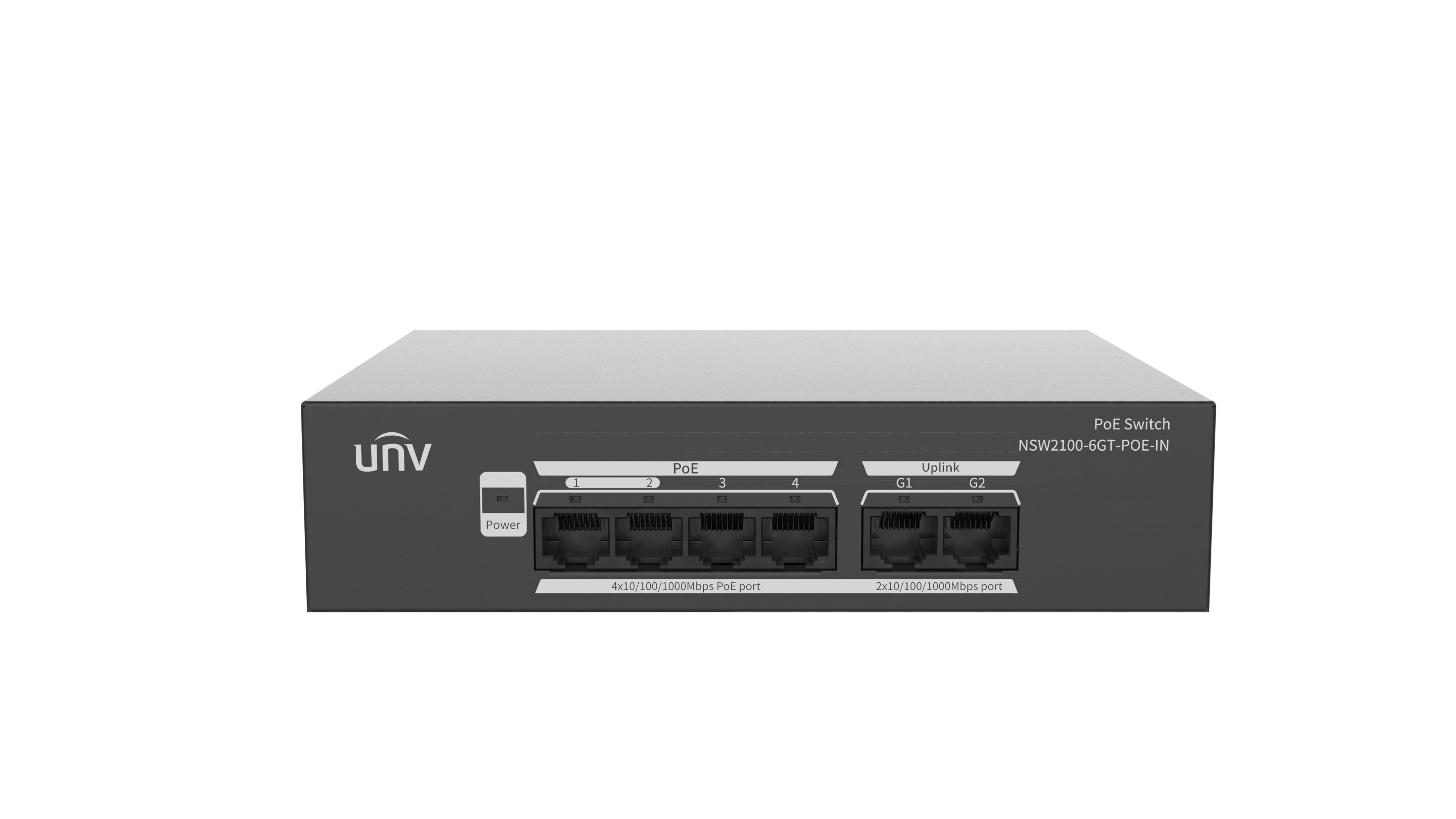

4Port - Gigabit PoE Switch /w 2 UplinkPart Number: NSW2100-6GT-POE-IN
Ports & Uplinks
4 PoE + 2 Gigabit Uplink
PoE Power Budget
65W Total (30W/Port)
Switching Capacity
12 Gbps (8.92 Mpps)
Transmission Range
Up to 250m (Extend Mode)
Smart & Cloud Management Highlights
Lite Cloud Management & Remote App PoE Reboot
250m Long-Distance PoE Transmission (Extend Mode)
Intelligent Port Priority Power Allocation (Ports 1–2)
VLAN Port Isolation & Loop Detection Prevention
PoE Standards
IEEE 802.3af, IEEE 802.3at (PoE+)
PoE Power Budget
65W Max Budget (Up to 30W Single Port)
Port Configuration
4 Gigabit PoE (RJ45) + 2 Gigabit Uplink (RJ45)
Performance
12 Gbps Switching Capacity / 8.92 Mpps
Chassis & Cooling
All-Metal Casing, Fanless Silent Design
NDAA Compliant
Yes
Warranty Period
3 Years
| Hardware, Ports & PoE (NSW2100-6GT-POE-IN) | |
|---|---|
| Ports & Interfaces | |
| PoE Ports | 4 x 10/100/1000Mbps RJ45 PoE Ports |
| Uplink Ports | 2 x 10/100/1000Mbps RJ45 Uplink Ports |
| Total Port Count | 6 Gigabit RJ45 Ports |
| Prioritized Ports | Ports 1 to 2 (Prioritized power supply when budget is full) |
| Switching Performance | |
| Switching Capacity | 12 Gbps |
| Forwarding Performance | 8.92 Mpps |
| Packet Buffer | 1 M bit |
| MAC Address Table | 2K (Supports up to 32 Static MACs) |
| PoE Power Delivery | |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Max PoE Budget | 65W Max Capacity |
| Single Port PoE Output | Up to 30W per port |
| PoE Pin Assignment | Mode A (1, 2, 3, 6) & Mode B (4, 5, 7, 8) |
| Long-Distance Transmission | Up to 250m power & data transmission in Extend Mode (10Mbps auto-negotiation) |
| Status Indicators | |
| Power Indicator | Green: Normal input | Yellow: PoE load exceeds 85% | Off: Abnormal power input |
| Link / Activity Indicator | On: Connected | Blinking: Transmitting data | Off: Disconnected |
| Software, Management & General | |
|---|---|
| Network & Layer 2 Features | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Transmission Modes | Full Duplex, Half Duplex, Auto-Negotiation |
| Port Control & Flow | Port enable/disable, auto-negotiation rate, priority flow control, flow statistics |
| Link Aggregation | Supports 2 Link Aggregation Groups (up to 4 ports per group) |
| VLAN & Security | |
| VLAN Support | Supports up to 6 VLANs with VLAN IDs from 1 to 4094 |
| Port Security | Supports Port Isolation |
| Loop Prevention | Loop Detection supported |
| Port Mirroring | Supports N:1 Port Mirroring |
| Cloud & Device Management | |
| Management Platforms | Web interface login & Cloud Mobile App (via QR code scan) |
| Remote PoE Management | Real-time status monitoring, remote PoE power reboot via Mobile App |
| System Maintenance | Firmware upgrade, factory reset, configuration import/export, software restart |
| Device Configuration | View and manage device name, IP address, MAC address, DNS |
| Power, Environment & Physical | |
| Power Supply | AC 100V ~ 240V, 50/60Hz (Internal Power) |
| Total Power Consumption | ≤ 70W (with full PoE load) |
| Cooling System | Fanless passive cooling (0 fans, 0 dB silent operation) |
| Casing & Enclosure | All-metal durable casing |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |

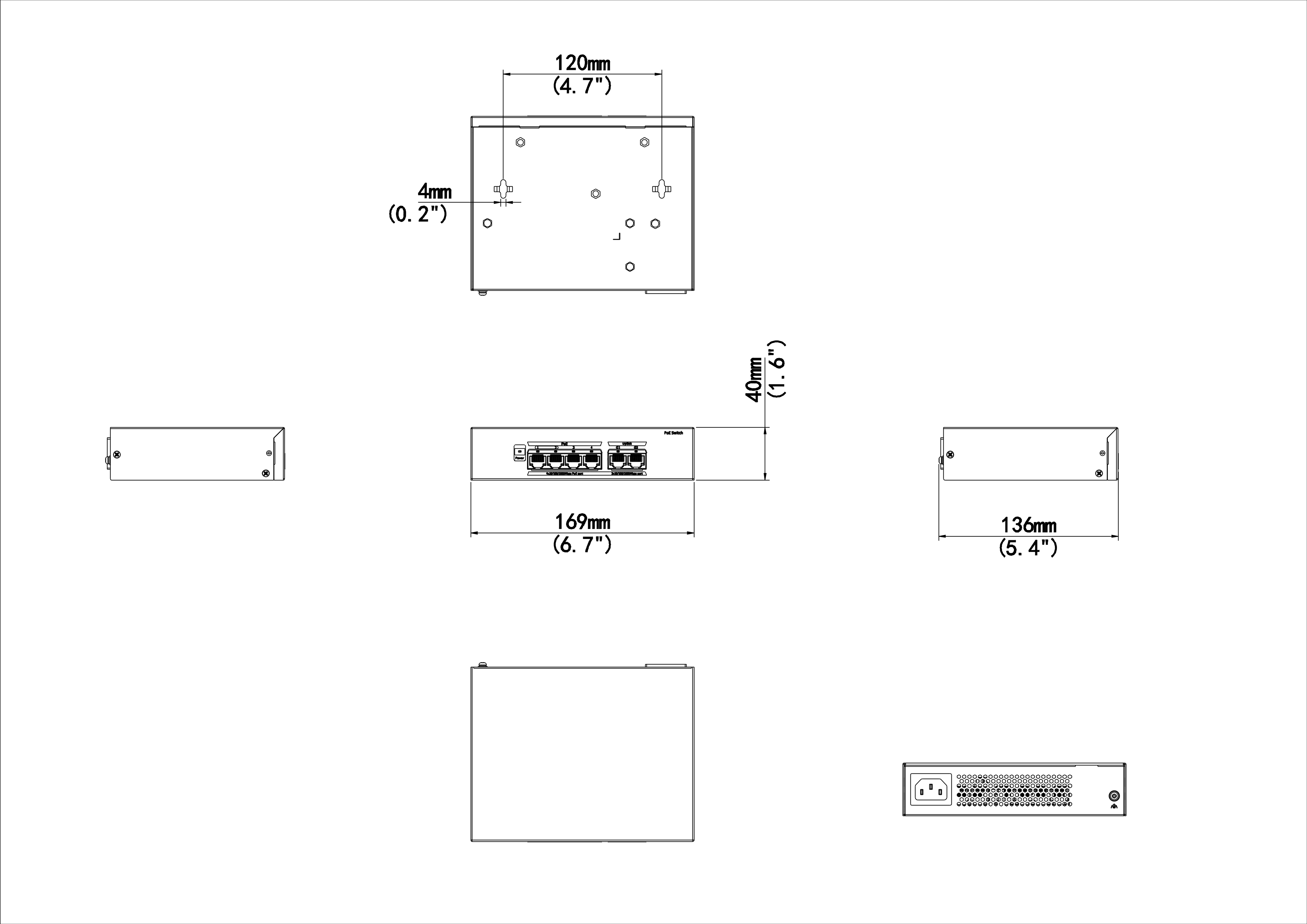

| Dimensions & Weight | 169mm × 132mm × 40mm (6.7" × 5.2" × 1.6"), Weight: 0.65 kg (1.43 lb) |
| Compliance | NDAA Compliant |
