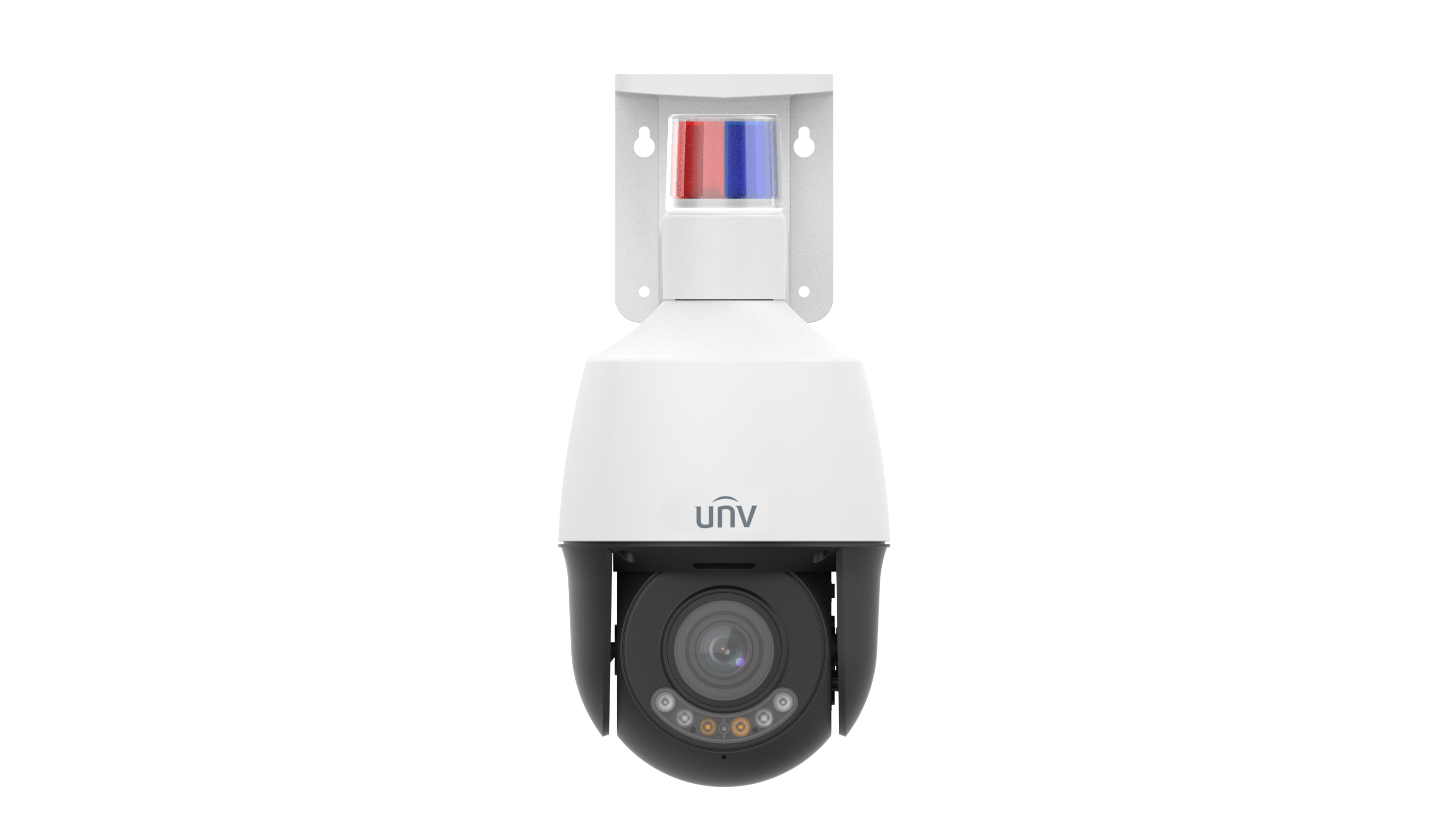

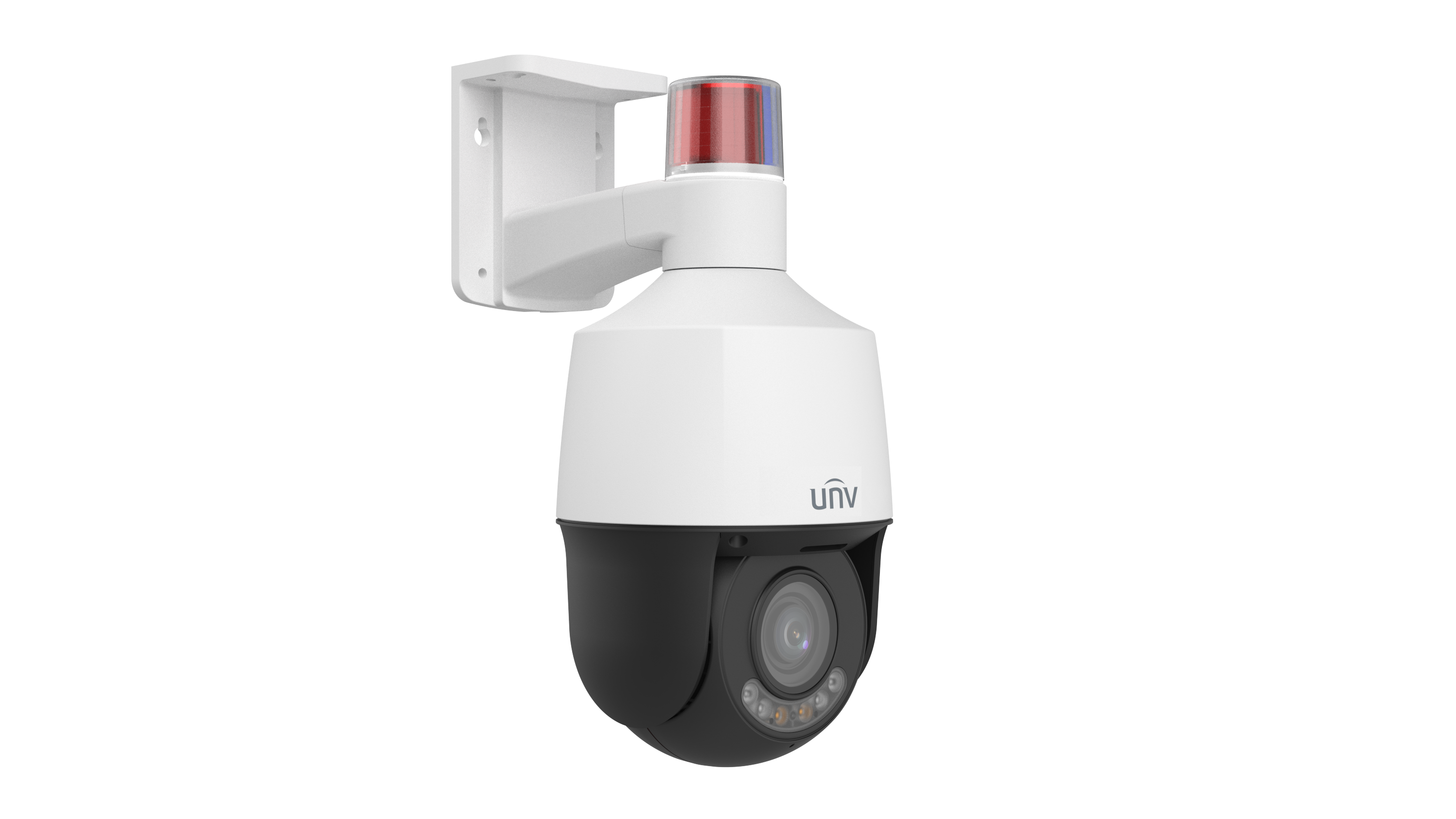

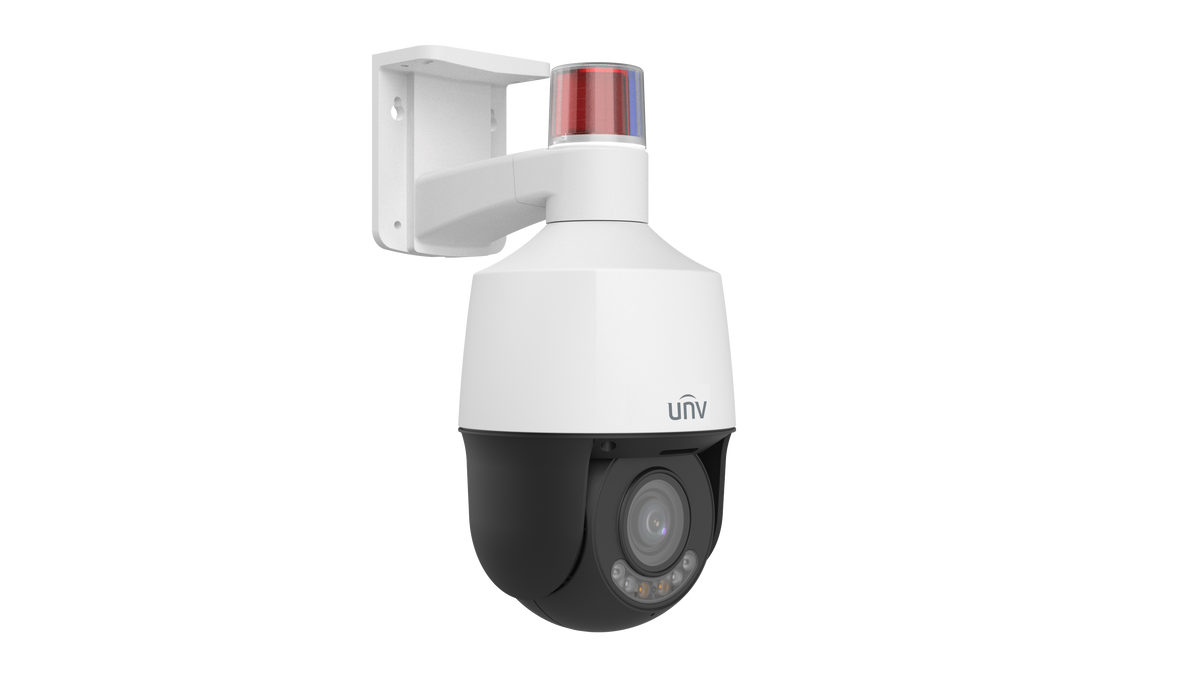

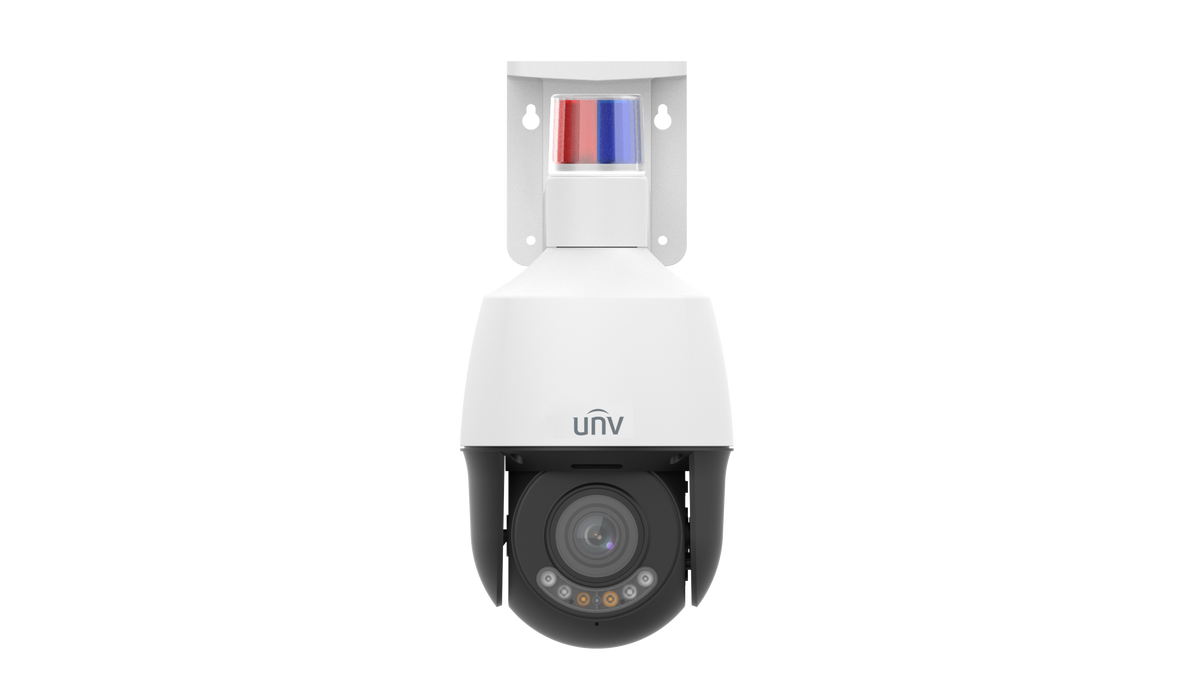

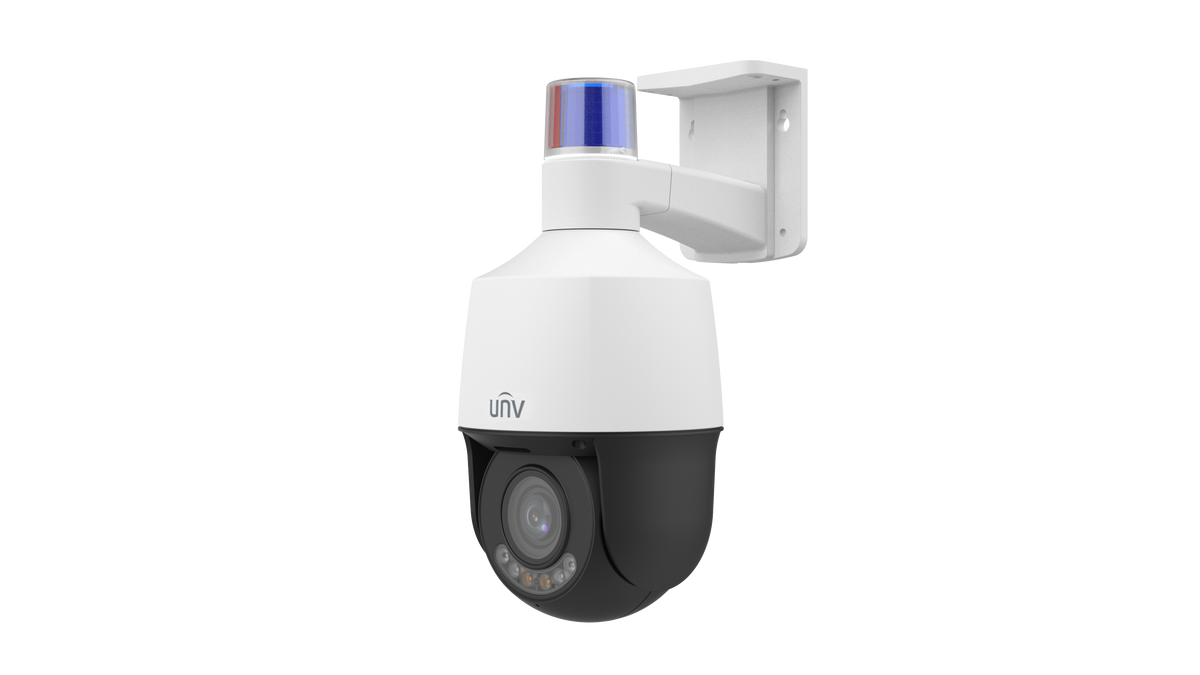

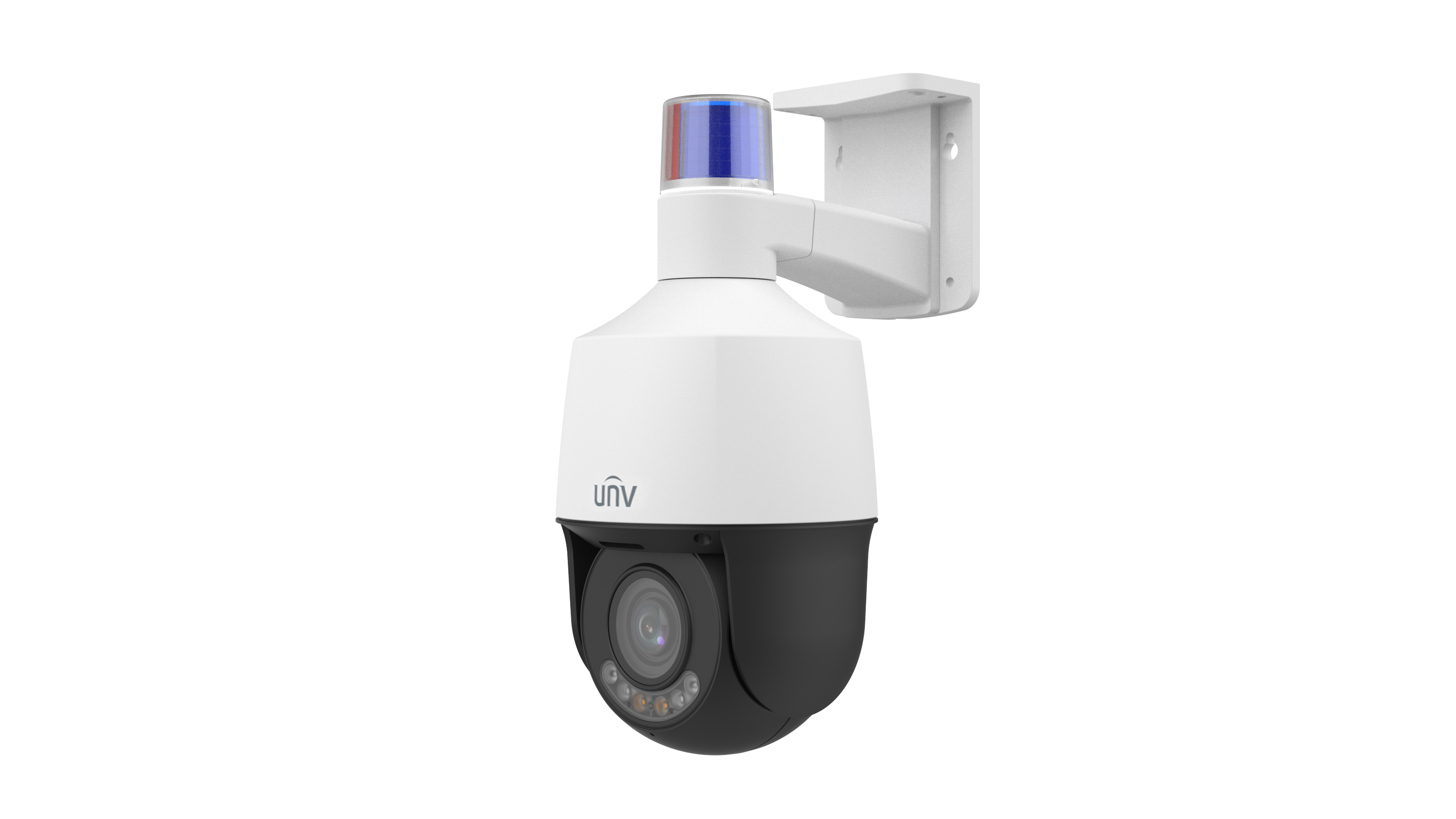

5MP 5X ColorHunter Tri-Guard Dual-light PTZPart Number: IPC6315LFW-AX5C-VG1
Resolution
5 MP @ 30fps
Lens Options
2.7 to 13.5mm Motorized 5X (F1.6)
Night Vision
164.0 ft (50m) IR / 49.2 ft (15m) Warm Light
Power
PoE (802.3at) / DC12V (Max 18.9W)
Smart Feature Highlights
Sensor Type
1/2.7" CMOS (0.005 Lux F1.6)
Field of View (H)
106.91° to 33.55°
WDR & Imaging
120dB True WDR & LightHunter
Audio & Speaker
Built-in Microphone & Speaker
SD Card Slot
MicroSD up to 512GB
Ingress Protection
IP66 Weatherproof
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, DORI & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | IPC6315LFW-AX5C-VG1 |
| Max Resolution | 5 MP (2880 × 1620) @ 30 fps |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR & S/N Ratio | 120 dB WDR; >56 dB S/N Ratio |
| Lens & FOV | |
| Focal Length & Iris | 2.7 to 13.5 mm Motorized lens, 5X Optical Zoom (F1.6) |
| Field of View (Horizontal) | 106.91° to 33.55° |
| Field of View (Vertical) | 56.45° to 18.99° |
| Field of View (Diagonal) | 123.1° to 42.1° |
| DORI Distances | |
| Detect | 72.0 m to 229.5 m (236.2 ft. to 753.0 ft.) |
| Observe | 28.8 m to 91.8 m (94.5 ft. to 301.2 ft.) |
| Recognize | 14.4 m to 45.9 m (47.2 ft. to 150.6 ft.) |
| Identify | 7.2 m to 23.0 m (23.6 ft. to 75.5 ft.) |
| Illuminator & Video | |
| Supplemental Light | IR (50m / 164.0ft) & Warm Light (15m / 49.2ft); 850nm wavelength |
| Video Compression & Profiles | Ultra 265, H.265, H.264, MJPEG |
| Bit Rate & Streams | 128 Kbps to 16 Mbps; Dual streams; U-code supported |
| Image Settings | White Balance, 2D/3D DNR, Smart IR, Flip, HLC, BLC, Digital Defog, Up to 4 OSDs, 4 Privacy masks, ROI |
| PTZ, Smart & General Specs | |
|---|---|
| PTZ Functionality | |
| Pan / Tilt Range & Speed | Pan: 0° to 345° (1°/s to 40°/s); Tilt: -10° to 100° (1°/s to 30°/s) |
| Presets & Patrols | 1024 Presets; 16 patrols (up to 64 presets each), Home position support |
| Smart Features & Events | |
| Auto Tracking & SIP | Auto tracking (human target filtering); Smart intrusion prevention with human and vehicle classification |
| Basic Detection & Events | Motion detection, Tampering alarm, Audio detection, Watermark, IP filtering |
| Audio, Storage & Interface | |
| Audio & Speaker | G.711U, G.711A; Two-way audio, built-in microphone and speaker |
| Edge Storage | MicroSD slot, up to 512 GB; ANR, NAS (NFS) |
| Network & Security | 1x RJ45 10M/100M; IPv4/IPv6, ONVIF (S/G/T/M), TLS1.3, HTTPS, 802.1x |
| Client & Browser | EZStation, UNV-Link, UNV-Link Pro; Browser live view support |
| Interfaces & I/O | Audio I/O (1 In / 1 Out), Alarm I/O (1 In / 1 Out) |
| General & Environment | |
| Power Supply | DC 12V (±25%), PoE (IEEE 802.3at); Max. 18.9W; Built-in heater |

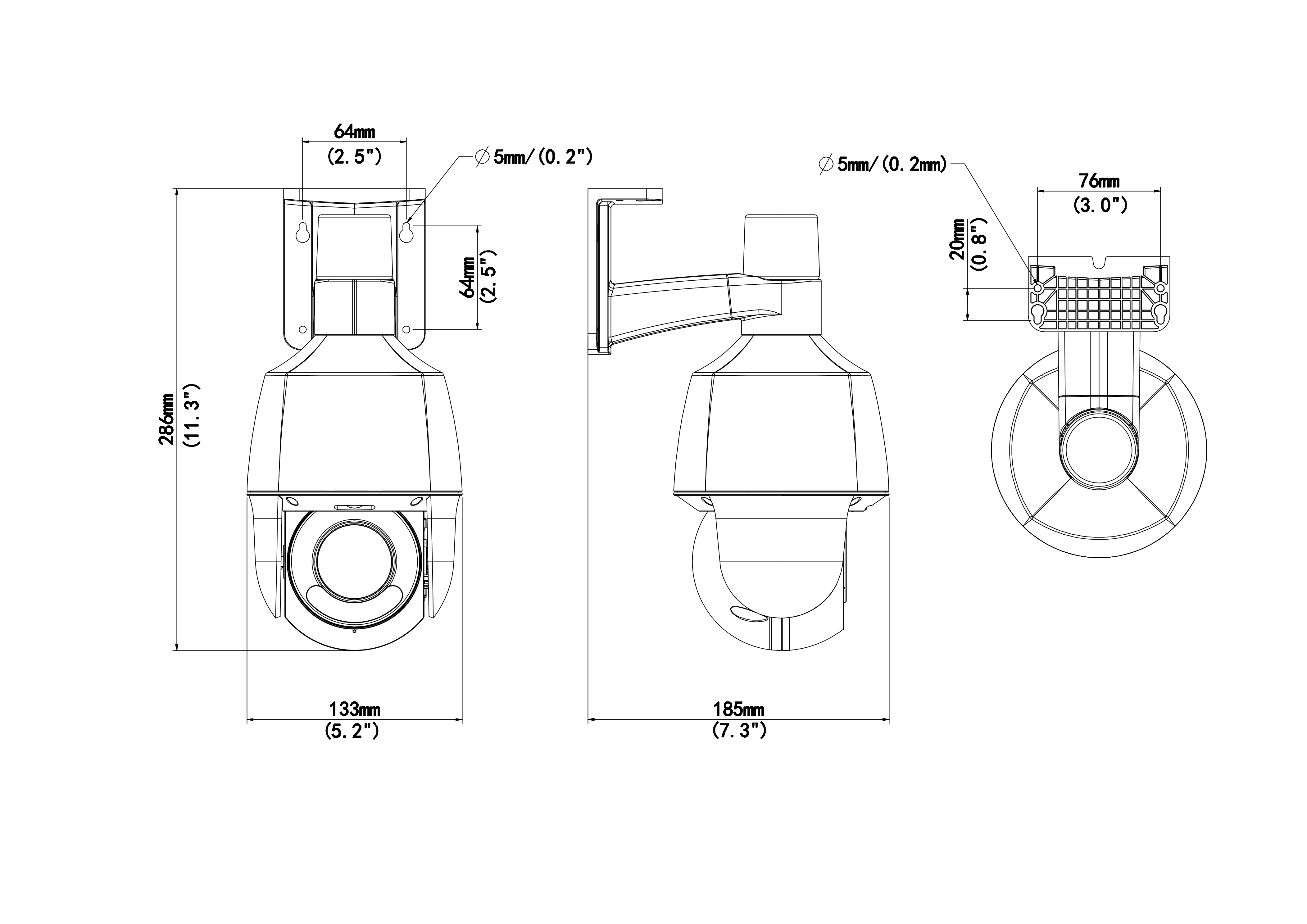

| Dimensions & Weight | 133 mm × 185 mm × 286 mm (5.2" × 7.3" × 11.3"); 788 g (1.74 lb.) |
| Material & Protection | IP66 Weatherproof, 2 KV Surge protection |
| Working Environment | -30°C to 60°C (-22°F to 140°F), humidity $\le95\%$ RH |
| Compatible Accessories | TR-JB07-D-IN junction box, TR-CM06-D bracket, TR-UC08-C corner mount, TR-A01-IN waterproof gland, TR-UP06-C-IN / TR-UP06-B-IN pole mounts |
