Available

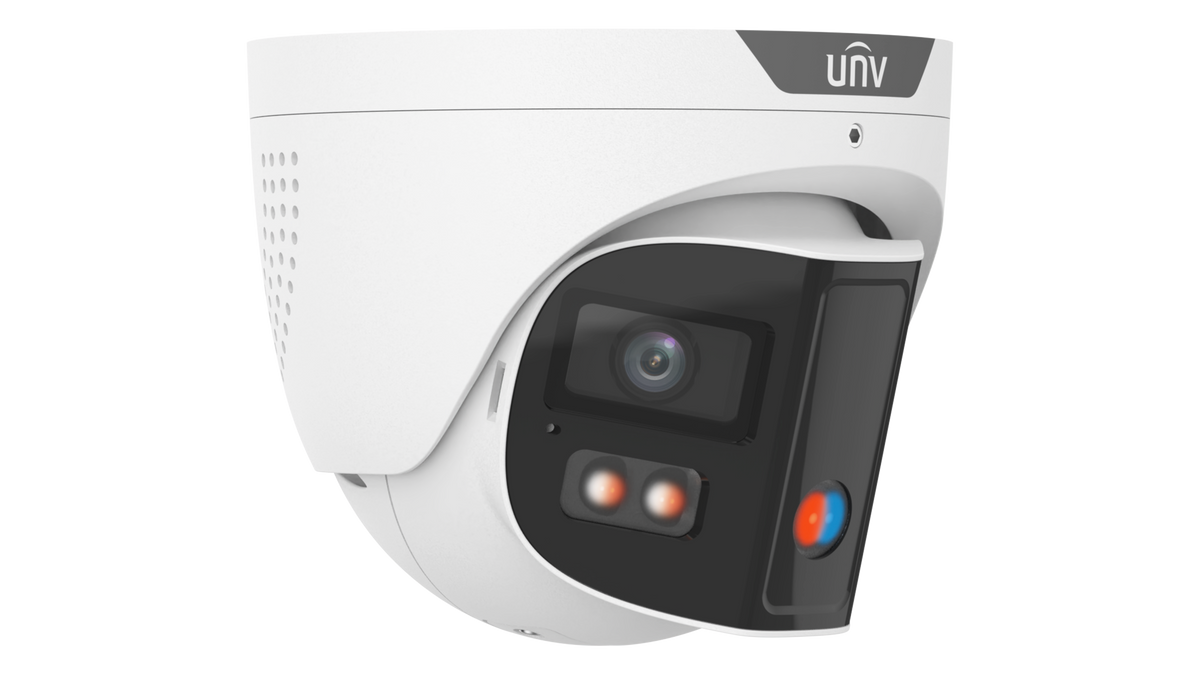

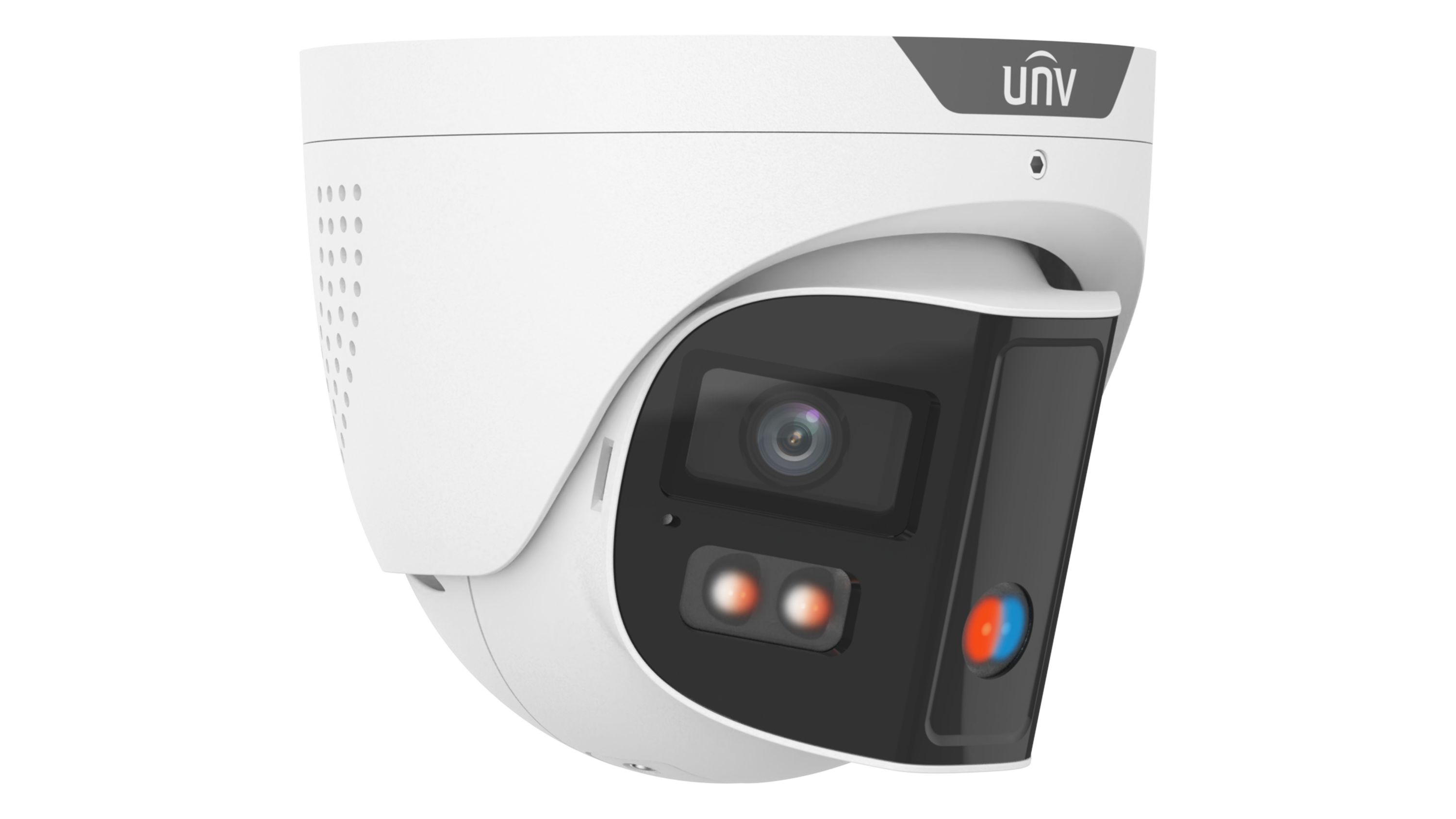

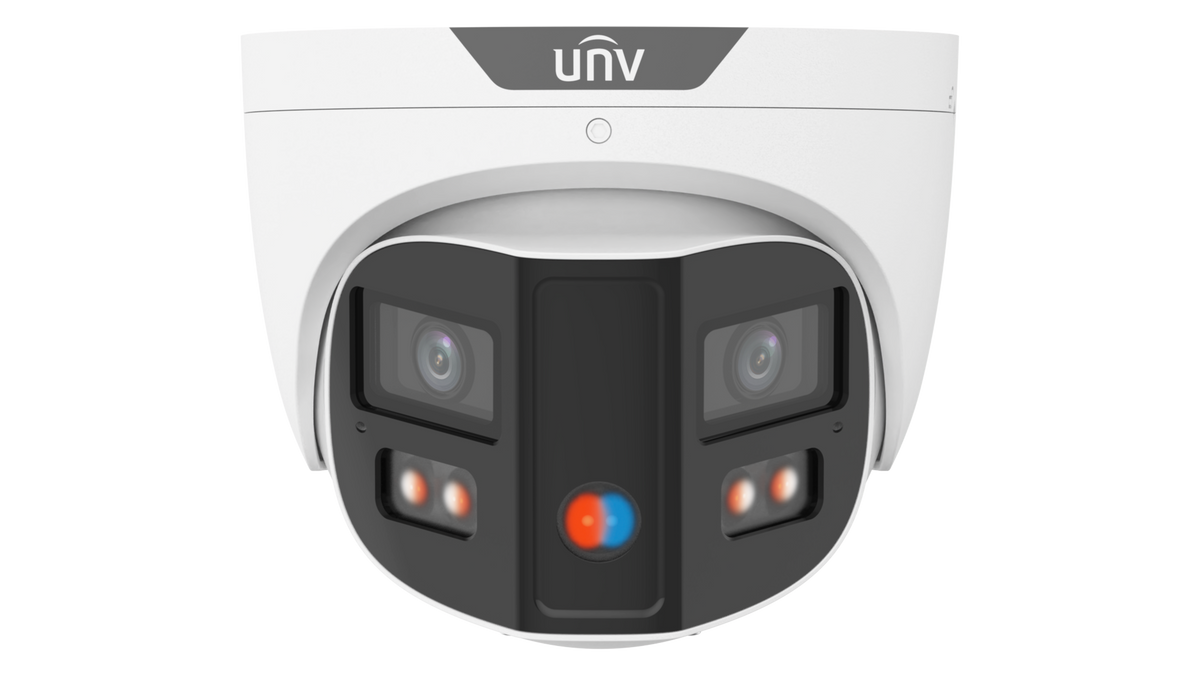

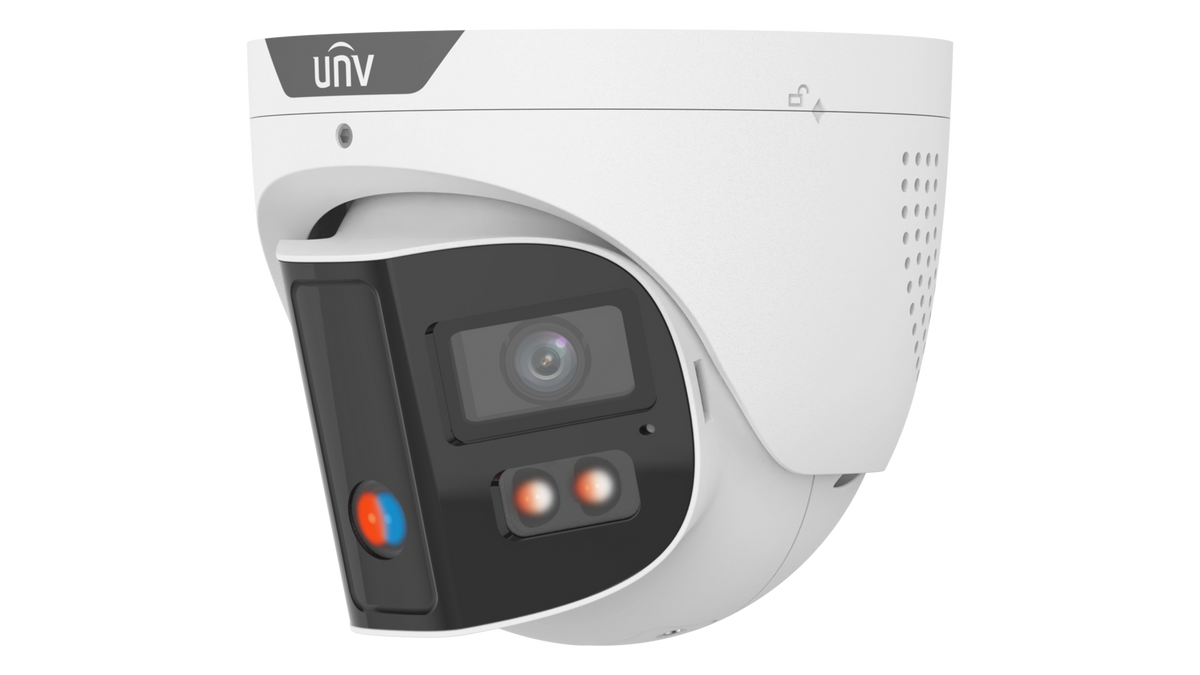

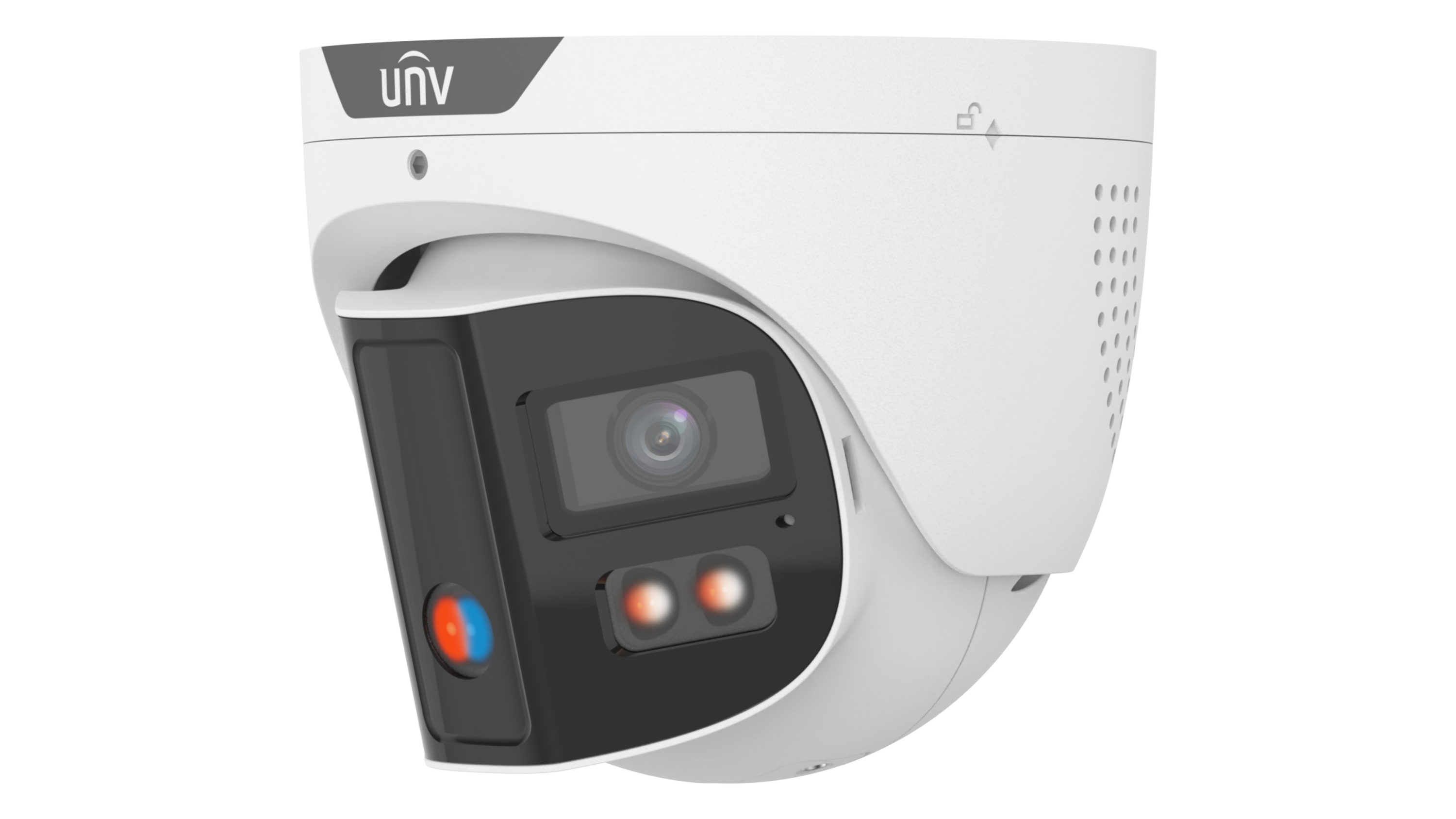

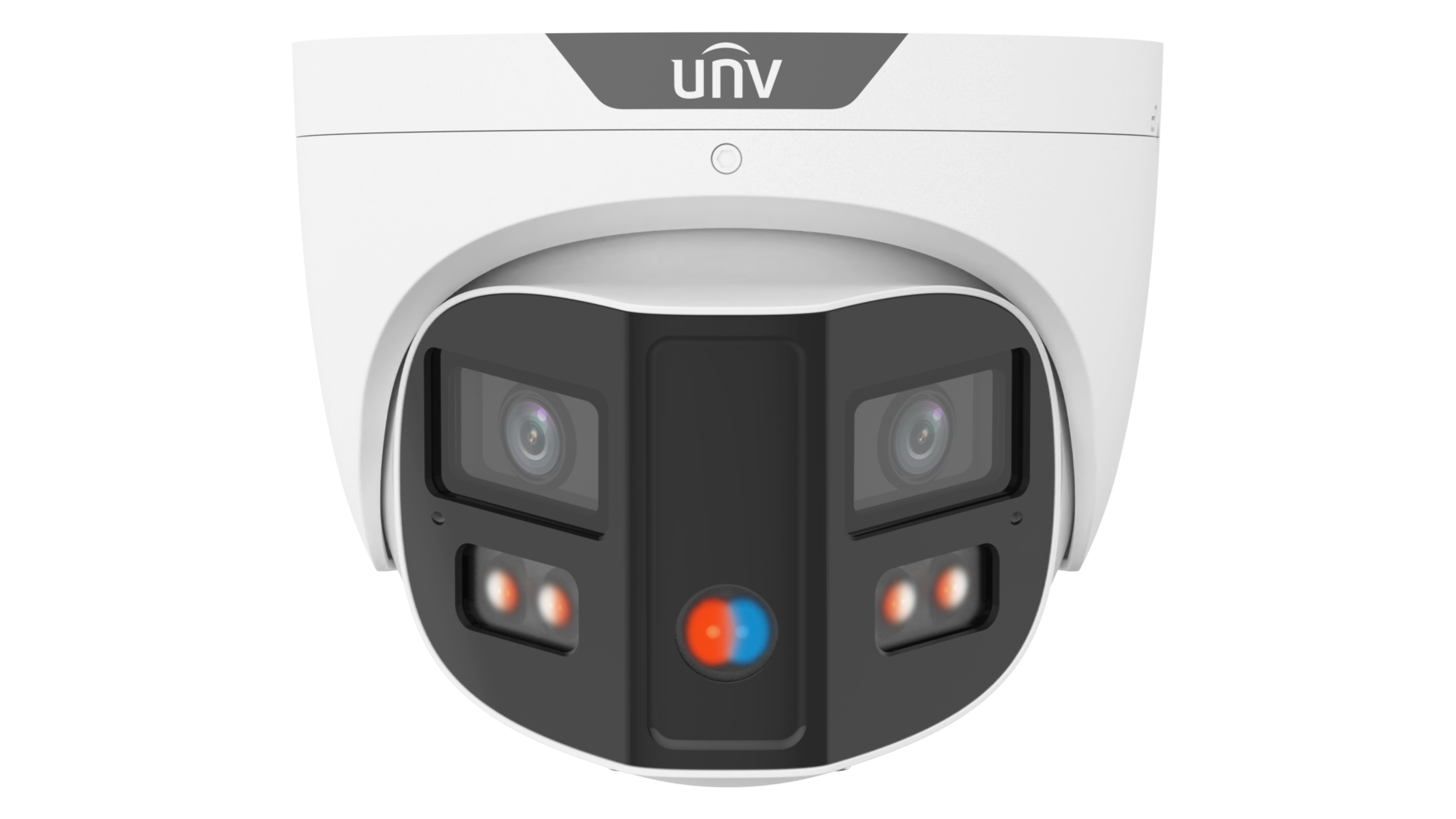

8MP Double-Light Alarm Binocular EyeballPart Number: IPC3K28SE-ADF28KMC-DL-I0
Resolution
8 MP (4K) @ 20fps
Lens Options
2.8mm Dual Lens (180° FOV)
Night Vision
98.4 ft (30m) IR, Warm Light, & Flashing Blue/Red
Power
PoE / DC12V (Max 12.6W)
Smart Feature Highlights
Sensor Type
1/2.5" CMOS (0.002 Lux F1.0)
Field of View (H / V)
180° (H) / 65° (V)
WDR & Imaging
130dB True WDR
Audio & Warning
Built-in Dual-Mic & Speaker, Red/Blue Lights
SD Card Slot
MicroSD up to 512GB
Ingress Protection
IP67 & IK10 Vandal Resistant
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Yes, Direct to Cloud
| Optics, DORI & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | IPC3K28SE-ADF28KMC-DL-I0 |
| Max Resolution | 8 MP (4096 × 1860) @ 20 fps |
| Sensor | 1/2.5" CMOS |
| Min. Illumination | Color: 0.002 Lux (F1.0, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio & WDR | >52 dB; 130 dB True WDR |
| Lens & FOV | |
| Focal Length & Iris | 2.8 mm (Double lens splicing technology) |
| Iris Type & Aperture | Fixed Iris, F1.0 |
| Field of View (H / V / D) | H: 180°, V: 65°, D: 180° |
| DORI Distances | |
| Detect (2.8mm) | 63.1 m (207.0 ft.) |
| Observe (2.8mm) | 25.2 m (82.7 ft.) |
| Recognize (2.8mm) | 12.6 m (41.3 ft.) |
| Identify (2.8mm) | 6.3 m (20.7 ft.) |
| Illuminator & Video | |
| Supplemental Light | Dual light (IR 30m, Warm light 30m) |
| Illuminator Control & Wavelength | Auto/Manual; Wavelength: 850 nm |
| Video Compression & Profiles | Ultra 265, H.265, H.264, MJPEG; H.264 Profiles: Baseline, Main, High |
| Bit Rate & Streams | 128 Kbps to 16 Mbps; Dual streams; U-code supported |
| Image Settings | White Balance (Auto/Outdoor/Fine tune/Sodium lamp/Locked/Auto2), 2D/3D DNR, Smart IR, ASM, HLC, BLC, Digital Defog, Up to 8 OSDs, 4 Privacy masks, ROI (up to 8 areas) |
| Smart, Network & General Specs | |
|---|---|
| Smart Features (SIP) & Events | |
| Smart Intrusion Prevention | Cross line, intrusion, enter area, leave area detection with false alarm filtering (human, vehicle, non-motor vehicle) |
| Analytics & Monitoring | People flow counting & crowd density detection, SIP with color retrieval |
| Basic Detection & Events | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP/HTTP/User authentication, Alarm I/O |
| Audio, Storage & Interface | |
| Audio | G.711U, G.711A (64 Kbps); Two-way audio, noise suppression, built-in dual-mic and speaker |
| Active Deterrence | Supports red and blue warning lights |
| Edge & Network Storage | MicroSD slot, up to 512 GB; ANR, NAS (NFS) |
| Network & Security | 1x RJ45 10M/100M; IPv4/IPv6, ONVIF (S/G/T/M), SSL/TLS, HTTPS, 802.1x, Up to 32 users (3 user levels) |
| Client & Browser | EZStation, App; Plugin required & plugin-free browser live view support |
| Interfaces & I/O | Audio I/O (1 In / 1 Out), Alarm I/O (1 In / 1 Out), Reset button supported |
| General & Environment | |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af); Max. 12.6 W; Ø5.5 mm coaxial power plug |

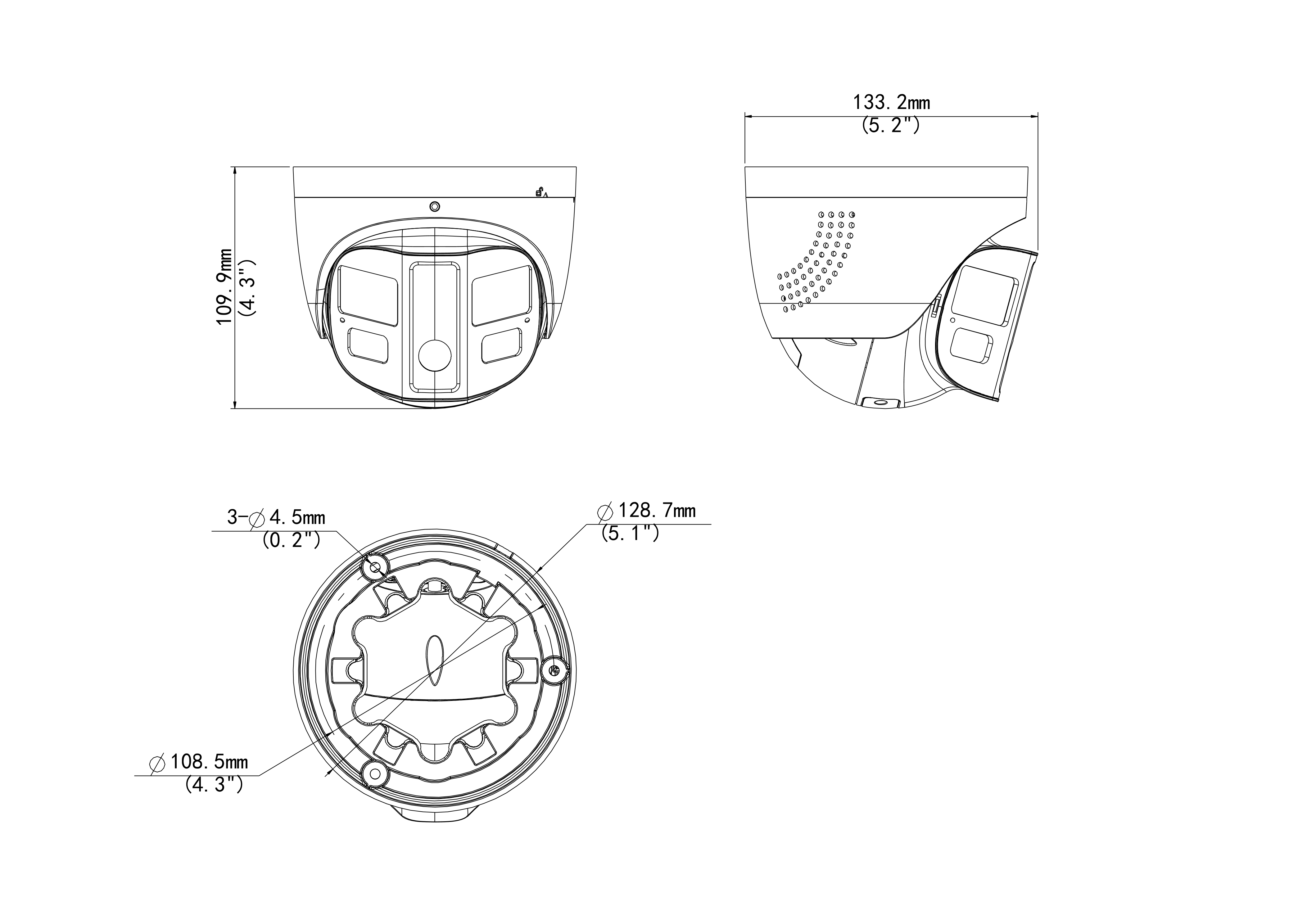

| Dimensions & Weight | Ø128.7 mm × 109.9 mm (Ø5.1" × 4.3"); 0.86 kg (1.90 lb.) |
| Material & Protection | Metal casing; IP67, IK10, 4 KV Surge protection |
| Working/Storage Environment | -30°C to 60°C (-22°F to 140°F), humidity $\le95\%$ RH |
| Language Support | 20 Languages (English, Spanish, French, German, Chinese, etc.) |
| Compatible Accessories | TR-JB03-H-IN-V2 / TR-JB03-J-IN junction boxes, TR-SE24-IN / TR-CM24-IN poles, TR-WM03-B-IN-V2 wall mount, TR-UP06-C-IN-V2 pole mount, TR-UC08-C-V2 corner mount, TR-A01-IN gland |
