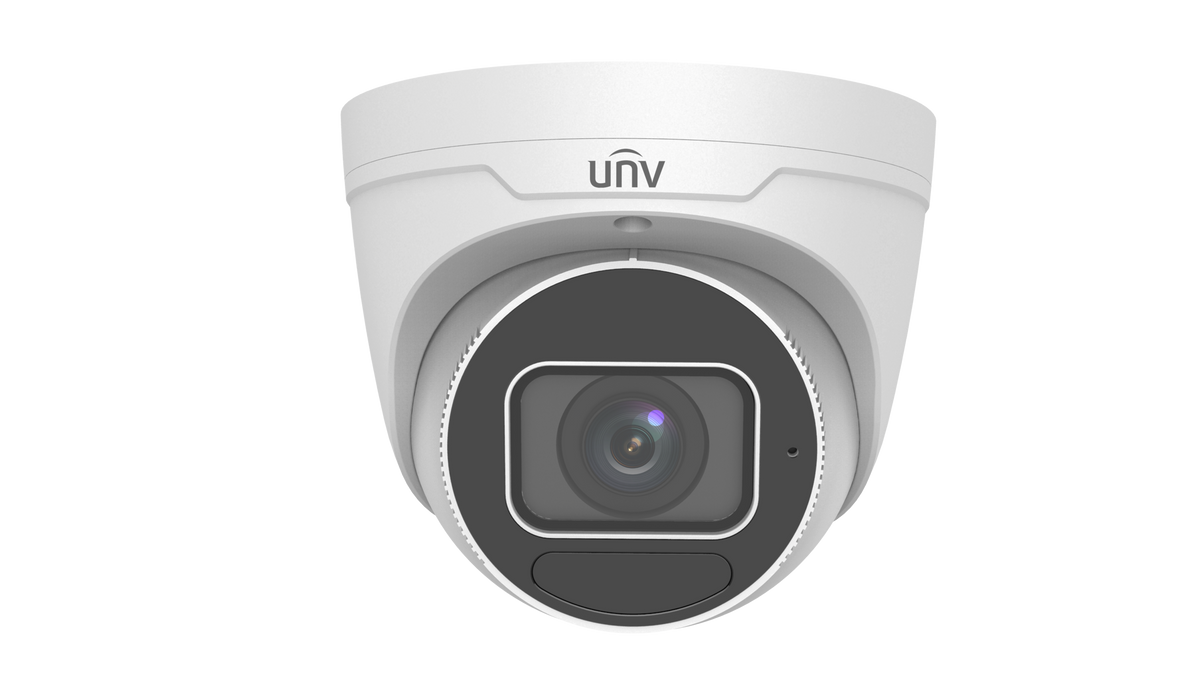

UNV 4MP IR Motorized Varifocal Turret Network Camera

Part Number: IPC3634SR4-ADZK-H

Sensor Type: 1/3" CMOS
Lens Type: 2.8-12mm, Motorized Zoom and Auto Focus
Max Resolution/Frame Rate: 4MP(2688x1520)@25fps
Angle of View: 86.3°- 35.2° (Horizontal)
Min. Illumination: Color 0.003Lux (F1.6, AGC ON)
Night Vision Distance: 131 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Built-in Microphone
Alarm I/O: N/A
BNC Output: N/A
Special Features: Human/Vehicle Detection
Power: PoE (IEEE 802.3af), DC12V
NDAA Compliant: Yes
Warranty Period: 3 Years

Camera

Description

Resolution

4MP

Sensor

1/3.0"CMOS

Min. Illumination

Colour: 0.003 lux (F1.6, AGC ON)
0 lux with IR on

Day/Night

IRcut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°

S/N

>52dB

WDR

120dB

Lens

Description

Lens type

2.8~12mm

Iris Type

Fixed

Iris

F1.6

Field of View (H)

86.3°~35.2°

Field of View (V)

47.1°~17.0°

Field of View (D)

91.9°~38.6°

DORI

Description

DORI DistanceLens

2.8mm, 12mm

DORI DistanceDetect

63m(206.7ft), 270.0m(885.8ft)

DORI DistanceObserve

25.2m(82.7ft), 108.0m(354.3ft)

DORI DistanceRecognize

12.6m(41.3ft), 54.0m(177.2ft)

DORI DistanceIdentify

6.3m(20.7ft), 27.0m(88.6ft)

Illuminator

Description

Illumination Distance(IR)

40m

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Description

Video Compression

Ultra 265;  H.265;  H.264;  MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;

Video Bit Rate

128 Kbps~6144 Kbps

U-code

Support

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Video stream

Dual streams


Description

White Balance

Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anticlockwise

Dewarping

N/A

HLC

Support

BLC

Support

Defog

Digital Defog

Events

Description

Basic Detection

Cross line; intrusion(based on human body detection); Motion detection; Ultra motion detection; Tampering alarm; Audio detection

General Function

Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication

Audio

Description

Audio Compression

G.711U; G.711A

Audio Bitrate

64 Kbps

Two-way Audio

N/A

Suppression

Support

Sampling Rate

8KHZ

Storage

Description

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR; NAS(NFS)

Network

Description

Protocols

IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T); API; SDK

User/Host

Up to 32 users, 2 user levels: administrator and common user

Security

Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF

Client

EZStation; EZView;  EZLive

Web Browser

Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Description

Audio I/O

N/A

Alarm I/O

N/A

Serial Port

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

1 * RJ45 10M/100M BaseTX Ethernet

Video Output

N/A

Certification

Description

EMC

CEEMC (EN 55032, EN 6100033, EN IEC 6100032, EN 55035)
FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 623681)
CB (IEC 623681)
UL/CUL (UL 623681, CAN/CSA C22.2 No. 623681)

Environment

CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);

Protection

IP67 (IEC 60529)

General

Description

Power

DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.5W

Power Interface

Ø 5.5mm coaxial power plug

Dimensions

Φ129 x 110mm (Ø5.1 x 4.3)

Weight

0.66kg(1.46lb)

Material

Metal

Working Environment

30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: 95% RH (noncondensing)

Storage Environment

30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: 95% RH (noncondensing)

Surge protection

6KV

Reset button

Support

Web Client Language

4 Languages
English, Russian, Spanish, Vietnamese
