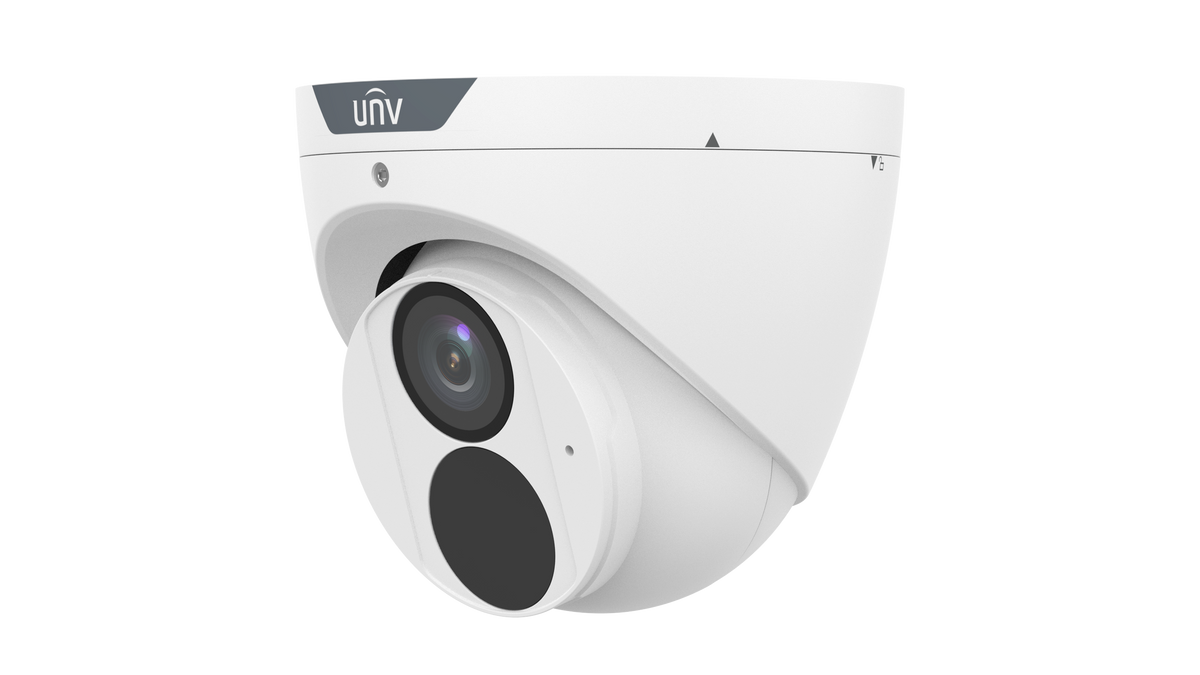

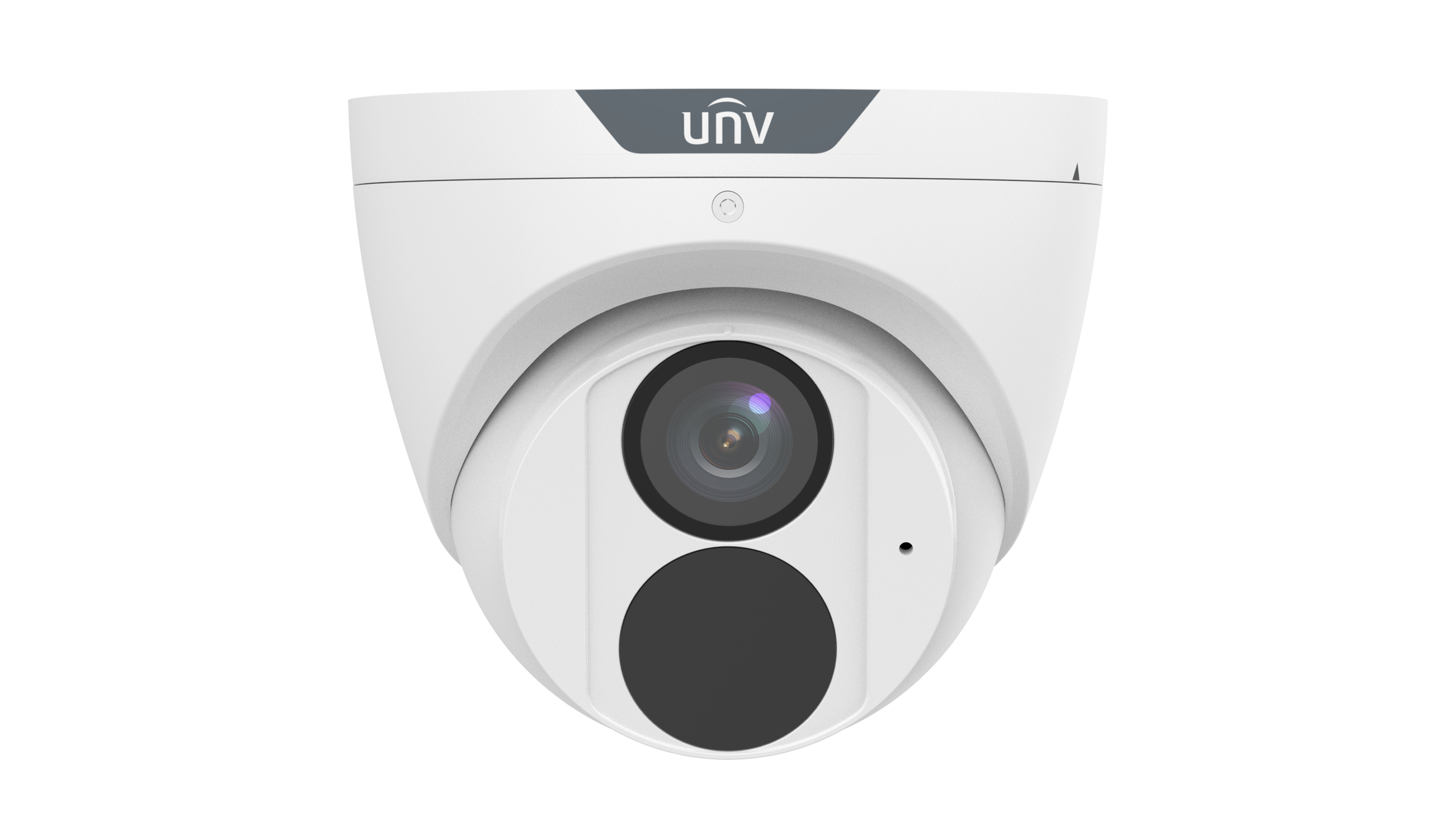

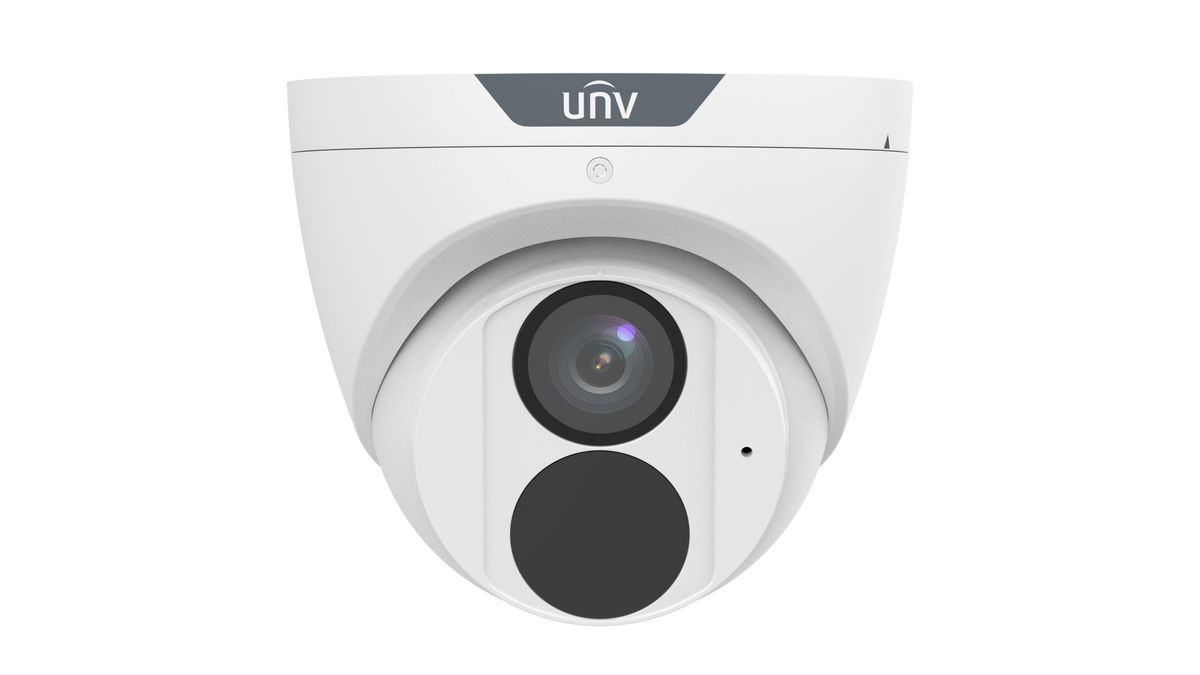

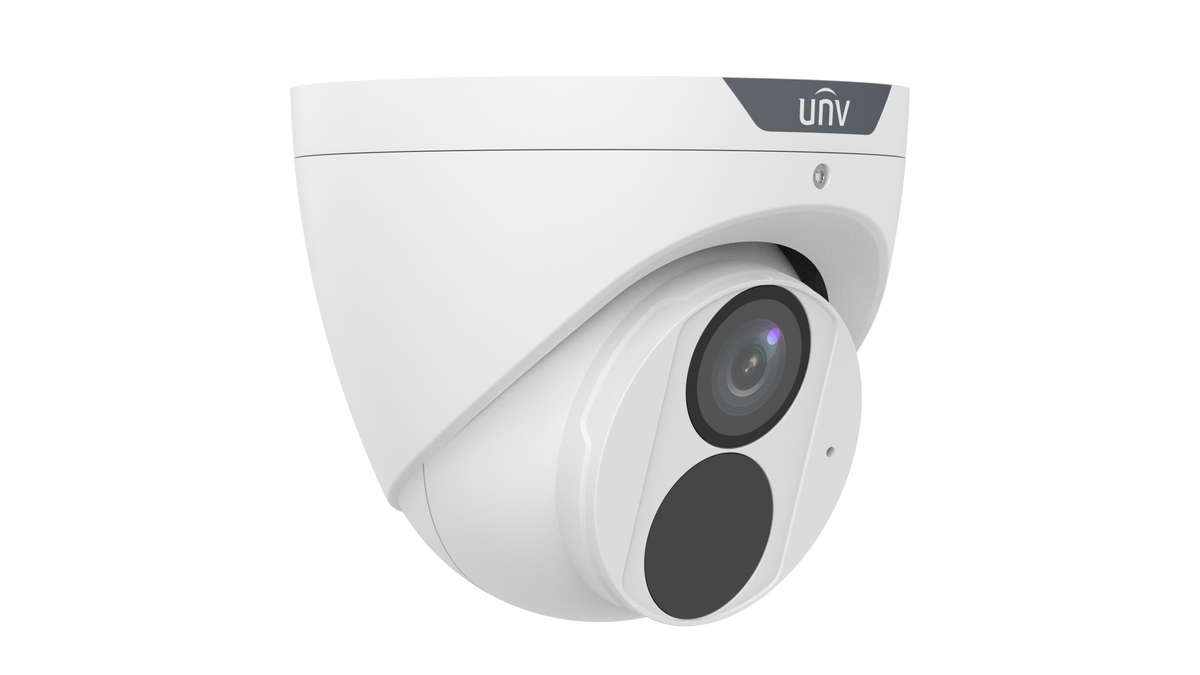

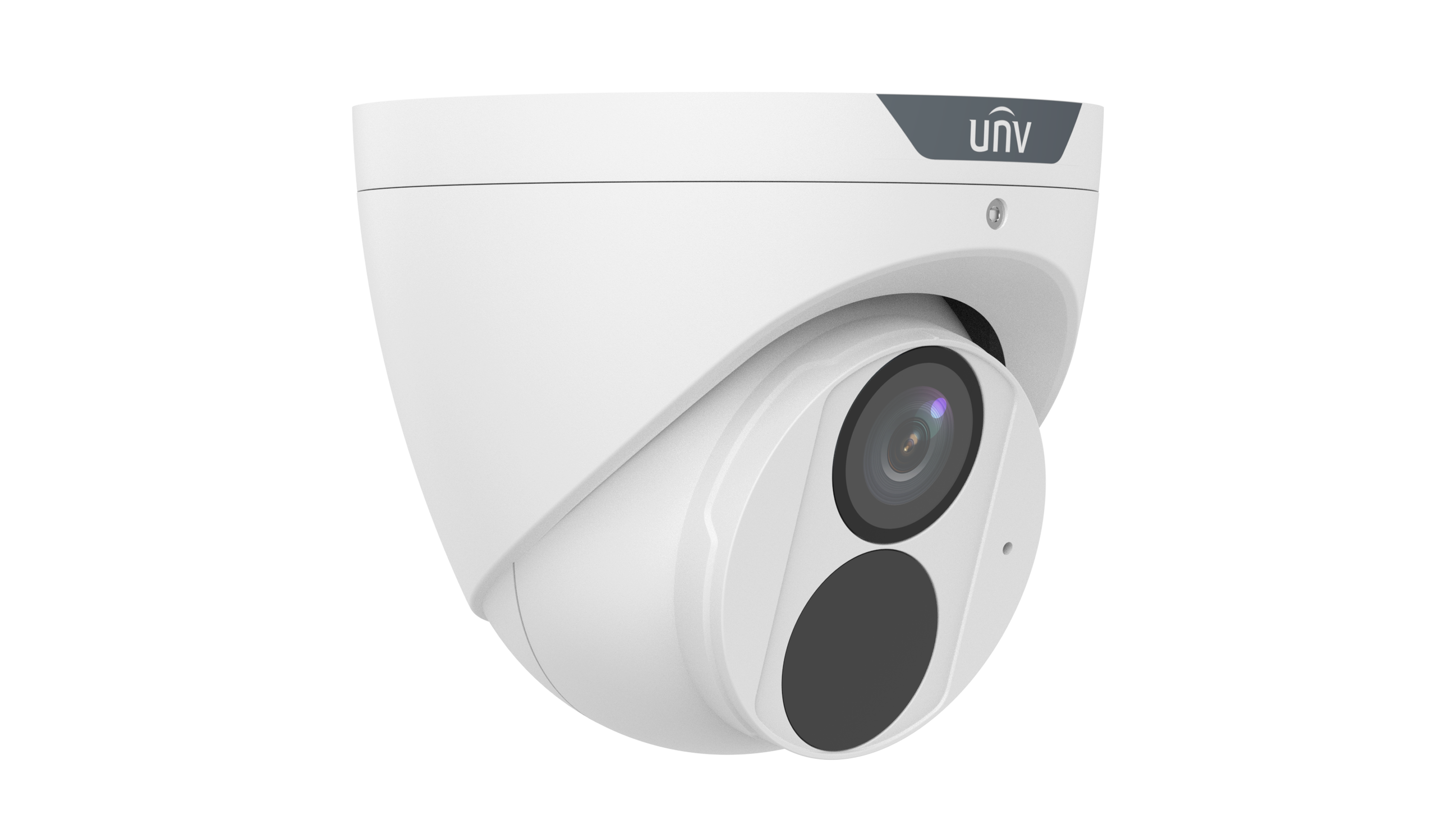

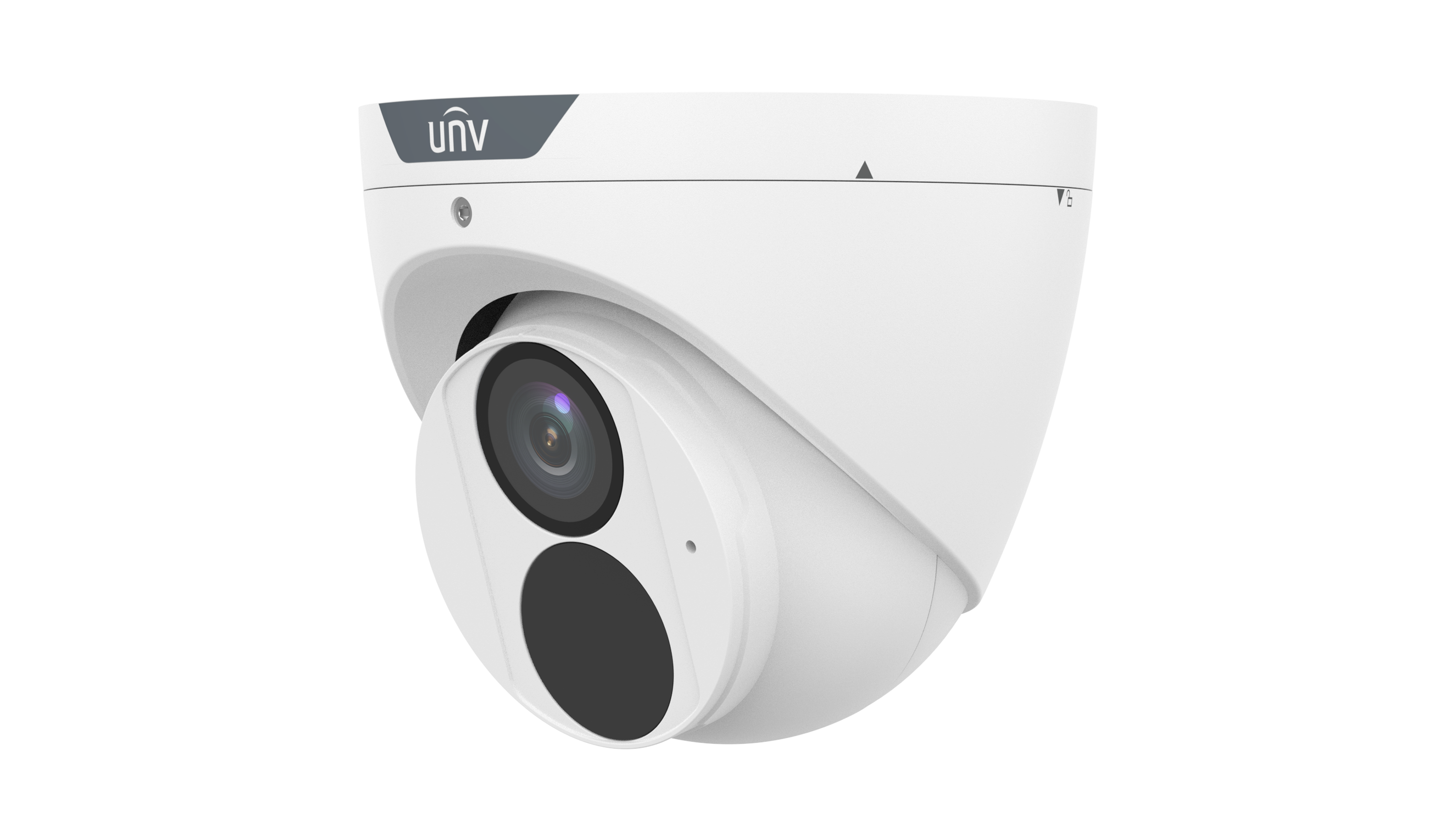

8MP HD Fixed IR TurretPart Number: IPC3618SR-ADF28KM-H
Resolution
8 MP (4K) @ 20fps
Lens Options
2.8mm Fixed (F1.6)
Night Vision
98.4 ft (30m) Smart IR
Power
PoE / DC12V (Max 5.0W)
Smart Feature Highlights
Sensor Type
1/2.8" CMOS (0.005 Lux F1.6)
Field of View (H)
98.7° (2.8mm)
WDR & Imaging
120dB True WDR
Audio
Built-in Microphone
SD Card Slot
MicroSD up to 512GB
Ingress Protection
IP67 Weatherproof
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, DORI & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | IPC3618SR-ADF28KM-H |
| Max Resolution | 8 MP (3840 × 2160) @ 20 fps |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Support Easystar: color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio & WDR | >52 dB; 120 dB True WDR |
| Lens & FOV | |
| Focal Length & Iris | 2.8 mm (Fixed Iris, F1.6) |
| Field of View (H / V / D) | H: 98.7°, V: 53.9°, D: 103.6° |
| DORI Distances | |
| Detect | 86.9 m (285.1 ft.) |
| Observe | 34.8 m (114.2 ft.) |
| Recognize | 17.4 m (57.1 ft.) |
| Identify | 8.7 m (28.5 ft.) |
| Illuminator & Video | |
| Supplemental Light | IR (30m / 98.4ft distance) |
| Illuminator Control & Wavelength | Auto/Manual; Wavelength: 850 nm |
| Video Compression & Profiles | Ultra 265, H.265, H.264, MJPEG; H.264 Profiles: Baseline, Main, High |
| Bit Rate & Streams | 128 Kbps to 16 Mbps; Dual streams; U-code supported |
| Image Settings | White Balance (Auto/Outdoor/Fine tune/Sodium lamp/Locked/Auto2), 2D/3D DNR, Smart IR, Flip, HLC, BLC, Digital Defog, Up to 4 OSDs, 4 Privacy masks, ROI |
| Smart, Network & General Specs | |
|---|---|
| Events & Analytics | |
| Basic Detection & Analytics | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
| General Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio, Storage & Interface | |
| Audio | G.711U, G.711A (64 Kbps); Noise suppression, built-in microphone |
| Edge & Network Storage | MicroSD slot, up to 512 GB; ANR, NAS (NFS) |
| Network & Security | 1x RJ45 10M/100M; IPv4, ONVIF (S/G/T), SSL/TLS, HTTPS, 802.1x, Up to 32 users (3 user levels) |
| Client & Browser | UNV-Link, UNV-Link Pro, EZStation; Plugin required & plugin-free browser live view support |
| Interfaces & I/O | Built-in Mic supported; Audio I/O, Alarm I/O, Serial Port: N/A |
| General & Environment | |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af); Max. 5.0 W; Ø5.5 mm coaxial power plug |

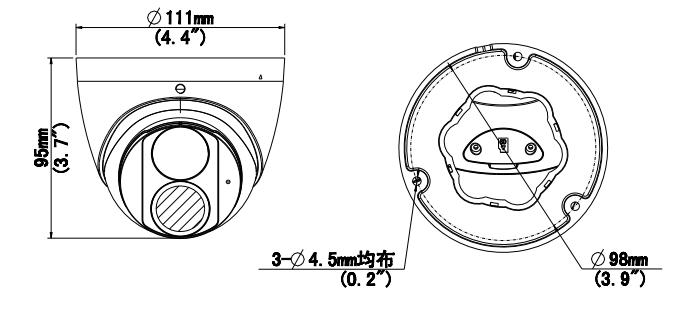

| Dimensions & Weight | Ø111 mm × 95 mm (Ø4.4" × 3.7"); 0.32 kg (0.71 lb.) |
| Material & Protection | Metal casing; IP67, 4 KV Surge protection |
| Working/Storage Environment | -30°C to 60°C (-22°F to 140°F), humidity $\le95\%$ RH |
| Language Support | 13 Languages (English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Italian) |
| Compatible Accessories | TR-JB03-G-IN junction box, TR-WM03-D-IN wall mount, TR-A01-IN waterproof cable gland, TR-UP06-IN pole mount, TR-UC08-C corner mount, TR-SE24-A-IN / TR-SE24-IN poles, TR-CM24-IN bracket |
