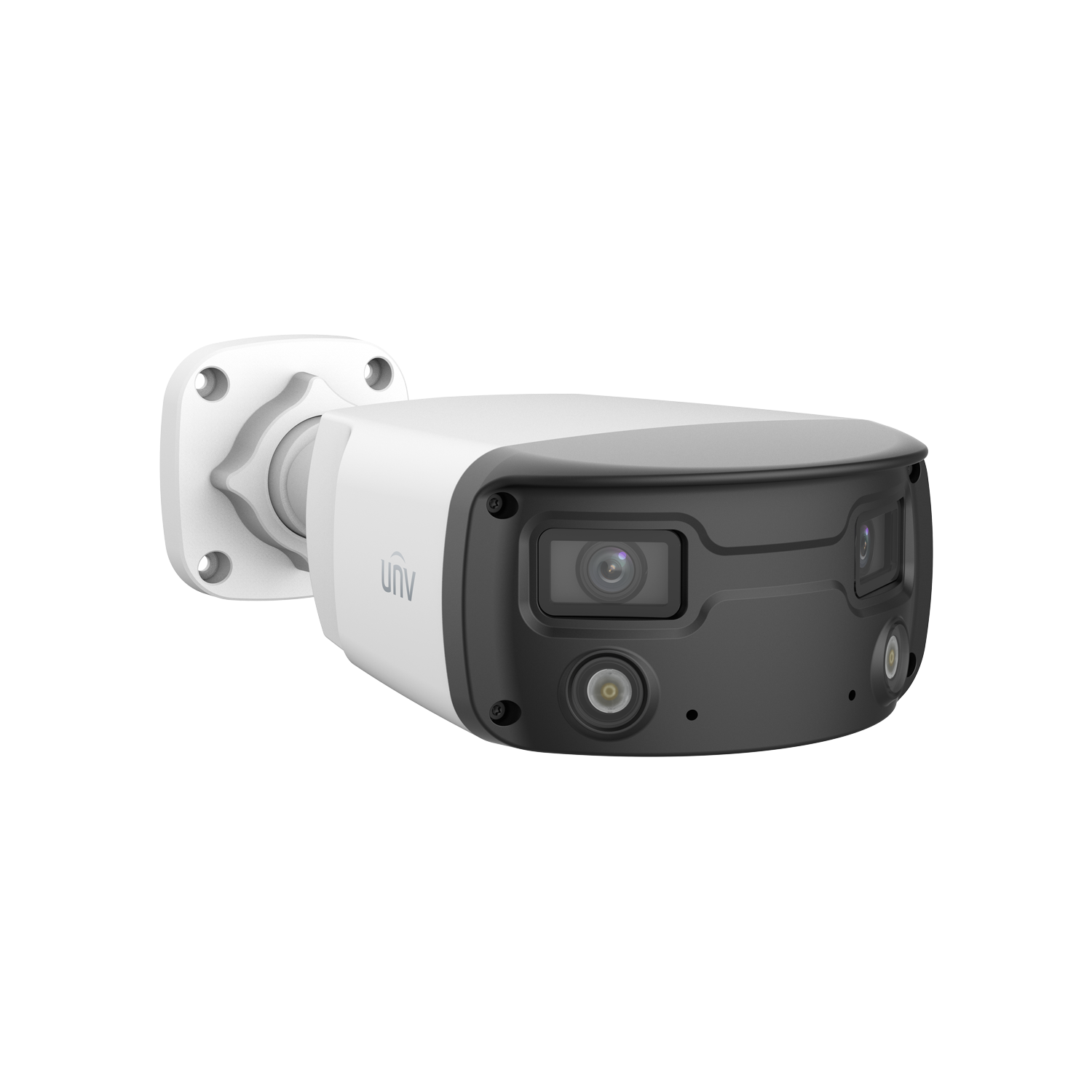

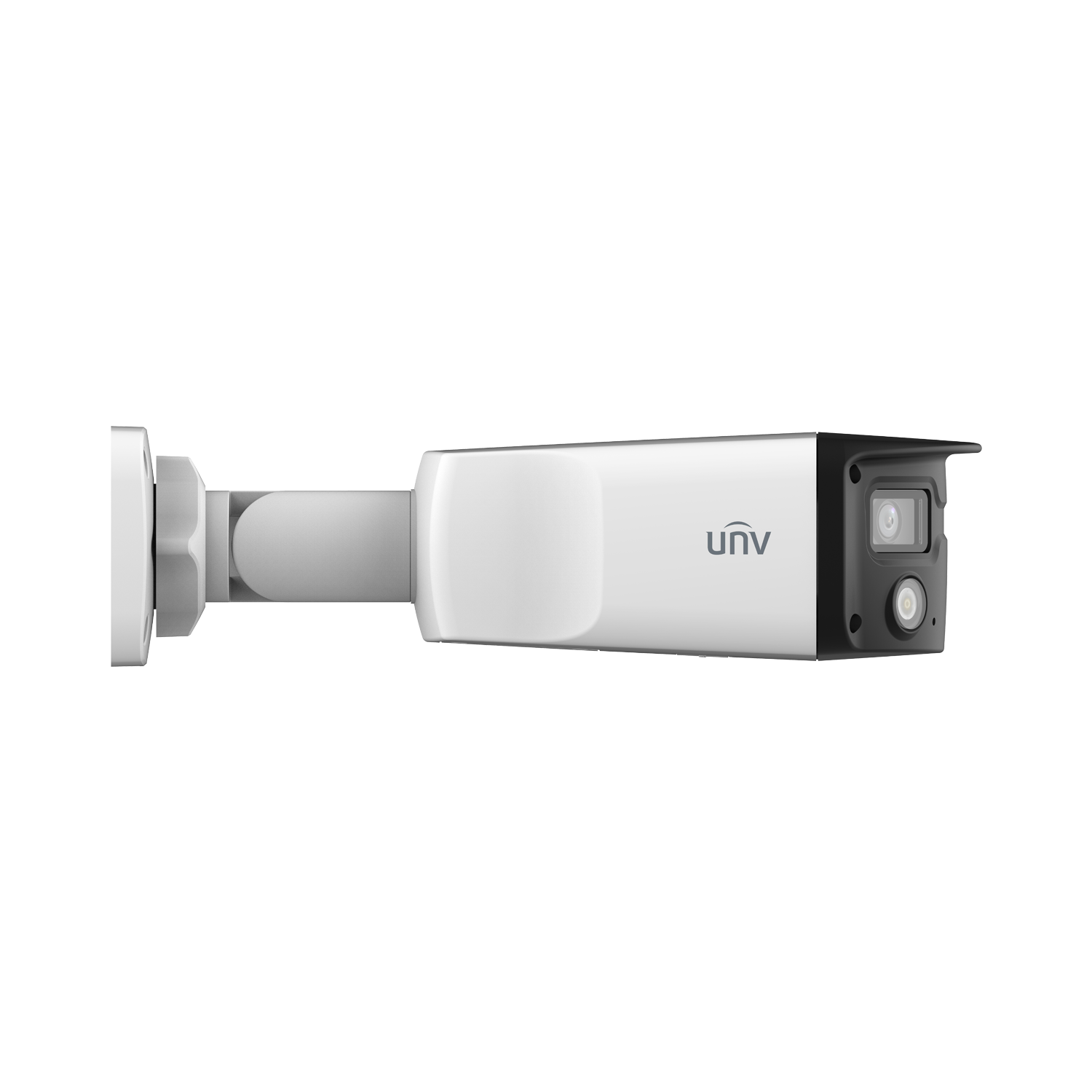

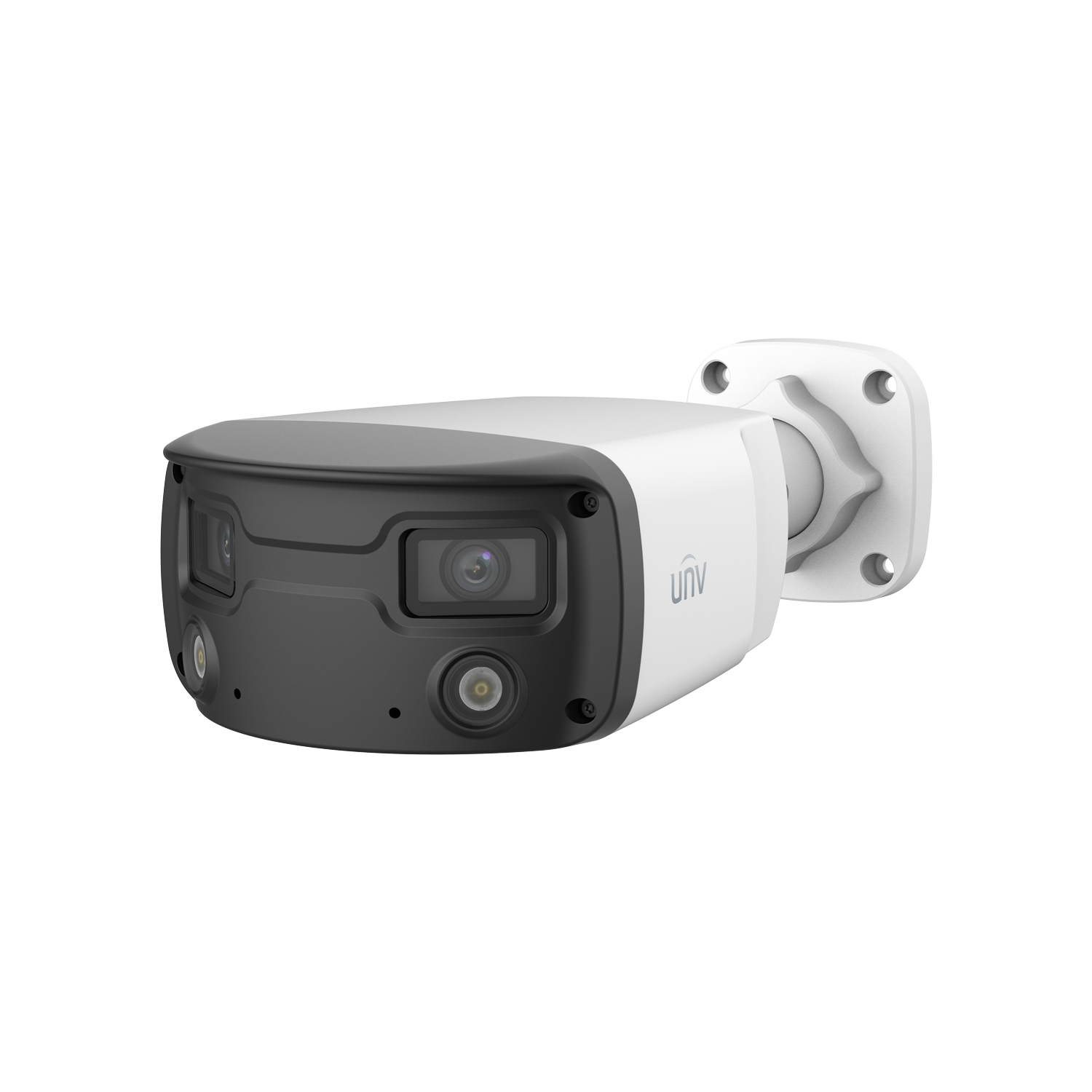

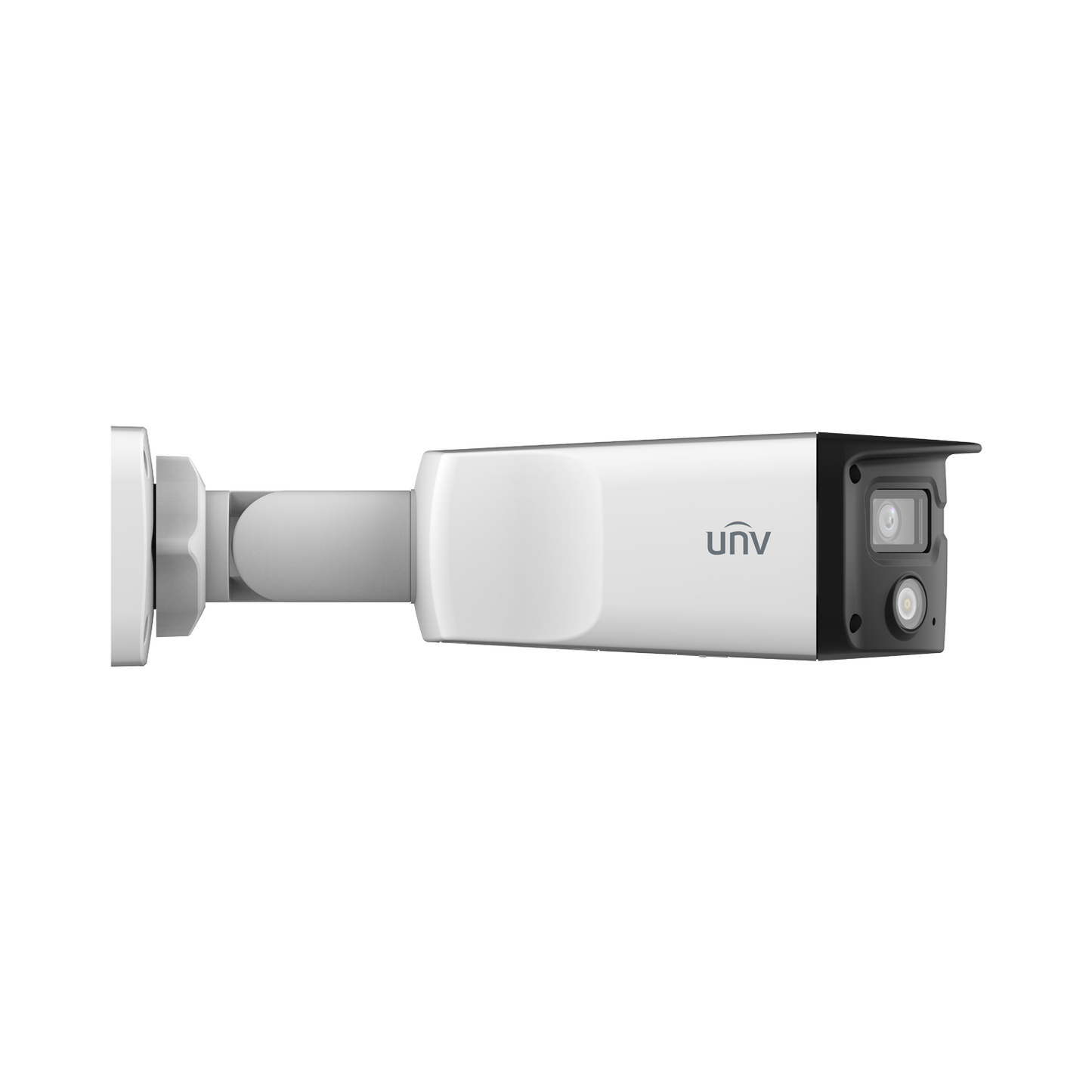

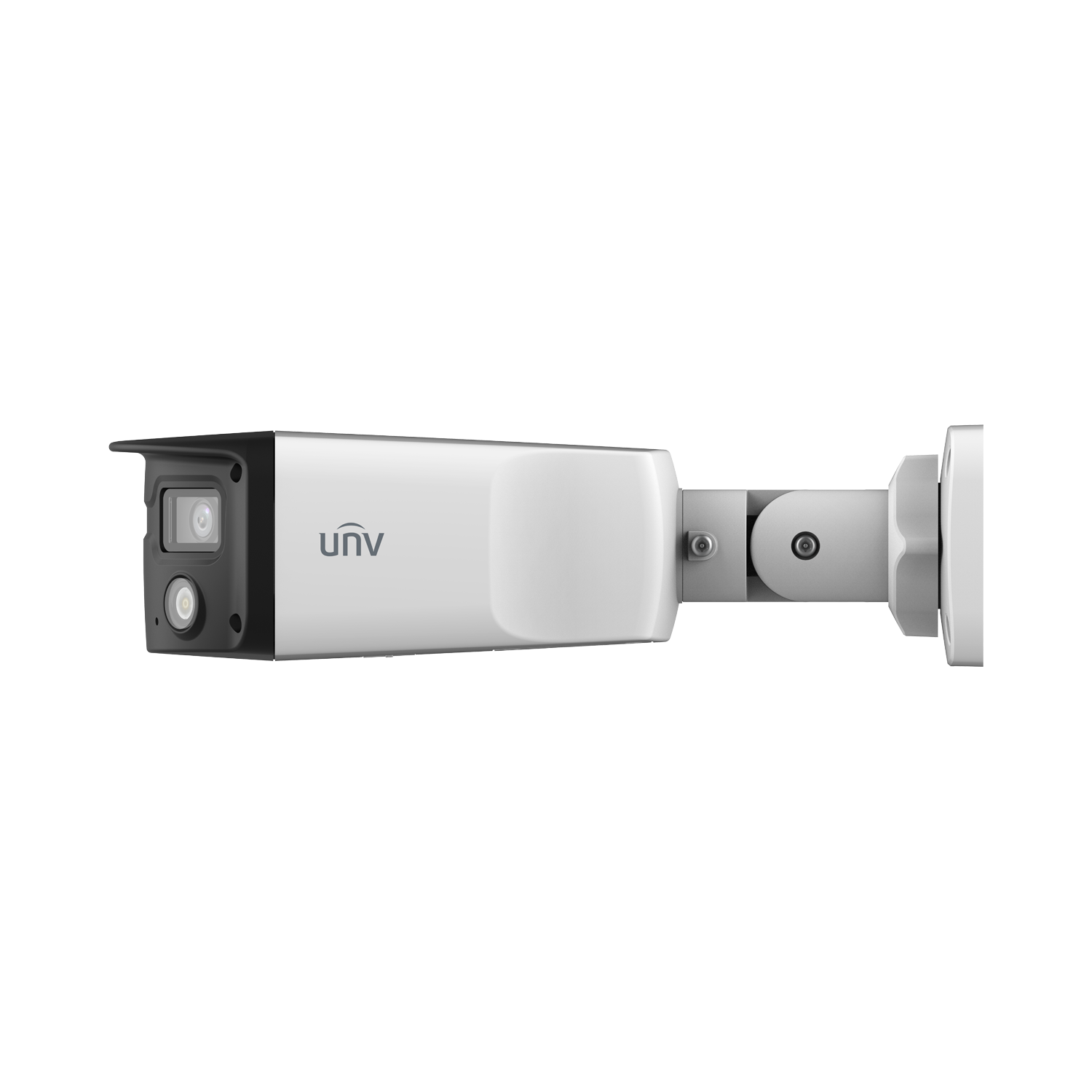

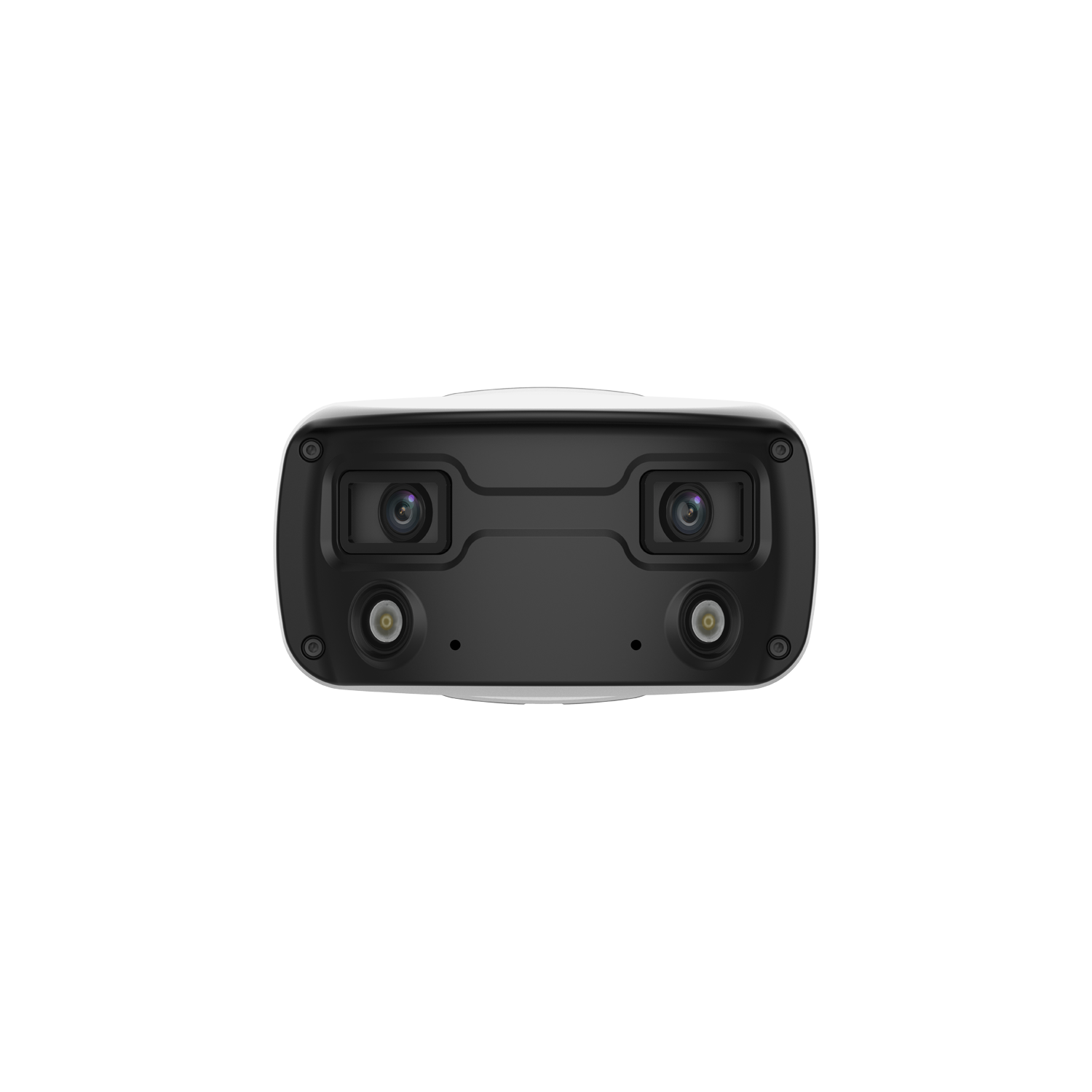

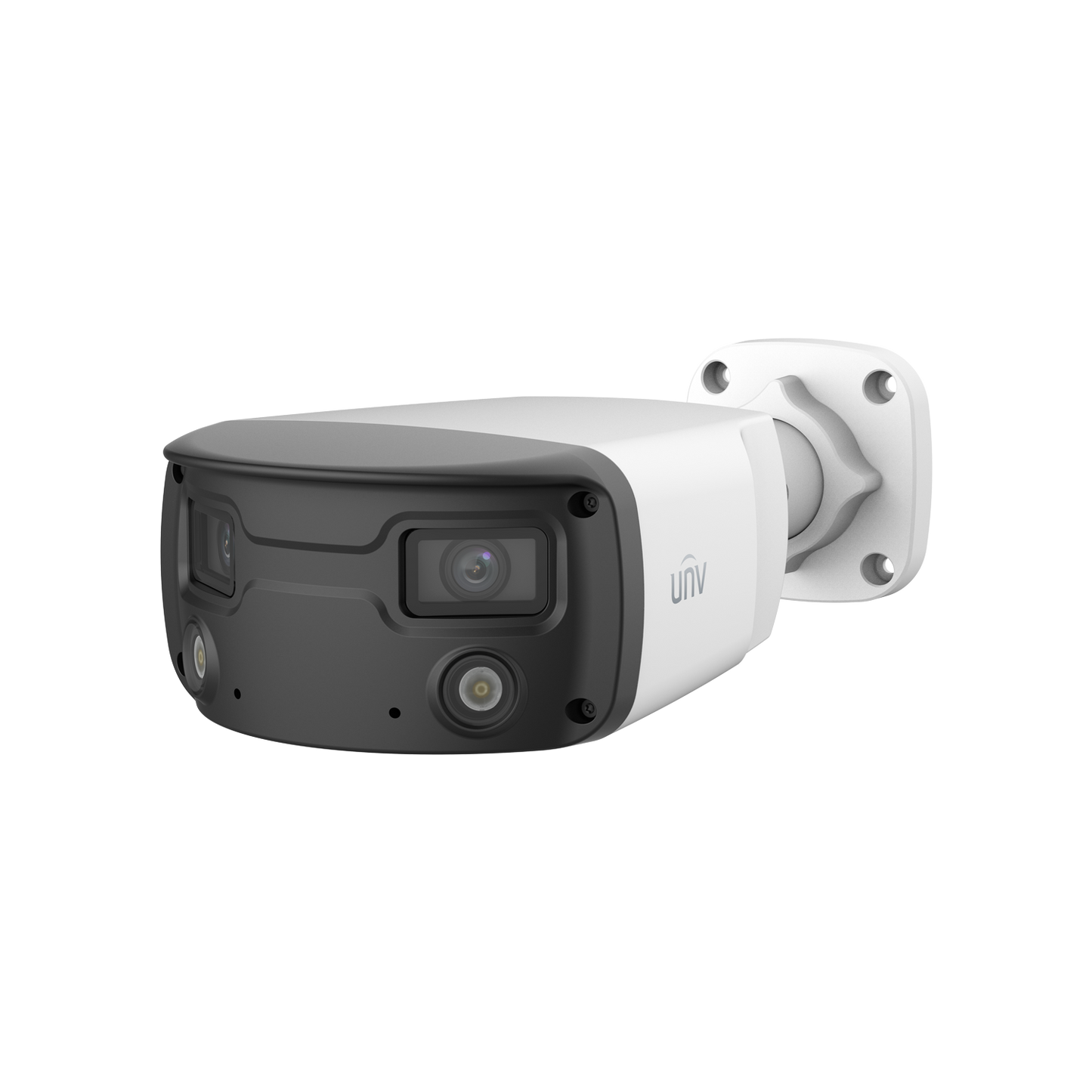

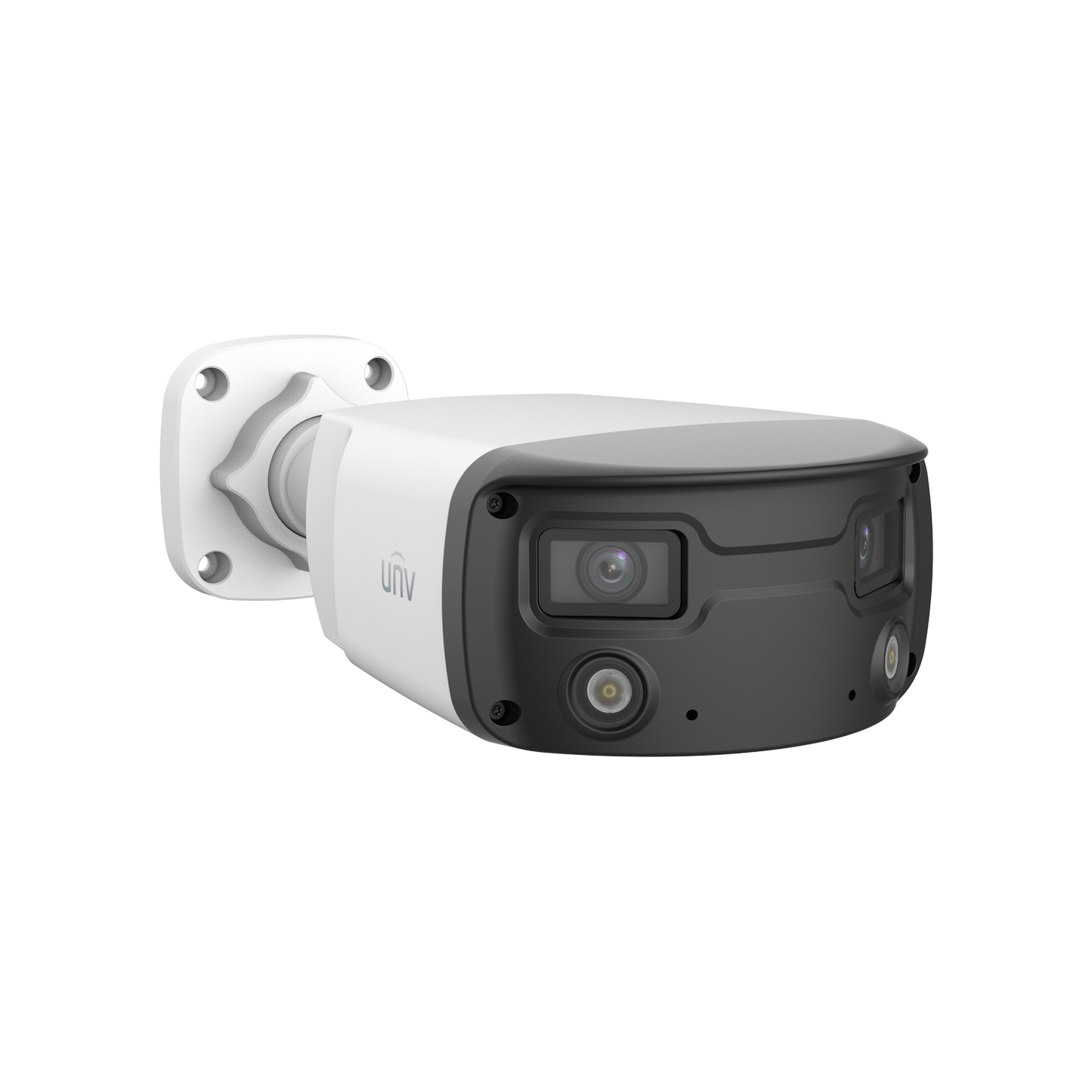

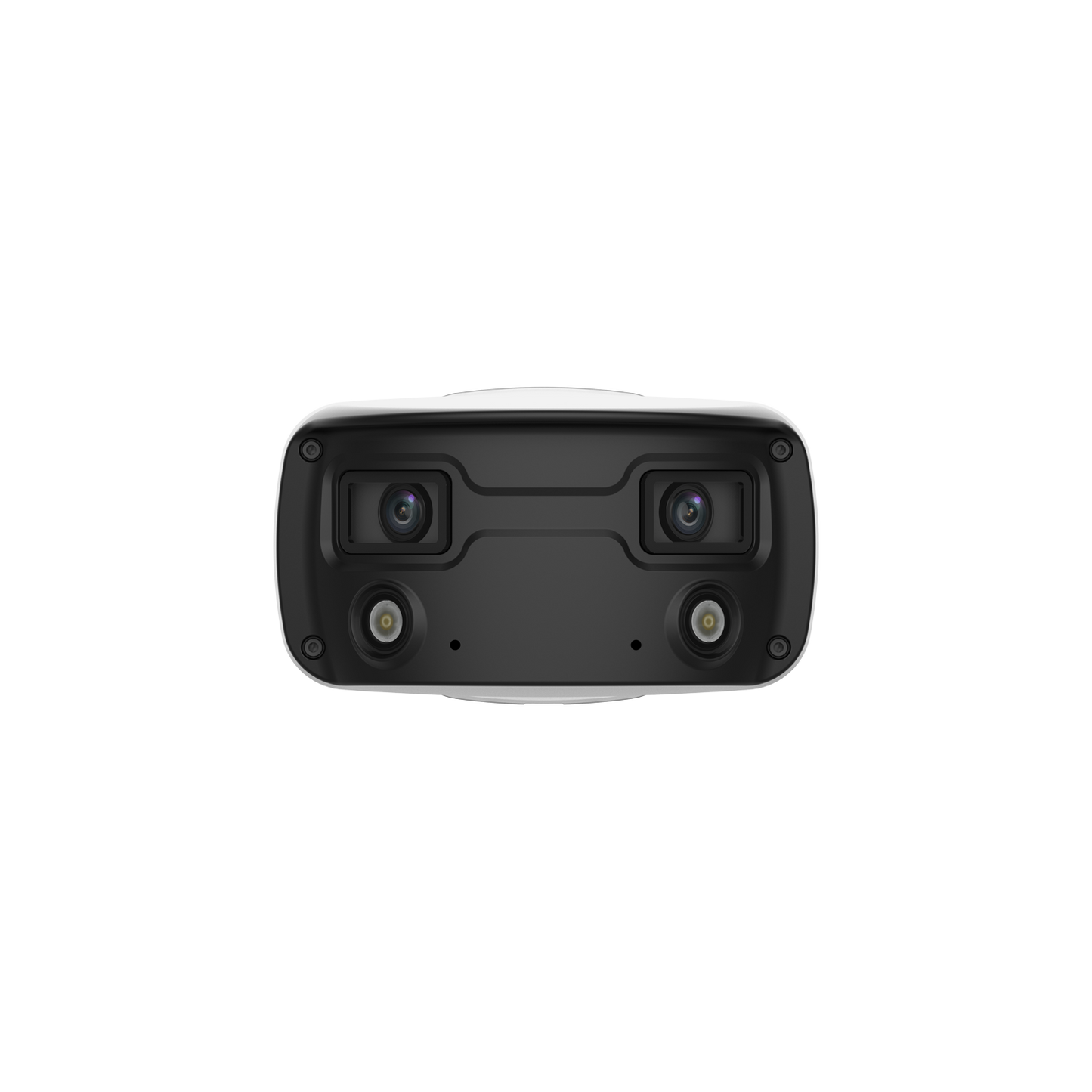

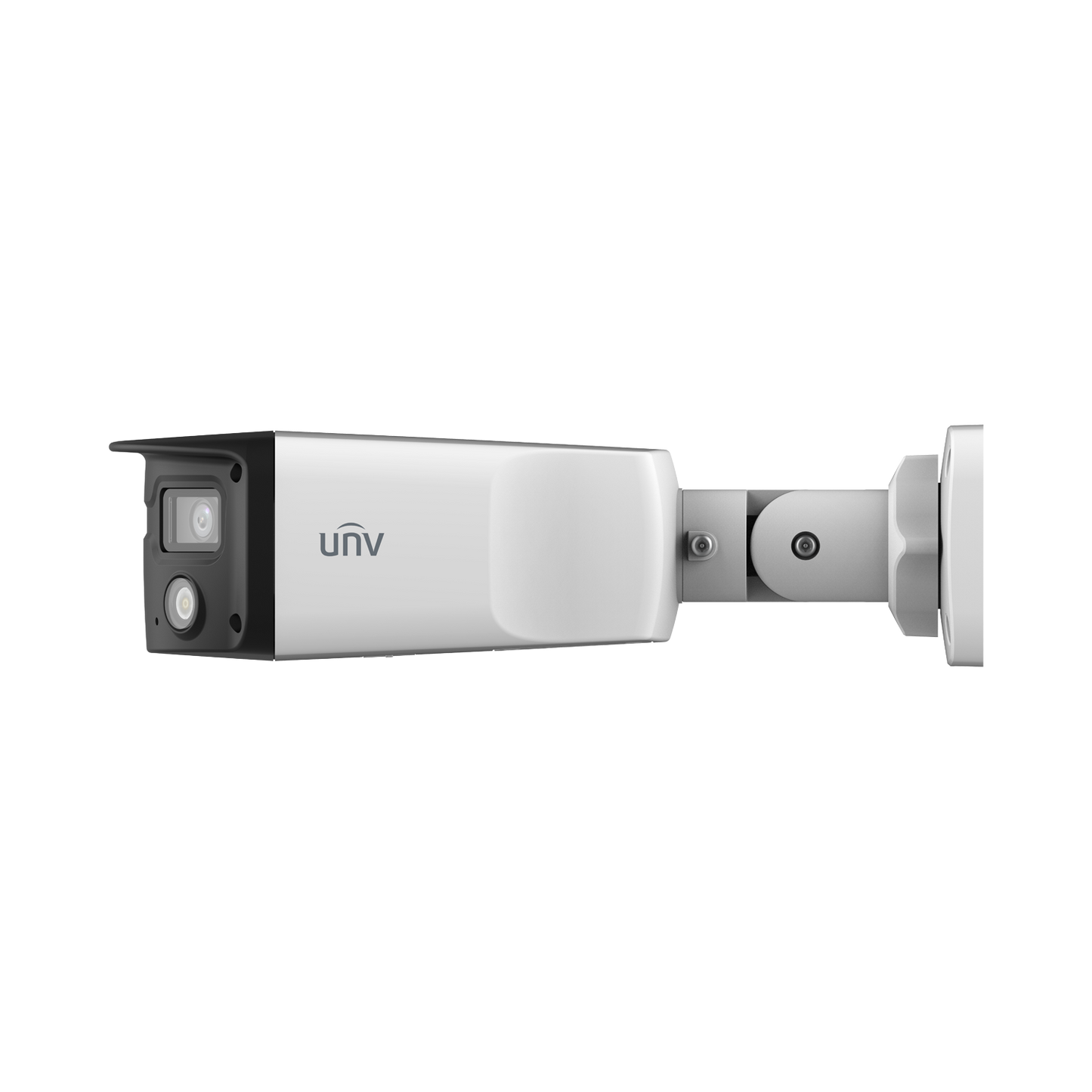

4MP ColorHunter Wide Angle Fixed BulletPart Number: IPC2K24SE-ADF40KMC-WL-I0
Resolution
4MP @ 25fps
Lens & Zoom
Dual 4.0mm Panoramic
Night Vision
98 ft (LED)
Power
PoE / DC12V
Smart Feature Highlights
Sensor Type
1/2.9" CMOS (0.0005Lux Low Light)
Field of View
160.0° (Horizontal)
WDR & Imaging
DWDR (Digital WDR)
I/O & Audio
Built-in Mic & Speaker, Alarm I/O
SD Card Slot
Up to 256GB
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, Storage & Hardware | |
|---|---|
| Camera | |
| Sensor | 1/2.9″, 4.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.0005 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| WDR | DWDR |
| S/N | >56dB |
| Lens | |
| Lens | 2 * 4.0mm@F1.0 |
| Iris | Fixed |
| Field of View (H) | 160.00°±10° |
| Field of View (V) | 43.22° |
| Field of View (D) | 180.13°±10° |
| DORI | |
| DORI Distance | Lens (mm), Detect（m）, Observe（m）, Recognize（m）, Identify（m） |
| 4.0 | 64.3, 25.7, 12.9, 6.4 |
| Illuminator | |
| LED Distance | Up to 30m (98ft) |
| LEDs Number | 2 |
| LED On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 4MP (3840*1080), Max 25fps（Human Body Detection off） Sub Stream: 1920*540, Max 25fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Double streams |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart Illumination | Support |
| Flip | N/A |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Audio | |
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Two-way audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Interface | |
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] |
| Audio I/O | Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| RS485 | N/A |
| Built-in Mic | Built-in two mics |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Smart Features & General | |
|---|---|
| Events | |
| Basic Detection | Human Body Detection ,motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Web Browser | Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Certifications | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power | Power consumption: Max 6.5W |
| Power Interface | Ø 5.5mm coaxial power plug |

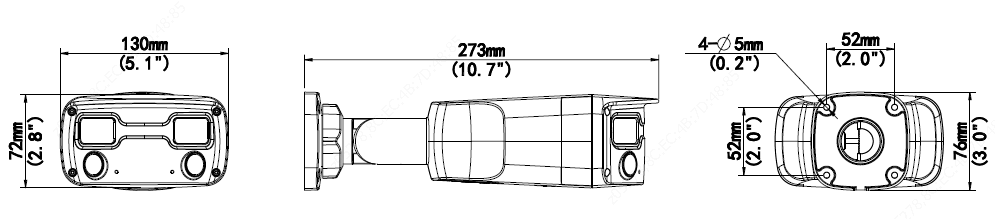

| Dimensions (L × W × H) | 273× 130 × 76mm (10.7” × 5.1” × 3.0”) |
| Weight | 0.95kg (2.09lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| surge protection | 4KV |
| Reset Button | Support |
