Camera |
Description |
Resolution |
4MP |
Sensor |
1/3.0" CMOS |
Min. Illumination |
Colour: 0.003 lux (F1.6, AGC ON) |
Day/Night |
IRcut filter with auto switch (ICR) |
Shutter |
Auto/Manual, 1 ~ 1/100000s |
Adjustment angle |
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
S/N |
>52dB |
WDR |
120dB |
Lens |
Description |
Lens type |
2.8~12mm |
Iris Type |
Fixed |
Iris |
F1.6 |
Field of View (H) |
86.3°~35.2° |
Field of View (V) |
47.1°~17.0° |
Field of View (D) |
91.9°~38.6° |
DORI |
Description |
DORI Distance(Lens) |
2.8mm, 12mm |
DORI Distance(Detect) |
63m(206.7ft), 270.0m(885.8ft) |
DORI Distance(Observe) |
25.2m(82.7ft), 108.0m(354.3ft) |
DORI Distance(Recognize) |
12.6m(41.3ft), 54.0m(177.2ft) |
DORI Distance(Identify) |
6.3m(20.7ft), 27.0m(88.6ft) |
Illuminator |
Description |
Illumination Distance(IR) |
50m |
Wavelength |
850nm |
IR On/Off Control |
Auto/Manual |
Video |
Description |
Video Compression |
Ultra 265; H.265; H.264; MJPEG |
H.264 code profile |
Baseline profile, Main profile, High profile |
Frame Rate |
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps; |
Video Bit Rate |
128 Kbps~6144 Kbps |
U-code |
Support |
OSD |
Up to 4 OSDs |
Privacy Mask |
Up to 4 areas |
ROI |
Up to 8 areas |
Video stream |
Dual streams |
Image |
Description |
White Balance |
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
Digital noise reduction |
2D/3D DNR |
Smart IR |
Support |
Flip |
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anticlockwise |
Dewarping |
N/A |
HLC |
Support |
BLC |
Support |
Defog |
Digital Defog |
Events |
Description |
Basic Detection |
Cross line; intrusion(based on human body detection); Motion detection; Ultra motion detection; Tampering alarm; Audio detection |
General Function |
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication |
Audio |
Description |
Audio Compression |
G.711U; G.711A |
Audio Bitrate |
64 Kbps |
Two-way Audio |
N/A |
Suppression |
Support |
Sampling Rate |
8KHZ |
Storage |
Description |
Edge Storage |
Micro SD, up to 256GB |
Network Storage |
ANR; NAS(NFS) |
Network |
Description |
Protocols |
IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; SSL/TLS; QoS; SNMP |
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T); API; SDK |
User/Host |
Up to 32 users, 2 user levels: administrator and common user |
Security |
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
Client |
EZStation; EZView; EZLive |
Web Browser |
Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Interface |
Description |
Audio I/O |
N/A |
Alarm I/O |
N/A |
Serial Port |
N/A |
Built-in Mic |
Support |
Built-in Speaker |
N/A |
WIFI |
N/A |
Network |
1 * RJ45 10M/100M BaseTX Ethernet |
Video Output |
N/A |
Certification |
Description |
EMC |
CEEMC (EN 55032, EN 6100033, EN IEC 6100032, EN 55035) |
Safety |
CE LVD (EN 623681) |
Environment |
CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
Protection |
IP67 (IEC 60529) |
General |
Description |
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
Power Interface |
Ø 5.5mm coaxial power plug |

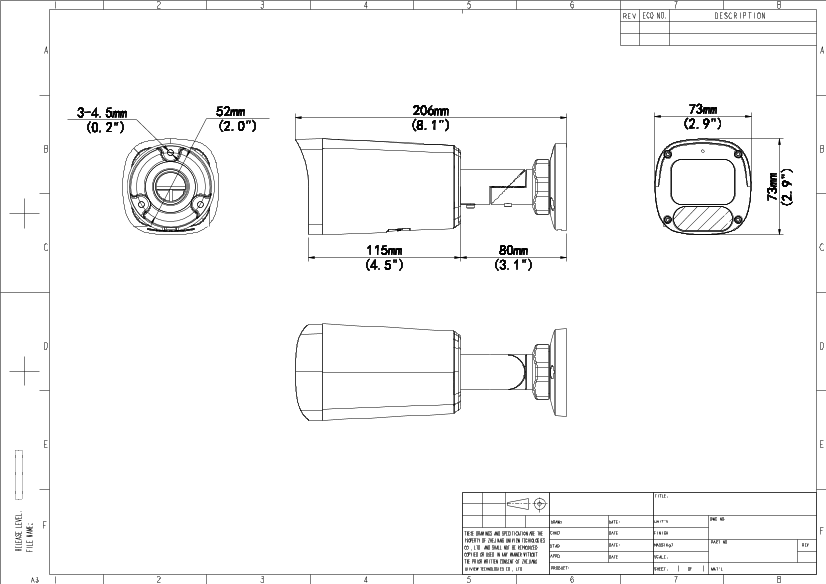

Dimensions |
206 × 73 × 73mm (8.1” × 2.9” × 2.9”) |
Weight |
0.51kg(1.12lb) |
Material |
Graphene + Metal |
Working Environment |
30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: ≤95% RH (noncondensing) |
Storage Environment |
30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: ≤95% RH (noncondensing) |
Surge protection |
6KV |
Reset button |
Support |
Web Client Language |
4 Languages |
