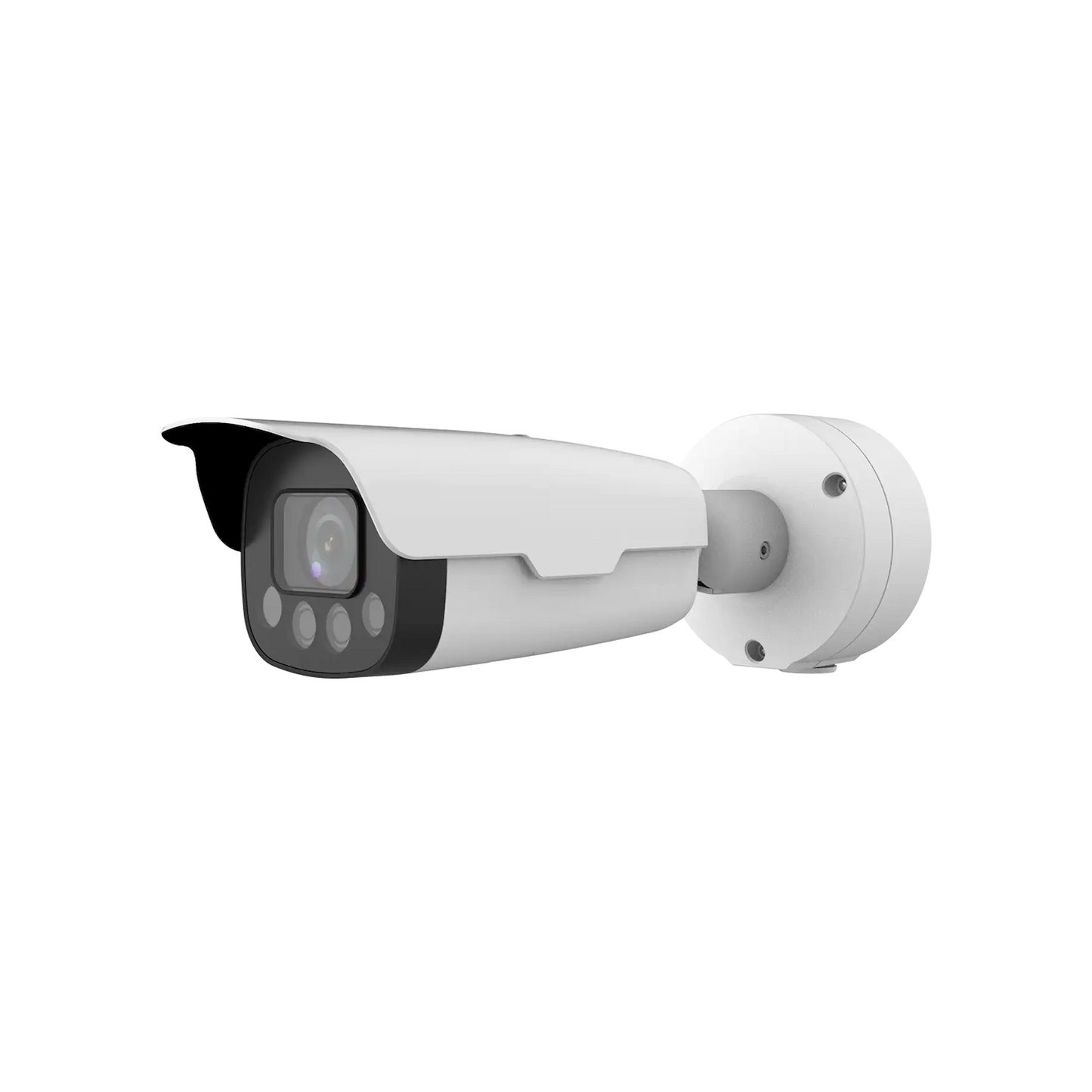

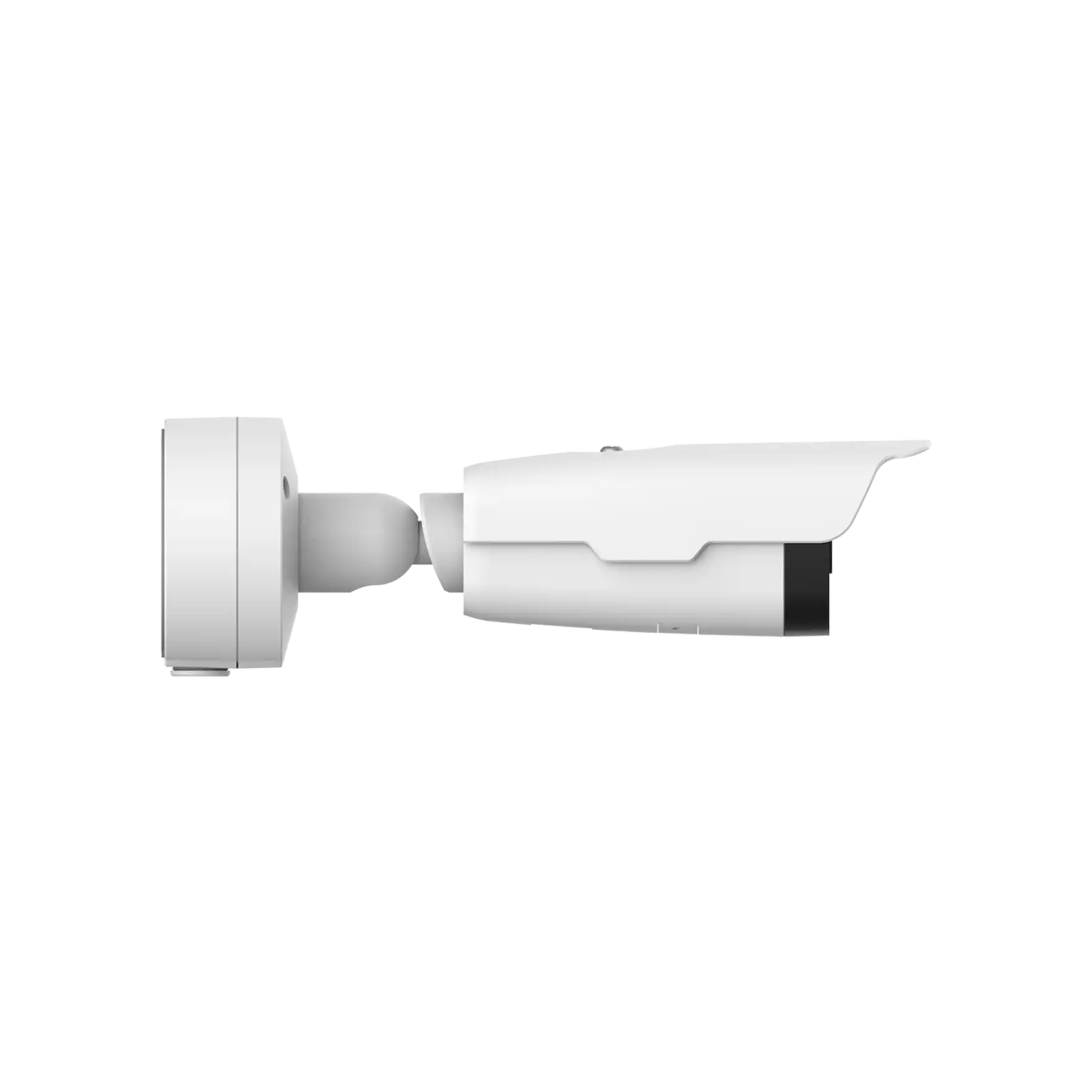

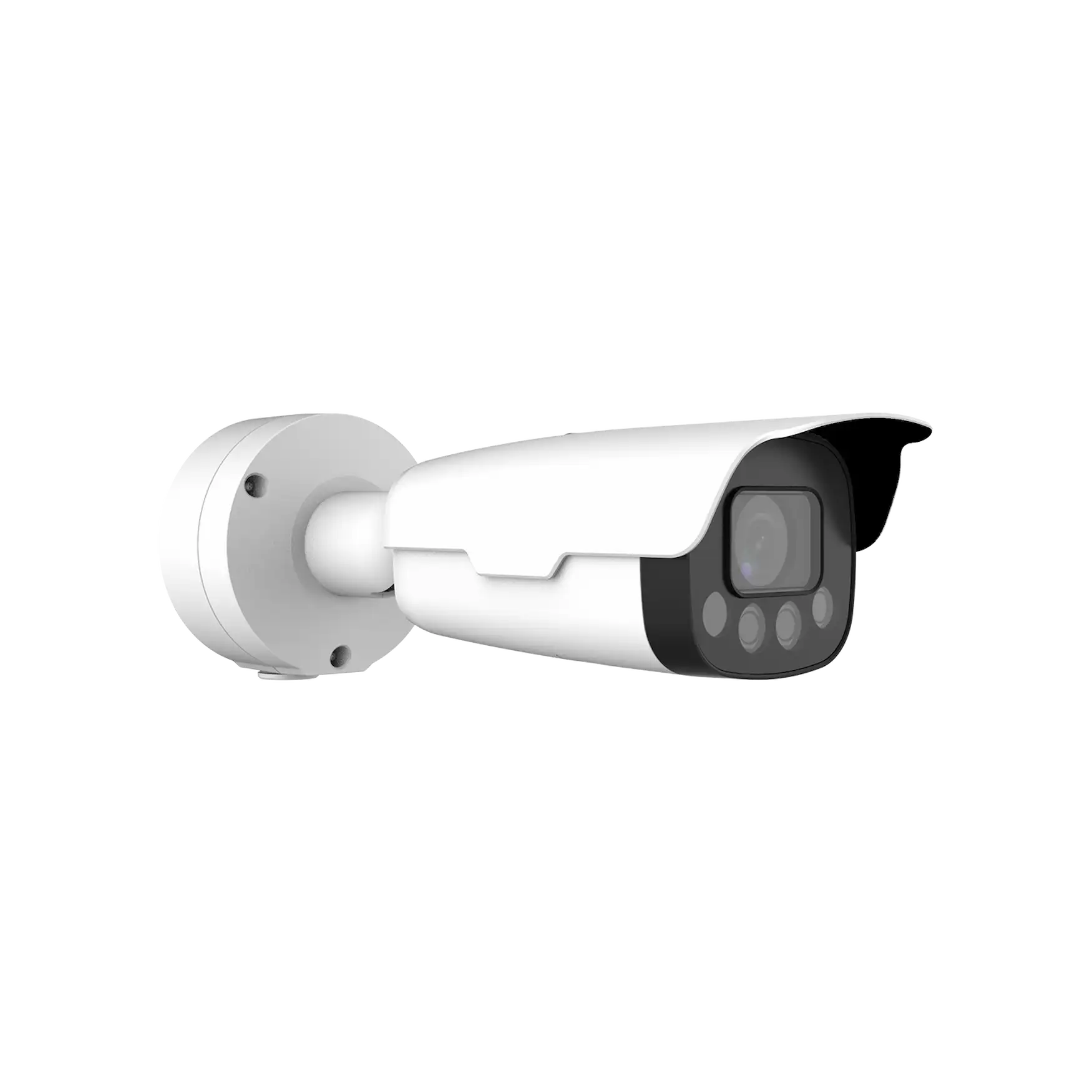

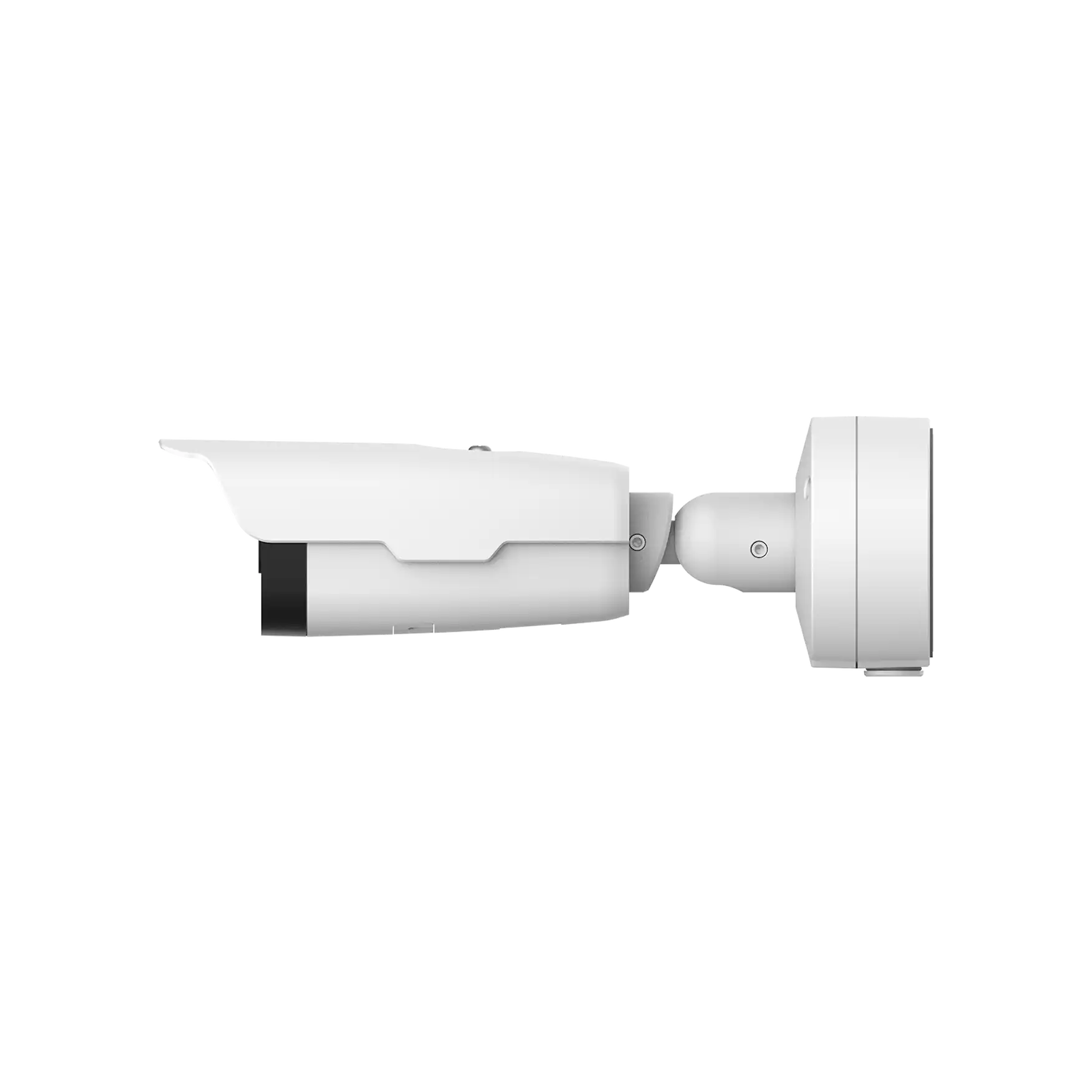

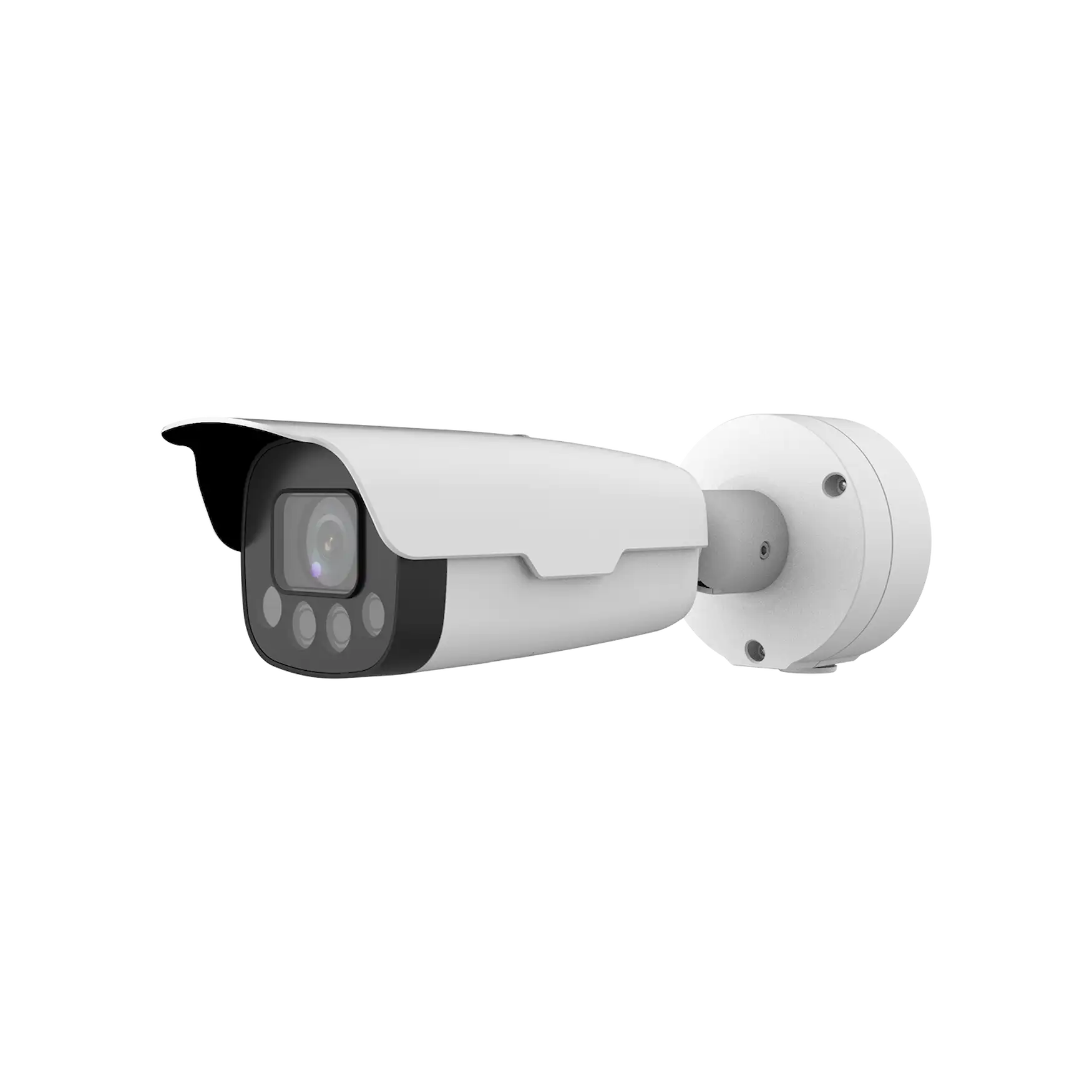

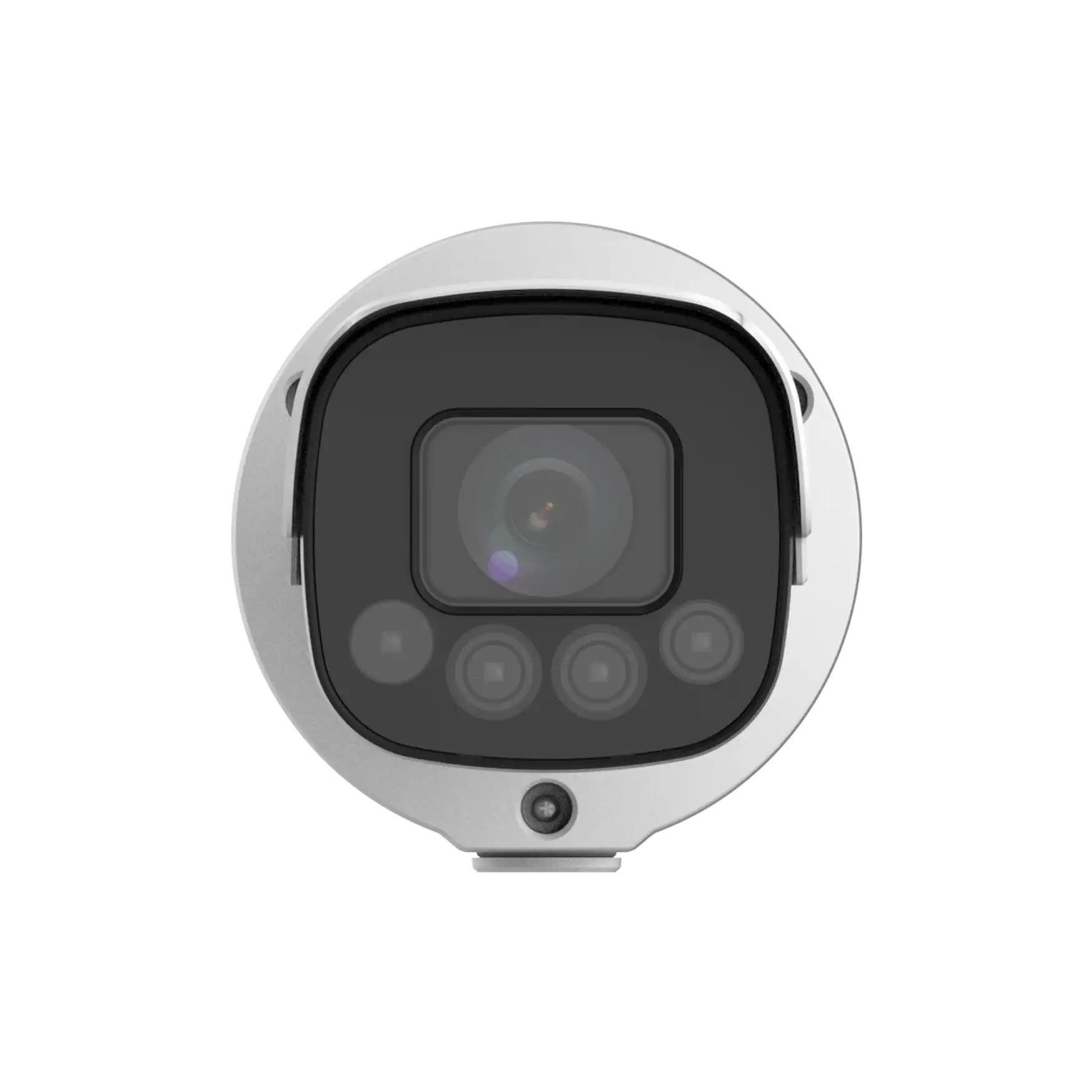

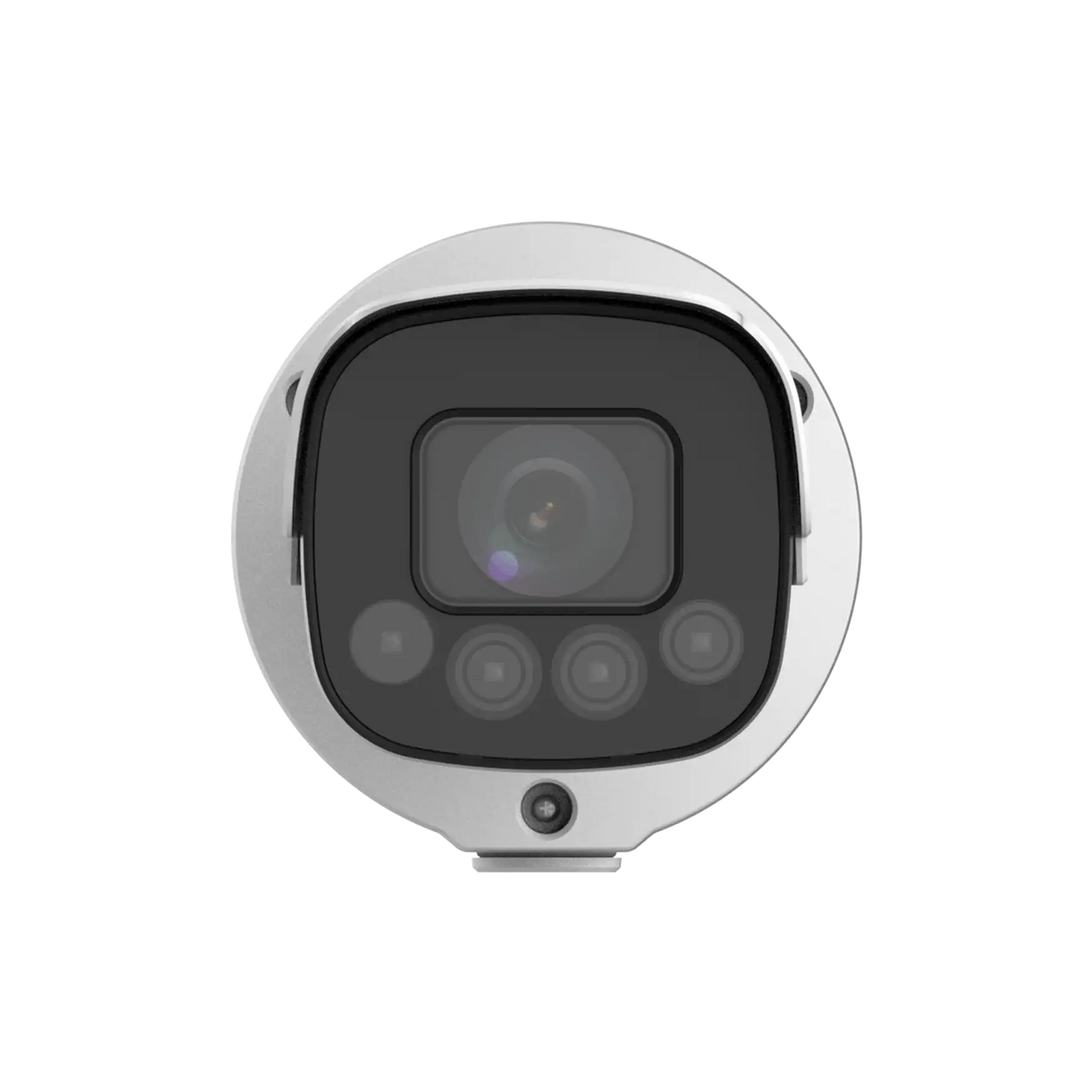

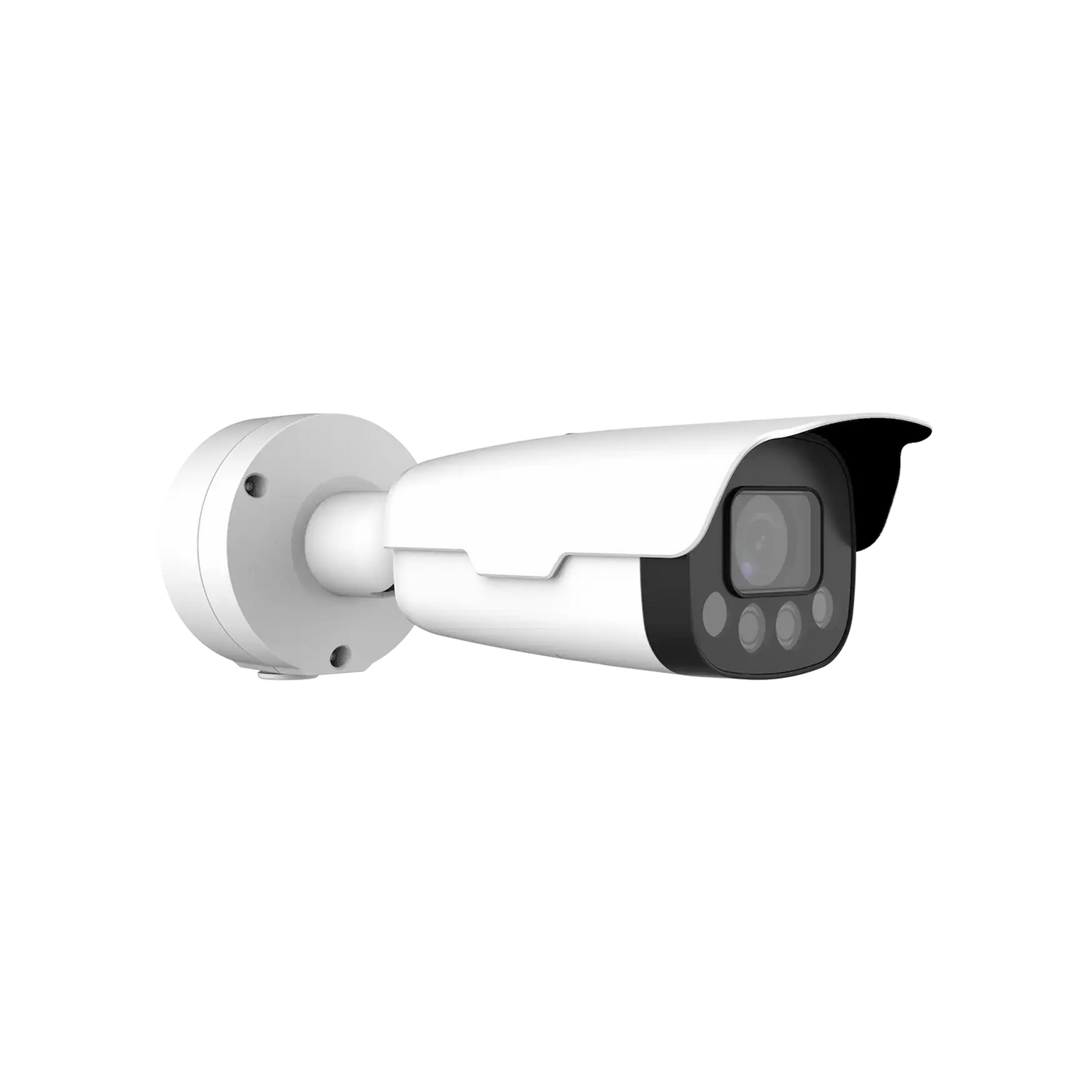

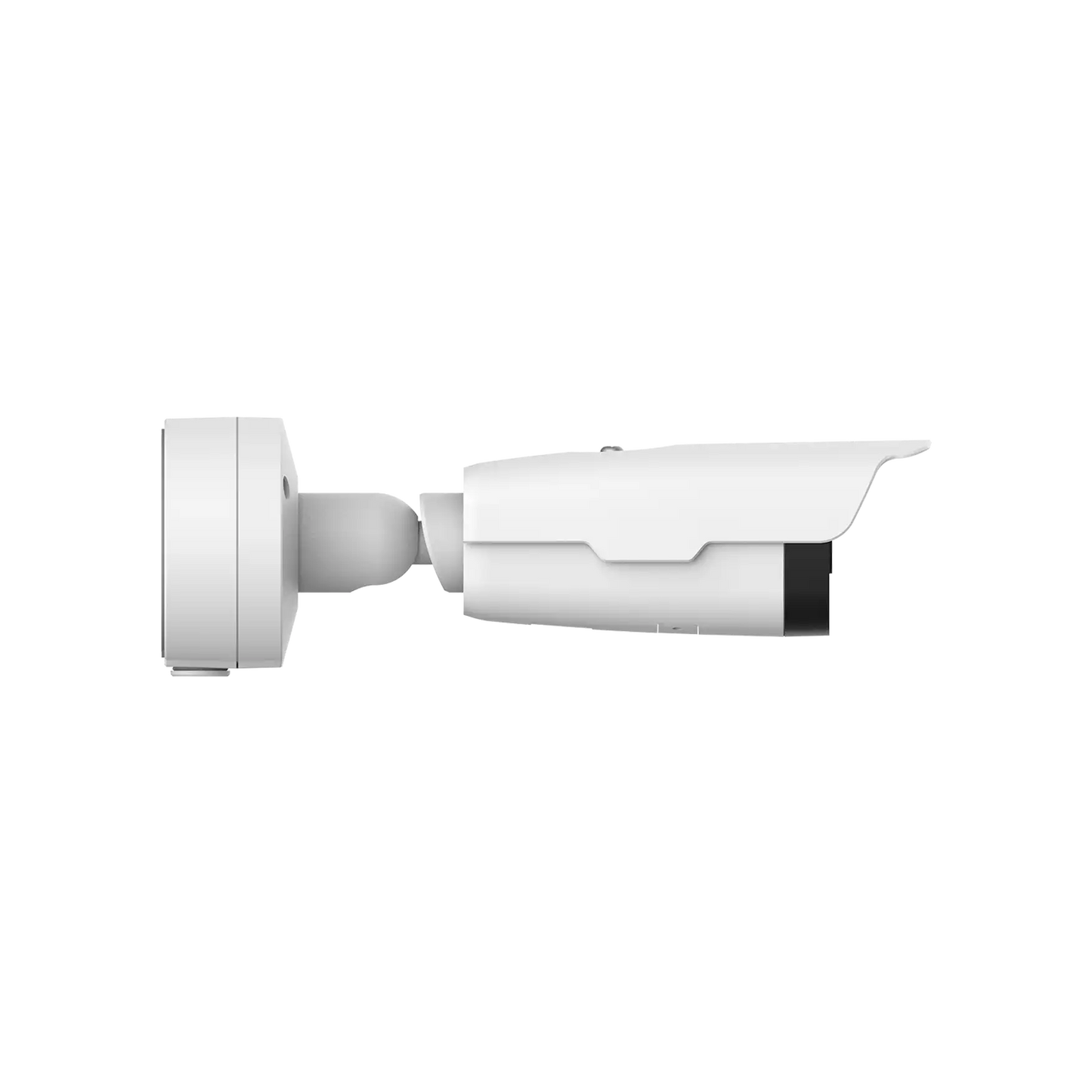

UNV 2MP License Plate Recognition IR 10X Bullet Network Camera

Part Number: HC121@TS8CR-Z

2 Sensor Type: 1/2.8" CMOS
Lens Type: 4.7-47mm@F1.6, Motorized Zoom and Auto Focus
Max Resolution/Frame Rate: 2MP(1920x1080)@60fps
Angle of View: 65°-9° (Horizontal)
Min. Illumination: Color 0.001Lux (F1.6, AGC ON)
Night Vision Distance: 328.1 Feet (IR)
Corridor Mode: No
WDR: 120dB
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: N/A
Special Features: License Plate Recognition (Motion Detection Not Supported)
Power: PoE+ (IEEE 802.3at), DC12V
NDAA Compliant: Yes
Warranty Period: 3 Years

HC121

TS8CR-Z

Camera

Description

Sensor

1/2.8” 2MP CMOS

Focal length

4.7 to 47mm, motorized zoom

Shutter

Auto/Manual, range: 1/25 to 1/100000 s

Minimum illumination

0.001lux (F1.6)


Description

Image collection format

1080P@25 (default), 1080P@30, 1080P@50, 1080P@60

Resolution

Main stream: 1080P (default), 720P, D1

Sub stream: 720P (default), D1, 2CIF, CIF

Third stream: D1 (default), 2CIF, CIF

Frame rate

60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1

Video compression

H.264 (default), H.265

ROI

Supports up to 8 regions

Video OSD

Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents

Image OSD

Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, vehicle body color, allowlist, image authentication ID, custom contents (3 items), location

Smart

Description

Application scenario

Vehicle speed ≤90km/h

Supports simultaneous application to road and entry/exit scenes without switching

Supports license plate detection and recognition for up to 2 lanes in road scenes

Vehicle detection mode

Video (default) or inductive loop

Capture vehicle head only

Support

License plate number recognition

Supports recognition of license plates with numbers and letters by default

Vehicle body color recognition

Supports 10 colors: red, green, blue, yellow, white, gray, black, purple, brown, pink

List configuration

Supports allowlist and blocklist configuration, each list allows 20,000 items

Supports import, export, add, and delete operations

Barrier opening policy

Open barrier only for the recognized vehicles

Open barrier for all vehicles

Open barrier only for vehicles on the allowlist

Open barrier for vehicles not on the blocklist

Configurable Boolean output ID

Storage

Description

Edge storage

Supports ANR with a Micro SD card, up to 128GB

Structure

Description

Illumination

Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control

Sunshield

Long sunshield

Bracket

3-axis mounting bracket

Junction box

The camera comes with a junction box for storing tail cable

Interface

Description

Network interface

1 × 10M/100M RJ45

Serial port

1 × RS485

Boolean output

1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A

Boolean input

2 inputs, supports level/Boolean, with max level up to DC 5V

Audio interface

1 × audio input, 1 × audio output

Storage interface

1 × Micro SD card slot

General

Description

Power supply

DC12V + 25% - 10%

Max. power consumption: 20W

Supports PoE (802.3at, class 4)

Dimensions (L×W×H)

386mm x 126mm x 130mm

Weight

2kg

Operating environment

-40℃ to 60℃, ≤90% RH

Ingress protection

IP67, IK10

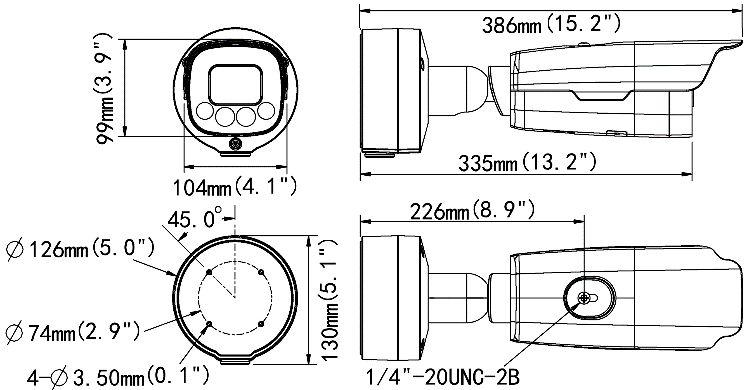

HC121_TS8CR-Z DIMENSIONS
