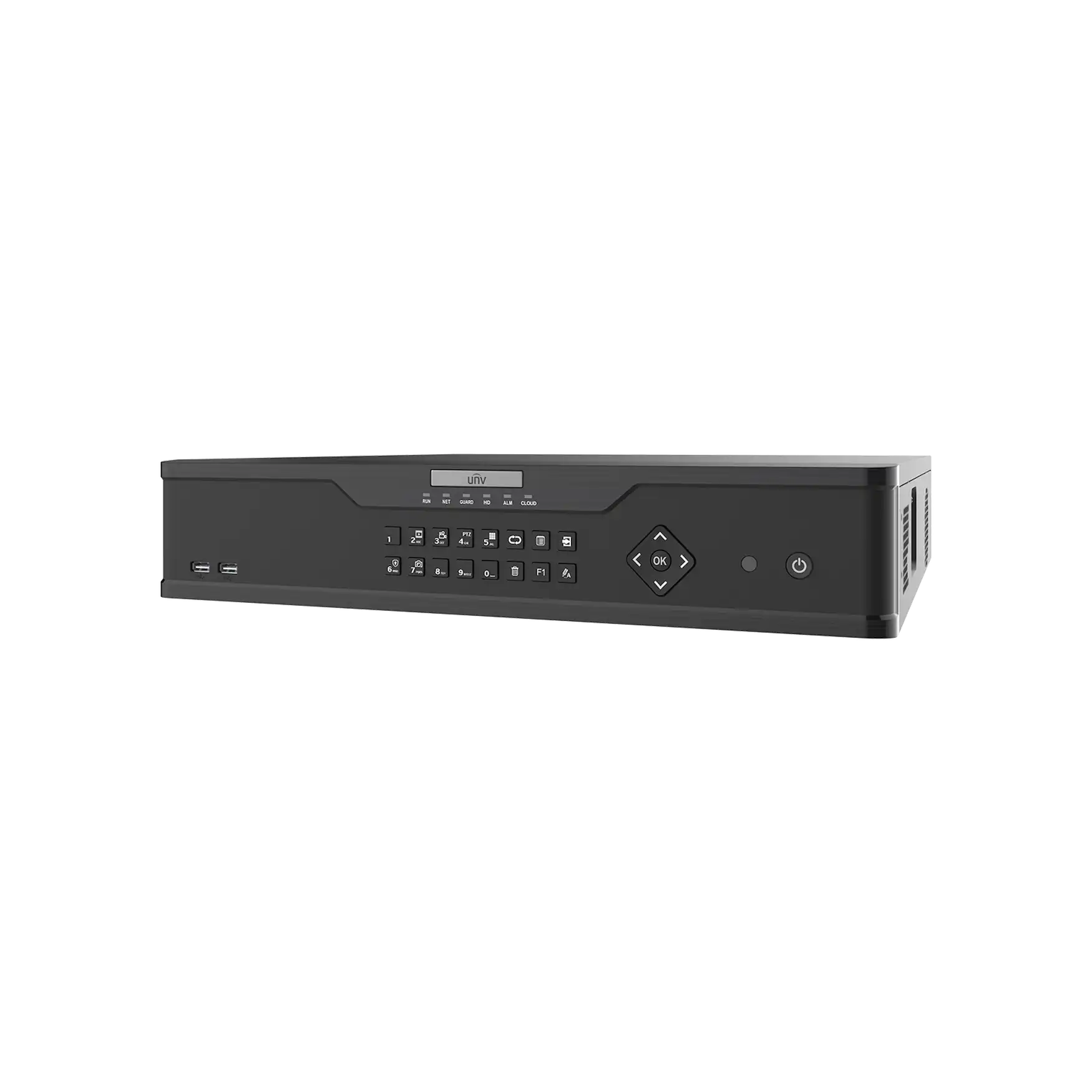

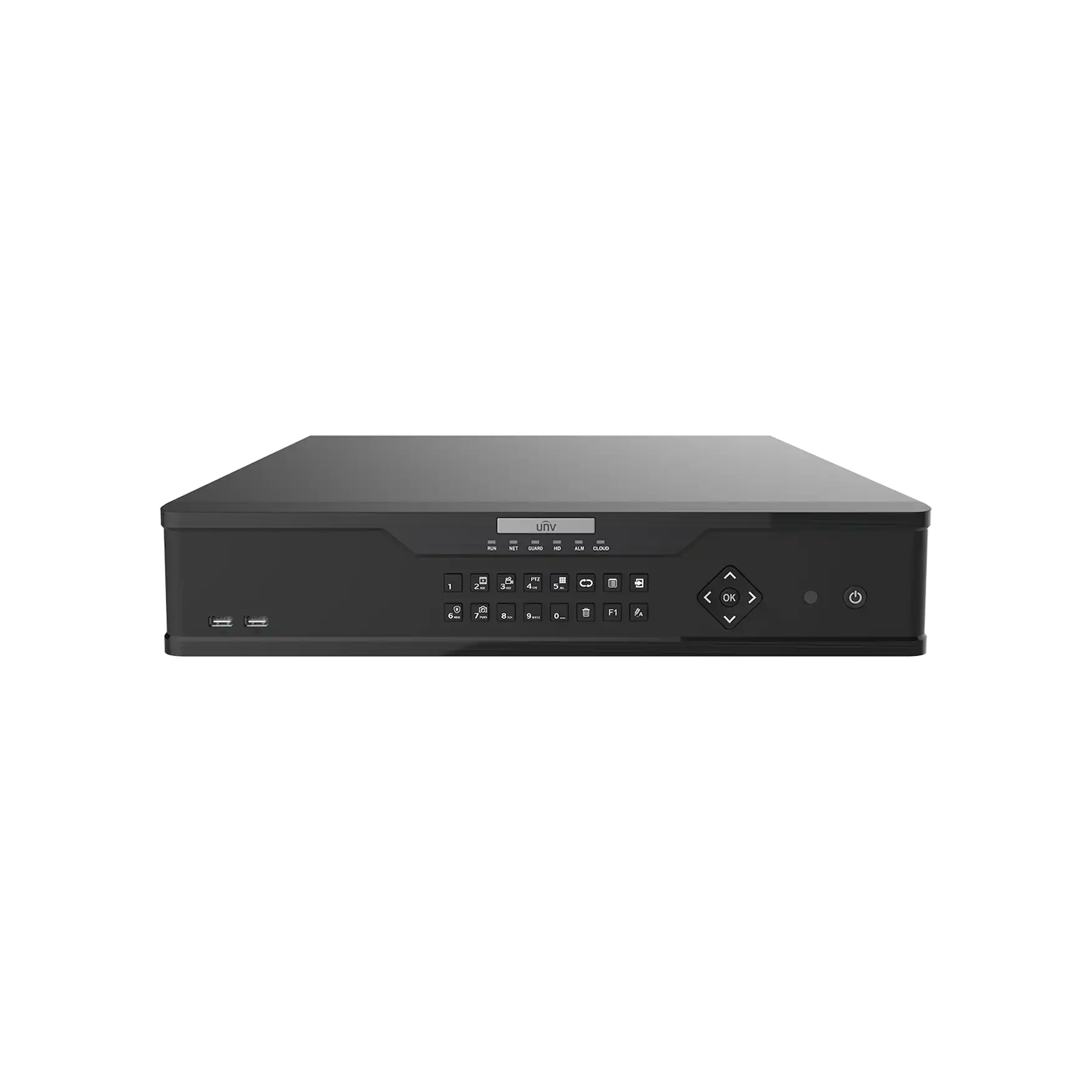

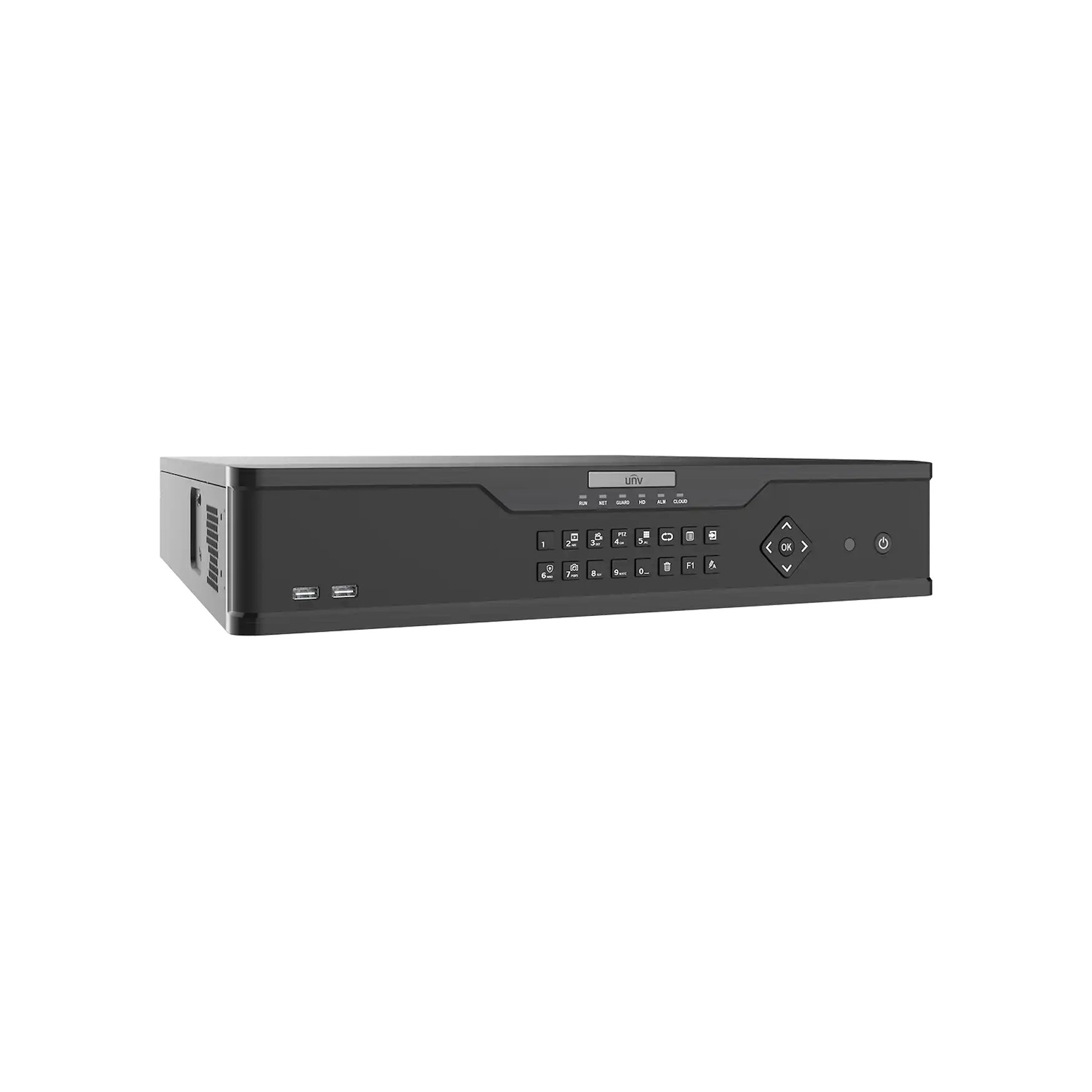

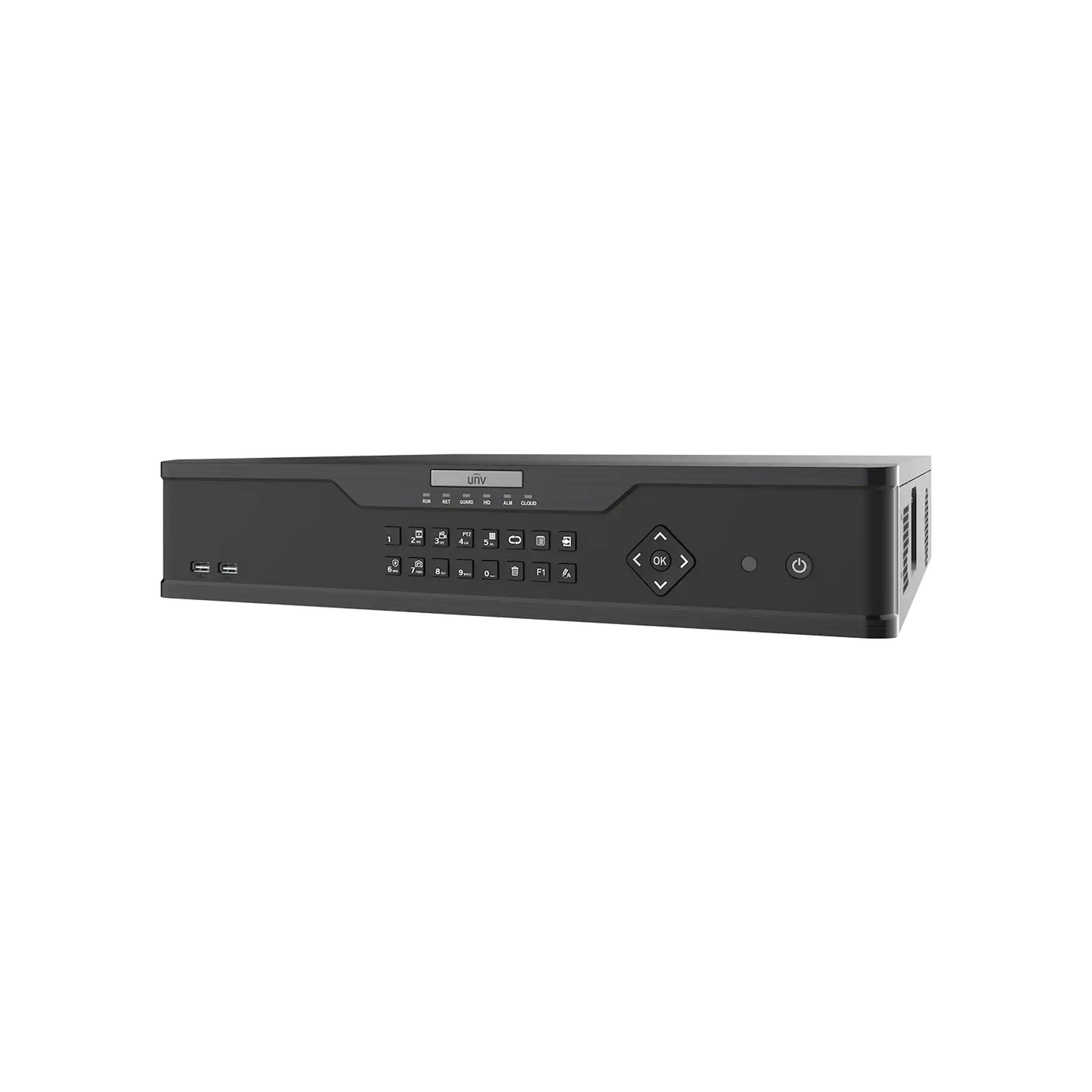

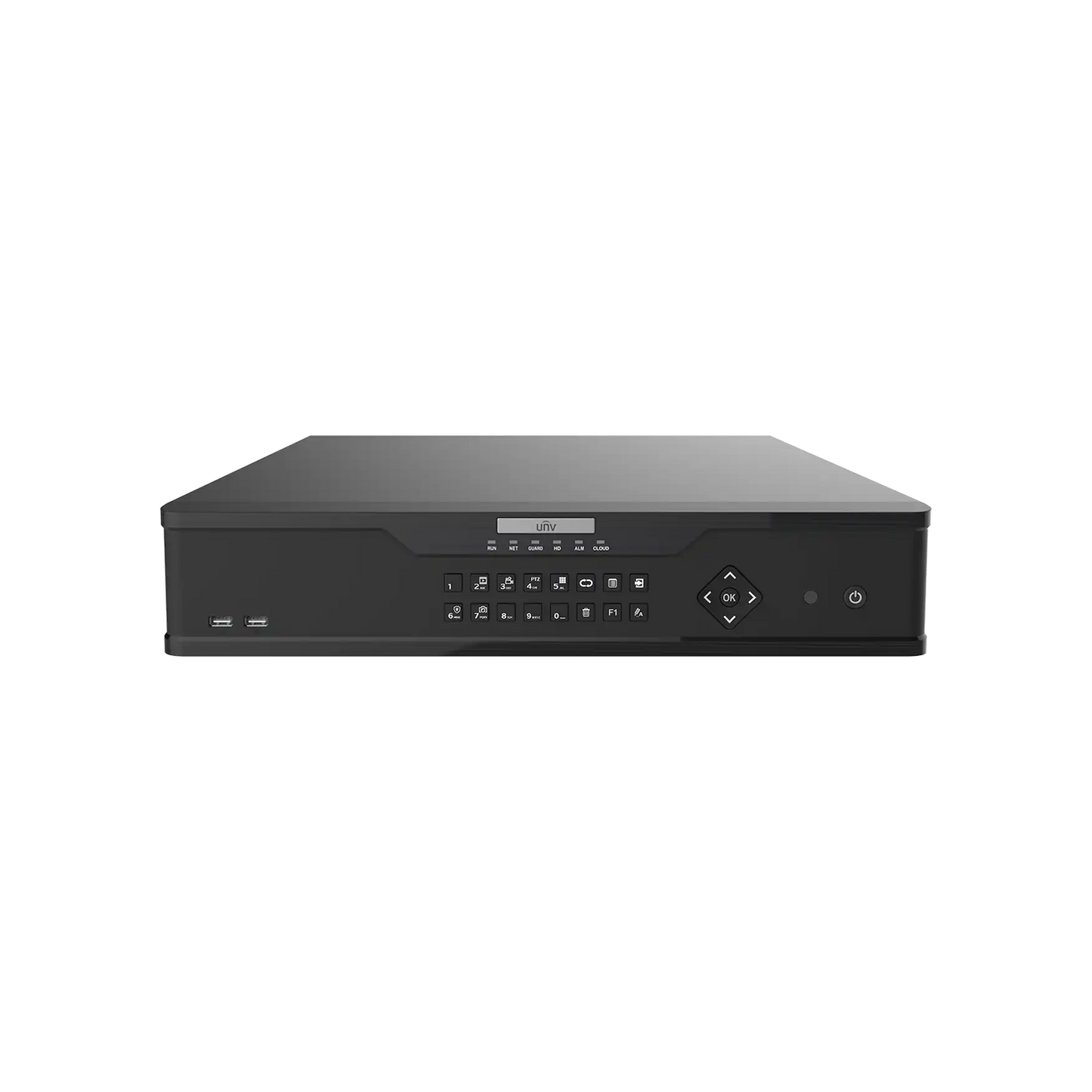

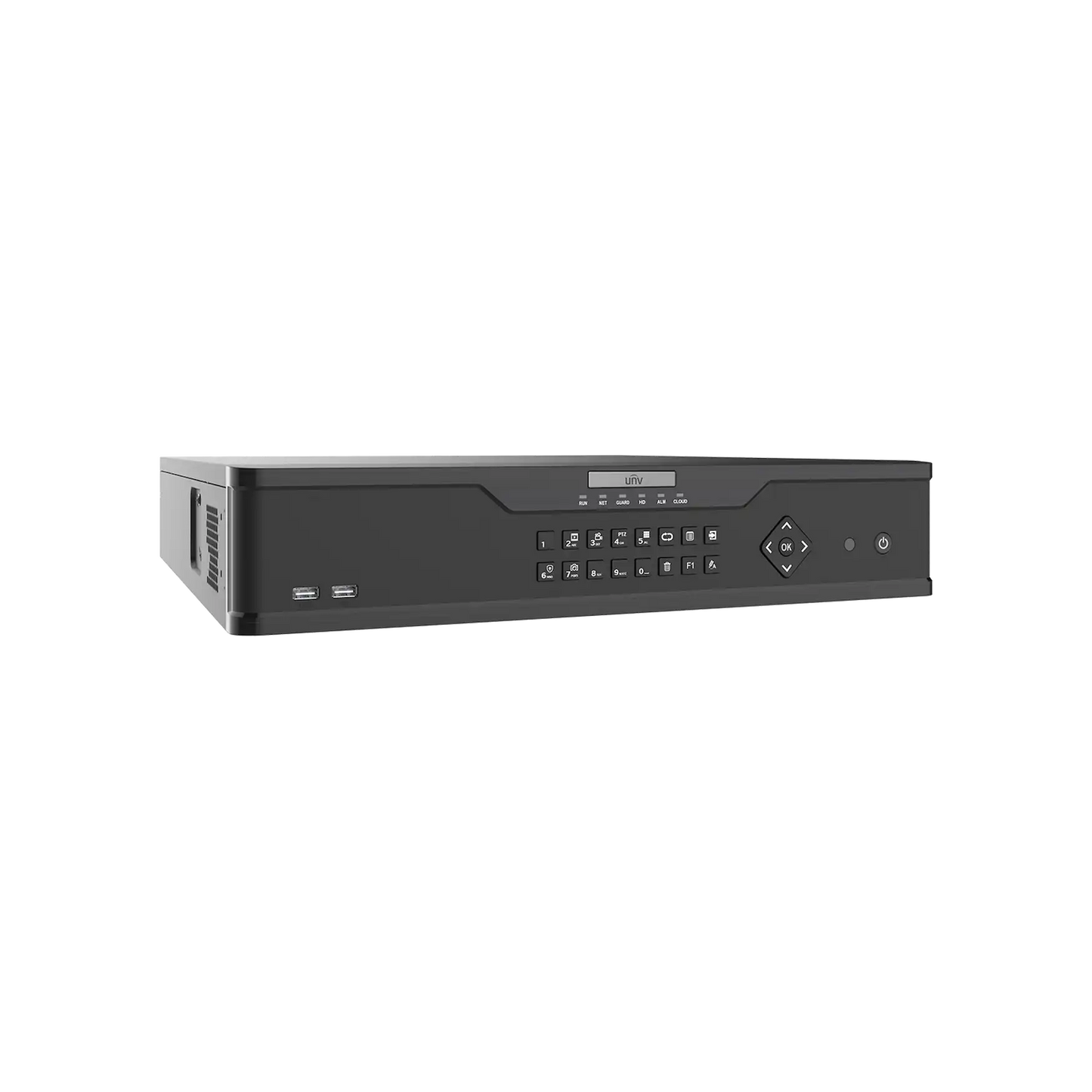

Part Number: NVR304-32X
Video Output: 2-HDMI(4K), 1-VGA(1080P), Independent (Spot) Output
Max Decoding Resolution: 12MP
Bandwidth: 384Mbps (In) / 384Mbps (Out)
HDD Storage: 4-SATA up to 10TB each; 1 eSATA; RAID Supported
Network Ports: Dual 10M/100M/1000M NIC
POE Power: N/A
Support 12MP Fisheye: Yes
Support LPR Camera: Yes
Support VCA Search: Local GUI / Web GUI
Chassis: 2U, Rackmountable (Rack ears included in package)
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Model |
NVR304-32X |
|
Video/Audio Input |
|
|
IP Video Input |
32-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming Bandwidth |
384Mbps |
|
Outgoing Bandwidth |
384Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
|
Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Audio Compression |
G.711A, G.711U |
|
Synchronous Playback |
16-ch |
|
Liveview display |
1/4/6/8/9/16/25/36 |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
Snapshot |
|
|
FTP/Schedule/Event Snapshot |
32-ch snapshot, up to 4K resolution |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30, 32 x 960p@25 |
|
Hard Disk |
|
|
SATA |
4 SATA interfaces |
|
Capacity |
up to 10TB for each HDD |
|
eSATA |
1 eSATA interface |
|
Disk Group |
Support |
|
Disk Array |
|
|
Array Type |
RAID 1, 5 |
|
Smart |
|
|
VCA Detection by Camera |
Face detection, Face comparison, Intrusion detection, Cross line detection, Enter area, Leave area, Defocus detection, Scene change detection, Auto tracking, Object left behind, Object removed, Vehicle control |
|
VCA Search |
Face search, Face comparison search, Behavior search, Vehicle search |
|
People Counting |
People flow counting, Crowd density monitoring |
|
Smart Intrusion Prevention (SIP) , Face Detection, Face Comparison by Camera |
16-ch |
|
General Alarm |
|
|
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk offline , Disk Abnormal, Illegal Access, Hard disk space low, Hard disk full, Recording/Snapshot Abnormal |
|
External Interface |
|
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
USB Interface |
Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 |
|
RS232 |
1 |
|
RS485 |
1 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
General |
|
|
Power Supply |
100~240 VAC Power Consumption: ≤ 25 W (without HDD) |
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|

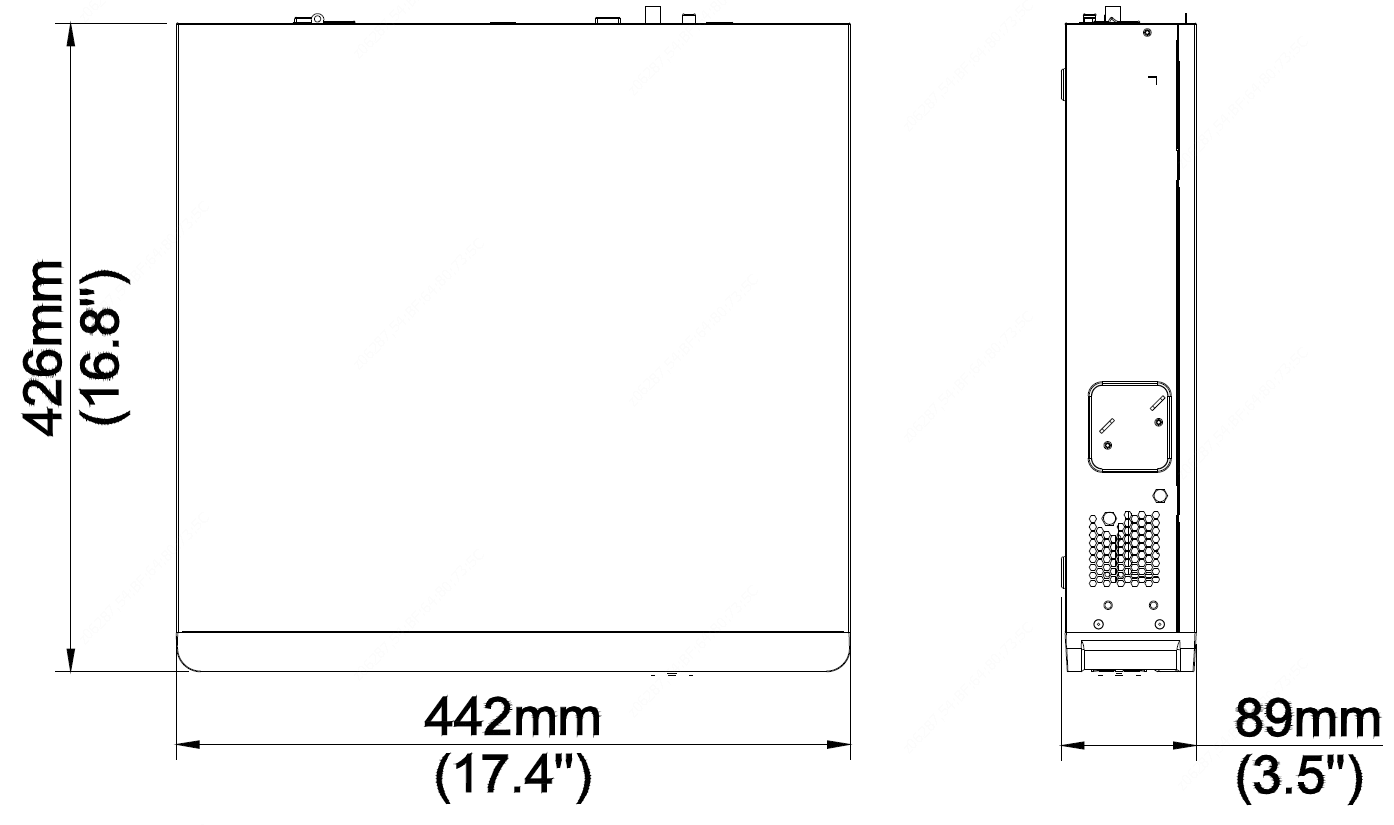

Dimensions (W×D×H) |
442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") |
|
Weight (without HDD) |
≤ 5.7Kg (12.57lb) |
|
Certification |
|
|
Certification |
FCC CE UL |
