Discontinued

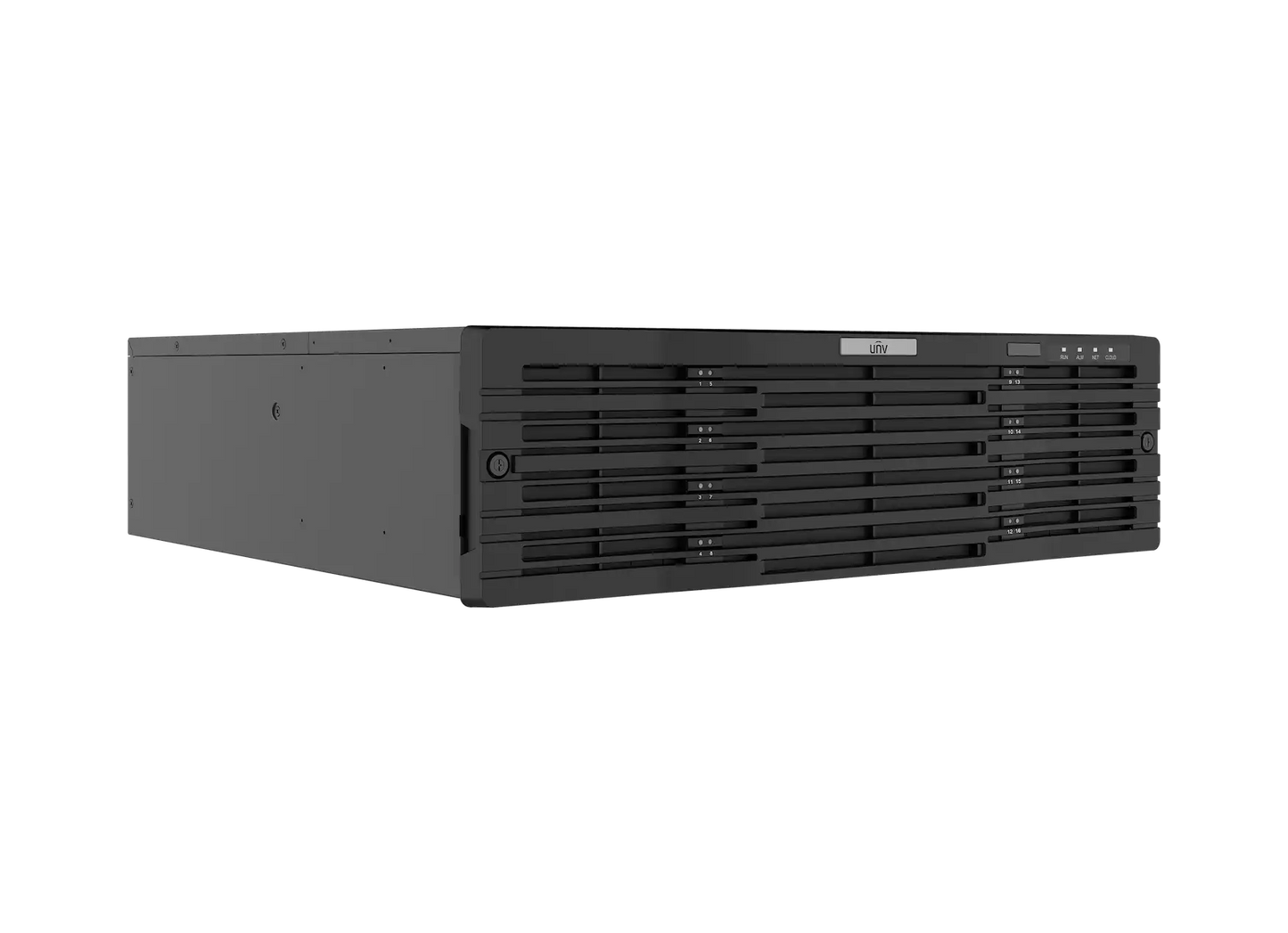

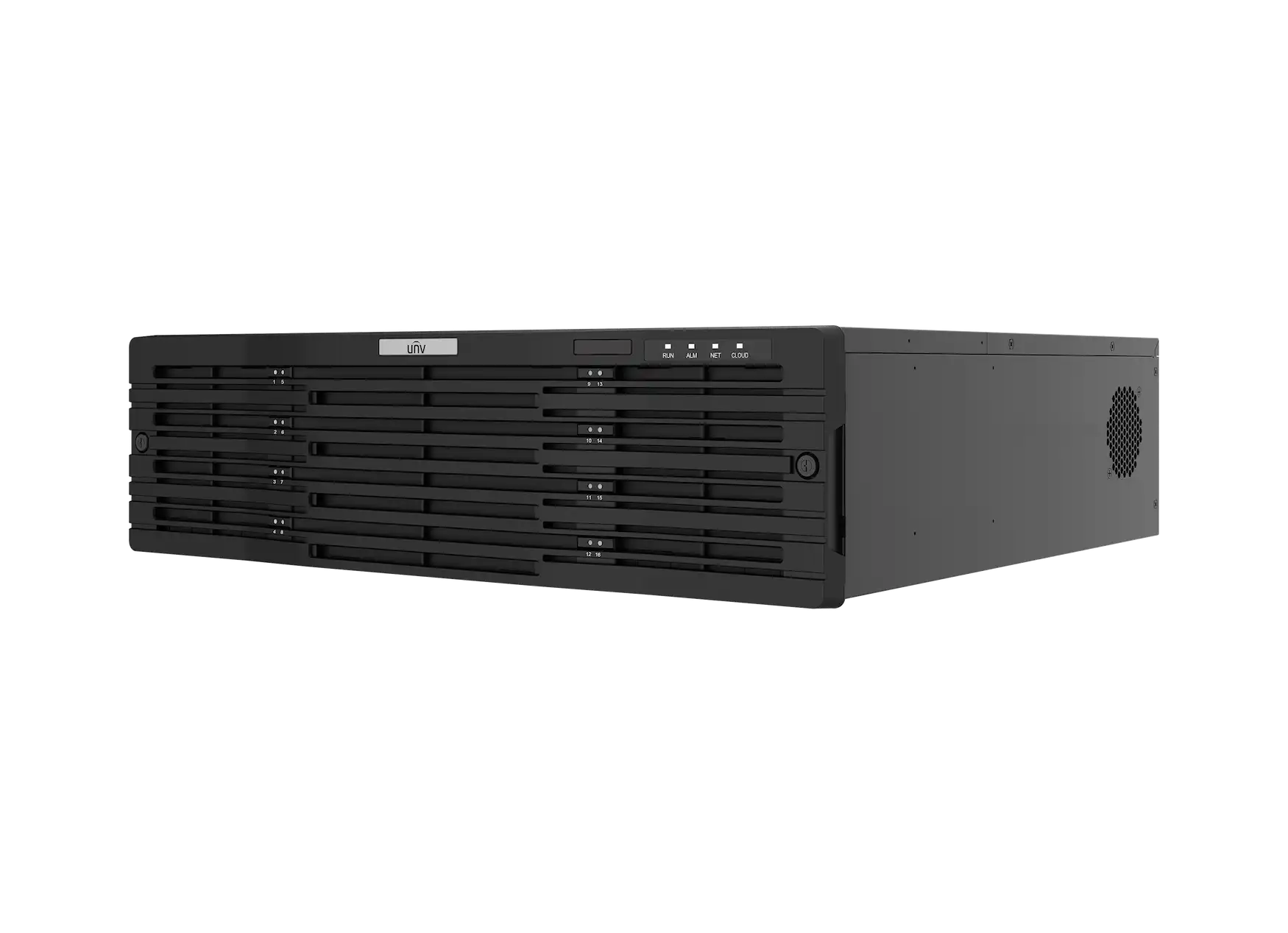

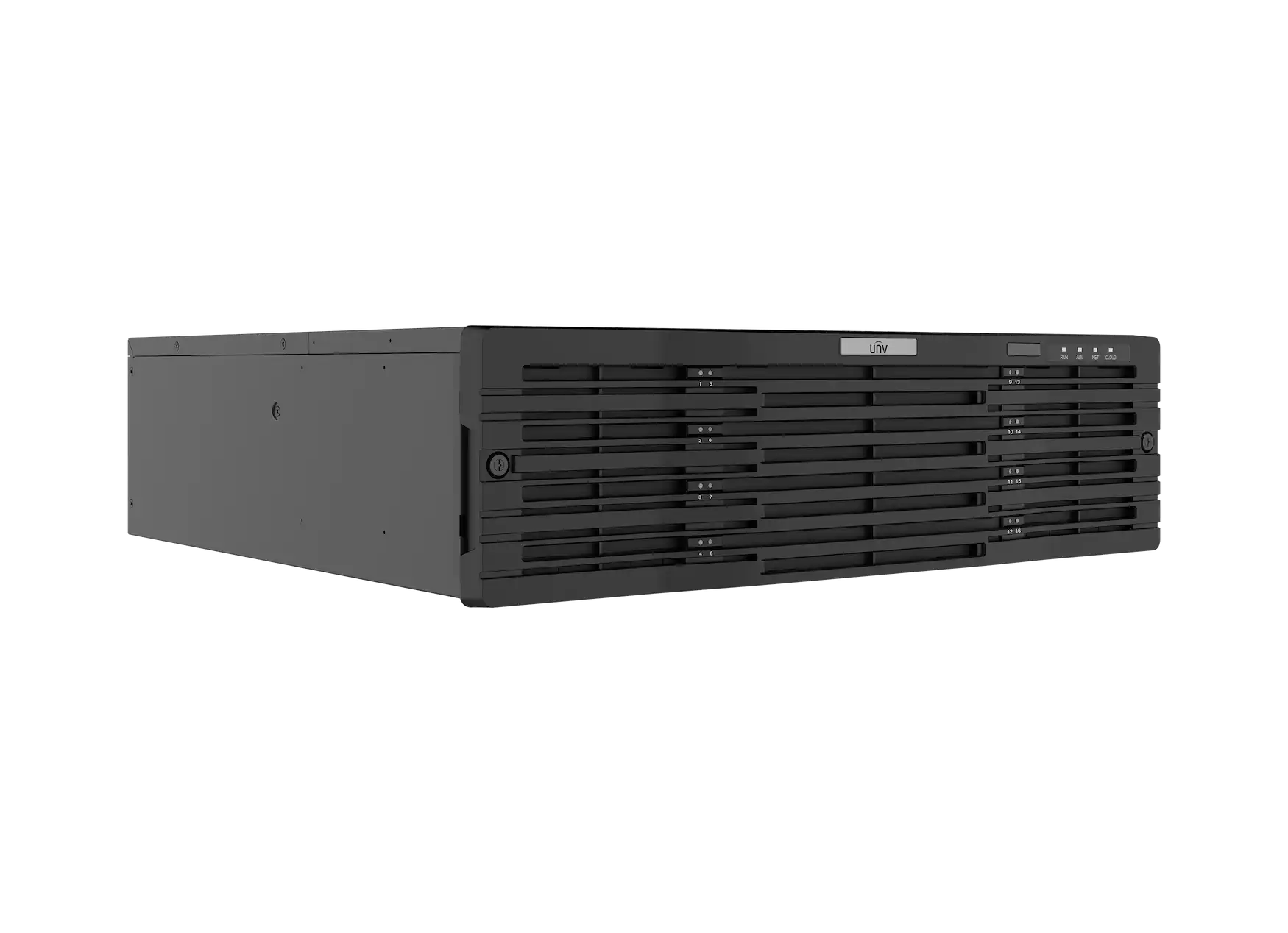

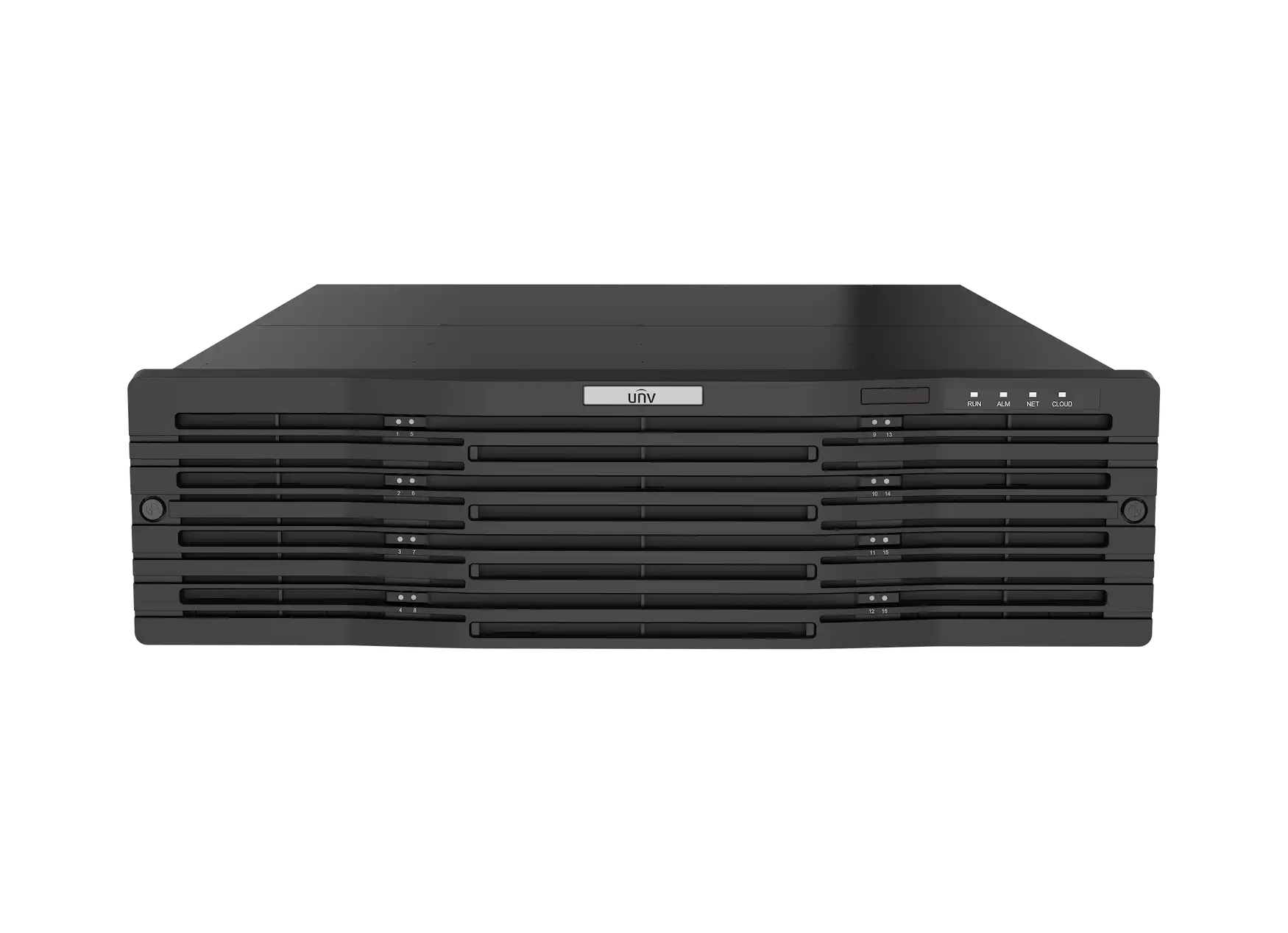

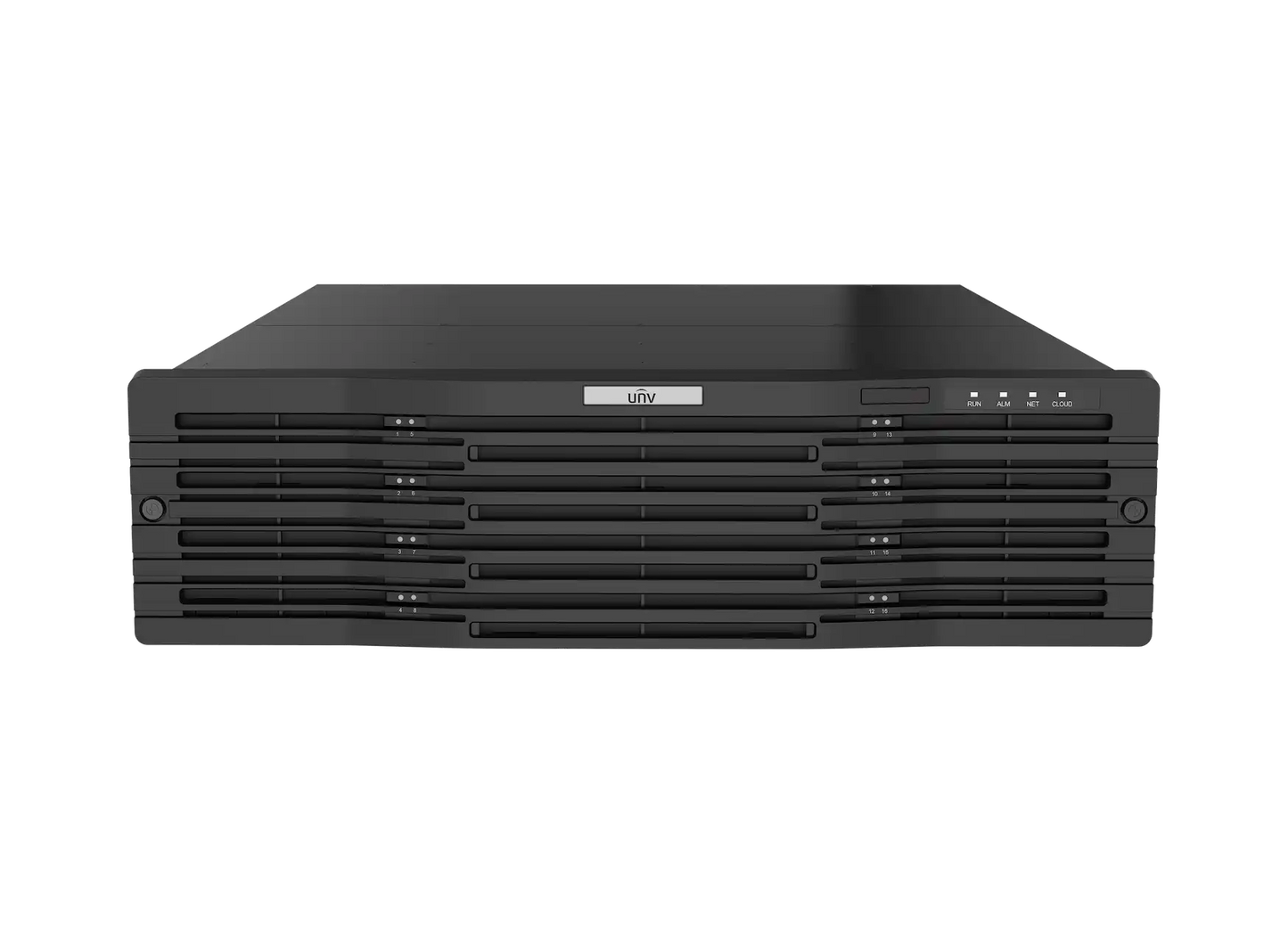

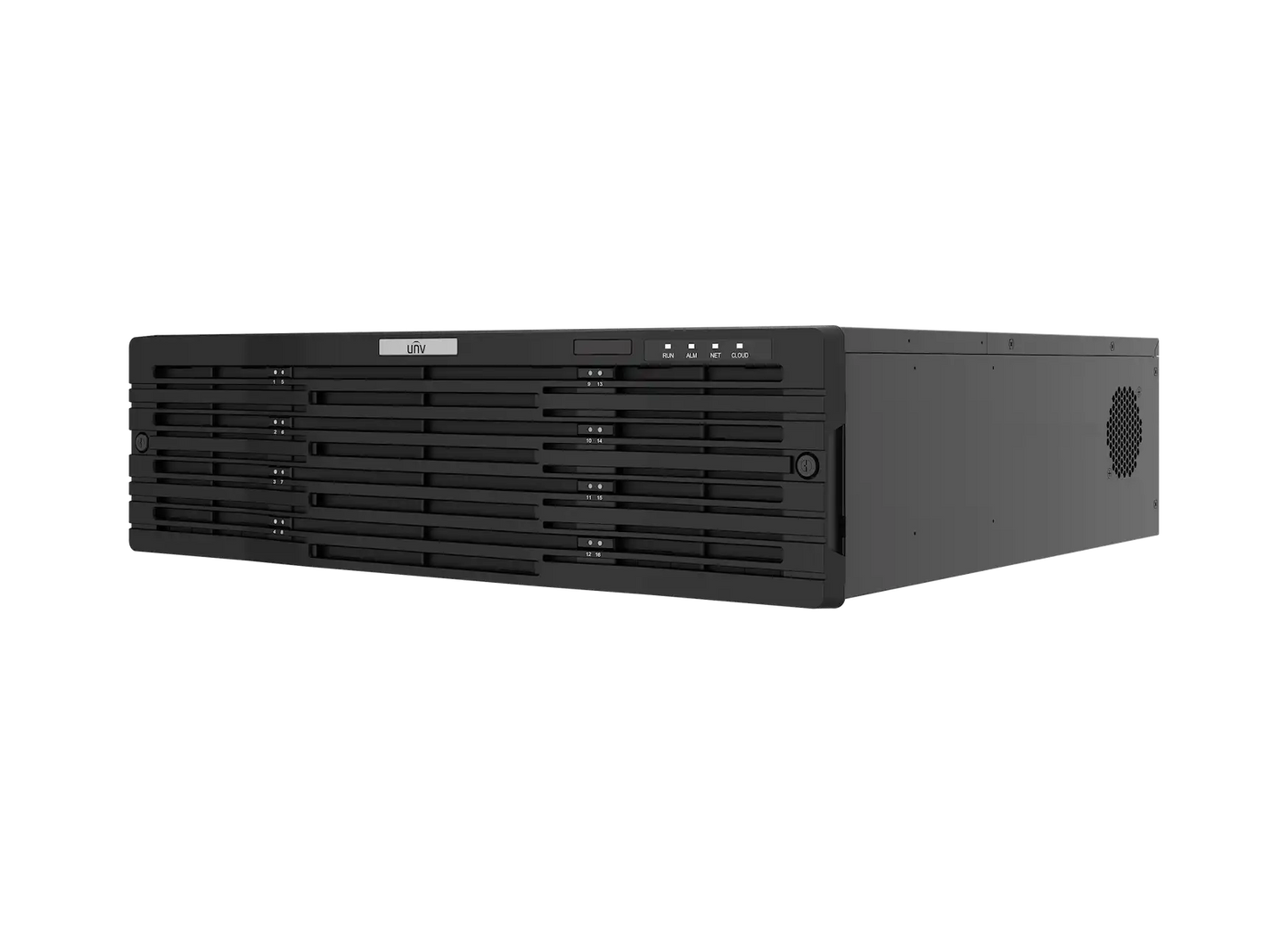

UNV 128 Channel 16-SATA 3U NVRPart Number: NVR516-128
Channels & Inputs
128 IP Channels
Max Resolution
Up to 12MP (4K)
HDD Storage
16-SATA (Up to 10TB/disk)
Network & PoE
Quad Gigabit NIC
Smart Feature Highlights
Video Output
2-HDMI(4K), 1-VGA(1080P), Independent (Spot) Output
Bandwidth
512Mbps (In) / 384Mbps (Out)
HDD Storage
16-SATA up to 10TB each
Network Ports
Quad 10M/100M/1000M NIC, 2×1000M SFP optical interfaces
Chassis Form Factor
3U, Rackmountable
NDAA Compliant
Yes
Warranty Period
3 Years
Cloud & Mobile Access
EZView & EZCloud Compatible
| Video, Decoding & Storage | |
|---|---|
| Video/Audio Input | |
| IP Video Input | 128-ch |
| Two-way Audio Input | 1-ch, BNC |
| Video/Audio Output | |
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, BNC |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
| Hard Disk | |
| SATA | 16 SATA interfaces |
| Capacity | up to 10TB for each HDD |
| eSATA | 1 eSATA interface |
| miniSAS | 2 miniSAS ports |
| Smart Features, Network & General | |
|---|---|
| Network | |
| Incoming Bandwidth | 512Mbps |
| Outgoing Bandwidth | 384Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Disk Array | |
| Array Type | RAID 0/1/5/6/10/50/60 |
| External Interface | |
| Network Interface | 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Rear panel: 4 x USB3.0 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| Decoding Card (optional) | 2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
| Power Output | 12V |
| General | |
| Power Supply | 100 ~ 240V AC Power Consumption: ≤ 50 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Chassis | 19-inch rack-mounted 3U chassis |

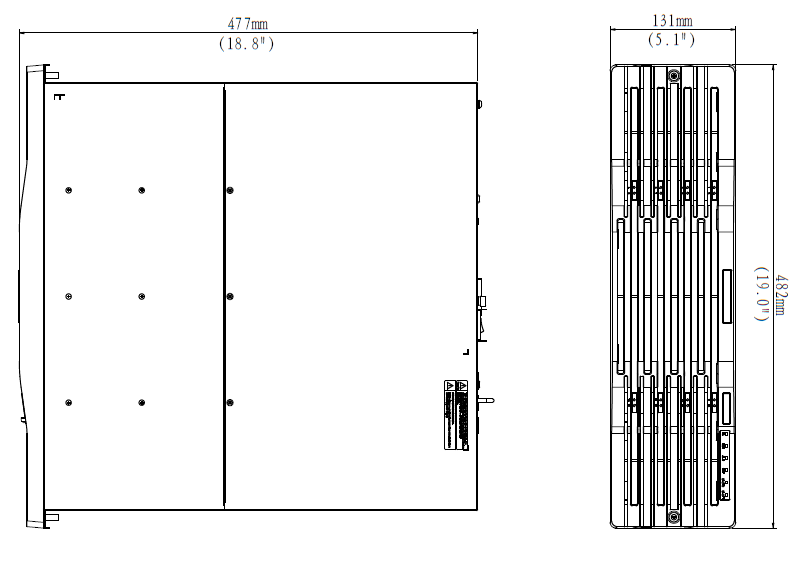

| Dimensions | 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1") |
| Weight (without HDD) | ≤ 10 Kg (22.05 lb) |
