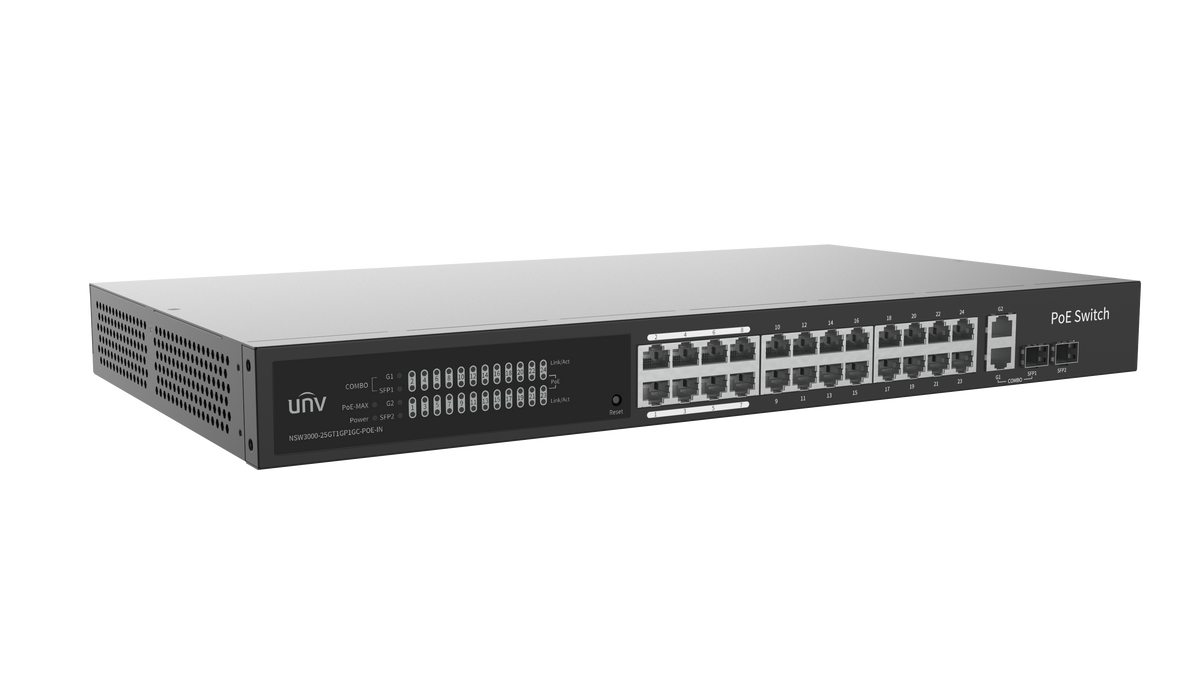

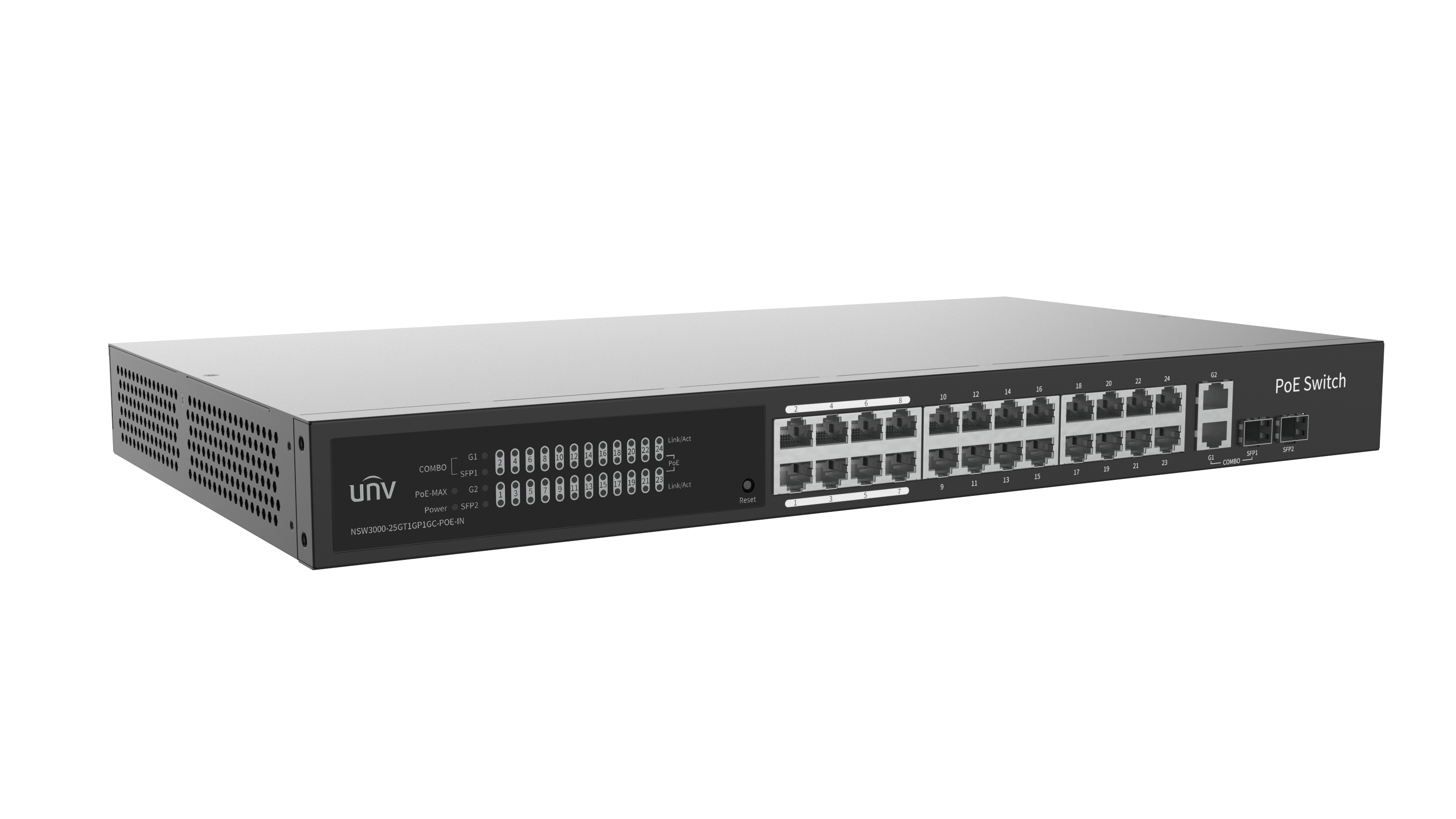

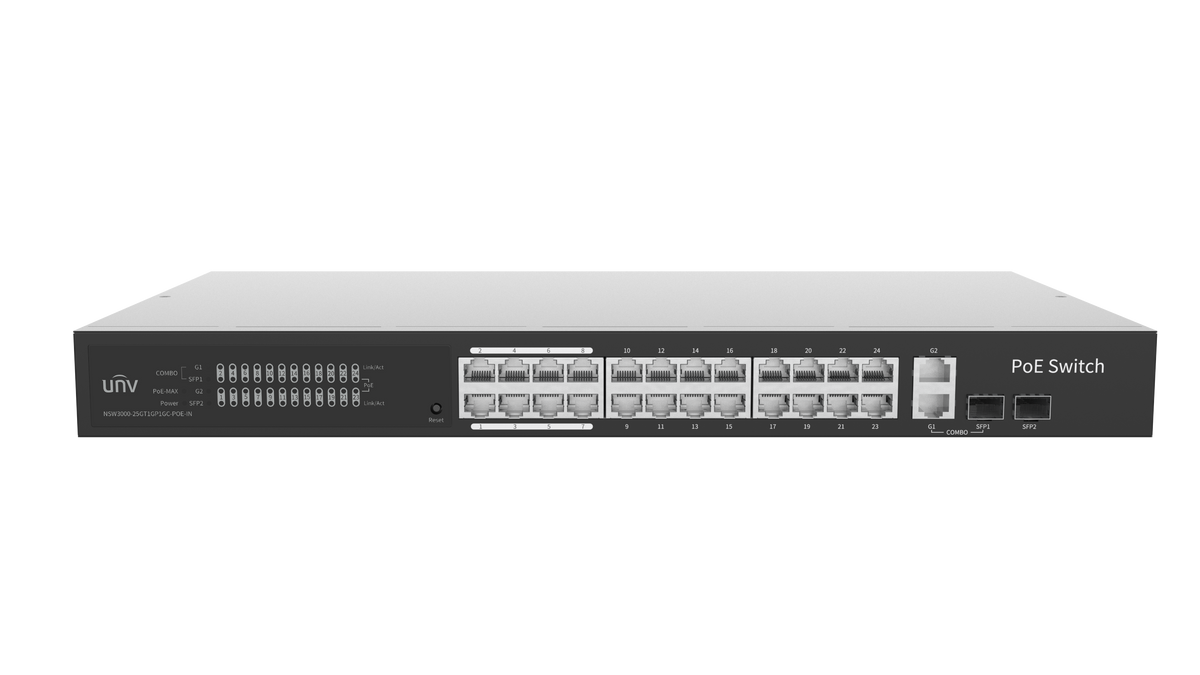

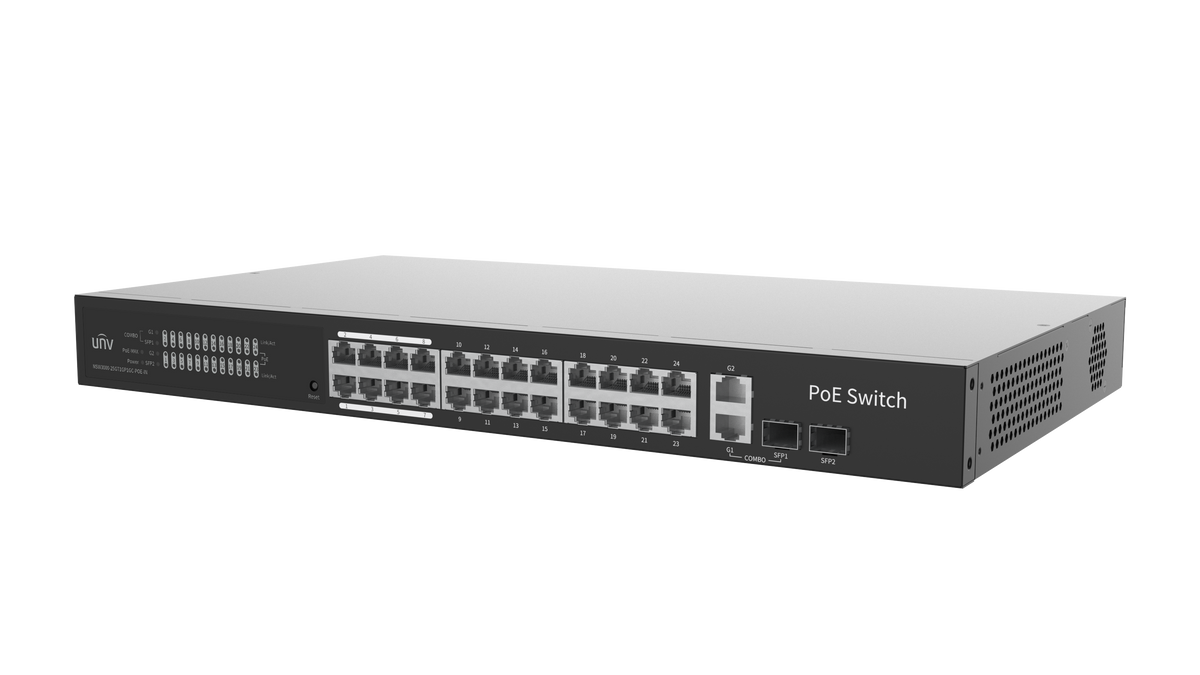

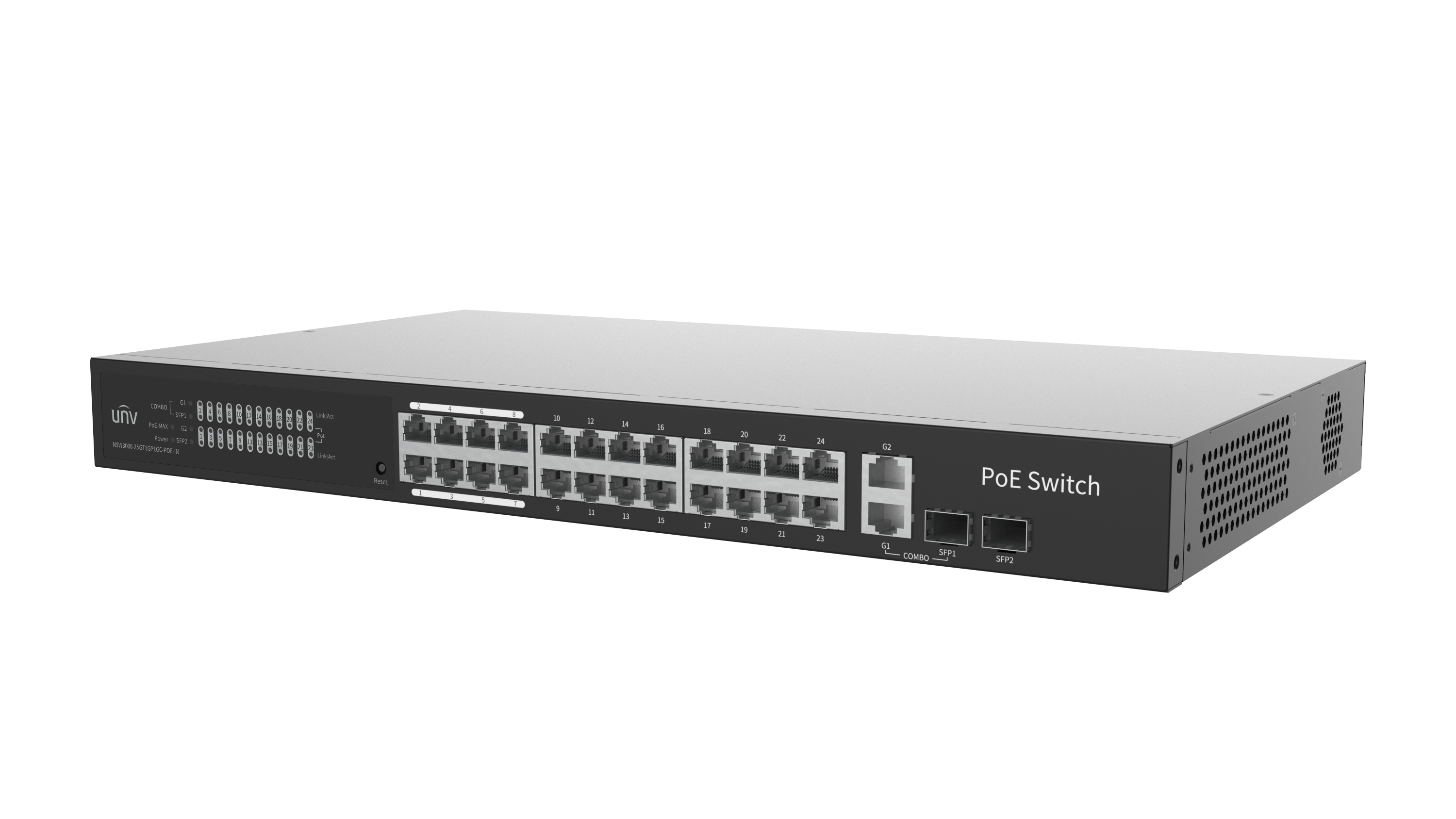

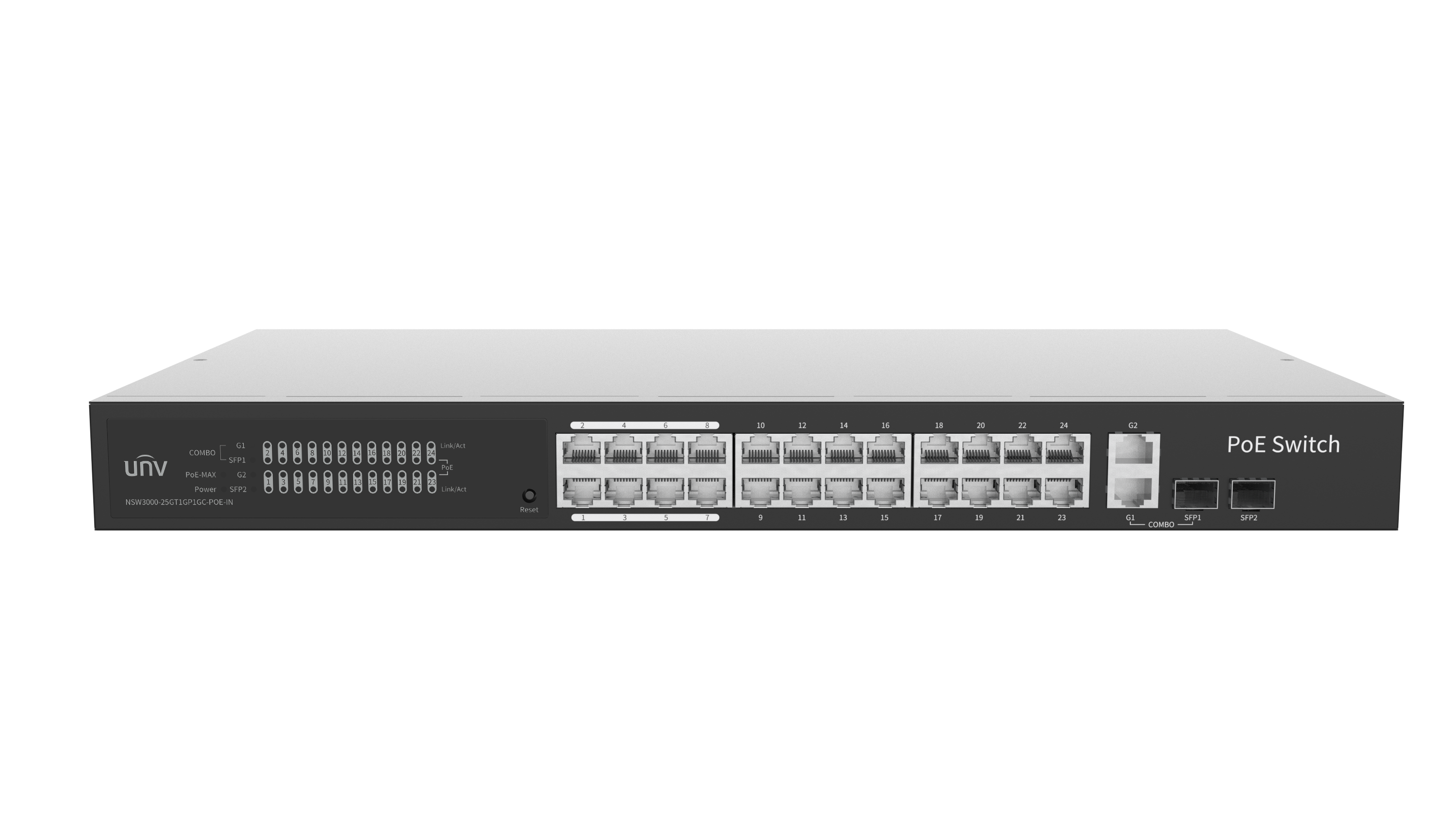

24 Port - Gigabit PoE Switch /w 2 Uplinks + 1 SFPPart Number: NSW3000-25GT1GP1GC-POE-IN
Ports & Uplinks
24 PoE + 3 Uplink (RJ45/SFP/Combo)
PoE Power Budget
370W Total (45W Hi-PoE)
Switching Capacity
54 Gbps (40.18 Mpps)
Transmission Range
Up to 250m (Extend Mode)
Smart & Cloud Management Highlights
Visual Topology Management & Auto Video Device Discovery
Cloud Mobile App Management & One-Click Camera Reboot
250m Long-Distance PoE Transmission (Extend Mode)
Hi-PoE 45W Output (Ports 1–6) & Priority Watchdog (Ports 1–8)
PoE Standards
IEEE 802.3af/at, Hi-PoE (Up to 45W on Ports 1–6)
PoE Power Budget
370W Max Budget (390W Total Power Consumption)
Port Configuration
24 Gigabit PoE + 1 Gigabit RJ45 + 1 SFP + 1 Combo
Performance
54 Gbps Switching Capacity / 40.176 Mpps
Chassis Form Factor
1U Rackmountable (440mm × 244.8mm × 44mm), 1 Fan
NDAA Compliant
Yes
Warranty Period
3 Years
| Hardware, Ports & PoE (NSW3000-25GT1GP1GC-POE-IN) | |
|---|---|
| Ports & Interfaces | |
| PoE Downlink Ports | 24 x 10/100/1000Mbps RJ45 Gigabit PoE Ports |
| Uplink Ports | 1 x 10/100/1000Mbps RJ45 Gigabit Port 1 x Gigabit SFP Port 1 x Gigabit Combo Port (RJ45/SFP) |
| Total Port Count | 27 Ports (24 Gigabit PoE + 3 Gigabit Uplink/Combo Options) |
| Prioritized Ports | Ports 1 to 8 (Forwarded first on load & prioritized power supply) |
| Switching Performance | |
| Switching Capacity | 54 Gbps |
| Forwarding Performance | 40.176 Mpps |
| Packet Buffer | 4 M bit |
| MAC Address Table | 8K (Supports clearing dynamic MAC addresses) |
| PoE Power Delivery | |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Hi-PoE |
| Max PoE Budget | 370W Maximum Total PoE Budget |
| Single Port PoE Output | Ports 1 to 6: Max 45W per port (Hi-PoE) Ports 7 to 24: Max 30W per port |
| PoE Pin Assignment | Mode A (1, 2, 3, 6) & Mode B (4, 5, 7, 8) |
| Long-Distance Transmission | Up to 250m power & data transmission in Extend Mode (10Mbps auto-negotiation) |
| Status Indicators | |
| Power Indicator | Green: Normal input | Off: Abnormal power input |
| PoE Indicator | Steady on: Supplying power normally | Off: Not supplying power |
| MAX Indicator | Steady on: Total PoE power exceeds 85% | Off: Total PoE power less than 80% |
| Link / Activity Indicator | On: Connected | Blinking: Transmitting data | Off: Disconnected |
| Software, Management & General | |
|---|---|
| Network & Layer 2 Features | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Transmission Modes | Full Duplex, Half Duplex, Auto-Negotiation |
| Port Control & Flow | Port enable/disable, auto-negotiation rate, priority flow control, flow statistics |
| Link Aggregation | Supports 1 Link Aggregation Group (consisting of two uplink ports) |
| VLAN, QoS & Security | |
| VLAN Support | Supports Access and Trunk modes; up to 32 VLANs (VLAN IDs 1–4094) |
| QoS & Storm Control | Port rate limitation, broadcast storm control |
| Port Security & IP Lock | Port isolation (downlink ports), lock login IP address (up to 64 addresses) |
| Loop Prevention & Mirroring | Loop Detection supported, N:1 Port Mirroring |
| Cloud & Topology Management | |
| Network Topology Mapping | Auto-discovery of connected video devices & visual network topology generation |
| Management Platforms | Web browser interface & Cloud Mobile App (via QR code scan) |
| Remote PoE Management | Real-time status/power monitoring, one-click camera reboot via App |
| Connected Device Visibility | View up to 32 switches on same network; view up to 64 connected video devices |
| System Maintenance | Unified software management, firmware upgrade, factory reset, config/log export |
| Power, Environment & Physical | |
| Power Supply | AC 100V ~ 240V, 50/60Hz (Internal Power) |
| Total Power Consumption | ≤ 390W (with full PoE load) |
| Cooling System | 1 Cooling Fan |
| Chassis & Form Factor | 1U Rackmountable (19"), All-metal casing |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 5% ~ 90% RH (non-condensing) |

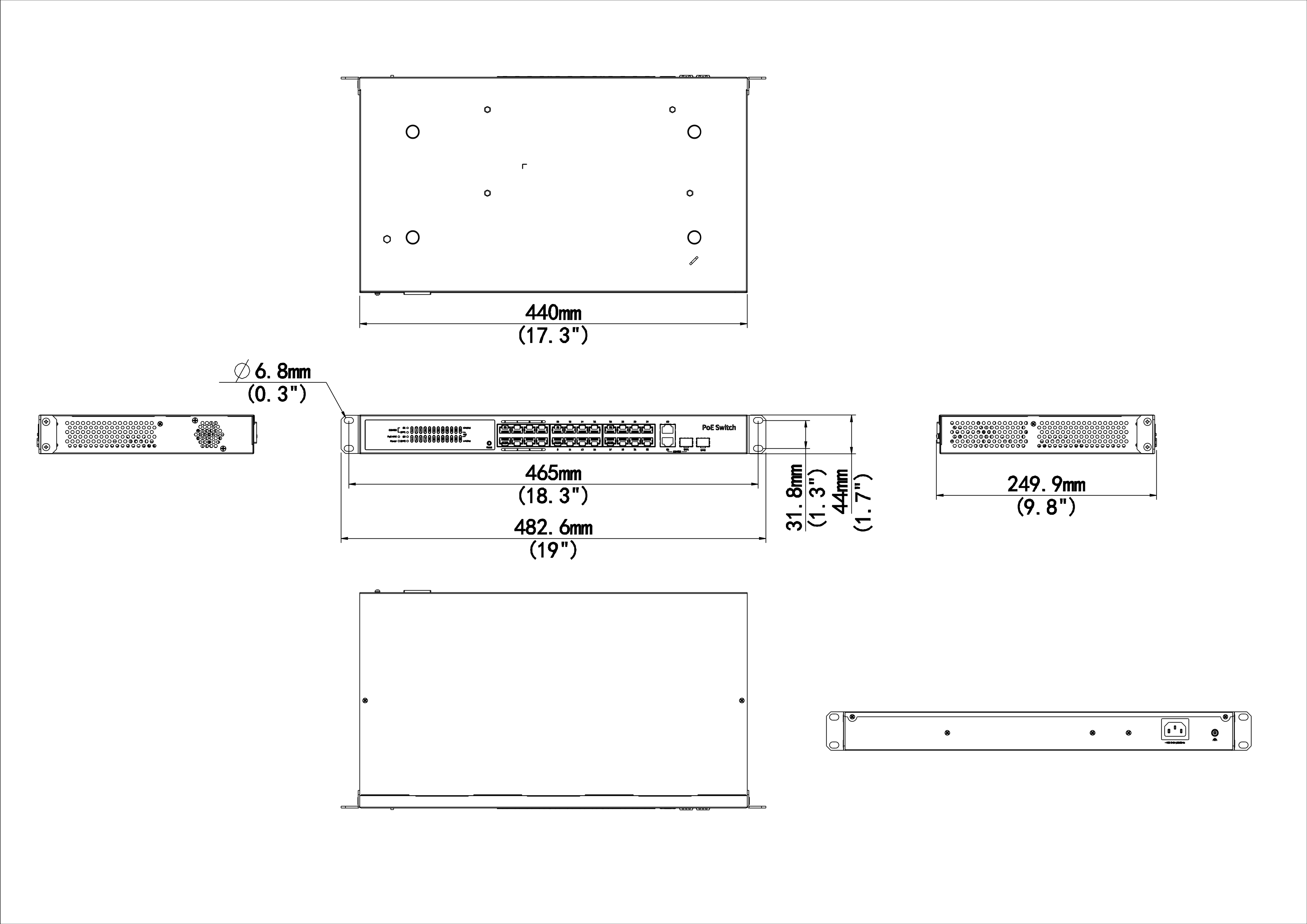

| Dimensions & Weight | 440mm × 244.8mm × 44mm (17.3" × 9.6" × 1.7"), Weight: 2.98 kg (6.57 lb) |
| Compliance | NDAA Compliant |
