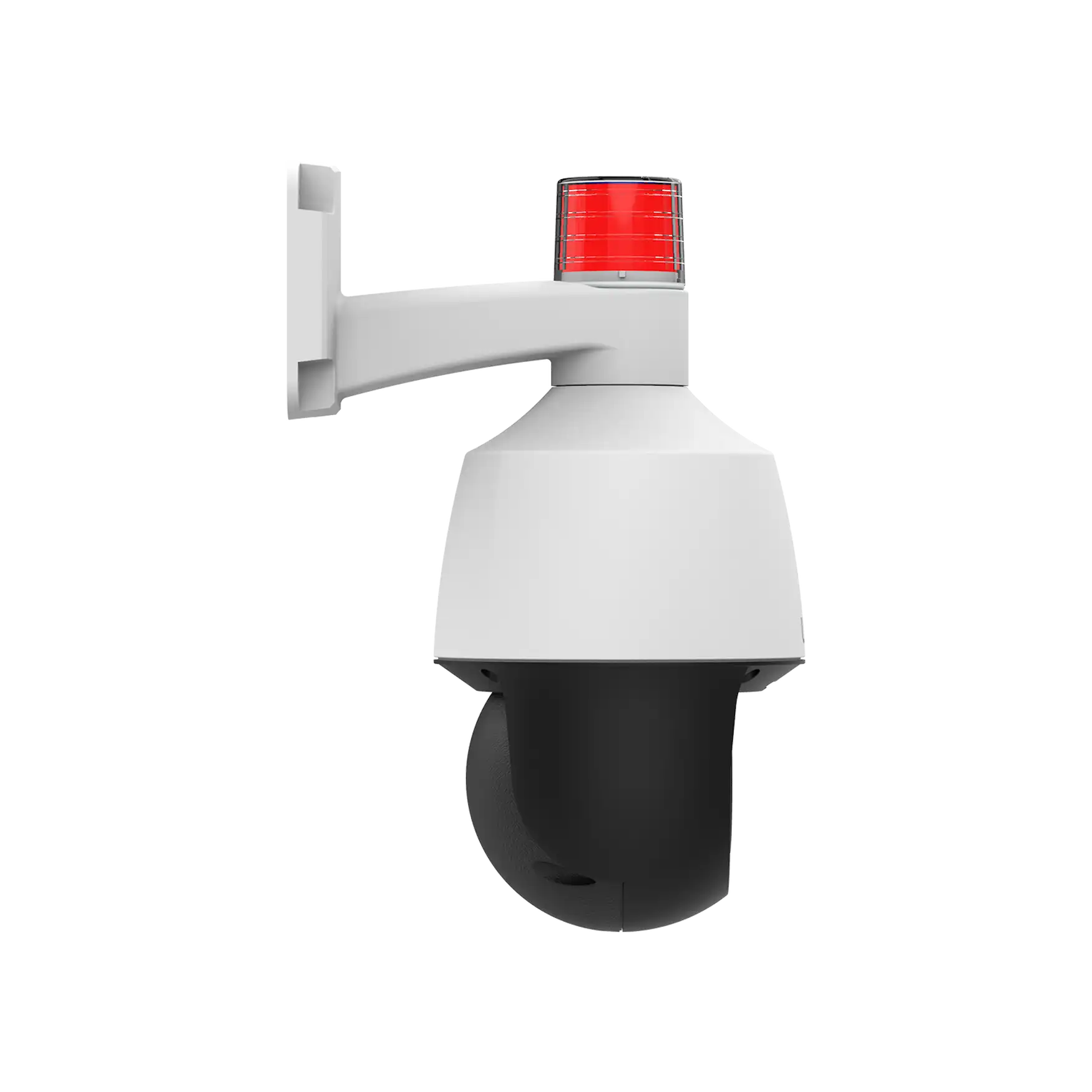

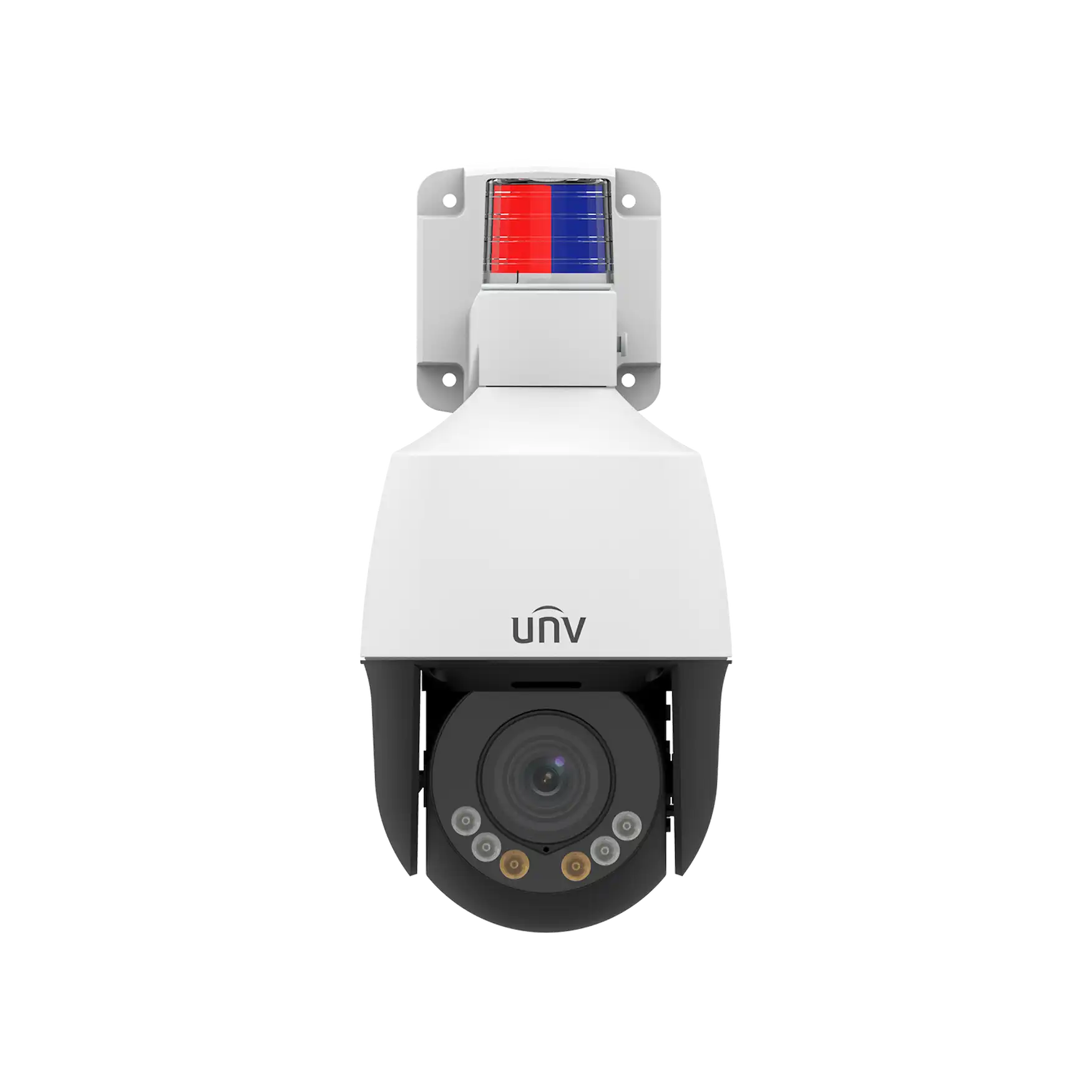

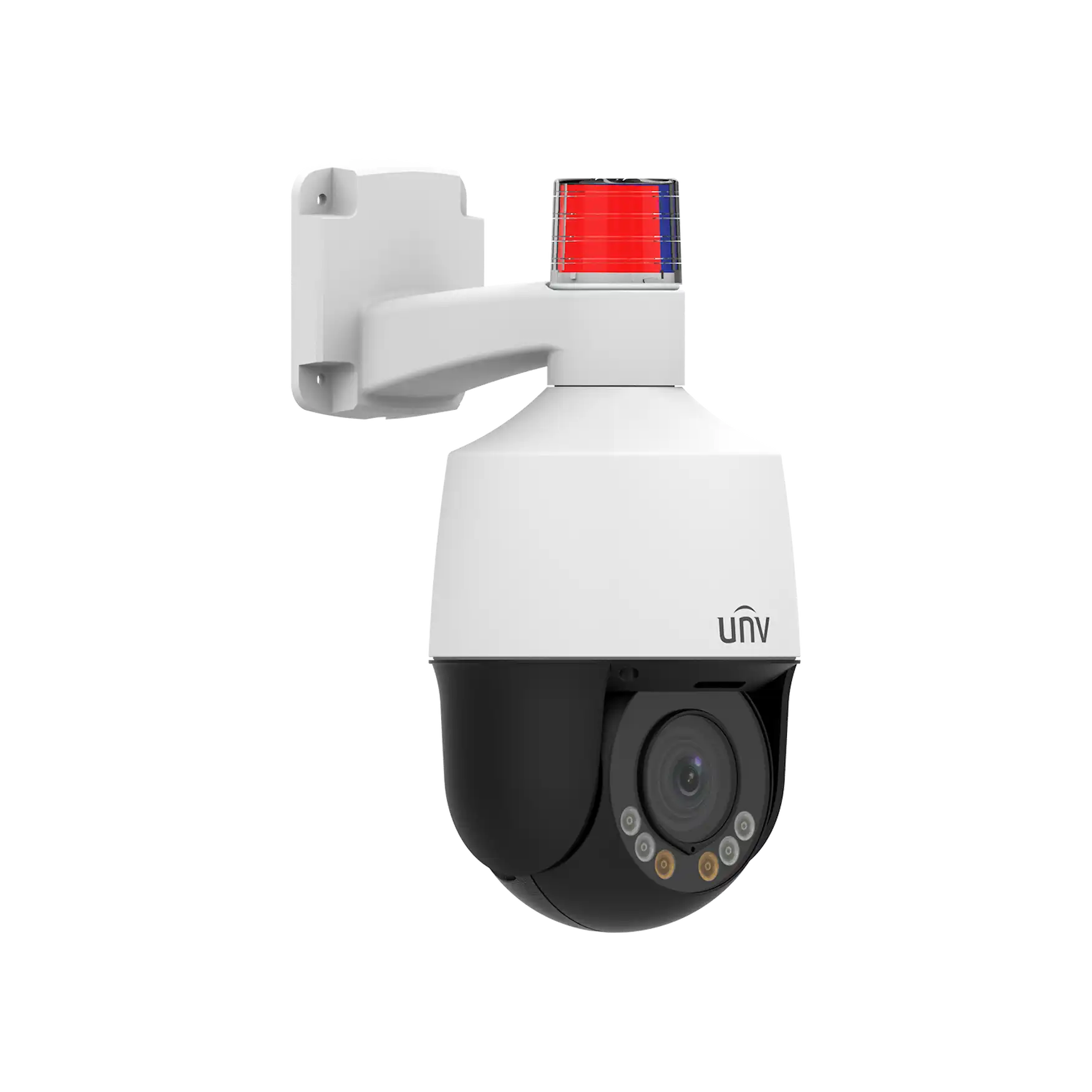

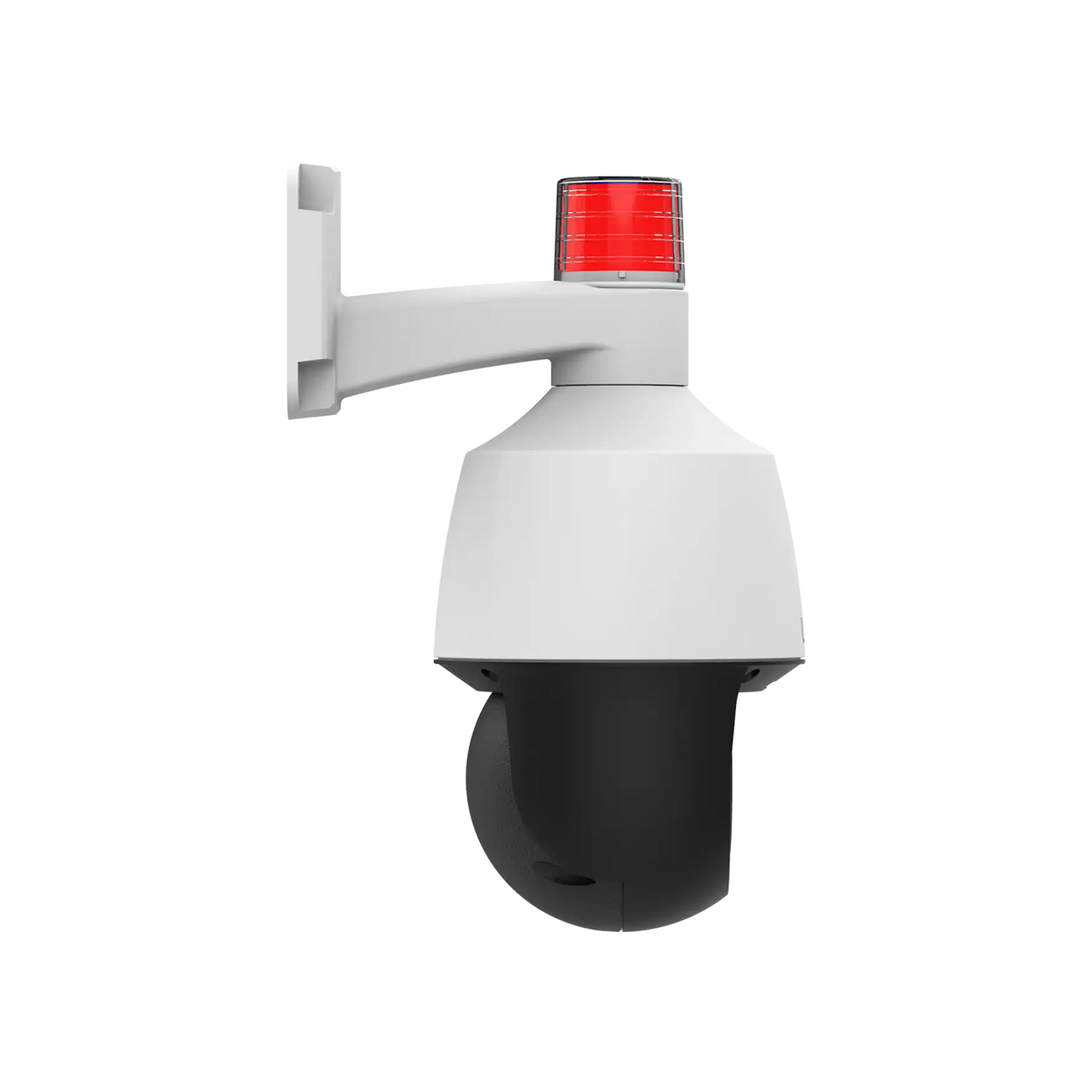

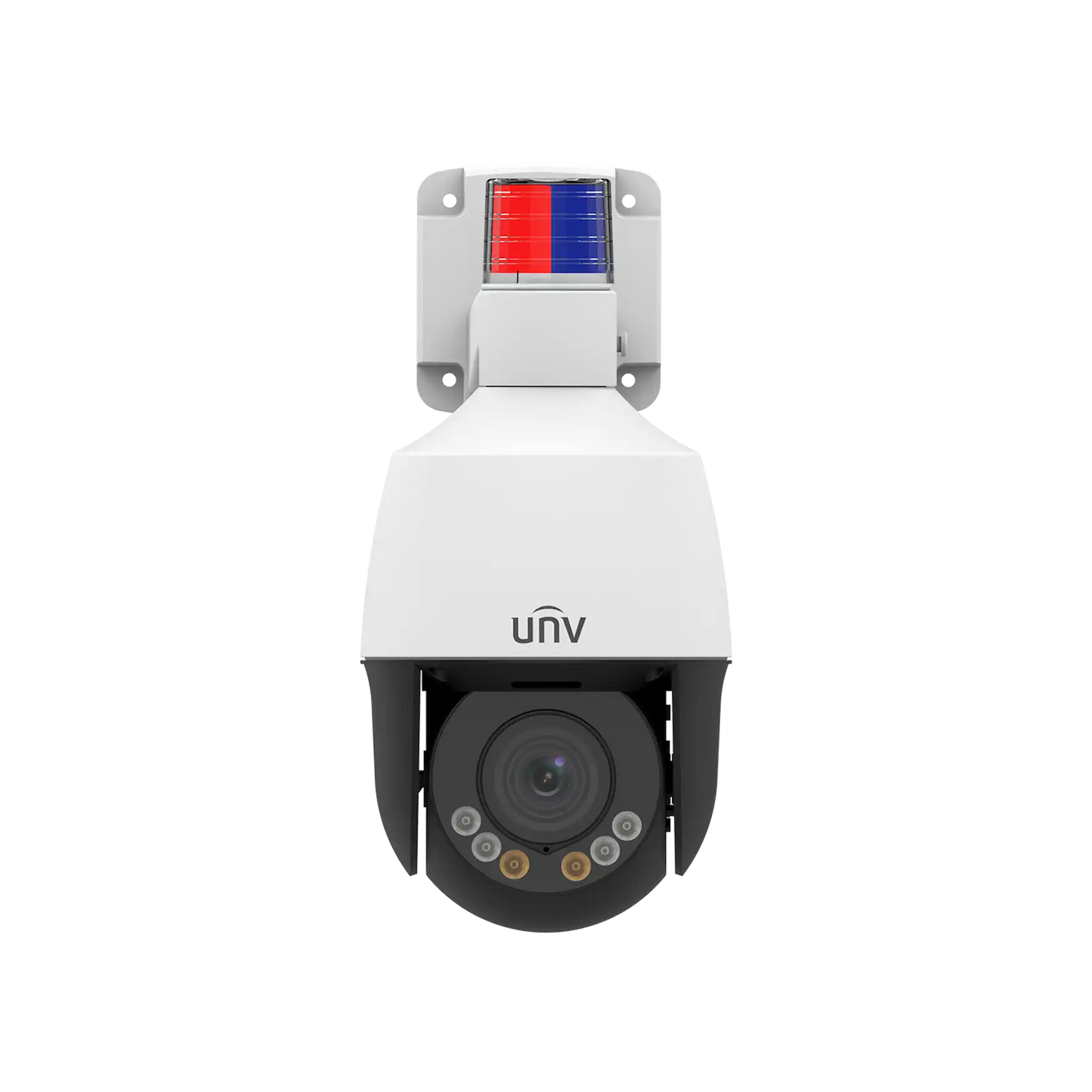

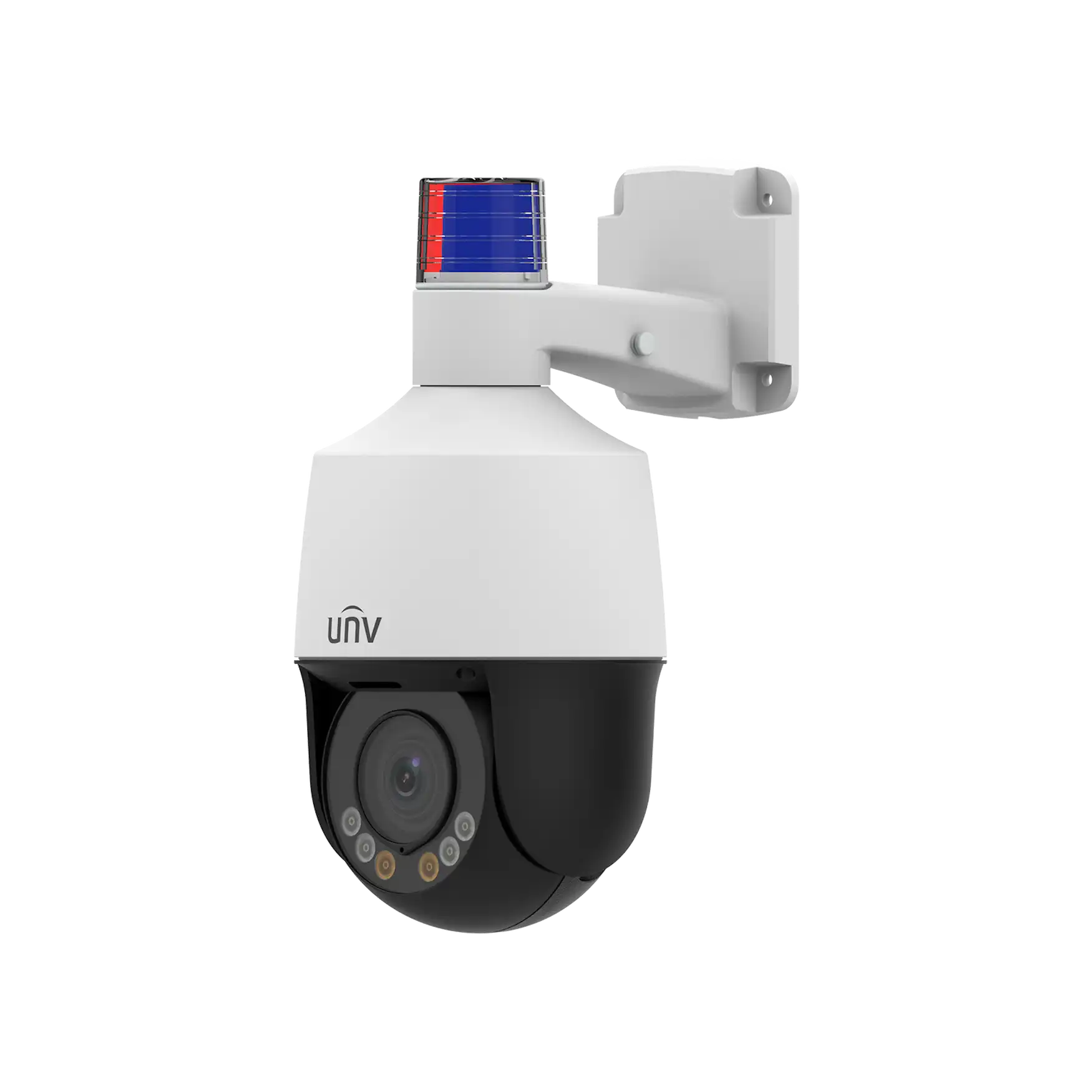

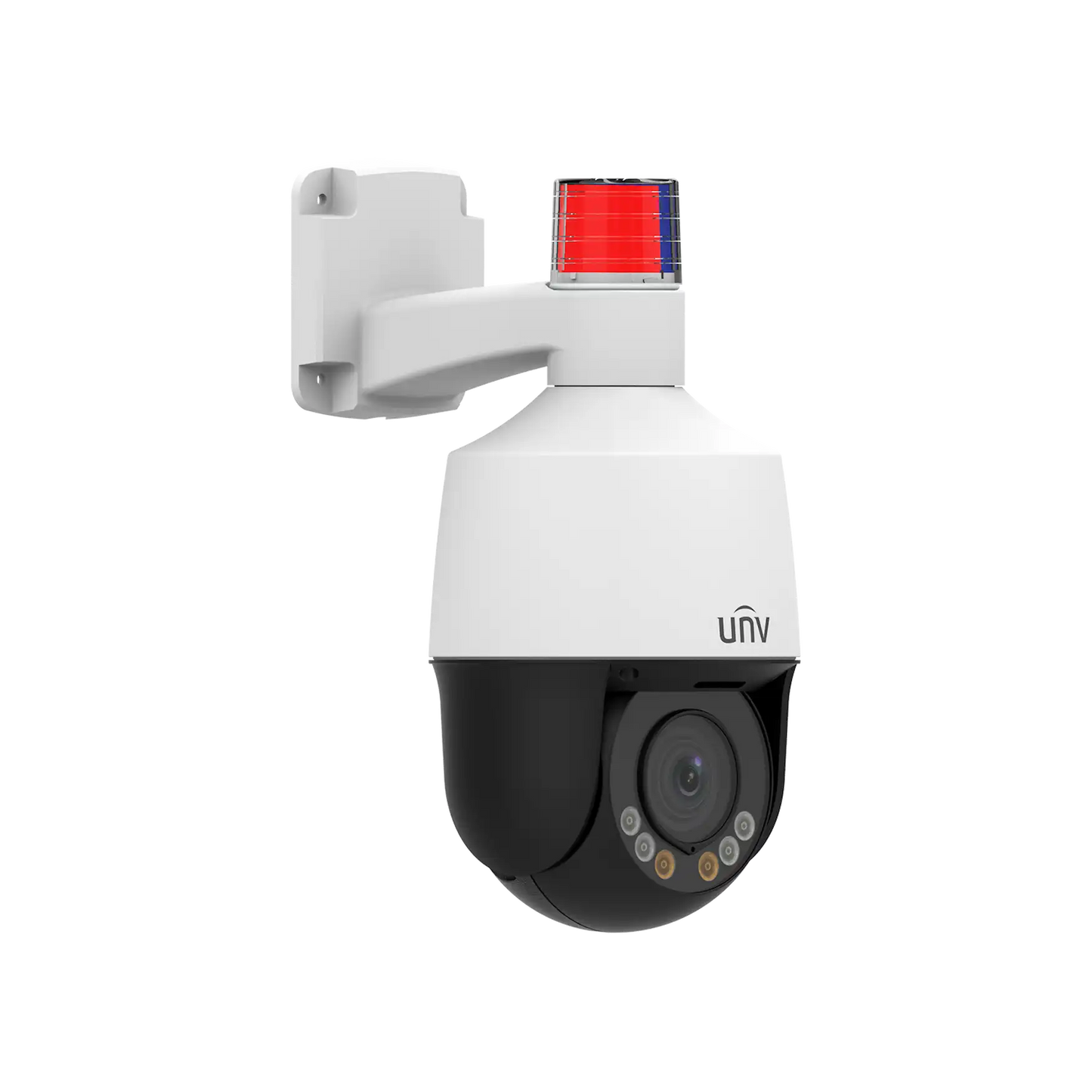

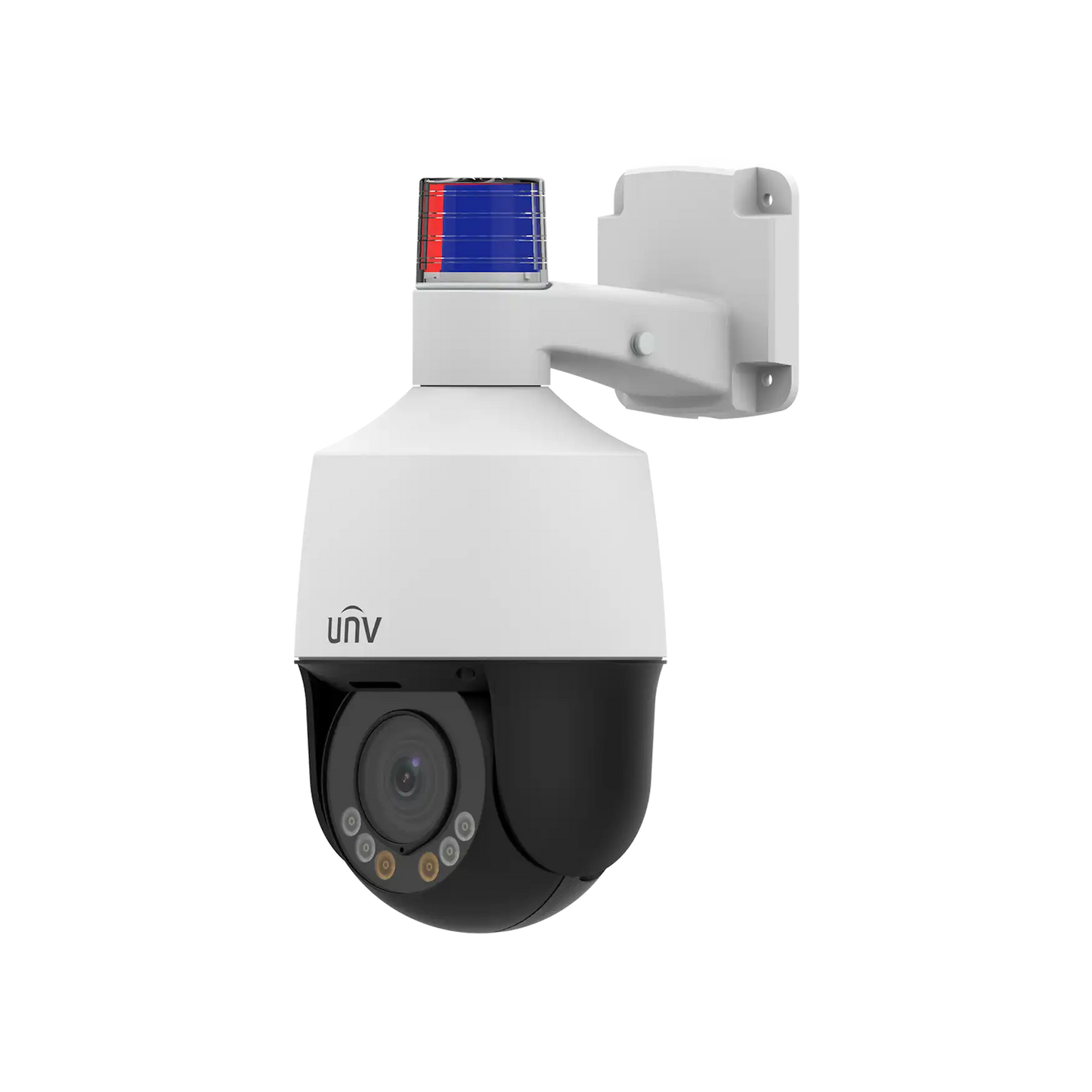

IPC675LFW-AX4DUPKC-VG

Sensor

1/2.7" progressive scan, 5.0 megapixel, CMOS

Lens

2.8~12mm，AF automatic focusing and motorized zoom lens

DORI Distance

Lens

Detect(m)

Observe(m)

Recognize(m)

Identify(m)

2.8mm

63.0

25.2

12.6

6.3

12mm

270.0

108.0

54.0

27.0

Angle of View (H)

30.6°~104.1°

Angle of View (V)

17.4°~54.9°

Angle of View (O)

34.4°~108.3°

Shutter

Auto/Manual, shutter time: 1 s ~ 1/100000 s

Minimum Illumination

Colour:0.003 lux (F1.6,AGC ON)

0 lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52 dB

IR Range

UP to 50m (164ft)

Wavelength

850nm

IR On/Off Control

Auto/Manual

Warm Light Range

UP to 10m (33ft)

WDR

120dB

Video Compression

Ultra 265,H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Smart intrusion Prevention

Cross Line, Intrusion, Enter Area, Leave Area detection;Motion detection ;

Events

Basic Detection

Motion detection, Tampering alarm, Audio Detection

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio Compression

G.711U, G.711A

Two-way Audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR, NAS(NFS)

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL

Compatible Integration

ONVIF(Profile S, Profile G, Profile T), API

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Pan Range

0°~345°

Pan Speed

0.1°/s ~ 50°/s

Preset speed: 50°/s

Tilt Range

-10~110°

Tilt Speed

0.1° ~ 40°/s

Preset speed: 40°/s

Number of Presets

256

Patrol

Preset patrol, Route patrol

Network

1 RJ45 10M/100M Base-TX Ethernet

Built-in Mic

Supported

Built-in Speaker

Supported

Alarm Light

Supported

Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

Power

DC 12V±25%, PoE (IEEE802.3 at)

Power consumption: Max 18 W

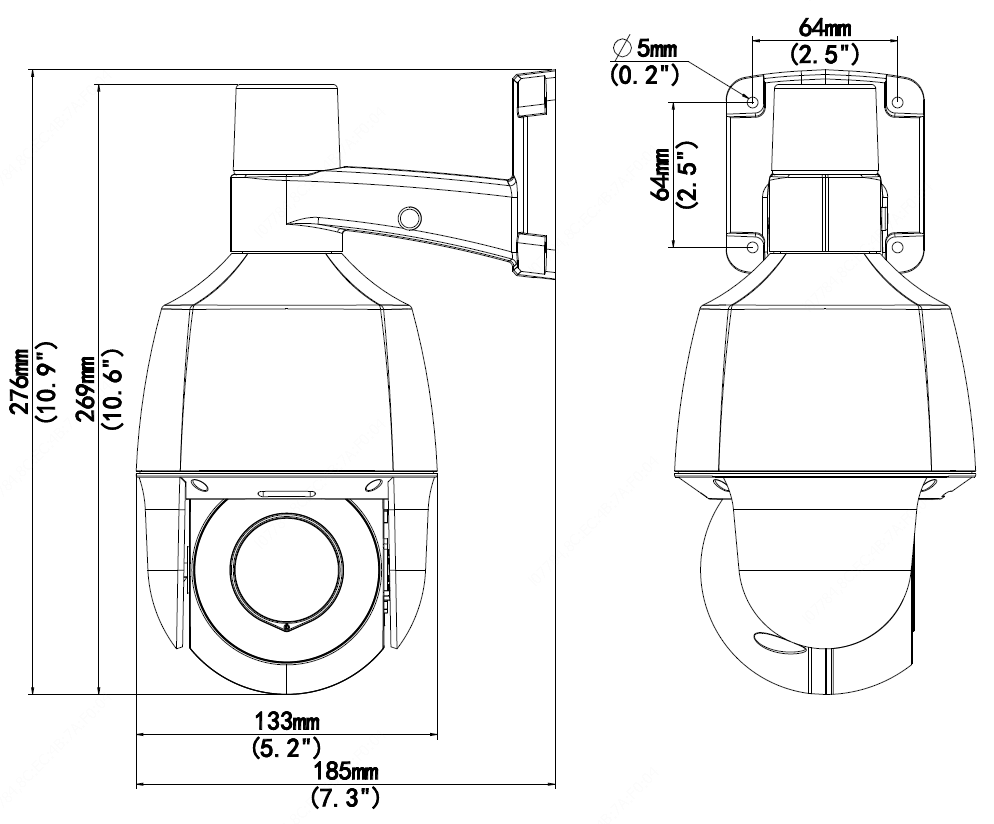

Dimensions (Ø x H)

Φ133mm*269.4mm (Φ5.2”x 10.6”)

Net Weight

0.87 kg (1.92lb)

Gross Weight

1.13 kg (2.49lb)

Material

Metal + Plastic

Working Environment

-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)

Strorage Environment

-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)

Surge Protection

4KV

Ingress Protection

IP66

Reset Button

Supported
