IPC3605SB-ADF16KM-I0 |
|||||||||||||||
Camera |
|||||||||||||||
Sensor |
1/2.7", 5.0 megapixel, progressive scan, CMOS |
||||||||||||||
Minimum Illumination |
Colour: 0.01lux (F2.0, AGC ON) 0 lux with IR on |
||||||||||||||
Day/Night |
IR-cut filter with auto switch (ICR) |
||||||||||||||
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||||||||||||
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 75° |
Rotate: 0° ~ 360° |
||||||||||||
WDR |
120dB |
||||||||||||||
S/N |
>56dB |
||||||||||||||
Lens |
|||||||||||||||
Lens |
1.68mm@F2.0 |
||||||||||||||
Iris |
Fixed |
||||||||||||||
Field of View (H) |
180° |
||||||||||||||
Field of View (V) |
100° |
||||||||||||||
Field of View (O) |
180° |
||||||||||||||
DORI |
|||||||||||||||
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
||||||||||
1.68 |
37.8(124.0ft) |
15.1(49.6ft) |
7.6(24.8ft) |
3.8(12.4ft) |
|||||||||||
Illuminator |
|||||||||||||||
IR Range |
Up to 20m (66ft) IR range |
||||||||||||||
Wavelength |
850nm |
||||||||||||||
IR On/Off Control |
Auto/Manual |
||||||||||||||
Video |
|||||||||||||||
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||||||||||||
H.264 code profile |
Baseline profile, Main profile, High profile |
||||||||||||||
Frame Rate |
Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||||||||||||
Video Bit Rate |
128 Kbps~16Mbps |
||||||||||||||
U-code |
Support |
||||||||||||||
OSD |
Up to 8 OSDs |
||||||||||||||
Privacy Mask |
Up to 4 areas |
||||||||||||||
ROI |
Up to 8 areas |
||||||||||||||
Video Stream |
Triple streams |
||||||||||||||
Image |
|||||||||||||||
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||||||||||||
Digital Noise Reduction |
2D/3D DNR |
||||||||||||||
Smart IR |
Support |
||||||||||||||
Flip |
Normal/ Flip Vertical/ Flip Horizontal/180° |
||||||||||||||
Dewarping |
Support |
||||||||||||||
HLC |
Support |
||||||||||||||
BLC |
Support |
||||||||||||||
Defog |
Digital Defog |
||||||||||||||
Intelligent |
|||||||||||||||
Smart intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
||||||||||||||
Events |
|||||||||||||||
Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
||||||||||||||
General Function |
Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication |
||||||||||||||
Audio |
|||||||||||||||
Audio Compression |
G.711U, G.711A |
||||||||||||||
Audio Bitrate |
64 Kbps |
||||||||||||||
Two-way audio |
N/A |
||||||||||||||
Suppression |
Support |
||||||||||||||
Sampling Rate |
8KHZ |
||||||||||||||
Storage |
|||||||||||||||
Edge Storage |
Micro SD, up to 256GB |
||||||||||||||
Network Storage |
ANR, NAS(NFS) |
||||||||||||||
Network |
|||||||||||||||
Protocols |
IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
||||||||||||||
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
||||||||||||||
User/Host |
Up to 32 users. 3 user levels: administrator, common user and operator |
||||||||||||||
Security |
Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF |
||||||||||||||
Client |
EZStation EZView EZLive |
||||||||||||||
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
||||||||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
|||||||||||||||
Interface |
|||||||||||||||
Audio I/O |
N/A |
||||||||||||||
Alarm I/O |
N/A |
||||||||||||||
Serial Port |
N/A |
||||||||||||||
Built-in Mic |
Support |
||||||||||||||
Built-in Speaker |
N/A |
||||||||||||||
WIFI |
N/A |
||||||||||||||
Network |
1 RJ45 10M/100M Base-TX Ethernet |
||||||||||||||
Video Output |
N/A |
||||||||||||||
Certifications |
|||||||||||||||
EMC |
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) |
||||||||||||||
Safety |
CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
||||||||||||||
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
||||||||||||||
Protection |
IP67 (IEC 60529) IK10 (IEC 62262) |
||||||||||||||
General |
|||||||||||||||
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
||||||||||||||
Power consumption: Max 5.5W |
|||||||||||||||
Power Interface |
Ø 5.5mm coaxial power plug |
||||||||||||||

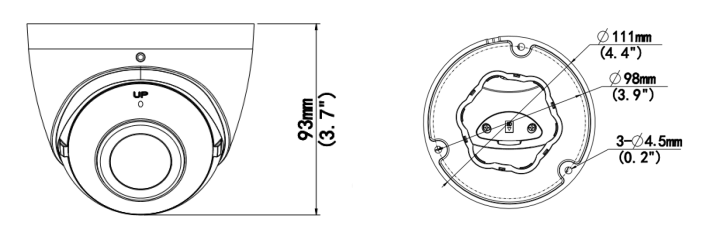

Dimensions (Ø x H) |
Φ111 x 93mm (Φ4.4”x 3.7”) |
||||||||||||||
Weight |
0.48kg (1.06lb) |
||||||||||||||
Material |
Metal |
||||||||||||||
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||||||||||
Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
||||||||||||||
Surge Protection |
4KV |
||||||||||||||
Reset Button |
Support |
