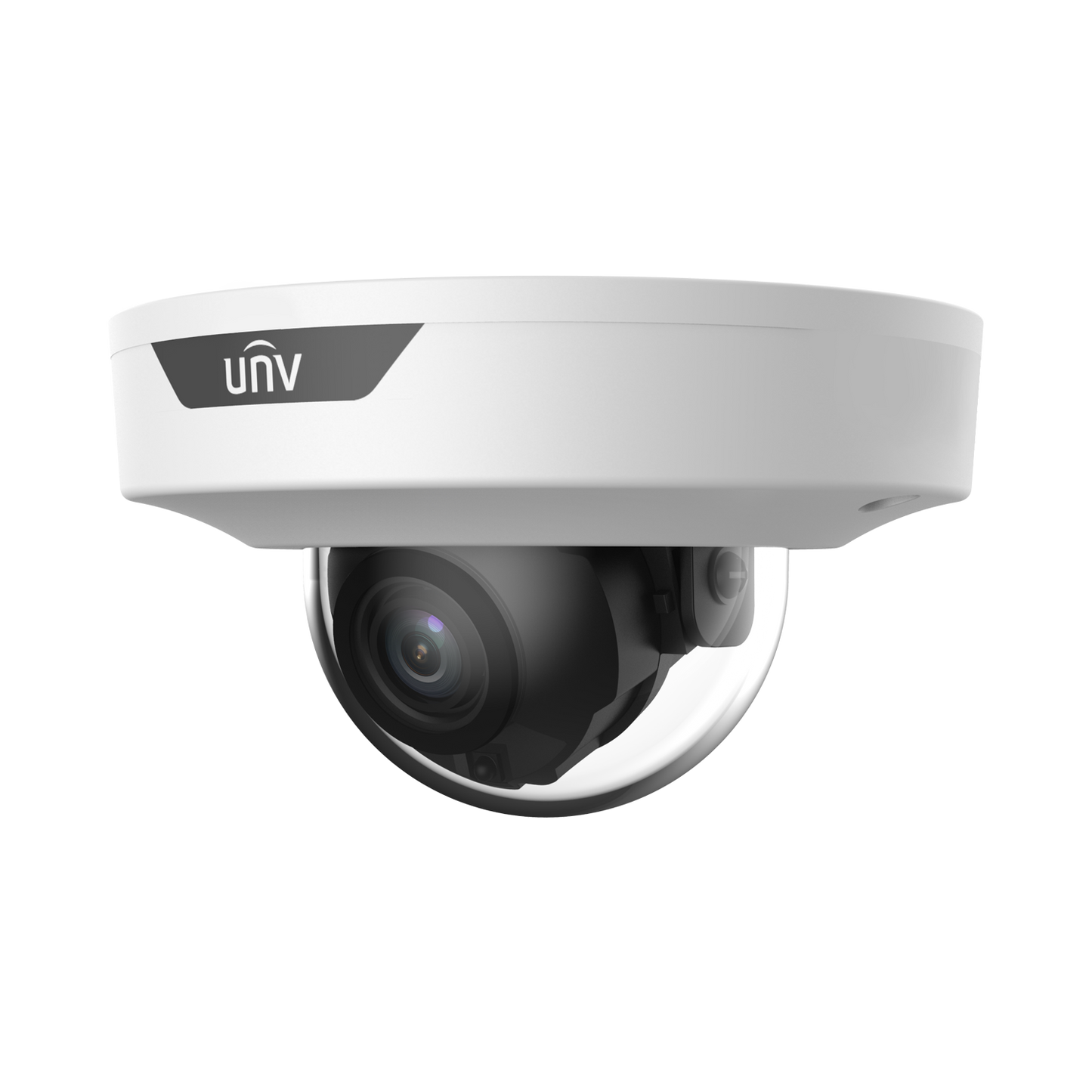

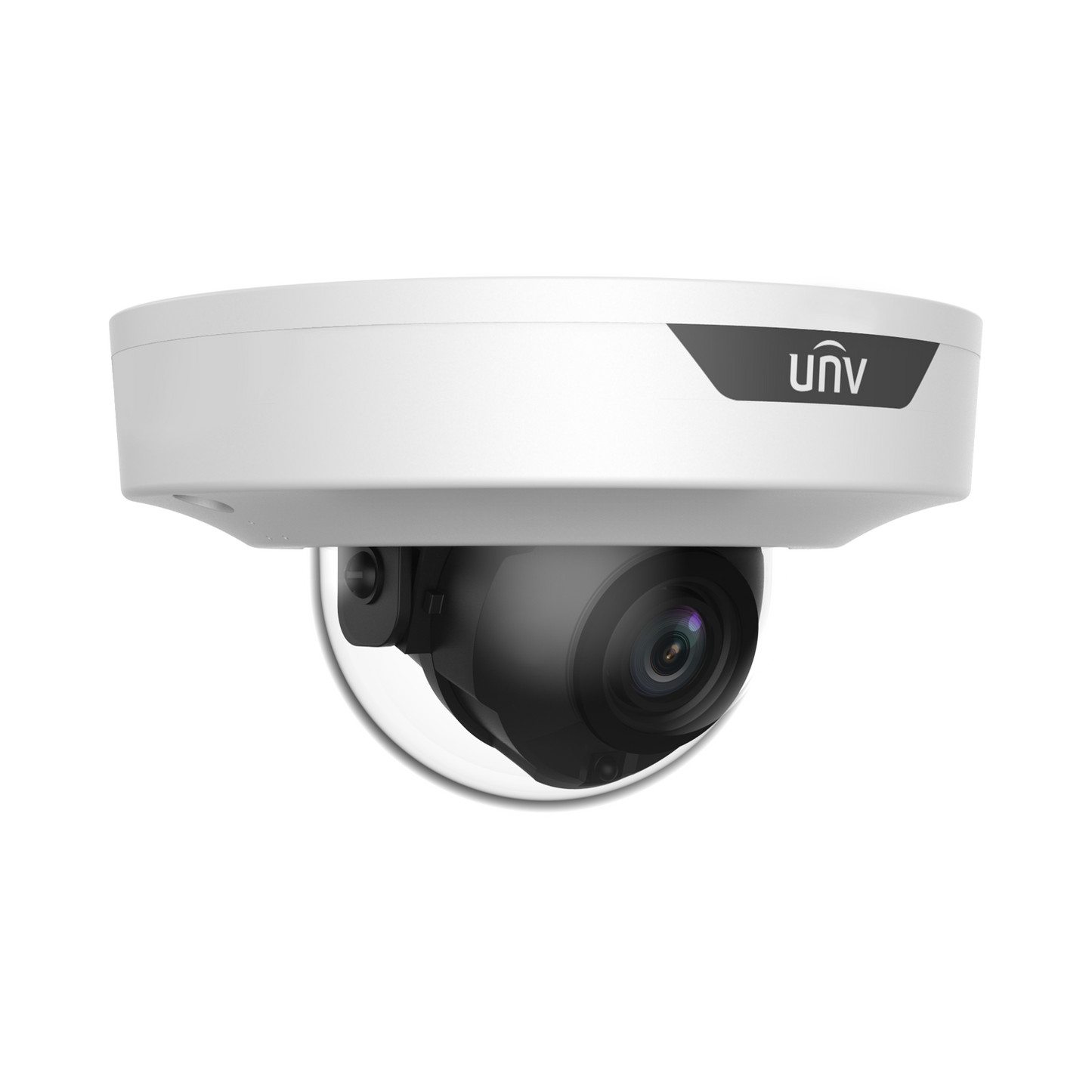

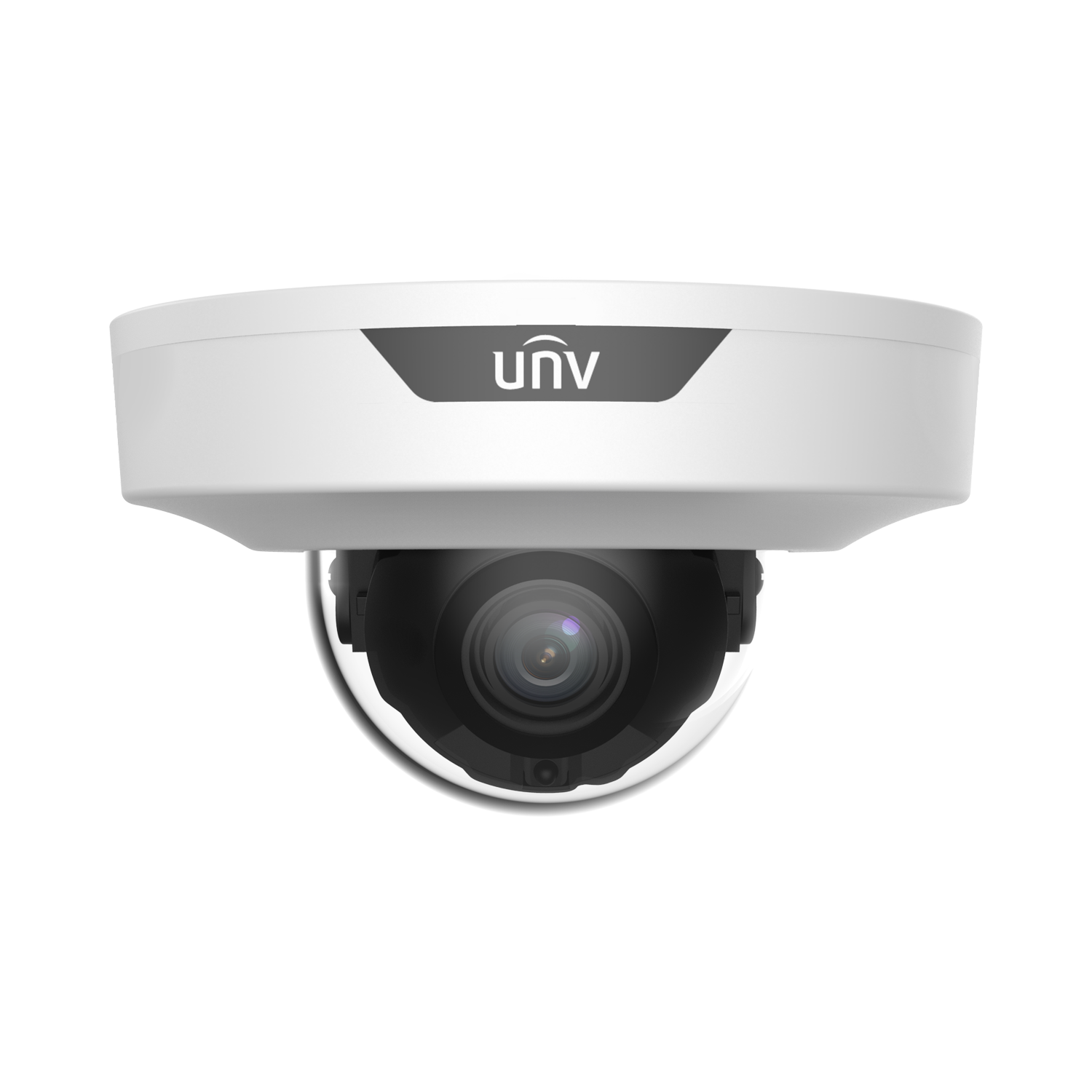

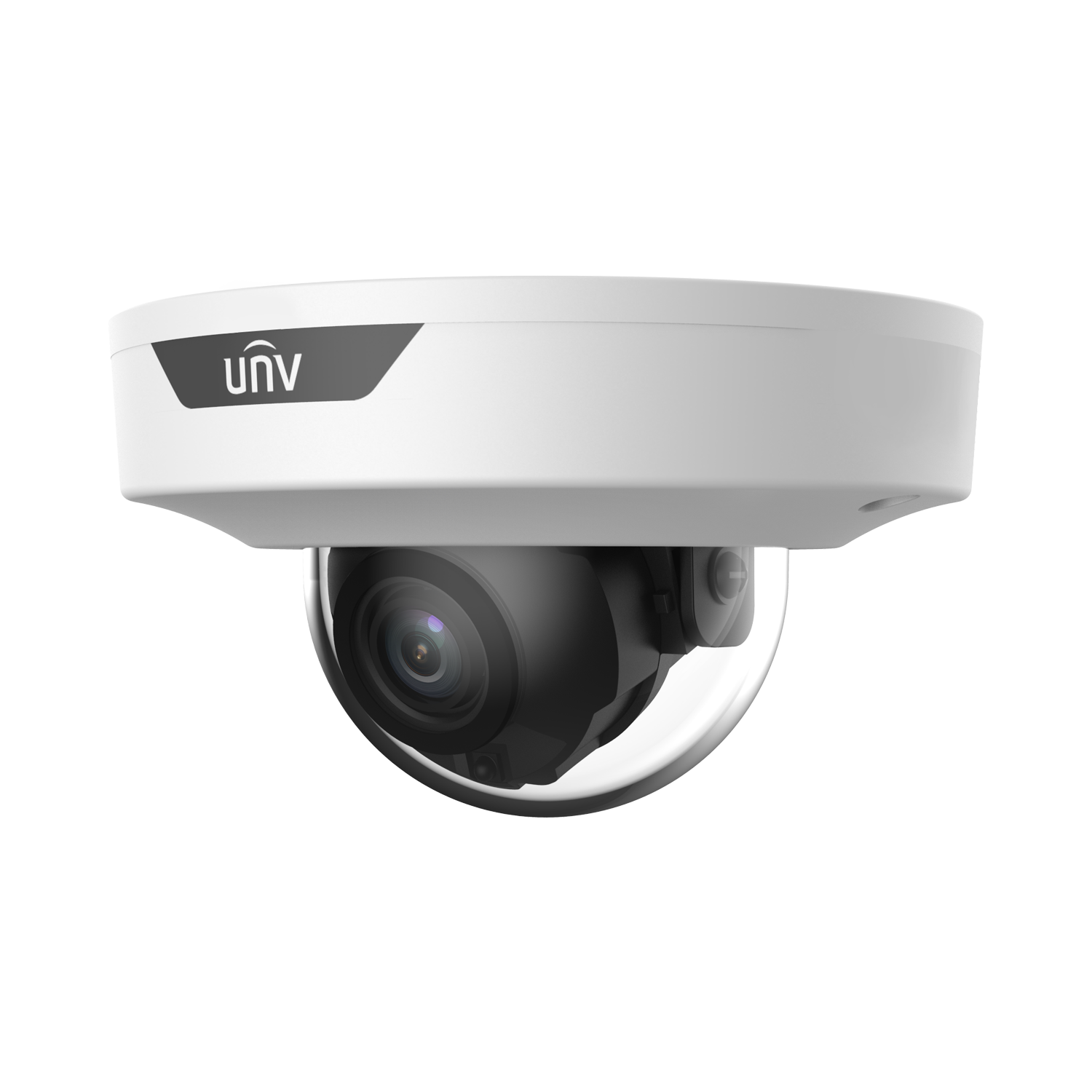

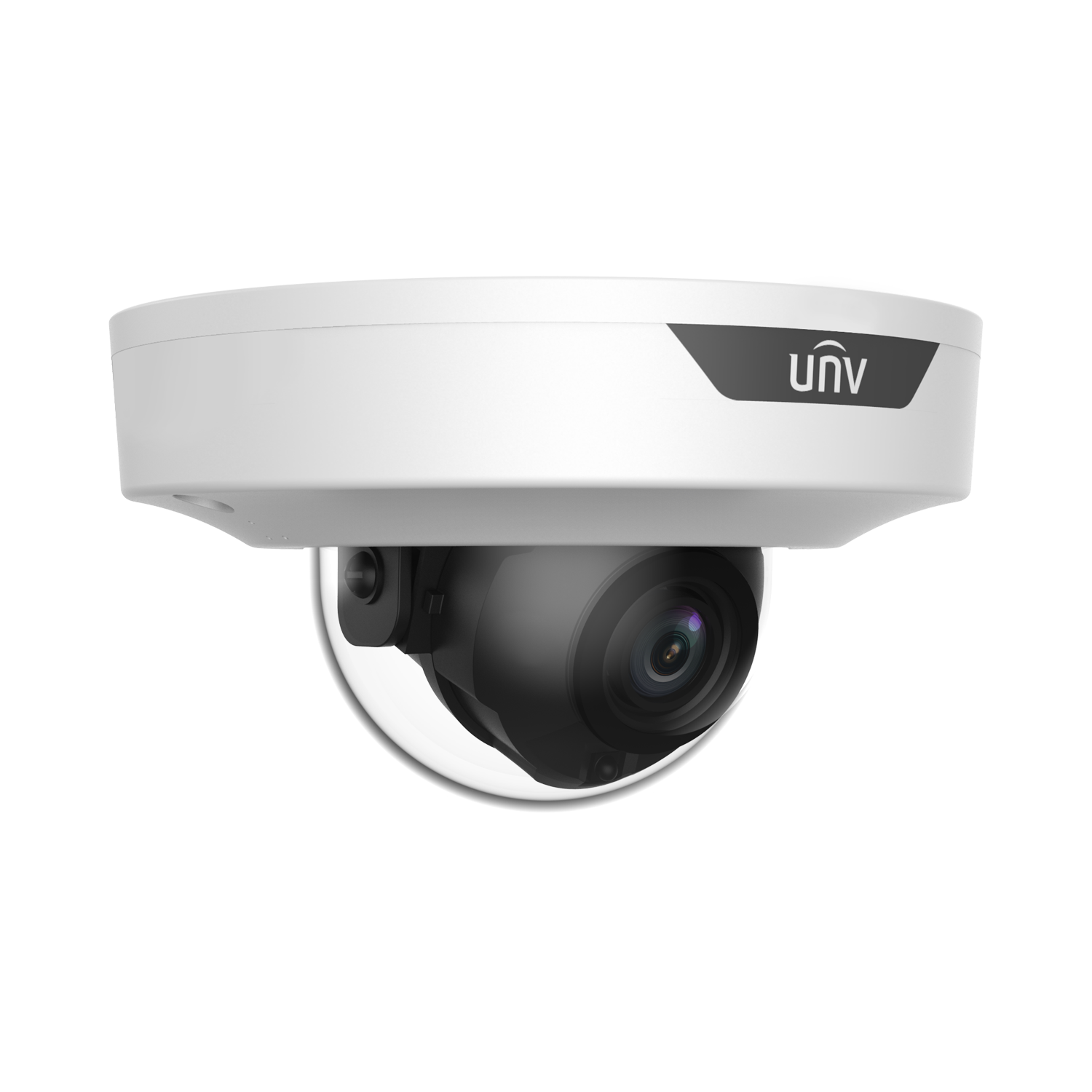

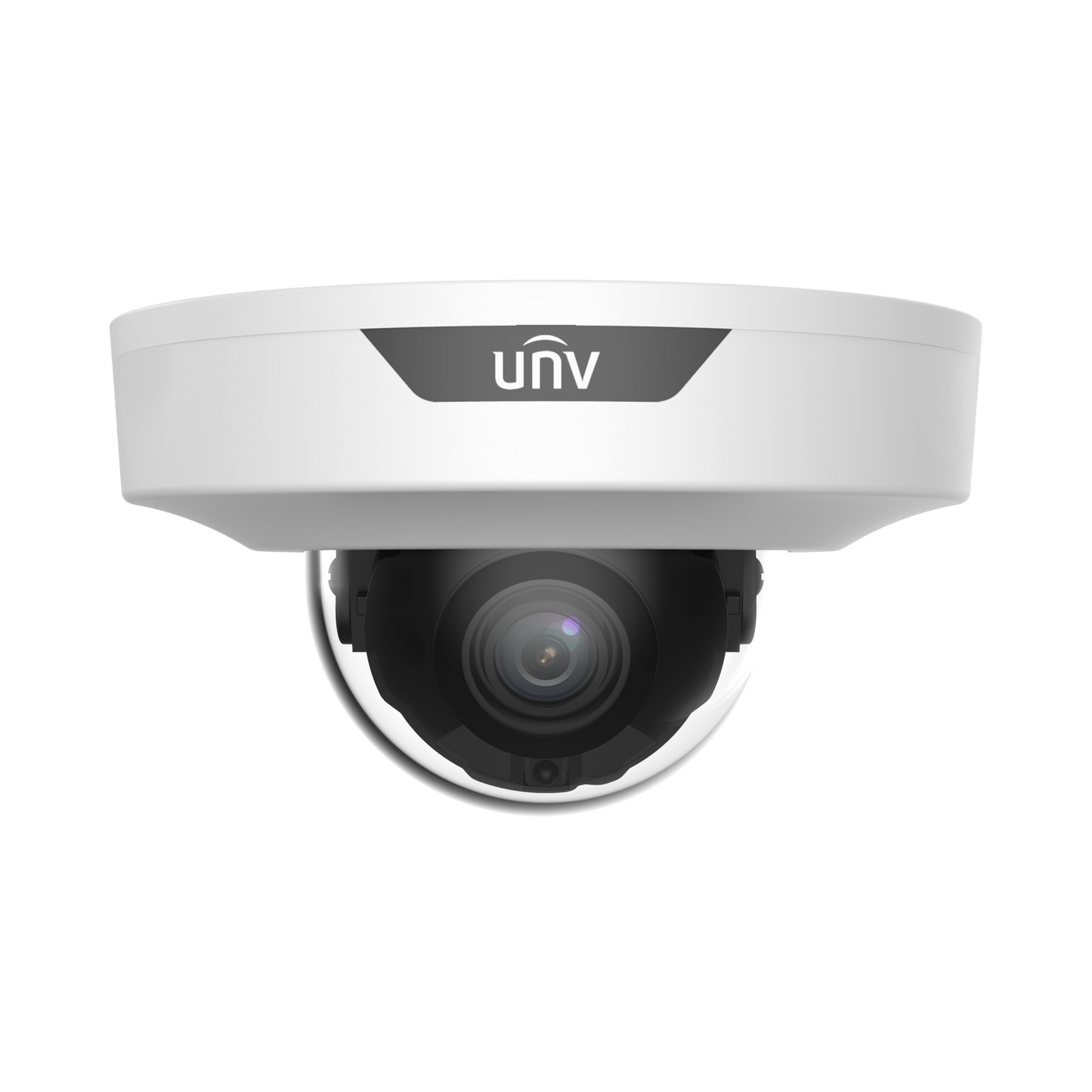

UNV 4MP IR Fixed Pigtail-Free Mini Dome Network Camera

Part Number: IPC354SB-ADNF28K-I0

Sensor Type: 1/2.7" CMOS
Lens Type: 2.8mm@F1.6
Max Resolution/Frame Rate: 4MP(2688x1520)@25fps
Angle of View: 101.1° (Horizontal)
Min. Illumination: Color 0.003Lux (F1.6, AGC ON)
Night Vision Distance: 98 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Built-in Microphone, Input/Output Connections
Alarm I/O: Yes
BNC Output: N/A
Special Features: Human/Vehicle Detection, Face Capture, People Counting
Power: PoE (IEEE 802.3af), DC12V
NDAA Compliant: Yes
Warranty Period: 3 Years

IPC354SB-ADNF28K-I0

Camera

Sensor

1/2.7", 4.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.003Lux (F1.6, AGC ON)

0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

Angle Adjustment

Pan: 0° ~ 348°

Tilt: -66° ~ 66°

Rotate: 0° ~ 346°

WDR

120dB

S/N

>52dB

Lens

Lens type

2.8mm@F1.6,

Angle of View (H)

101.1°

Angle of View (V)

55.3°

Angle of View (O)

111.1°

DORI

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63.0

25.2

12.6

6.3

Illuminator

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile

Frame Rate

Main Stream: 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps;1080P(1920*1080),Max30fps

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

ROI

Up to 8 areas

Video Stream

Triple streams

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Image Setting

Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Defog

Digital Defog

Intelligent

Smart Intrusion Prevention

Cross line, intrusion, enter area, leave area detection

Face capture

Support

People Counting

People Flow Counting,Crowd Density Monitoring

Events

Basic Detection

Motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication

Audio

Audio Compression

G.711U, G.711A

Audio Bitrate

64 Kbps

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR, NAS(NFS)

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host

Up to 32 users. 2 user levels: administrator and common user

Security

Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Audio I/O

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

1/1

RS485

N/A

Built-in Mic

Support

Built-in Speaker

N/A

WIFI

N/A

Network

10M/100M Base-TX Ethernet

Video Output

N/A

Certifications

EMC

FCC CFR 47 Part 15

EN 55032:2015

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3-2013

Safety

IEC 62368-1

EN 62368-1

UL 62368-1

Environment

CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4.5W

Power Interface

Cable-free

Dimensions (Ø x H)

Φ109 x 62mm (Ø4.3” x 2.4”)

Weight

0.22kg(0.49b)

Material

Metal + Plastic

Working Environment

-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Reset Button

Supported

Protection

N/A

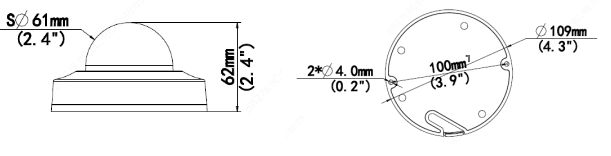

IPC354SB-ADNF28K-I0 DIMENSIONS
