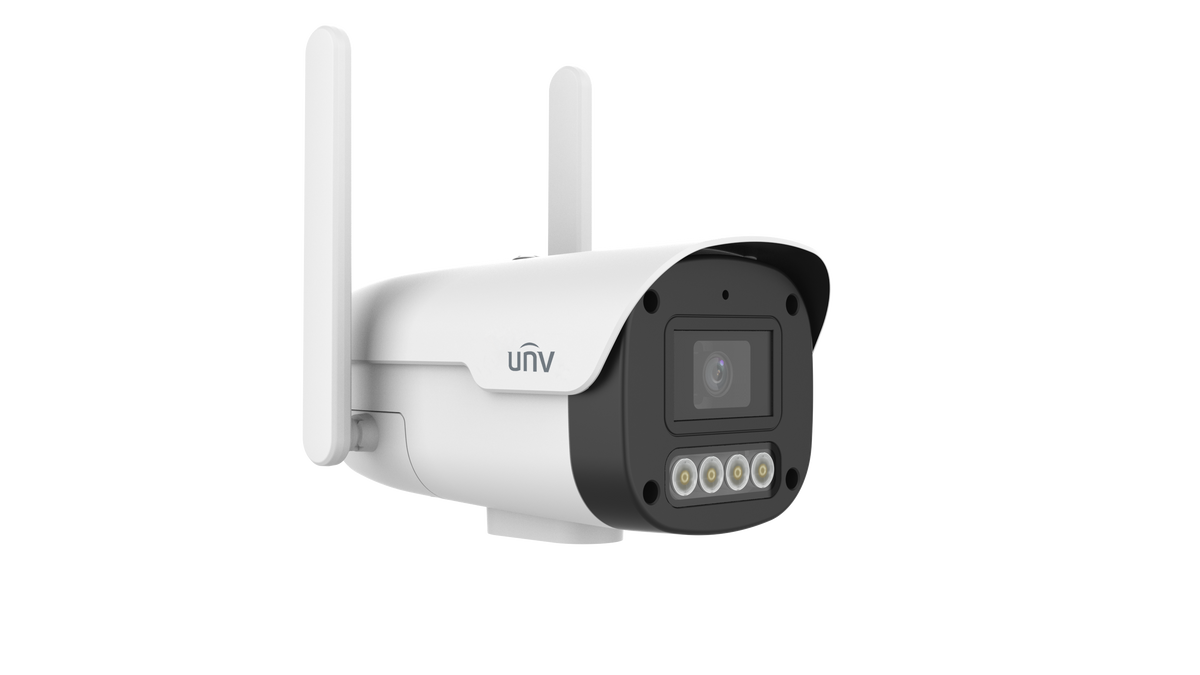

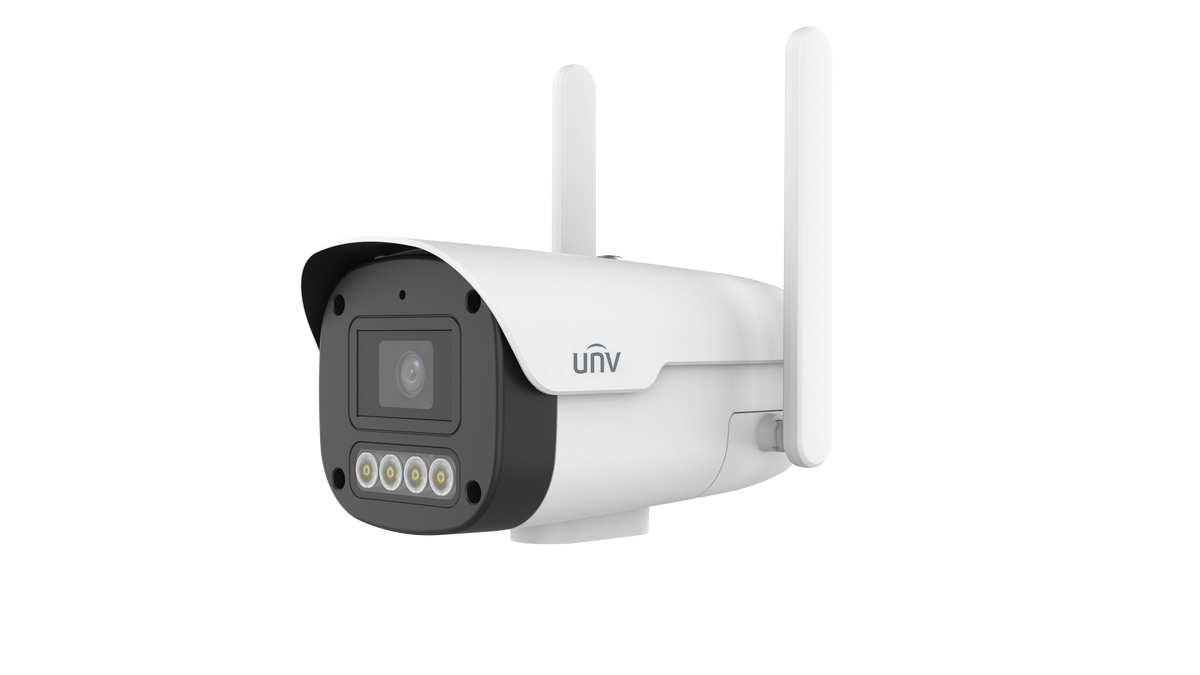

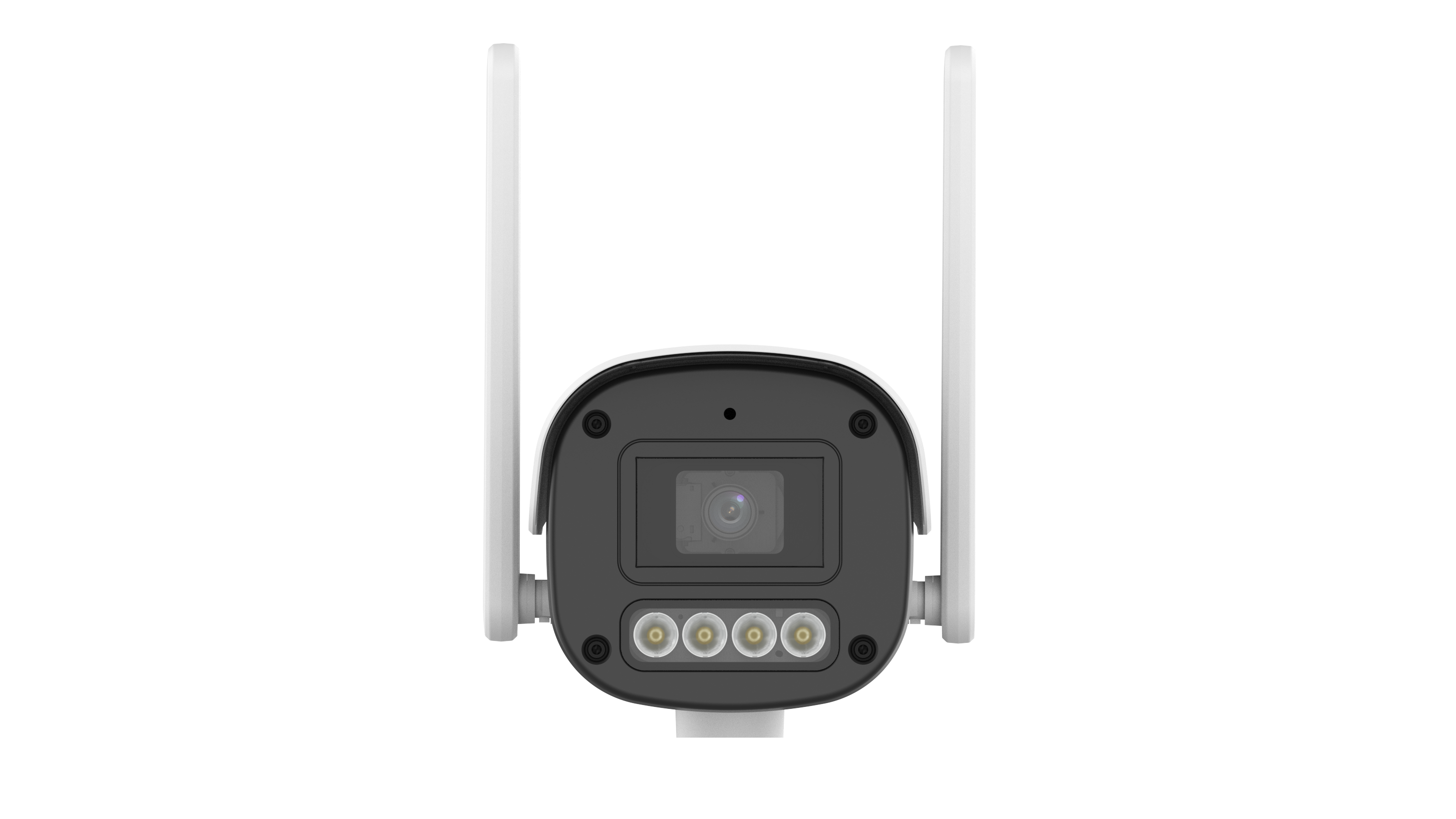

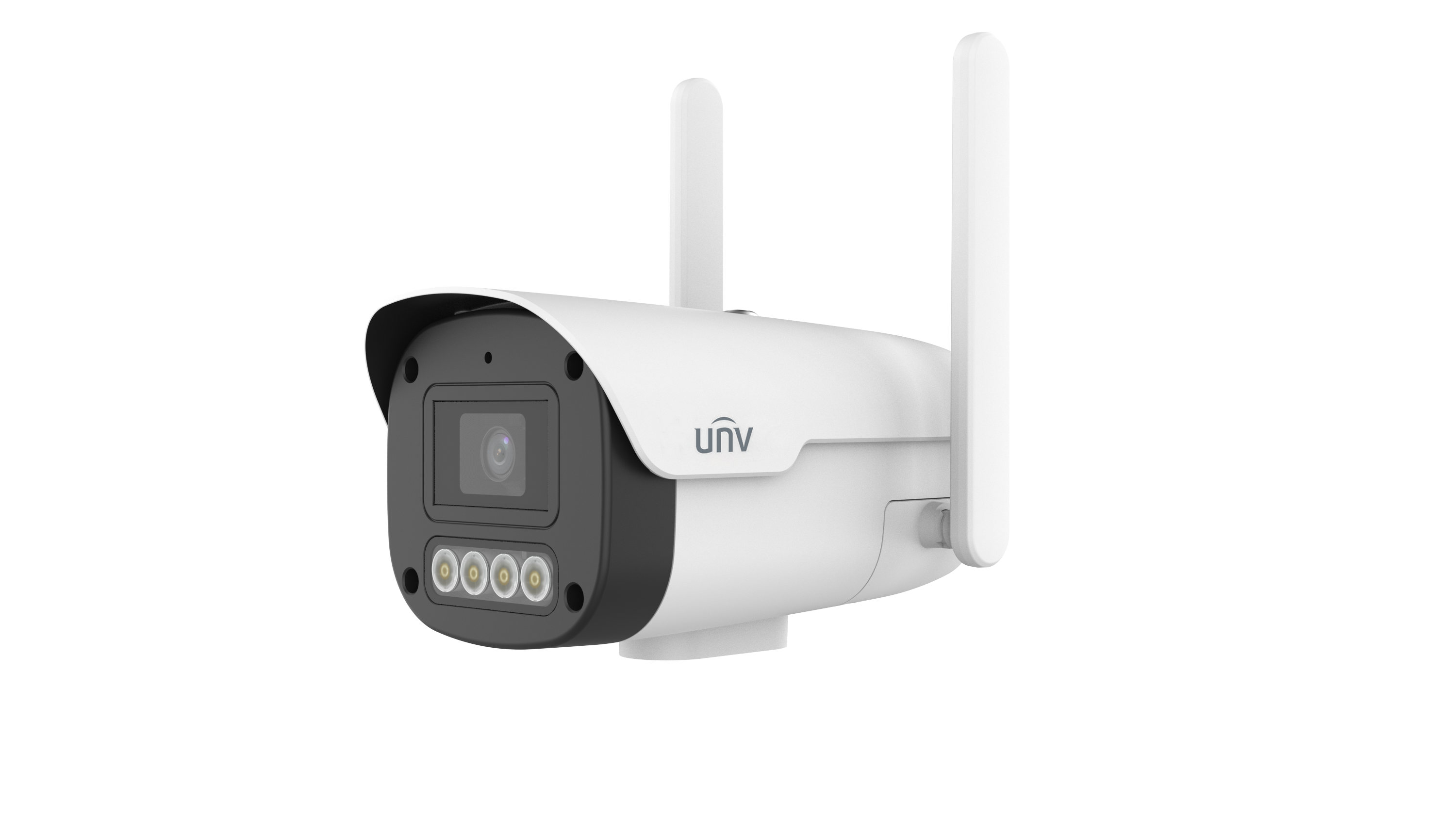

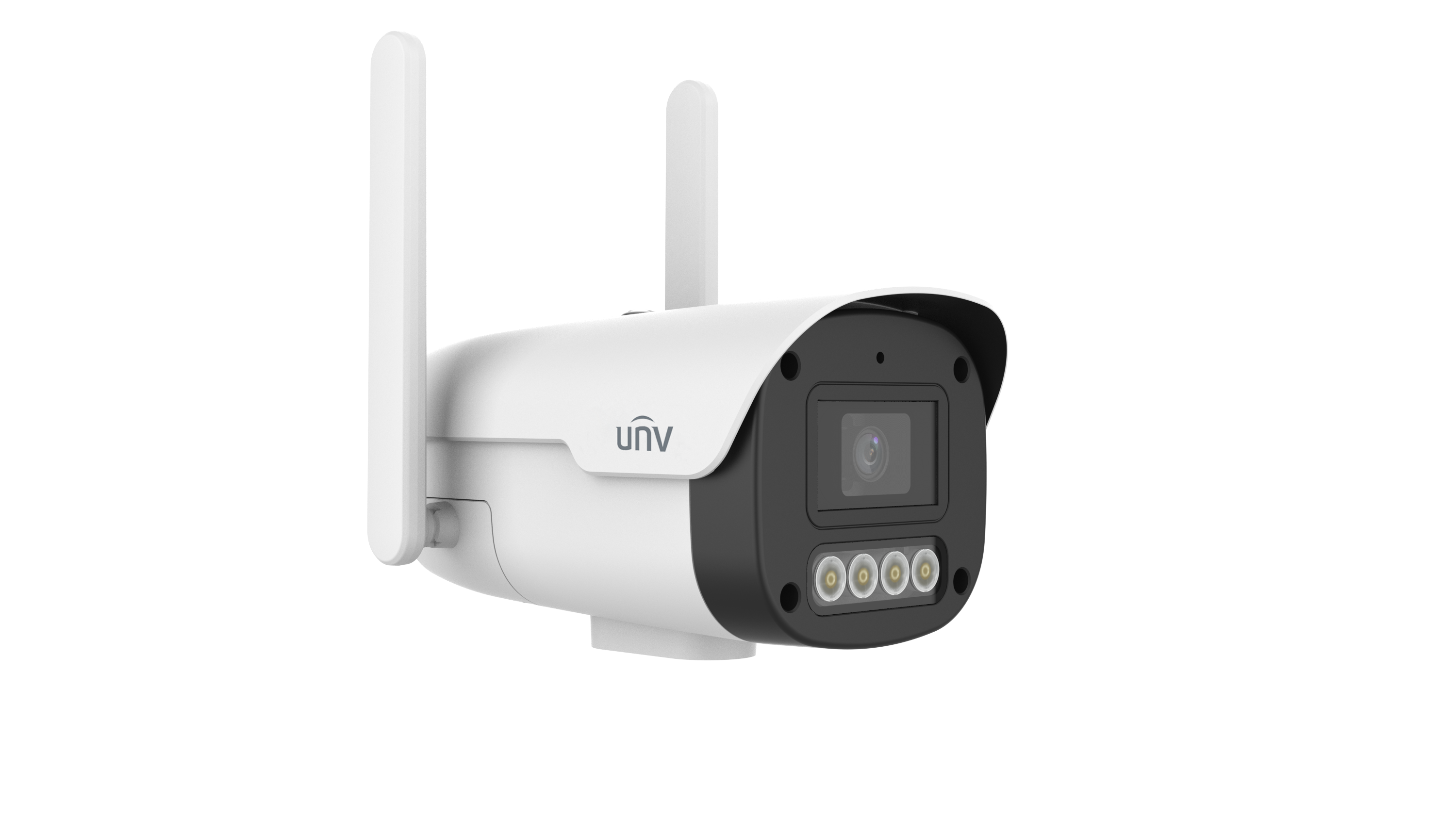

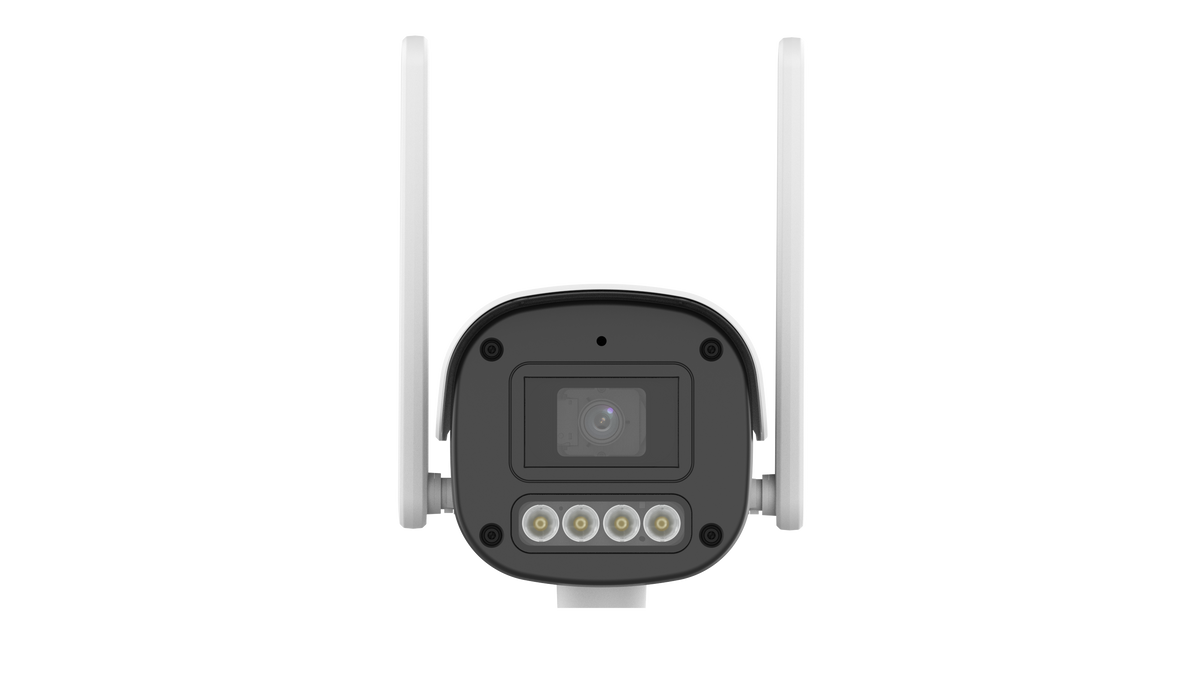

4MP ColorHunter 4G Fixed Dual-light BulletPart Number: IPC2A14LP-ADF40KC-4G-US
Resolution
4 MP @ 30fps
Lens Options
4.0mm (F1.6)
Night Vision
164 ft (50m) IR & 98 ft (30m) Warm Light
Power & Connectivity
DC 12V (Max 9.0W) + 4G LTE-FDD
Smart Feature Highlights
Sensor Type
1/3.0" CMOS (0.003 Lux F1.6)
Field of View (H)
79.0° (4.0mm)
WDR & Imaging
120dB True WDR
Audio & Network
Built-in Mic & Speaker, Nano-SIM 4G LTE
SD Card Slot
MicroSD up to 512GB
Ingress Protection
IP67 Weatherproof
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, DORI & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | IPC2A14LP-ADF40(60)KC-4G-US |
| Max Resolution | 4 MP (2560 × 1440) @ 30/25 fps |
| Sensor | 1/3.0" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| S/N Ratio & WDR | >52 dB; 120 dB True WDR |
| Lens & FOV | |
| Focal Length Options | 4.0 mm (Fixed Iris, F1.6) |
| Field of View (4.0mm) | H: 79.0°, V: 42.3°, D: 85.1° |
| Field of View (6.0mm) | H: 49.6°, V: 26.2°, D: 56.7° |
| DORI Distances (4mm / 6mm) | |
| Detect | 63.0 m (206.7 ft.) / 90.0 m (295.3 ft.) |
| Observe | 25.2 m (82.7 ft.) / 36.0 m (118.1 ft.) |
| Recognize | 12.6 m (41.3 ft.) / 18.0 m (59.1 ft.) |
| Identify | 6.3 m (20.7 ft.) / 9.0 m (29.5 ft.) |
| Illuminator & Video | |
| Supplemental Light | Dual light (IR 50m, Warm light 30m) |
| Illuminator Control & Wavelength | Auto/Manual; Wavelength: 850 nm |
| Video Compression & Profiles | Ultra 265, H.265, H.264, MJPEG; H.264 Profiles: Baseline, Main, High |
| Bit Rate & Streams | 128 Kbps to 2048 Kbps; Dual streams; U-code supported |
| Image Settings | White Balance (Auto/Outdoor/Fine tune/Sodium lamp/Locked/Auto2), 2D/3D DNR, Smart IR, HLC, BLC, Digital Defog, Up to 8 OSDs, 4 Privacy masks, ROI |
| 4G Cellular, Smart & General Specs | |
|---|---|
| 4G Cellular Connectivity | |
| 4G Network Standard & Type | LTE-FDD; Nano-SIM card type |
| 4G Frequency Bands (US) | LTE-FDD: Band 2/4/5/12/13/14/66/71 |
| Smart Features & Events | |
| Smart Intrusion Prevention | Cross line, intrusion, enter area, leave area detection with false alarm filtering (human, vehicle, non-motor vehicle) |
| Basic Detection & Events | Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
| General Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP/HTTP/User authentication, Alarm I/O |
| Audio, Storage & Interface | |
| Audio | G.711U, G.711A (64 Kbps); Two-way audio, noise suppression, built-in mic and speaker |
| Edge & Network Storage | MicroSD slot, up to 512 GB; ANR |
| Network Protocols & Security | IPv4/IPv6, ONVIF (S/G/T), SSL/TLS, HTTPS, 802.1x, Up to 32 users (3 user levels) |
| Client & Browser | EZStation, App; Plugin required & plugin-free browser live view support |
| Interfaces & I/O | Audio I/O (1 In / 1 Out), Alarm I/O (1 In / 1 Out), 1x RJ45 10M/100M, Reset button supported |
| General & Environment | |
| Power Supply | DC 12V±25%; Max. 9.0 W; Ø5.5 mm coaxial power plug |

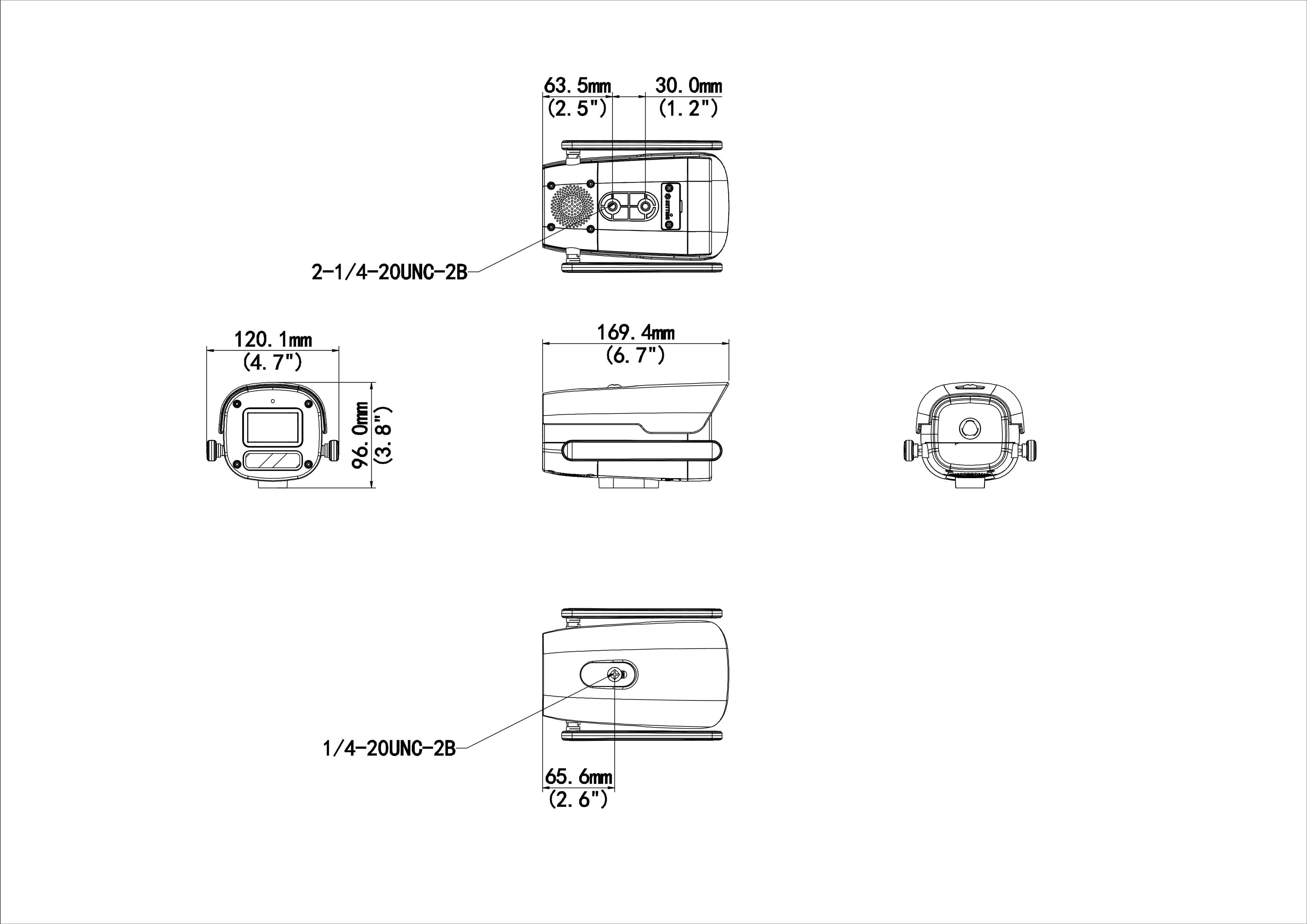

| Dimensions & Weight | 169 mm × 113 mm × 96 mm (6.7" × 4.4" × 3.8"); 0.47 kg (1.04 lb.) |
| Material & Protection | Graphene + Metal casing; IP67, 4 KV Surge protection |
| Working/Storage Environment | -30°C to 60°C (-22°F to 140°F), humidity $\le95\%$ RH |
| Language Support | 20 Languages (English, Spanish, French, German, Chinese, etc.) |

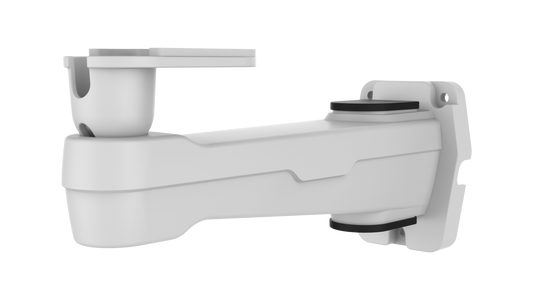

| Compatible Accessories | TR-WM06-C-IN wall mount, TR-UP06-B-IN pole mount, TR-WM07P-A plastic wall bracket, TR-UM06-A-IN desktop bracket, TR-CM08P-A pendant bracket |
| Download | Type |
|---|---|
| Data Sheet | |
| User Manual |
