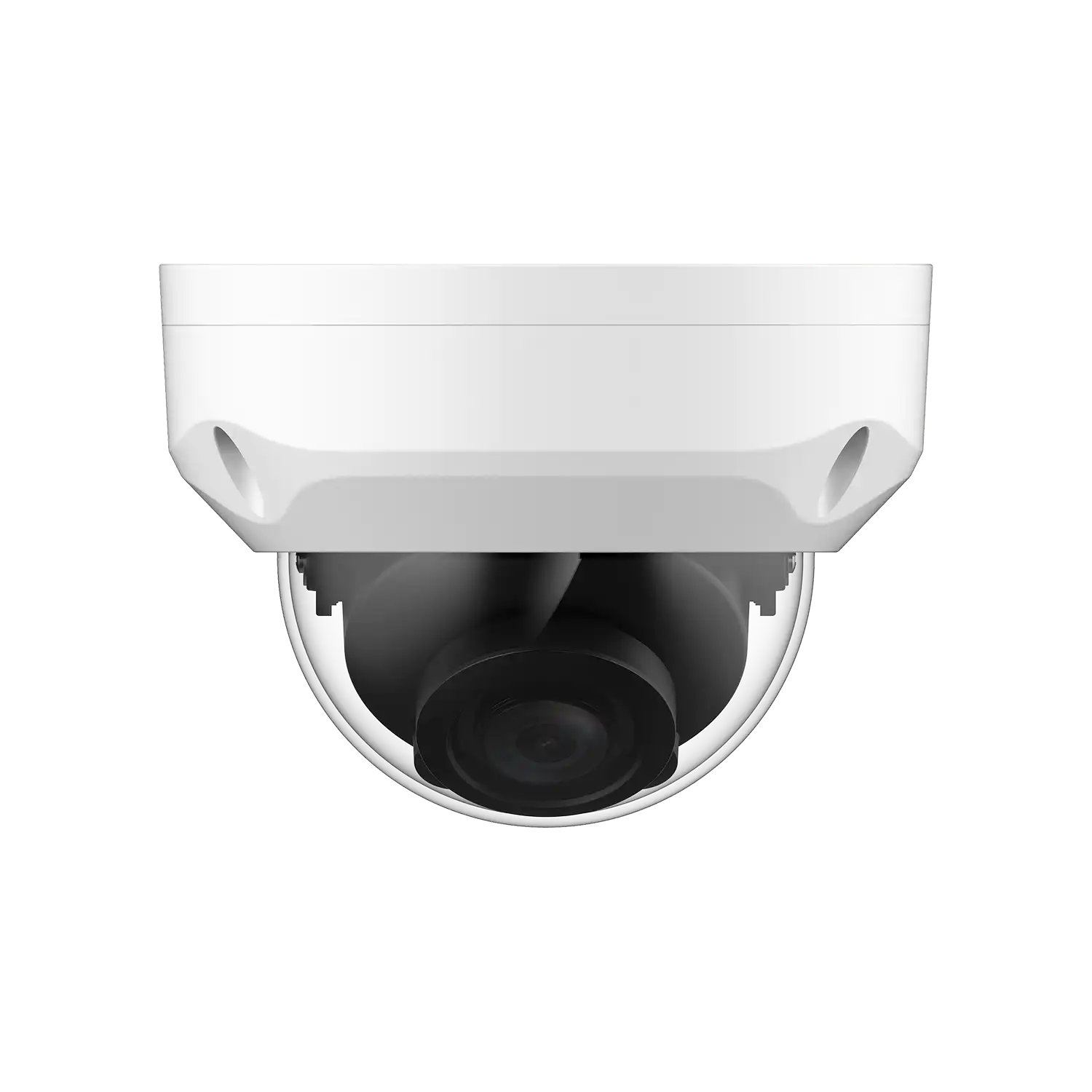

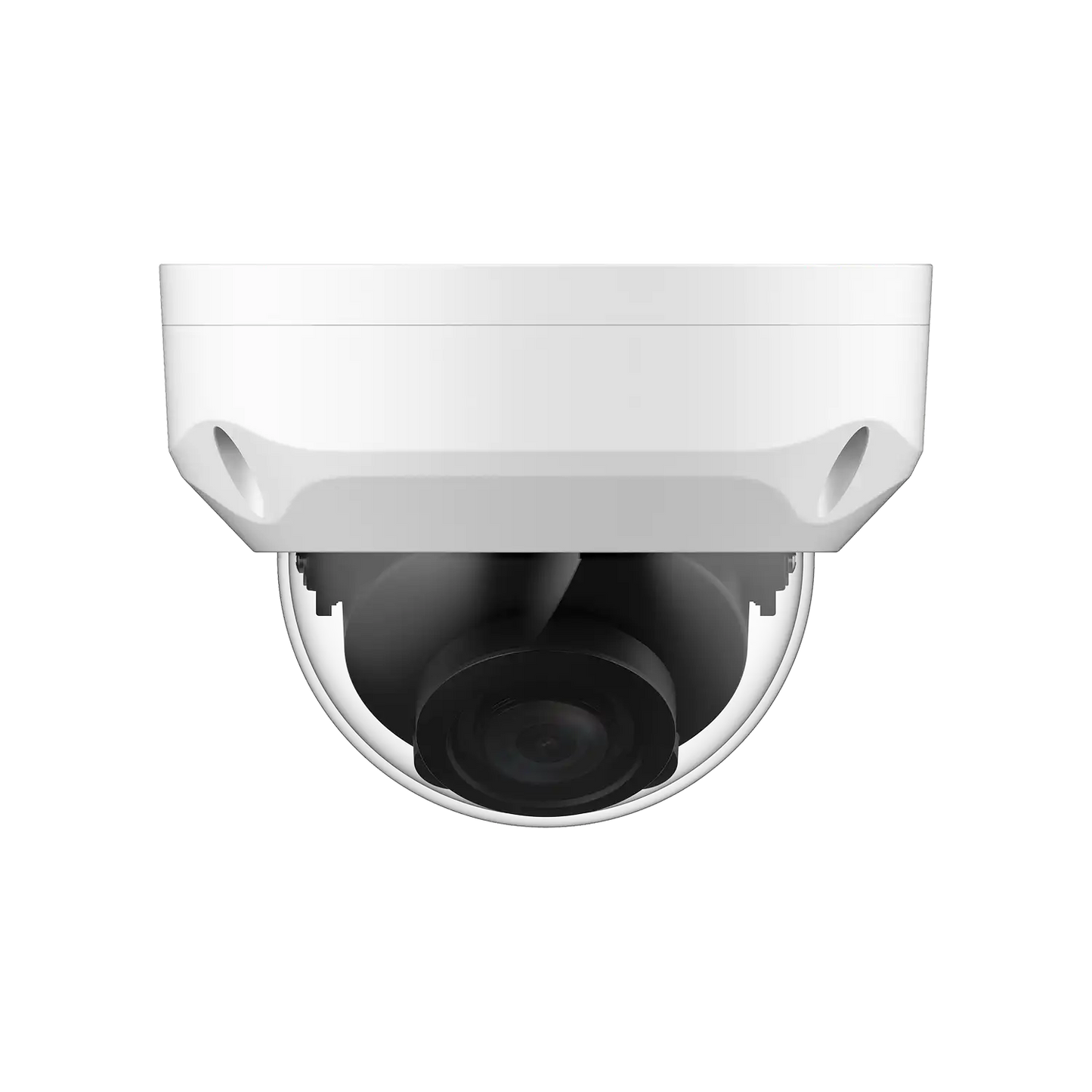

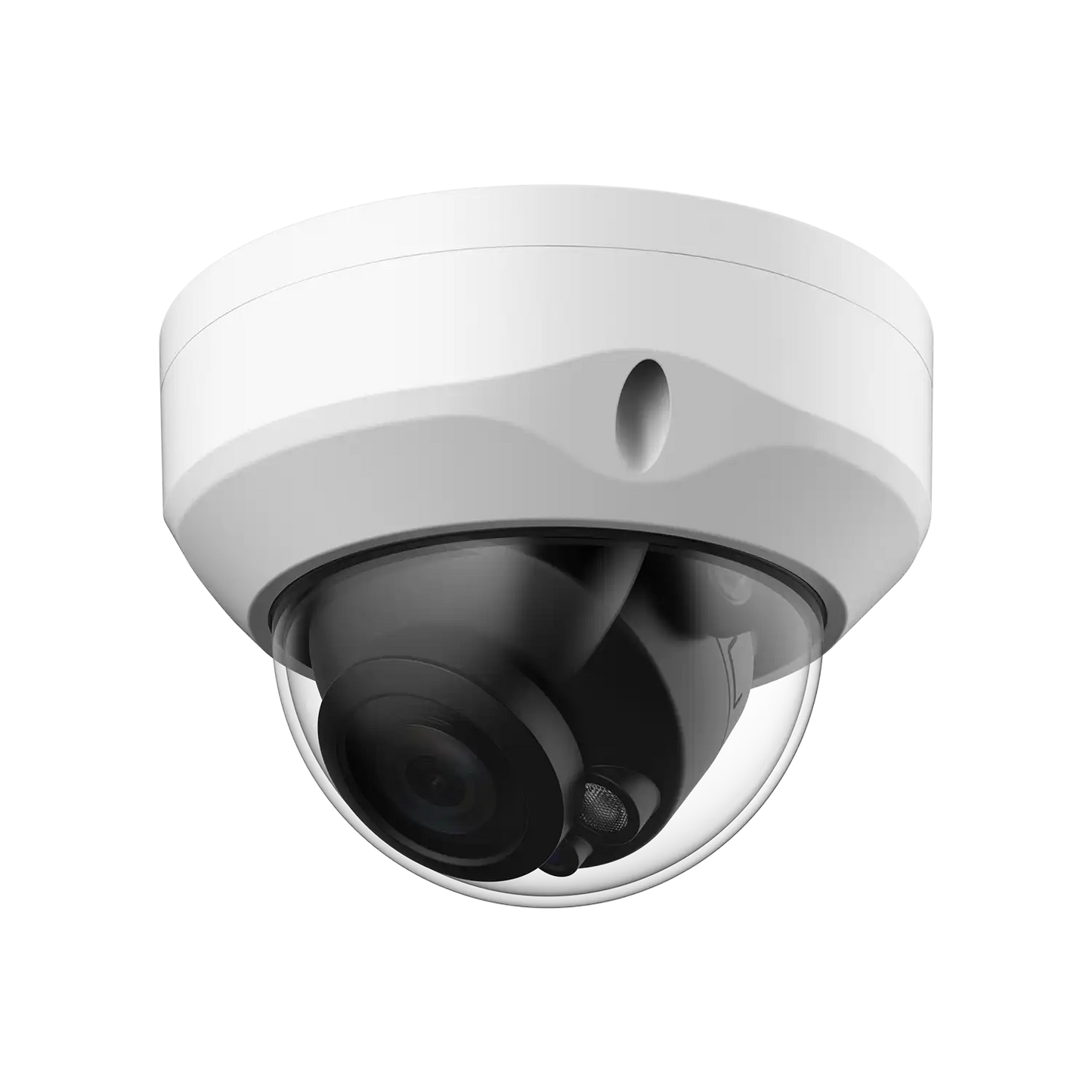

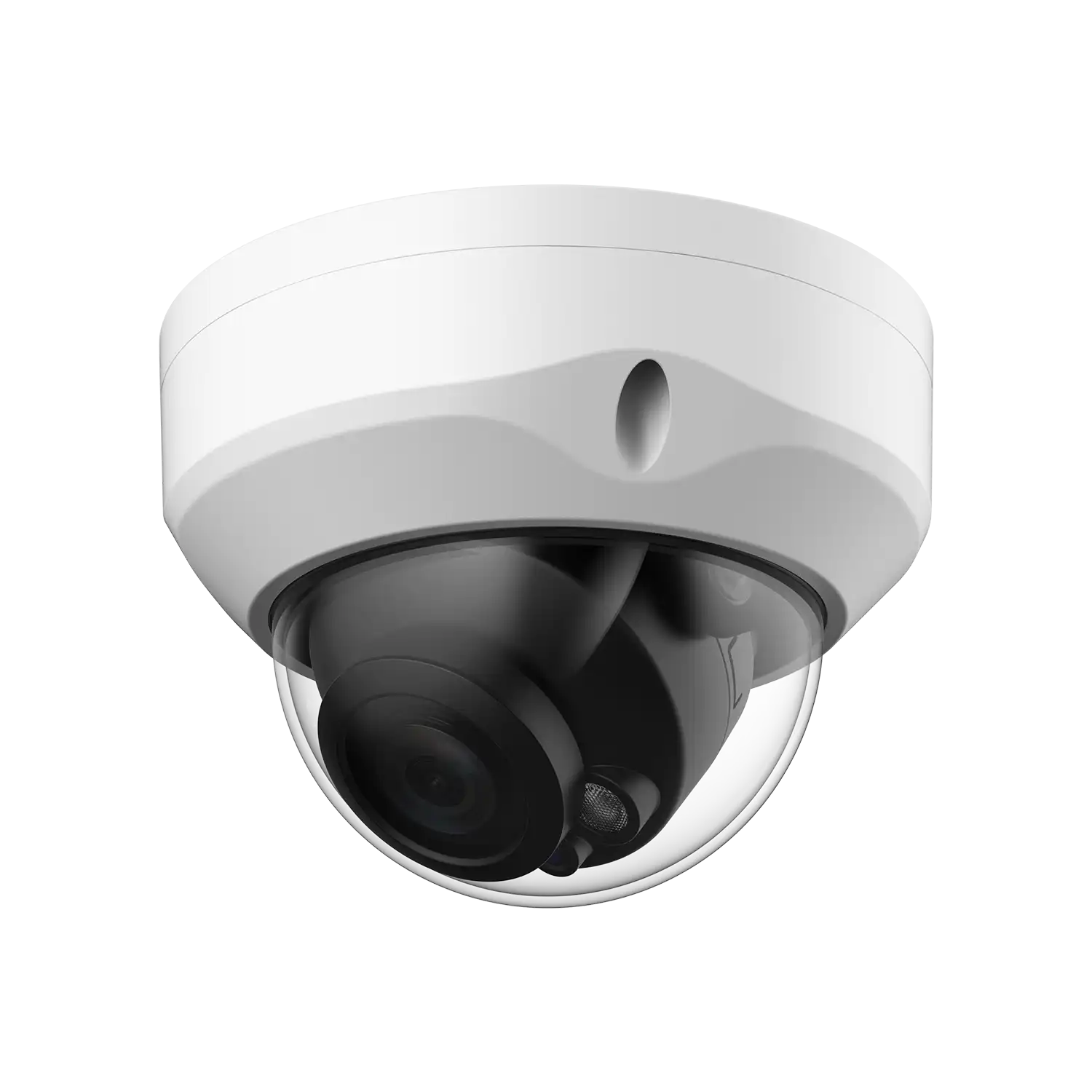

5MP 4-in-1 IR Motorized Varifocal Dome Camera

Part Number: HAC-VD15R-Z

Sensor Type: 1/2.7" CMOS
Lens Type: 2.7-12mm@F1.6, Motorized Zoom
Video Format: CVI (5M@25fps), TVI (4M@25fps), AHD (4M@25fps), CVBS (960H)
Angle of View: 34°-107° (Horizontal)
Min. Illumination: Color 0.01Lux/F1.6; B/W 0lux (IR On)
Night Vision Distance: 98.4 Feet (IR)
WDR: DWDR
Power: DC12V / Max 5.5W
NDAA Compliant: No
Warranty Period: 3 Years

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto; manual

Illuminator Number

2

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–75°

Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Auto Focus

N/A

Mount Type

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

Diagonal: 39°–130°

Horizontal: 34°–107°

Vertical: 19°–55°

Iris Type

Fixed iris

Close Focus Distance

0.5 m (1.64 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

69 m

(226.37 ft)

27.6 m

(90.55 ft)

13.8 m (45.27 ft)

6.9 m (22.63 ft)

12 mm

191.6 m (628.6 ft)

76.64 m

(251.44 ft)

38.32 m (125.72 ft)

19.16 m (62.86 ft)

Video

Frame Rate

CVI:

PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD:

PAL: 4M@25 fps; NTSC: 4M@30 fps TVI:

PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS:

PAL: 960H; NTSC: 960H

Resolution

5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/DWDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Certifications

Certifications

CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

DC 12V ±30%

Power Consumption

Max 5.5W (12V DC, IR on)

Power

Operating Temperature

–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)

Storage Temperature

–30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)

Protection Grade

IP67, IK10

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ122 mm × 88.9 mm (φ4.8" × 3.5")

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.62 kg (1.34 lb)

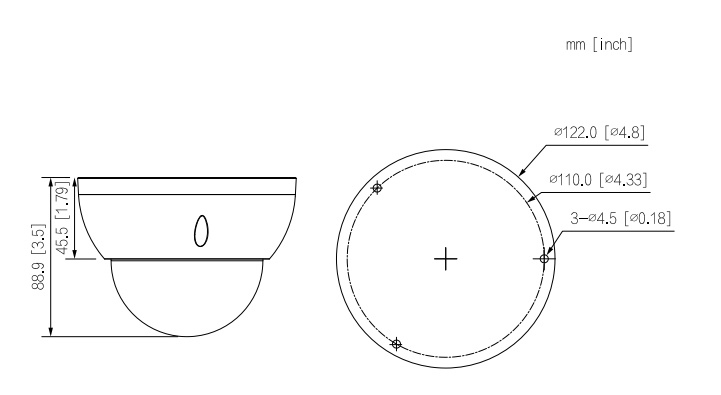

HAC-VD15R-Z DIMENSIONS
Download Type
Data Sheet

   pdf
