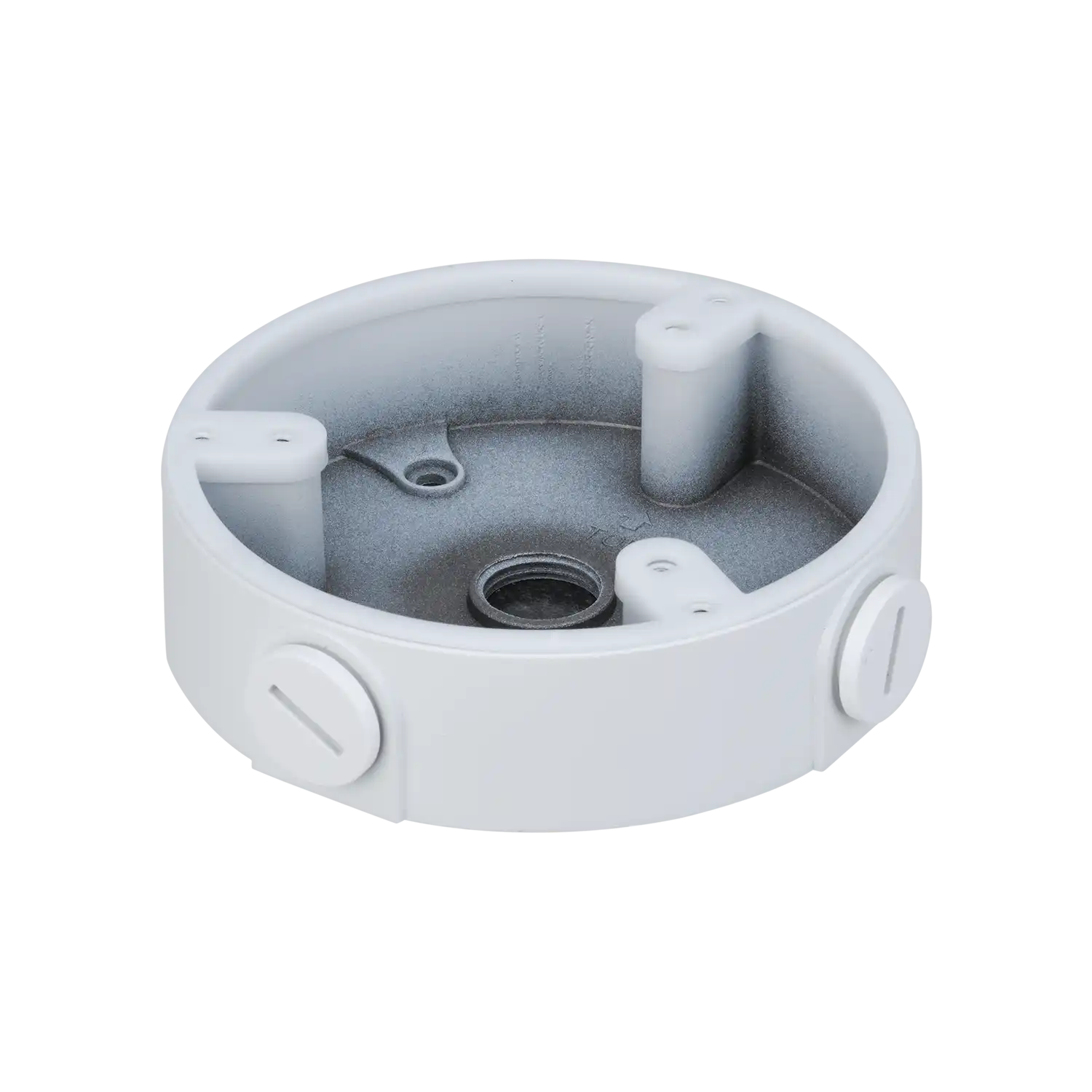

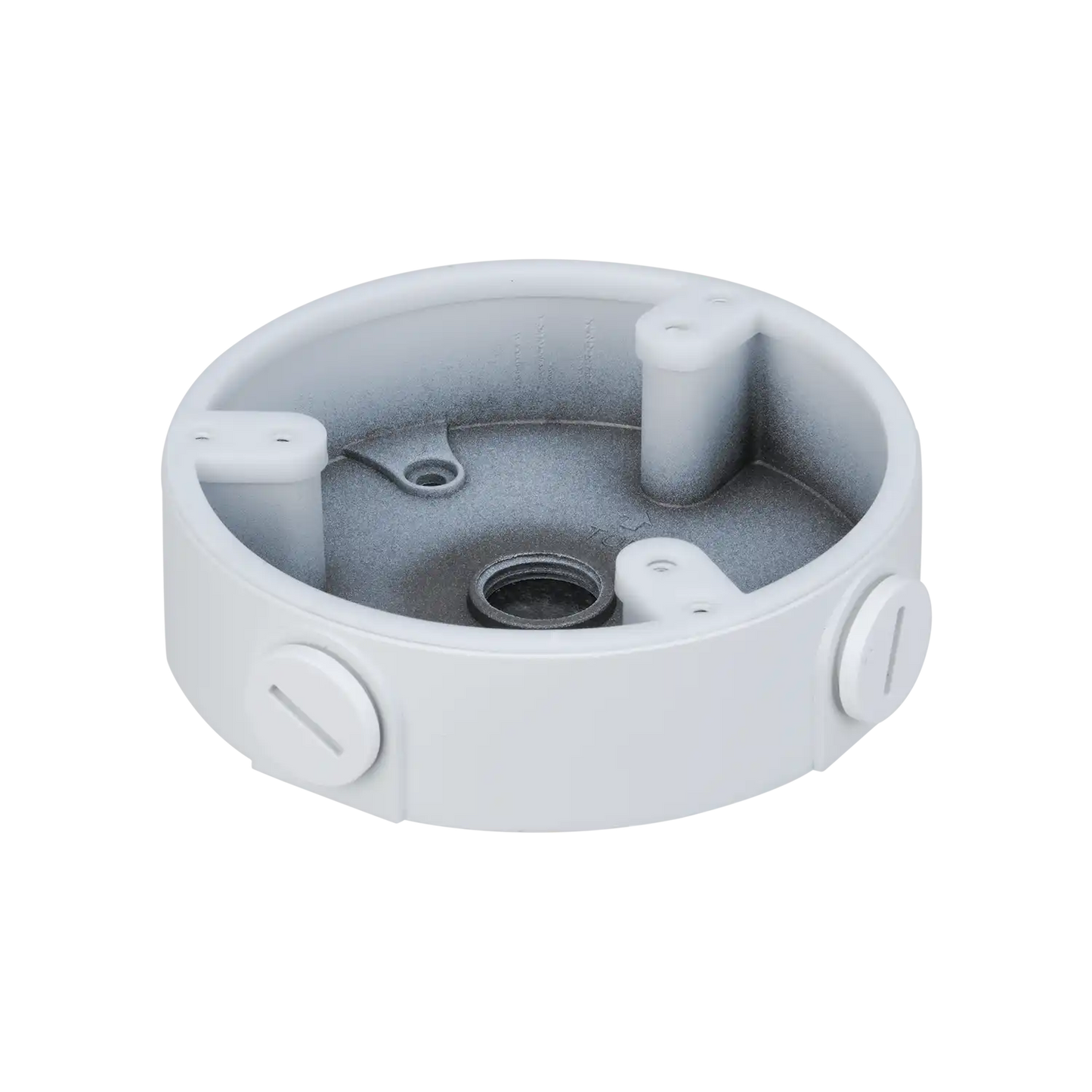

HD Analog Dome Junction Box
Part Number: PFA137
|
Model |
PFA137 |
|||
|
General |
||||
|
Material |
Aluminum |
|||
|

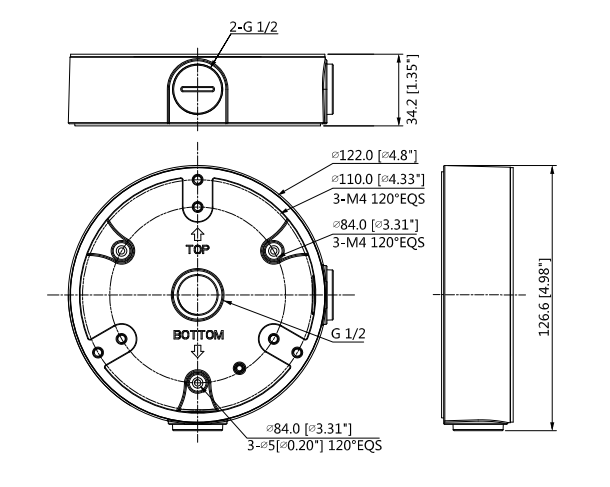

Dimension |
Φ122.0mmx34.2mm (Φ4.80”x1.35”) |
|||
|
Inch Thread |
M20(G1/2”) |
|||
|
Load Bearing |
1.0kg(2.2lb) |
|||
|
Weight |
0.24kg(0.53lb) |
|||
|
Color |
White |
|||
|
Operating Temperature |
-40ºC~+60ºC(-40℉~+140℉) |
|||
|
Humidity |
<90% RH |
|||
|
Applicable Model |
HAC-VD15R-Z |
|||
| Download | Type |
|---|---|
| Data Sheet |
