Part Number: UAC-B125-AF28M-W
Lens Type: 2.8mm
Max Resolution/Frame Rate: 5MP(2880x1620)@25fps
Angle of View: 111.5° (Horizontal)
Min. Illumination: Color 0.005Lux (F1.4, AGC ON)
Night Vision Distance: 131 Feet (LED)
WDR: DWDR
Audio: Built-in Microphone
Special Features: Day/Night Full Color
Power: DC12V / Max 3.28W
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Model |
UAC-B125-AF28M-W |
|
Sensor |
|
|
Pixel |
5MP |
|
Size |
1/2.7" |
|
Minimum illumination |
0.005 lux (F1.4, AGC ON) 0 lux (white light on) |
|
Lens |
|
|
Lens |
2.8mm |
|
Lens mount |
M12 |
|
Angle of view |
H: 111.5° V: 58.9° D: 134.8° |
|
Illuminator |
|
|
Illuminator |
Two white-light illuminators |
|
Illumination distance |
40m |
|
Lifetime |
≥60,000 hours |
|
Video |
|
|
Resolution |
5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
|
Frame rate |
TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC |
|
Shutter time |
PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
|
Image |
|
|
Exposure mode |
Four modes: Global (default), BLC, HLC, DWDR |
|
Day/Night |
24/7 color images |
|
Digital noise reduction |
2D |
|
White balance |
Two modes: Auto (default), Manual |
|
WDR |
DWDR |
|
Flip |
Supports 180° horizontal flip, 180° vertical flip |
|
Audio |
|
|
Microphone |
Built-in Mic |
|
Camera audio |
TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
|
Interface |
|
|
Power |
5.5mm power interface |
|
Video output |
BNC, supports TVI/AHD/CVI/CVBS |
|
Operating environment |
|
|
Temperature |
-30°C to 60°C (-22°F to 140°F) |
|
Humidity |
≤95% (RH, non-condensing) |
|
Surge protection |
4kV |
|
Ingress protection |
IP67 |
|
General |
|
|
Power |
DC12V (±25%), with reverse polarity protection and surge protection. Max 3.28W |
|
Mount |
3D bracket supplied, surface mount (default), optional junction box |
|

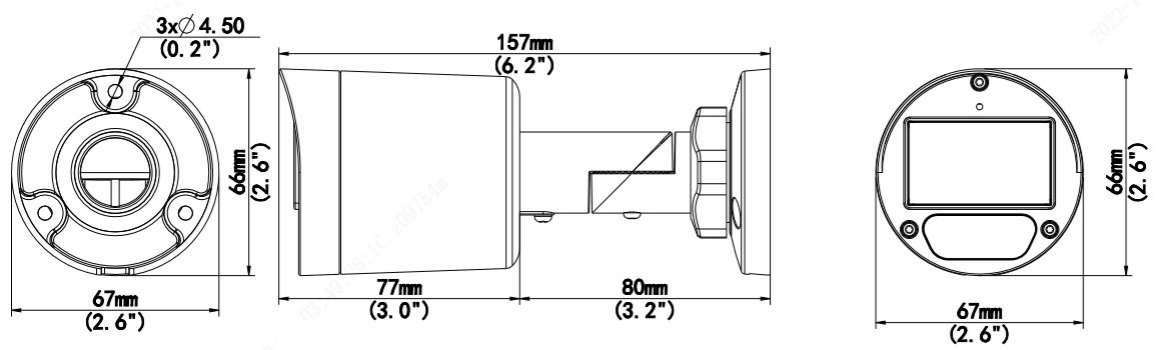

Dimensions |
157.4mm*66.5mm*66.5mm (L*W*H) |
|
Material |
Metal |
|
Weight |
279g (0.62lb) |
|
Certification |
CB, CE, FCC, UL |
