Available

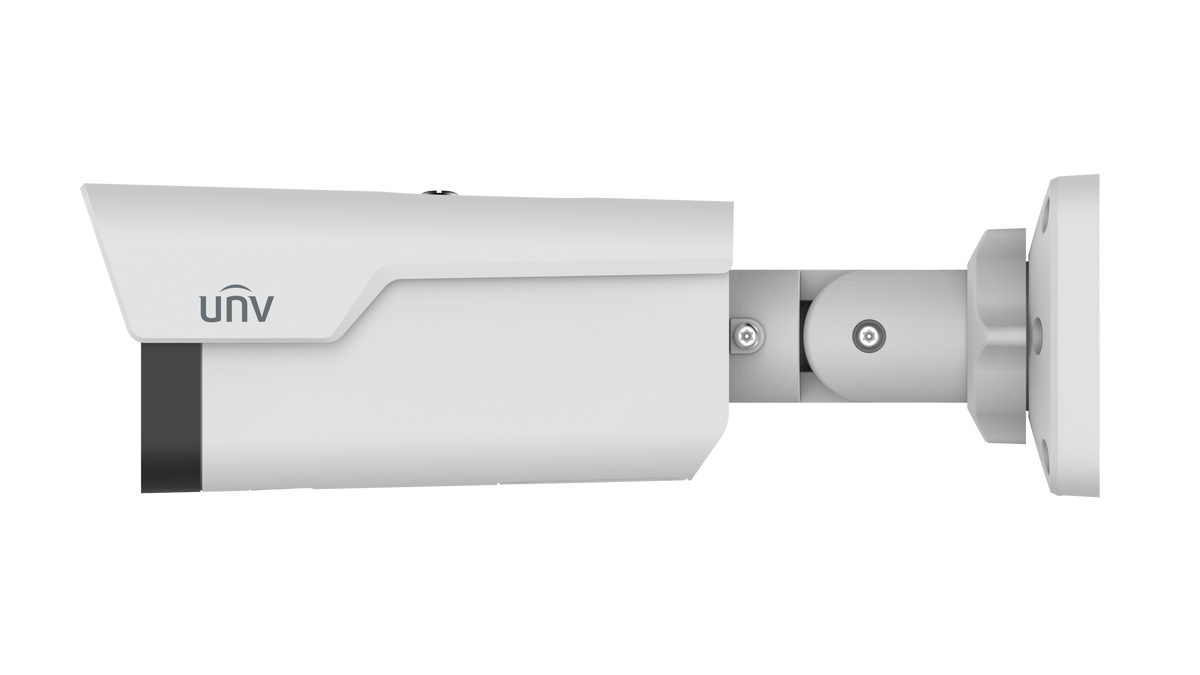

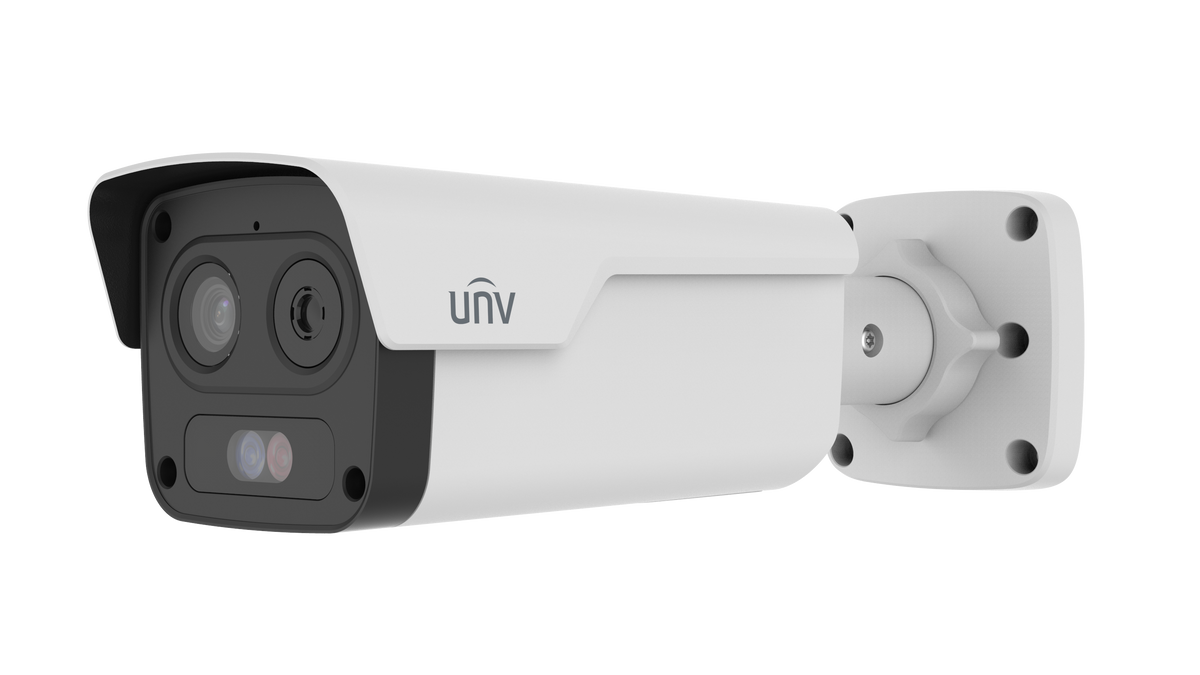

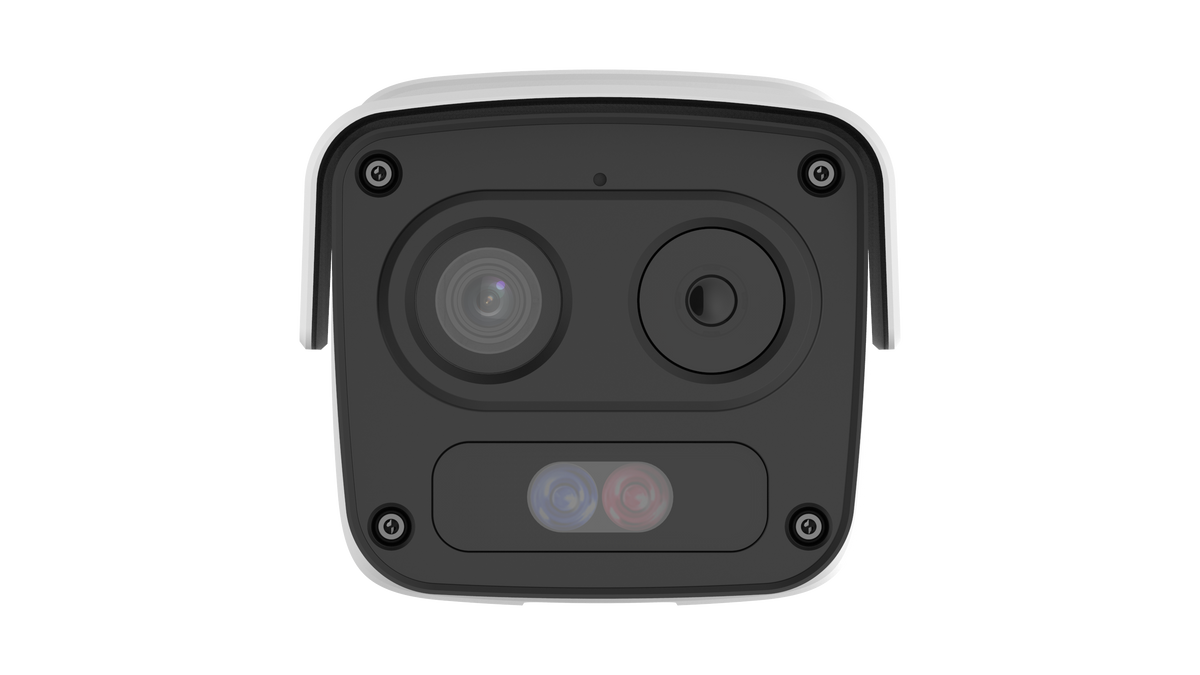

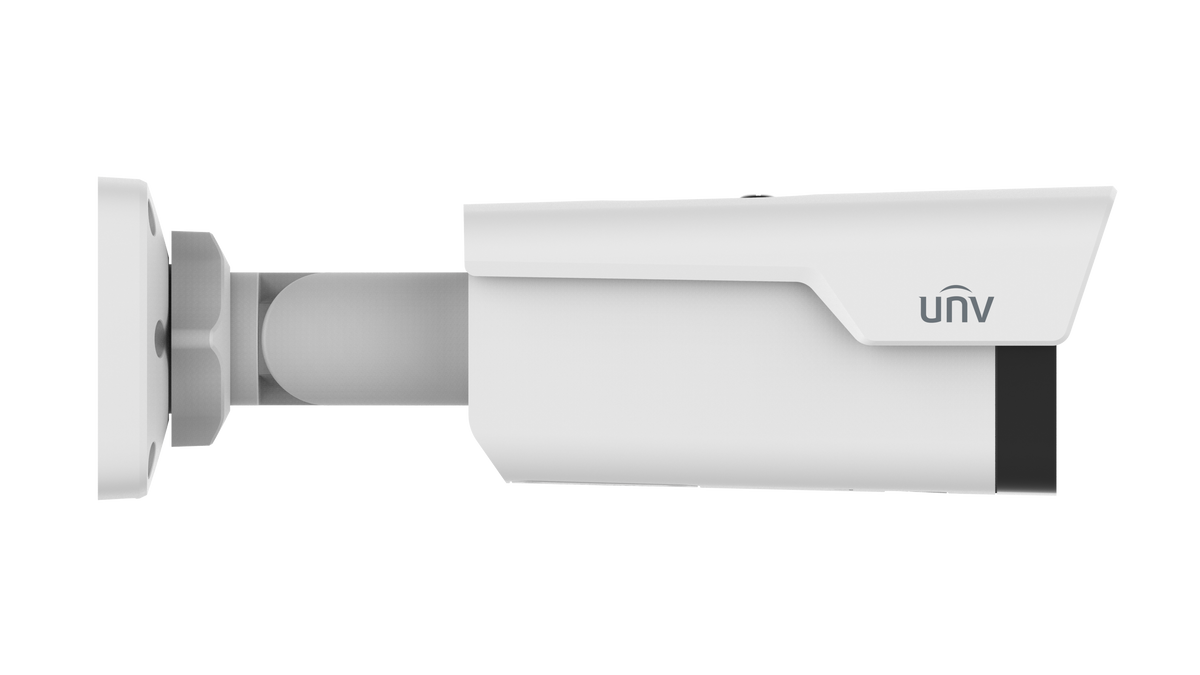

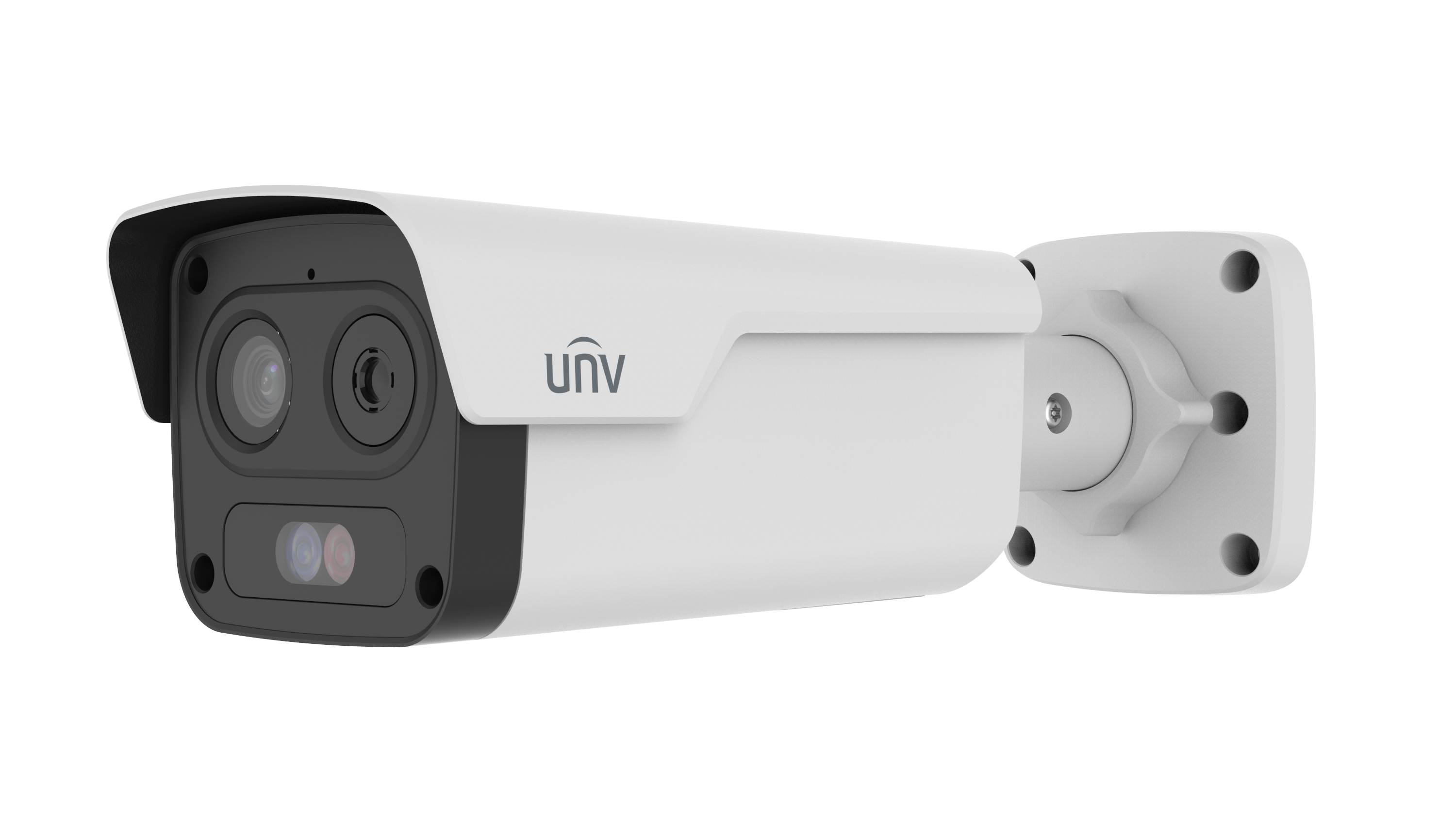

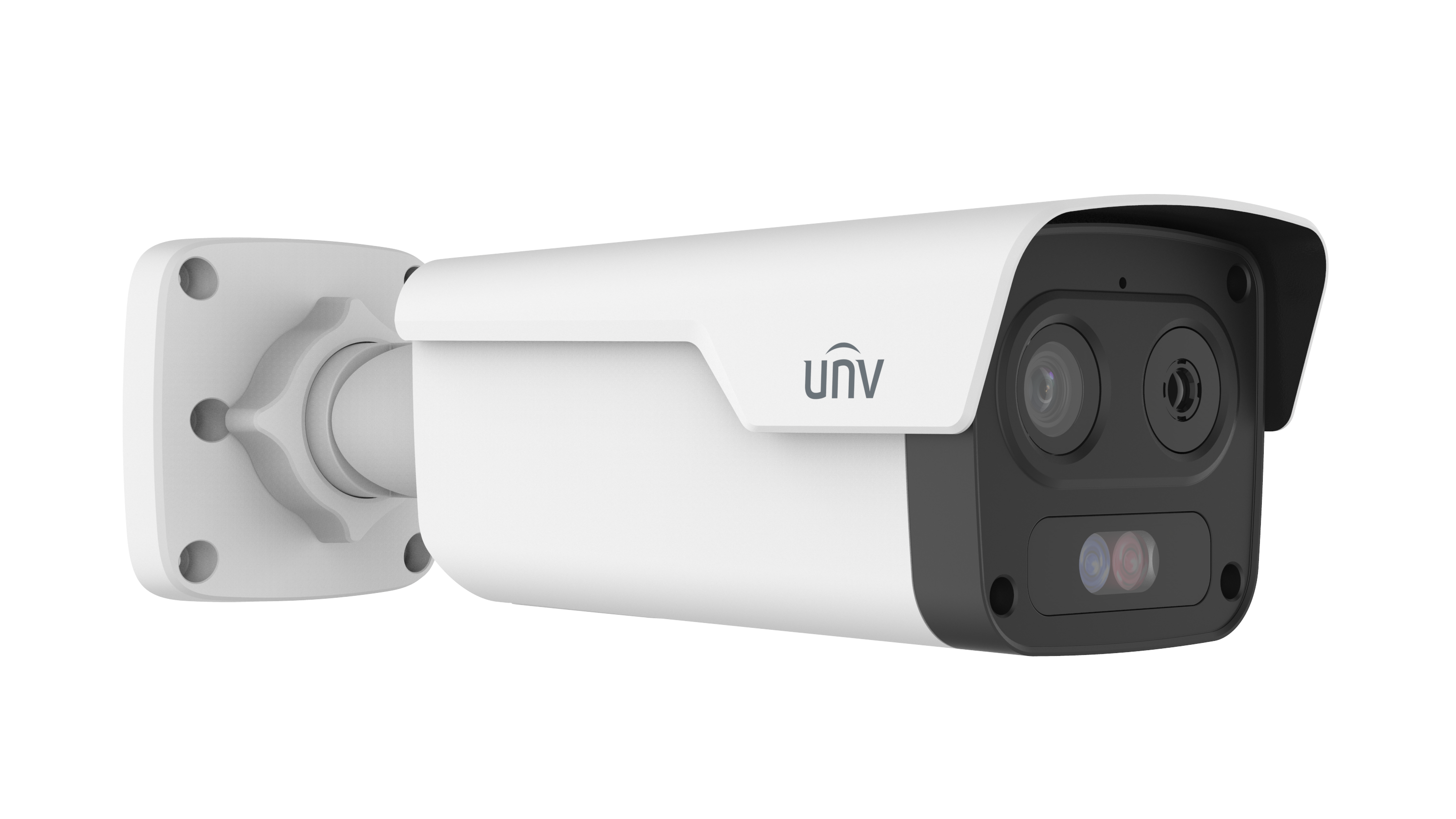

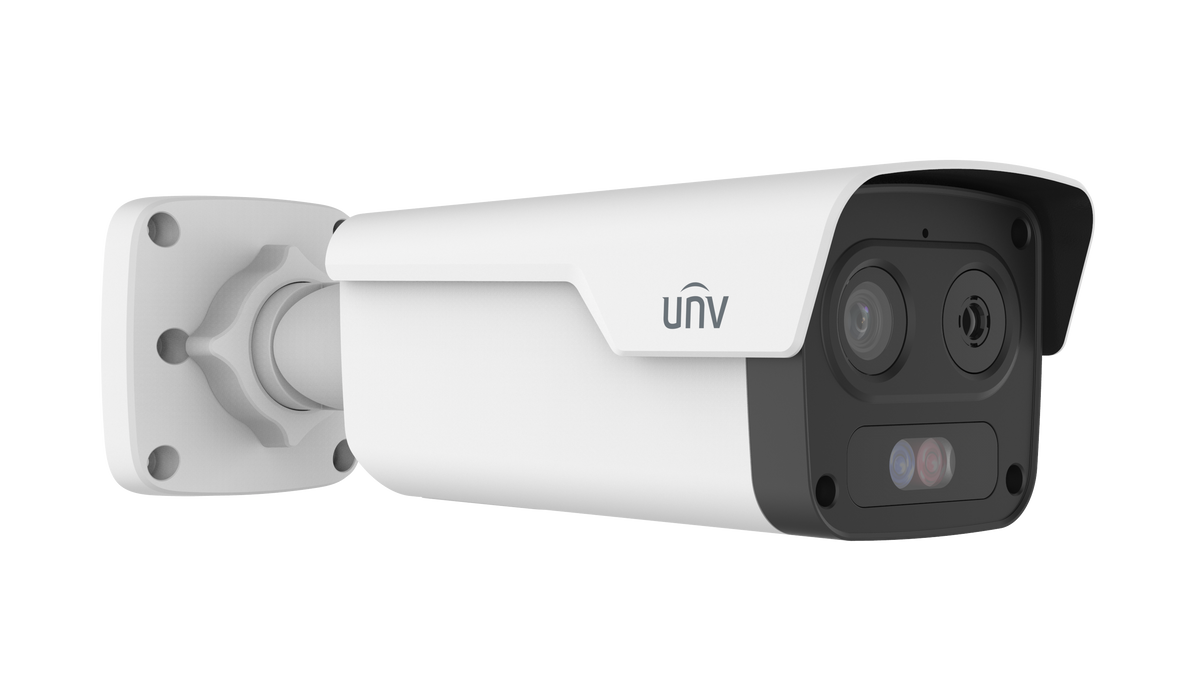

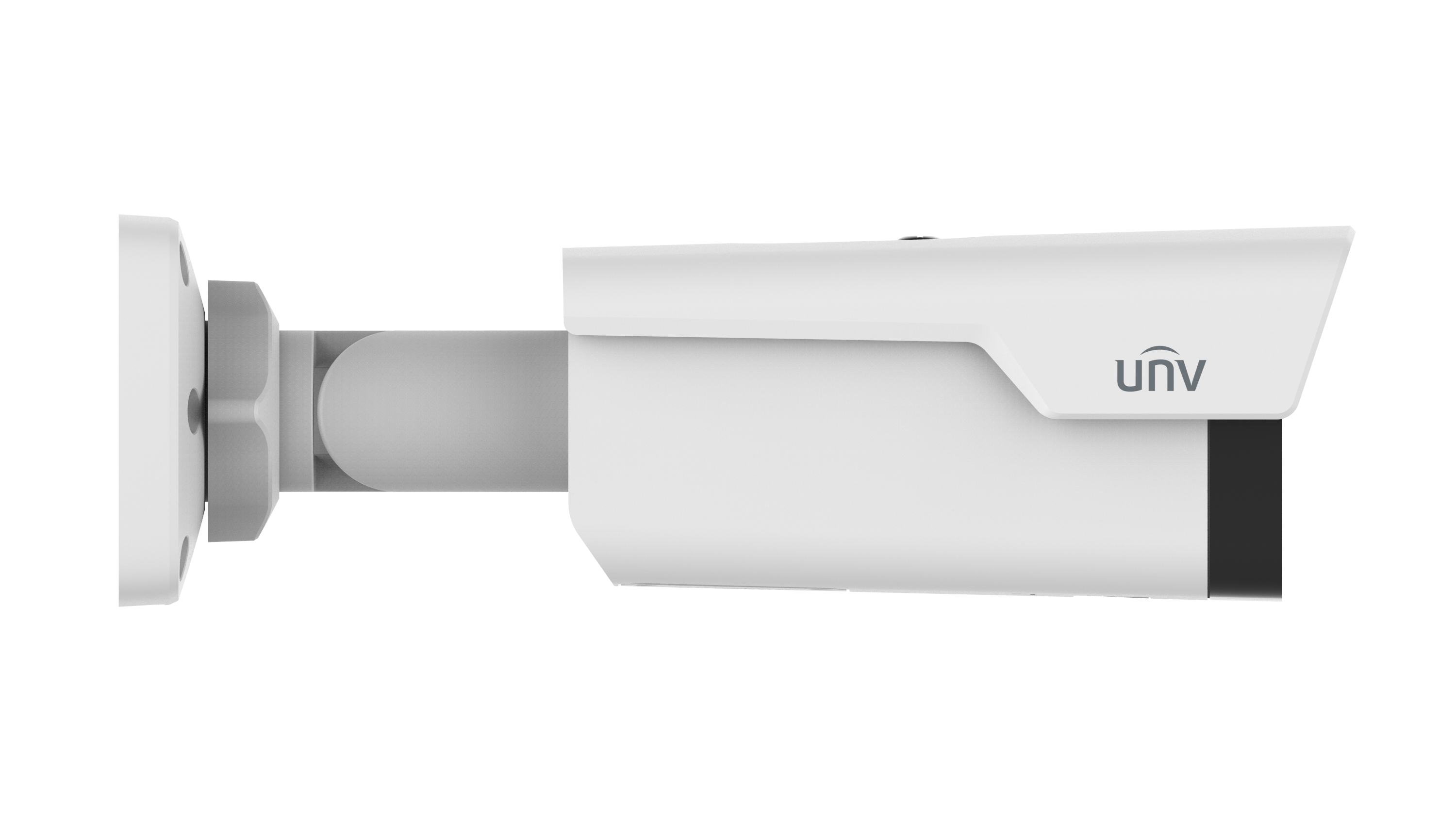

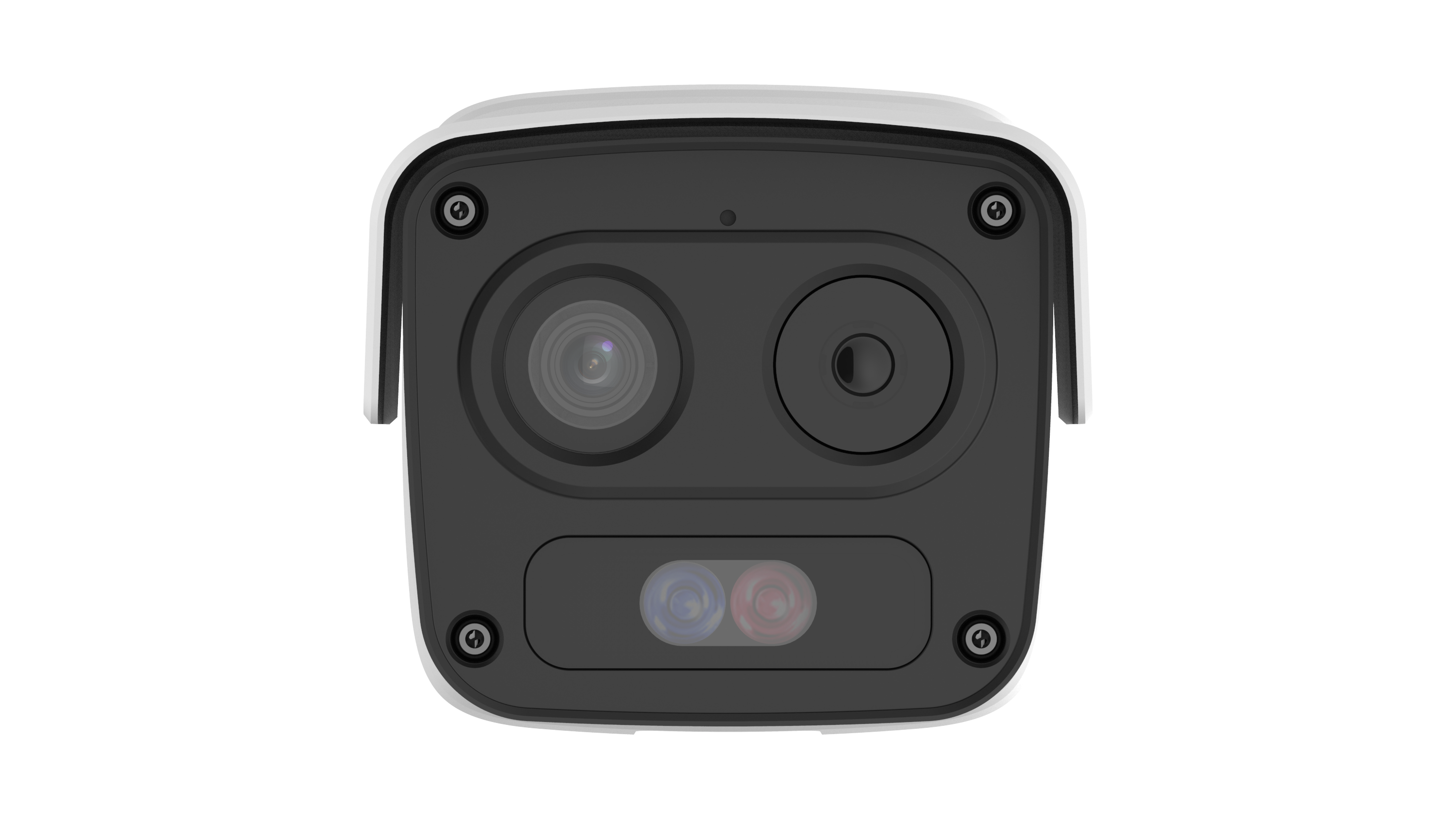

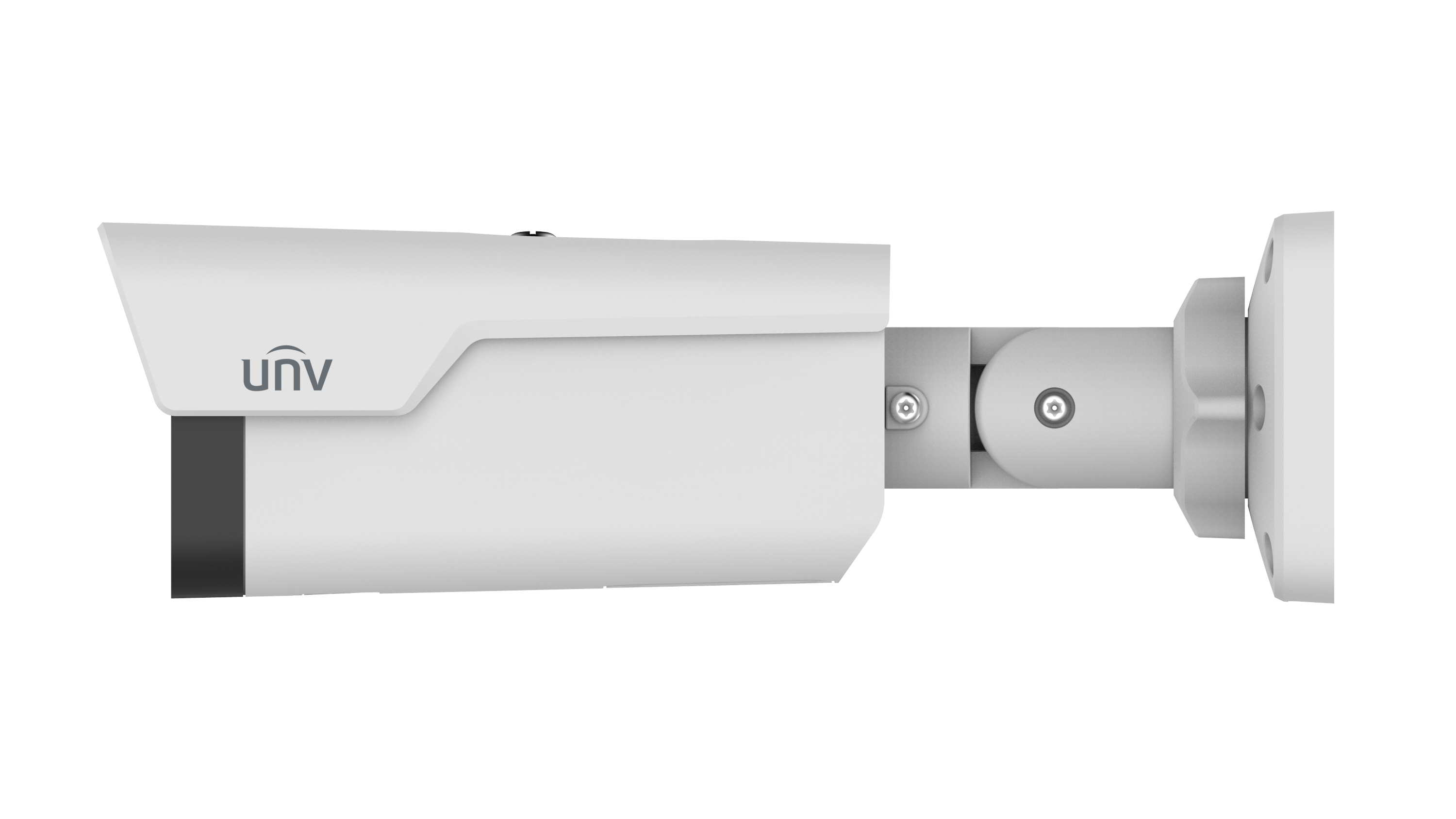

Thermal & Optical Dual-spectrum BulletPart Number: TIC2A32SA-F7-4F6AC-I1
Resolution
Optical 4MP / Thermal 960P
Lens Options
Optical 6.0mm / Thermal 7mm
Night Vision
164 ft (50m) IR & Thermal Detection
Power
PoE / DC12V (Max 12W)
Smart Feature Highlights
Sensor Type
1/2.8" CMOS (Optical) + Vanadium Oxide (Thermal)
Field of View (H)
49.1° (Optical) / 25.2° (Thermal)
WDR & Imaging
120dB True WDR & Lighthunter
Audio & Warning
Built-in Mic & Speaker
SD Card Slot
MicroSD up to 512GB
Ingress Protection
IP67 Weatherproof
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Thermal, Optical & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | TIC2A32SA-F7-4F6AC-I1 |
| Max Resolution | Optical: 4 MP (2688 × 1520) @ 30 fps Thermal: 960P (1280 × 960) @ 30 fps |
| Original Thermal Resolution | 256 × 192 |
| Sensor Types | Optical: 1/2.8" CMOS (Starlight) Thermal: Vanadium oxide uncooled focal plane arrays |
| Min. Illumination | Colour: 0.003 lux, B/W: 0.002 lux (F1.6, AGC ON), 0 lux with IR |
| Pixel Size & NETD | Thermal Pixel Size: 12 um; NETD: < 50 mk @ F1.0 @ 25°C |
| WDR & S/N Ratio | 120 dB True WDR; >56 dB S/N Ratio |
| Lens & Field of View | |
| Focal Length & Iris | Optical: 6.0 mm (F1.6) Thermal: 7 mm (F1.0) |
| Field of View (Optical) | H: 49.1°, V: 26.9°, D: 60.4° |
| Field of View (Thermal) | H: 25.2°, V: 19.3°, D: 31.0° |
| Optical DORI Distances | |
| Detect / Observe | Detect: 135.0 m (442.9 ft) / Observe: 54.0 m (177.2 ft) |
| Recognize / Identify | Recognize: 27.0 m (88.6 ft) / Identify: 13.5 m (44.3 ft) |
| Video & Imaging | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG (Triple streams) |
| Thermal Palettes | 22 palettes including White Hot, Black Hot, Rainbow, Iron Oxide Red, Lava, Arctic, etc. |
| Image Adjustments | 2D/3D DNR, Digital Defog, White Balance, Up to 8 OSDs, 8 Privacy masks, ROI |
| Thermal Intelligence, Network & General | |
|---|---|
| Thermal & Intelligent Analytics | |
| Smart Intrusion Prevention (SIP) | Bi-spectrum simultaneous cross line, intrusion, enter area, leave area detection with human/vehicle false alarm filtering |
| Fire Detection & Smoke | Thermal module fire detection with fire shield area support; Optical module smog recognition |
| Temperature Measurement | Cold & hot spot tracking with abnormal temperature alarm; Range: -20°C to 150°C and 100°C to 550°C; Accuracy: ±8°C or ±8% |
| Audio, Storage & Interface | |
| Audio & Active Deterrence | G.711U, G.711A; Two-way audio, built-in mic and speaker |
| Edge Storage | MicroSD slot, up to 512 GB with ANR and Network Storage |
| Network Protocols & Security | IPv4/IPv6, ONVIF (S/G/T), HTTPS, SSL/TLS, 802.1x, Up to 32 users (3 user levels) |
| Interfaces & I/O | Audio I/O (1 In / 1 Out), Alarm I/O (2 In / 2 Out), 1× RS485, 1× RJ45 10M/100M, 1 BNC debug output |
| General & Environment | |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af); Max. 12W consumption |

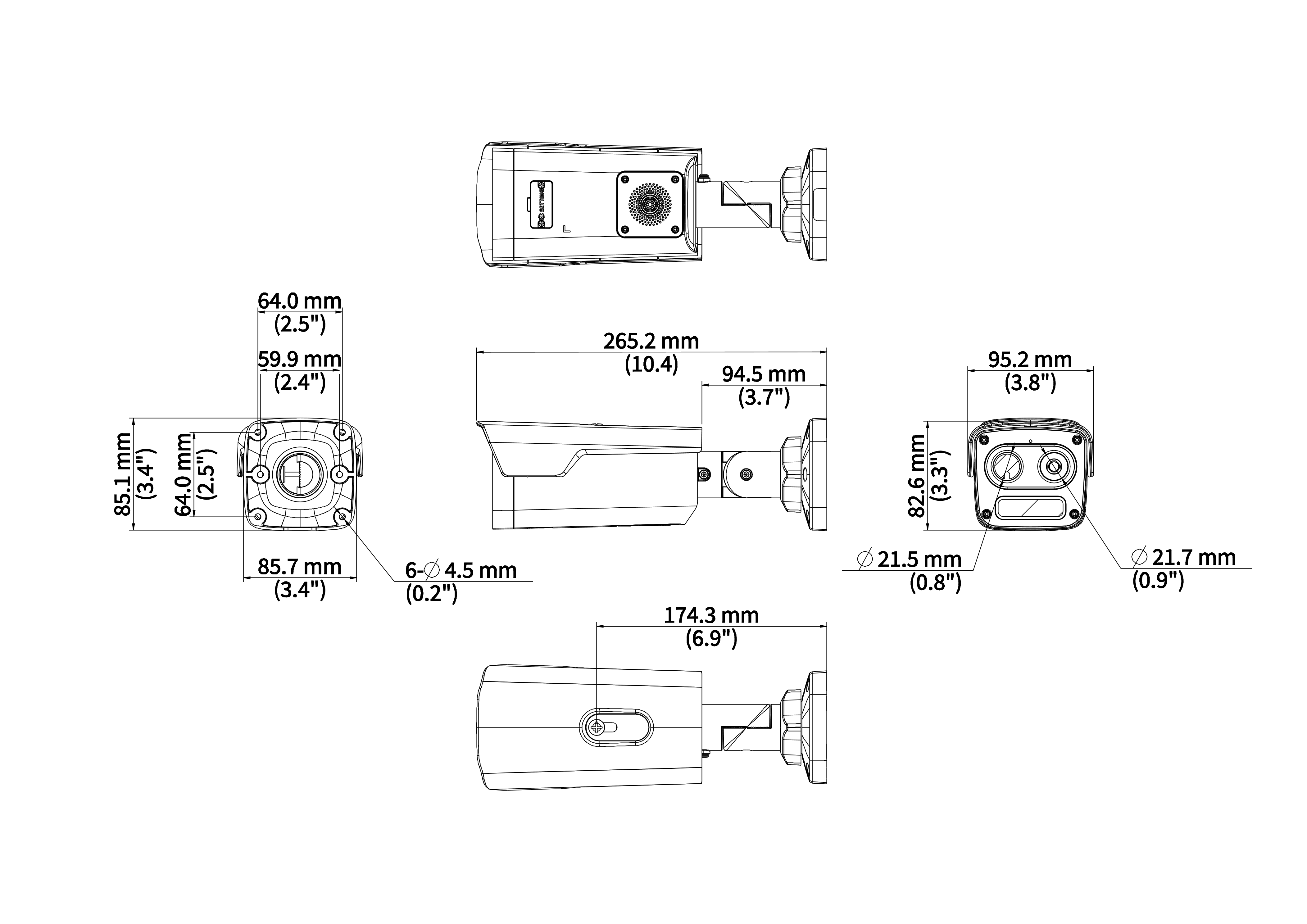

| Dimensions & Weight | 269.1 × 95.7 × 85.41 mm (10.6" × 3.75" × 3.36"); Weight: 0.93 kg (2.1 lb) |
| Protection & Environment | IP67, 6 KV Surge protection; Working temp: -40°C to 70°C (-40°F to 158°F) |
| Compatible Accessories | TR-UP06-B-IN / TR-UP06-C-IN pole mounts, TR-JB06-A-IN junction box, TR-A01-IN waterproof cable gland |
