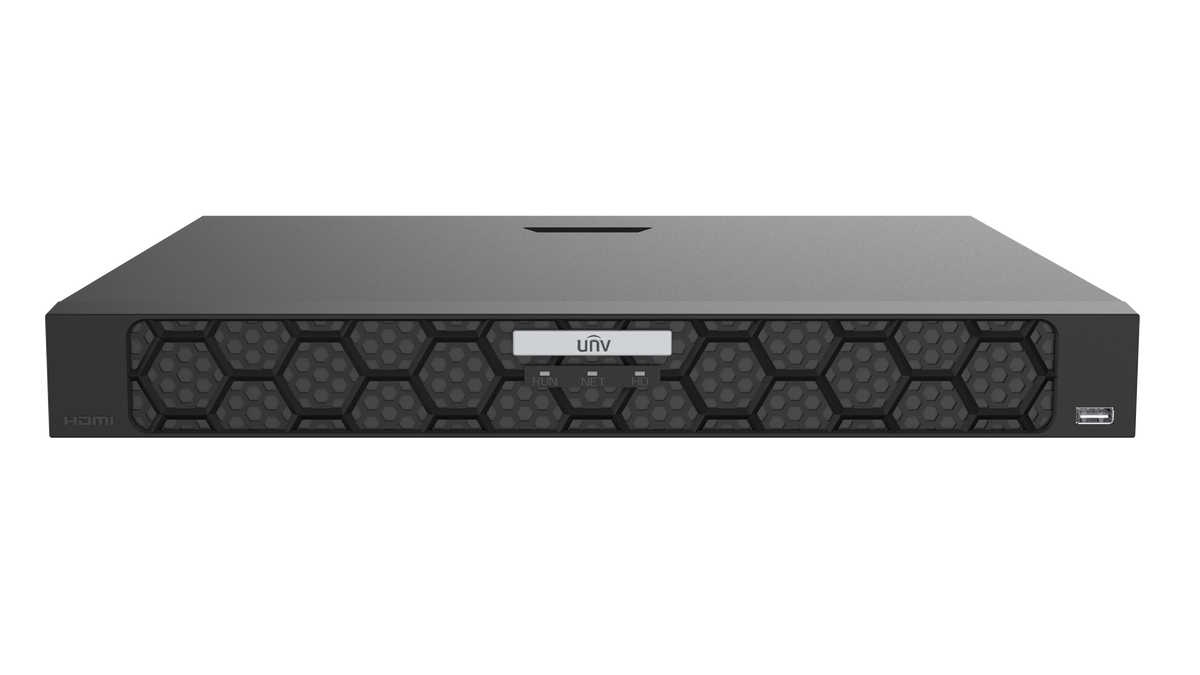

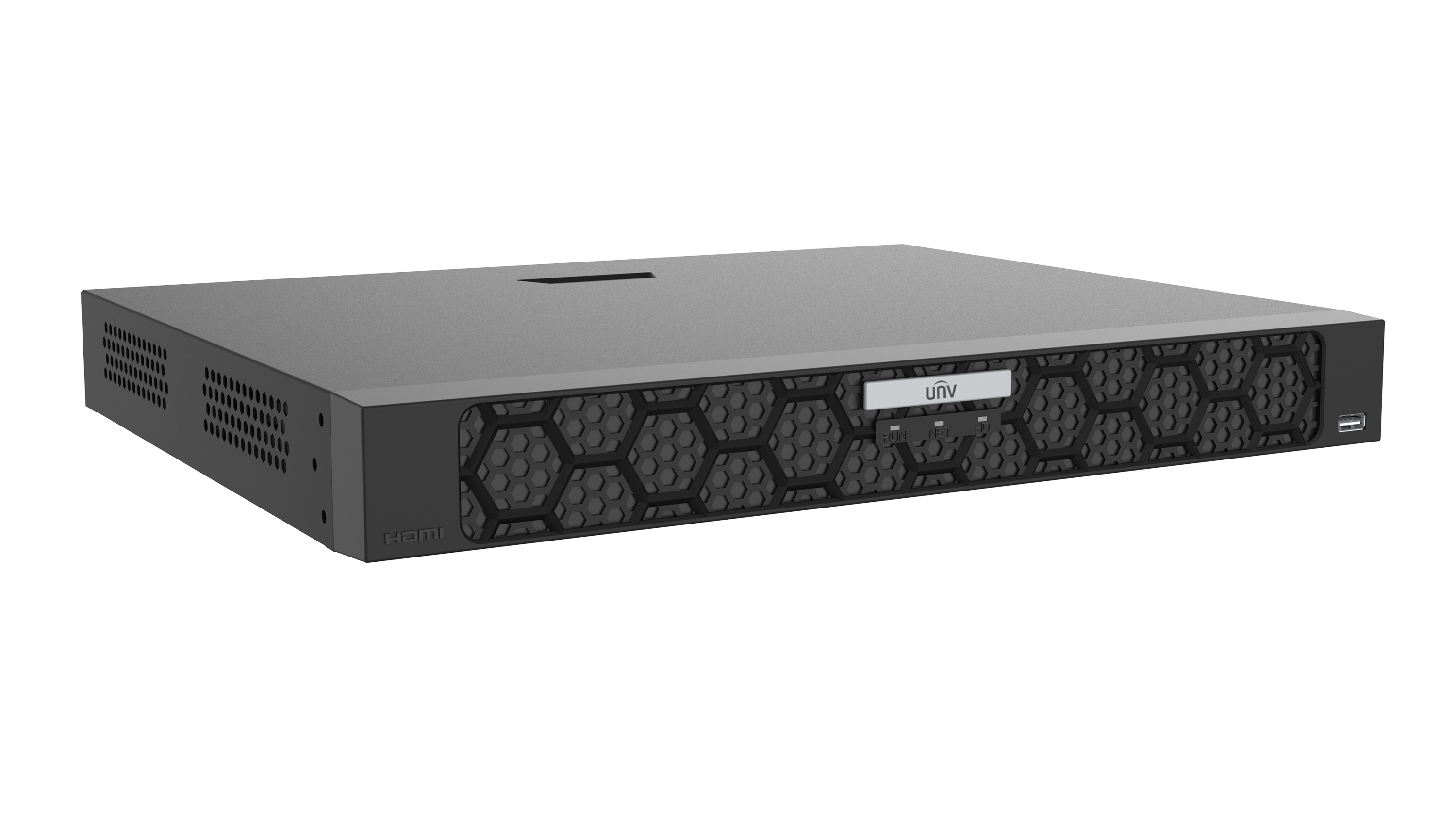

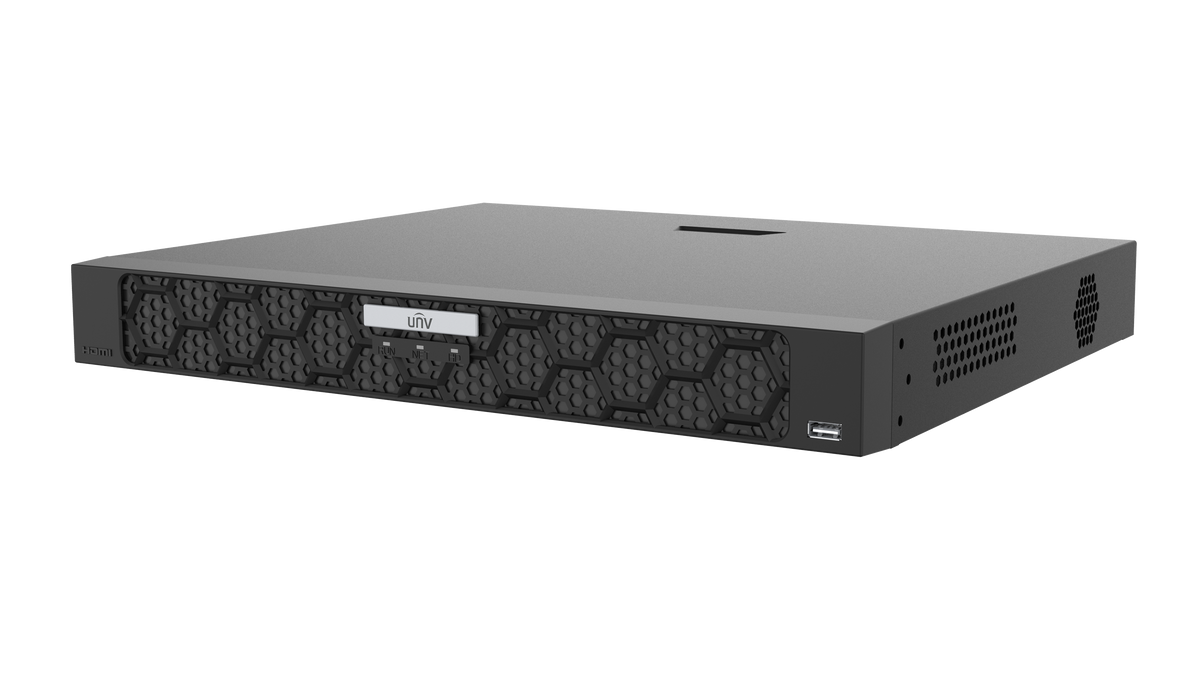

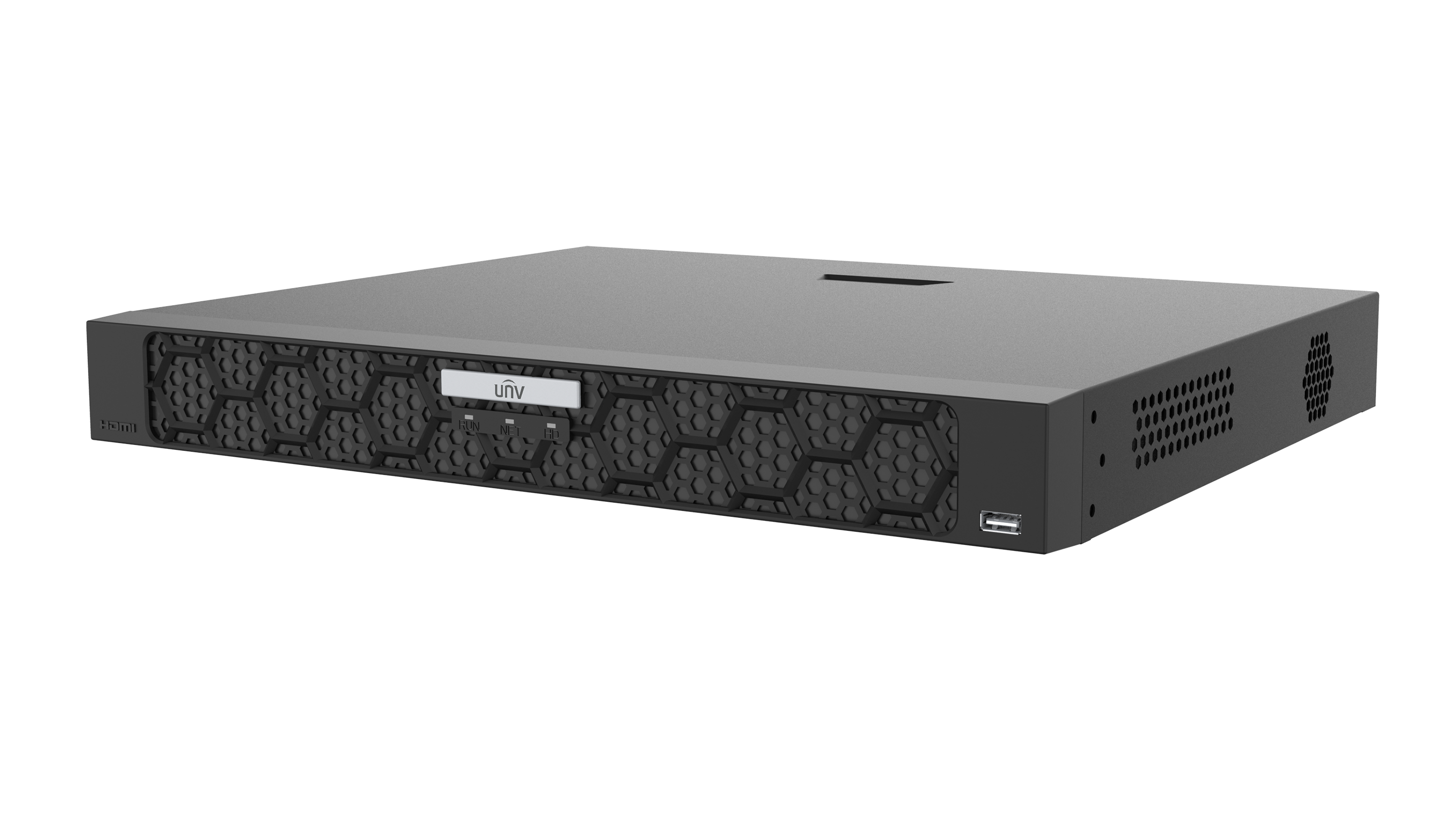

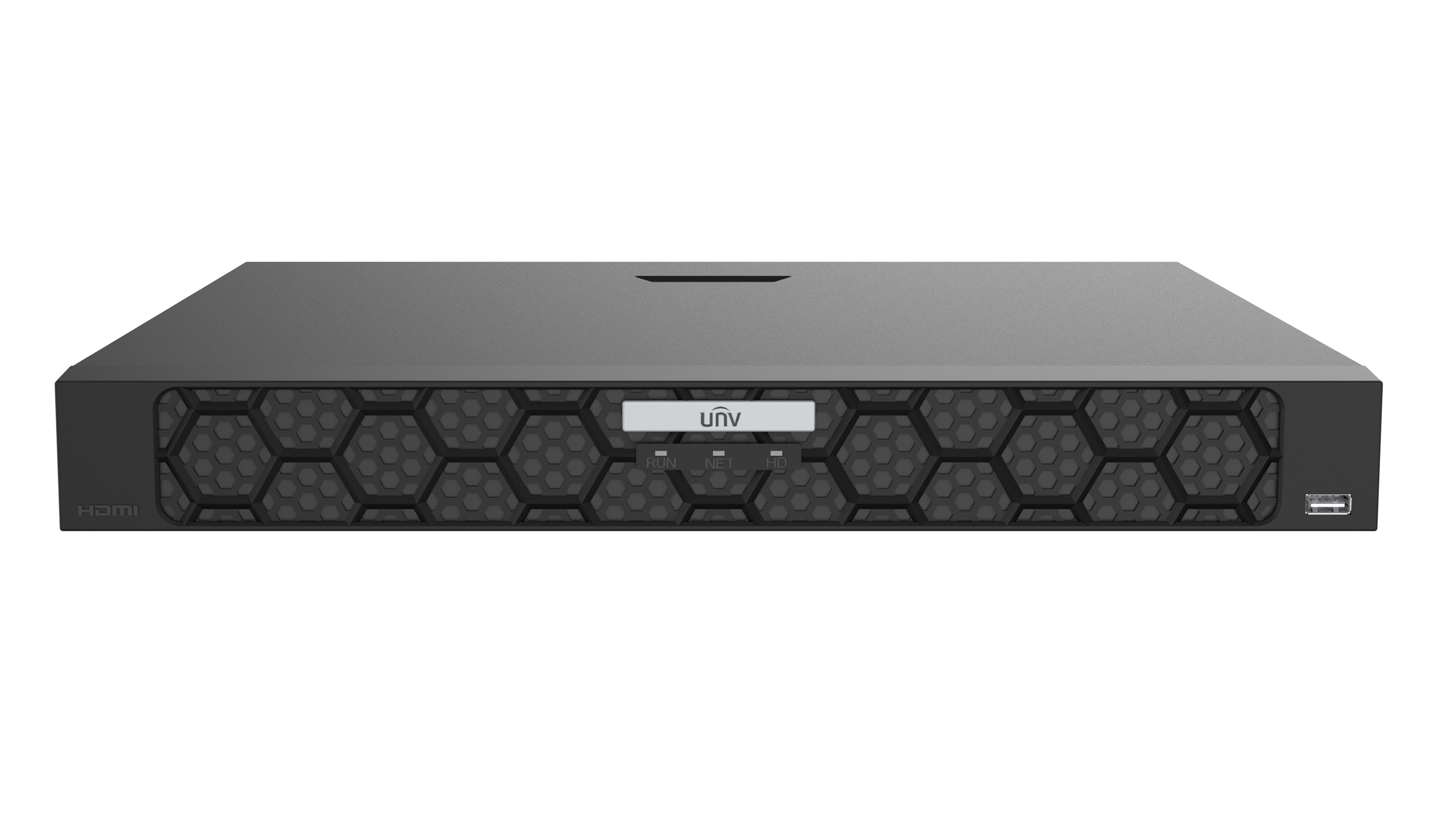

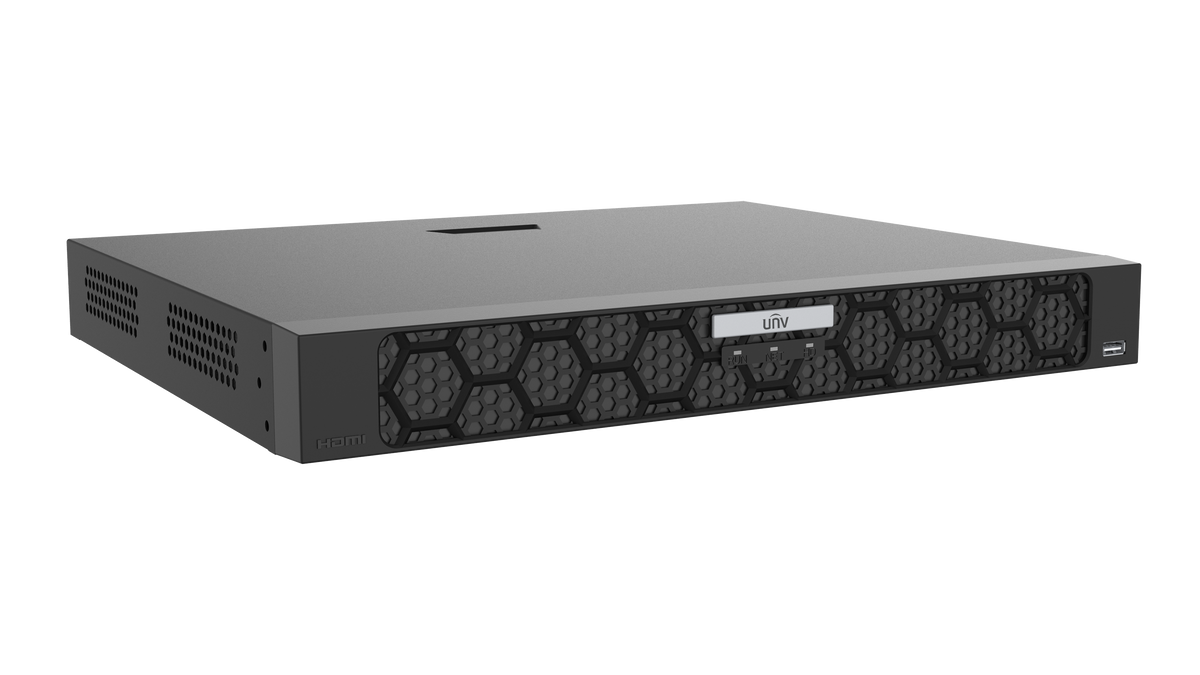

Name: NVR502-08B-P8-IQ
Brand: dhvision
SKU: 0446310786
Availability: InStock
Rating: 4.4 (89 reviews)

1 4

Available

2 HDDs 8-ch 8 PoE 1U Network Video Recorder

Part Number: NVR502-08B-P8-IQ

        Channels & PoE
        8-Channel IP / 8 PoE Ports


        Max Resolution
        Up to 16 MP Recording


        Bandwidth
        Smart Off: 320 Mbps / Smart On: 160 Mbps


        Storage
        2 SATA HDDs (Up to 24 TB Each)


Smart Feature Highlights

PoE Budget Max 30W per port, Max 130W total

RAID Support RAID 1 Redundant Storage

Video Outputs 1x HDMI (up to 4K), 1x VGA (Independent Output)

Alarm I/O 8 Inputs / 2 Outputs

NDAA Compliant Yes

A Plus Guard (Cloud Compatible) Yes, HDMI/VGA Enabled. UNV/Onvif Cameras.

Decoding, Input/Output & Recording (8-CH)
Model & System
Model	NVR502-08B-P8-IQ
IP Video Input	8-ch Plug & Play
Bandwidth	Smart Off: 320 Mbps / Smart On: 160 Mbps (Incoming); Outgoing: 160 Mbps
Remote Users	128
Decoding & Video
Decoding Format	Ultra 265, H.265, H.264; Audio: G.711A, G.711U
Decoding Capability	Smart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30; Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30
Recording Resolution	16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback	16-ch local playback
Inputs & Outputs
HDMI Output	4K (3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA Output	1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz (Independent output supported)
Audio I/O	RCA Audio Input: 1-ch / RCA Audio Output: 1-ch (Two-way audio supported)
Display & Corridor Mode	Liveview Display: 1/4/6/8/9/16; Corridor Mode Screen: 3/4/5/7/9/10/12/16

PoE, Smart, Storage, Network & General (8-CH)
Power over Ethernet (PoE)
PoE Interfaces	8 RJ45 10M/100M self-adaptive independent PoE network interfaces
PoE Power Budget	Max 30W for single port, Max 130W in total; IEEE 802.3at, IEEE 802.3af
Smart AI Analytics & VCA
Smart Analytics	Smart by IPC & Smart by NVR (Face Detection/Comparison, SIP, UMD, AcuSearch, AcuTrack)
VCA Search	AcuSearch, AcuTrack, Face/Vehicle/Non-Motor Vehicle/Human Body Search, Counting Report, Heat Map
Plate Comparison	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures
Storage, Network & General
Hard Disk (SATA & RAID)	2 SATA Interfaces, Up to 24 TB each; RAID 1 Redundant Storage & Disk Group support
Network & USB	1 RJ45 10M/100M/1000M Ethernet Interface; USB: 1x Front USB 2.0, 1x Rear USB 3.0
Alarm I/O	8 Inputs / 2 Outputs

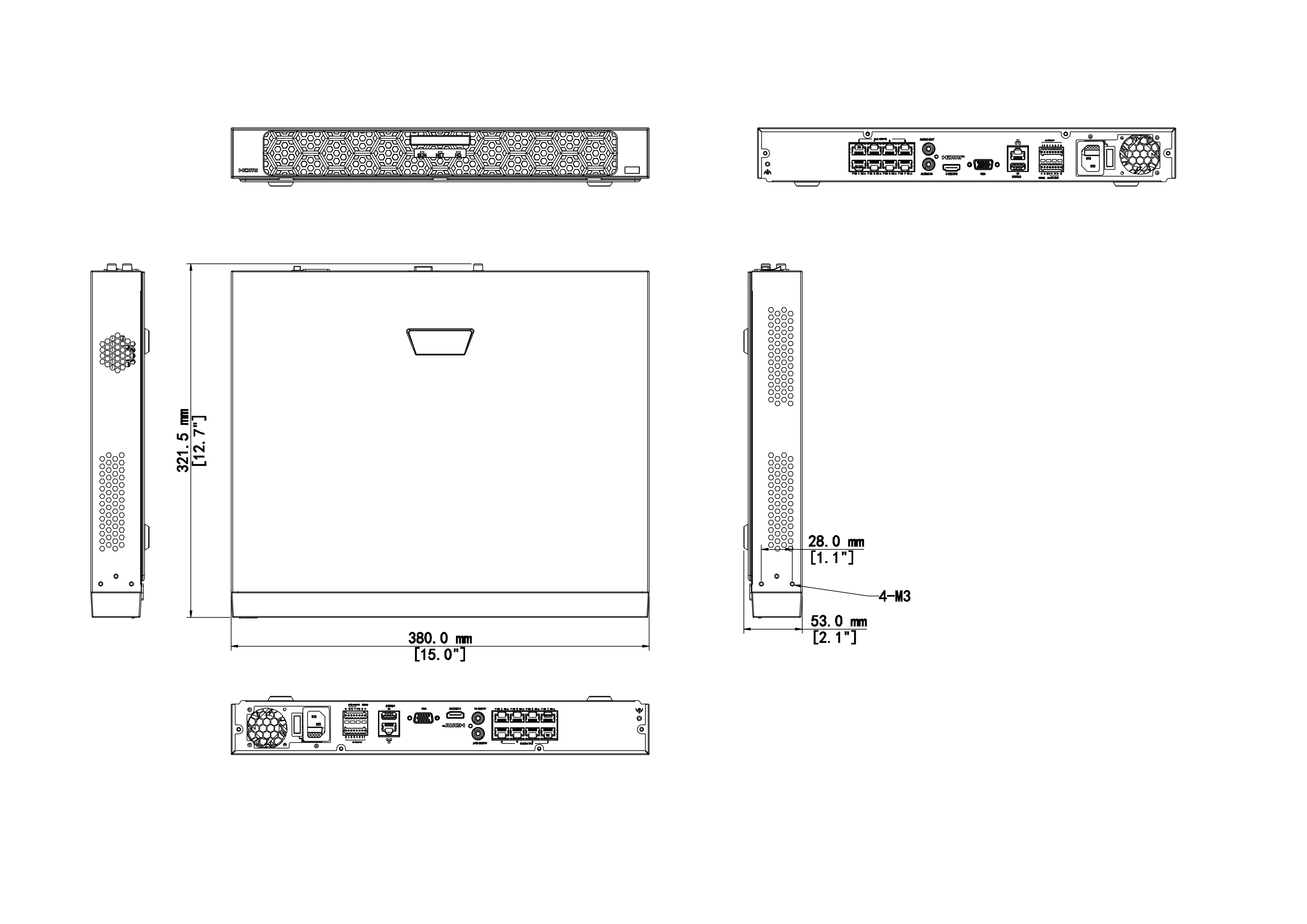

Power Supply & Specs	AC 100~240V; Consumption: $\le12W$ (without HDD); Dimensions: 380 mm × 322 mm × 53 mm (15.0" × 12.7" × 2.1"); Weight: $\le2.7\text{ kg}$ (6.0 lb.)
