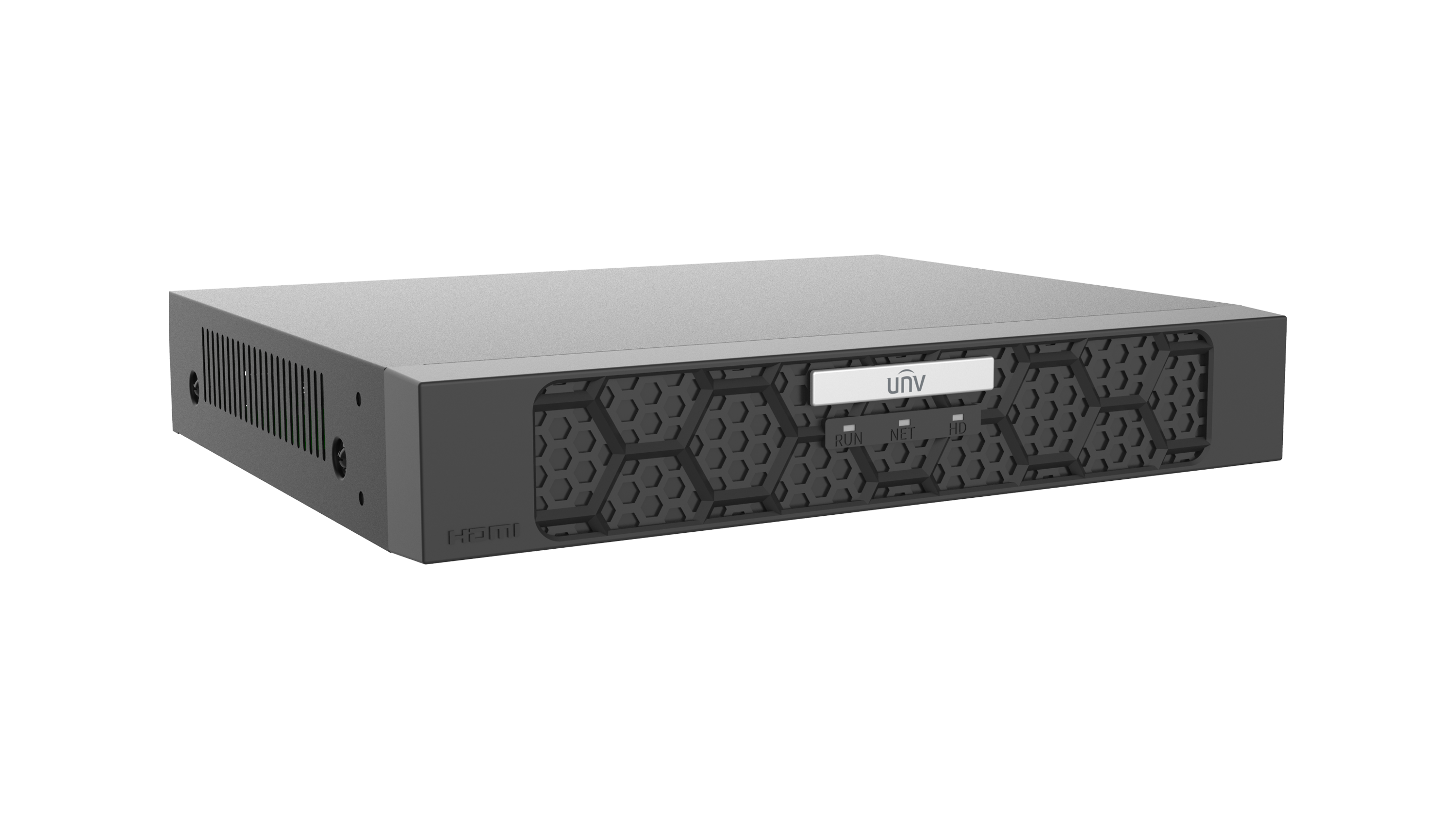

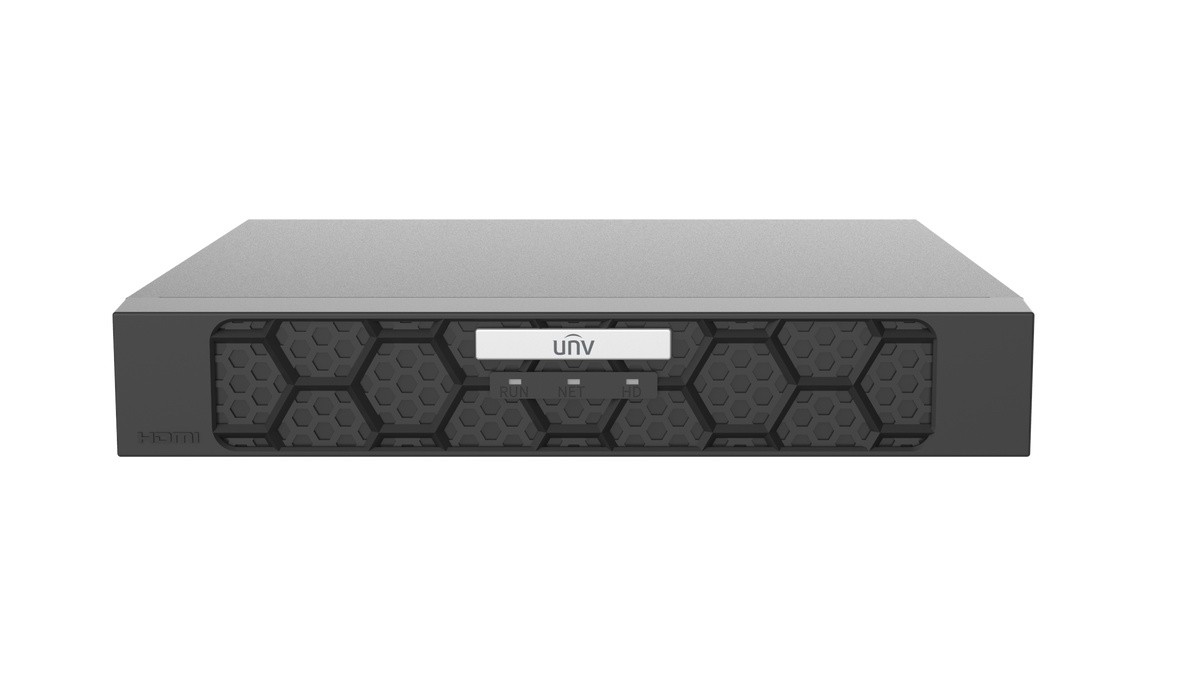

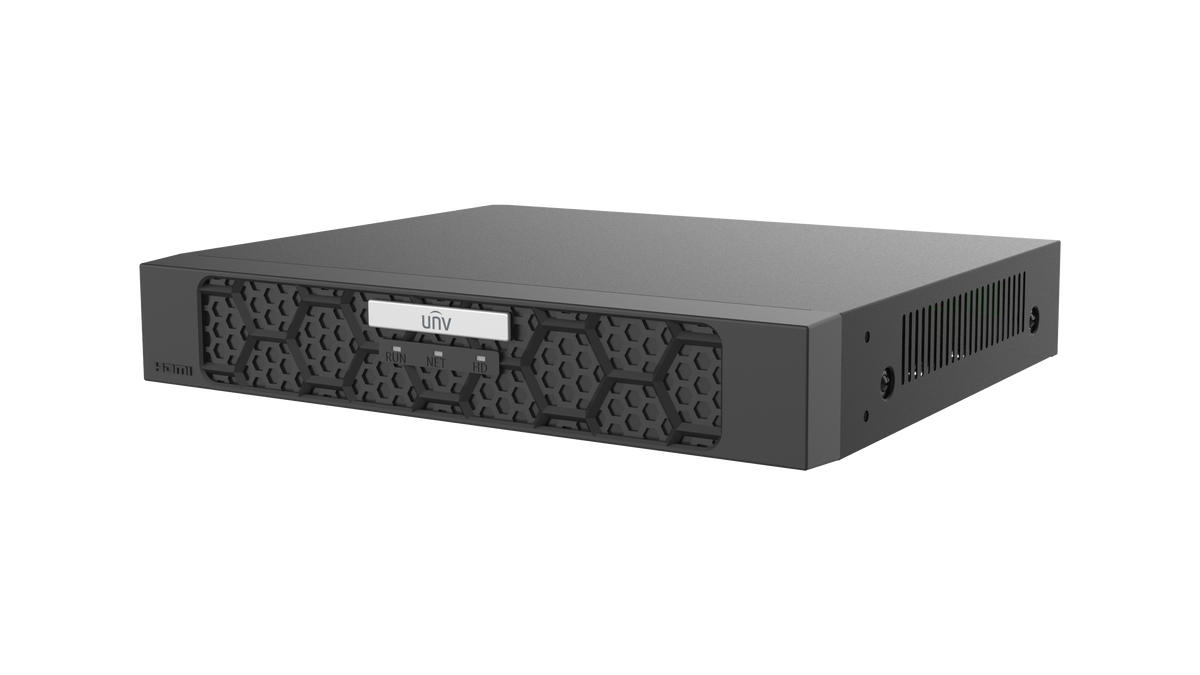

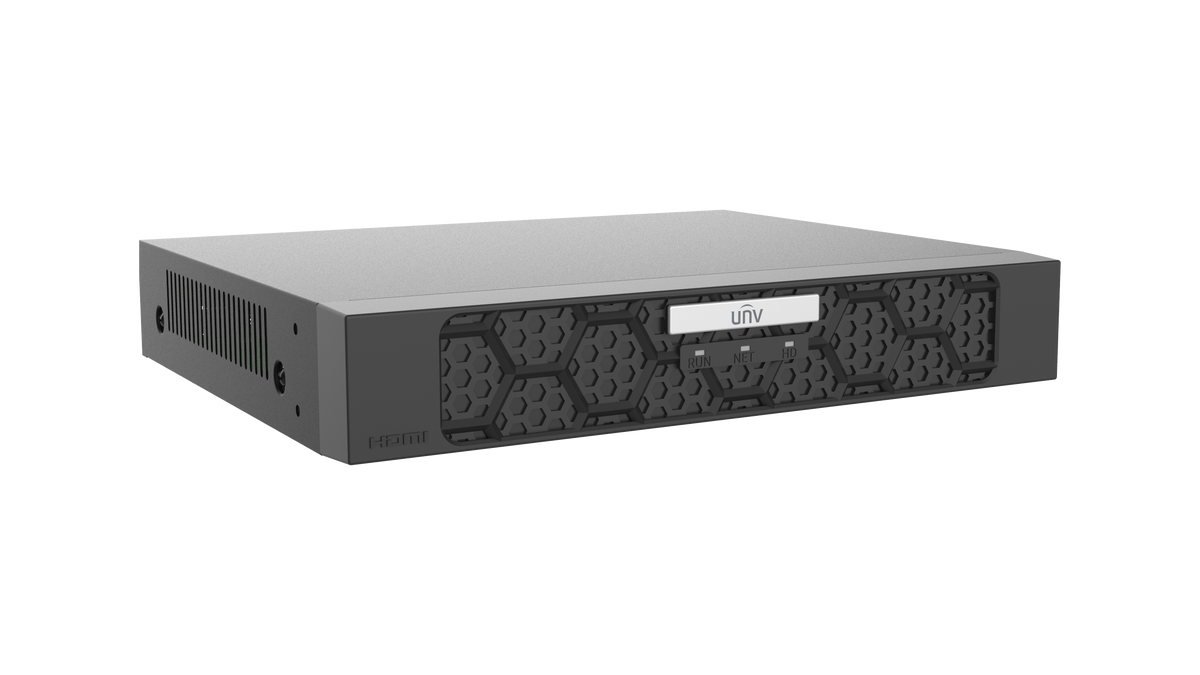

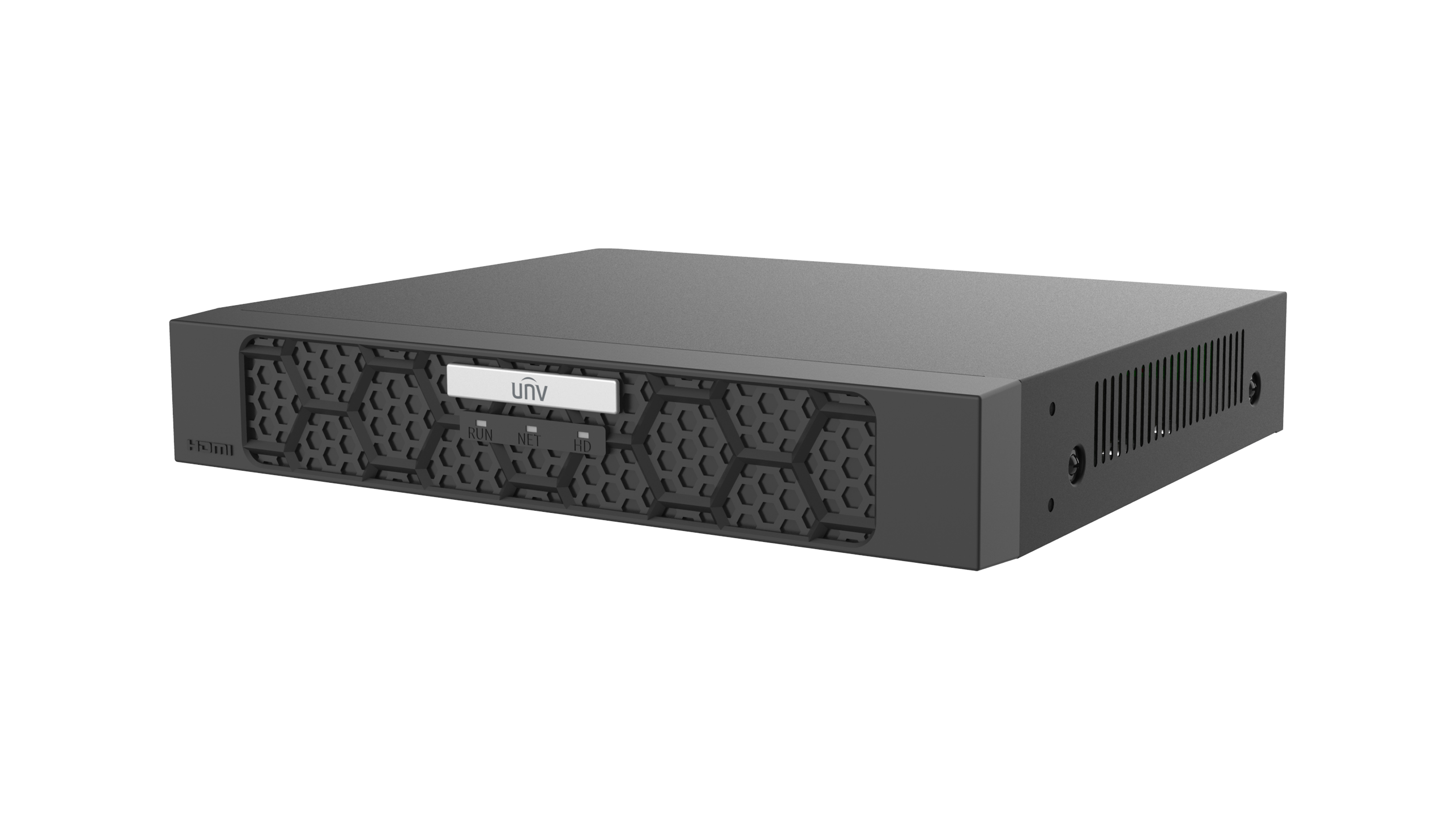

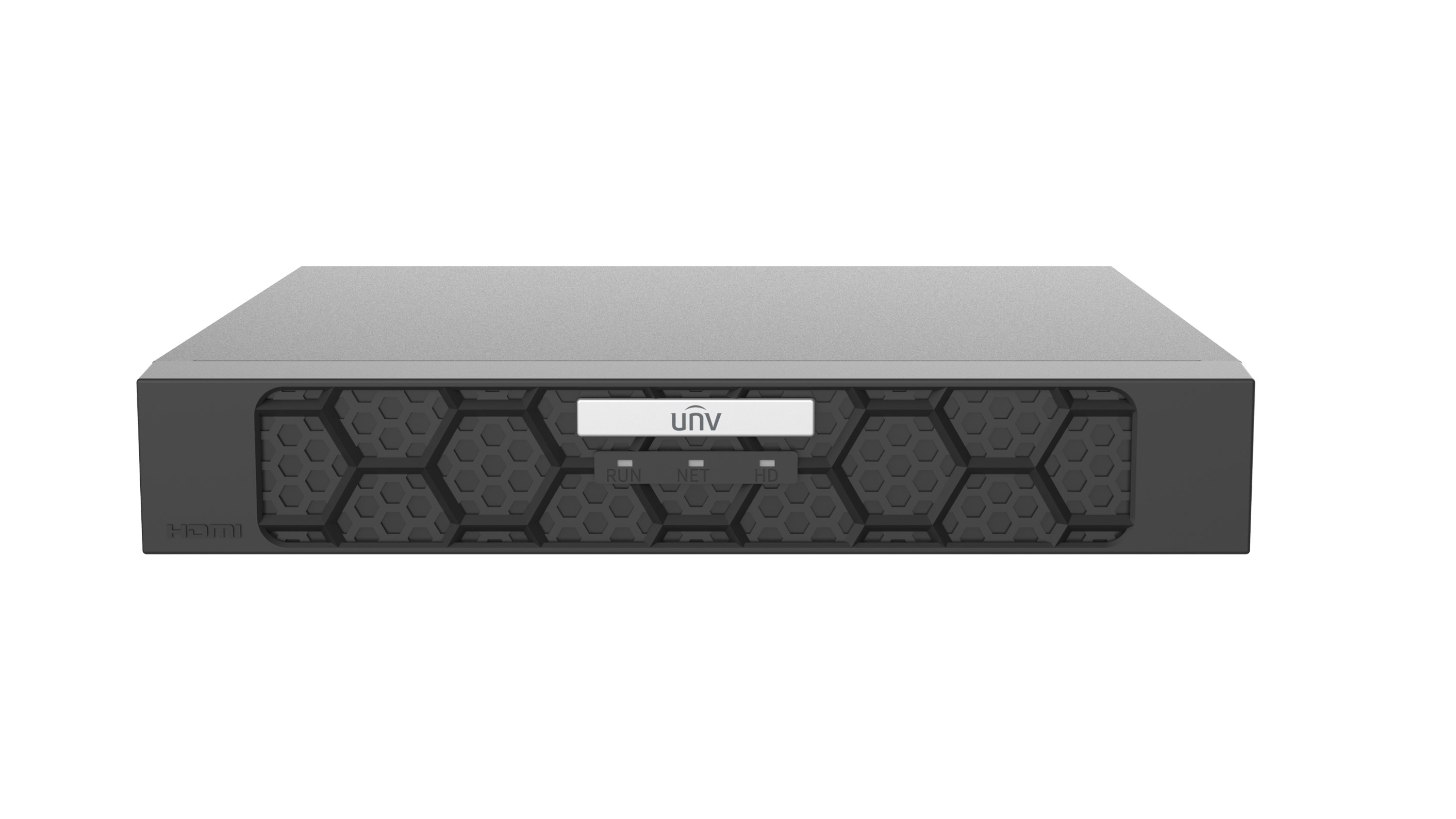

8 Channel 1-SATA Smart 1U NVRPart Number: NVR501-08B
Channels
8-Channel IP Input
Max Resolution
Up to 16 MP Recording
Bandwidth
80 Mbps Incoming / 64 Mbps Outgoing
Storage
1 SATA HDD (Up to 24 TB)
Smart Feature Highlights
Video Formats
Ultra 265, H.265, H.264
Outputs
HDMI (4K) & VGA Simultaneous
Reliability
ANR Technology (Network Disconnect Recovery)
Power Supply
DC 12V / 2A
Chassis
1-ch SATA Mini NVR
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Yes, HDMI/VGA Disabled. UNV Cameras Only.
| Decoding, Input/Output & Recording | |
|---|---|
| Model & System | |
| Model | NVR501-08B (8-Channel) |
| IP Video Input | 8-ch |
| Incoming / Outgoing Bandwidth | Incoming: 80 Mbps / Outgoing: 64 Mbps |
| Remote Users | 128 |
| Decoding & Video | |
| Decoding Format | Ultra 265, H.265, H.264; Audio: G.711A, G.711U |
| Decoding Capability | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30 |
| Recording Resolution | 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback | 8-ch local playback |
| Inputs & Outputs | |
| HDMI Output | 4K (3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA Output | 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Audio I/O | RCA Audio Input: 1-ch / RCA Audio Output: 1-ch (Two-way audio supported) |
| Display & Corridor Mode | Liveview Display: 1/4/6/8/9; Corridor Mode Screen: 3/4/5/7/9 |
| Smart, Storage, Network & General | |
|---|---|
| Smart Analytics & Events | |
| Smart by IPC | Total 8-ch (Face Detection, SIP, UMD) |
| VCA Search | Face Snapshot Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| General & Alert Alarms | Defocus Detection, Scene Change, Object Left Behind/Removed, Auto Tracking, Motion Detection, Tampering, Video Loss, IP Conflict, Disk Offline/Abnormal, Illegal Access, etc. |
| Storage & Network Interfaces | |
| Hard Disk (SATA) | 1 SATA Interface, Up to 24 TB capacity for each HDD |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interfaces | Rear panel: 1 × USB 2.0, 1 × USB 3.0 |
| Protocols & Browser | TCP/IP, P2P, UPnP, NTP, DHCP, PPPOE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4; Browsers: IE10/11, Chrome 45+, Edge 79+, Firefox 52+ |
| General & Environment | |
| Power Supply | DC 12V / 2A; Power Consumption: $\le6W$ (without HDD) |

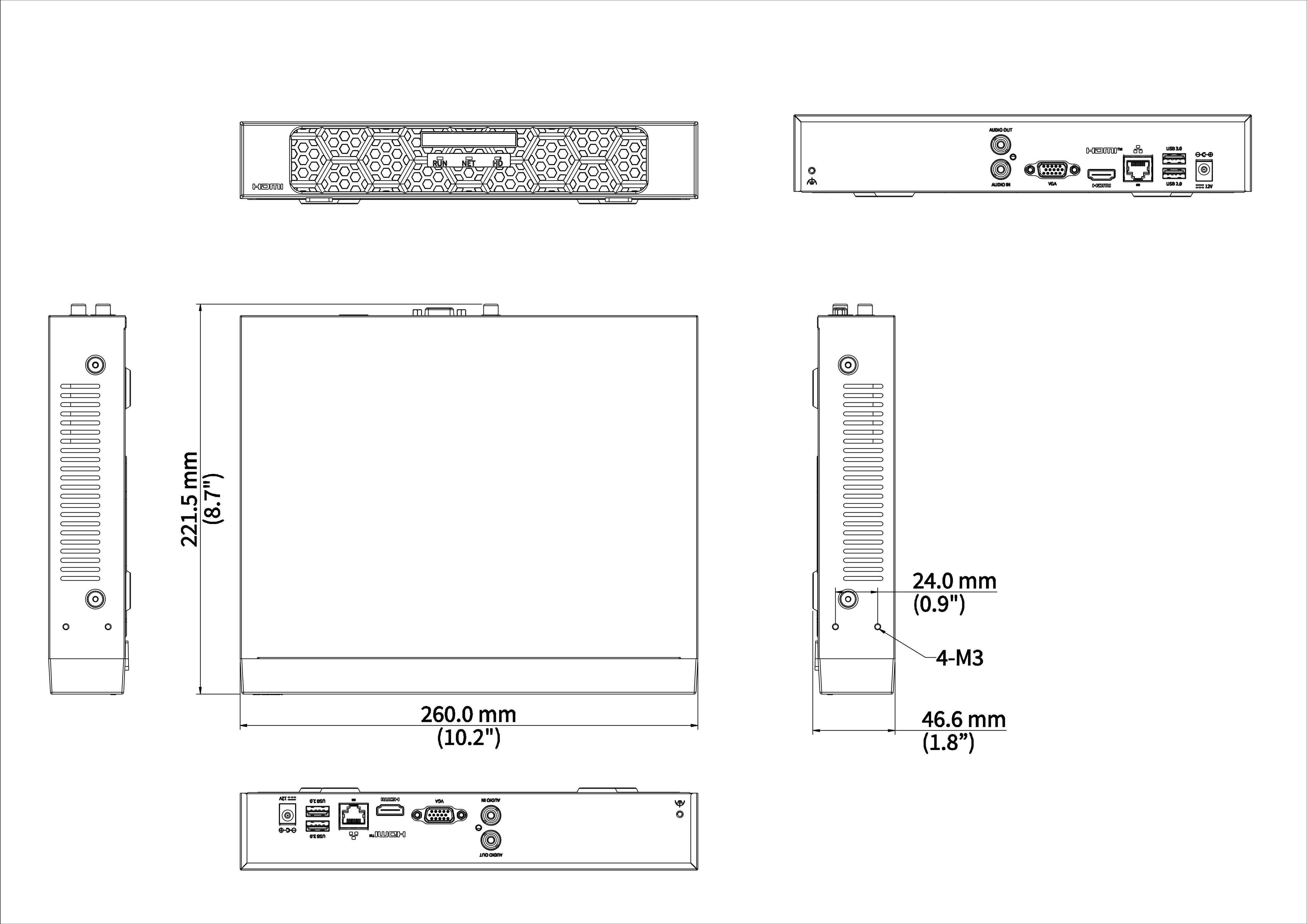

| Dimensions & Weight | 260 mm × 222 mm × 47 mm (10.2" × 8.7" × 1.8"); Weight: $\le0.98\text{ kg}$ (2.16 lb.) |
| Working Environment | -10°C to 55°C (14°F to 131°F), Humidity: $\le90\%$ RH (non-condensing) |
| Certifications & Language | CE, FCC, UL, RoHS, WEEE; Supports 38 languages |
| Compatible Accessories | RM-1U-260 (1 HDD 1U NVR Rack Mount) |
