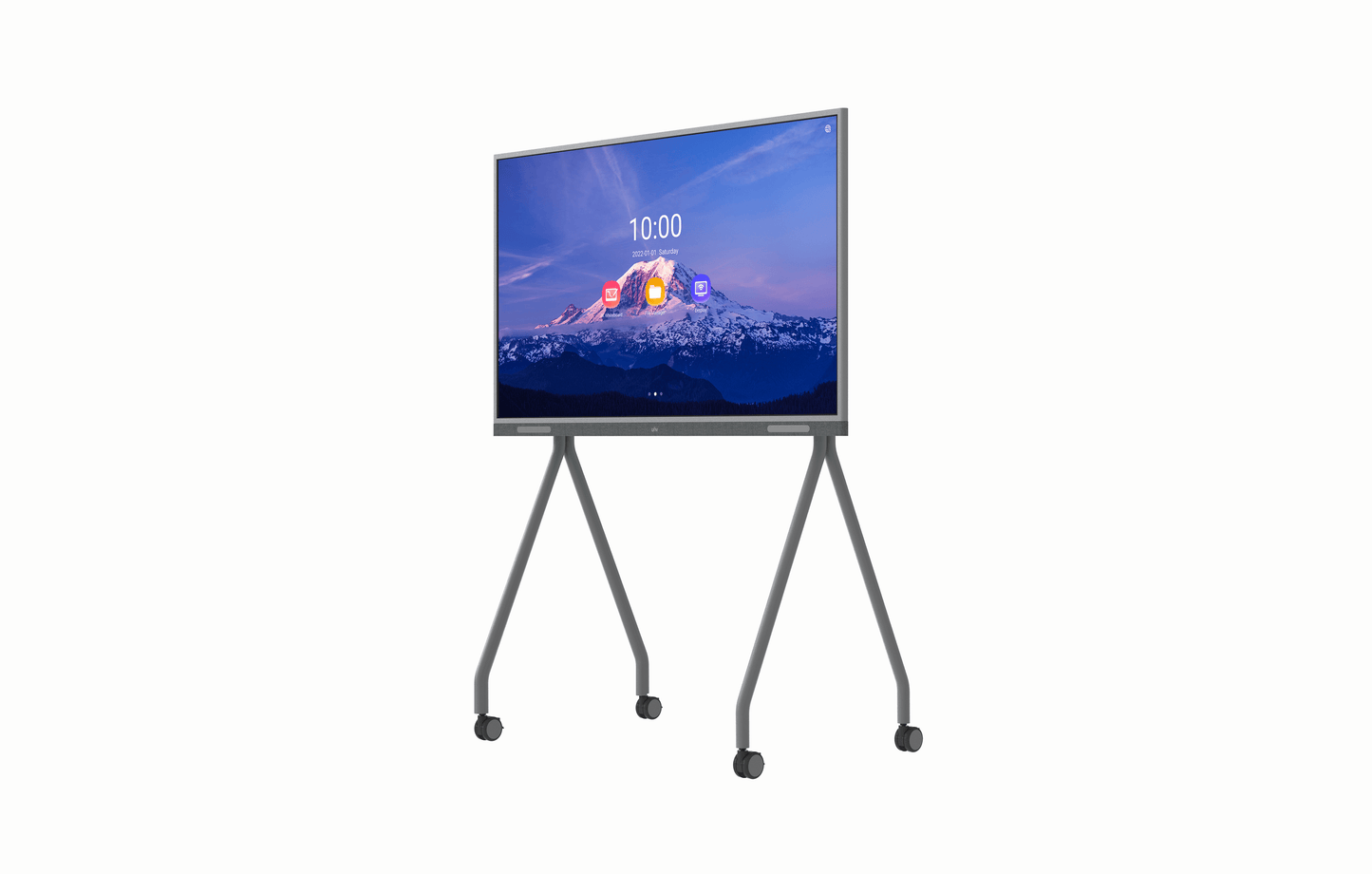

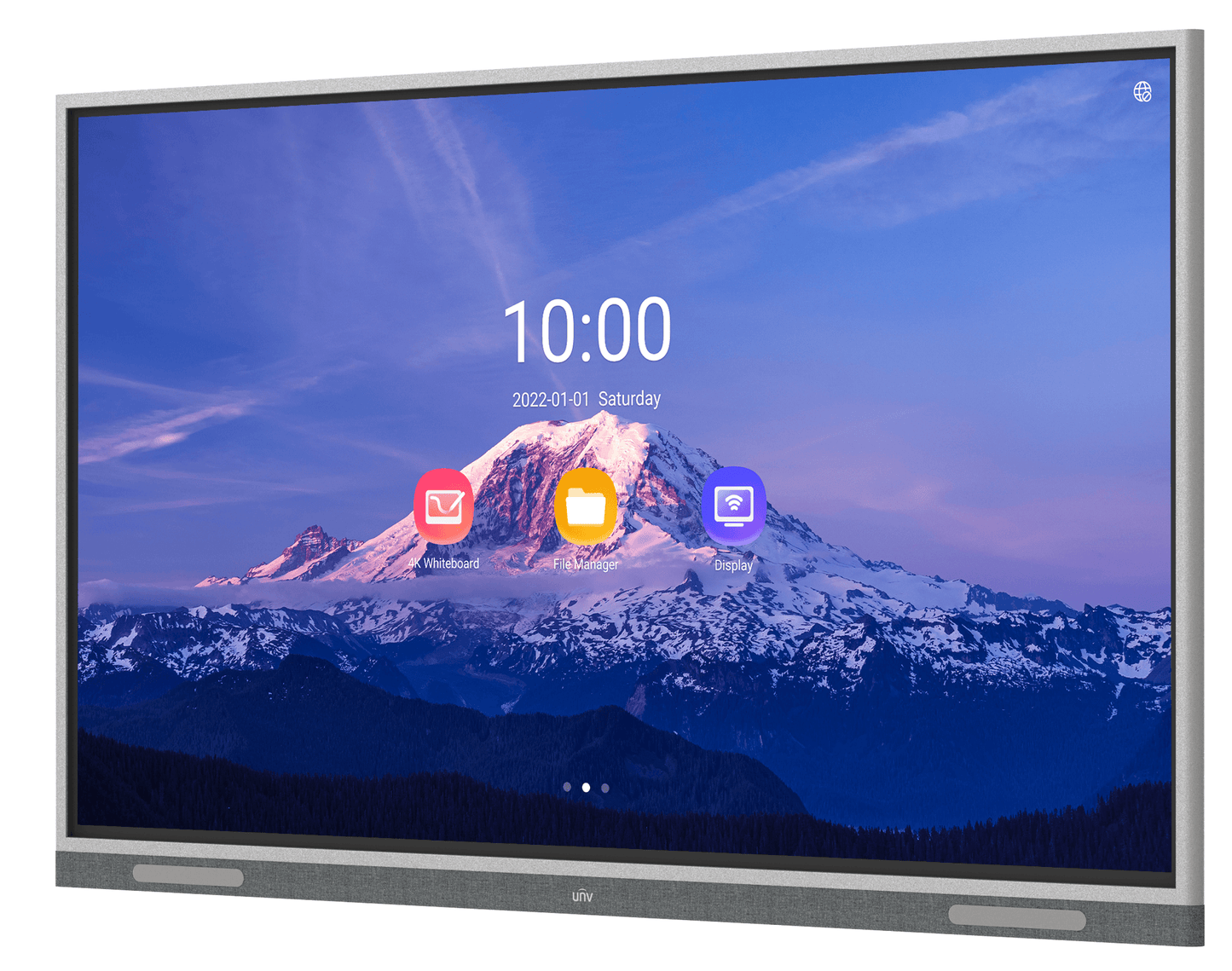

UNV 75-Inch Smart Interactive Display

Part Number: MW3575-U-S

2 4K UHD anti-glare display delivers images with extreme detail.
Zero bonding technology between lcd panel and cover glass brings brighter viewing and smoother touching experience.
Ultra-narrow and equal-width bezel design for perfect aesthetics.
Minimalist geometric line design and smooth border outline, elegant and attractive.
Dual Wi-Fi modules with both Wi-Fi and hotspot support.
Dual-channel, 6-array speaker brings high-quality surround sound.
High-precision infrared touch technology allows up to 20-point touch, realizing smooth co-authoring.
Bluetooth 5.0 offers higher data transmission rate, and lower power consumption.
4K UI, mobile-level operation, just like use a mobile phone.
A variety of quick tools, such as annotation, screenshot, etc., improve usability and interaction efficiency.
Wireless screen mirroring from various operating systems such as Android, iOS and Windows to the display with one touch.
Fast file transfer. Allows users to quickly transfer files to the display via a QR code.
OTA remote upgrade. The system can be upgraded online without backing up data.

Model

MW3575-U-S

Panel

Backlight

DLED

Panel size

75 inches

Resolution

3840*2160

Brightness (cd/m²)

350

Contrast ratio

1200:1

Response time (ms)

8

Color support

1.07B

Viewing angle (H/V)

178°/178°

Android

CPU

Quad-core Cortex 2*A53+Cortex 2*A73 and Mali G51 GPU

CPU frequency

1.5GHz

RAM/ROM

DDR4: 3GB  eMMC: 32GB

Android version

Android 8.0

Touch

Touch control

Infrared touch screen, 20-point multi-touch at most

Touch precision (mm)

±1

Recognizable object

5 points 2mm

Glass

4mm tempered glass, level 7 on Mohs hardness scale, anti-glare

Response time (ms)

≤10

Touchscreen input

Opaque objects (e.g. finger, pen, etc.)

Interface

Video input

3*HDMI IN(4K)、1*VGA IN、1*YPbPr、1*AV IN

Video output

1*AV OUT

Audio input

1*AUDIO IN

Audio output

1*AUDIO OUT、1*Coaxial Audio Output(COAX)

Control

1*RS232、2*Front USB 2.0、2*On-board USB 2.0、1*TOUCH USB

Network

1*LAN OUT、1*LAN IN

Audio

Speaker

Left channel 17W: 1*treble (6Ω 5W) + 2*bass (6Ω 12W)

Right channel 17W: 1*treble (6Ω 5W) + 2*bass (6Ω 12W)

Wi-Fi

Configuration

Wi-Fi 5 dual-module, supports 5G/2.4G

Performance

30 m² coverage, 20m transmission distance in open space

Bluetooth

Version

5.0

Performance

10m transmission distance in open space

OSD

Language supported

24 (Simplified Chinese、Traditional Chinese、English、Japanese、Arabic、French、Spanish、Portuguese、German、Italian、Dutch、Polish、Korean、Catalan、Galician、Vietnamese、Bulgarian、Kazakh、Russian、Ukrainian、Thai、Uzbek、Hungarian、Croatian)

VESA

Wall mount hole (mm)

600*400

Wall mount screw

4-M8 screw hole

General

Power supply

AC 100 to 240V, 50/60Hz

Typical power consumption (W)

≤210

Standby power consumption (W)

<0.5

Operating temperature

0 to 50°C

Operating humidity

10% to 90% (non-condensing)

Storage temperature

-20 to 60°C

Storage humidity

5% to 90% (non-condensing)

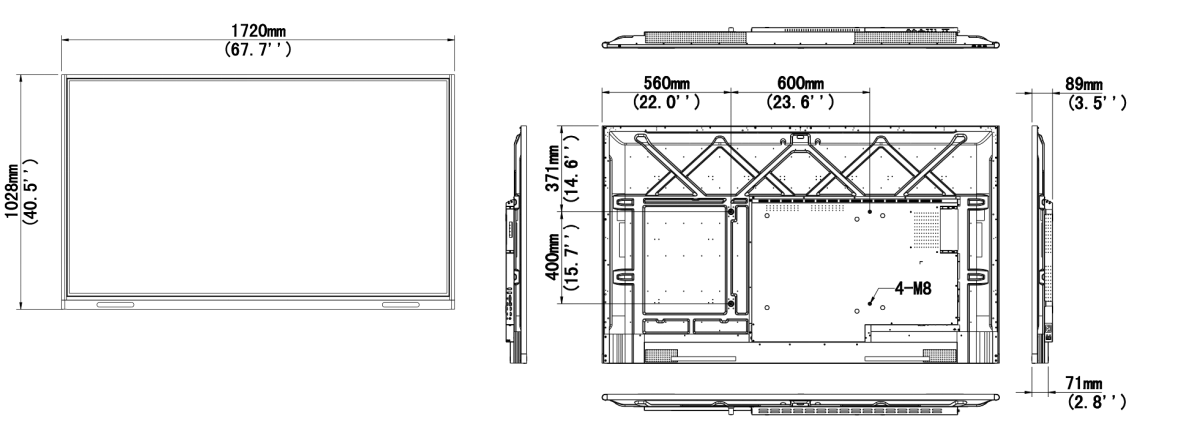

Product dimensions (W*H*D)(mm)

1720*1028*89

Package dimensions (W*H*D)(mm)

2115*1336*222

Weight (kg)

Net weight: 53.0

Gross weight:60.5

Accessories included

1*power cord、2*touch pen、1*quick guide
