Available

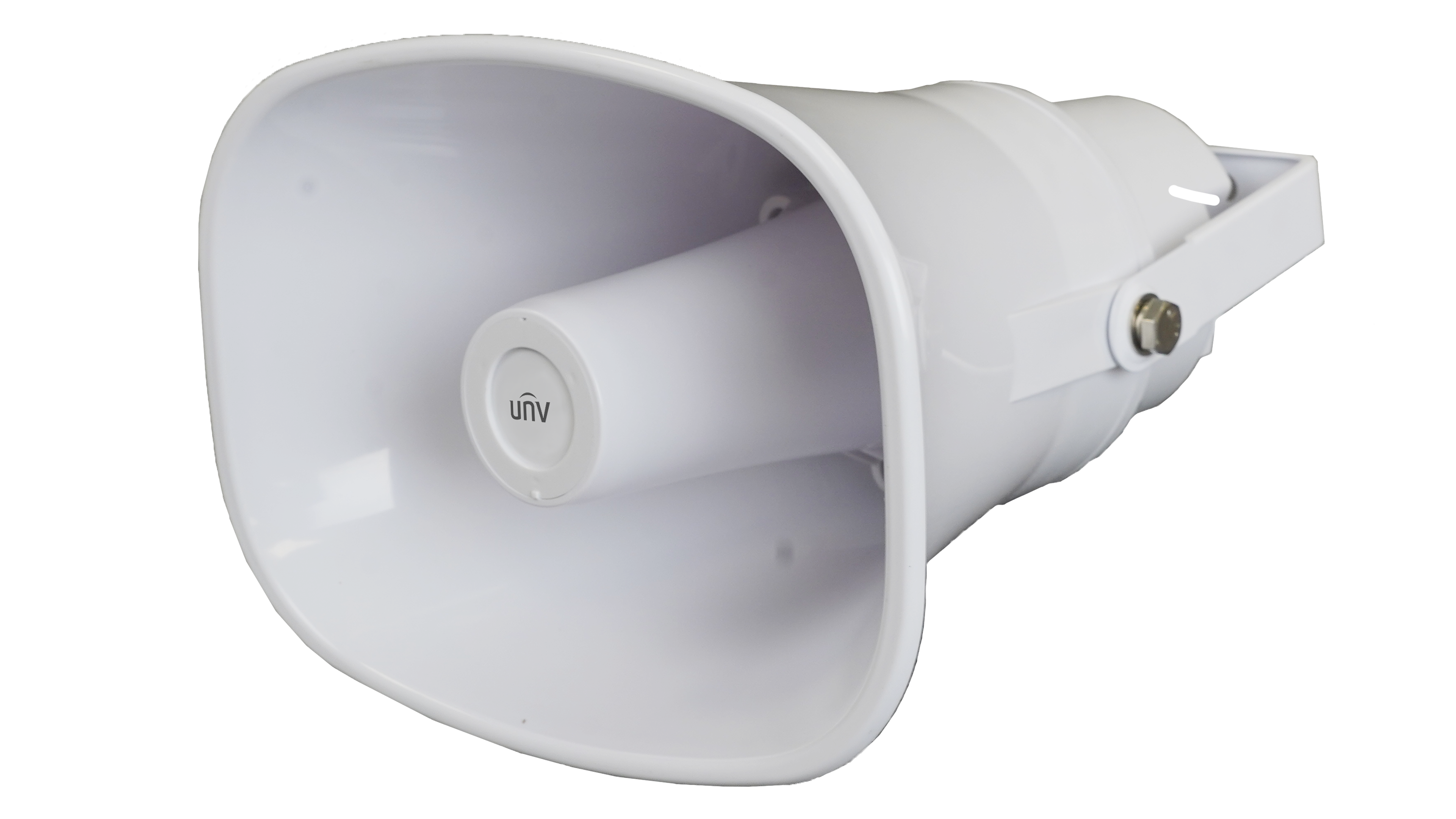

UNV 15W IP Horn SpeakerPart Number: IPS302015-S
Output & Volume
15W (122 dBSPL Max)
Two-Way Audio
Built-in High-Sensitivity Mic
Onboard Storage
64MB (Up to 100 Files)
Protection & Power
IP66 Weatherproof / PoE
Smart Audio & System Highlights
Uniview NVR Alarm Linkage & Video/Audio Synchronization
Two-Way Intercom with Built-in High-Sensitivity Microphone
SIP Protocol Support & Live, Scheduled, or Event Broadcasting
Custom Audio File Uploads (MP3/WAV, Up to 100 Stored Messages)
Acoustic Power
15W Rated Power (122 dBSPL Max Sound Pressure)
Frequency Range
Speaker: 300Hz ~ 12.5kHz | Mic: 100Hz ~ 8kHz
Onboard Storage
64MB (MP3/WAV, Up to 10MB per file)
Power Options
PoE (IEEE 802.3af) or DC 12V / 1.4A
Ingress Protection
IP66 Weatherproof
NDAA Compliant
Yes
Warranty Period
3 Years
A Plus Guard (Cloud Compatible)
Via VSaaS NVR
| Acoustics, Audio & Storage (IPS302015-S) | |
|---|---|
| Speaker Acoustics | |
| Rated Power | 15 W |
| Max Acoustic Pressure | 122 dBSPL |
| Frequency Response | 300 Hz to 12.5 kHz |
| Impedance | 8 Ω |
| Built-in Microphone | |
| Microphone Amount | 1 Built-in Microphone |
| Mic Frequency Response | 100 Hz to 8 kHz |
| Mic Sensitivity | -37 dBV/Pa |
| Sampling Rate & Depth | 8 kHz, 16-bit |
| Audio & Broadcast Functions | |
| Two-Way Audio | Supported (Full Two-Way Intercom) |
| Broadcast Modes | Regular Broadcast, Live Broadcast, Alarm Broadcast |
| NVR Linkage | Supports alarm broadcast and video/audio linkage with Uniview NVRs |
| Audio Compression | G.711U |
| Audio Storage & Files | |
| Internal Storage | 64 MB Built-in Flash Storage |
| Supported File Formats | MP3, WAV |
| Max File Size | 2 KB ≤ Audio File Size ≤ 10 MB |
| Max Number of Files | Up to 100 audio files (includes system built-in files) |
| Network, Hardware & Environmental | |
|---|---|
| Network & Integration | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Protocols | IPv4, HTTP, HTTPS, DNS, SSL/TLS, TCP, UDP, DHCP, UPnP, ARP, SSH |
| Interface Protocol (API) | ONVIF, SIP, LAPI, RTSP, RTP |
| Web Browser Support | Chrome 90+, Edge 90+, Firefox 87+, Safari 17+ |
| External Interfaces | |
| Audio In | 1 x RCA (Sound amplification only; cannot be used for intercom) |
| Alarm Input | 2 Alarm Inputs |
| Power & Electrical | |
| Power Supply | PoE (IEEE 802.3af) or DC 12V / 1.4A |
| Environmental & Physical | |
| Ingress Protection | IP66 Weatherproof |
| Enclosure Material | Durable ABS Plastic Horn with Metal Mounting Bracket |
| Working Temperature | -30°C to 55°C (-22°F to 131°F) |
| Working Humidity | ≤ 90% RH (non-condensing) |

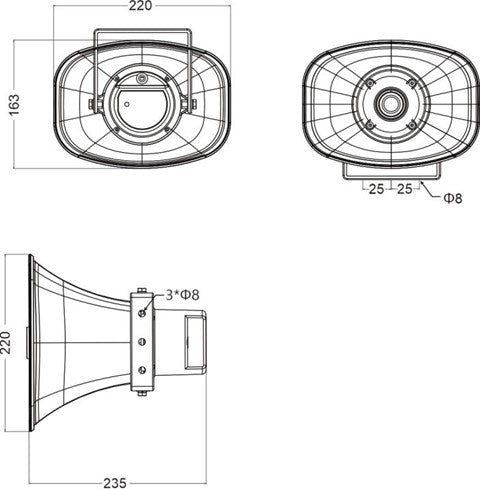

| Dimensions | 220mm × 163mm × 235mm (8.7" × 6.4" × 9.3") |
| Compliance & Certifications | |
| NDAA Compliant | Supported |
| Safety & EMC | CE LVD, UL (UL 62368-1), CE-EMC, FCC (CFR 47 part15 B) |
| Environmental Standards | CE-RoHS, WEEE, REACH |
| Download | Type |
|---|---|
| Data Sheet | |
| User Manual |
