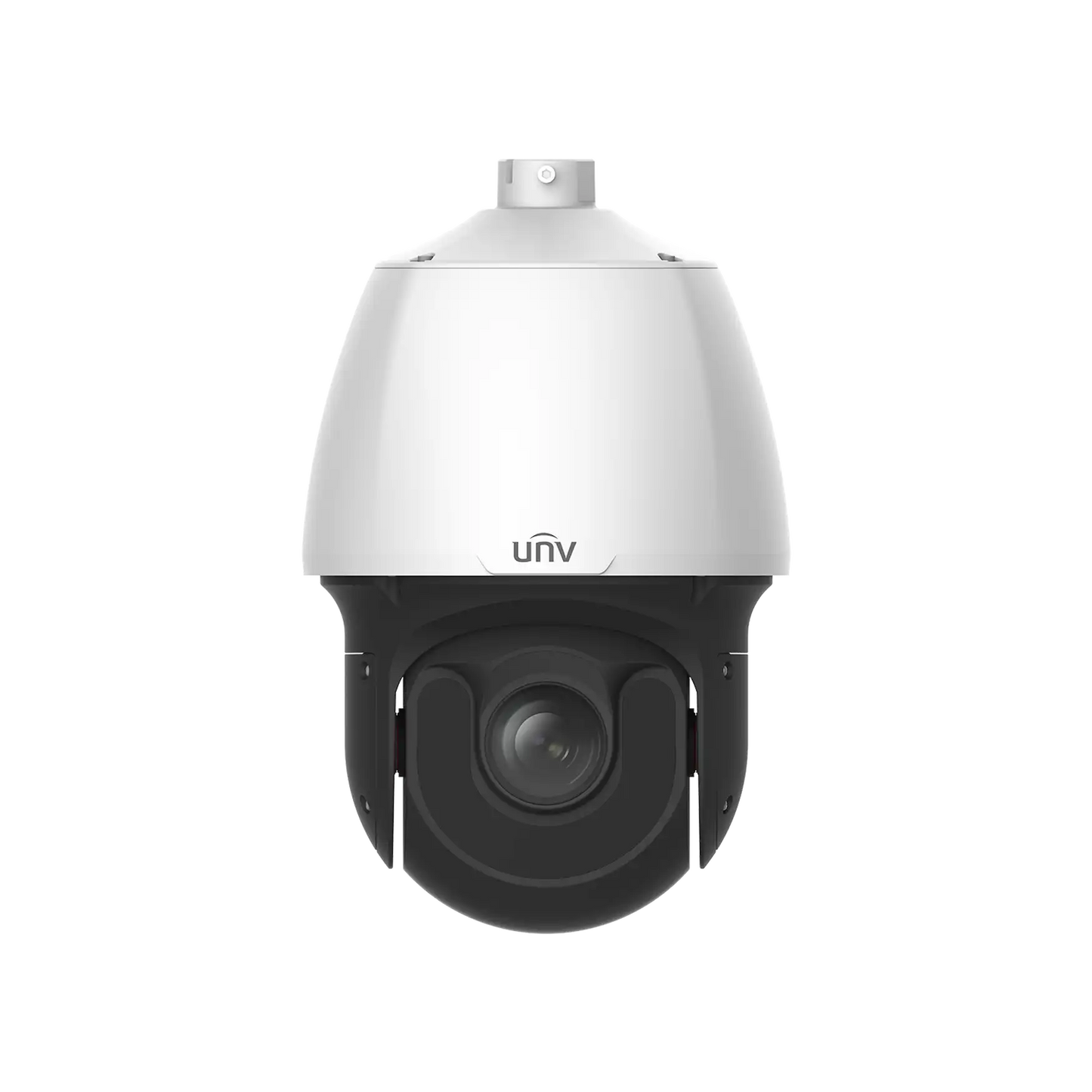

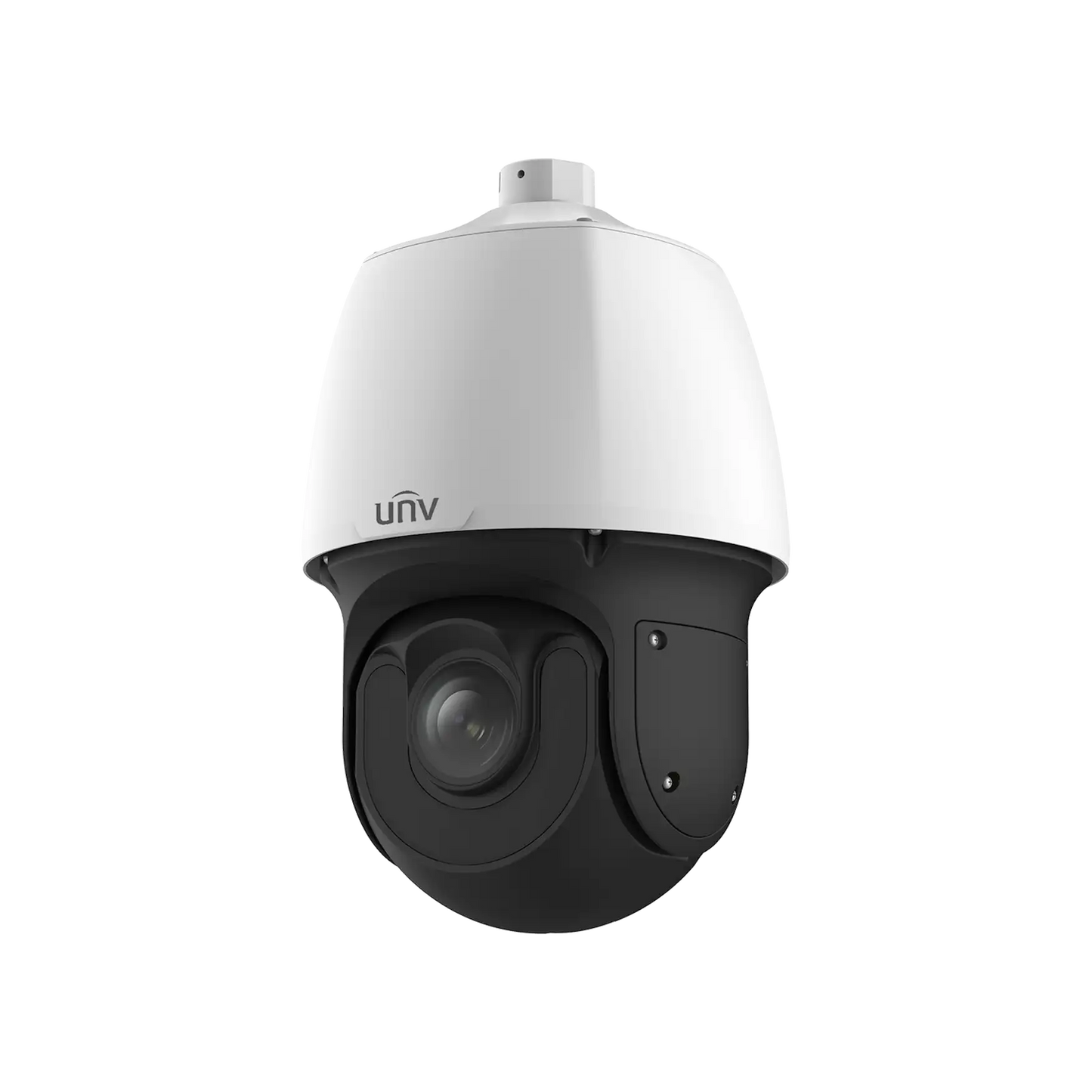

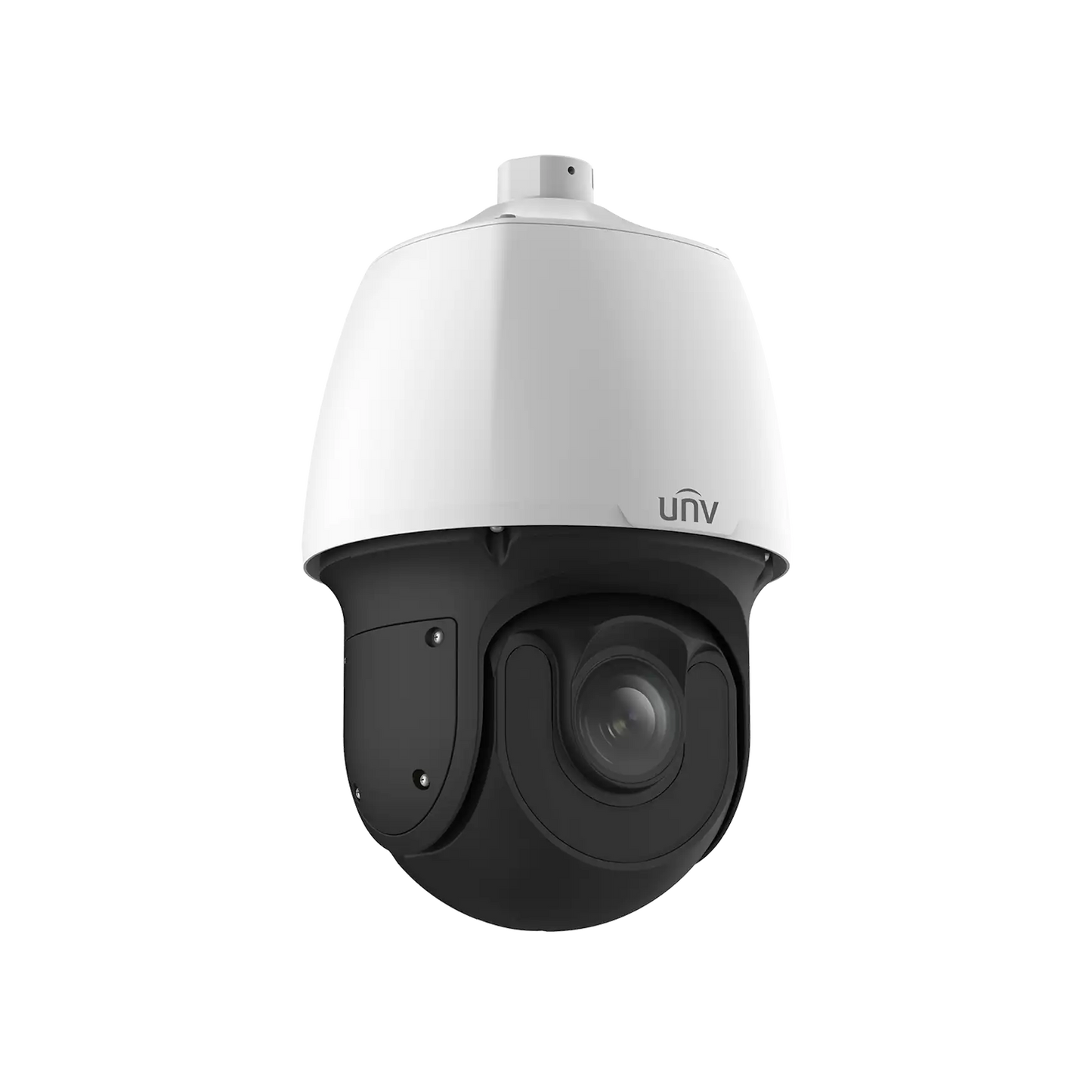

Part Number: IPC6658SR-X25-VF
Lens Type: 6.0-150.0mm (Auto Iris: F1.5-F3.4)
Max Resolution/Frame Rate: 8MP(3840x2160)@30fps
Angle of View: 60.5°-3.1° (Horizontal)
Min. Illumination: Color 0.003Lux (F1.5, AGC ON)
Night Vision Distance: 656 Feet (IR)
Corridor Mode: No
WDR: DWDR
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: Yes
Pan Range: 360° (Non-stop)
Tilt Range: -15°-90° (Auto Reverse)
Special Features: Auto Tracking, Human/Vehicle Detection, Face Capture, People Counting
Power: 60W POE, AC/DC 24V
NDAA Compliant: Yes
Warranty Period: 3 Years
|
IPC6658SR-X25-VF |
|||||
|
Camera |
|||||
|
Sensor |
1/1.8", 8.0 megapixel, progressive scan, CMOS |
||||
|
Min. Illumination |
Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR |
||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
|
WDR |
Digital wide dynamic |
||||
|
S/N |
>56dB |
||||
|
Lens |
|||||
|
Lens |
6.0 ~ 150.0mm, AF automatic focusing and motorized zoom lens |
||||
|
Digital Zoom |
16 |
||||
|
Optical Zoom |
25 |
||||
|
Iris |
Auto; F1.5 ~ F3.4 |
||||
|
Angle of View (H) |
60.5° ~ 3.1° |
||||
|
Angle of View (V) |
36.3° ~ 1.8° |
||||
|
Angle of View (O) |
74.3° ~ 3.7° |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
6.0 |
143.1(469.5ft) |
57.2(187.8ft) |
28.6(93.9ft) |
14.3(46.9ft) |
|
|
150.0 |
3116.3 (10223.9ft) |
1246.5(4089.6ft) |
623.3(2044.8ft) |
311.6(1022.4ft) |
|
|
Illuminator |
|||||
|
Vari-focal Laser |
Up to 200m(656ft) |
||||
|
Wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
|
Frame Rate |
Main Stream: 8MP(3840*2160),Max 30fps(Max 20fps when AI functions enabled); Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; |
||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
||||
|
U-code |
Support |
||||
|
ROI |
Up to 8 areas |
||||
|
Video stream |
Triple streams |
||||
|
OSD |
Up to 8 OSDs |
||||
|
Privacy Mask |
24 areas, up to 4 areas per scene |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital noise reduction |
2D/3D DNR |
||||
|
Smart IR |
Support |
||||
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180° |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
||||
|
Intelligent |
|||||
|
Smart Intrusion Prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
||||
|
Face Capture |
Support |
||||
|
People Counting |
Support people flow counting and crowd density monitoring |
||||
|
Events |
|||||
|
Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
||||
|
Auto Tracking |
Support |
||||
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
|
Audio |
|||||
|
Audio Compression |
G.711U,G.711A |
||||
|
Audio Bitrate |
64 Kbps |
||||
|
Two-way Audio |
Support |
||||
|
Suppression |
Support |
||||
|
Sampling Rate |
8 kHz |
||||
|
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256 GB |
||||
|
Network Storage |
ANR,NAS(NFS) |
||||
|
Network |
|||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
||||
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
||||
|
Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
|
Client |
EZStation EZLive EZView |
||||
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
||||
|
Pan & Tilt |
|||||
|
Pan Range |
360° (endless) |
||||
|
Pan Speed |
0.1°/s ~ 200°/s |
||||
|
Preset speed: 300°/s |
|||||
|
Tilt Range |
–15° ~ 90° (auto reverse) |
||||
|
Tilt Speed |
0.1°/s ~ 200°/s |
||||
|
Preset speed: 240°/s |
|||||
|
Number of Presets |
1024 |
||||
|
Preset Patrol |
16 patrols, up to 64 presets for each patrol |
||||
|
Route Patrol |
16 patrols, up to 32 actions for each patrol |
||||
|
Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
||||
|
Patrol Stay Time |
15s~1800s |
||||
|
Preset Image Freeze |
Support |
||||
|
Home Position |
Support |
||||
|
Interface |
|||||
|
Audio I/O |
1/1 |
||||
|
Alarm I/O |
2/1 |
||||
|
Serial Port |
1 RS485 |
||||
|
Built-in Mic |
N/A |
||||
|
Built-in Speaker |
N/A |
||||
|
WIFI |
N/A |
||||
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
||||
|
Video Output |
1 BNC, impedance 75Ω; amplitude 1V [p-p] |
||||
|
Certification |
|||||
|
EMC |
FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
||||
|
Safety |
IEC 62368-1 EN 62368-1 UL 60950-1 |
||||
|
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
||||
|
General |
|||||
|
Power
|
AC 24V±25%, DC 24V±25%, PoE (PSE Required) |
||||
|
Power consumption: Max 58W |
|||||
|
Power Interface |
Wires with cold-pressed terminal |
||||
|

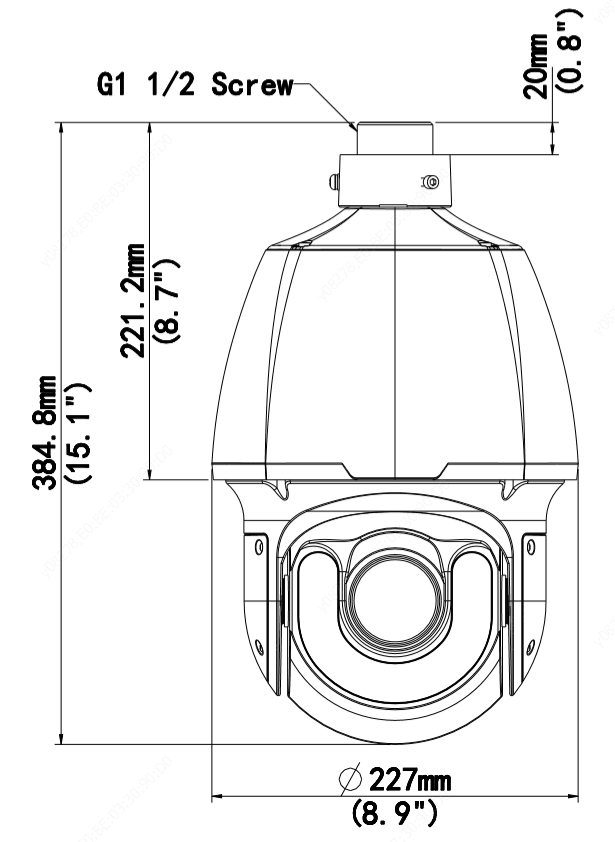

Dimensions (Ø x H) |
Ø227 x 384.8mm (Ø8.9” x 15.1”) |
||||
|
Weight |
5.61kg(12.36lb) |
||||
|
Working Environment |
-40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
||||
|
Storage Environment |
-40℃~70℃(-40°F ~ 158°F) , Humidity: ≤95% RH (non-condensing) |
||||
|
Surge protection |
6KV |
||||
|
Reset Button |
Support |
||||
|
Protection |
Ingress Protection: IP66 Vandal Resistant: N/A |
||||
