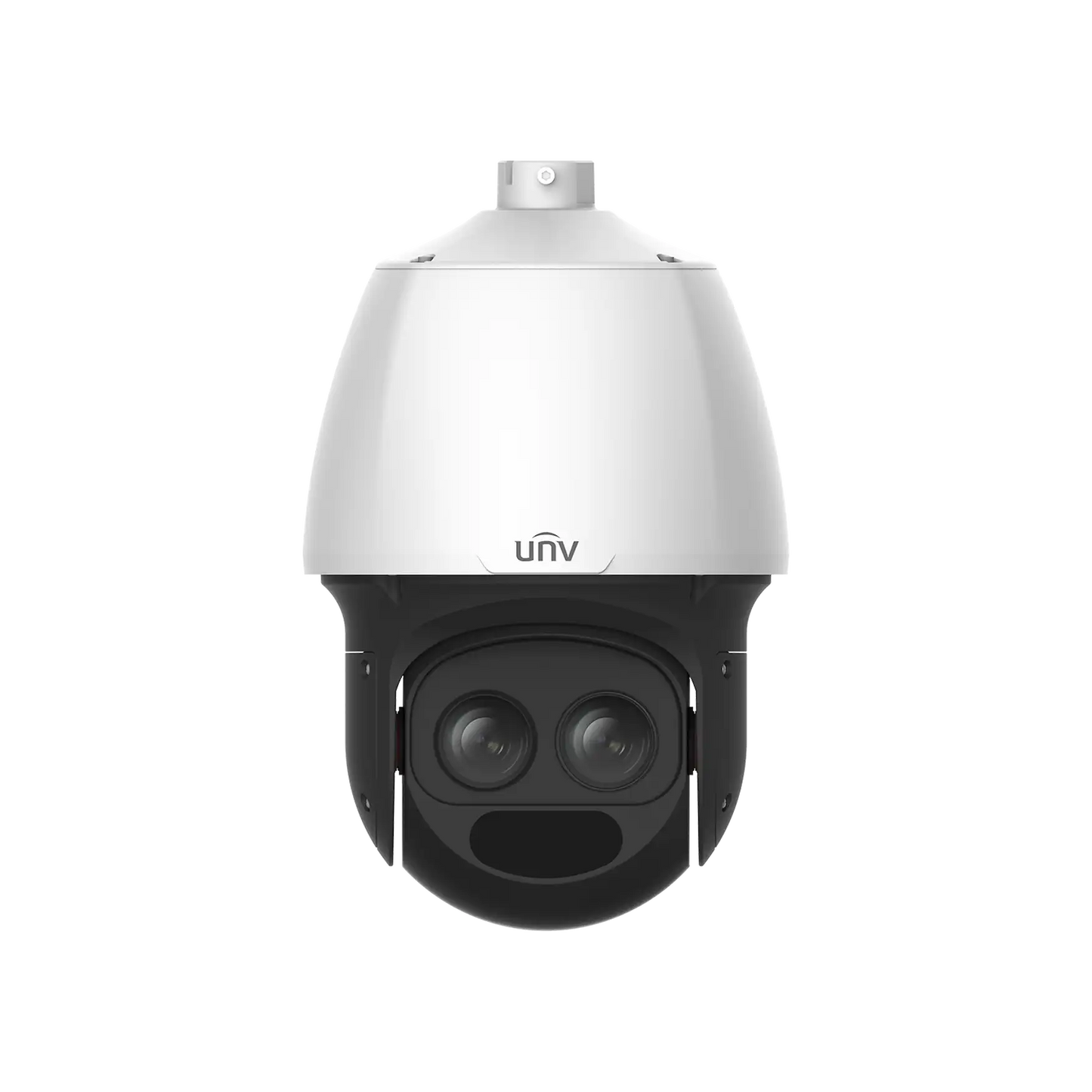

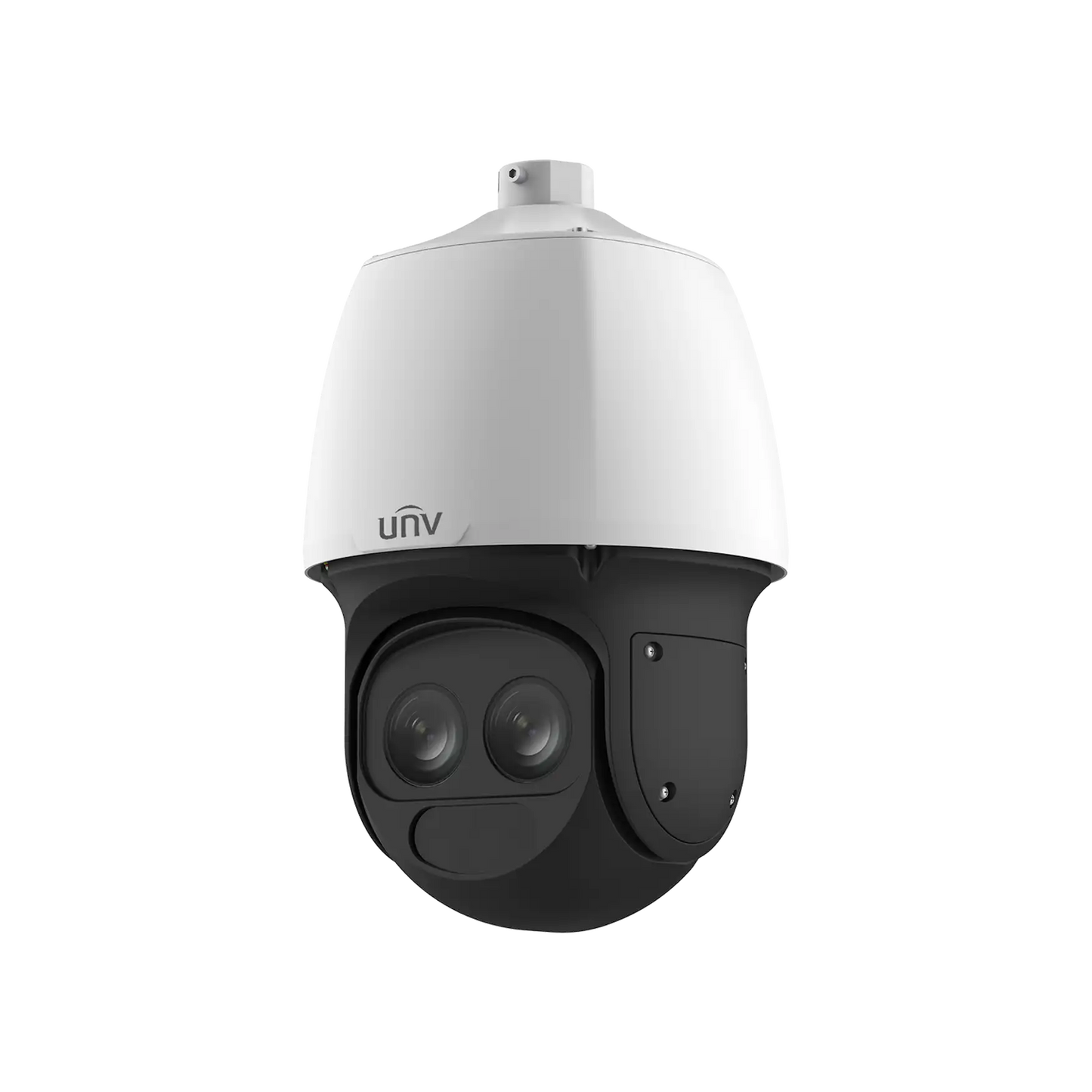

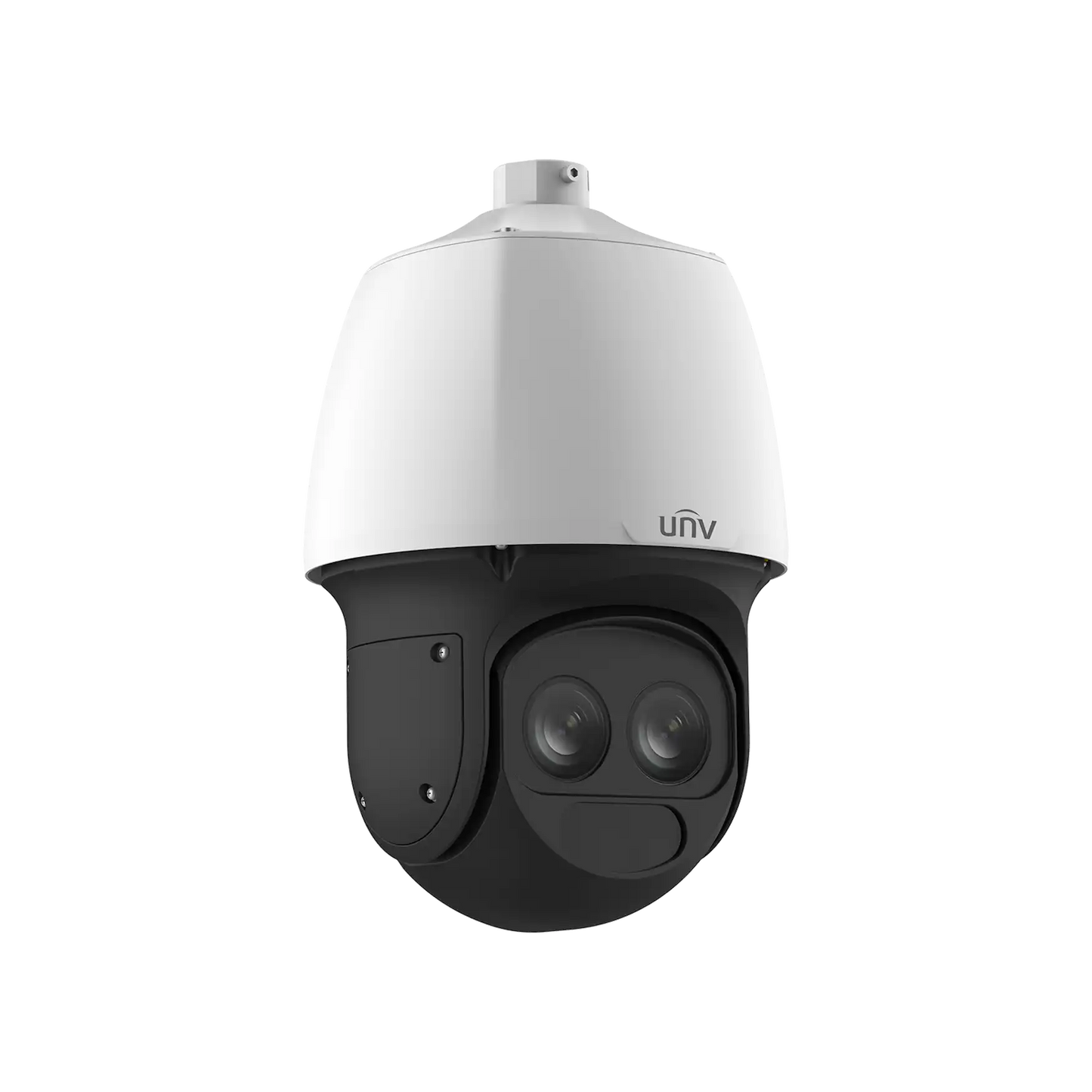

Part Number: IPC6652EL-X33-VF
Lens Type: 4.5-148.5mm (Auto Iris: F1.5-F4.0)
Max Resolution/Frame Rate: 2MP(1920x1080)@60fps
Angle of View: 56.2°-2.6° (Horizontal)
Min. Illumination: Color 0.001Lux (F1.5, AGC ON)
Night Vision Distance: 1640 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: Yes
Pan Range: 360° (Non-stop)
Tilt Range: -15°-90° (Auto Reverse)
Special Features: Auto Tracking, Human/Vehicle Detection, Face Capture, People Counting
Power: 60W POE, AC/DC 24V
NDAA Compliant: Yes
Warranty Period: 3 Years
|
IPC6652EL-X33-VF |
|||||
|
Camera |
|||||
|
Sensor |
1/2.8", 2.0 megapixel, progressive scan, CMOS |
||||
|
Minimum Illumination |
Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR |
||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
|
WDR |
120dB |
||||
|
S/N |
>52dB |
||||
|
Lens |
|||||
|
Lens type |
4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens |
||||
|
Digital Zoom |
16 |
||||
|
Optical Zoom |
33 |
||||
|
Iris |
Auto; F1.5 ~ F4.0 |
||||
|
Angle of View (H) |
56.2° ~ 2.6° |
||||
|
Angle of View (V) |
33.5° ~ 1.4° |
||||
|
Angle of View (O) |
69.2° ~ 3.0° |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
4.5 |
72.9(239.3ft) |
29.2(95.7ft) |
14.6(47.9ft) |
7.3(23.9ft) |
|
|
148.5 |
2187.9(7178.3ft) |
875.2(2871.3ft) |
437.6(1435.7ft) |
218.8(717.8ft) |
|
|
Illuminator |
|||||
|
Vari-focal Laser |
Up to 500m(1640ft) |
||||
|
Wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
||||
|
Frame Rate |
Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
||||
|
U-code |
Support |
||||
|
ROI |
Up to 8 areas |
||||
|
Video stream |
Triple streams |
||||
|
OSD |
Up to 8 OSDs |
||||
|
Privacy Mask |
24 areas, up to 4 areas per scene |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Digital noise reduction |
2D/3D DNR |
||||
|
Flip |
Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise |
||||
|
EIS |
N/A |
||||
|
HLC |
Support |
||||
|
BLC |
Support |
||||
|
Defog |
Digital Defog |
||||
|
Intelligent |
|||||
|
Smart Intrusion Prevention |
Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
||||
|
Face Capture |
Support |
||||
|
People Counting |
Support people flow counting and crowd density monitoring |
||||
|
Events |
|||||
|
Basic Detection |
Motion detection, Audio detection, Tampering Alarm |
||||
|
Auto Tracking |
Support |
||||
|
General Function |
Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
||||
|
Audio |
|||||
|
Audio Compression |
G.711U,G.711A |
||||
|
Audio Bitrate |
64 Kbps |
||||
|
Two-way audio |
Support |
||||
|
Suppression |
Support |
||||
|
Sampling Rate |
8 kHz |
||||
|
Storage |
|||||
|
Edge Storage |
Micro SD, up to 256GB |
||||
|
Network Storage |
ANR,NAS(NFS) |
||||
|
Network |
|||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
||||
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
||||
|
Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
||||
|
Client |
EZStation EZView EZLive |
||||
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
||||
|
Pan & Tilt |
|||||
|
Pan Range |
360° (endless) |
||||
|
Pan Speed |
0.1°/s ~ 200°/s |
||||
|
Preset speed: 300°/s |
|||||
|
Tilt Range |
-15° ~ 90° (auto reverse) |
||||
|
Tilt Speed |
0.1°/s ~ 200°/s |
||||
|
Preset speed: 240°/s |
|||||
|
Number of Presets |
1024 |
||||
|
Preset Patrol |
16 patrols, up to 64 presets for each patrol |
||||
|
Route Patrol |
16 patrols, up to 32 actions for each patrol |
||||
|
Recorded Patrol |
16 patrols, up to 128 actions for each patrol |
||||
|
Patrol Stay Time |
15s~1800s |
||||
|
Preset Image Freeze |
Support |
||||
|
Home Position |
Support |
||||
|
Interface |
|||||
|
Audio I/O |
1/1 |
||||
|
Alarm I/O |
2/1 |
||||
|
Serial Port |
1 RS485 |
||||
|
Built-in Mic |
N/A |
||||
|
Built-in Speaker |
N/A |
||||
|
WIFI |
N/A |
||||
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
||||
|
Video output |
1 BNC |
||||
|
Certification |
|||||
|
EMC |
FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 |
||||
|
Environment |
CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) |
||||
|
General |
|||||
|
Power |
AC 24V ±25%, DC 24V±25%, PoE (PSE Required) |
||||
|
Power consumption: Max 53W |
|||||
|
Power Interface |
Wires with cold-pressed terminal |
||||
|

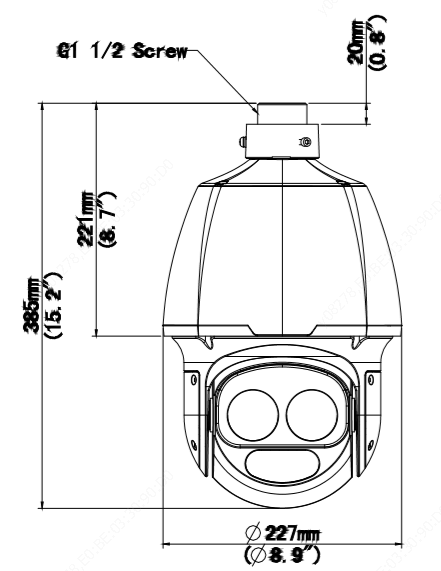

Dimensions (Ø x H) |
Ø227 x 385mm (Ø8.9" x 15.2") |
||||
|
Weight |
5.6kg(12.35lb) |
||||
|
Working Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
||||
|
Storage Environment |
-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) |
||||
|
Surge Protection |
6KV |
||||
|
· Reset Button |
Support |
||||
|
· Protection |
Ingress Protection: IP66 Vandal Resistant: N/A |
||||
