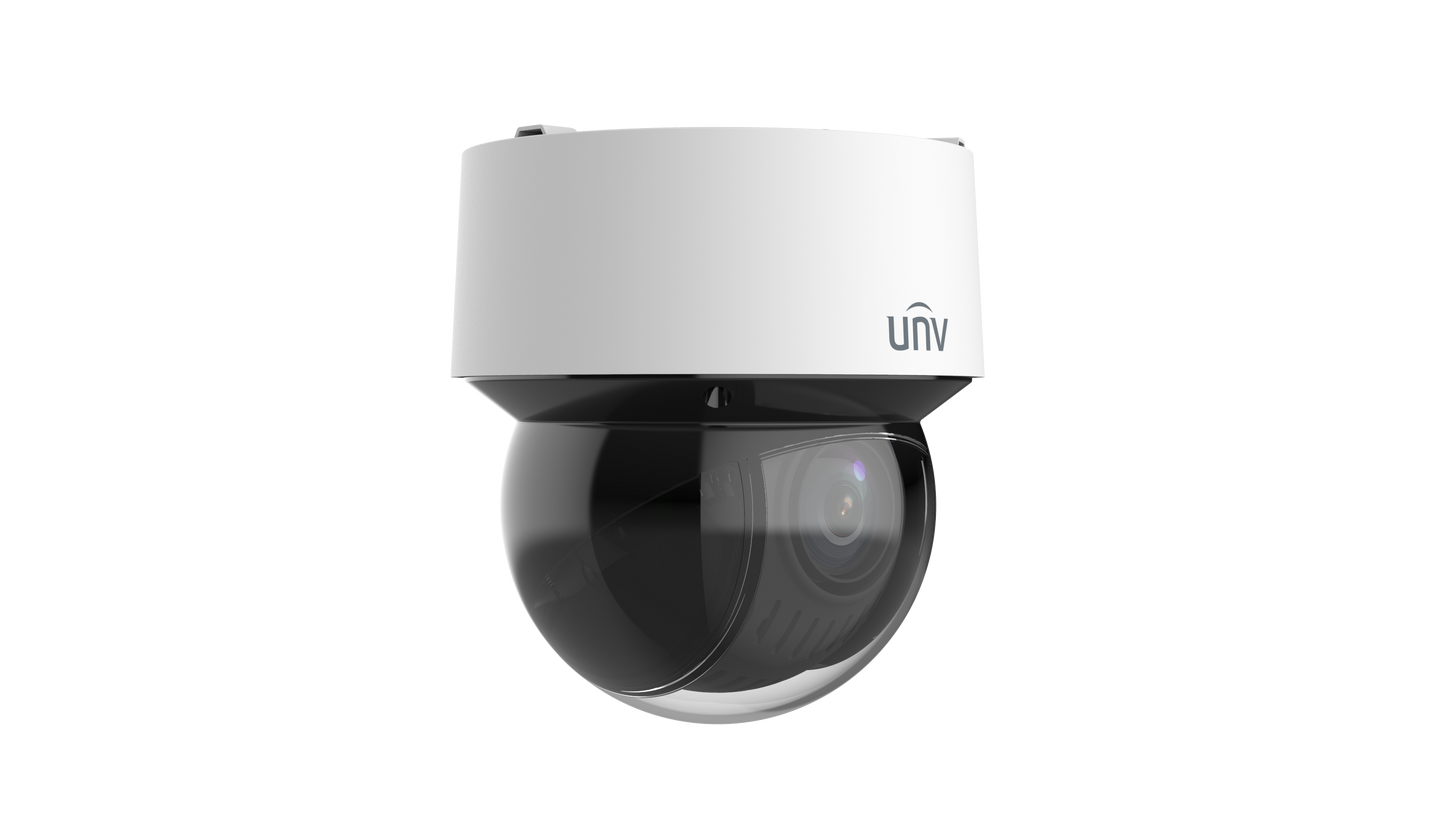

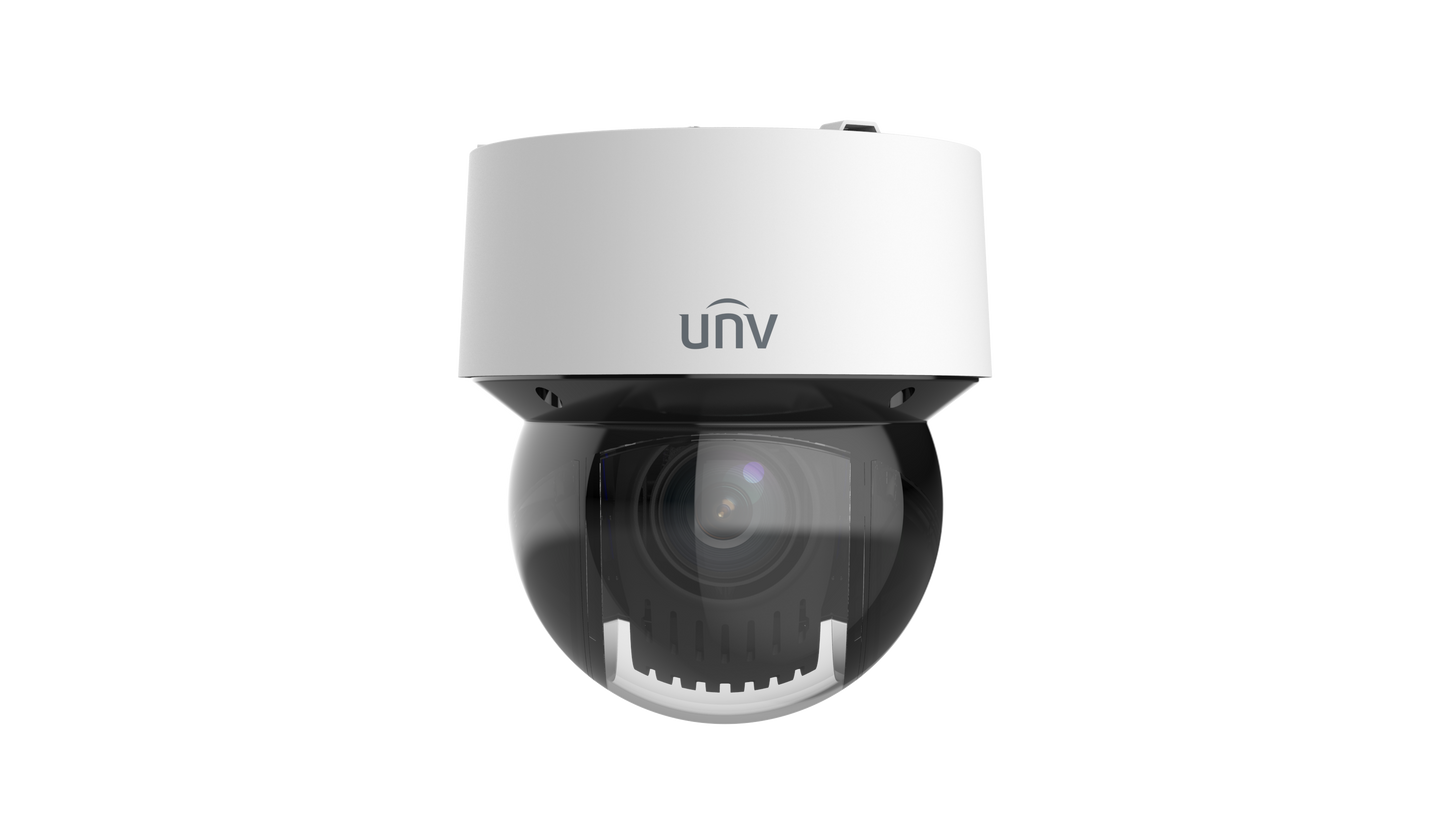

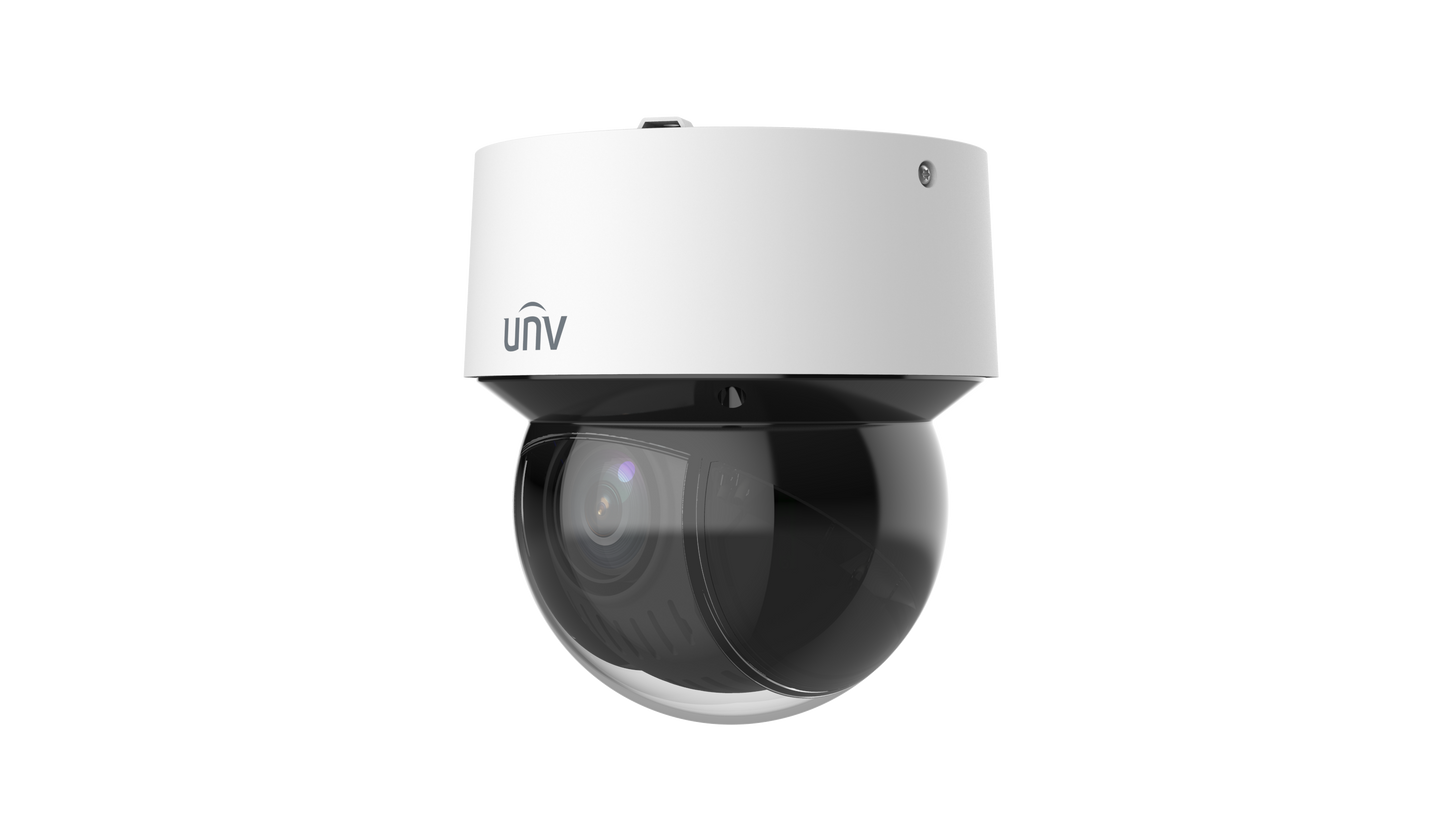

UNV 4MP LightHunter IR 16X PTZ Network Camera

Part Number: IPC6434LR-X16-VG1

Sensor Type: 1/2.9" CMOS
Lens Type: 5.5-88mm (Auto Iris: F1.78-F3.73)
Max Resolution/Frame Rate: 4MP(2688x1520)@30fps
Angle of View: 50.85°~3.47° (Horizontal)
Min. Illumination: Color 0.005Lux (F1.78, AGC ON)
Night Vision Distance: 328 Feet (IR)
Corridor Mode: N/A
WDR: 120dB
Audio: Input/Output Connections
Alarm I/O: Yes
BNC Output: N/A
Pan Range: 360° (Non-stop)
Tilt Range: -5°-90° (Auto Reverse)
Special Features: Auto Tracking, Human/Vehicle Detection
Power: PoE+ (IEEE 802.3at), DC12V/3A
NDAA Compliant: Yes
Warranty Period: 3 Years

Camera

Description

Resolution

4MP

Sensor

1/2.9''CMOS

Min. Illumination

Colour: 0.005 Lux (F1.78, AGC ON)
0 Lux with IR

Day/Night

IRcut filter with auto switch (ICR)

Shutter

Auto/Manual, 1 ~ 1/100000s

WDR

120dB

S/N

>56dB

Lens

Description

Lens type

5.5~88mm

Optical Zoom

16X

Iris

F1.78F3.73

Field of View (H)

50.85°~3.47°

Field of View (V)

29.94°~1.95°

Field of View (D)

62.55°~4.09°

DORI

Description

DORI DistanceDetect

127.6m~2048.4m(418.6ft~6720.5ft)

DORI DistanceObserve

51.0m~819.4m(167.4ft~2688.2ft)

DORI DistanceRecognize

25.5m~409.7m(83.7ft~1344.1ft)

DORI DistanceIdentify

12.8m~204.8m(41.9ft~672.0ft)

Illuminator

Description

Illumination Distance(IR)

Up to 100m (328 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Video

Description

Video Compression

Ultra 265; H.265; H.264; MJPEG

Video stream

Dual streams

Frame Rate

Main Stream: 4MP(2688*1520),Max 30fps
Sub Stream: 720P(1280*720), Max 30fps

Video Bit Rate

128 Kbps~16 Mbps

U-code

Support

ROI

Support

OSD

Up to 4 OSDs

Privacy Mask

24 areas, up to 4 areas per scene


Description

White Balance

Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal; Flip Vertical; Flip Horizontal; 180°

HLC

Support

BLC

Support

Defog

Digital Defog

Intelligent

Description

Smart intrusion prevention

Support false alarm filtering: Cross line detection, Intrusion detection

Auto-Tracking

Support

Events

Description

Basic Detection

Motion detection; Tampering alarm; Audio detection

General Function

Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input

Audio

Description

Audio Compression

G.711U; G.711A

Audio Bitrate

128 Kbps

Two-way Audio

Support

Suppression

Support

Sampling Rate

16KHZ

Storage

Description

Edge Storage

Micro SDup to 256 GB

Network Storage

ANR; NAS(NFS)

Network

Description

Protocols

IPv4; IPv6; IGMP; RTP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T); API; SDK

User/Host

Up to 32 users. 3 user levels: administrator, common user and operator

Security

Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF

Client

EZStation;  EZLive; EZView

Web Browser

Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Pan/Tilt

Description

Pan Range

360°(endless)

Pan Speed

0.1°/s~240°/s

Tilt Range

5°~90°(auto flip)

Tilt Speed

0.1°/s~120°/s

Number of Presets

1024

Preset Patrol

16 patrols, up to 64 presets for each patrol

Route Patrol

16 patrols, up to 32 actions for each patrol

Recorded Patrol

16 patrols, up to 128 actions for each patrol

Patrol Stay Time

15s~1800s

Home Position

Support

Interface

Description

Audio I/O

1/1

Alarm I/O

2/1

Serial Port

1*RS485

Network

1*RJ45 10M/100M BaseTX Ethernet

Certification

Description

EMC

CEEMC (EN 55032: 2015+A11:2020+A12020,EN IEC 6100032: 2019+A1: 2021,EN 6100033: 2013+A1: 2019+A2:2021,EN 501304: 2011+A1:2014)
FCC (FCC CFR 47 part15 B, ANSI C63.42014)

Safety

CE LVD (EN 623681:2014+A11:2017)
UL (UL 623681, 2nd Ed., Issue Date: 20141201)

Environment

CERoHS (2011/65/EU;(EU)2015/863)

Protection

IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)

General

Description

Power

DC12V(±10%,3A), PoE+(IEEE 802.3at)

Power Consumption

Max 23W

Power Interface

Ø 5.5mm coaxial power plug

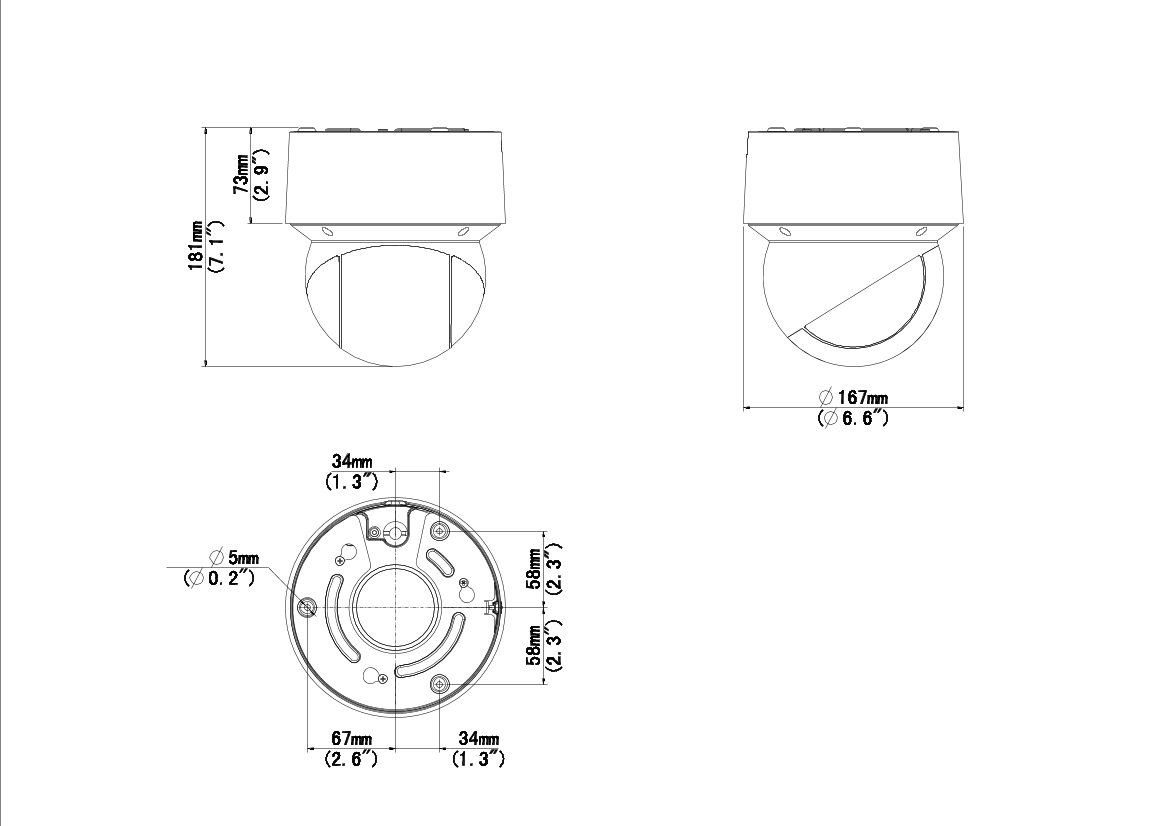

Dimensions

Ø 167 x 181mm(Ø 6.6 x 7.1)

Weight

2.3Kg(5.07lb)

Working Environment

40~65 (40°F~149°F), Humidity: 95% RH (noncondensing)

Storage Environment

40~70 (40°F~158°F), Humidity: 95% RH (noncondensing)

Surge protection

6KV

Reset button

Support
