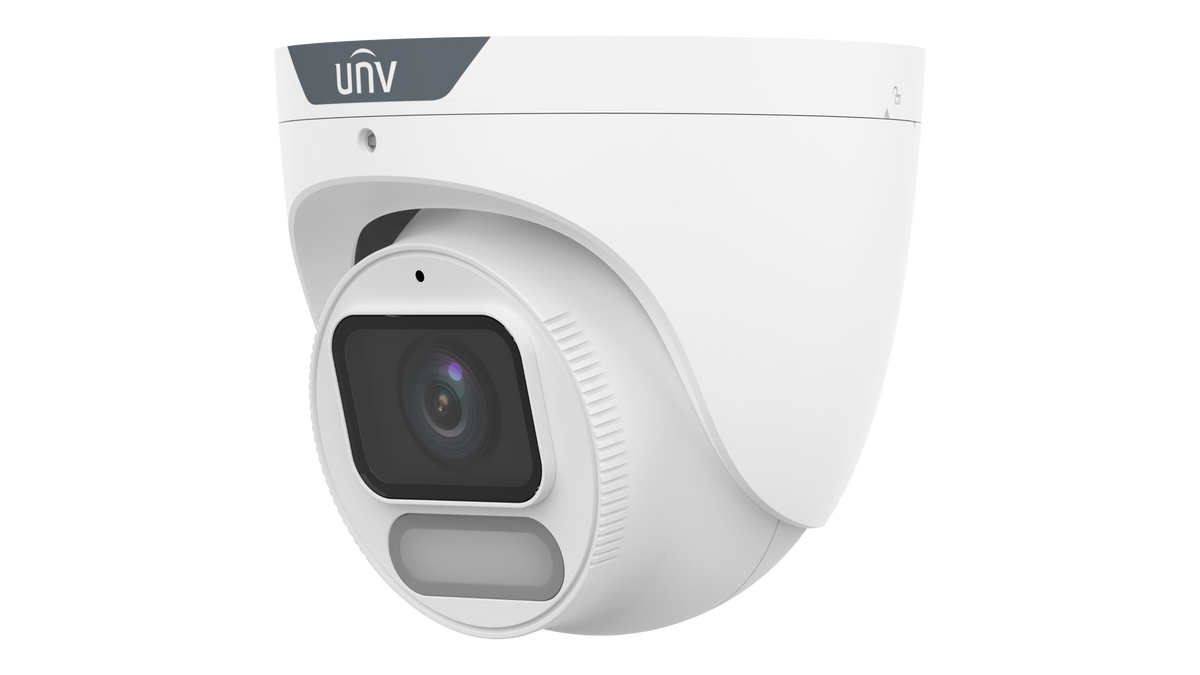

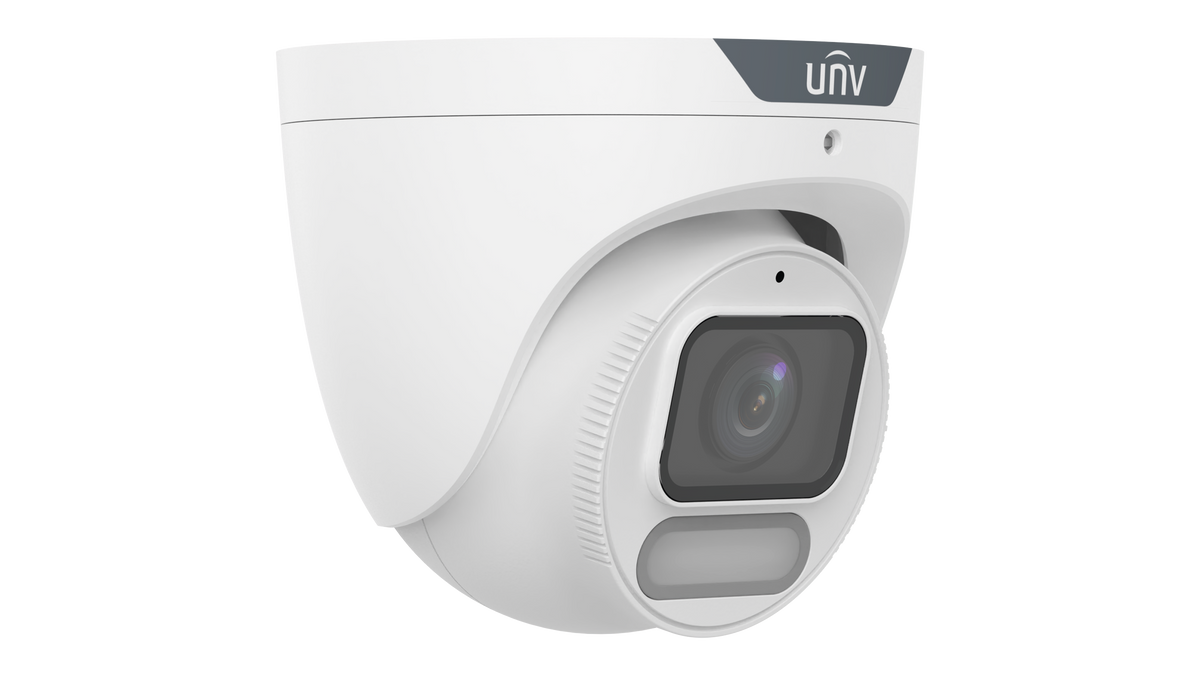

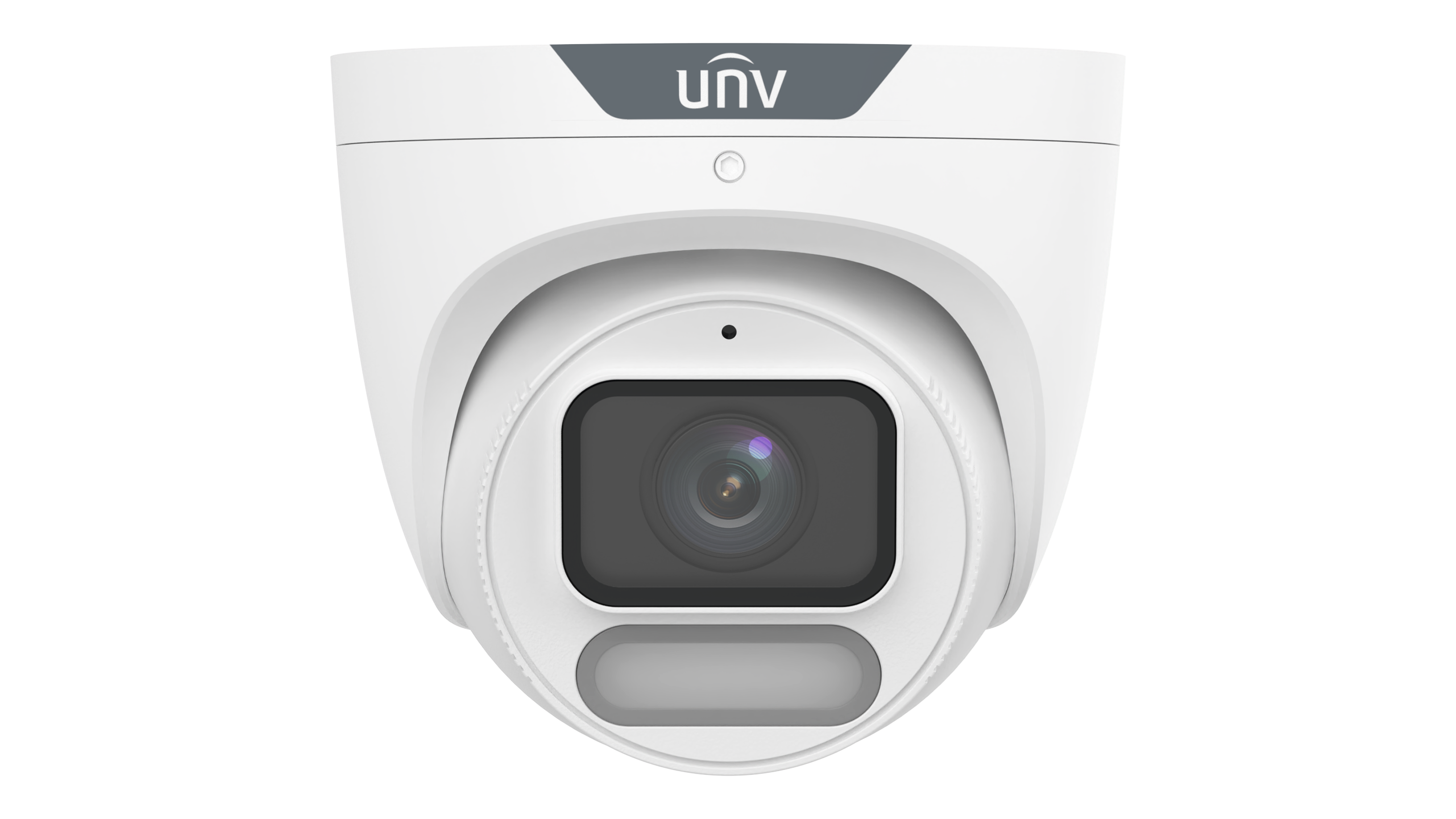

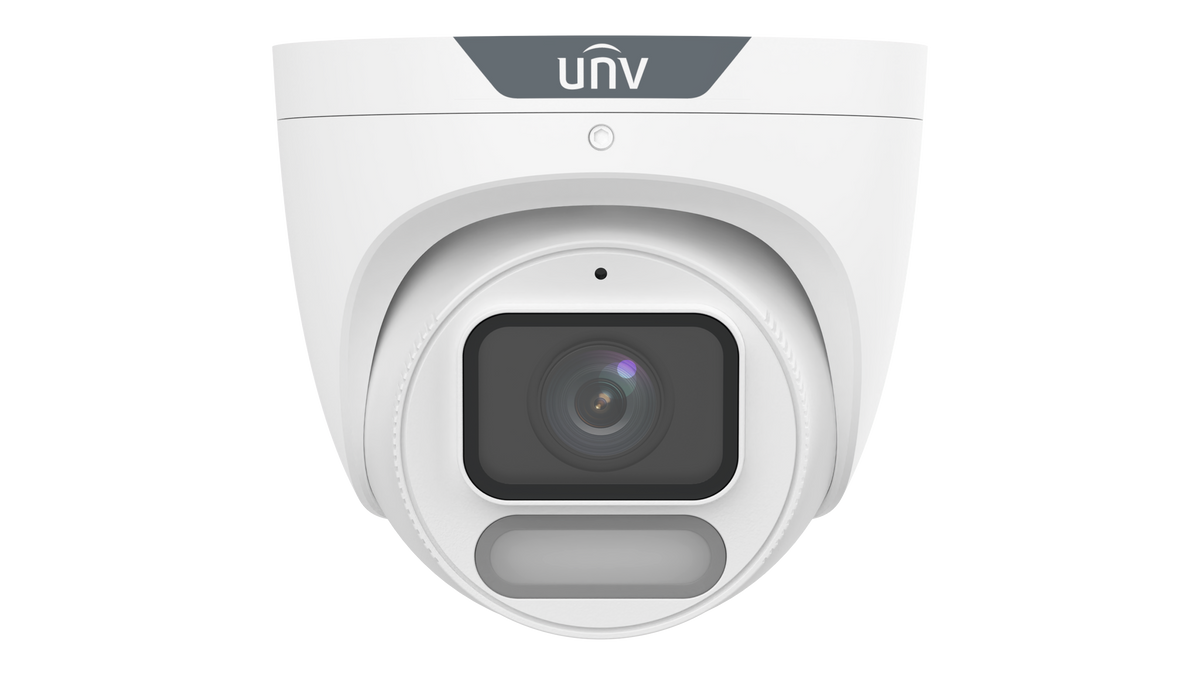

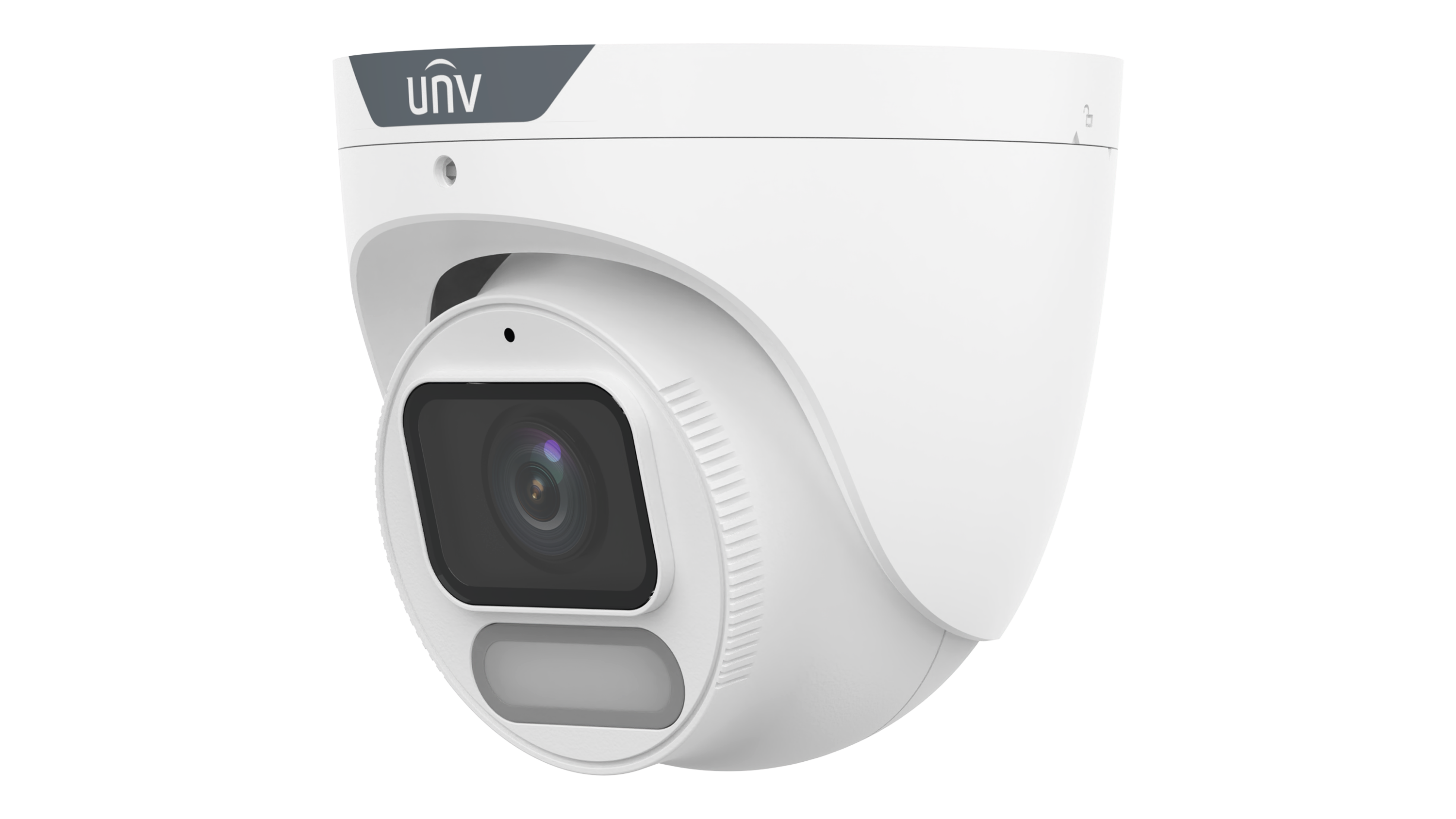

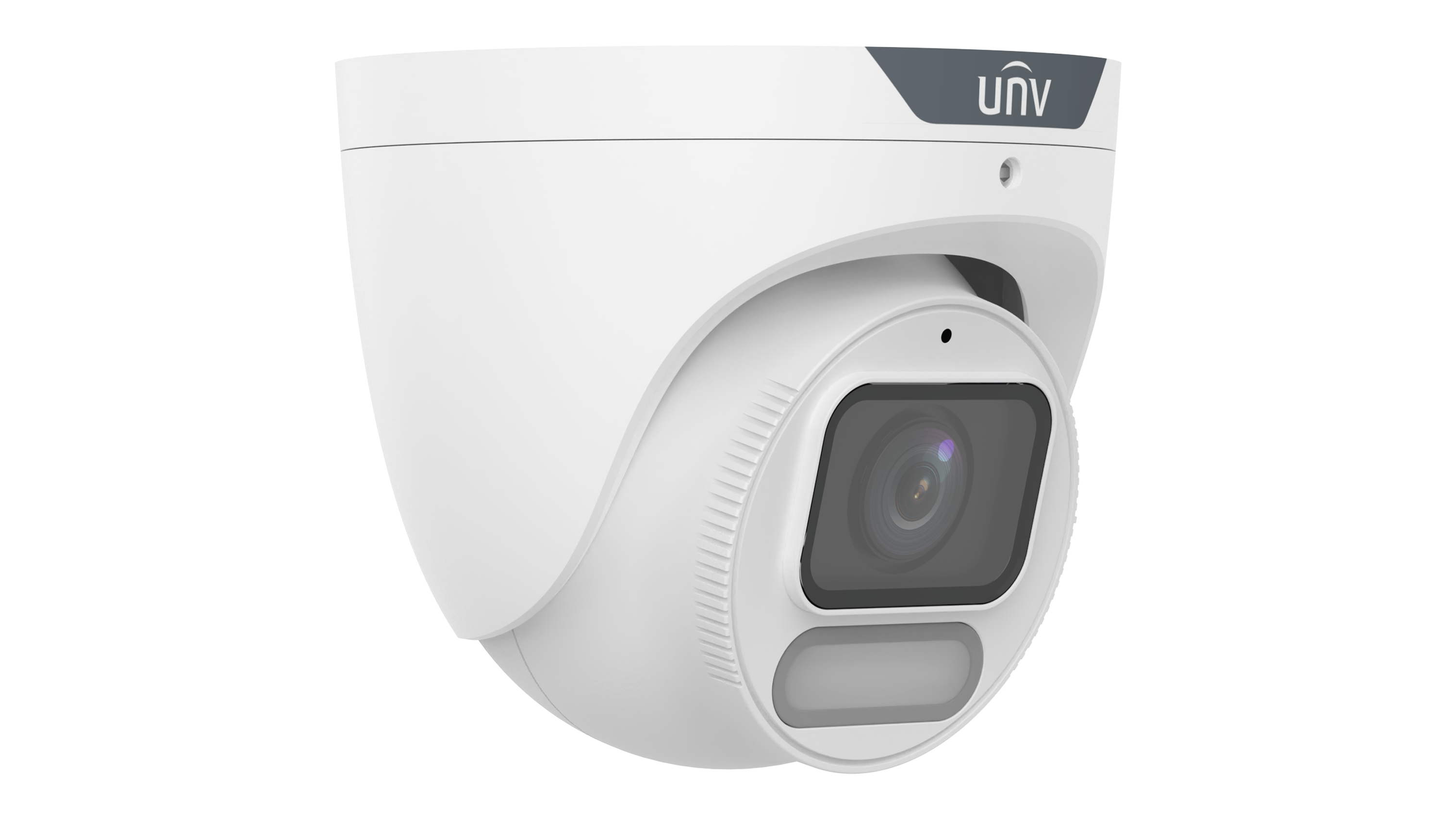

4MP WDR ColourHunter TurretPart Number: IPC3624SR-ADF28KM-WP
Resolution
4 MP @ 25fps
Lens Options
2.8mm Fixed (F1.0)
Night Vision
98.4 ft (30m) Warm Light
Power
PoE / DC12V (Max 2.8W)
Smart Feature Highlights
Sensor Type
1/1.8" CMOS (0.0003 Lux F1.0)
Field of View (H)
110.4° (2.8mm)
WDR & Imaging
120dB True WDR & Wise-ISP
Audio
Built-in Microphone
SD Card Slot
MicroSD up to 512GB
Ingress Protection
IP67 Weatherproof
NDAA Compliant
Yes
A Plus Guard (Cloud Compatible)
Via Compatible NVR
| Optics, DORI & Video Specs | |
|---|---|
| Camera & Sensor | |
| Model | IPC3624SR-ADF28KM-WP |
| BOM | 0235UEC9 |
| Max Resolution | 4 MP (2688 × 1520) @ 25/20 fps |
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0003 Lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| S/N Ratio & WDR | >52 dB; 120 dB True WDR |
| Lens & FOV | |
| Focal Length & Iris | 2.8 mm (Fixed Iris, F1.0 large aperture) |
| Field of View (H / V / D) | H: 110.4°, V: 60.5°, D: 115.2° |
| DORI Distances | |
| Detect | 43.4 m (142.4 ft.) |
| Observe | 17.4 m (57.1 ft.) |
| Recognize | 8.7 m (28.5 ft.) |
| Identify | 4.3 m (14.1 ft.) |
| Illuminator & Video | |
| Supplemental Light | Warm Light (30m / 98.4ft distance) |
| Illuminator Control | Auto/Manual |
| Video Compression & Profiles | Ultra 265, H.265, H.264, MJPEG; H.264 Profiles: Baseline, Main, High |
| Bit Rate & Streams | 128 Kbps to 6144 Kbps; Dual streams; U-code supported |
| Image Settings | White Balance (Auto/Outdoor/Fine tune/Sodium lamp/Locked/Auto2), 2D/3D DNR, Smart Illumination, Flip, HLC, BLC, Digital Defog, Up to 4 OSDs, 4 Privacy masks, ROI (up to 8 areas) |
| Smart, Network & General Specs | |
|---|---|
| Events & Analytics | |
| Basic Detection & Analytics | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection) |
| General Functions | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Audio, Storage & Interface | |
| Audio | G.711U, G.711A (64 Kbps); Noise suppression, built-in microphone |
| Edge & Network Storage | MicroSD slot, up to 512 GB; ANR, NAS (NFS) |
| Network & Security | 1x RJ45 10M/100M; IPv4/IPv6, ONVIF (S/G/T), SSL/TLS, HTTPS, 802.1x, Up to 32 users (2 user levels) |
| Client & Browser | UNV-Link, UNV-Link Pro, EZStation; Plugin required & plugin-free browser live view support |
| Interfaces & I/O | Built-in Mic supported; Audio I/O, Alarm I/O, Serial Port: N/A |
| General & Environment | |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af); Max. 2.8 W; Ø5.5 mm coaxial power plug |

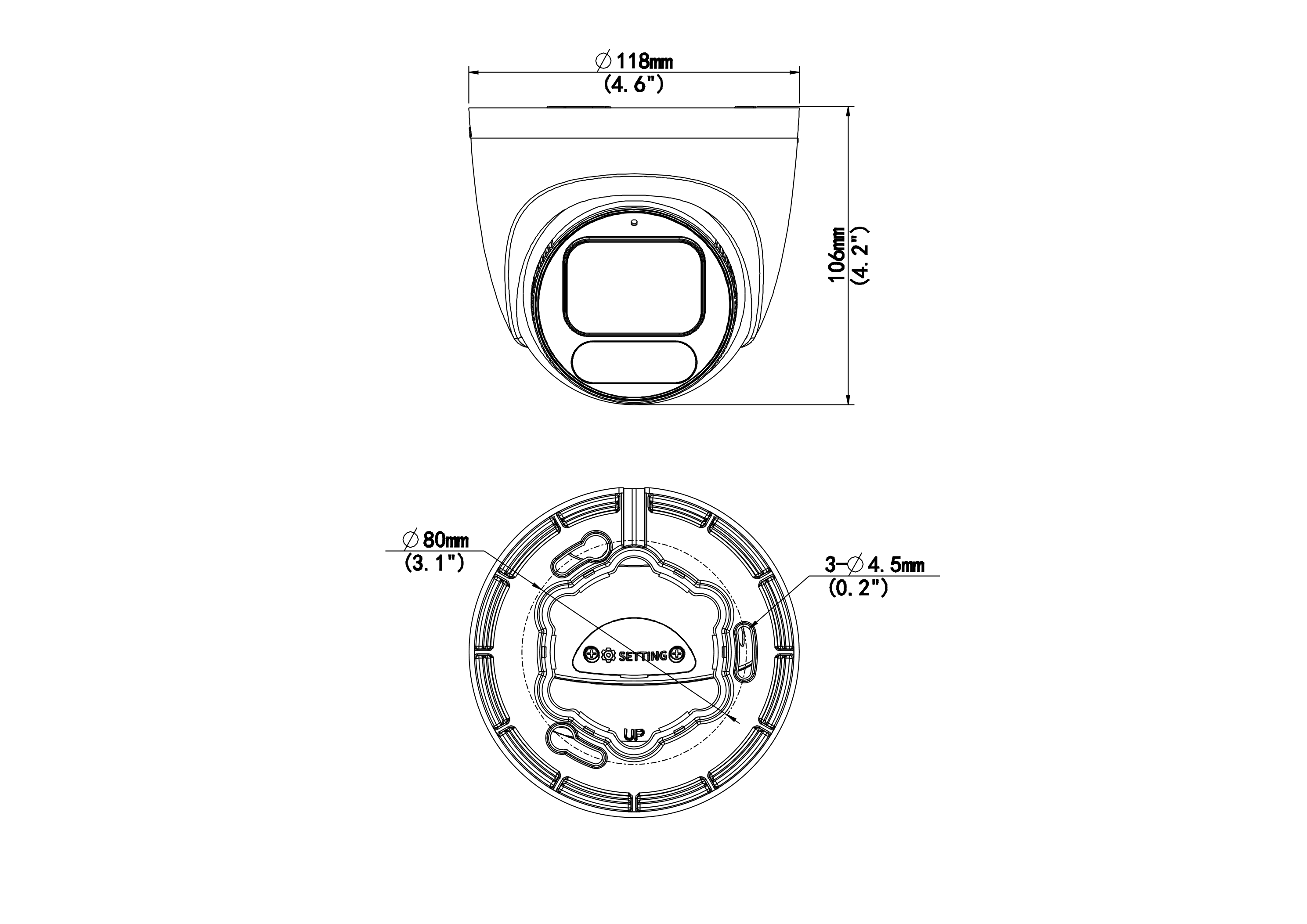

| Dimensions & Weight | Ø118 mm × 106 mm (Ø4.6" × 4.2"); 0.48 kg (1.06 lb.) |
| Material & Protection | Metal casing; IP67, 4 KV Surge protection |
| Working/Storage Environment | -30°C to 60°C (-22°F to 140°F), humidity $\le95\%$ RH |
| Language Support | 13 Languages (English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Italian) |
| Compatible Accessories | TR-JB03-I-IN junction box, TR-A01-IN waterproof cable gland, TR-SE24-IN / TR-SE24-A-IN poles, TR-CM24-IN bracket, TR-JB07/WM03-G-IN-V2 / TR-WM03-D-IN-V2 wall mounts, TR-UP06-C-IN-V2 pole mount, TR-UC08-C-V2 corner mount |
