UNV 5MP LightHunter IR Fixed Turret Network Camera

Part Number: IPC3615SB-ADF28KM-I0

2 Sensor Type: 1/2.7" CMOS
Lens Type: 2.8mm@F1.6
Max Resolution/Frame Rate: 5MP(2880x1620)@30fps
Angle of View: 96.1° (Horizontal)
Min. Illumination: Color 0.003Lux (F1.6, AGC ON)
Night Vision Distance: 98 Feet (IR)
Corridor Mode: Yes
WDR: 120dB
Audio: Built-in Microphone
Alarm I/O: N/A
BNC Output: N/A
Special Features: Human/Vehicle Detection, Face Capture, People Counting
Power: PoE (IEEE 802.3af), DC12V
NDAA Compliant: Yes
Warranty Period: 3 Years

IPC3615SB-ADF28KM-I0

Camera

Sensor

1/2.7", 5.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F1.6

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63.0

25.2

12.6

6.3

Angle of view(H)

96.1°

Angle of View (V)

55.3°

Angle of View (O)

111.1°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 80°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.003Lux (F1.6, AGC ON)

0Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Digital Noise Reduction

2D/3D DNR

S/N

>56dB

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 8 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR

Intelligent

Smart Intrusion Prevention

Cross line, intrusion, enter area, leave area detection

Events

Basic Detection

Motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile T), API

Client

EZStation

EZView

EZLive

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Network

1 RJ45 10M/100M Base-TX Ethernet

Built-in Mic

Supported

Certifications

Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 4.0W

Dimensions (Ø x H)

Φ110.5 x 94.1mm (Φ4.4” x 3.7”)

Net Weight

0.425kg (0.93lb)

Material

Metal

Operating Conditions

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

2KV

Ingress Protection

IP67

Reset Button

N/A

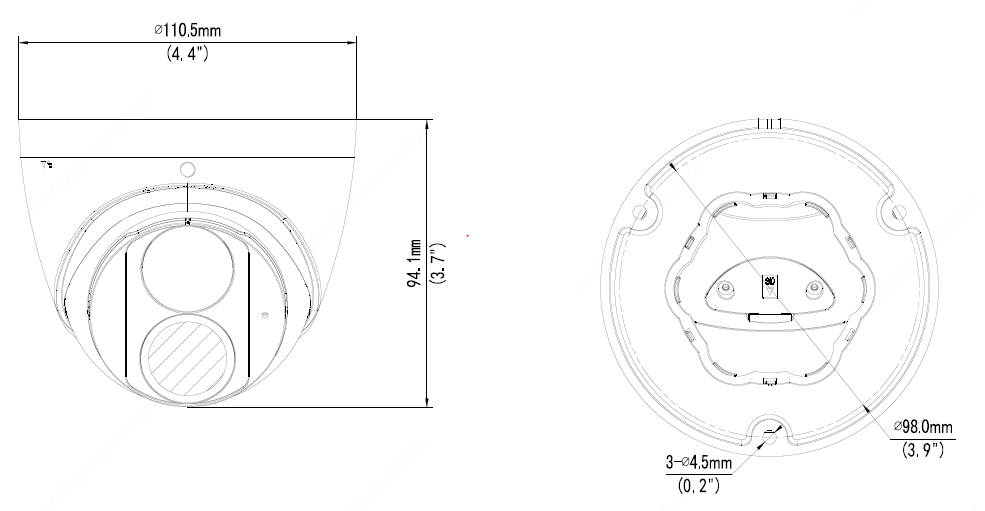

IPC3615SB-ADF28KM-I0 DIMENSIONS
