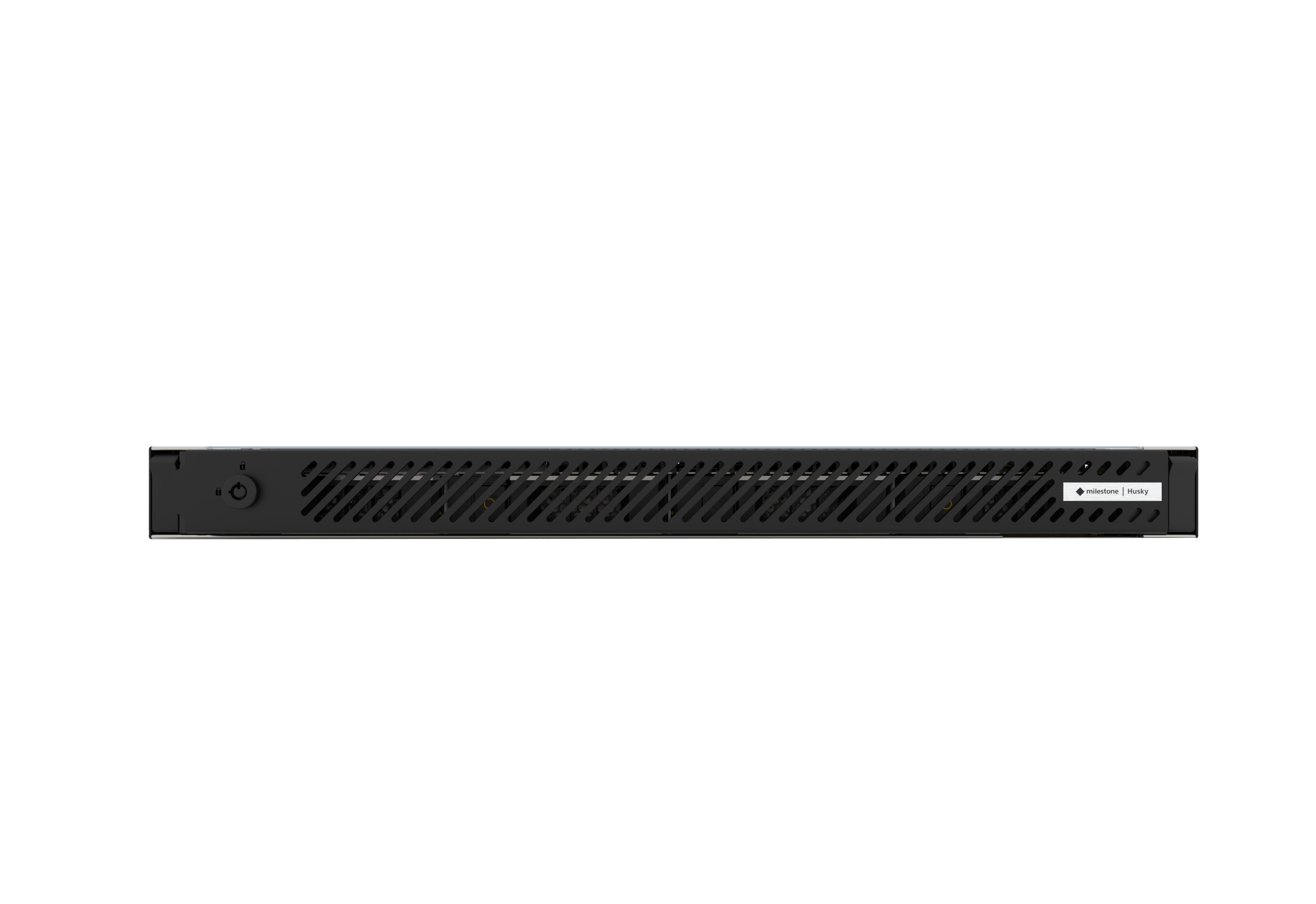

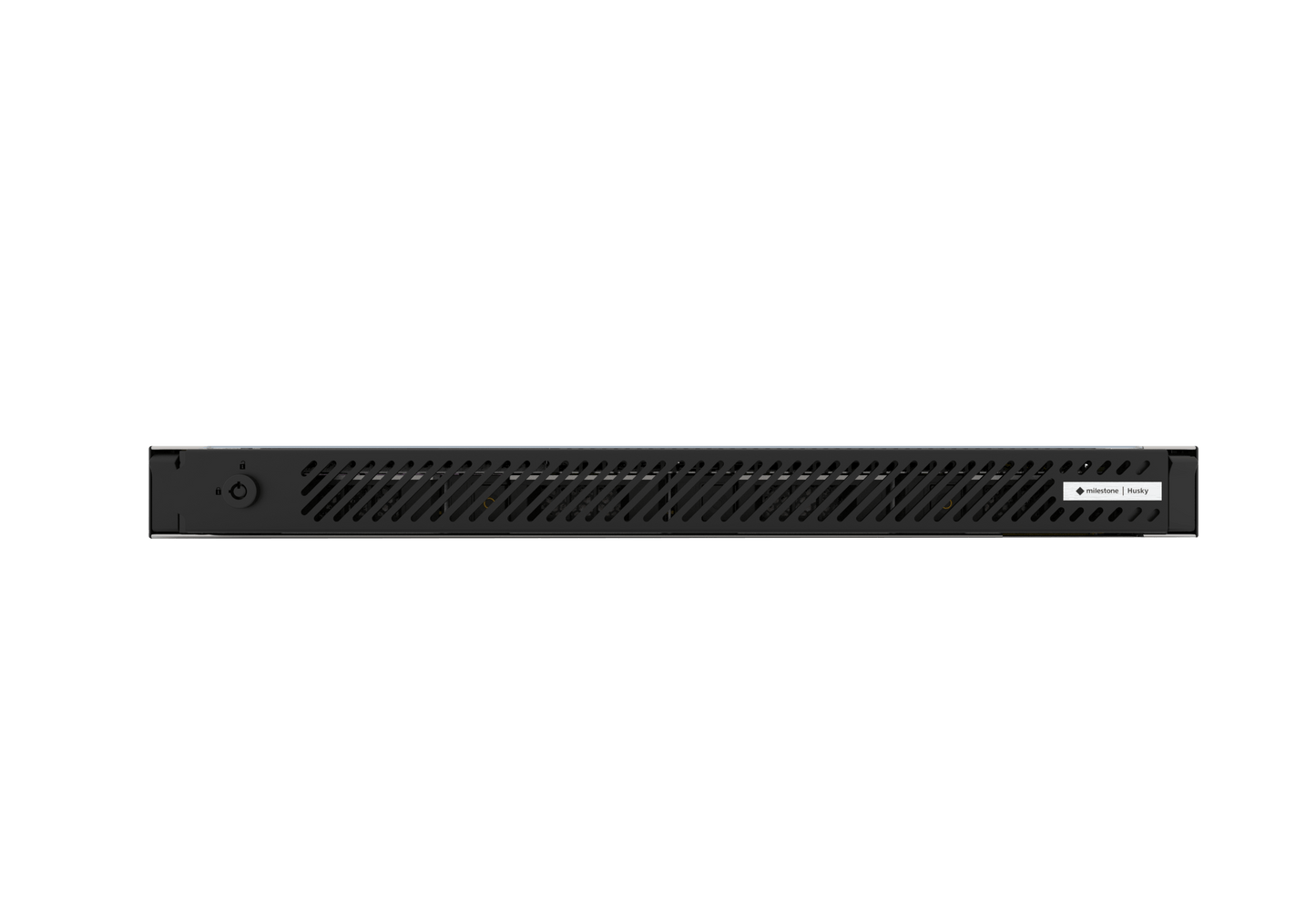

Part Number: Husky IVO 700R
Ideal for scaling within existing IT infrastructures.

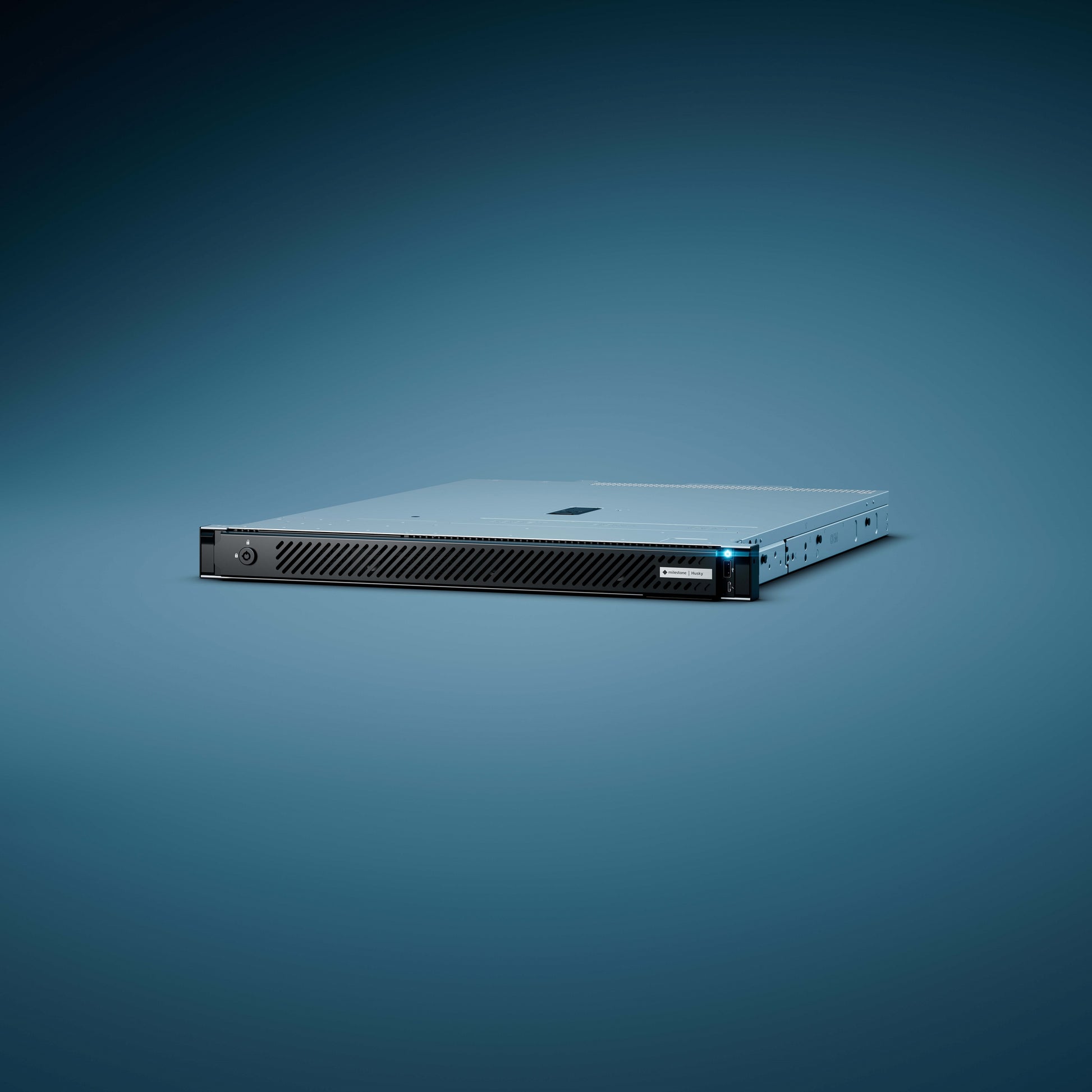

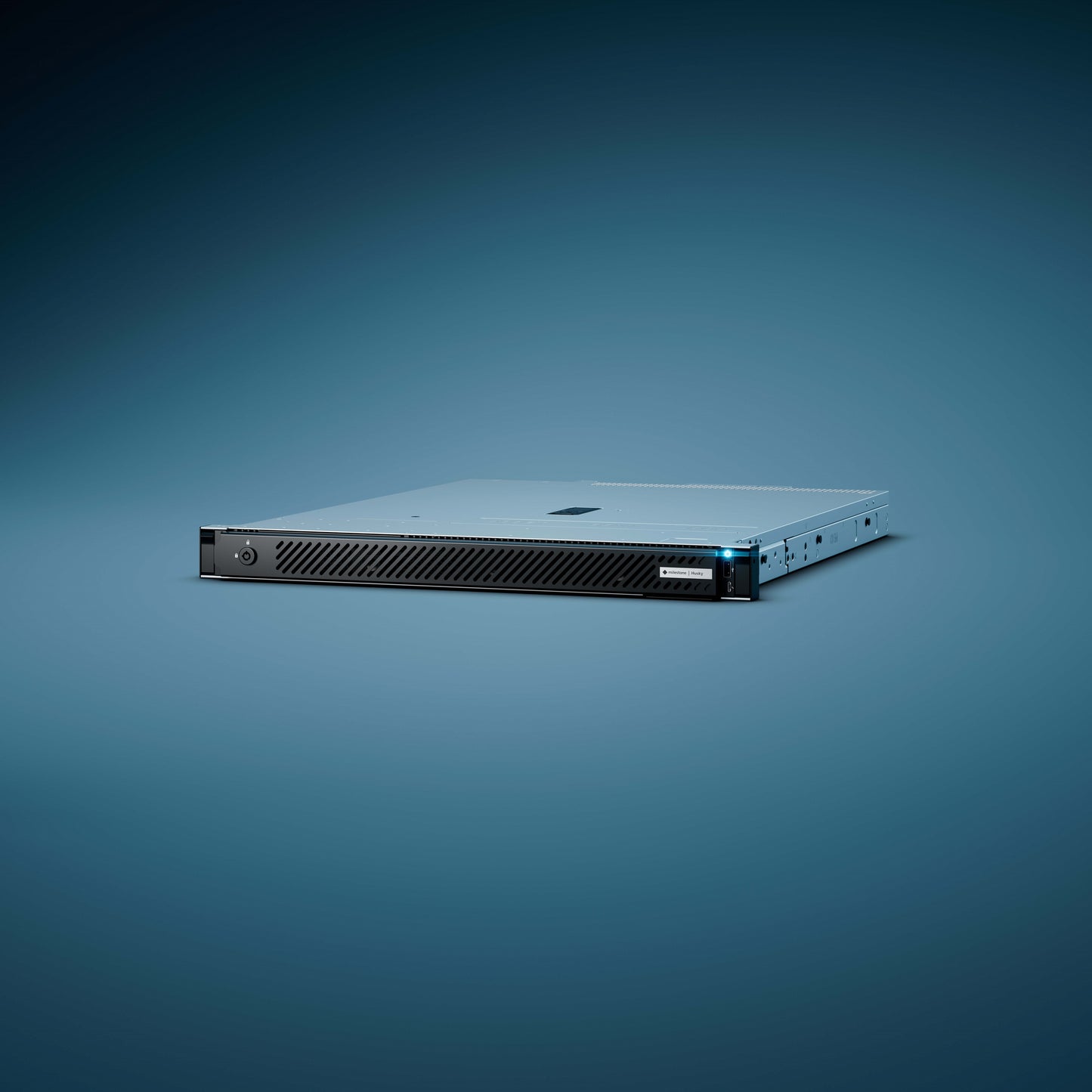

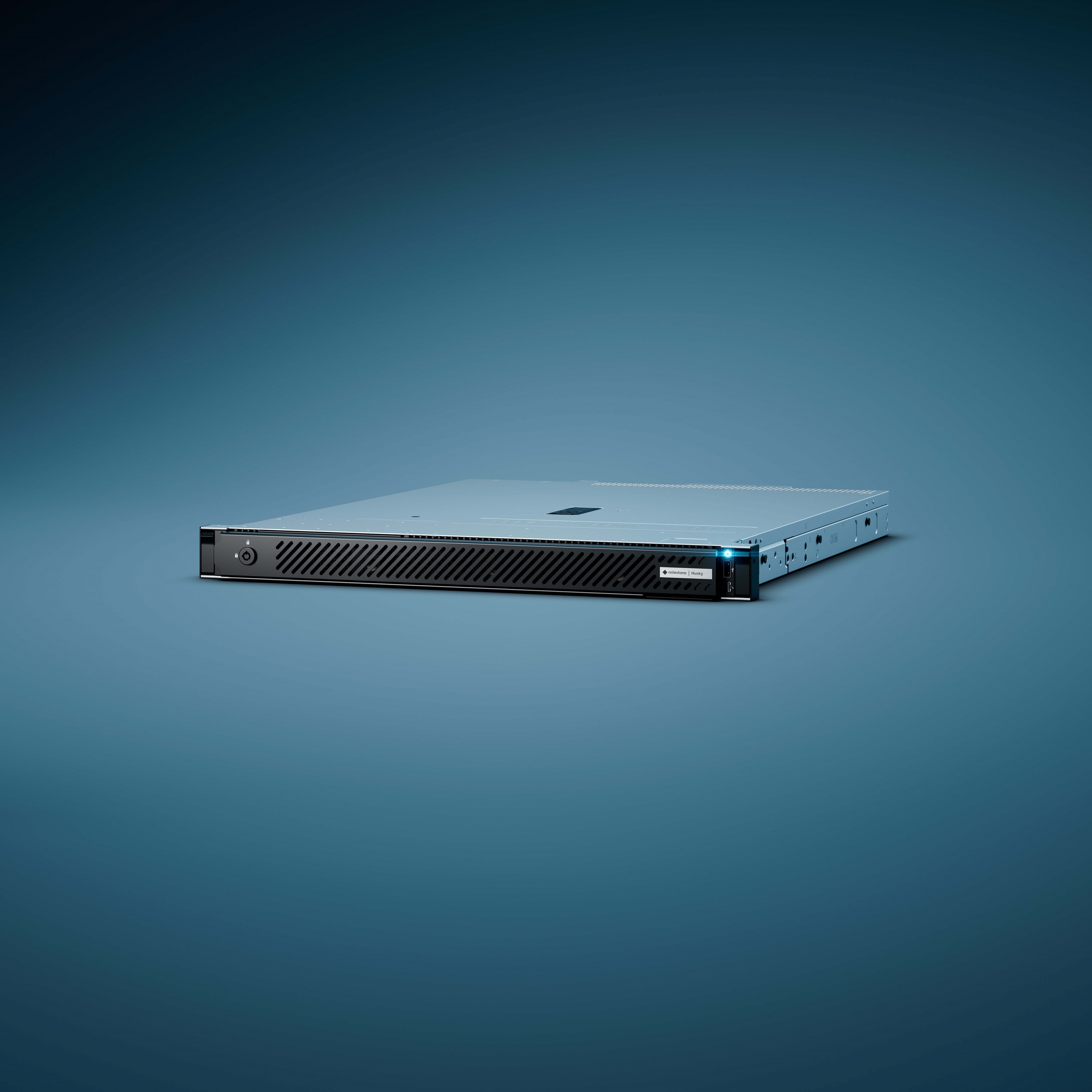

Husky IVO™ 700R (Rack) is a medium-sized video surveillance appliance that brings ease-of-use and full redundancy together – making it the perfect choice for those with a critical need for maximum uptime on their video installation.
Full redundancy
No need to worry about OS failures or losing video
Removes the hassle
Save time on installation and compatibility
|
Model |
Husky IVO 700R |
|
Video performance (based on video stream 1080p, 30fps, 5-8 Mbit/s/channel, recording with VMD enabled), Throughput and channel count are measured separately, not in combination. |
|
|
Throughput (up to) |
720 Mbit/s |
|
Channel count (up to) |
100 |
|
Local storage (max) |
64 TB |
|
Hardware information |
|
|
Form Factor |
Rack Mounted 1U |
|
CPU |
Intel® Xeon® E-2236 |
|
GPU |
N/A |
|
RAM |
16GB DDR4 |
|
Operating system (OS) |
Windows 10 IoT Enterprise SAC |
|
VMS/OS Storage |
2 x 240GB (RAID 1), M.2 SSDs |
|
Number of hard drives |

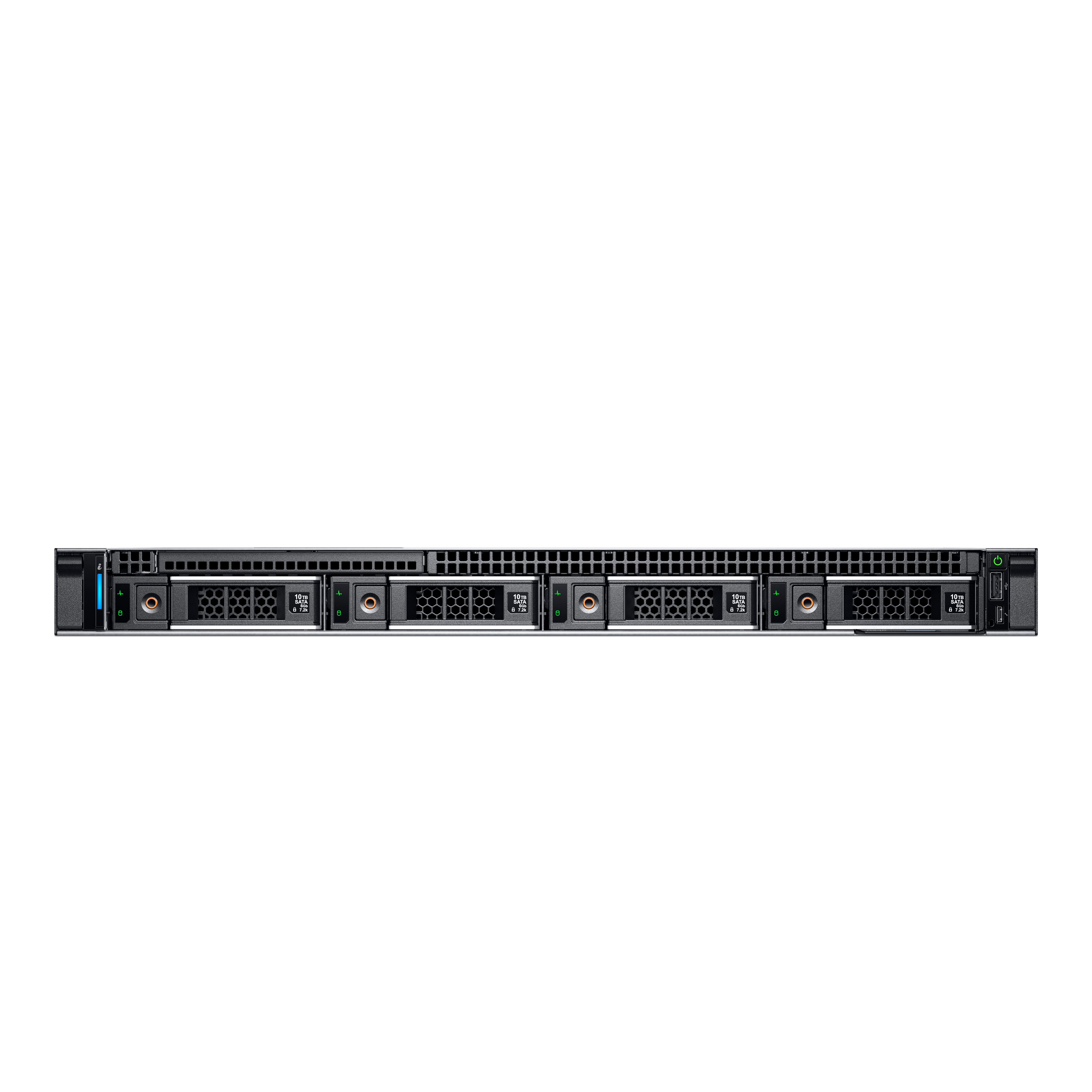

4 x 3.5” (hot-plug) |
|
Raw storage (gross) |
8/16/32/48/64 TB (Dell Enterprise Grade 24/7 Drives) |
|
RAID Controller & Support |
PERC H730P with Cache & Battery & Flash backup RAID 0,1,5,6,10 RAID 5,6,10 configurable in Husky Assistant |
|

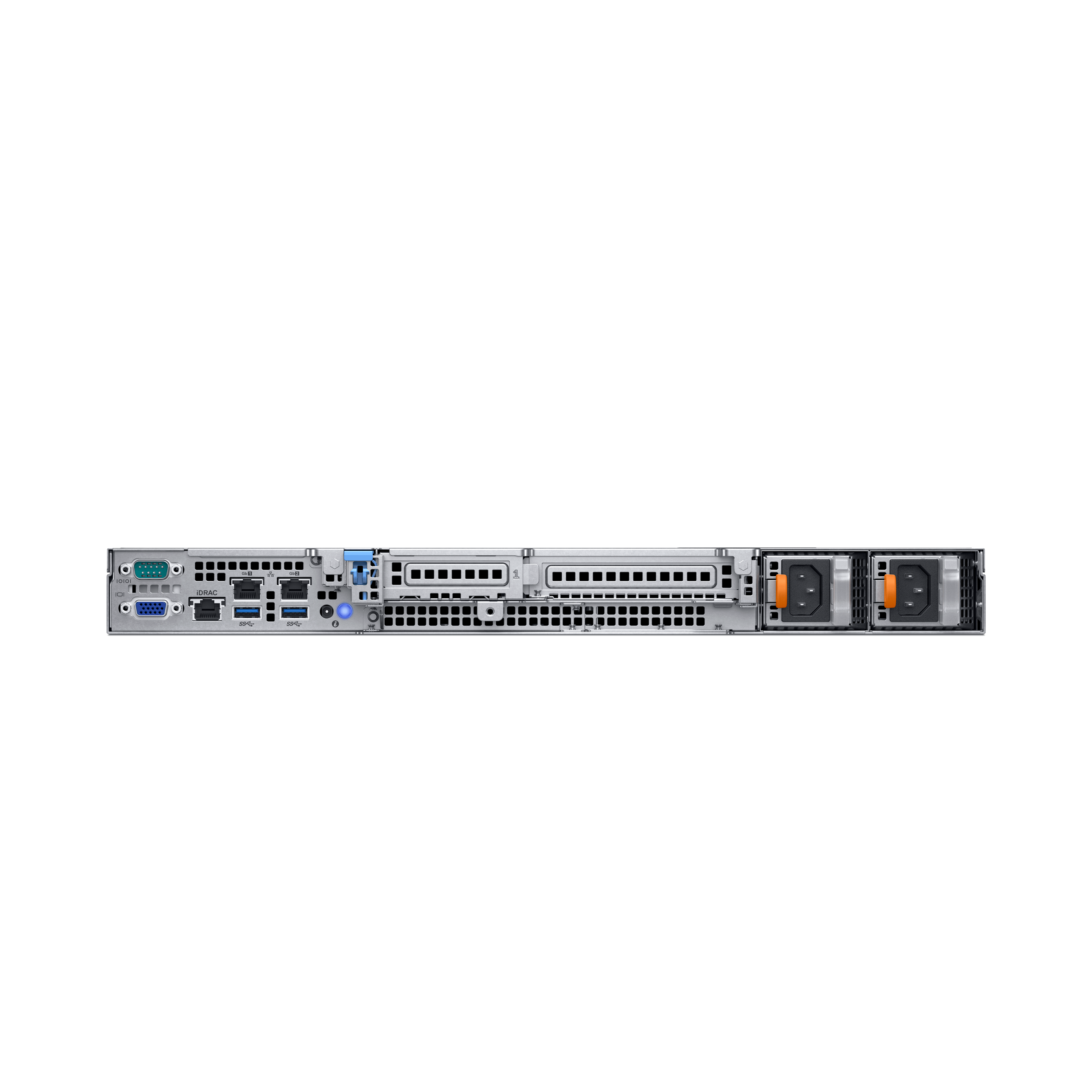

Display ports |
1 x VGA |
|
Network interface |
2 x 1 GbE (RJ45) |
|
Available PCIe slots |
1 x PCI Express® x16 Gen 3 slot full height / half length card with x8 bandwidth |
|
Archiving to external NAS |
Yes, through LAN port |
|
Credential and Key encryption |
Trusted Platform Module (TPM) 2.0 |
|
Redundant Power Supply |
Yes, hot-plug |
|
Remote management |
Yes, iDRAC9 Enterprise (license incl.) |
|
General information |
|
|
Hardware warranty |
5 years full system warranty (incl. HDD) Onsite support next business day 1 |
|
Dimensions |

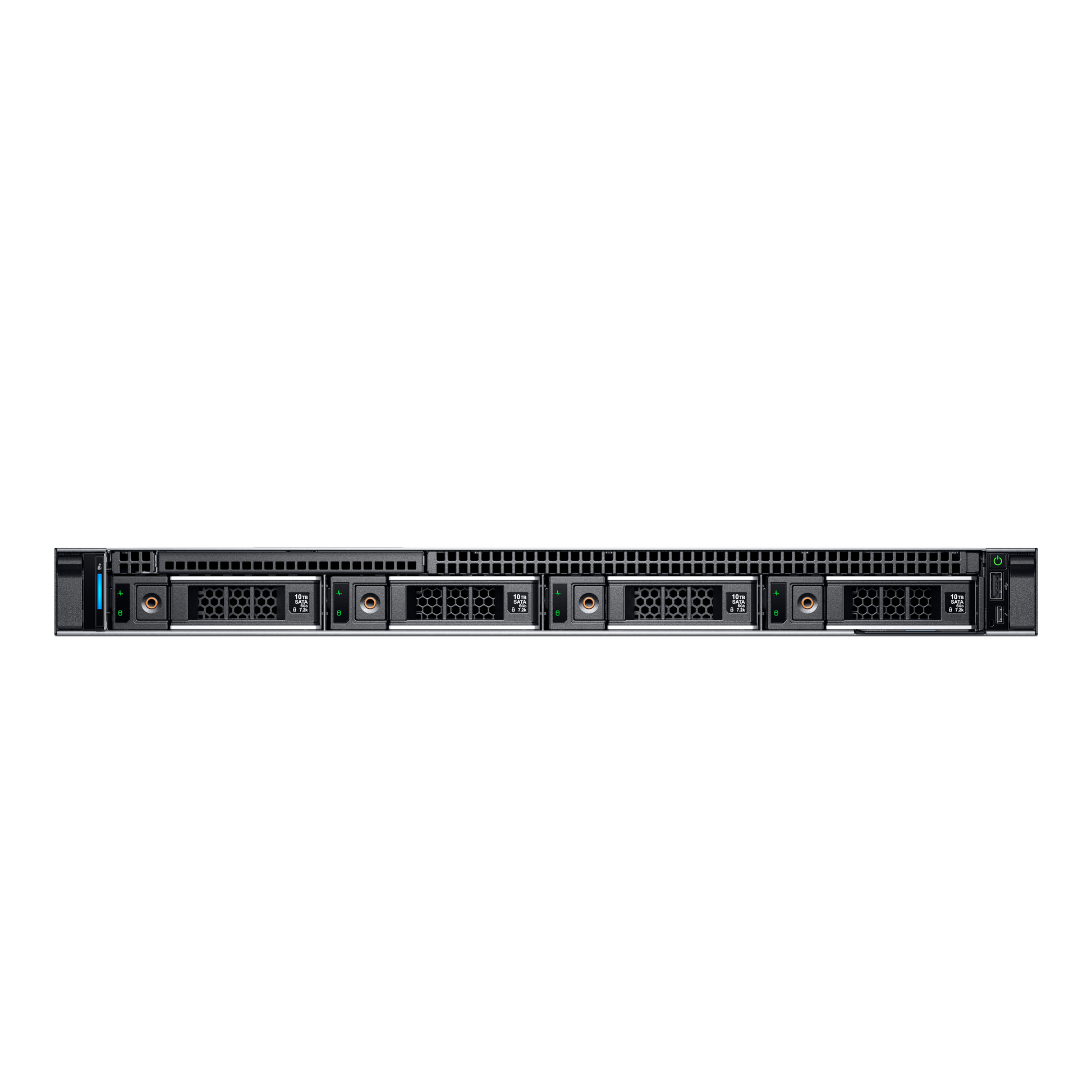

42.8 x 434.0 x 534.5 (mm) (without Bezel) 1.68” x 17.08” x 21.04” (without Bezel) |
|
Weight |
13.6 kg 29.98 lbs. |
|
Power input |
100~240V, 50/60 Hz |
|
Max. power consumption |
350W up to 94% efficient (Platinum) hot-plug redundant |
|
BTU Rating |
924.3 BTU/h |
|
Protection |
OVP (over voltage), OCP (over current), OTP (over temp), SCP (short circuit) OTP (over temp), SCP (short circuit) |
|
Environmental (This unit is intended for stationary server room and office use, according to the conditions stated below.) |
|
|
Operating temperature |
5º- 40º C / 41º - 104º F |
|
Storage temperature |
-40⁰ - 65⁰ C / -40⁰ - 149⁰ F |
|
Humidity |
10– 85% relative humidity (non-condensing) |
|
Regulatory |
|
|
Safety & emission standards |
CE (class A), UKCA, FCC, RCM, UL, Mexico (NOM), VCCI |
|
Trade compliance |
NDAA Compliant |
