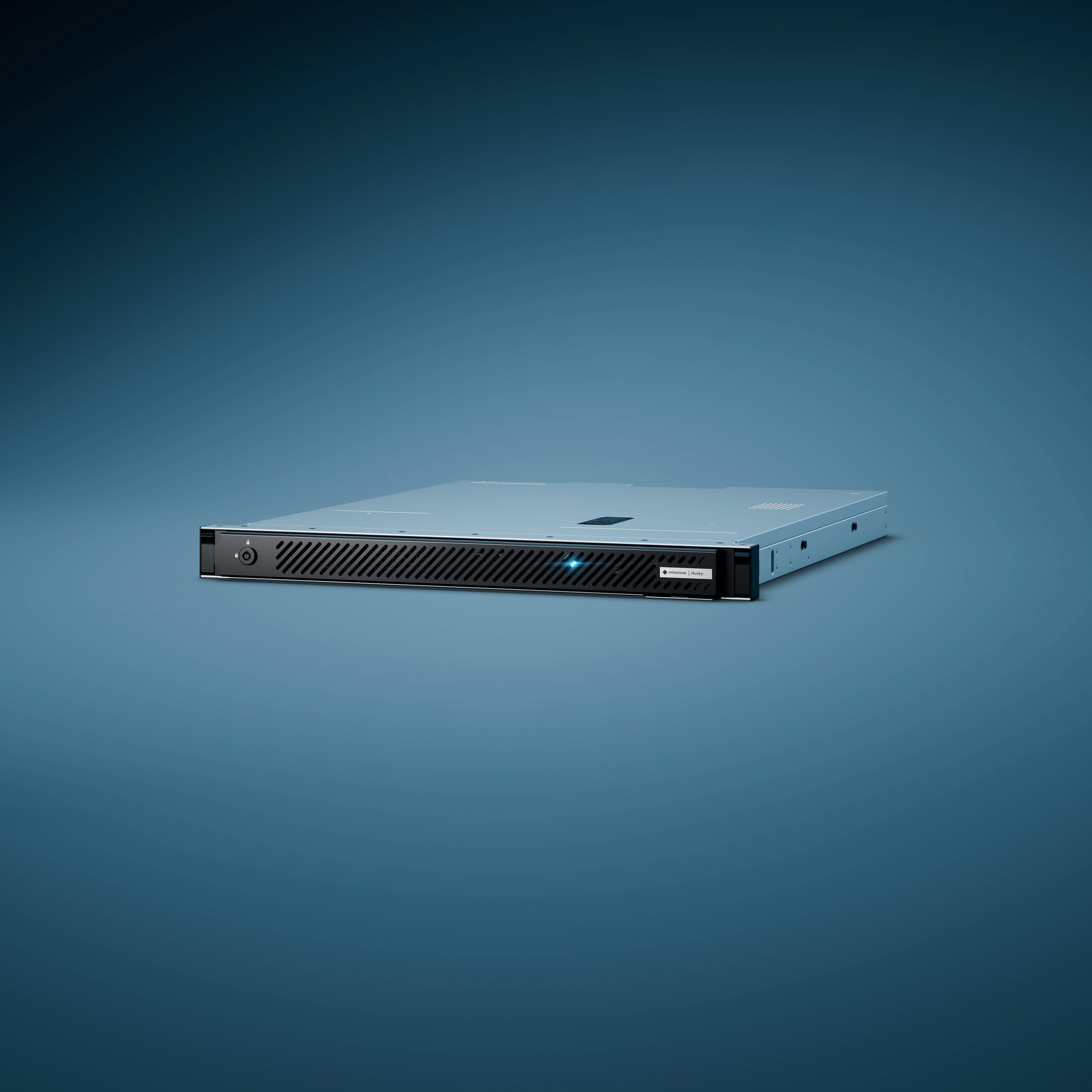

Part Number: Husky IVO 350R
Ideal for scaling within existing IT infrastructures.
Husky IVO 350R (Rack) is the ideal first rack server product for those who aim to start small in their video installation — yet want the flexibility to grow within their existing IT infrastructure. Ideal for retail, logistics and warehousing.
Easy & flexible setup
Set up with just a few simple steps
Greater peace of mind
Avoid extra costs and complexity
|
Model |
Husky IVO 350R |
|
Video performance (based on video stream 1080p, 30fps, 5-8 Mbit/s/channel, recording with VMD enabled), Throughput and channel count are measured separately, not in combination. |
|
|
Throughput (up to) |
360 Mbit/s |
|
Channel count (up to) |
50 |
|
Local storage (max) |
32 TB |
|
Hardware information |
|
|
Form Factor |
Rack Mounted 1U |
|
CPU |
Intel® Core™ i3-9100 |
|
GPU |
Integrated Intel® UHD Graphics 630 (Intel® Quick Sync Video) |
|
RAM |
16GB DDR4 |
|
Operating system (OS) |
Windows 10 IoT Enterprise SAC |
|
VMS/OS Storage |
256GB (M.2 PCIe NVMe) |
|

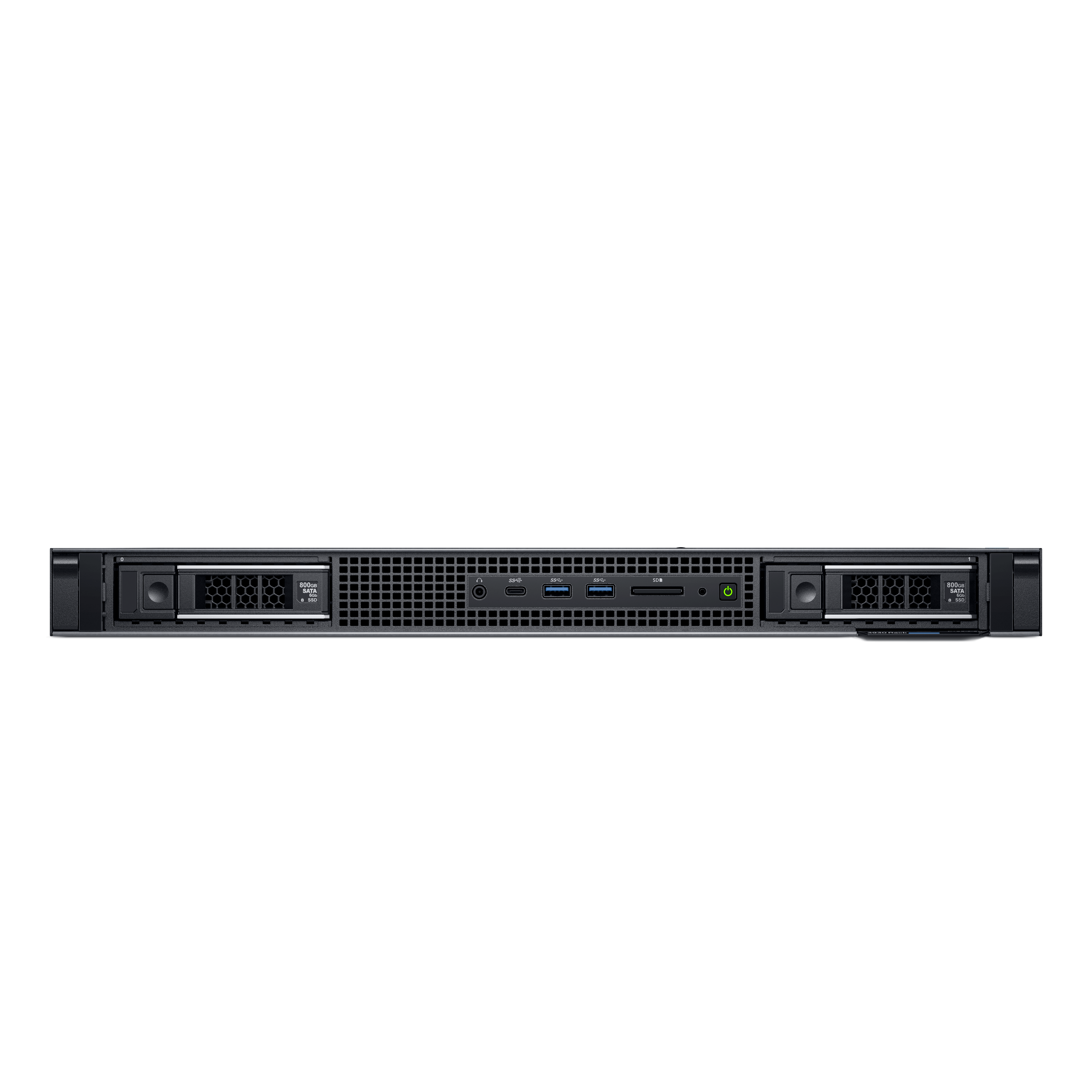

Number of hard drives |
2 x 3.5” (external accessible) |
|
Raw storage (gross) |
4/8/16/24/32 TB (Dell Enterprise Grade 24/7 Drives) |
|
RAID Controller & Support |
Intel® Rapid Storage Controller – RAID 0,1 (Software RAID) |
|

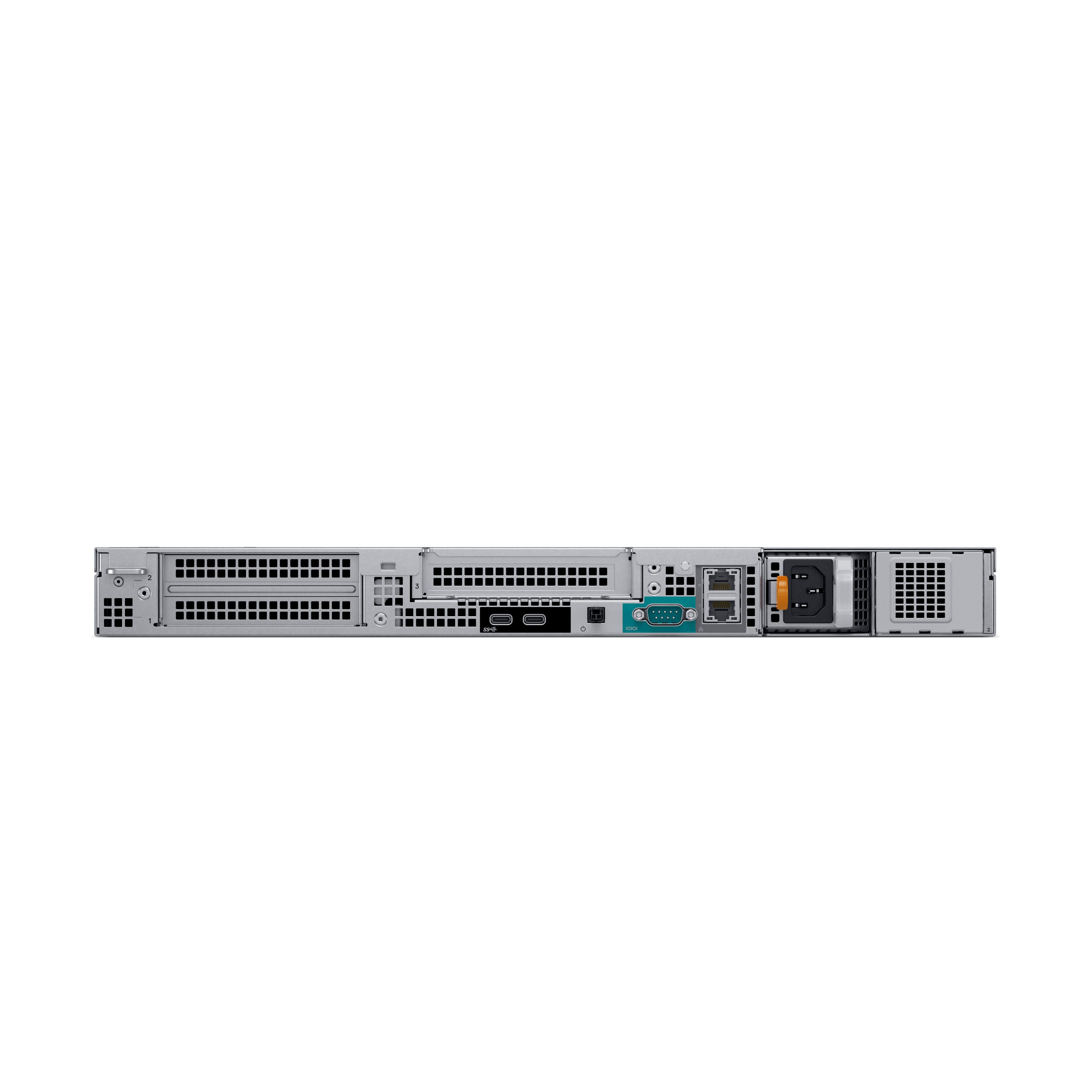

Display ports |
2 x USB 3.1 Type C / iGFX Display Port USB-C to VGA Video Adapter included |
|
Network interface |
1x 1GbE (RJ45) 1x 1/2.5/5/10 GbE (RJ45) |
|
Available PCIe slots |
One PCI Express® x16 Gen 3 double width slot full height One PCI Express® x8 Gen 3 slot full height One PCI Express® x4 Gen 3 slot full height |
|
Archiving to external NAS |
Yes, through LAN port |
|
Credential and Key encryption |
Trusted Platform Module (TPM) 2.0 |
|
Redundant Power Supply |
No |
|
Remote management |
No |
|
General information |
|
|
Hardware warranty |
5 years full system warranty (incl. HDD) Onsite support next business day (additional conditions may apply, see detailed datasheet) |
|
Dimensions |
42.8 x 482.0 x 577.6 (mm) (without bezel) 1.68” x 18.98” x 22.74” (without bezel) |
|
Weight |
8.74 kg (min) 19.27 lbs. (min) |
|
Power input |
100~240V, 50/60 Hz |
|
Max. power consumption |
550W up to 94% efficient (Platinum) nonredundant hot pluggable |
|
BTU Rating |
1,875 BTU/h (max. theoretical) |
|
Protection |
OVP (over voltage), OCP (over current), OTP (over temp), SCP (short circuit) |
|
Environmental (This unit is intended for stationary server room and office use, according to the conditions stated below.) |
|
|
Operating temperature |
10º- 45º C / 50º - 113º F |
|
Storage temperature |
-40⁰ - 65⁰ C / -40⁰ - 149⁰ F |
|
Humidity |
10 – 85% relative humidity (non-condensing) |
|
Regulatory |
|
|
Safety & emission standards |
CE (class A), UKCA, FCC, RCM, UL, Mexico (NOM), VCCI |
|
Trade compliance |
NDAA Compliant |
