Part Number: Husky IVO 1800R
Ultimate throughput and storage for critical surveillance.
Husky IVO 1800R (Rack) is optimized for high throughput, extensive storage and flexibility. This is the ideal, high-end choice for larger and complex critical video installations such as airports, malls and transport hubs.
Get even more from XProtect®

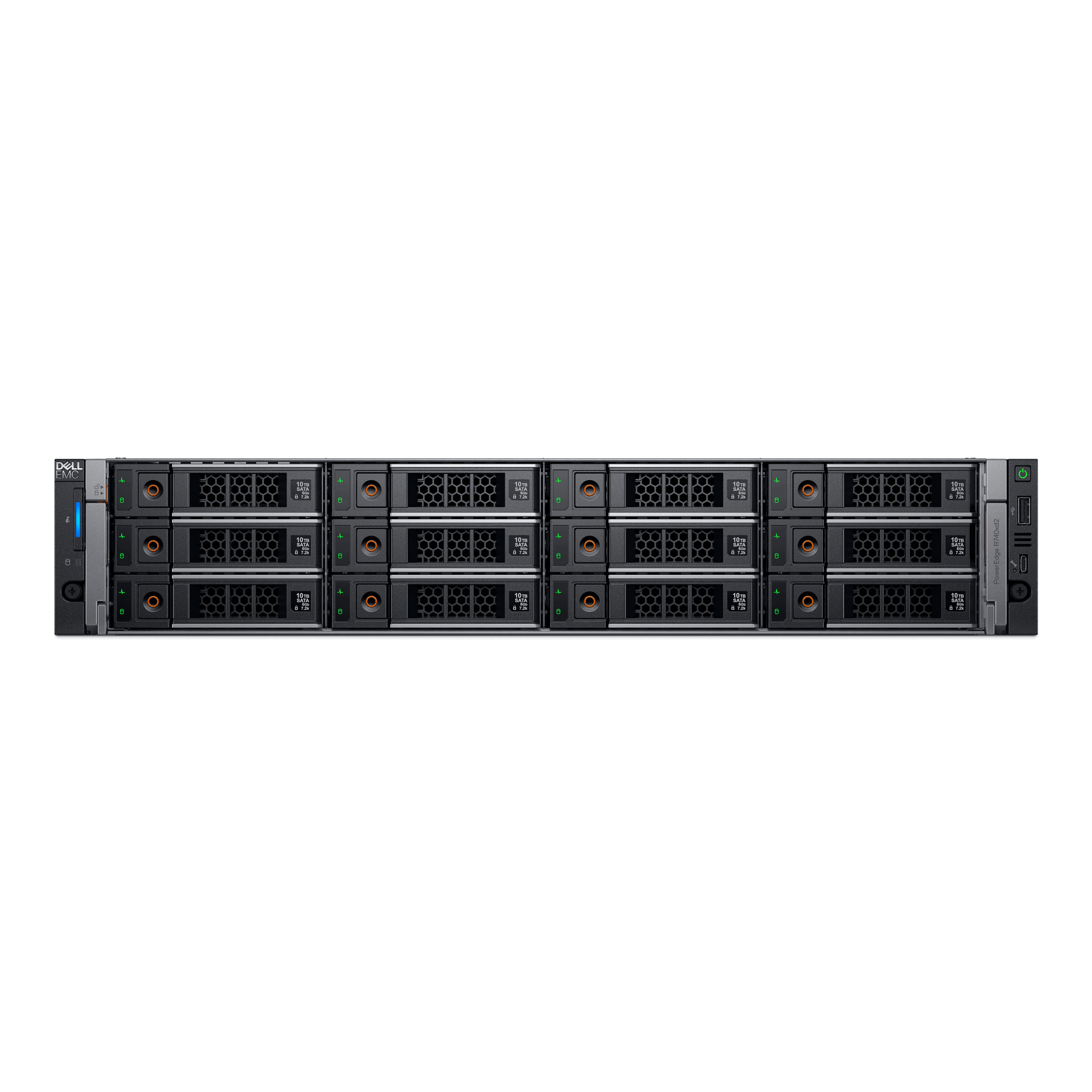

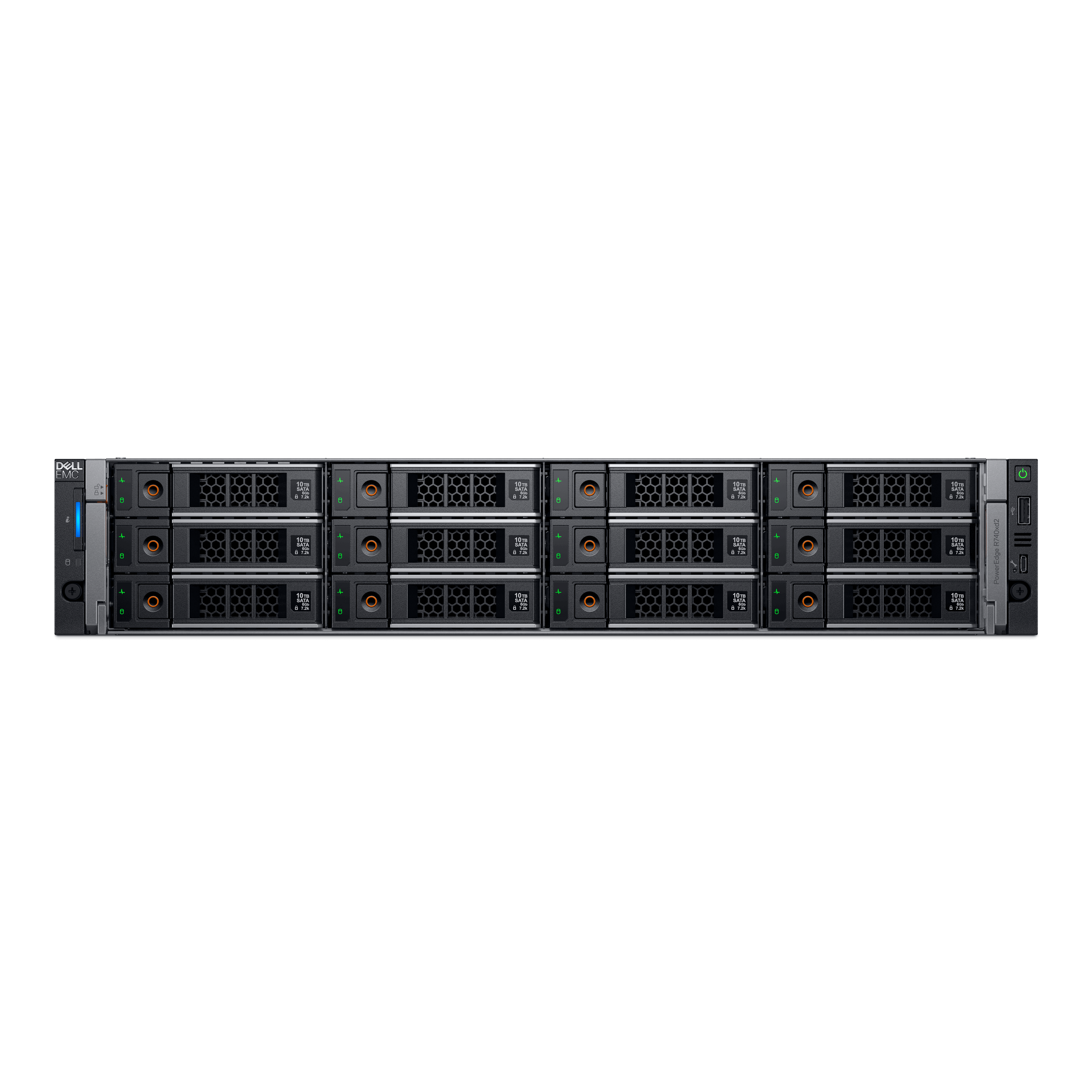

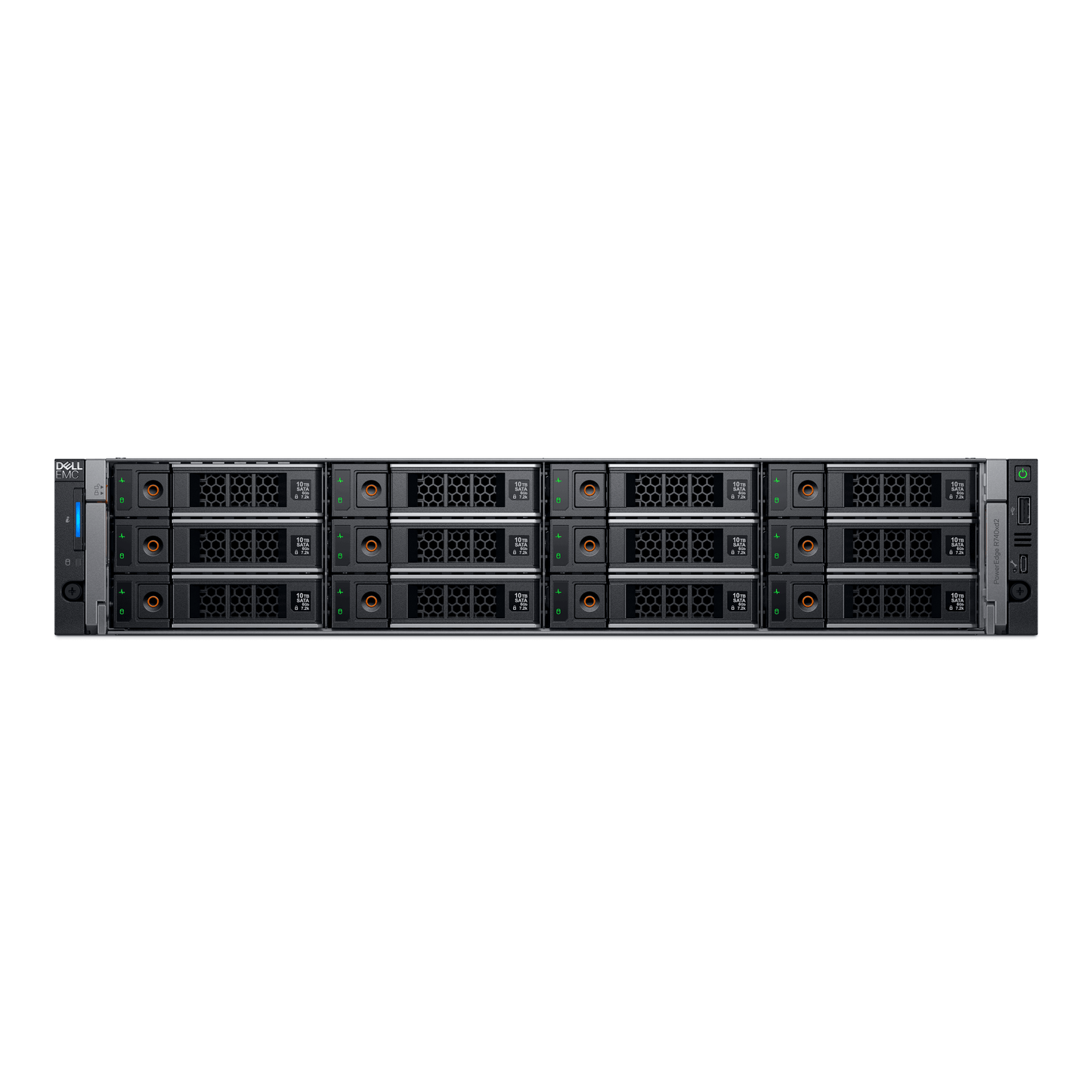

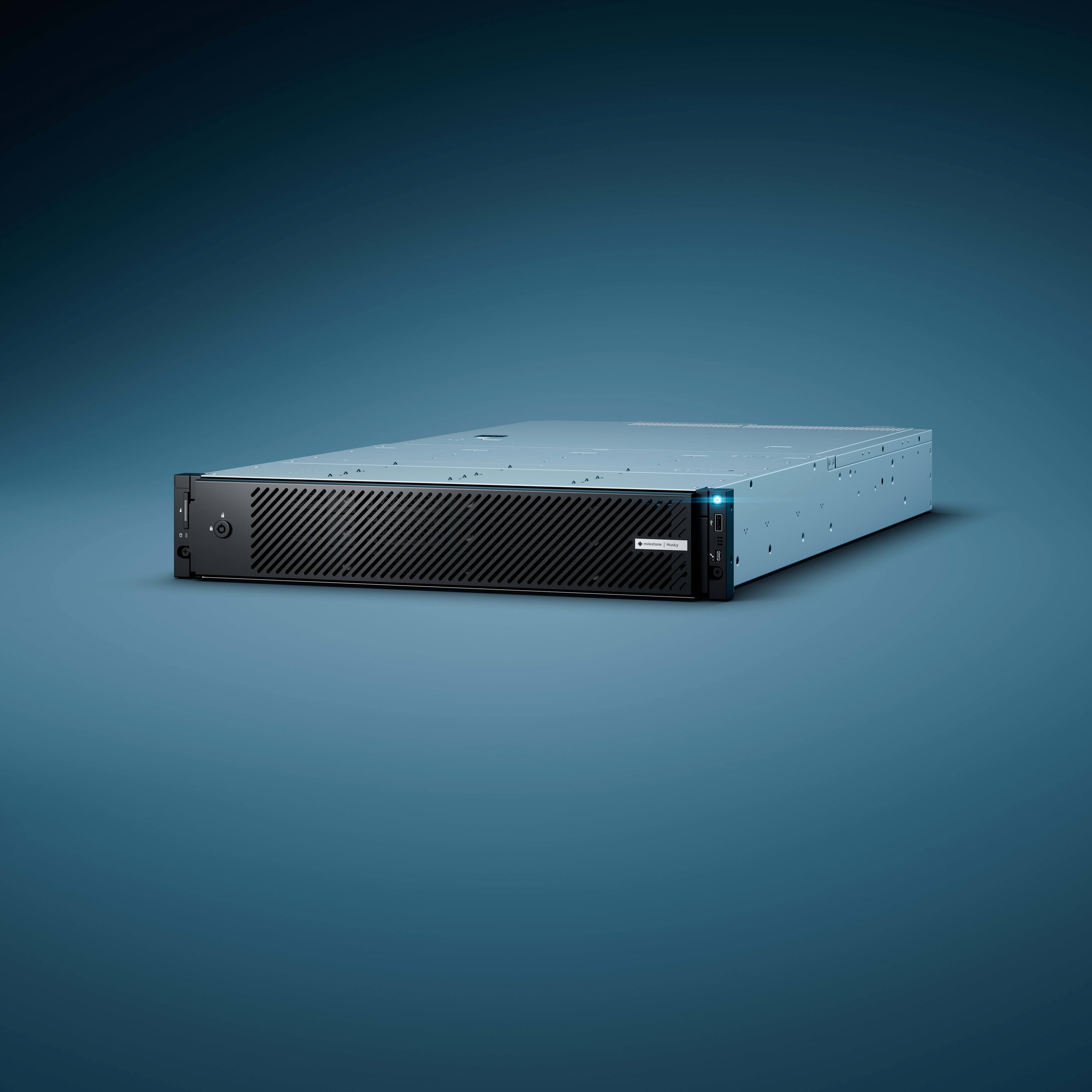

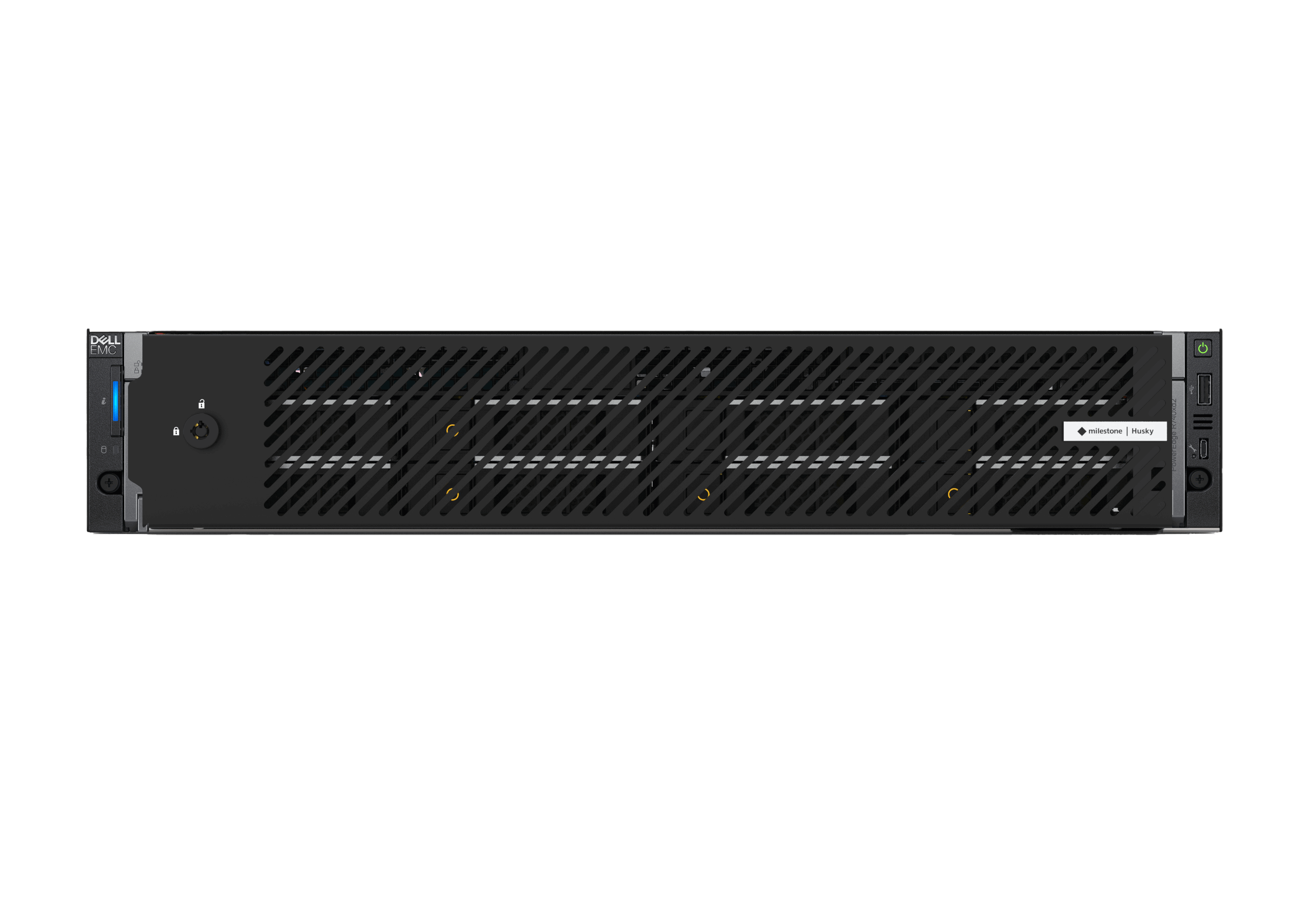

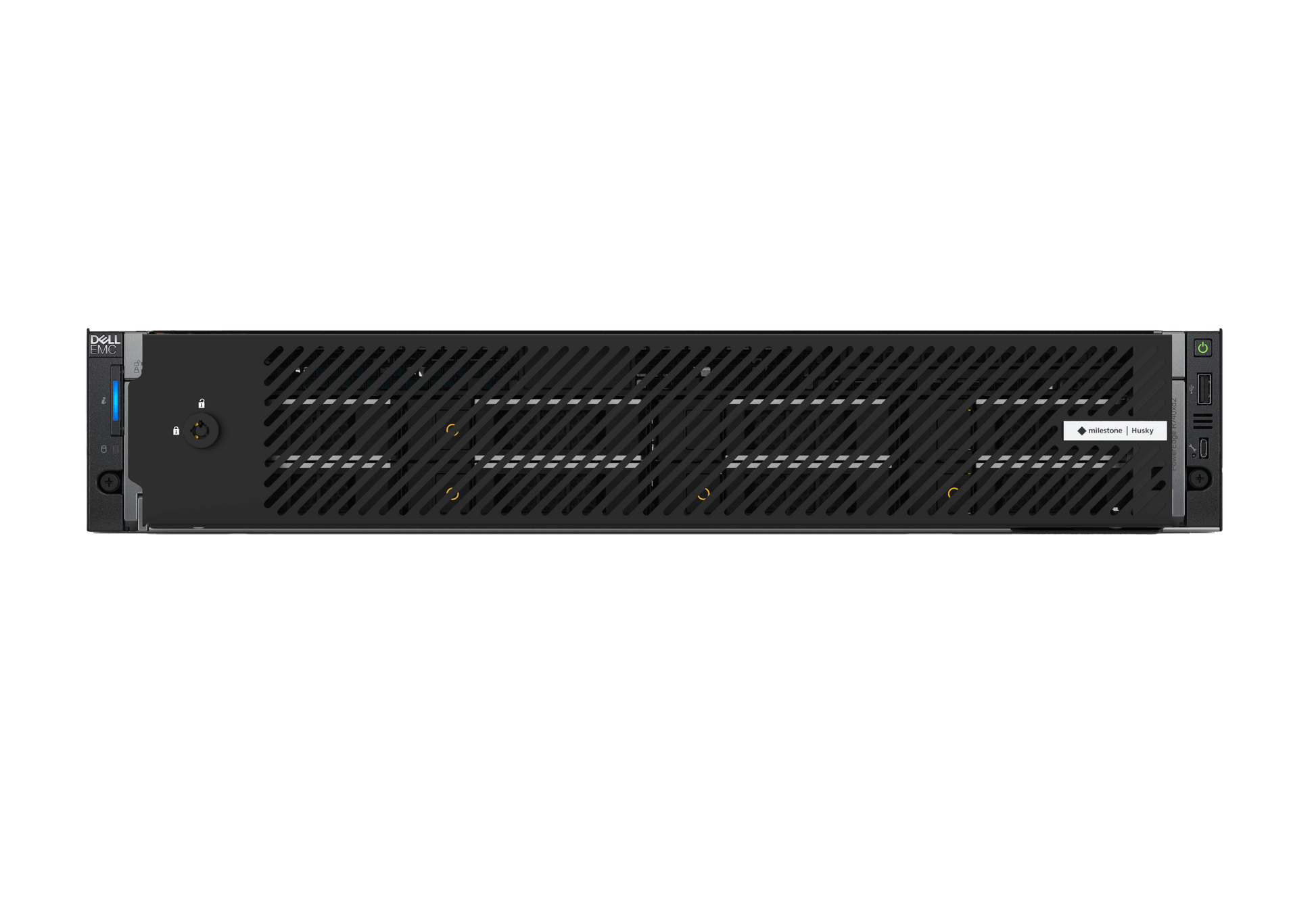

A server-grade, 2U rack-mount unit with powerful components and full redundancy
Future scalable
Flexible storage configurations and extended camera compatibility
|
Model |
Husky IVO 1800R |
|
Video performance (based on video stream 1080p, 30fps, 5-8 Mbit/s/channel, recording with VMD enabled), Throughput and channel count are measured separately, not in combination. |
|
|
Throughput (up to) |
1800 Mbit/s |
|
Channel count (up to) |
250 |
|
Local storage (max) |
284 TB |
|
Hardware information |
|
|
Form Factor |
Rack Mounted 2U |
|
CPU |
Intel® Xeon® Silver 4216 |
|
GPU |
N/A |
|
RAM |
32GB DDR4 |
|
Operating system (OS) |
Windows Server 2019 IoT Essentials (No CAL) |
|
VMS/OS Storage |
2 x 240GB (RAID 1), M.2 SSDs |
|

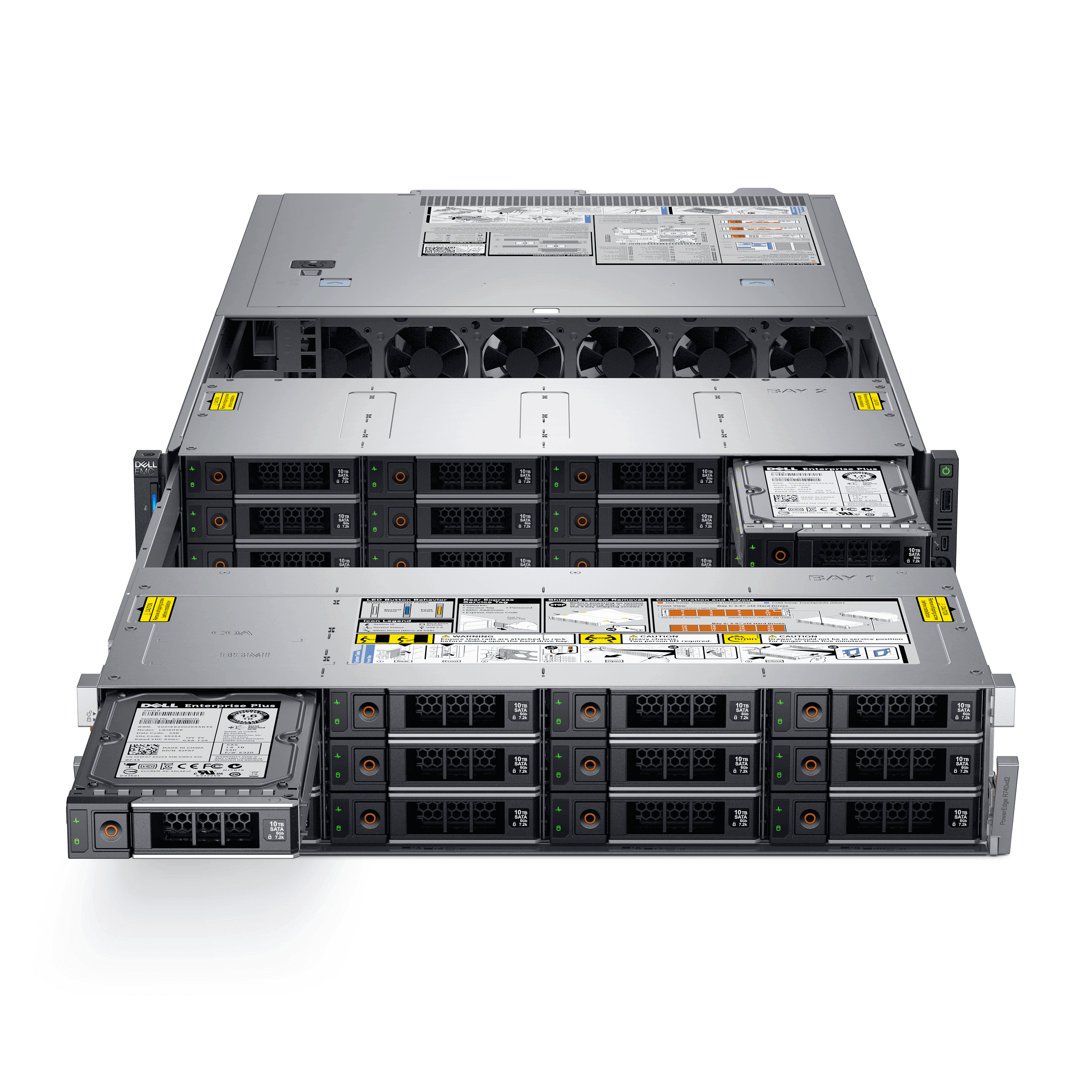

Number of hard drives |

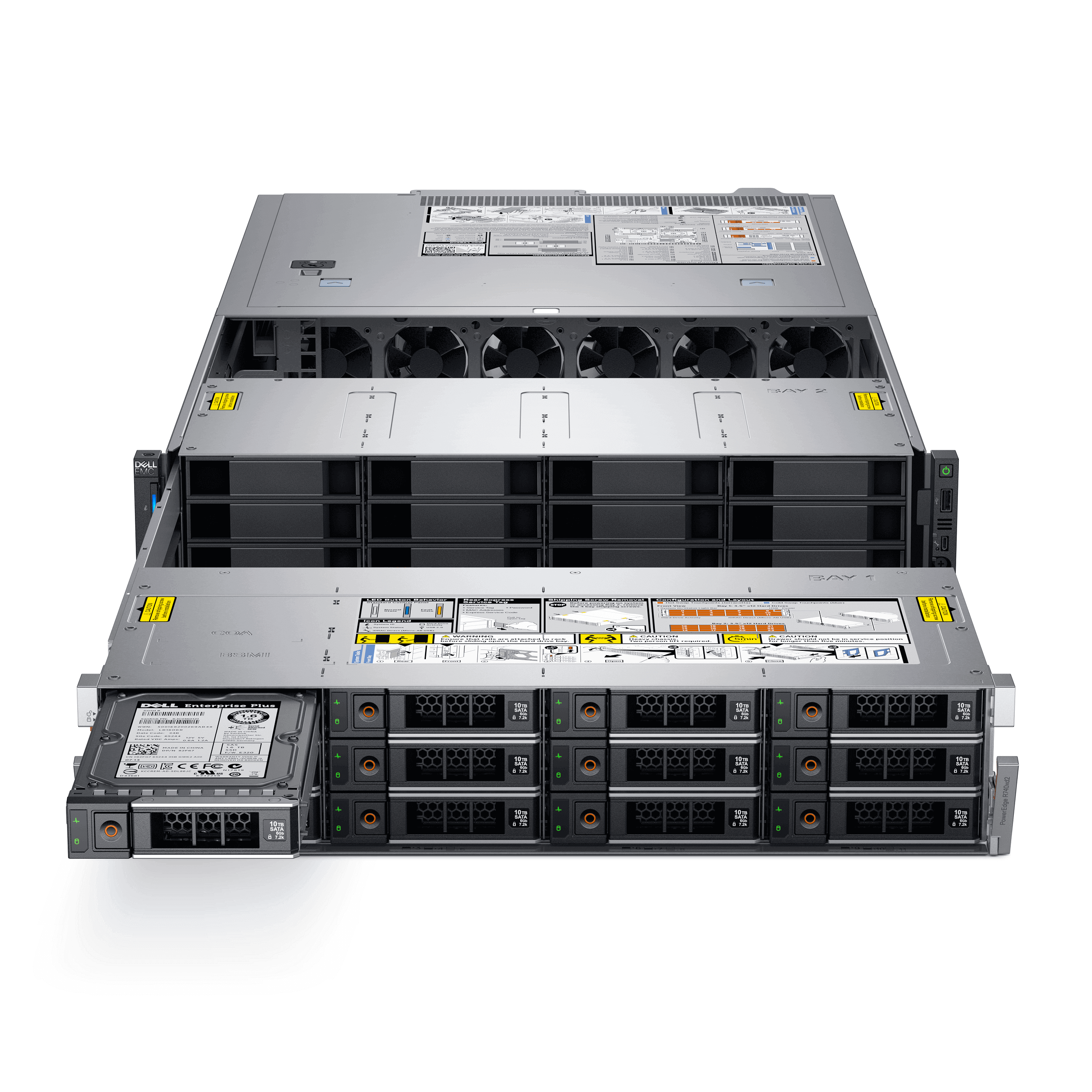

12 x 3.5” / 24 x 3.5” (hot-plug) |
|
Raw storage (gross) |
24/48/96/144/192/288/384 TB (Dell Enterprise Grade 24/7 Drives) |
|
RAID Controller & Support |
PERC H730P2 with Cache & Battery & Flash backup RAID 0,1,5,6,10,50,60 RAID 5,6,10 configurable in Husky Assistant |
|

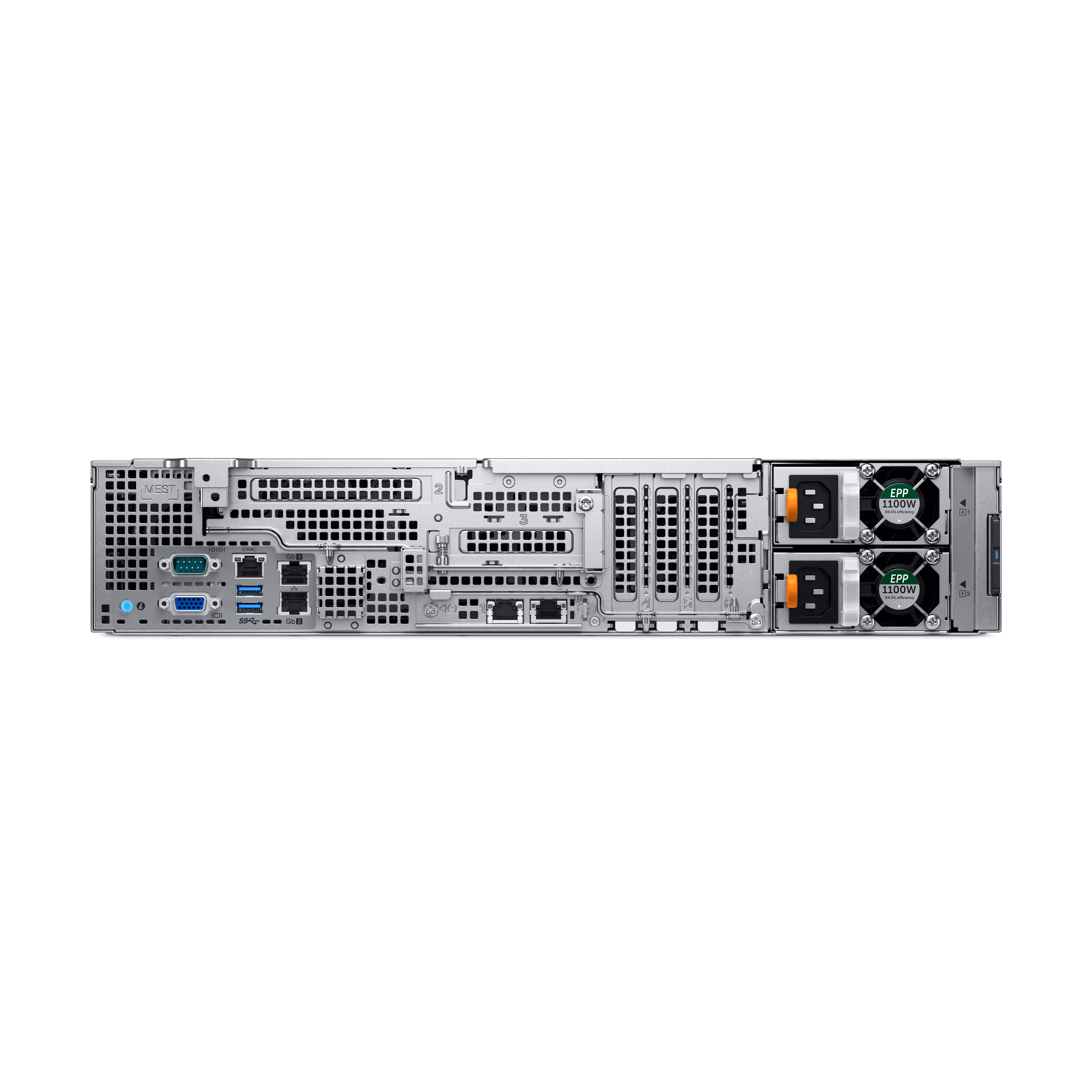

Display ports |
1 x VGA |
|
Network interface |
2 x 1 GbE + 2 x 10 GbE (RJ45) |
|
Available PCIe slots |
1 x PCI Express® x16 Gen 3 slot full height / half length card |
|
Archiving to external NAS |
Yes, through high-speed LAN card |
|
Credential and Key encryption |
Trusted Platform Module (TPM) 2.0 |
|
Redundant Power Supply |
Yes, through high-speed LAN card |
|
Remote management |
Yes, iDRAC9 Enterprise (license incl.) |
|
General information |
|
|
Hardware warranty |
5 years full system warranty (incl. HDD) Onsite support next business day (additional conditions may apply, see detailed datasheet) |
|
Dimensions |
86.8 x 448.0 x 810.0 (mm) (without Bezel) 3.4” x 17.6” x 31.9” (without Bezel) |
|
Weight |
40.0 kg 88.2 lbs. |
|
Power input |
100~240V, 50/60 Hz |
|
Max. power consumption |
1,100W up to 94% efficient (Platinum) hot-plug redundant |
|
BTU Rating |
1,635.4 BTU/h |
|
Protection |
OVP (over voltage), OCP (over current), OTP (over temp), SCP (short circuit) |
|
Environmental (This unit is intended for stationary server room and office use, according to the conditions stated below.) |
|
|
Operating temperature |
5º - 40º C / 41º - 104º F |
|
Storage temperature |
-40⁰ - 65⁰ C / -40⁰ - 149⁰ F |
|
Humidity |
10– 85% relative humidity (non-condensing) |
|
Regulatory |
|
|
Safety & emission standards |
CE (class A), UKCA, FCC, RCM, UL, Mexico (NOM), VCCI |
|
Trade compliance |
NDAA Compliant |
