Part Number: KIT/201S/372S
Metal casing.
Supports call and intercom with the connected indoor station and app.
Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc.
Supports Wi-Fi.
Built-in IC card reader.

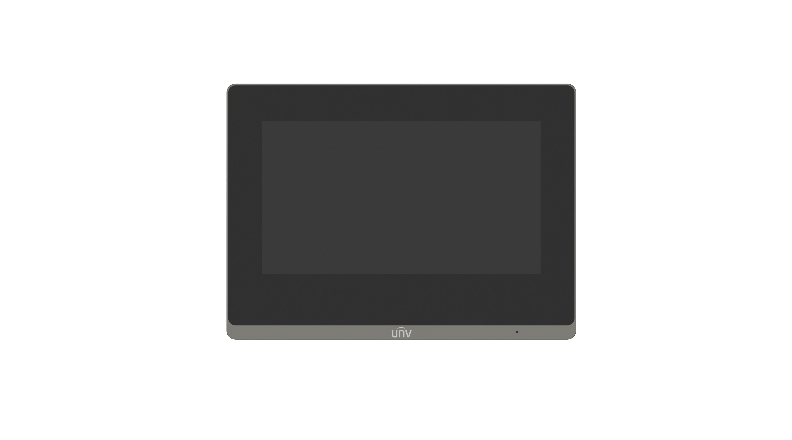

OEI-372S-H-W:
ABS casing and glass panel, solid and durable.
Supports Wi-Fi.
Supports touchscreen operation.
1024 x 600 HD screen.
Supports remote door opening by sending signal to the door station.
Allows to view live video of connected door stations and network cameras.
|
Model |
KIT/201S/372S |
|
Kit dimensions (L×W×H) |
268mm*213mm*180mm |
|
Kit weight |
1.855kg |
|
Model |

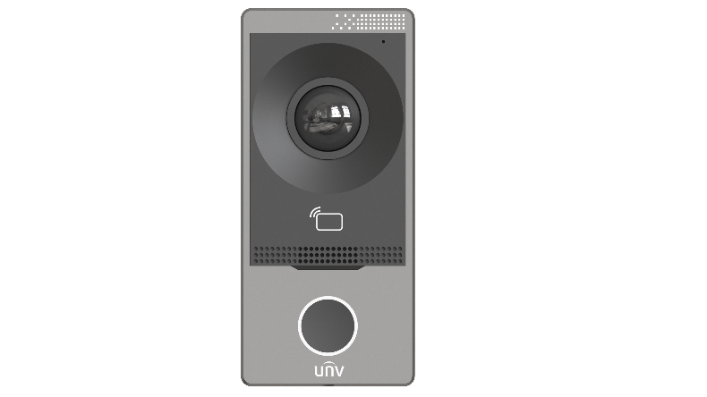

OEU-201S-HMK-W |
|
Power supply |
DC12V ±25%, PoE power supply |
|
Card capacity |
10000 |
|
Operating system |
Linux |
|
Illuminator |
IR light (adaptive) |
|
WDR |
Support |
|
FOV |
Horizontal: 124.3° Vertical: 67.5° Diagonal: 147.2° |
|
Power consumption |
< 10W |
|
Volume adjustment |
Support |
|
Audio quality |
Noise reduction, echo cancellation, auto gain control |
|
Audio input |
Built-in mic |
|
Audio output |
Built-in speaker |
|
Protocol |
Uniview private protocol |
|
Audio compression format |
PCM, G711, MP3 |
|
Audio compression bit rate |
128kbps |
|
Button |
Call button |
|
Ingress protection |
IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details.) IK08 |
|
Weight |
0.267kg |
|
Mount method |
Wall mount, flush mount |
|
Interface |
Power supply*1, network interface*1, RS485*1, door lock interface*2, IO input*4 |
|
Communication mode |
100Mbps network interface, supports IEEE802.3af; Wi-Fi |
|

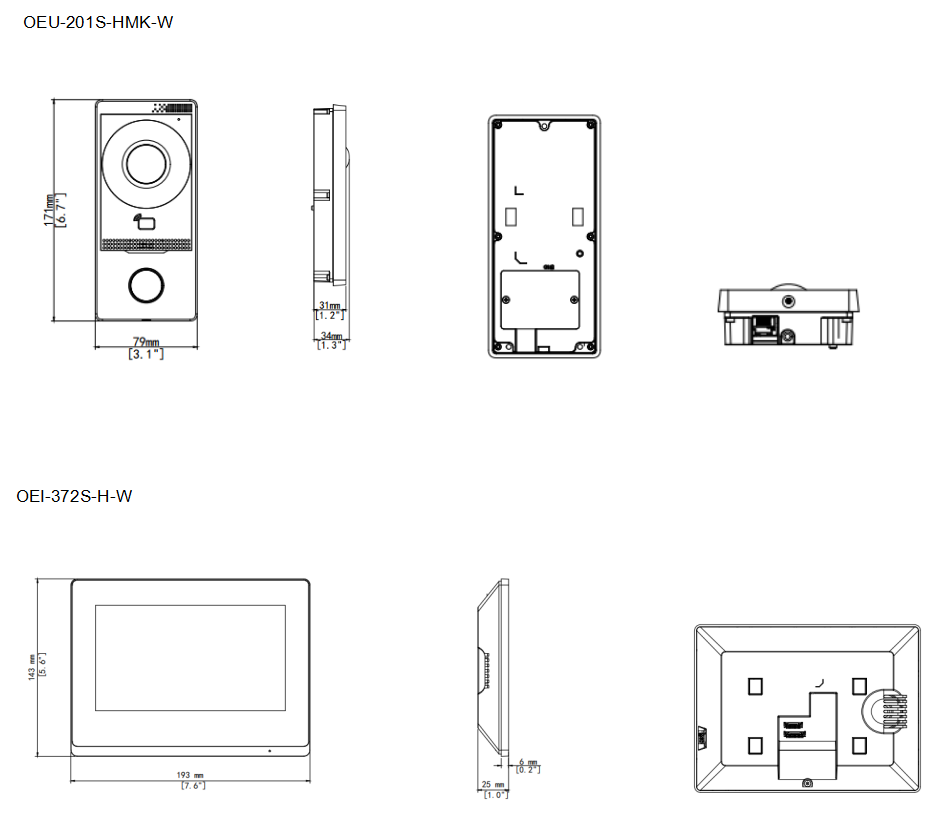

Dimensions (L×H×W) |
79mm*171mm*34mm |
|
Operating environment |
- 30°C to 60°C, 10% to 90% RH noncondensing, outdoor |
|
Model |
OEI-372S-H-W |
|
Power supply |
DC12V ±25%, PoE power supply |
|
Screen resolution |
1024 x 600 |
|
Display screen |
7-inch ultra-thin TFT LCD touch screen |
|
Operating system |
Linux |
|
Audio quality |
Noise reduction, echo cancellation, auto gain control |
|
Audio input |
Built-in mic |
|
Audio output |
Built-in speaker |
|
Audio compression format |
MP3, G711 |
|
Audio compression bit rate |
128kbps |
|
Protocol |
Uniview private protocol |
|
TF card |
1 x 32G TF card, capable of storing 100 live video snapshots, 200 call records and call snapshots. |
|
Power consumption |
< 10W |
|
Weight |
0.377kg |
|
Interface |
Power supply*1, network interface*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
|
Communication mode |
100Mbps network interface, supports IEEE802.3af; Wi-Fi |
|
Dimensions (L×H×W) |
193.2mm*143.4mm*25mm |
|
Operating environment |
- 10°C to 55°C, 10% to 90% RH noncondensing, indoor |
