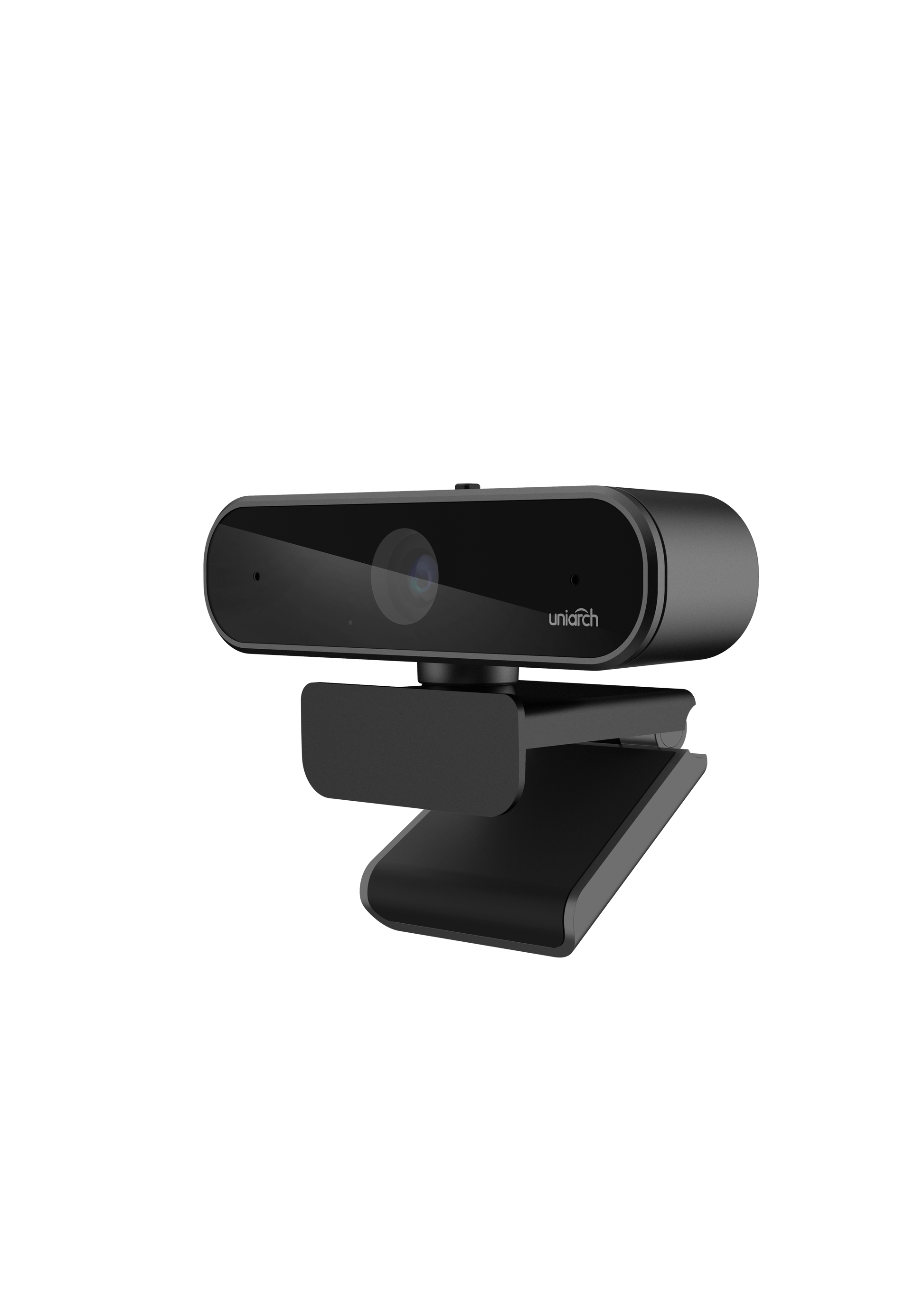

Part Number: Unear V20
Maximum frame rate 60fps
90° Wide Angle Lens
True WDR Technology
AI Noise-Suppression Makes Your Sound More Clear
The Built-in Lens Cover to Protect Your Privacy USB Plug And Play
|
Video Specs |
|
|
Anti-flickering |
Supported |
|
Auto exposure |
Supported |
|
Auto White balance |
Supported |
|
3D noise-suppression |
Supported |
|
WDR |
Supported |
|
Max. resolution |
1440P |
|
Aspect ratio |
16:9 |
|
UVC protocol supported |
UVC 1.1/1.5 |
|
Coded format |
MJPEG：max to 1440P@30fps or 1080P@60fps |
|
Camera Specs |
|
|
Aperture |
f/2.3 |
|
Sensor |
1/2.9 in, CMOS, 4MP |
|
Focusing mode |
3.0mm fixed-focus |
|
FOV(D) |
90° |
|
FOV(H) |
82° |
|
FOV(V) |
52° |
|
Non-Distortion Lens |
Supported |
|
Audio Specs |
|
|
Area sound pickup range |
-45°~45° |
|
Maximum background noise suppression |
15dB |
|
Microphone Specs |
|
|
Microphone type |
2-Element Microphones Array |
|
Sensitivity |
-26dBFS 94dB SPL@1kHz |
|
S/N |
65dBA 94dB SPL@1kHz, A-weighted |
|
Effective pickup distance |
3 Meters |
|
Configuration Requirements |
|
|
PC Windows or Linux, Mac OS with USB Connection |
Supported |
|
Input / Output |
|
|
USB Power Supply |
5V/500mA |
|
USB port |
USB2.0 Type-A |
|
USB 2.0 |
Supported |
|
Installation |
|
|
Clip on the screen/on the tripod/on the surface |
Supported |
|
Appearance Color |
|
|
Classic black |
Supported |
|
Weight |
|
|
Net Weight |
130g |
|
Gross Weight |
180g |
|

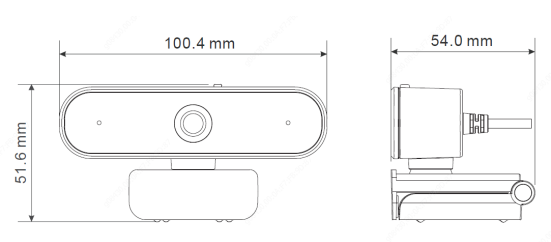

Dimensions |
|
|
Product dimensions |
100mm(L)*55mm(W)*50mm(H) |
|
Package dimensions |
132mm(L)*60mm(W)*110mm(H) |
