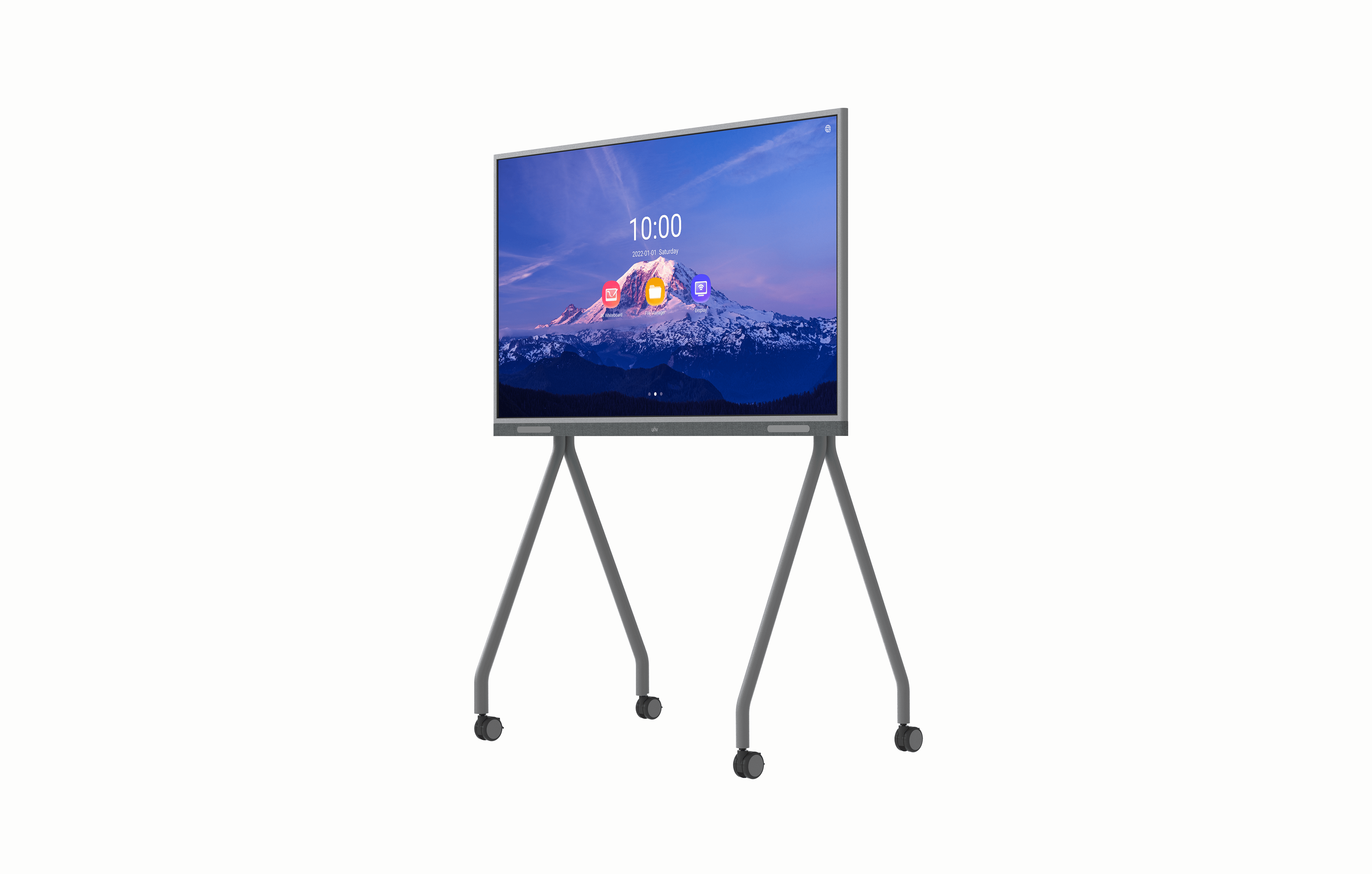

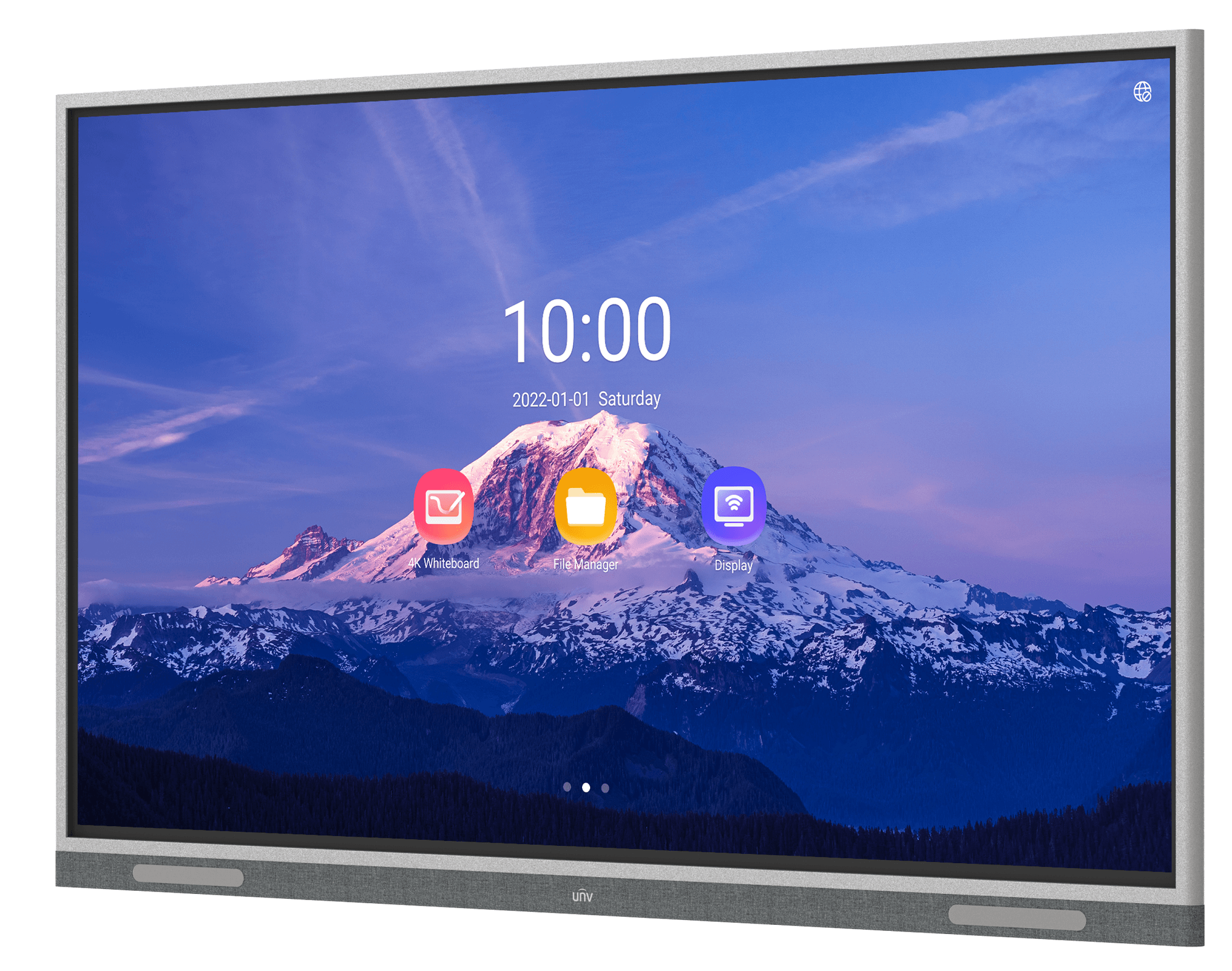

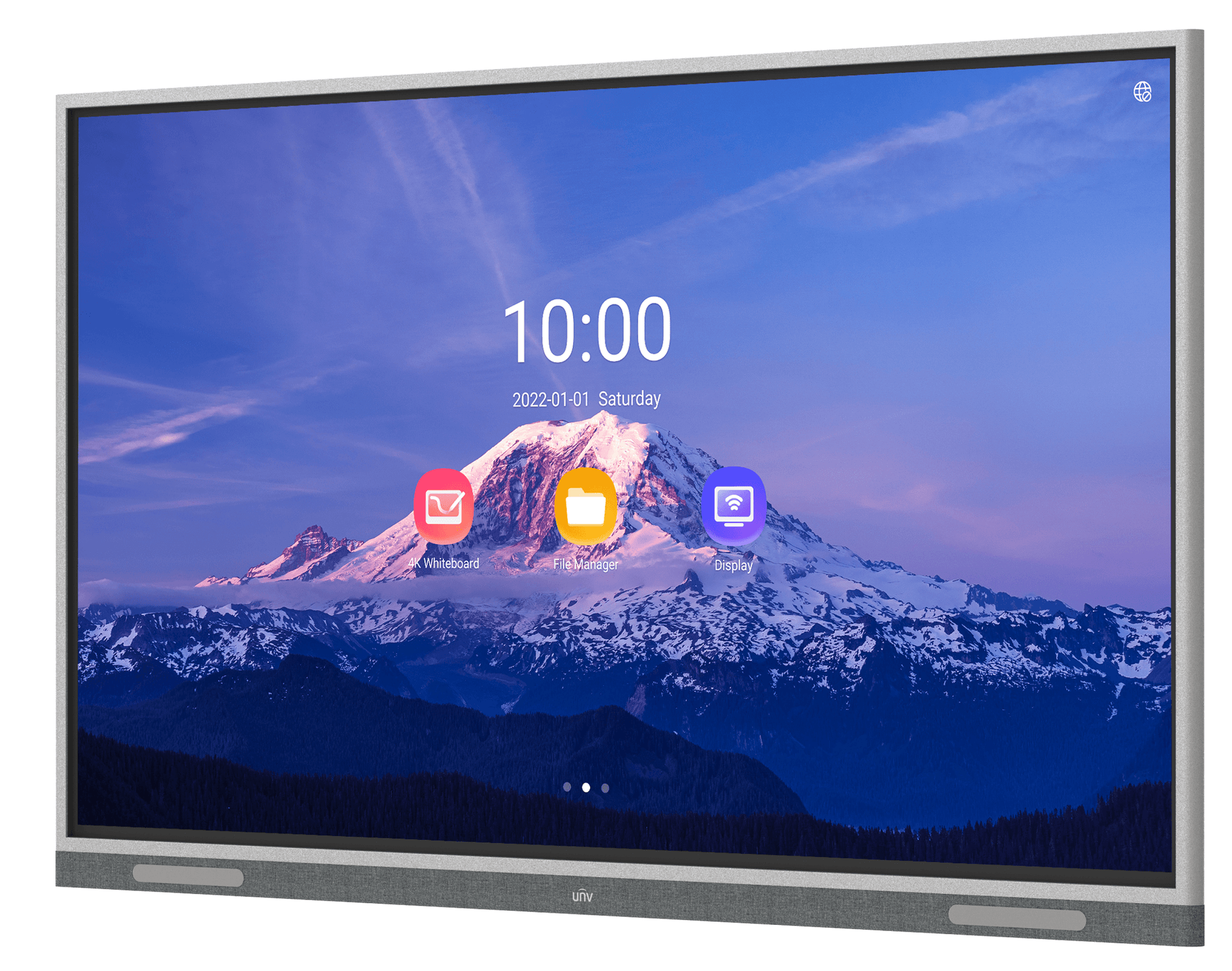

Part Number: MW3575-U-S
Zero bonding technology between lcd panel and cover glass brings brighter viewing and smoother touching experience.
Ultra-narrow and equal-width bezel design for perfect aesthetics.
Minimalist geometric line design and smooth border outline, elegant and attractive.
Dual Wi-Fi modules with both Wi-Fi and hotspot support.
Dual-channel, 6-array speaker brings high-quality surround sound.
High-precision infrared touch technology allows up to 20-point touch, realizing smooth co-authoring.
Bluetooth 5.0 offers higher data transmission rate, and lower power consumption.
4K UI, mobile-level operation, just like use a mobile phone.
A variety of quick tools, such as annotation, screenshot, etc., improve usability and interaction efficiency.
Wireless screen mirroring from various operating systems such as Android, iOS and Windows to the display with one touch.
Fast file transfer. Allows users to quickly transfer files to the display via a QR code.
OTA remote upgrade. The system can be upgraded online without backing up data.
|
Model |
MW3575-U-S |
|
Panel |
|
|
Backlight |
DLED |
|
Panel size |
75 inches |
|
Resolution |
3840*2160 |
|
Brightness (cd/m²) |
350 |
|
Contrast ratio |
1200:1 |
|
Response time (ms) |
8 |
|
Color support |
1.07B |
|
Viewing angle (H/V) |
178°/178° |
|
Android |
|
|
CPU |
Quad-core Cortex 2*A53+Cortex 2*A73 and Mali G51 GPU |
|
CPU frequency |
1.5GHz |
|
RAM/ROM |
DDR4: 3GB eMMC: 32GB |
|
Android version |
Android 8.0 |
|
Touch |
|
|
Touch control |
Infrared touch screen, 20-point multi-touch at most |
|
Touch precision (mm) |
±1 |
|
Recognizable object |
5 points 2mm |
|
Glass |
4mm tempered glass, level 7 on Mohs hardness scale, anti-glare |
|
Response time (ms) |
≤10 |
|
Touchscreen input |
Opaque objects (e.g. finger, pen, etc.) |
|
Interface |
|
|
Video input |
3*HDMI IN(4K)、1*VGA IN、1*YPbPr、1*AV IN |
|
Video output |
1*AV OUT |
|
Audio input |
1*AUDIO IN |
|
Audio output |
1*AUDIO OUT、1*Coaxial Audio Output(COAX) |
|
Control |
1*RS232、2*Front USB 2.0、2*On-board USB 2.0、1*TOUCH USB |
|
Network |
1*LAN OUT、1*LAN IN |
|
Audio |
|
|
Speaker |
Left channel 17W: 1*treble (6Ω 5W) + 2*bass (6Ω 12W) Right channel 17W: 1*treble (6Ω 5W) + 2*bass (6Ω 12W) |
|
Wi-Fi |
|
|
Configuration |
Wi-Fi 5 dual-module, supports 5G/2.4G |
|
Performance |
30 m² coverage, 20m transmission distance in open space |
|
Bluetooth |
|
|
Version |
5.0 |
|
Performance |
10m transmission distance in open space |
|
OSD |
|
|
Language supported |
24 (Simplified Chinese、Traditional Chinese、English、Japanese、Arabic、French、Spanish、Portuguese、German、Italian、Dutch、Polish、Korean、Catalan、Galician、Vietnamese、Bulgarian、Kazakh、Russian、Ukrainian、Thai、Uzbek、Hungarian、Croatian) |
|
VESA |
|
|
Wall mount hole (mm) |
600*400 |
|
Wall mount screw |
4-M8 screw hole |
|
General |
|
|
Power supply |
AC 100 to 240V, 50/60Hz |
|
Typical power consumption (W) |
≤210 |
|
Standby power consumption (W) |
＜0.5 |
|
Operating temperature |
0 to 50°C |
|
Operating humidity |
10% to 90% (non-condensing) |
|
Storage temperature |
-20 to 60°C |
|
Storage humidity |
5% to 90% (non-condensing) |
|
Product dimensions (W*H*D)(mm) |
1720*1028*89 |
|
Package dimensions (W*H*D)(mm) |
2115*1336*222 |
|
Weight (kg) |
Net weight: 53.0 Gross weight:60.5 |
|
Accessories included |
1*power cord、2*touch pen、1*quick guide |
