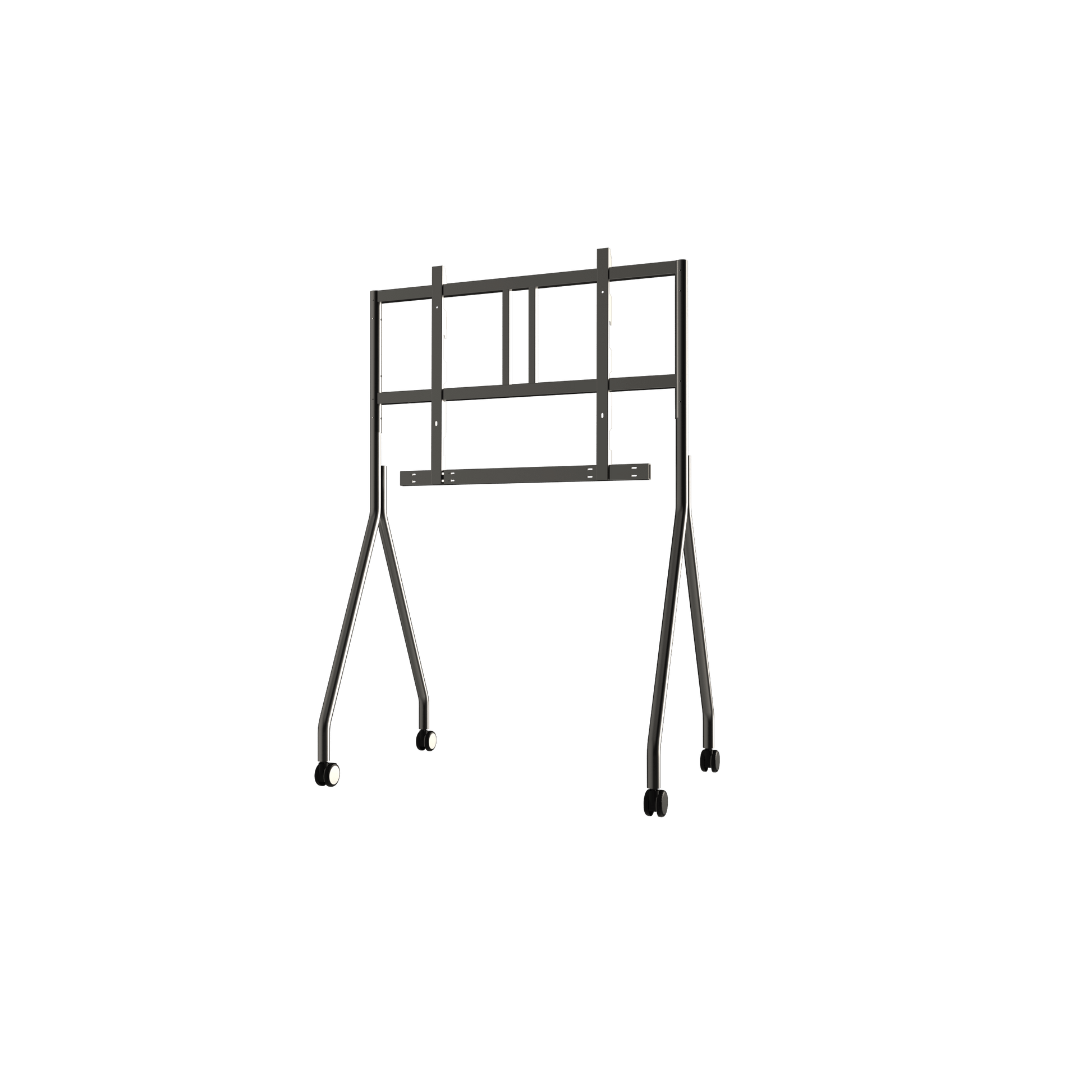

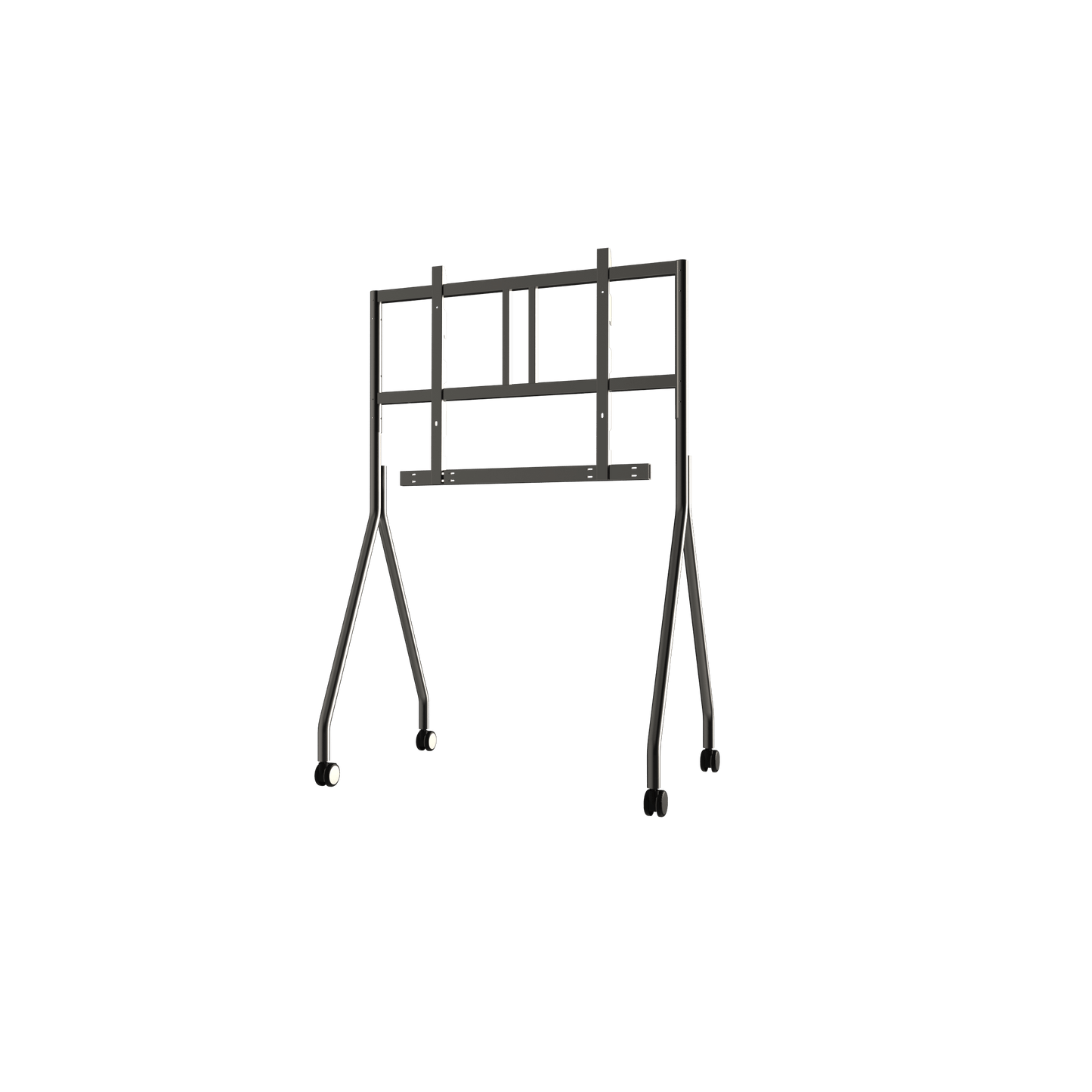

UNV Smart Interactive Display Mobile Stand
Part Number: HB-8765-S
|
Model |
HB-8765-S |
|
General |
|
|
Minimum screen bottom edge to ground (mm) |
65”: 943 75”: 905 86”: 919 |
|
Minimum screen top edge to ground (mm) |
65”: 1848 75”: 1933 86”: 2086 |
|
Maximum screen bottom edge to ground (mm) |
65”: 1118 75”: 1080 86”: 1094 |
|
Maximum screen top edge to ground (mm) |
65”: 2023 75”: 2108 86”: 2261 |
|

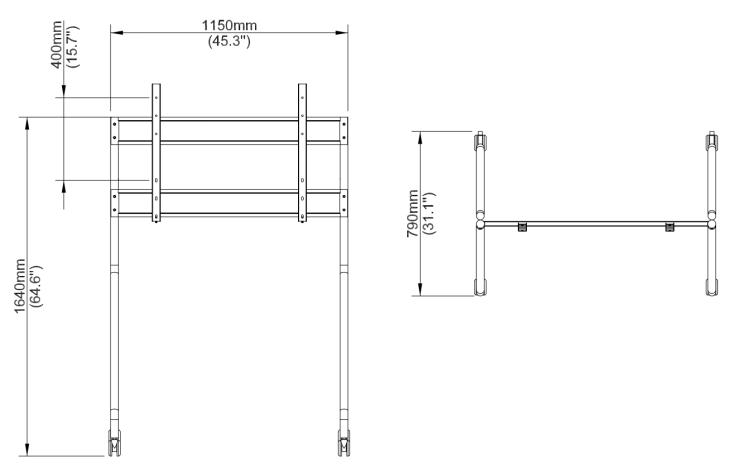

Product dimensions (W*H*D)(mm) |
1150*1640*790 |
|
Package dimensions (W*H*D)(mm) |
1582*800*120 |
|
Weight (kg) |
Net weight: 19 Gross weight: 26 |
|
Material |
Sheet metal |
|
Compatible products |
MW3565/75/86-U-S |
| Download | Type |
|---|---|
| Data Sheet |
