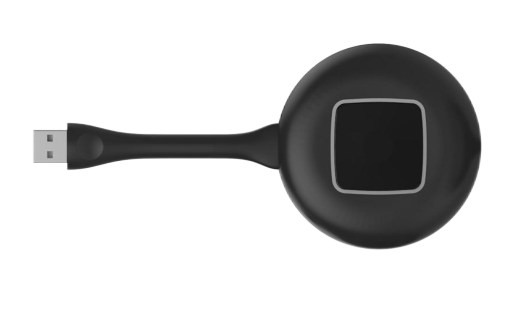

Part Number: HB-7199-TP-A
One-press to mirror your computer screen to a smart interactive display without installation and configuration.
Supports Windows 7/8/10 and Mac OS. Reverse control allows users to control the computer on the smart interactive display.
Up to 1080P resolution, provides high-definition images.
Supports playing audio synchronously without additional cables to transmit audio signals.
|
Model |
HB-7199-TP-A |
|
Parameter |
|
|
Configuration and Installation |
No configuration, no installation |
|
Connection Method |
USB device |
|
Compatibility |
Windows 7/8/10, Mac OS |
|
Resolution |
720P~1080P |
|
Frame Rate |
Audio/Video: 18~25 |
|
Time Delay |
100~150ms |
|
Display Mode |
Supports desktop expansion (Windows 7/8/10) |
|
Reverse Control |
Supports 10-point multi-control on the smart interactive display to control the computer screen (Windows 7/8/10) |
|
Supports controlling the computer screen via a mouse on the smart interactive display (Windows 7/8/10, Mac) |
|
|
Number of Dongles Connected to a Display Simultaneously |
1~8 (an industrial router is required when connecting more than 8 dongles simultaneously) |
|
Number of Screens Projected Simultaneously |
1~4 |
|
Wireless Speed |
Transmitter side: 300Mbps |
|
Wireless Transmission Protocol |
IEEE 802.11 a/g/n/ac |
|
Frequency Band |
5.8G |
|
Encryption |
AES |
|
Authentication Protocol |
WPA2 PSK |
|

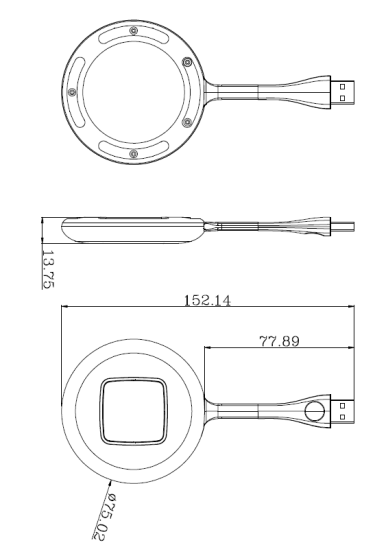

Dimensions |
152.14mm(L)×75.02mm(W)×13.75mm(H) |
