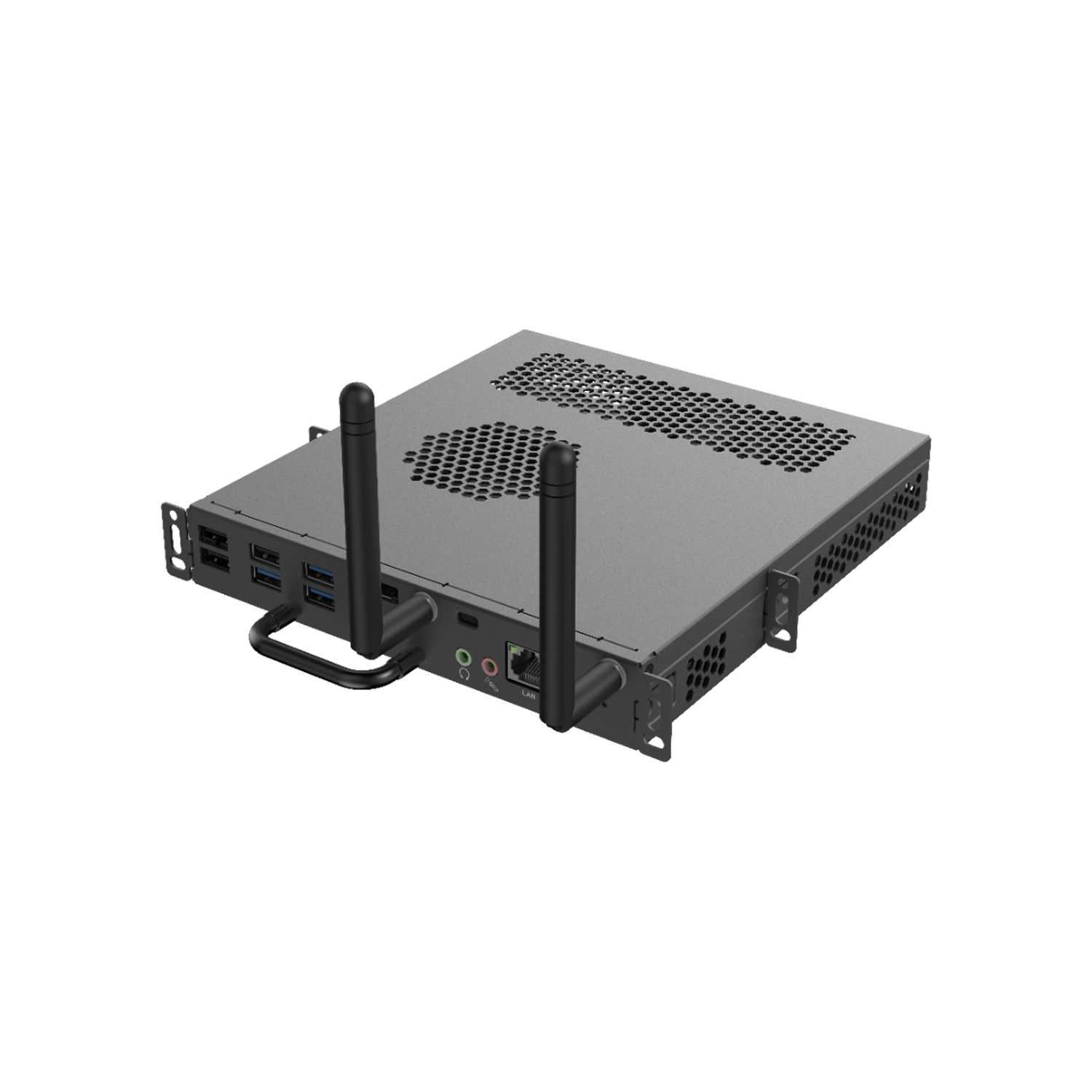

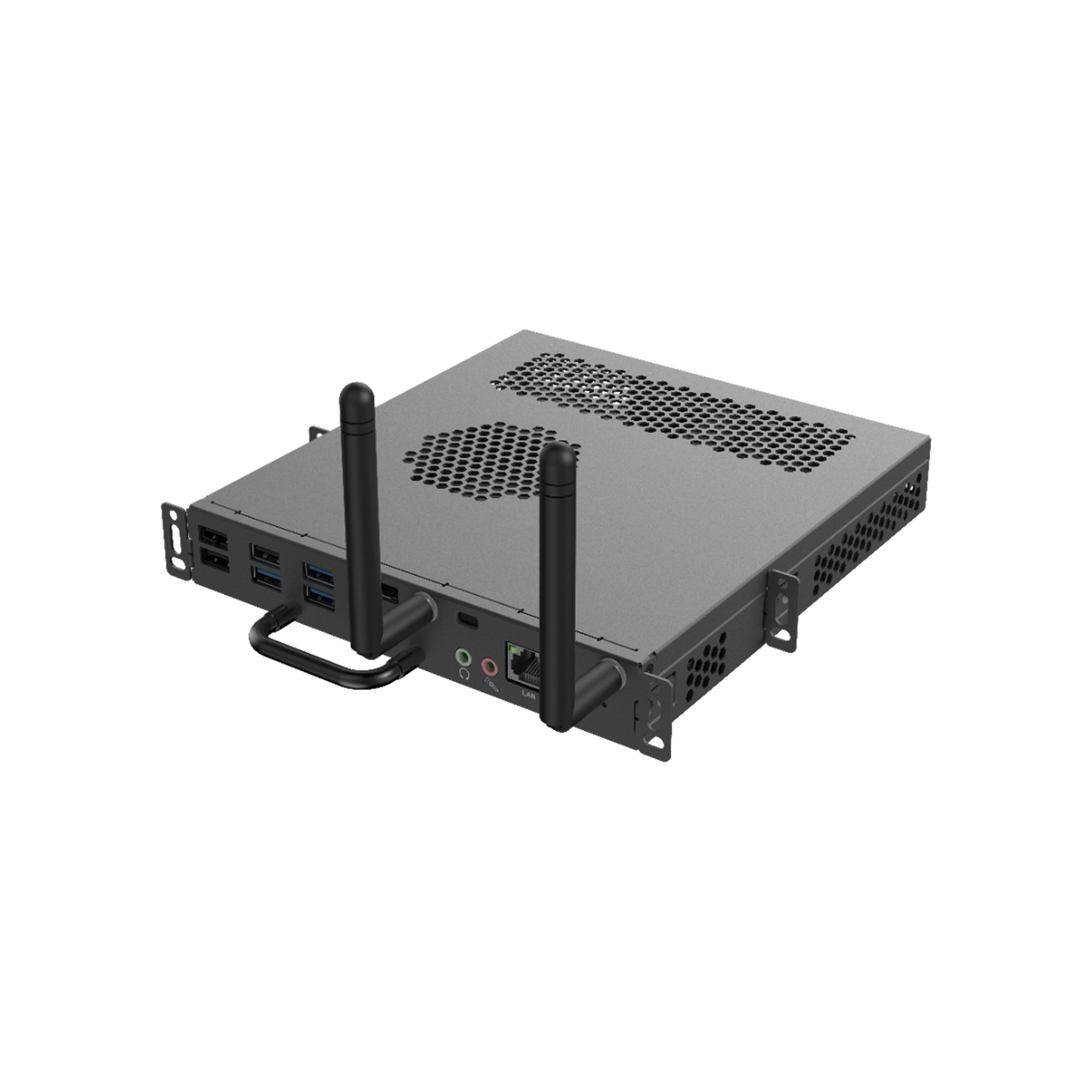

Part Number: HB-7099-M1
Compliant with OPS standards, ideally suited for smart interactive displays.
DP/HDMI interface supports synchronous and asynchronous display.
4K UHD display.
WLAN with hotspot support.
Intelligent fan control.
One-key reset.
|
Model |
HB-7099-M1 |
|
Parameters |
|
|
CPU |
I5-9400 |
|
Cores |
6 |
|
Threads |
6 |
|
Processor basic frequency |
2.9GHz |
|
Max. turbo frequency |
3.1GHz |
|
Memory |
8GB DDR4, support for expansion up to 16GB |
|
Display |
Intel HD Graphics 630 |
|
Storage |
256GB SSD, 1 * M.2-2280 SATAIII (up to 6Gb/s) SSD |
|
Operating system |
Windows 10 (not activated) |
|
Interface |
|
|
USB |
3 * USB 3.0、3 * USB 2.0 |
|
Audio |
1 * MIC、1 * Line Out |
|
HDMI |
1 * HDMI (max. resolution: 3840*2160@30Hz) |
|
DP |
1 * DP (max. resolution: 3840*2160@60Hz) |
|
Network |
1 * RJ45 (RTL8111H 1000M NIC) |
|
Antenna |
2 * 2.4G/5G dual-band antenna |
|
Reset key |
1 * reset key |
|
Power on/off switch |
1 * power on/off switch |
|
Power indicator |
1 * power indicator、1 * HDD indicator |
|
WLAN |
|
|
WLAN |
1 * M.2 2230 (INTEL-3165NGW-802.11ac+BT4.2), max. transmission rate: 433Mbps |
|
Power |
|
|
Power supply |
DC 12V to 19V, supplies power via OPS interface |
|
Max. power consumption (W) |
≤105 |
|
Standby power consumption (W) |
≤1.5 |
|
Operating environment |
|
|
Operating temperature |
-10°C to 50°C |
|
Operating humidity |
10% to 90% RH |
|
Storage temperature |
-20°C to 60°C |
|
Storage humidity |
10% to 90% RH |
|
Other parameters |
|
|
Product dimensions (W*H*D)(mm) |
202.0 * 198.2 * 30.0 |
|
Weight (kg) |
1.1 |
|
Packing method |
Cardboard box |
|
Package dimensions (W*H*D) (mm) |
304 * 266 * 82 |
|
Heat dissipation method |
Fan |
