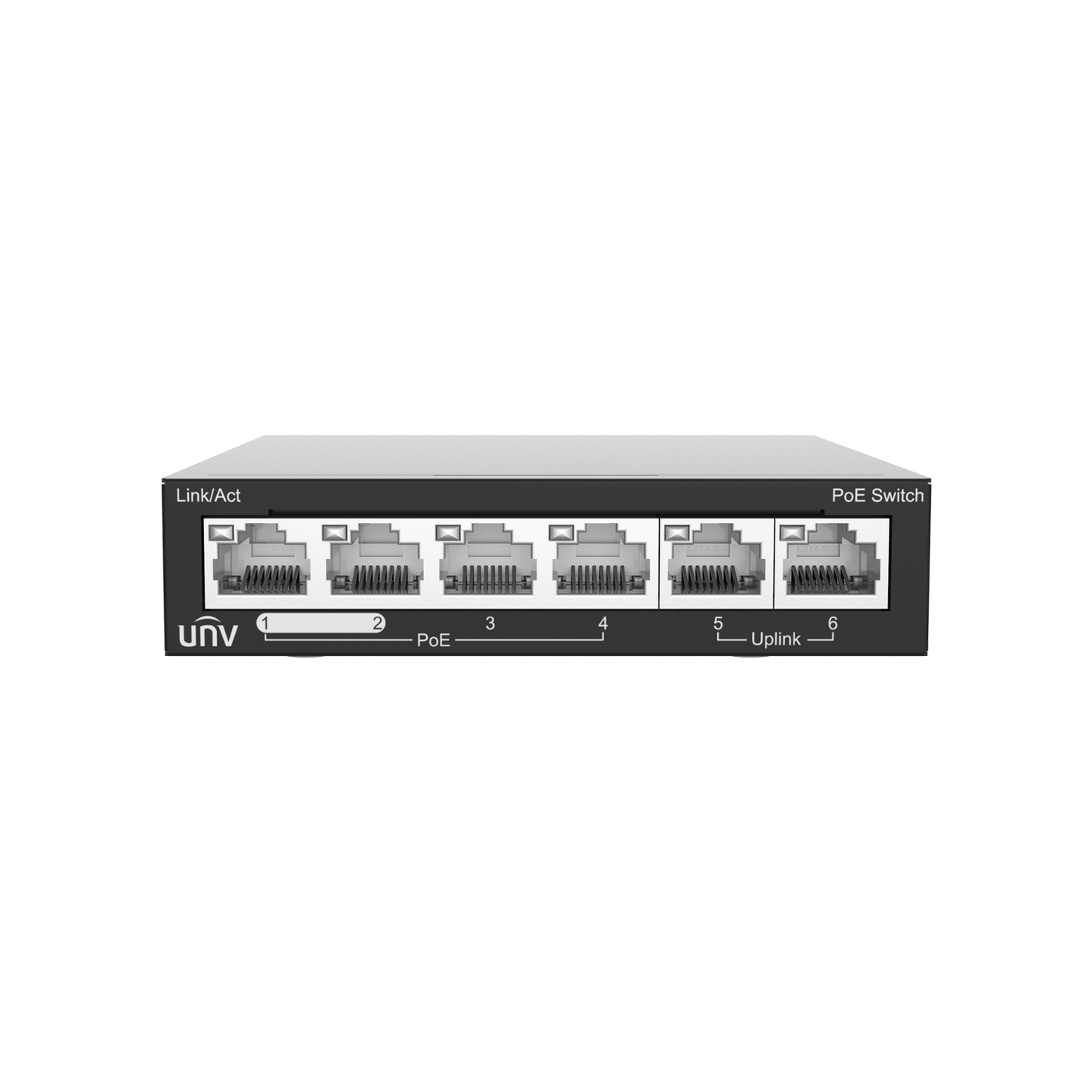

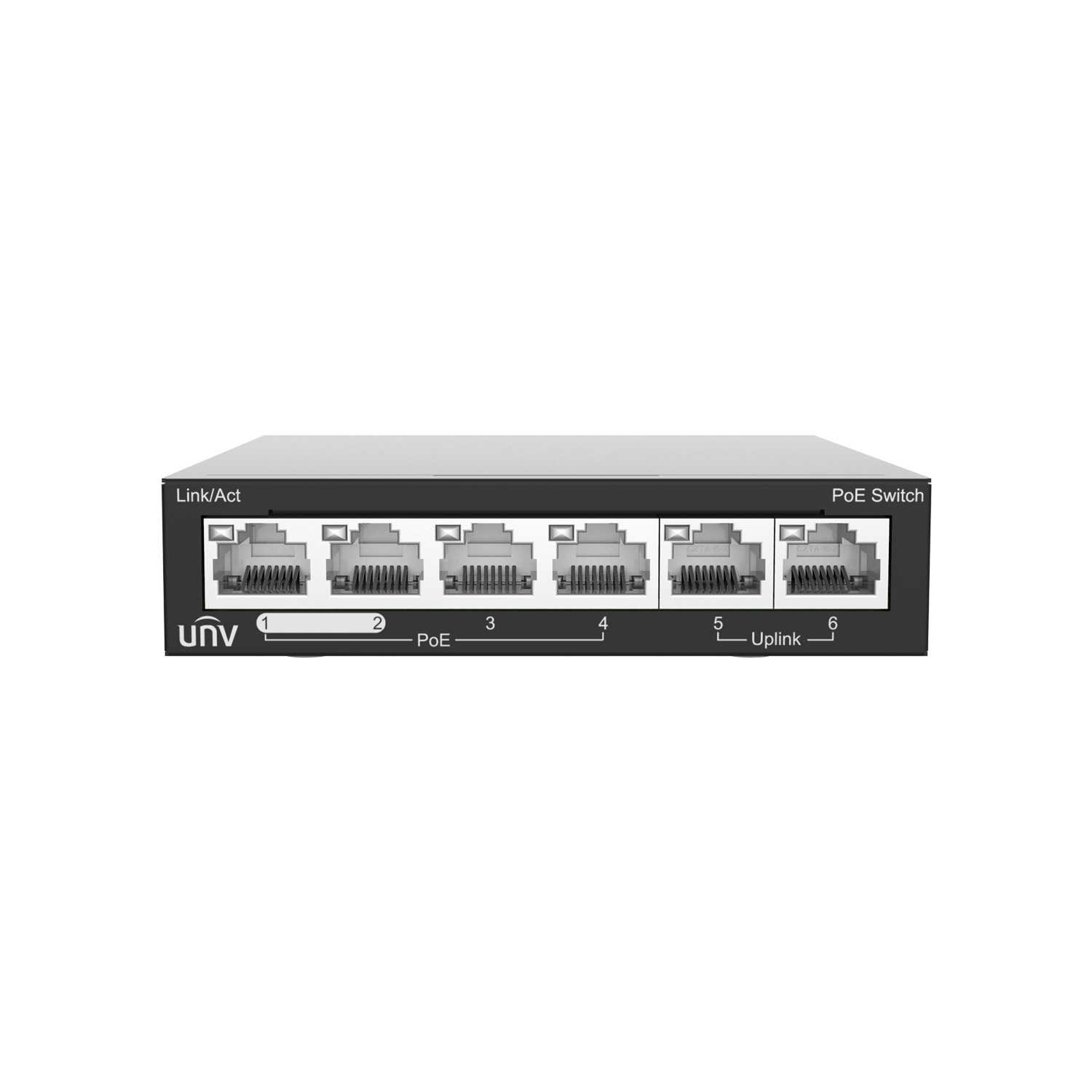

Part Number: NSW2020-6T-POE-IN
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable
|
Model |
NSW2020-6T-POE-IN |
|
Ports |
6×100Mbps network ports (RJ45), including 4 PoE ports |
|
Standards |
IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at |
|
Switching capacity |
1.2Gbps |
|
Forwarding performance |
0.90Mpps |
|
Packet Buffer |
448Kbit |
|
MAC |
1K |
|
Dimensions (W×D×H) |
108*100*25.5mm |
|
Weight |
0.19KG |
|
Power supply |
DC：48/51V |
|
PoE |
802.3at/af （4/5+，7/8-） |
|
Max. PoE Power |
Max capacity: 60W Max capacity for single port: 30W |
|
Prior Ports |
1~2 |
|
Cooling Fans |
0 |
|
Operating temperature |
0°C-40°C (32°F-104°F) |
|
Operating humidity |
10%～90% (noncondensing) |
|
Storage humidity |
5%～90% (noncondensing) |
|
Indicator |
POWER: Steady on: AC input is normal Off: No AC input |
|
No PoE Indicator |
|
|
PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification |
|
|
LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data |
|
|
Working Mode |
Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters.
|
