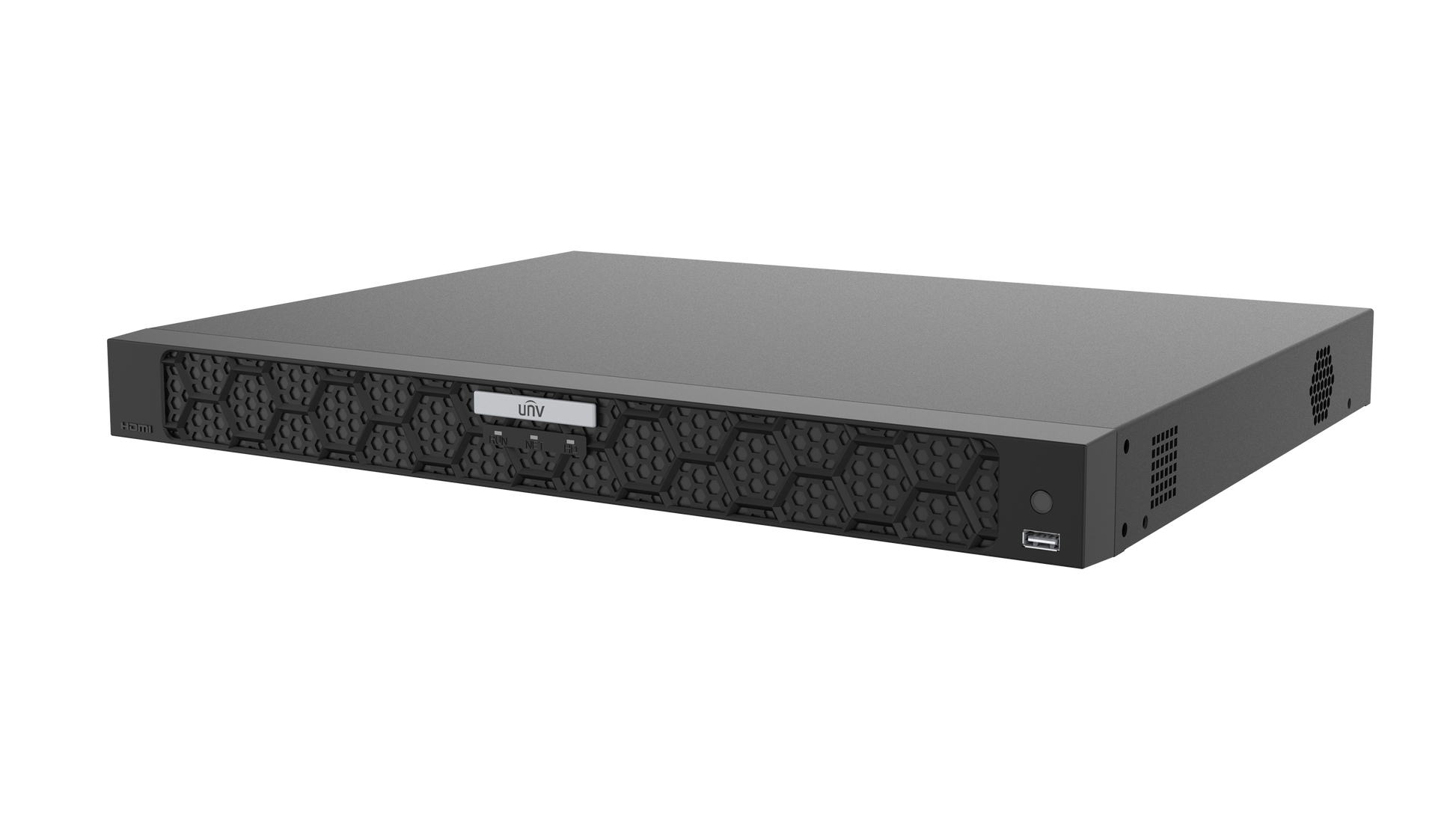

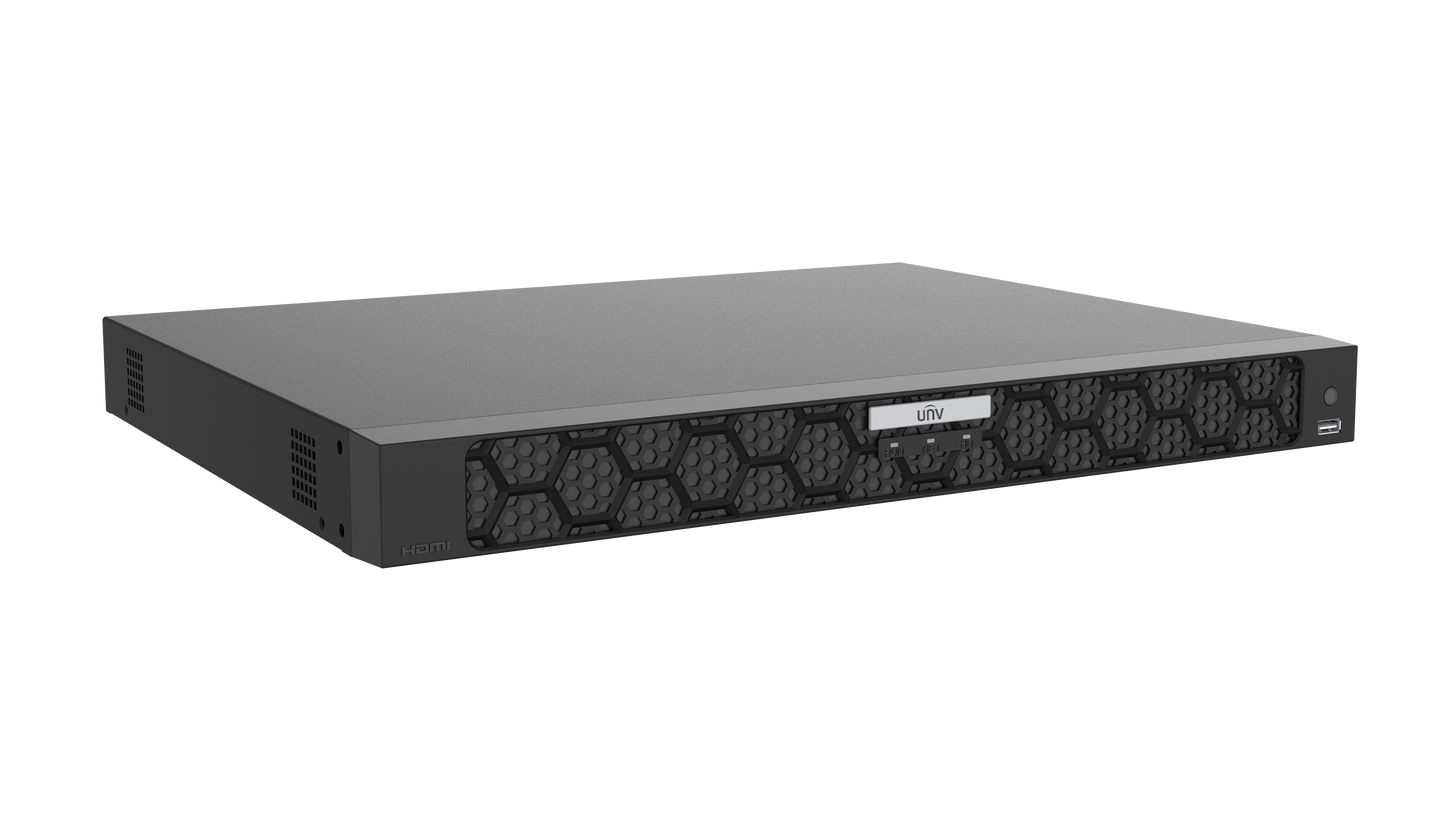

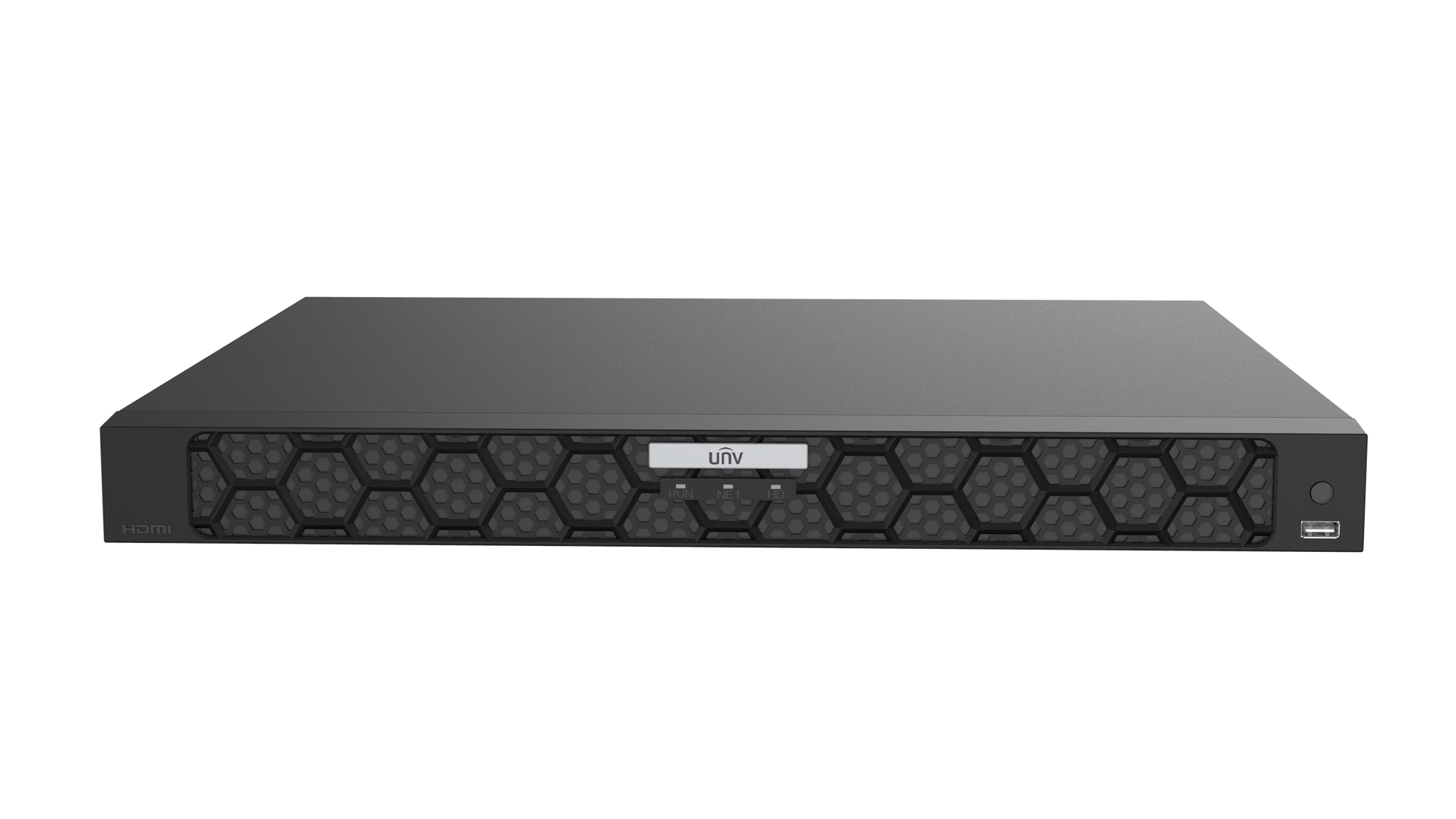

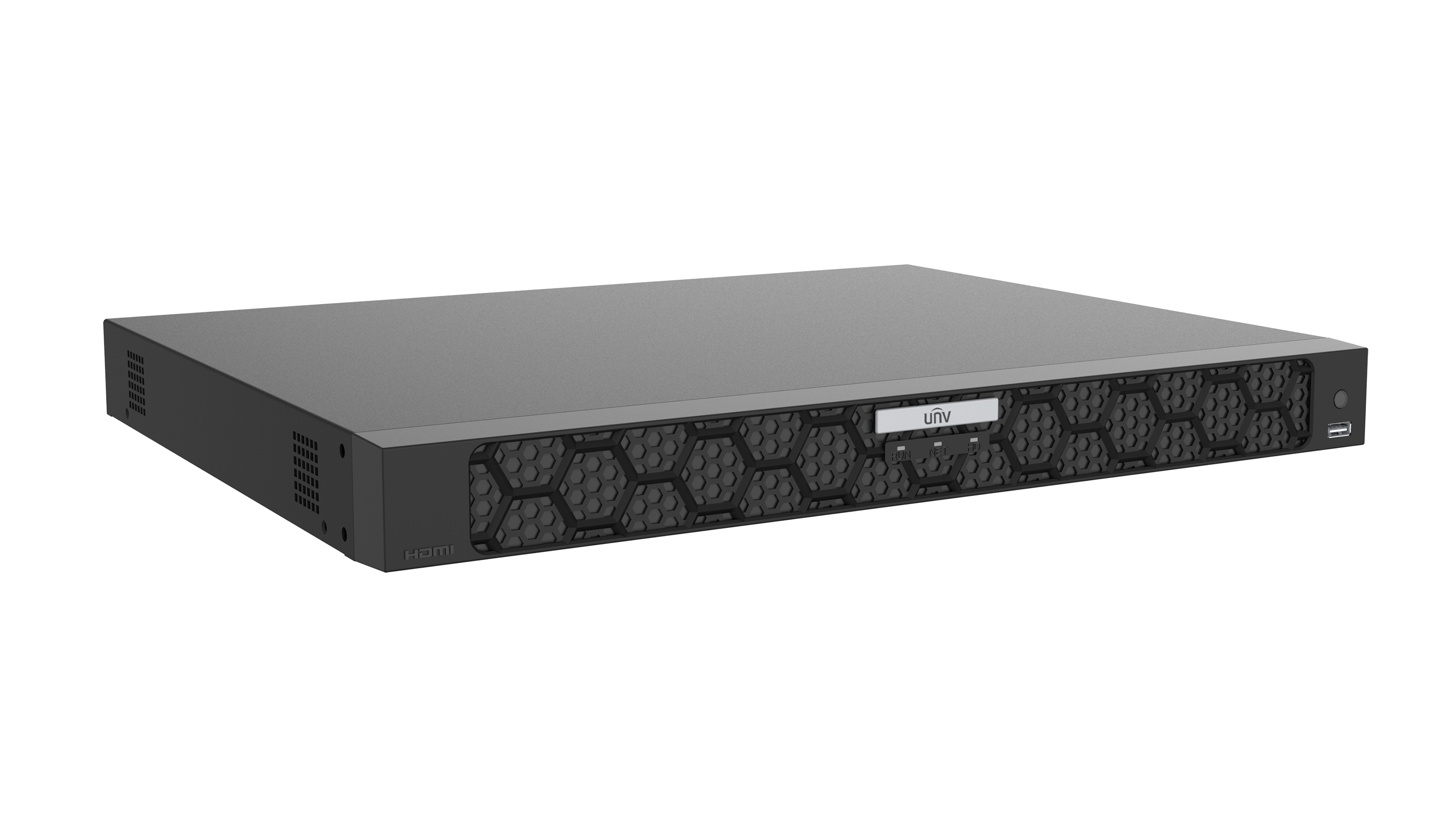

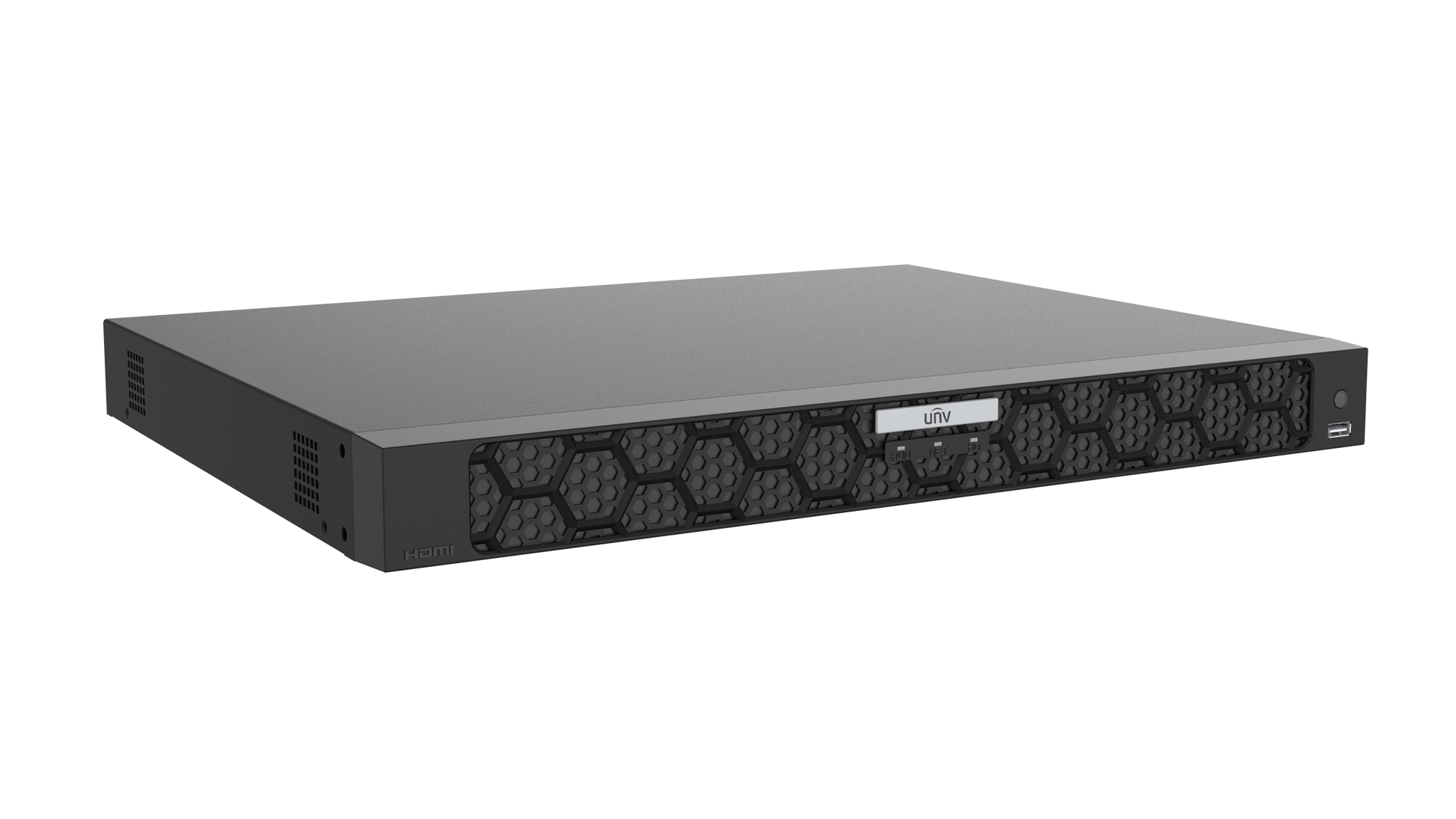

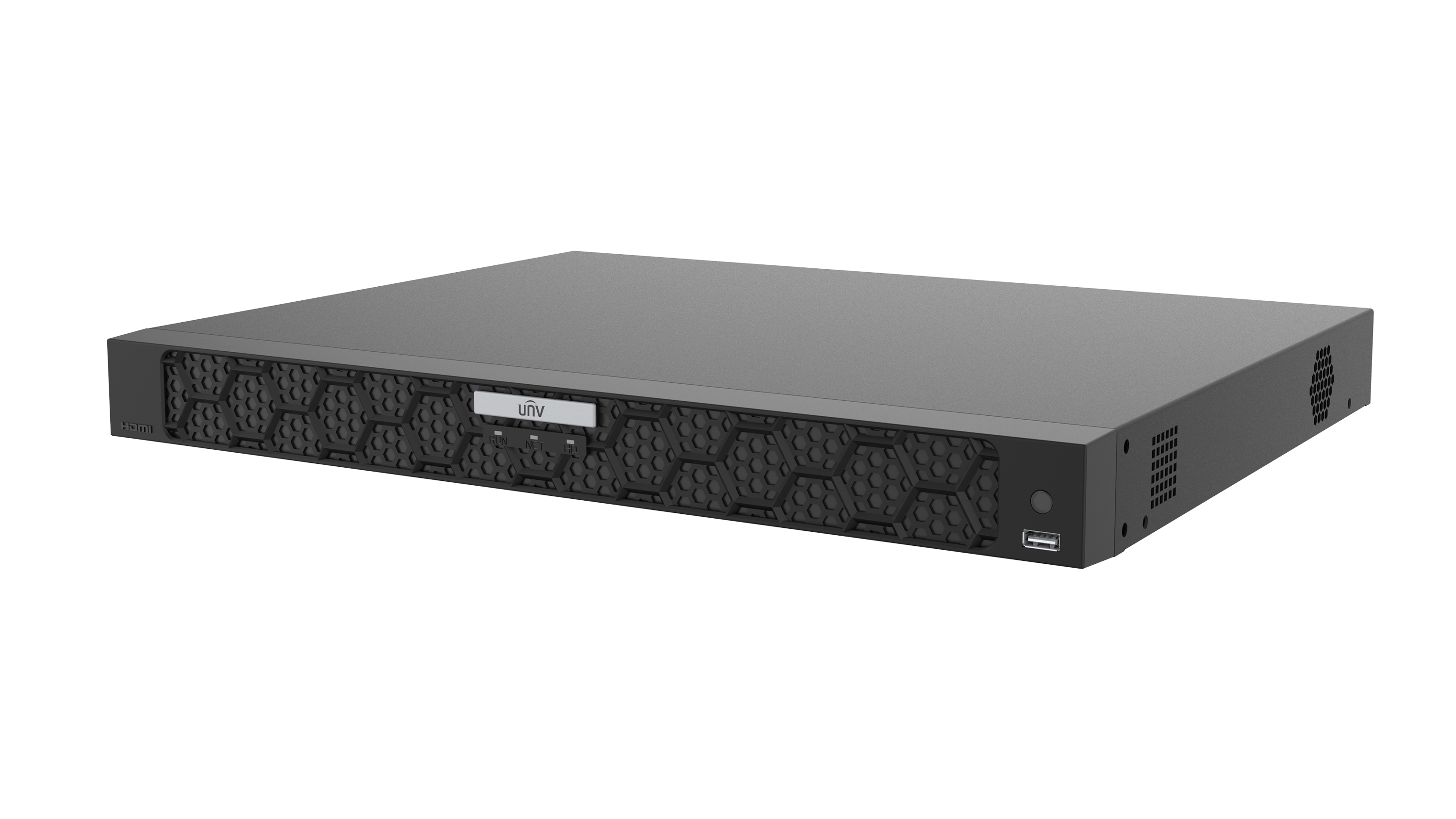

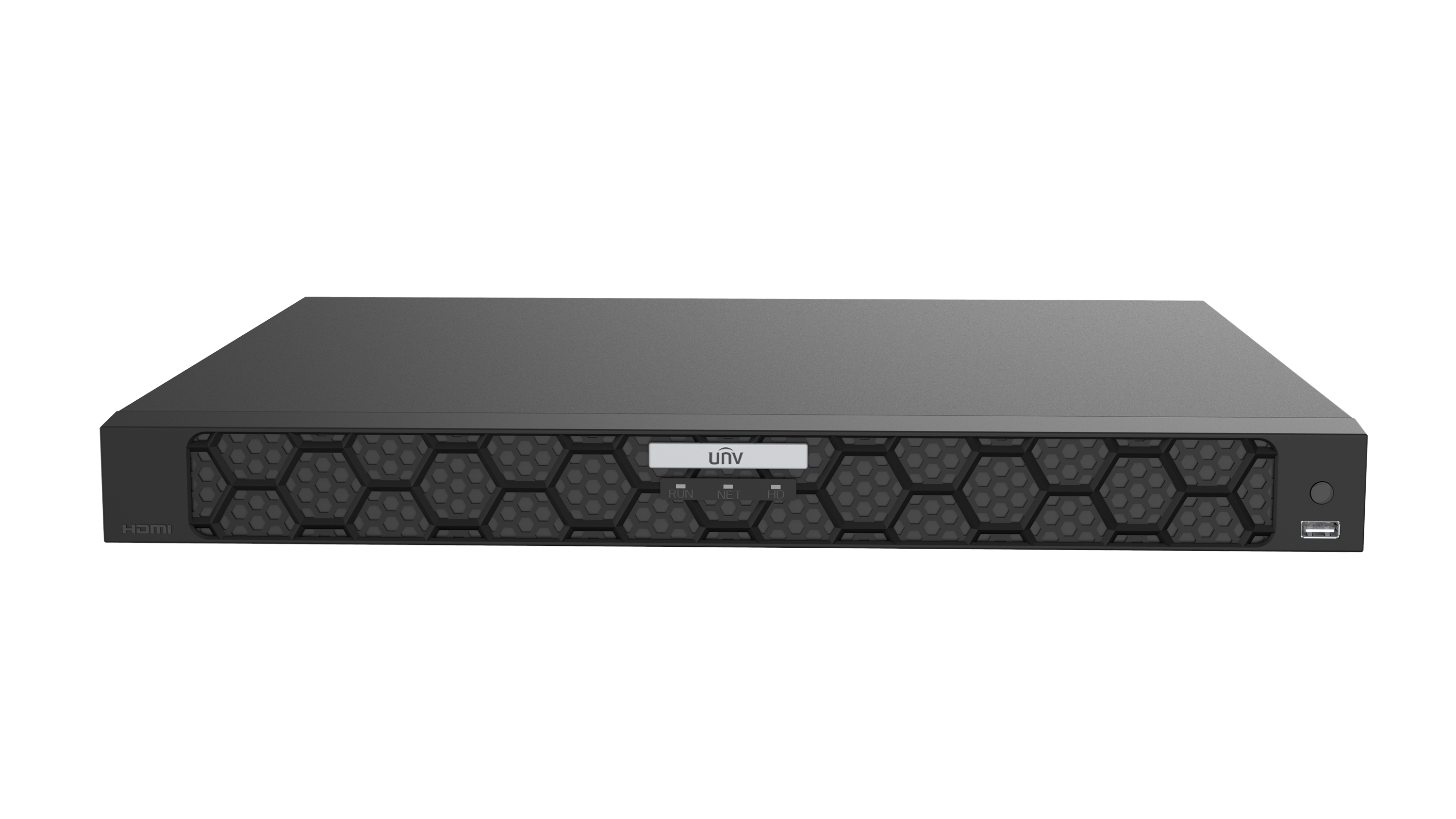

Part Number: NVR504-32B-IQ
Video Output: 1-HDMI(4K), 1-VGA(1080P), Independent (Spot) Output
Max Decoding Resolution: 16MP
Bandwidth: AI Off - 320Mbps (In) / 160Mbps (Out), AI On - 160Mbps (In) / 160Mbps (Out)
HDD Storage: 4-SATA up to 16TB each
Network Ports: Dual 10M/100M/1000M NIC
Face Recognition: 2-ch with normal IPC, 8-ch with Face Detection IPC
Support 12 MP Fisheye: Yes
Support LPR Camera: Yes
Support VCA Search: Local GUI / Web GUI
Chassis: 2U, Rackmountable (Rack ears included in package)
NDAA Compliant: Yes
Warranty Period: 3 Years
|
Decoding |
Description |
|
Decoding Format |
Ultra 265, H.265, H.264 |
|
Decoding Capability |
Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30 |
|
Audio Compression |
G.711A, G.711U |
|
Network |
Description |
|
Incoming Bandwidth |
Smart Off：320Mbps |
|
Outgoing Bandwidth |
160Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; 802.1x; IPV6 |
|
Browser(Plugin) |
Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
|
Video/Audio Input |
Description |
|
IP Video Input |
32ch |
|
RCA Audio Input |
1ch |
|
Video/Audio Output |
Description |
|
HDMI Output |
HDMI:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
VGA Output |
VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
RCA Audio Output |
1ch |
|
Liveview Display |
1/4/6/8/9/16/25/32 |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
Two-way Audio |
Description |
|
Two-way Audio |
1ch, RCA(Using the audio input and output) |
|
Snapshot |
Description |
|
FTP/Schedule/Event Snapshot |
4ch snapshot, up to 4K resolution |
|
Recording |
Description |
|
Recording Resolution |
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
|
Synchronous Playback in Local |
16ch |
|
Smart |
Description |
|
VCA Detection by IPC |
Face Detection; face detection; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
|
Smart by NVR |
face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD) |
|
VCA Search |
Motor Vehicle Search; NonMotor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map |
|
Smart by IPC |
All channels (up to 8 images/s in total)Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
|
Face Picture Library |
Up to 16 face picture libraries, with up to 50,000 face pictures in total |
|
Search by Image |
Support |
|
Vehicle Picture Library |
Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
|
SIP by NVR |
4ch |
|
UMD by NVR |
8ch |
|
Capacity of Snapshot Records |
2 millions records for face snapshot; 2 millions records for vehicle snapshot; 3 millions records for SIP; 2 millions records for video Metadata |
|
Alarm |
Description |
|
General Alarm |
Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection |
|
Alert Alarm |
IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal; Array Damaged; Array Degraded |
|
GUI Language |
Description |
|
GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|
Hard Disk |
Description |
|
SATA |
4 SATA Interfaces |
|
Capacity |
Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
|
Disk Group |
Support |
|
Redundant Storage |
Support |
|
Disk Array Type |
RAID 1, 5 |
|
External Interface |
Description |
|
Network Interface |
2 RJ45 10M/100M/1000M selfadaptive Ethernet Interface |
|
USB |
Front panel: 1 x USB2.0; Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
RS485 |
1 |
|
RS232 |
N/A |
|
Alarm In |
16ch |
|
Alarm Out |
4ch |
|
Power Supply |
DC 12V/5A |
|
Power Switch |
Support |
|
Working Environment |
Description |
|
Working Temperature |
10 °C ~ 50 °C (14 °F ~ 122 °F) |
|
Working Humidity |
≤ 90% RH (noncondensing) |
|
Power Consumption (without HDD) |
≤ 12W |
|
Dimensions |
Description |
|
Weight (without HDD) |
≤ 3.4Kg (7.5lb) |
|
Height |
1U |
|

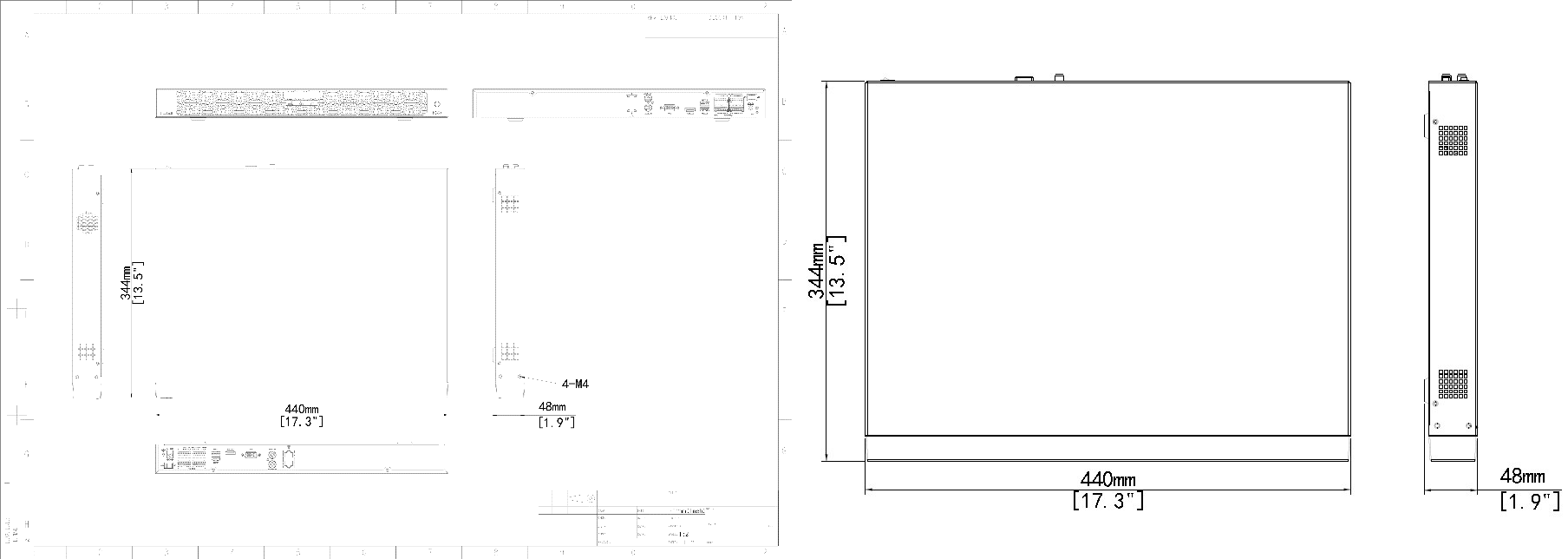

Dimensions |
440mm × 344mm × 48mm (17.3"×13.5"×1.9") |
|
Certification |
Description |
|
Certification |
CE, FCC, UL, RoHS, WEEE |
|
CE |
EN 55032, EN 6100033, EN IEC 6100032, EN 55035 |
|
FCC |
Part15 Subpart B |
