Decoding

Description

Decoding Format

Ultra 265, H.265, H.264

Decoding Capability

NVR50432B:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264:  2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1

Audio Compression

G.711A, G.711U

Network

Description

Incoming Bandwidth

320Mbps

Outgoing Bandwidth

160Mbps

Remote Users

128

Protocols

TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; 802.1x; IPV6

Browser(Plugin)

Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)

Video/Audio Input

Description

IP Video Input

NVR50432B:32ch

RCA Audio Input

1ch

Video/Audio Output

Description

HDMI Output

HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA Output

VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

RCA Audio Output

1ch

Liveview Display

NVR50432B:1/4/6/8/9/16/25/32

Corridor Mode Screen

NVR50432B:3/4/5/7/9/10/12/16/32

Two-way Audio

Description

Two-way Audio

1ch, RCA(Using the audio input and output)

Snapshot

Description

FTP/Schedule/Event Snapshot

4ch snapshot, up to D1 resolution

Recording

Description

Recording Resolution

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF

Synchronous Playback in Local

16ch

Smart

Description

VCA Detection by IPC

Face Detection; face detection; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring

VCA Search

Motor Vehicle Search; NonMotor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map

Smart by IPC

All channels (up to 8 images/s in total)Face Detection, face detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring

Alarm

Description

General Alarm

Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection

Alert Alarm

IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal

GUI Language

Description

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

Description

SATA

4 SATA Interfaces

Capacity

Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)

Disk Group

Support

Redundant Storage

Support

Disk Array Type

RAID 1, 5

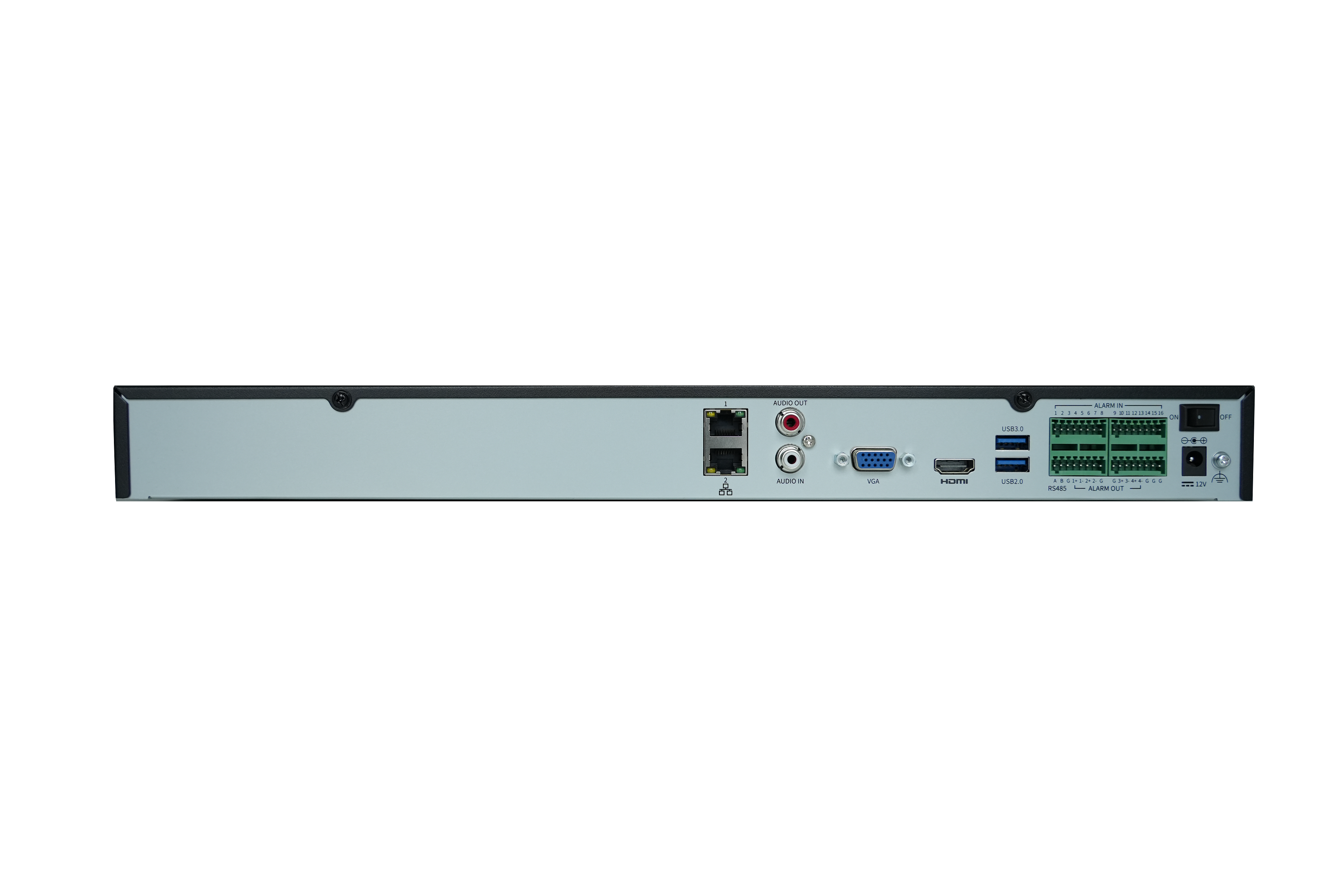

External Interface

Description

Network Interface

2 RJ45 10M/100M/1000M selfadaptive Ethernet Interface

USB

Front: 1 x USB2.0; Rear panel: 1 x USB2.0, 1 x USB3.0

RS485

1

RS232

N/A

Alarm In

16ch

Alarm Out

4ch

Power Supply

DC 12V/5A

Power Switch

Support

Working Environment

Description

Working Temperature

10 °C ~ 55 °C (14 °F ~ 131 °F)

Working Humidity

≤ 90% RH (noncondensing)

Power Consumption (without HDD)

≤ 20W

Dimensions

Description

Weight (without HDD)

≤ 3.4Kg (7.50lb)

Dimensions

NVR50416B:440mm × 344mm × 48mm(17.3"×13.5"×1.9")

NVR50432B:440mm × 344mm × 48mm
(17.3"×13.5"×1.9")

Certification

Description

Certification

CE;FCC;UL;RoHS;WEEE

CE

EN 55032, EN 6100033, EN IEC 6100032, EN 55035

FCC

Part15 Subpart B
