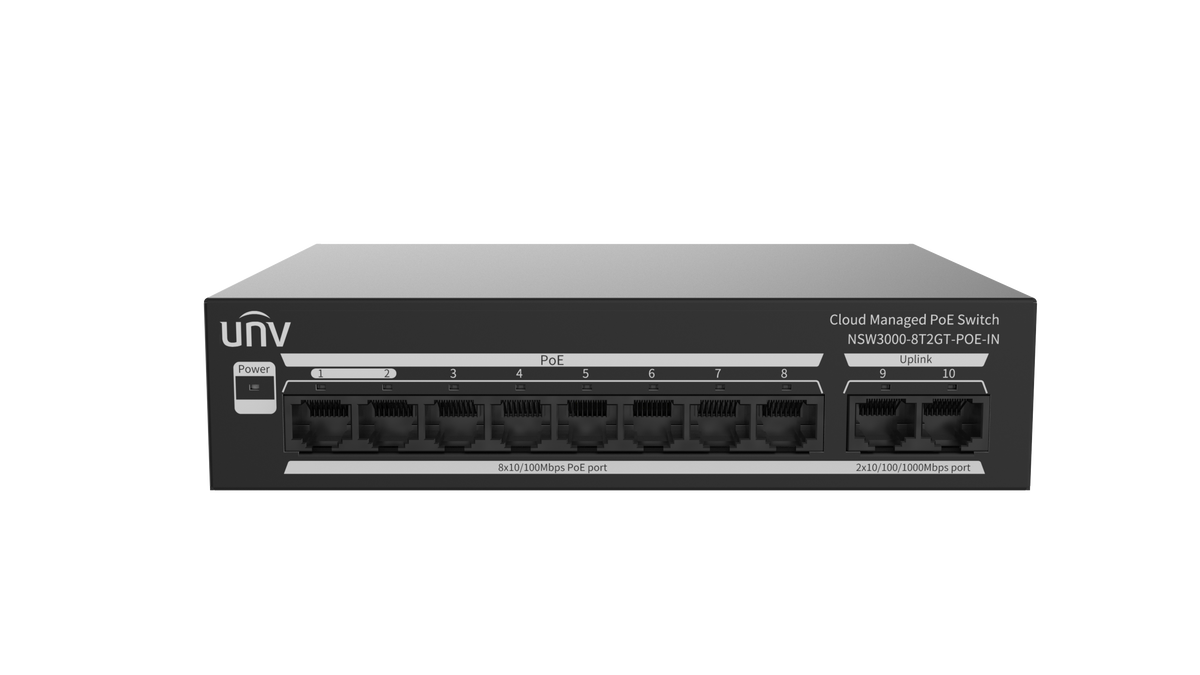

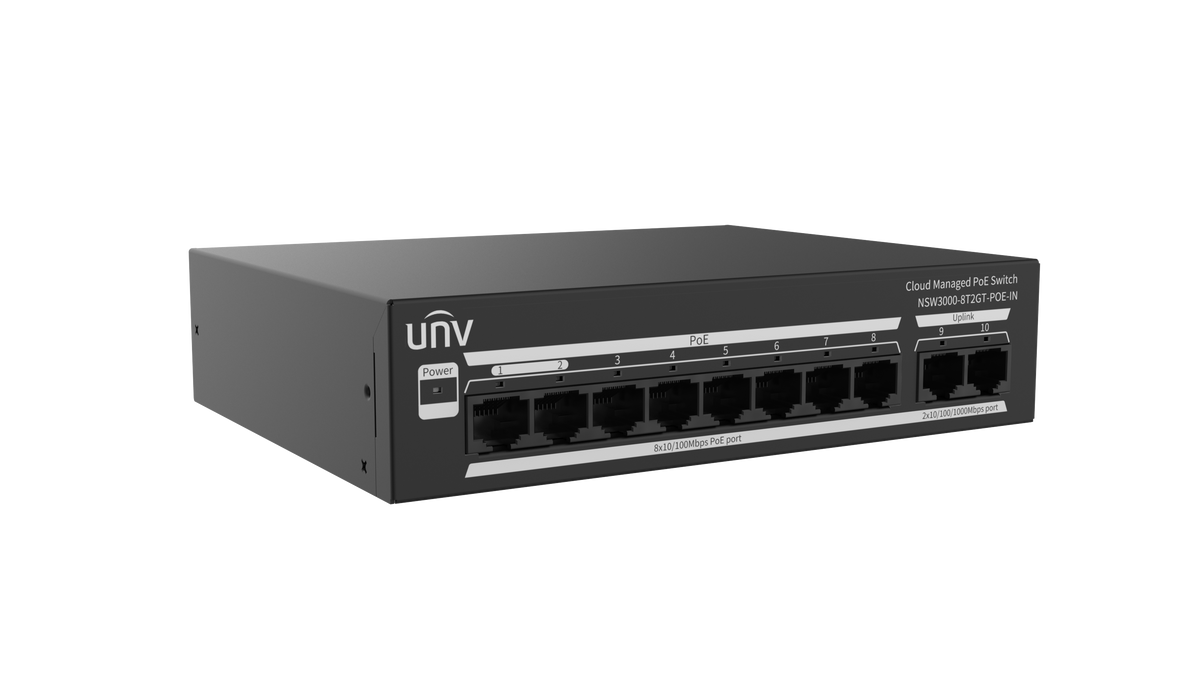

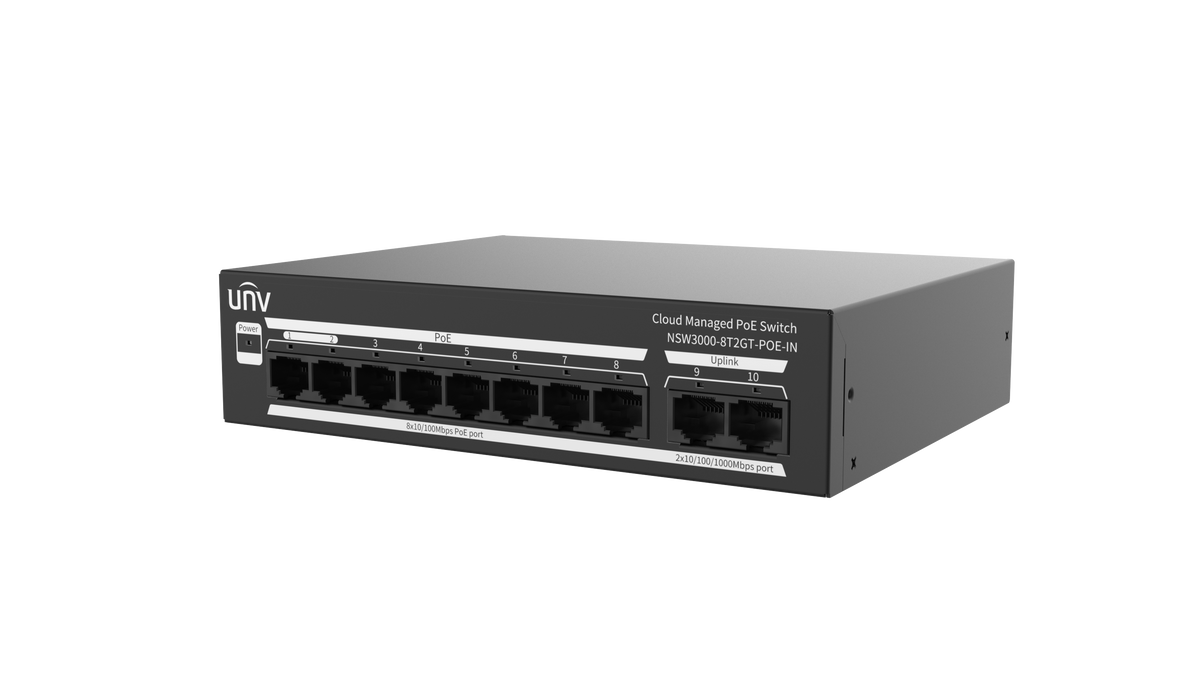

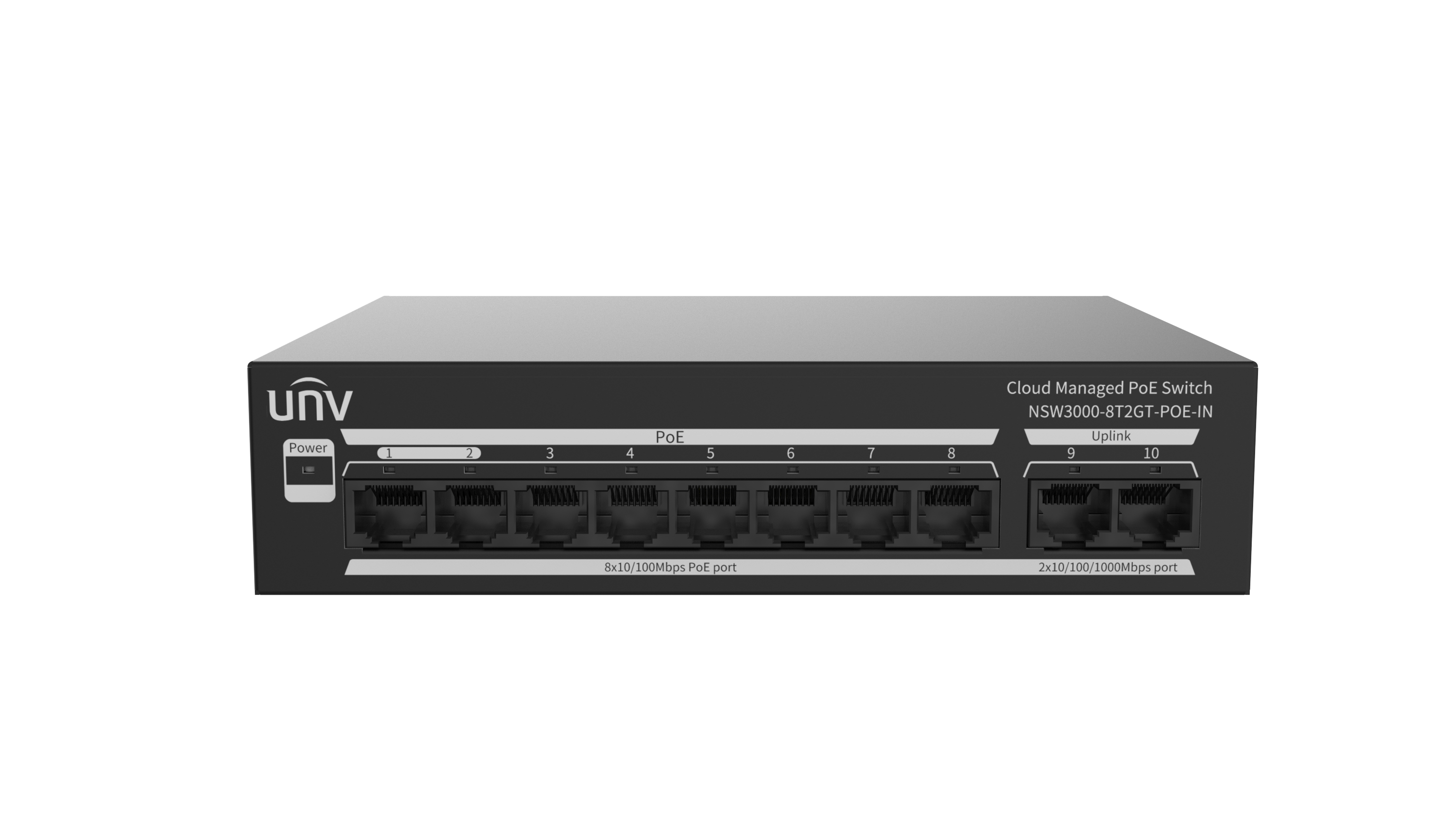

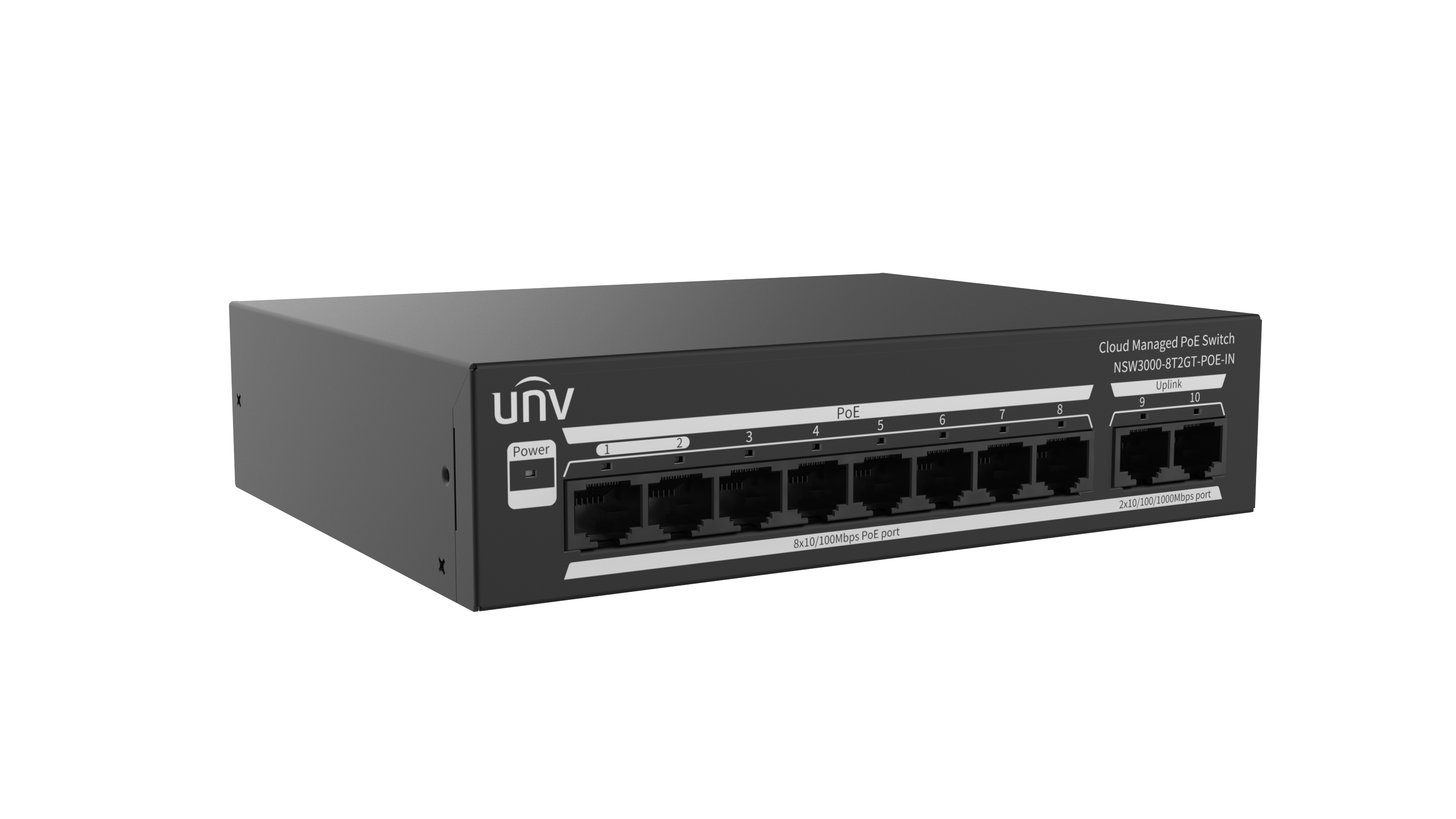

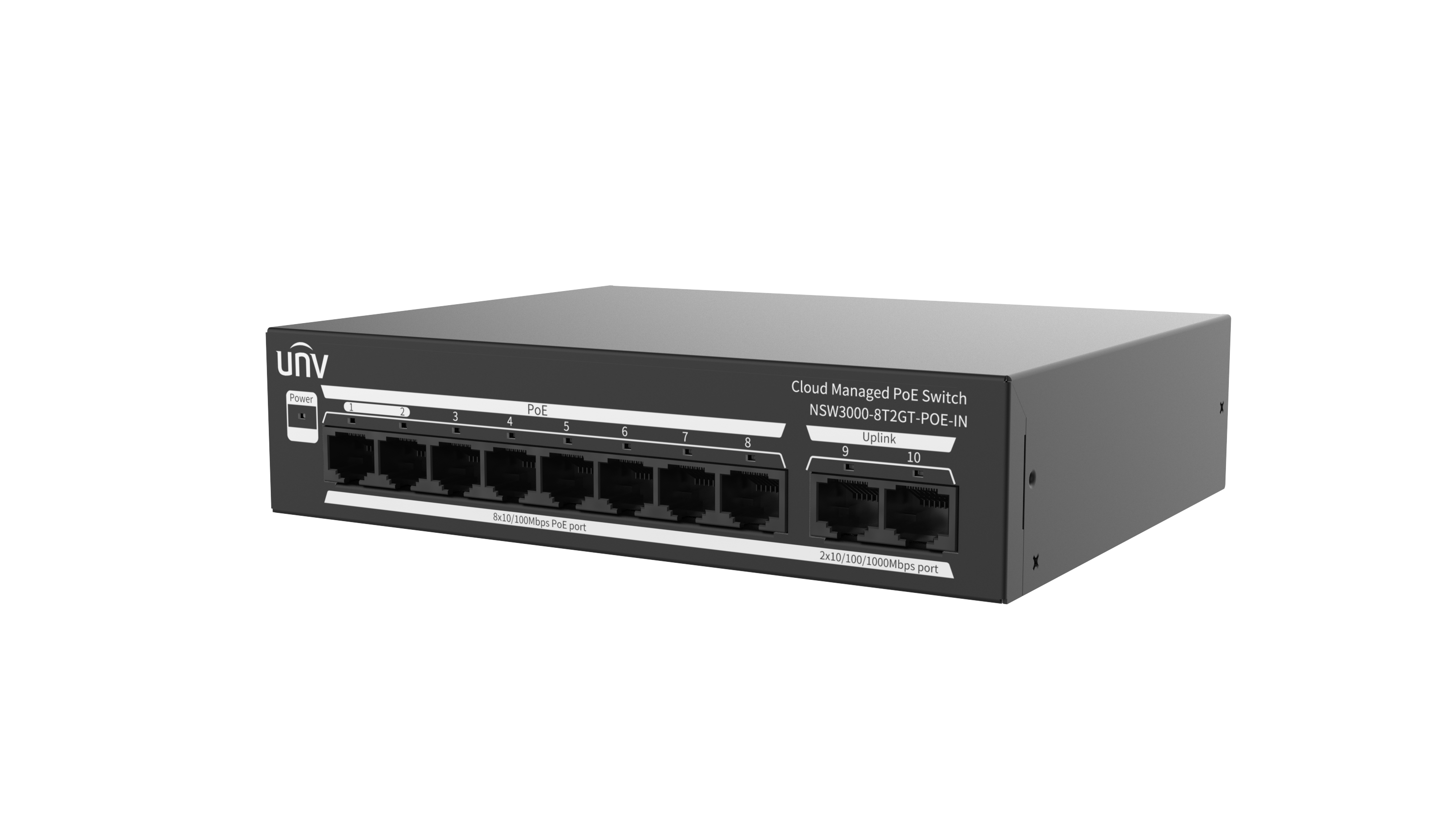

8Port - 10/100 PoE Switch /w 2 Gigabit UplinksPart Number: NSW3000-8T2GT-POE-IN
Ports & Uplinks
8 PoE + 2 Gigabit Uplink
PoE Power Budget
120W Total (30W/Port)
Switching Capacity
5.6 Gbps (4.17 Mpps)
Transmission Range
Up to 250m (Extend Mode)
Smart & Cloud Management Highlights
Visual Topology Management & Auto Video Device Discovery
Cloud Mobile App Management & One-Click Camera Reboot
250m Long-Distance PoE Transmission (Extend Mode)
Intelligent Port Priority & PoE Watchdog (Ports 1–2)
PoE Standards
IEEE 802.3af, IEEE 802.3at (PoE+)
PoE Power Budget
120W Max Budget (Up to 30W Single Port)
Port Configuration
8 Fast Ethernet PoE (RJ45) + 2 Gigabit Uplink (RJ45)
Performance
5.6 Gbps Switching Capacity / 4.17 Mpps
Chassis & Cooling
All-Metal Casing, Fanless Silent Design
NDAA Compliant
Yes
Warranty Period
3 Years
| Hardware, Ports & PoE (NSW3000-8T2GT-POE-IN) | |
|---|---|
| Ports & Interfaces | |
| PoE Downlink Ports | 8 x 10/100Mbps RJ45 PoE Ports |
| Uplink Ports | 2 x 10/100/1000Mbps RJ45 Gigabit Ports |
| Total Port Count | 10 Ports (8 Fast Ethernet PoE + 2 Gigabit Uplink) |
| Prioritized Ports | Ports 1 to 2 (Forwarded first on load & prioritized power supply) |
| Switching Performance | |
| Switching Capacity | 5.6 Gbps |
| Forwarding Performance | 4.17 Mpps |
| Packet Buffer | 2 M bit |
| MAC Address Table | 4K (Supports clearing dynamic MAC addresses) |
| PoE Power Delivery | |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Max PoE Budget | 120W Maximum Total Power |
| Single Port PoE Output | Up to 30W per port |
| PoE Pin Assignment | Mode A (1, 2, 3, 6) & Mode B (4, 5, 7, 8) |
| Long-Distance Transmission | Up to 250m power & data transmission in Extend Mode (10Mbps auto-negotiation) |
| Status Indicators | |
| Power Indicator | Green: Normal input | Yellow: PoE load exceeds 85% | Off: Abnormal power input |
| Link / Activity Indicator | On: Connected | Blinking: Transmitting data | Off: Disconnected |
| Software, Management & General | |
|---|---|
| Network & Layer 2 Features | |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Transmission Modes | Full Duplex, Half Duplex, Auto-Negotiation |
| Port Control & Flow | Port enable/disable, auto-negotiation rate, priority flow control, flow statistics |
| Link Aggregation | Supports 1 Link Aggregation Group (consisting of the two uplink ports) |
| VLAN, QoS & Security | |
| VLAN Support | Supports Access and Trunk modes; up to 32 VLANs (VLAN IDs 1–4094) |
| QoS & Storm Control | Port rate limitation, broadcast storm control |
| Port Security & IP Lock | Port isolation (downlink ports), lock login IP address (up to 64 addresses) |
| Loop Prevention & Mirroring | Loop Detection supported, N:1 Port Mirroring |
| Cloud & Topology Management | |
| Network Topology Mapping | Auto-discovery of connected video devices & visual network topology generation |
| Management Platforms | Web browser interface & Cloud Mobile App (via QR code scan) |
| Remote PoE Management | Real-time status/power monitoring, one-click camera reboot via App |
| Connected Device Visibility | View up to 32 switches on same network; view up to 64 connected video devices |
| System Maintenance | Unified software management, firmware upgrade, factory reset, config/log export |
| Power, Environment & Physical | |
| Power Supply | AC 100V ~ 240V, 50/60Hz (Internal Power) |
| Total Power Consumption | ≤ 130W (with full PoE load) |
| Cooling System | Fanless passive cooling (0 fans, 0 dB silent operation) |
| Casing & Enclosure | All-metal durable casing |
| Operating Temperature | 0°C ~ 45°C (32°F ~ 113°F) |
| Operating Humidity | 5% ~ 90% RH (non-condensing) |

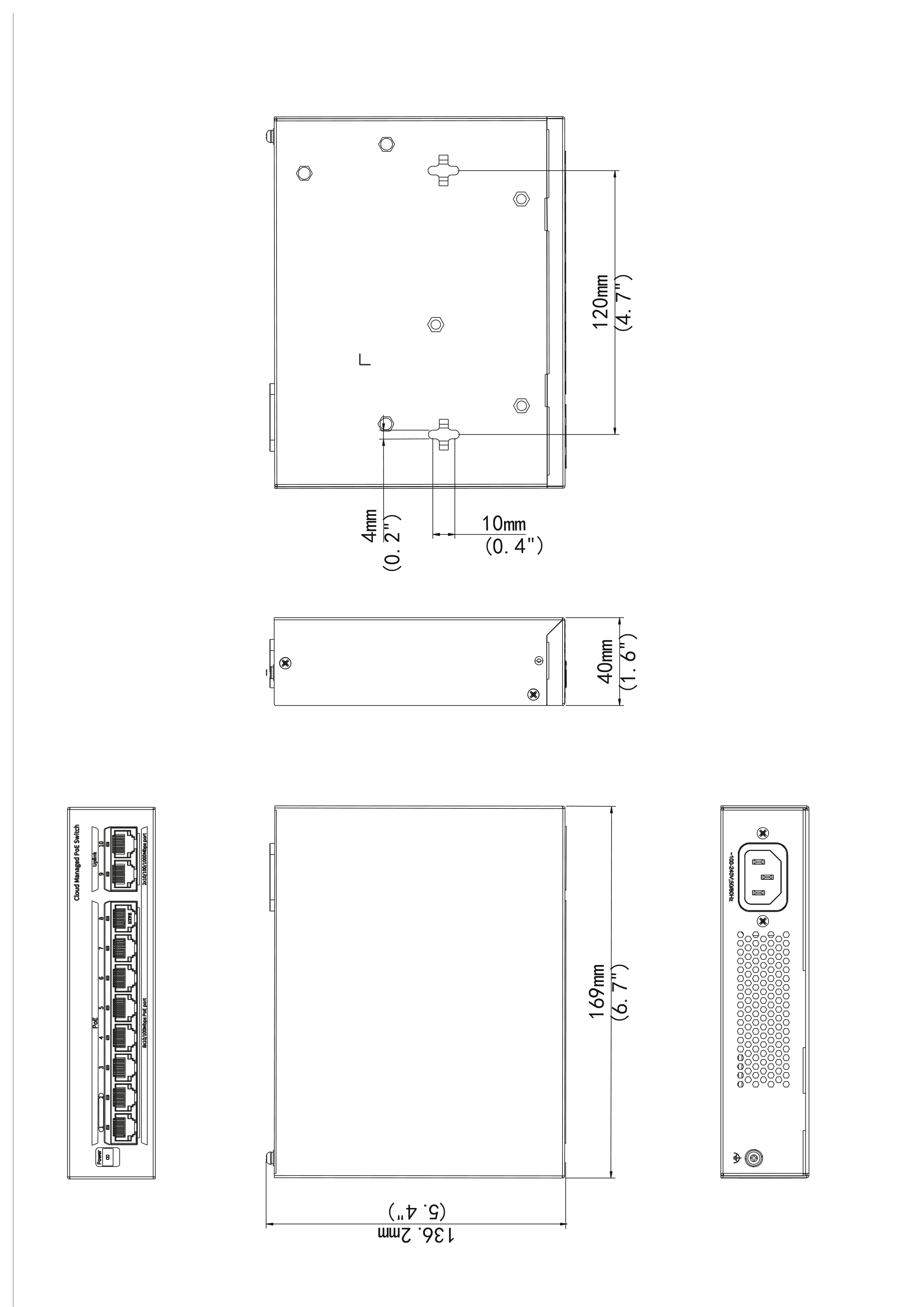

| Dimensions & Weight | 169mm × 132mm × 40mm (6.7" × 5.2" × 1.6"), Weight: 0.67 kg (1.48 lb) |
| Compliance | NDAA Compliant |
